2AG7C-SNAP5SBATTERY CAMERA

QUICK GUIDE ORIGINALITY DESIGN SMART - AND BEAUTIFUL BATTERY CAM Snap 5S What's in the box Bracket USB cableSnap 5S Power adapter Screws(2 kinds)Rubber x 2 Pin A x 2 B x 2 Micro USBReset Battery SD card slot Speaker Microphone Power button & Status light PIR Lens Description Power Port Power Status light DC 5V±10% Press the button for 3 seconds to turn on/off the camera Red light solids on: the camera network is abnormal Red light blinks: awaiting WiFi connection, or currently connecting (faster blinking) Blue light solids on: camera running correctly Capture sound for your video Support local SD Card storage (Max.128G) Press and hold on for 5 seconds with pin to reset the camera Microphone Reset SD card slot 1 Fix the bracket on the wall Install 3. Slide the camera slowly into the bracket from the direction of the arrow 4. Adjust the camera's proper angle 2.Install rubber *NOTE: Remove the rubber before resetting Download SmartLife is available for both iOS and Android OS. Search the name 'SmartLife'in App Store or Android Market, or scan below QR-Code to download the App. Log in the SmartLife, select "Add Device", and add the smart camera to the APP according to the screen tips(Make the smart camera close to the router when configuring). NOTE:If you need to re-select the WiFi network, please press and hold the "RESET" button for 5 seconds, the device will restart, and the indicator will be flashing red. Connect Add device Android IOS ·Support Dowoload App(IOS&android) 功能介绍Functions Record Using SD card or Opening the Cloud-Storage Service, to keep recording for every moment. Day & Night Powerful night vision means no interruptions, even in complete darkness. DaytimeNight Full-duplex audio You can see and hear the vistor in your App from the camera. PIR When the camera detects someone stopping by, it sends an alarm message to your cell phone. Low battery alarm You can set a low-battery alarm threshold in your phone App. The threshold is set to a minimum of 10% and a maximum of 50%. When the battery power of the camera is lower than the set threshold, the App will have a reminder. Remote wake-up The camera will be in a sleep mode to save power; you can have a preview in App. FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

QA-FR-170-B Company: Hangzhou Meari Technology Co., Ltd. Add: No.91, Chutian Road, Xixing Block, Binjiang, Hangzhou, 310051 China Tel: +8615869048127 Fax: 0571-5 6565100 FCC Authorization Date: 2019-12-25 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Hangzhou Meari Technology Co., Ltd, the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Typed or Printed Name: Li Zhu Title: Manager

Company Name: Hangzhou Meari Technology Co., Ltd. Add: No.91, Chutian Road, Xixing Block, Binjiang, Hangzhou, 310051 China Tel: +8615869048127 Fax: 0571-56565100 E-mail: [email protected] FCC Confidential Authorization Date: 2019-12-25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AG7C-SNAP5S To : whom it may concern, In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Hangzhou Meari Technology Co., Ltd. hereby requests long-term confidential treatment of information accompanying th is application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Typed or Printed Name: Li Zhu Title: Manager

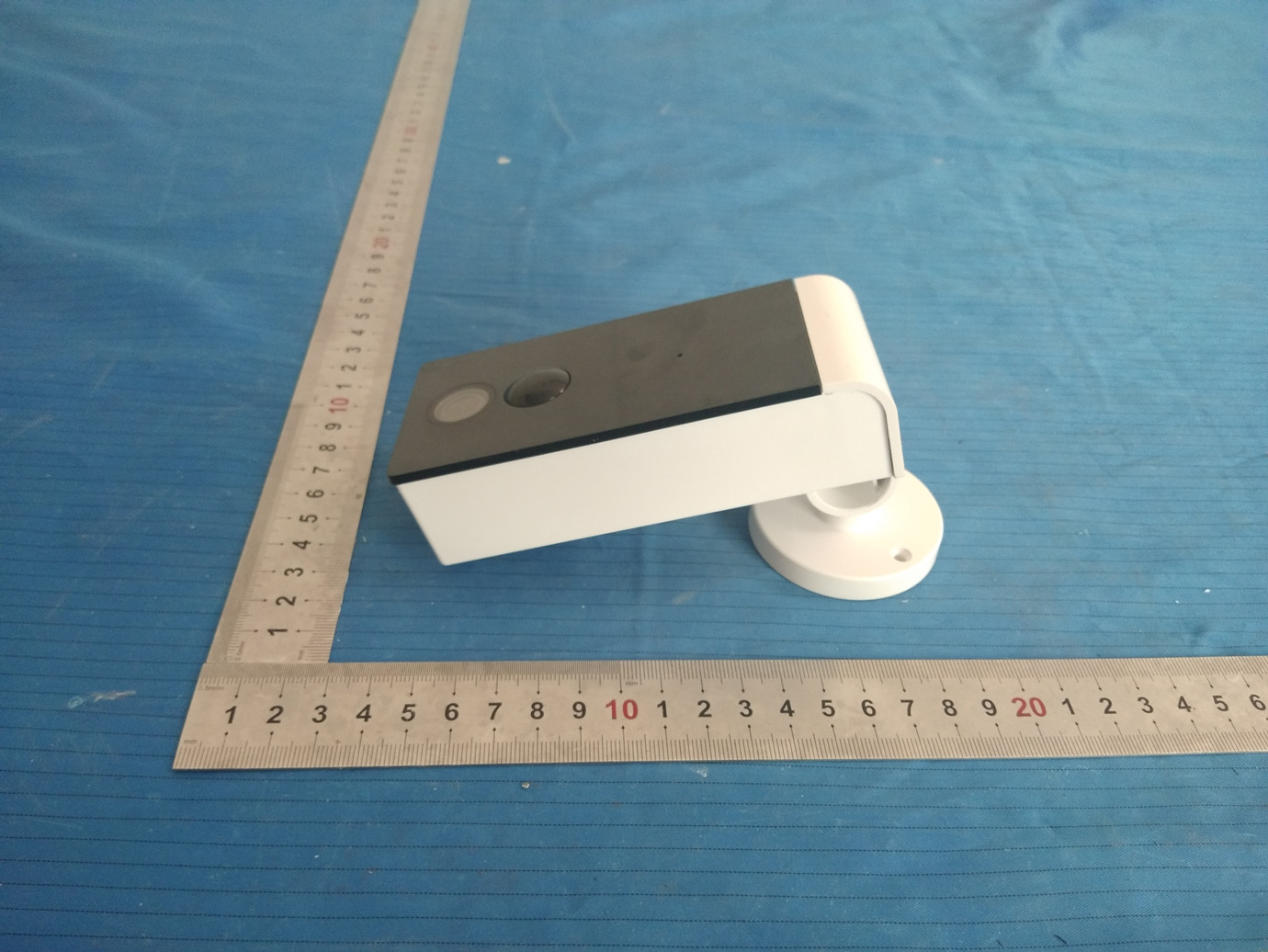

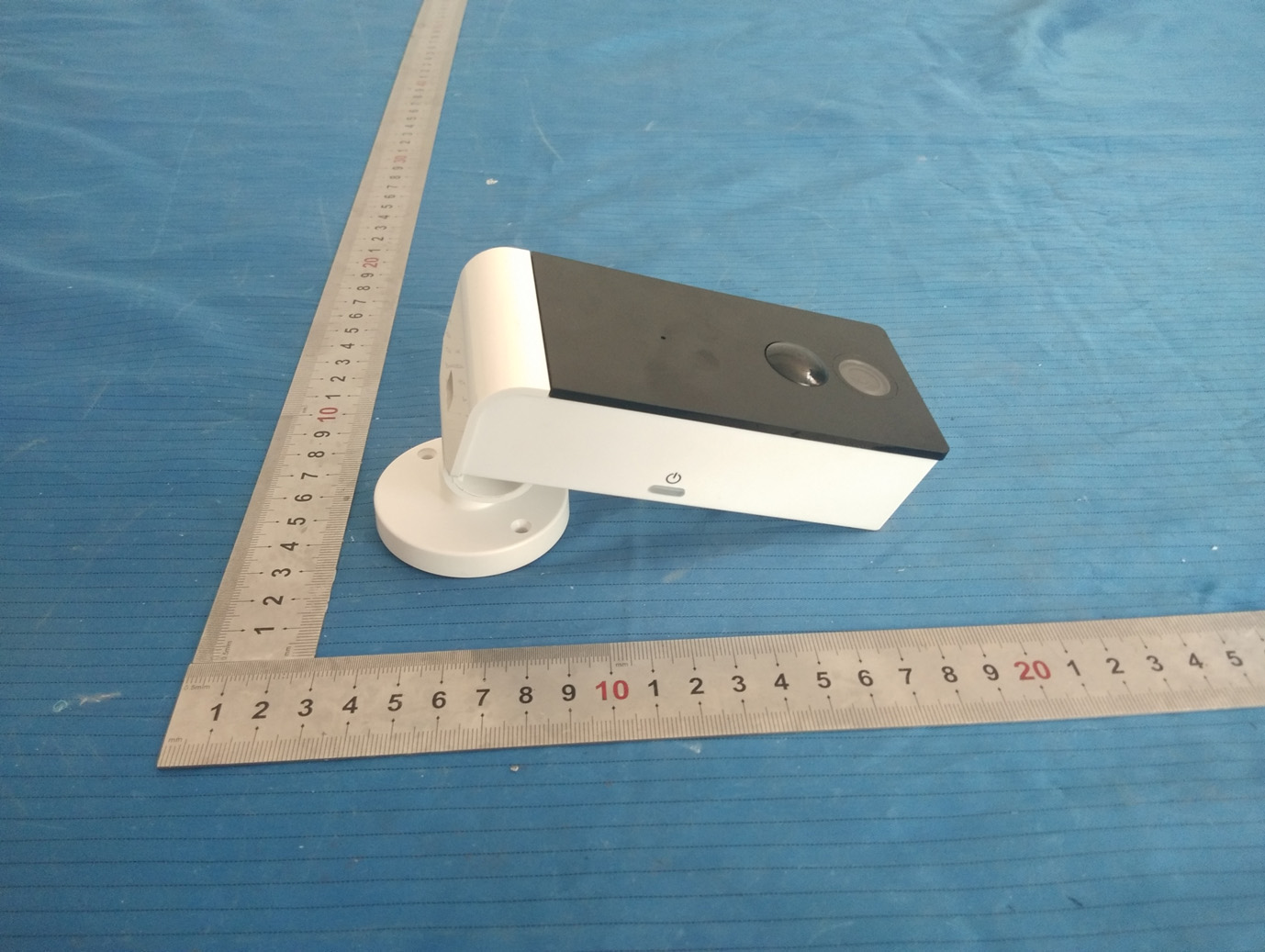

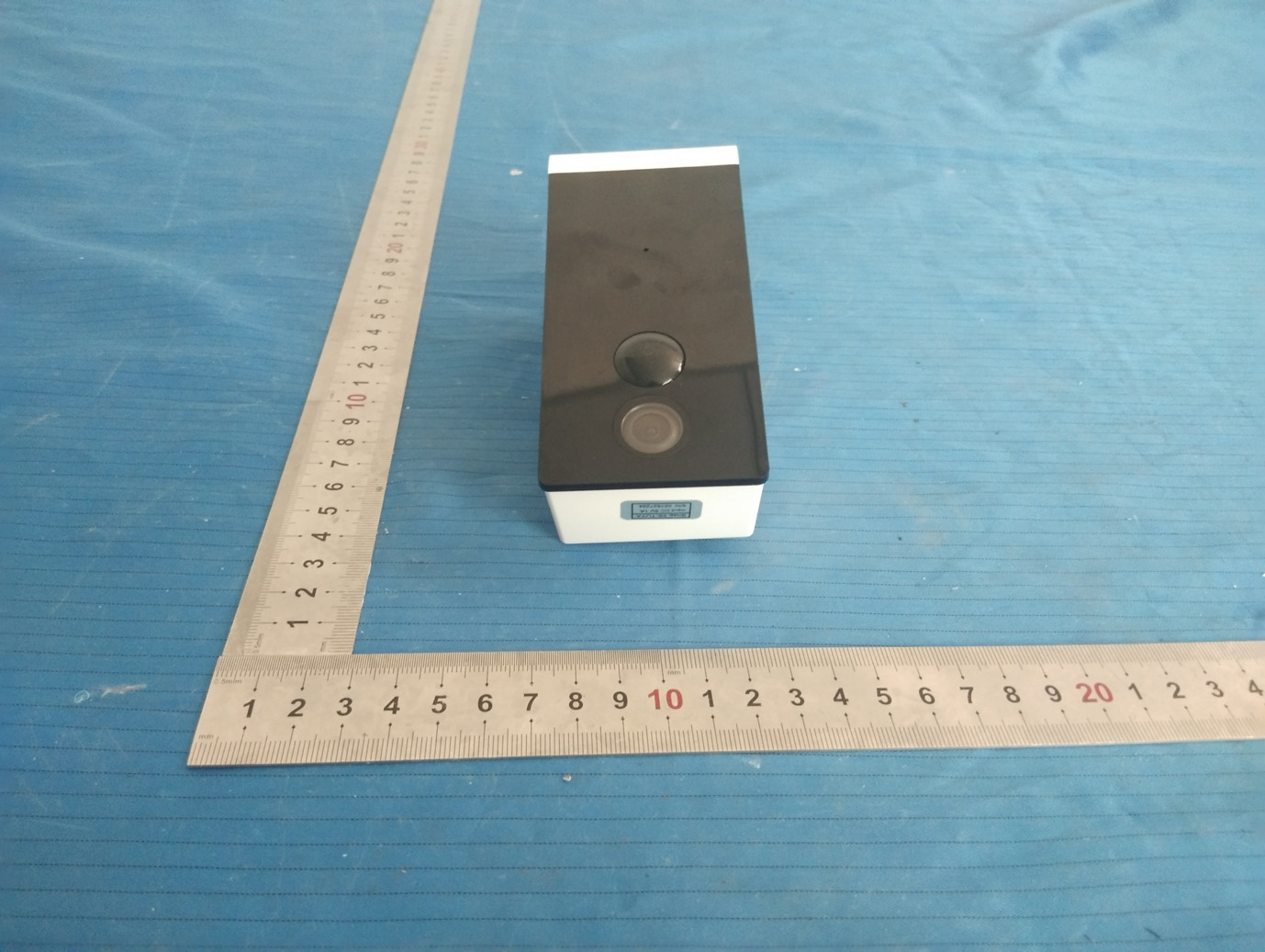

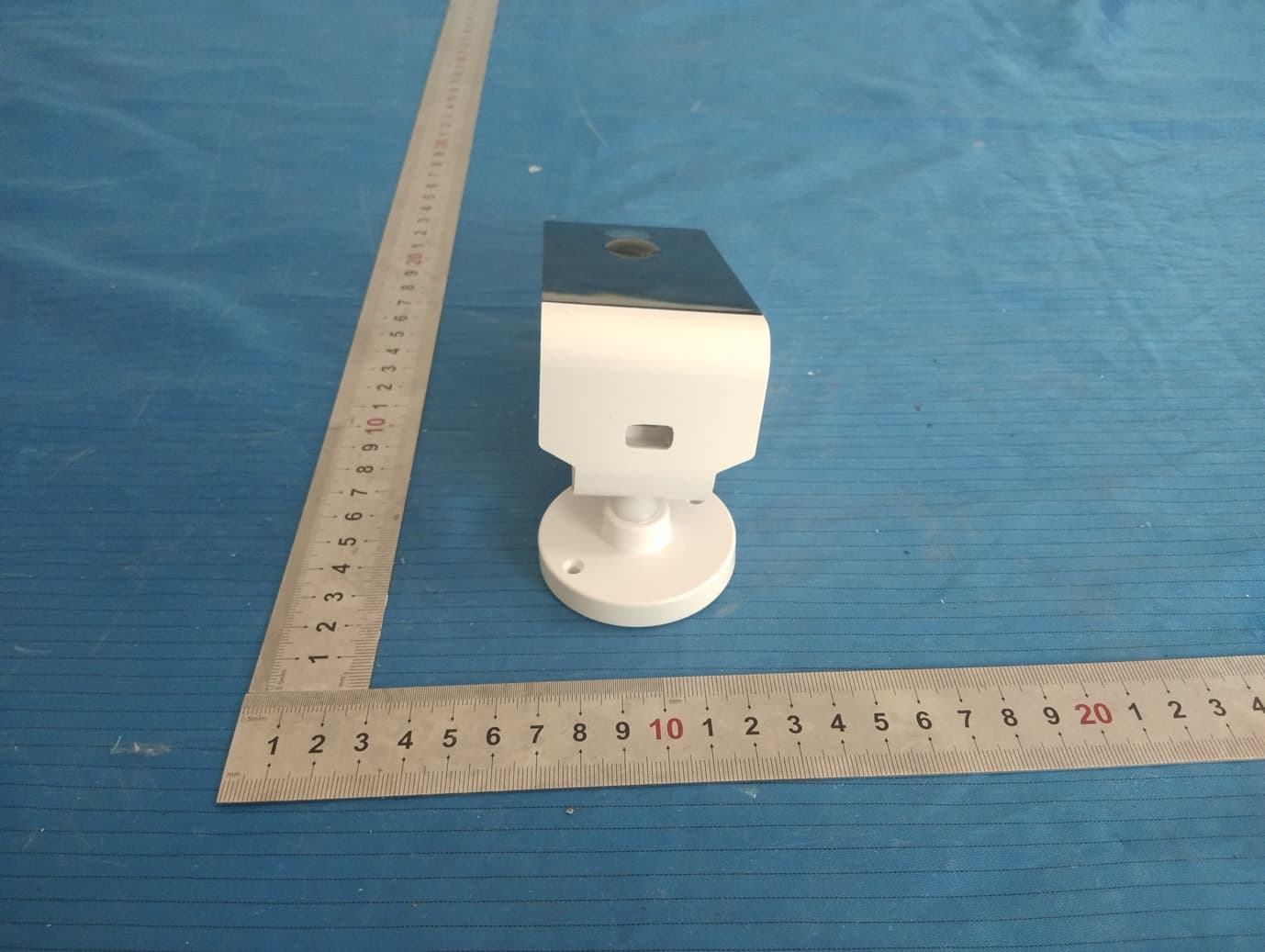

EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT B - EUT INTERNAL PHOTOGRAPHS Wi-Fi Antenna

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA191225002-00B FCC Part 15.247 Page 13 of 65 FCC §1.1310 & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §2.1091 and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency Range (MHz) Antenna Gain Tune-up Output Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) 802.11b 2412~2462 3.0 2.00 18.0 63.10 20 0.0251 1.0 802.11g 3.0 2.00 20.0 100.00 20 0.0398 1.0 802.11n-HT20 3.0 2.00 21.5 141.25 20 0.0562 1.0 802.11 n-HT40 2422~2452 3.0 2.00 21.0 125.89 20 0.0501 1.0 Note: The Tune-up output power was declared by the Manufacturer. Conclusion: The device meets MPE at distance 20cm.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Hangzhou Meari Technology Co., Ltd. No.91, Chutian Road, Xixing Block, Binjiang, Hangzhou, 310051 China FCC ID: 2AG7C-SNAP5S Report Type: Original Report Product Type: BATTERY CAMERA Test Engineer: Jack Jiao Re port Number: RSHA191225002-00B Re port Date: 2020-06-23 Reviewed B y: Oscar Ye EMC Mana ger Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu province, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA191225002-00B FCC Part 15.247 Page 2 of 65 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 9 EXTERNAL I/O CABLE .................................................................................................................................................. 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 TEST EQUIPMENT LIST ......................................................................................................................................... 12 FCC §1.1310 & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................................... 13 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (a) - AC LINE CONDUCTED EMISSIONS ...................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 15 FACTOR & OVER LIMIT CALCULATION ...................................................................................................................... 16 TEST RESULTS SUMMARY .......................................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 16 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 19 APPLICABLE STANDARD ............................................................................................................................................ 19 EUT SETUP ................................................................................................................................................................ 19 EMI TEST RECEIVER SETUP ...................................................................…

Text truncated - open the document above for the full version.

EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions (Front View) Conducted Emissions (Side View) Radiated Emissions (Below 1GHz) Radiated Emissions (Above 1GHz)
