2AG7C-SNAP8TABATTERY CAMERA

QUICK GUIDE ORIGINALITY DESIGN SMART - AND BEAUTIFUL BATTERY CAM Battery Camera 1 Battery Camera Screws(2 kinds) Silicone plug User Manual Bracket Pin Power adapter Please consult this checklist for all parts. What's in the box USB cable 2 Reset SD card slot RET SD Power button Micro USB Microphone PIR Status Light Camera Speaker Power Port Power on/off Status light DC 5V±10% Press the button for 3 seconds to turn on/off the camera Red light solids on: the camera network is abnormal Red light blinks: awaiting WiFi connection, or currently connecting (faster blinking) Blue light solids on: camera running correctly Support local SD Card storage (Max.128G) Press and hold on for 5 seconds to reset the camera Reset SD card slot Red indicator solids on: battery is charging Blue indicator solids on: charging completed Charging indicator Battery capacity6700mAh (Two 18650 lithium-ion batteries) 3 Mode 1 Bottom Bracket Installation Mode 2 Side Bracket Installation Install 1.Fix the bracket to the wall with the mounting screws 2.Install the camera in the bracket and lock it with the screw 3.Install the camera in the bracket and lock it with the screw 1.Fix the mounting bracket in the angle wall mount 2.Fix the angle wall mount to the wall 1 2 4 Download Cloudedge is available for both iOS and Android OS. Rearch the name 'Cloud edge'in App Store or Android Market, or scan the QR-Code to download the App. Connect ipadAndroidIOS ·Support Download App(IOS&android) Log in the CloudEdge, select "Add Device", and add the smart camera to the App according to the screen tips(Make the smart camera close to the router when configuring). NOTE:If you need to re-select the WiFi network, please press and hold the "RESET" button for 5 seconds, the device will restart, and the indicator will be flashing red. Add device 5 Q: Why is it still in the list of devices after reseting? A: The reset device only resets the network configuration of the camera, but cannot change the configuration on the App, remove the camera, and must be deleted by the App. Q: How to cut the camera network to another router? A: First remove and reset the device on the App and then configure the device again by the App. Q: Why doesn't the device identify the SD card? A: It is recommended to plug in SD card after power cut. Confirm whether the SD card is normally available and the format is FAT32. And the TF card can’t be identified when the internet environment is not good. Q: Why I can’t get the notifications with my cell phone App? A: Please confirm that the App has been running on the phone, and the relevant reminder function has been opened;Message notification and authority confirmation in the mobile phone system have been opened. Q: The device cannot be previewed properly? A: Check whether the network is normal, you can place the camera close to the router, and if not, it is recommended to reset the device and add it again. FAQ 6 DaytimeNight Functions Record Using SD card or opening the Cloud-Storage Service, to keep recording for every moment. Day & Night Powerful night vision means no interruptions, even in complete darkness. Full-duplex audio You can see and hear the vistor in your App from the camera. PIR When the camera detects someone stopping by, it sends an alarm message to your cell phone. Low battery alarm When the battery power is lower than your set, the App will send a notification to your mobile phone. Remote wake-up The camera will be in a sleep mode to save power; you can have a preview in App. 7 Functions FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no- collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Hangzhou Meari Technology Co., Ltd. Attention: Application Examiner Re: Certification designating a U.S. agent for service of process pursuant to section 2.911(d)(7) of the FCC rules To whom it may concern, This letter is to confirm both [TianHeng Consulting, LLC] (“Agent”) and [Hangzhou Meari Technology Co., Ltd.] (“Applicant”) acknowledge consent to obligations of each party pursuant to 47 CFR part §2.911(d)(7) of the FCC rules in regard to the agent for service of process. I [Zhiyang Chai] HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant. I further acknowledge the requirement to maintain an agent extends for no less than one year after the termination of all marketing and importation or the conclusion of and commission-related proceeding involving the equipment and agree to immediately notify the FCC if there is any change in the status identified above. Applicant Company Name : Hangzhou Meari Technology Co., Ltd. Contact Name : Zhiyang Chai Address : Room 604-605,Building 1,No.768 Jianghong Road,Changhe street,Binjiang District,Hangzhou,zhejiang,China Telephone No : +86 - 571 - 56565099 Email : [email protected] Signature: ____________________________________ Date: ___02/15/2023_______ I, Hualing Dong, HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Agent. I consent to the obligation to accept service of process on behalf of the applicant in regard to all certification applications to the FCC submitted by above applicant during the period of this agreement which ends at the specified date below. I agree to immediately notify the FCC if there is change in this representation. This current agreement term is one year. Agent Company Name : TianHeng Consulting, LLC FRN : 0033401258 Contact Name : Hualing Dong Address : 392 Andover Street, Wilmington, MA 01887, United States Telephone No : +1 617-997-4010 Email : [email protected] Signature: ____________________________________ Issue Date: February 15, 2023 Expiry Date: February 15, 2024 FRN 0025181900 :

HangzhouMeariTechnologyCo.,Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.8.21 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filling FCC ID: 2AG7C-SNAP8TA Hangzhou Meari Technology Co., Ltd. Certifies that, as of the date of the filling of the application, the applicantis notidentified on the Covered List as an entity producing “covered” equipment. Sincerely, ----------------------------------- GranteeContact’sSignature ZhiyangChai Printedname

HangzhouMeariTechnologyCo.,Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.8.21 Ref: Attestation Statements Part 2.911(d)(5)(i) Filling FCC ID: 2AG7C-SNAP8TA Hangzhou Meari Technology Co., Ltd. Certifies that the equipment for which authorization is soughtis not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, ----------------------------------- GranteeContact’sSignature ZhiyangChai Printedname

Confidentiality Request Letter For Certification Service in the USA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoParagraphs§0.457and0.459oftheCommission’sRules(47C.F.R.)andSection §552(b)(4)oftheFreedomofInformationAct,werequestconfidentialityforthe documentationofthefollowingproducts: Model name Snap 8T,Snap 8S,Snap 8Q,Snap 8F,Snap 8SL,Snap 8TL,Snap FCC ID 2AG7C-SNAP8TA 8FL,W1,W1T,W1Q,GO1,GO1T,GO1Q,BEASH-2L-W Fortheproductslistedabove,werequestpermanentconfidentialityforallapplicable exhibitsasthereare: 2023-8-2  the Operational Description  the Block Diagram the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 1 Date Address: Room604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang ， China Phone: +8615869048127 Email:[email protected] Signature PrintedNameofSignee: Company:HangzhouMeariTechnologyCo.,Ltd. n

ModelDeclarationLetter We,theundersigningcompany CompanyName:HangzhouMeariTechnologyCo.,Ltd. Address:Room604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang，China Herebyconfirmthatthefollowingproducts: Tha Product description:BATTERY CAMERA Type designation:Snap 8T,Snap 8S,Snap 8Q,Snap 8F,Snap 8SL,Snap 8TL,Snap 8FL, W1,W1T,W1Q,GO1,GO1T,GO1Q,BEASH-2L-W t Date: 2023-8-21 Name: Zhiyang Chai Telephone: +8615869048127 E-mail: [email protected] PCB board,structure and internal of these model(s) are the same,Only the model name different, So no additional models were tested. Signature: FCC ID: 2AG7C-SNAP8TA

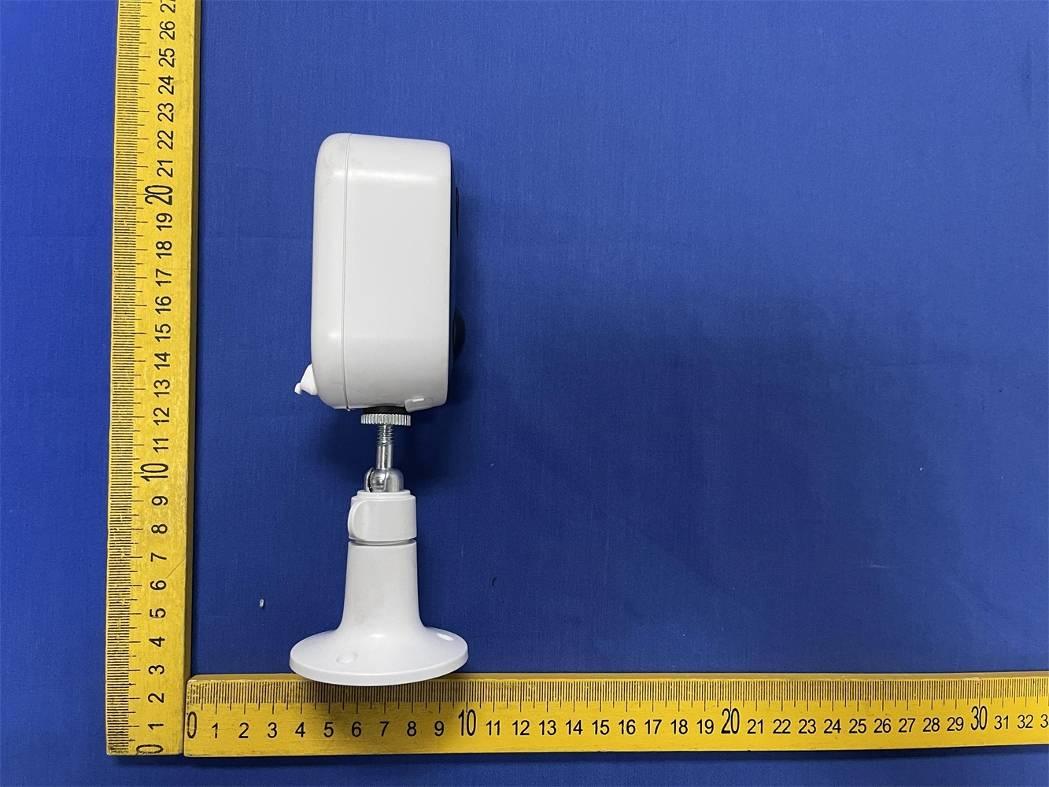

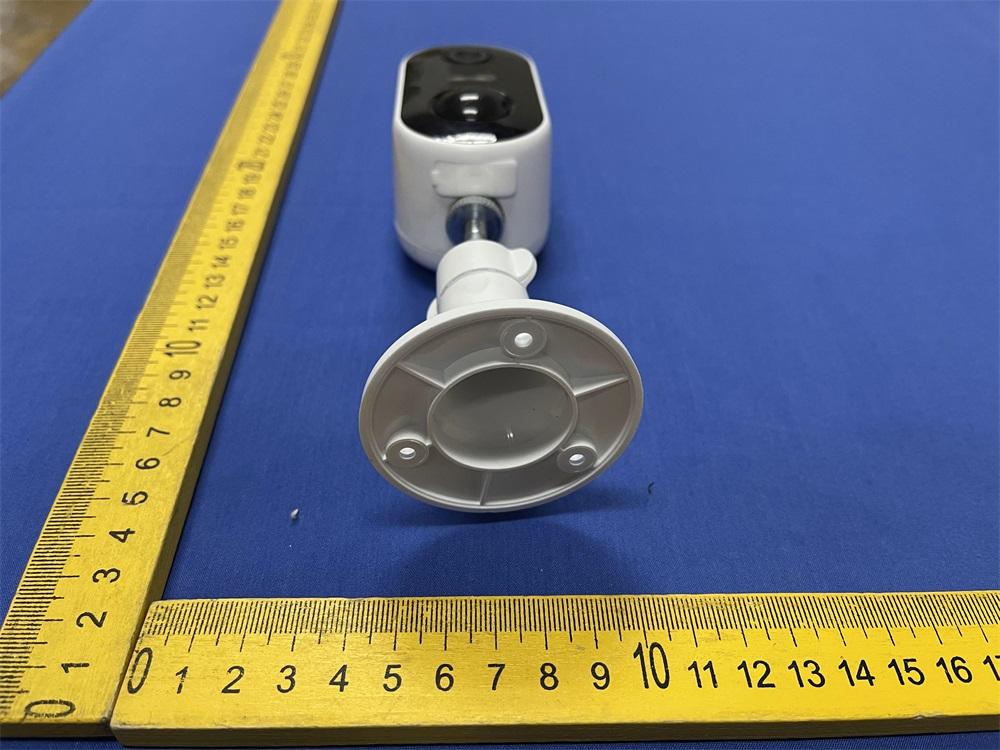

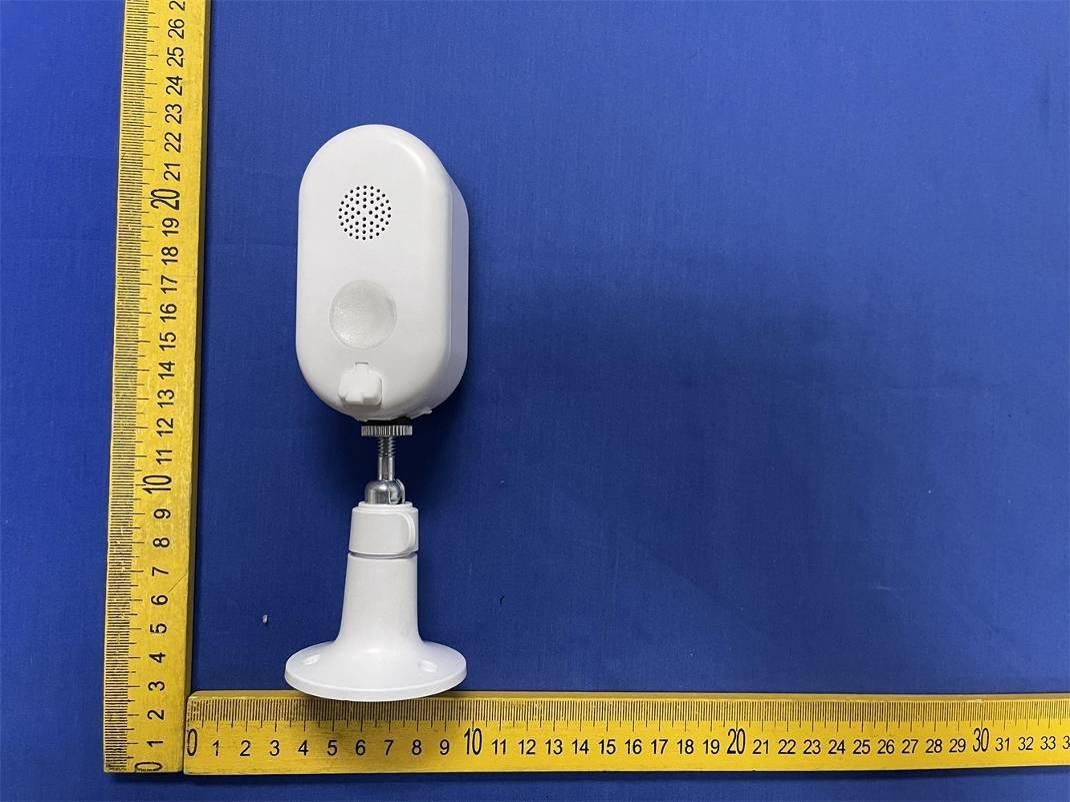

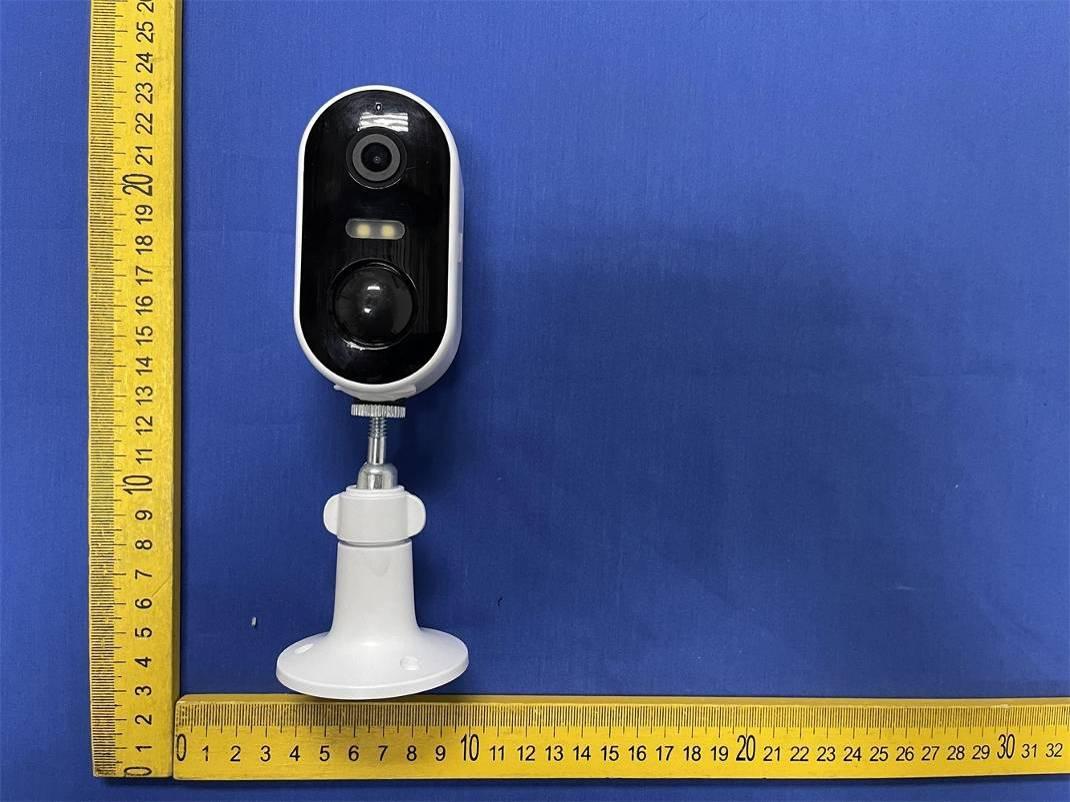

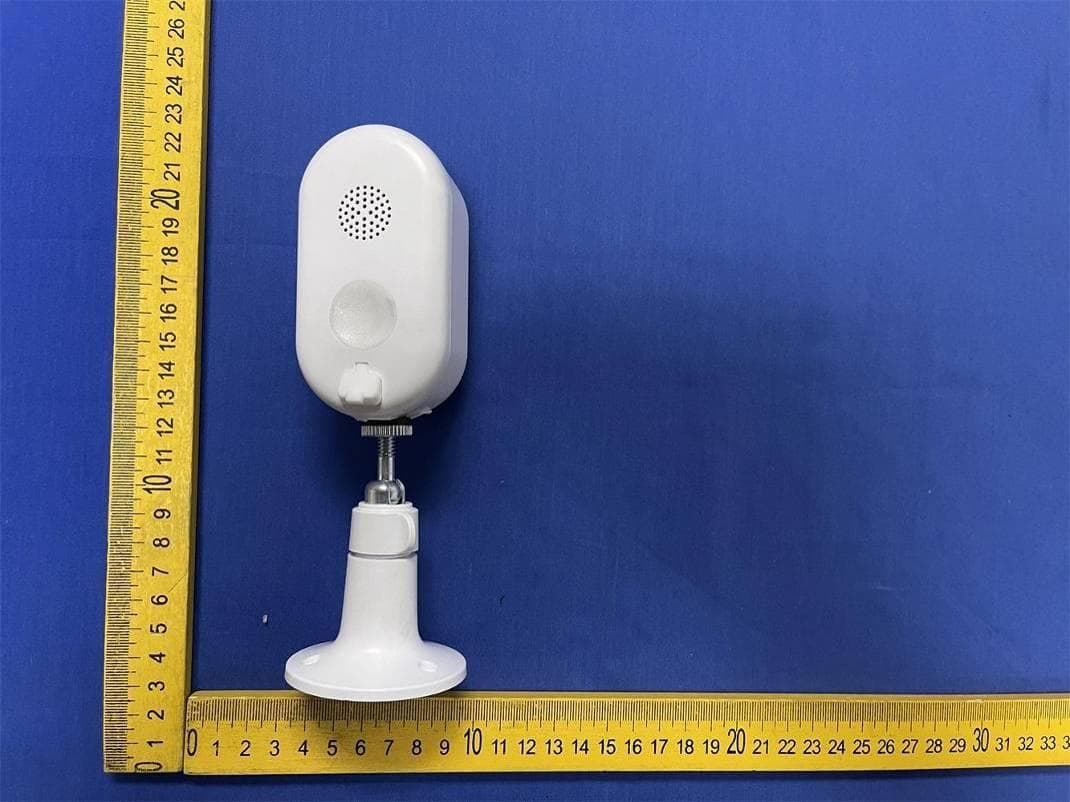

Report No.: GTS20230510013-1-15 Page 31 of 40 6. E X T E R N A L A N D I N T E R N A L P H O T O S O F T H E EUT Fig. 1 Fig. 2 Report No.: GTS20230510013-1-15 Page 32 of 40 Fig. 3 Fig. 4 Report No.: GTS20230510013-1-15 Page 33 of 40 Fig. 5 Fig. 6 Report No.: GTS20230510013-1-15 Page 34 of 40 Fig. 7 Fig. 8 Report No.: GTS20230510013-1-15 Page 35 of 40 Fig. 9 Fig. 10

Labellocation

Report No.: GTS20230510013-1-15 Page 36 of 40 Fig. 11 Fig. 12 Report No.: GTS20230510013-1-15 Page 37 of 40 Fig. 13 Fig. 14 Antenna Report No.: GTS20230510013-1-15 Page 38 of 40 Fig. 15 Fig. 16 Report No.: GTS20230510013-1-15 Page 39 of 40 Fig. 17 Fig. 18 Report No.: GTS20230510013-1-15 Page 40 of 40 Fig. 19 .......................End of Report........................

wo rkin g p rin c i p l edesc ri p t i o n 1.DSP Corechip：UA1T31isMCUchip，DDRmemoryintegratedinMCUchip， ARM926@440MHz,DDR/512Mb.UA2flashisresponsibleforsystemfilesanddata storage,XA124MHzcrystaloscillatorprovidestheclockfrequencytoMCU. 2.VIDEO 1.0MCMOSimagesensorcollectoriginalvideosignal，through10Bitdatabusinto DSPofMCU,thencodingcompressionandoutputtothenetworkpart，meanwhilecanbe storagephotoandvideofromoutsideSDcard. 3.MicroSDCard MUC(UA1)hasSDIOdatacommunicationbus,itcanmakeSDcarddatareading& writingoperationscometrue.SDinterfaceasMicroSDbombcardslot. 4.IR 11PCS2.6mm/F1.6IRLEDlightcanmakeinfraredbetter.IndependentIRLED Board. 5.WIFIModule. Antenna:TheantennatypeusedinthisproductisFPCantennawithreversepolaritySMA connector.Antennagain3.51dBi. Modulationtype:11b:DSSS(CCK,QPSK,BPSK),11/5.5/3/2/1Mbps(Dynamic), 11g:OFDM(64QAM,16QAM,QPSK,BPSK)54/48/36/24/18/12/9/6Mbps(Dynamic), 11n(HT20):OFDM(64QAM,16QAM,QPSK,BPSK):150,135,117,104,78,65,58.5,52, 39,26,19.5,13,6.5Mbps(Dynamic) Crystals:X140MHzandX232.768kHzcrystaloscillatorsprovidetheclockfrequencyto WIFIModule. FrequencyRange:2.412-2.462GHz InputVoltage:DC5V/1Afrompowersupply FCC ID: 2AG7C-SNAP8TA

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20230510013-1-16 2AG7C-SNAP8TA Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Aug.19, 2023 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Hangzhou Meari Technology Co., Ltd. Address ............................................ : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : BATTERY CAMERA Trade Mark ....................................... : N/A Manufacturer .................................... : Hangzhou Meari Technology Co., Ltd. Model/Type reference ...................... : Snap 8T Listed Models .................................. : Snap 8S, Snap 8Q, Snap 8F, Snap 8SL, Snap 8TL, Snap 8FL, W1, W1T, W1Q, GO1, GO1T, GO1Q, BEASH-2L-W Hardware Version ............................ : SNAP8T-T1MB_SC10 REV1_0 Software Version .............................. : N/A Rating ............................................... : DC 5.0V/1.0A by Adapter Result ............................................... : PASS Report No.: GTS20230510013-1-16 Page 2 of 11 T E S T R E P O R T Test Report No. : GTS20230510013-1-16 Aug.19, 2023 ______________________________________________________________________________________________ Date of issue Equipment under Test : BATTERY CAMERA Model /Type : Snap 8T Listed model : Snap 8S, Snap 8Q, Snap 8F, Snap 8SL, Snap 8TL, Snap 8FL, W1, W1T, W1Q, GO1, GO1T, GO1Q, BEASH-2L-W Applicant : Hangzhou Meari Technology Co., Ltd. Address : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Manufacturer : Hangzhou Meari Technology Co., Ltd. Address : 4F of Building 1 and 2-4F of Building 2, No. 91 Chutian Road, Xixing Street, Binjiang District, Hangzhou,Zhejiang,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20230510013-1-16 Page 3 of 11 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT .................................................................................................................................... 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION ..............................…

Text truncated - open the document above for the full version.

深圳市英佳创电子科技有限公司 http://www.szsyjc.com 英佳创联系方式（工厂 /Factory ）： 深圳市光明新区公明街道蒋石社区百顺佳工业园 电话+86-755-27810060/23192199;传真： 公司网址： http://www.szsyjc.com Shenzhen new city hai street light Tel:+86-755-27810060/23192199;Fax Web ：http://www.szsyjc.com CUSTOMER NAME 客户名称 CUSTOMER P/N 客户料号 PART NAME 品名 P/ N 料号 APPROVAL REV. 版次 DELIVERY DATE 送样日期 PREPARED BY 承办 CHECKED BY 审核 APPROVED BY 核准 Prepared By 承办 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 1 页共 8 页 ）： 深圳市光明新区公明街道蒋石社区百顺佳工业园A 栋 7 楼 传真：+86-755-27810057 http://www.szsyjc.com 电子信箱: [email protected] Shenzhen new city hai street light Jiang Shi shun jia industrial park A 7 floor of the community Fax：+86-755-27810057 http://www.szsyjc.com E-mail: [email protected] 觅睿 2.4G 3dBi 黑色 FPC 内置天线 L35mm觅睿 （BELL5 WIFI 天线适用） YJC-6N035-B14 A0 2018 年 10 月 12 日 黄艳凡 伍龙飞 Customer Approved 客户承认 Checked By 审核 Approved By 核准 Jiang Shi shun jia industrial park A 7 floor of the community 觅睿 Approved By 核准 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 1 、 封面 ··············································· 2 、 目录 ··········································································2 3 、 天线平面图 ·································································3 4 、 天线技术参数 ······························································4 5 、 环境性能测试 ······························································4 6 、 天线实物图 ································································· 7 、 天线性能测试图 · 8 、 2D 、 3D 测试数据 9 、 ROHS 物料控制报告 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 2 页共 8 页 目录 ··········································································1 ··········································································2 ·································································3 ·····························································4 ······························································4 ································································ ··························································· 测试数据 ························································· 物料控制报告 ···················································· ···························1 ··········································································2 ·································································3 ·····························································4 ······························································4 ································································5 ·····················5 ··············6-7 ················ 8 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 天线平面图： 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 3 页共 8 页 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 天线技术参数及环境测试： 电器技术参数 电 性 能 指 标 频率范围 2400-2500MHz 电压驻波比 ＜1.92 输入阻抗 50 Ω 方向 全向 增益 3 dBi 机 械 指 标 天线颜色 黑色 接口形式 IPEX 出线长度 35 mm 工作温度 -40°C~+85°C 工作湿度 20~80% 环境性能测试: 项目 储存环境 在没有指定的情况下测试温度、湿度、气压如下： 1. 温度为-30 2.相对湿度为 3.气压为86kpa 高低温试验 在70°C与-20°C之间进行 1-2H，检查外观质量。 耐恒定 湿热试验 相对湿度95± 试品取出后5min 件下1-2H，检查外观质量 振动试验 振频范围10-55HZ 50.0M/S，扫频循环次数： 跌落试验 1M高空按照互相垂直的轴方向自由跌落 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 4 页共 8 页 天线技术参数及环境测试： 电器技术参数 Electrical Specifications Frequency Range 2400-2500MHz VSWR ＜1.92 Input Impedance 50 Ω Direction All Gain 3 dBi Mechanical Specifications Antenna Color BLACK Input connector IPEX Outline length 35 mm Working Temperature -40°C~+85°C Working Humidity 20~80% 测试条件 在没有指定的情况下测试温度、湿度、气压如下： 30°C～+80°C 相对湿度为45%-85% 86kpa-106kpa 电气机械性能正常 °C之间进行5次循环，然后在正常条件下 ，检查外观质量。 尺寸应满足规定并应满 足满足于机械、电气性能 ±3%，试验温度：40°C.持续2H作用后， 5min之内测定电气性能，试品在正常条 ，检查外观质量 尺寸应满足规定并应满 足满足于机械、电气性能 55HZ，位移幅值：0.35MM，加速度幅值： ，扫频循环次数：30次 电气机械性能正常 高空按照互相垂直的轴方向自由跌落3次 电气机械性能正常 2500MHz °C 规格 电气机械性能正常 尺寸应满足规定并应满 足满足于机械、电气性能 尺寸应满足规定并应满 足满足于机械、电气性能 电气机械性能正常 电气机械性能正常 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 天线实物图： 天线性能测试图 : 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 5 页共 8 页 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 2D .3D 测试数据 2D.3D 测试数据 （ 2.4G 测试数据） Frequency 2400MHz 2410MHz 2420MHz 2430MHz 2440MHz 2450MHz 2460MHz 2470MHz 2480MHz 2490MHz 2500MHz 天线摆放示意图 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 6 页共 8 页 Efficiency (%) Gain.(dBi) 62.09 3.08 64.42 3.18 64.27 2.96 66.68 3.10 65.01 2.86 68.39 3.21 71.61 3.27 76.91 3.51 72.95 3.21 76.21 3.42 72.61 3.36 坐标： 蓝线 Z 红线 X 绿线 H 图： XY 面 E1 图： ZY 面 E2 图： ZX 面 Gain.(dBi) 3.08 3.18 2.96 3.10 2.86 3.21 3.27 3.51 3.21 3.42 3.36 绿线 Y 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 7 页共 8 页 深圳市英佳创电子科技有限公司 兹证明向貴司交货的零組件、辅助材料所使用的原材料、以及生产工程中的添加剂等均符合 2011/65/EC) 关于零组件、辅助材料所使用的原材料、包装材料以及和产过程中使用的添加剂等的构成成份报告如下： 组成物料名 称 Component /Part Name 组成材料 Material Composition ICP 报告编号 ICP report # 线材 铁氟龙同 轴线缆 CANEC1723893202 FPC FPC 天线 SZXEC1700809101 IPEX PBT CE/2017/C3390 C5210铜 XMNEC1701306005 金镀层 CANEC1723511701 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 8 页共 8 页 ROHS 物料控制报告 兹证明向貴司交货的零組件、辅助材料所使用的原材料、以及生产工程中的添加剂等均符合 RoHS 限制使用有害物质指令的环保要求（ 关于零组件、辅助材料所使用的原材料、包装材料以及和产过程中使用的添加剂等的构成成份报告如下： 报告编号 ICP report # 测试 机构 Test Org. 测试时间 Test Date 有害物质含量 (ppm) Cd Pb Hg Cr CANEC1723893202 SGS 17.12.06 ND ND ND ND SZXEC1700809101 SGS 17.10.27 ND ND ND ND CE/2017/C3390 SGS 17.12.25 ND ND ND ND XMNEC1701306005 SGS 17.10.27 ND 26 ND ND CANEC1723511701 SGS 17.11.29 ND ND ND ND 限制使用有害物质指令的环保要求（ RoHS 指令 (ppm) 是否合格? PASS? Cr 6+ PBB PBDE PASS ND ND ND PASS ND ND ND PASS ND ND ND PASS ND ND ND PASS ND ND ND PASS

FCCID: 2AG7C-SNAP8TA 1 Case No. : GTS20230510013-1-15 Ambient Condition: 24 °C, 48 %RH, Atmos100.1Kpa, Test Date: 2023.8.11 Test Engineer: NA Appendix A.1: DTS Bandwidth Test Result Test Mode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.560 2407.000 2416.560 0.5 PASS 2437 10.040 2432.000 2442.040 0.5 PASS 2462 10.040 2457.000 2467.040 0.5 PASS 11G Ant1 2412 16.320 2403.840 2420.160 0.5 PASS 2437 16.400 2428.800 2445.200 0.5 PASS 2462 16.400 2453.800 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.600 2403.200 2420.800 0.5 PASS 2437 17.600 2428.200 2445.800 0.5 PASS 2462 17.600 2453.200 2470.800 0.5 PASS FCCID: 2AG7C-SNAP8TA 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID: 2AG7C-SNAP8TA 3 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 FCCID: 2AG7C-SNAP8TA 4 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCCID: 2AG7C-SNAP8TA 5 Appendix A.2: Occupied Channel Bandwidth Test Result Test Mode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.247 2405.339 2418.586 --- --- 2437 13.197 2430.427 2443.624 --- --- 2462 13.200 2455.381 2468.581 --- --- 11G Ant1 2412 16.815 2403.583 2420.398 --- --- 2437 16.816 2428.641 2445.457 --- --- 2462 16.805 2453.594 2470.399 --- --- 11N20SISO Ant1 2412 17.889 2403.045 2420.934 --- --- 2437 17.801 2428.151 2445.952 --- --- 2462 17.822 2453.098 2470.920 --- --- FCCID: 2AG7C-SNAP8TA 6 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID: 2AG7C-SNAP8TA 7 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 FCCID: 2AG7C-SNAP8TA 8 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCCID: 2AG7C-SNAP8TA 9 Appendix A.3: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 20.40 ≤30.00 PASS 2437 20.56 ≤30.00 PASS 2462 20.99 ≤30.00 PASS 11G Ant1 2412 20.09 ≤30.00 PASS 2437 21.20 ≤30.00 PASS 2462 21.40 ≤30.00 PASS 11N20SISO Ant1 2412 21.23 ≤30.00 PASS 2437 21.12 ≤30.00 PASS 2462 21.74 ≤30.00 PASS FCCID: 2AG7C-SNAP8TA 10 Appendix A.4: Maximum power spectral density Test Result Test Mode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -6.04 ≤8.00 PASS 2437 -7.77 ≤8.00 PASS 2462 -7.75 ≤8.00 PASS 11G Ant1 2412 -14.73 ≤8.00 PASS 2437 -13.63 ≤8.00 PASS 2462 -12.83 ≤8.00 PASS 11N20SISO Ant1 2412 -14.27 ≤8.00 PASS 2437 -13.59 ≤8.00 PASS 2462 -12.49 ≤8.00 PASS FCCID: 2AG7C-SNAP8TA 11 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID: 2AG7C-SNAP8TA 12 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 FCCID: 2AG7C-SNAP8TA 13 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCCID: 2AG7C-SNAP8TA 14 Appendix A.5: Band edge measurements Test Result Test Mode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 8.05 -30.46 ≤-11.95 PASS High 2462 6.60 -46.01 ≤-13.4 PASS 11G Ant1 Low 2412 -0.36 -36.69 ≤-20.36 PASS High 2462 0.42 -46.51 ≤-19.58 PASS 11N20SISO Ant1 Low 2412 -1.51 -37.64 ≤-21.51 PASS High 2462 -0.22 -45.21 ≤-20.22 PASS FCCID: 2AG7C-SNAP8TA 15 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCCID: 2AG7C-SNAP8TA 16 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462

FCCID: 2AG7C-SNAP8TA 17 Appendix A.6: Conducted Spurious Emission Test Result Test Mode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 7.67 7.67 --- PASS 30~1000 7.67 -60.17 ≤-12.33 PASS 1000~26500 7.67 -36.14 ≤-12.33 PASS 2437 Reference 5.35 5.35 --- PASS 30~1000 5.35 -59.07 ≤-14.65 PASS 1000~26500 5.35 -40.82 ≤-14.65 PASS 2462 Reference 6.21 6.21 --- PASS 30~1000 6.21 -60.11 ≤-13.79 PASS 1000~26500 6.21 -41.61 ≤-13.79 PASS 11G Ant1 2412 Reference -1.86 -1.86 --- PASS 30~1000 -1.86 -59.99 ≤-21.86 PASS 1000~26500 -1.86 -47.56 ≤-21.86 PASS 2437 Reference -3.66 -3.66 --- PASS 30~1000 -3.66 -60.25 ≤-23.66 PASS 1000~26500 -3.66 -47.87 ≤-23.66 PASS 2462 Reference 0.24 0.24 --- PASS 30~1000 0.24 -60.58 ≤-19.76 PASS 1000~26500 0.24 -47.33 ≤-19.76 PASS 11N20SISO Ant1 2412 Reference -4.46 -4.46 --- PASS 30~1000 -4.46 -60.1 ≤-24.46 PASS 1000~26500 -4.46 -47.27 ≤-24.46 PASS 2437 Reference -2.25 -2.25 --- PASS 30~1000 -2.25 -60.22 ≤-22.25 PASS 1000~26500 -2.25 -47.58 ≤-22.25 PASS 2462 Reference -1.92 -1.92 --- PASS 30~1000 -1.92 -60.01 ≤-21.92 PASS 1000~26500 -1.92 -46.67 ≤-21.92 PASS FCCID: 2AG7C-SNAP8TA 18 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 FCCID: 2AG7C-SNAP8TA 19 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 FCCID: 2AG7C-SNAP8TA 20 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 FCCID: 2AG7C-SNAP8TA 21 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 FCCID: 2AG7C-SNAP8TA 22 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 FCCID: 2AG7C-SNAP8TA 23 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 FCCID: 2AG7C-SNAP8TA 24 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 FCCID: 2AG7C-SNAP8TA 25 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 FCCID: 2AG7C-SNAP8TA 26 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 FCCID: 2AG7C-SNAP8TA 27 Appendix A.7: Emissions in Restricted Bands Test Result Test Mode Antenna ChName Frequency [MHz] Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -47.89 ≤-41.20 47.31 ≤54 PASS AV 2386.190 -43.08 ≤-41.20 52.12 ≤54 PASS AV 2390.000 -44.04 ≤-41.20 51.16 ≤54 PASS Peak 2310.000 -43.12 ≤-21.20 52.08 ≤74 PASS Peak 2386.190 -36.55 ≤-21.20 58.65 ≤74 PASS Peak 2390.000 -39.22 ≤-21.20 55.98 ≤74 PASS High 2462 AV 2483.500 -44.06 ≤-41.20 51.14 ≤54 PASS AV 2487.520 -43.39 ≤-41.20 51.81 ≤54 PASS AV 2500.000 -44.64 ≤-41.20 50.56 ≤54 PASS Peak 2483.500 -39.82 ≤-21.20 55.38 ≤74 PASS Peak 2491.810 -36.12 ≤-21.20 59.08 ≤74 PASS Peak 2500.000 -41.07 ≤-21.20 54.13 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -48.01 ≤-41.20 47.19 ≤54 PASS A…
