2AG7CSNAP5BATTERY CAMERA

QUICK GUIDE ORIGINALITY DESIGN SMART AND BEAUTIFUL SNAP 5S BATTERY CAM What's in the box Bracket USB cableSnap 5S Power adapter Screws(2 kinds)Rubber Pin A x 2 B x 2 Battery Case Micro USBReset Battery SD card slot Speaker Microphone Power button & Status light PIR Lens Description Power Port Power Status light DC 5V±10% Press the button for 3 seconds to turn on/off the camera Red light solids on: the camera network is abnormal Red light blinks: awaiting WiFi connection, or currently connecting (faster blinking) Blue light solids on: camera running correctly Capture sound for your video Support local SD Card storage (Max.128G) Press and hold on for 5 seconds with pin to reset the camera Microphone Reset SD card slot 1 Fix the bracket on the wall Install 3. Slide the camera slowly into the bra cket from the direction of the arrow 4. Adjust the camera's proper angle 2.Install rubber *NOTE: Remove the rubber before resetting Download CloudEdge is available for both iOS and Android OS. Search the name 'CloudEdge'in App Store or Android Market, or scan below QR-Code to download the App. Log in the Cloudedge, select "Add Device", and add the smart camera to the APP according to the screen tips(Make the smart camera close to the router when configuring). NOTE:If you need to re-select the WiFi network, please press and hold the "RESET" button for 5 seconds, the device will restart, and the indicator will be flashing red. Connect Add device ipadAndroidIOS ·Support Dowoload App(IOS&android) 功能介绍Functions Record Using SD card or Opening the Cloud-Storage Service, to keep recording for every moment. Daytime & Night Powerful night vision means no interruptions, even in complete darkness. DaytimeNight Full-duplex audio You can see and hear the vistor in your App from the camera. PIR When the camera detects someone stopping by, it sends an alarm message to your cell phone. Low battery alarm You can set a low-battery alarm threshold in your phone App. The threshold is set to a minimum of 10% and a maximum of 50%. When the battery power of the camera is lower than the set threshold, the App will have a reminder. Remote wake-up The camera will be in a sleep mode to save power; you can have a preview in App. ,))9ZGZKSKTZ͹ 'T_)NGTMKYUXSUJOLOIGZOUTYTUZK^VXKYYR_GVVXU\KJH_ZNKVGXZ_ XKYVUTYOHRKLUXIUSVROGTIKIU[RJ\UOJZNK[YKX狭YG[ZNUXOZ_ZUUVKXGZKZNK KW[OVSKTZ :NOYJK\OIKIUSVROKY]OZNVGXZ狣狧ULZNK,))8[RKY5VKXGZOUTOYY[HPKIZZUZNK LURRU]OTMZ]UIUTJOZOUTY  狣:NOYJK\OIKSG_TUZIG[YKNGXSL[ROTZKXLKXKTIKGTJ 狤ZNOYJK\OIKS[YZGIIKVZGT_OTZKXLKXKTIKXKIKO\KJOTIR[JOTMOTZKXLKXKTIK ZNGZSG_IG[YK[TJKYOXKJUVKXGZOUT ,))8GJOGZOUT+^VUY[XK9ZGZKSKTZ  :NOYKW[OVSKTZIUSVROKY]OZN,))XGJOGZOUTK^VUY[XKROSOZYYKZLUXZNLUX GT[TIUTZXURRKJKT\OXUTSKTZ:NOYKW[OVSKTZYNU[RJHKOTYZGRRKJGTJ UVKXGZKJ]OZNSOTOS[SJOYZGTIK狤狢ISHKZ]KKTZNKXGJOGZUXGTJ_U[X HUJ_ 4UZK :NOYKW[OVSKTZNGYHKKTZKYZKJGTJLU[TJZUIUSVR_]OZNZNK ROSOZYLUXG)RGYY(JOMOZGRJK\OIKV[XY[GTZZUVGXZ狣狧ULZNK,))8[RKY :NKYKROSOZYGXKJKYOMTKJZUVXU\OJKXKGYUTGHRKVXUZKIZOUTGMGOTYZNGXSL[R OTZKXLKXKTIKOTGXKYOJKTZOGROTYZGRRGZOUT:NOYKW[OVSKTZMKTKXGZKY[YKYGTJ IGTXGJOGZKXGJOULXKW[KTI_KTKXM_GTJOLTUZOTYZGRRKJGTJ[YKJOT GIIUXJGTIK]OZNZNKOTYZX[IZOUTYSG_IG[YKNGXSL[ROTZKXLKXKTIKZUXGJOU IUSS[TOIGZOUTY.U]K\KXZNKXKOYTUM[GXGTZKKZNGZOTZKXLKXKTIK]ORRTUZ UII[XOTGVGXZOI[RGXOTYZGRRGZOUT/LZNOYKW[OVSKTZJUKYIG[YKNGXSL[R OTZKXLKXKTIKZUXGJOUUXZKRK\OYOUTXKIKVZOUT]NOINIGTHKJKZKXSOTKJH_ Z[XTOTMZNKKW[OVSKTZULLGTJUTZNK[YKXOYKTIU[XGMKJZUZX_ZUIUXXKIZ ZNKOTZKXLKXKTIKH_UTKUXSUXKULZNKLURRU]OTMSKGY[XKY  ȍ8KUXOKTZUXXKRUIGZKZNKXKIKO\OTMGTZKTTG ȍ/TIXKGYKZNKYKVGXGZOUTHKZ]KKTZNKKW[OVSKTZGTJXKIKO\KX ȍ)UTTKIZZNKKW[OVSKTZOTZUGTU[ZRKZUTGIOXI[OZJOLLKXKTZLXUSZNGZZU ]NOINZNKXKIKO\KXOYIUTTKIZKJ ȍ)UTY[RZZNKJKGRKXUXGTK^VKXOKTIKJXGJOU:<ZKINTOIOGTLUXNKRV

Company: Hangzhou Meari Technology Co., Ltd. Add:Room 604-605, Building 1, No.768 Jianghong Road, Changhe street, Binjiang District, Hangzhou, Zhejiang, China Tel: +8615869048127 Fax: +86-571-56565100 E-mail: [email protected] DECLARATION Date: 2021-02-08 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Hangzhou Meari Technology Co., Ltd., hereby declare that product name: B ATTERY CAMERA (model name: Snap 5S, Snap 5T. FCC ID: 2AG7CSNAP5). These models are electrically identical with the PC B design, components and electromagnetic compatibility characteristics. And Snap 5S has been tested by BACL. The differences of them are as follows: Model name. Please contact me if there is need for any additional clarification or information. Best Regards, Signature: Typed or Printed Name: Zhiyang Chai Title: Manager

Company: Hangzhou Meari Technology Co., Ltd. Add:Room 604-605, Building 1, No.768 Jianghong Road, Changhe street, Binjiang District, Hangzhou, Zhejiang, China Tel: +8615869048127 Fax: +86-571-56565100 E-mail: [email protected] FCC Confidential Authorization Date: 2021-02-08 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 74 35 Oakland M ills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2 AG7CSNAP5 To : whom it may concern, In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Hangzhou Meari Technology Co., Ltd. hereby requests long-term confidential treatment of information accompanying th is application as outlined b elow: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Typed or Printed Name: Zhiyang Chai Title: Manager

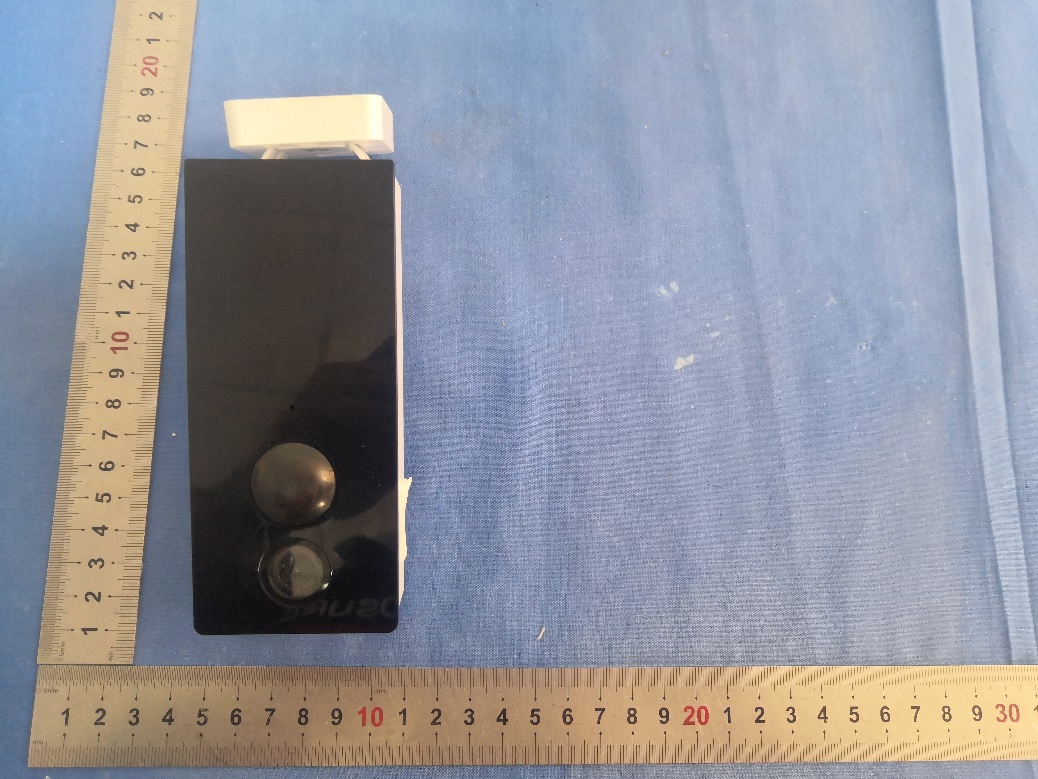

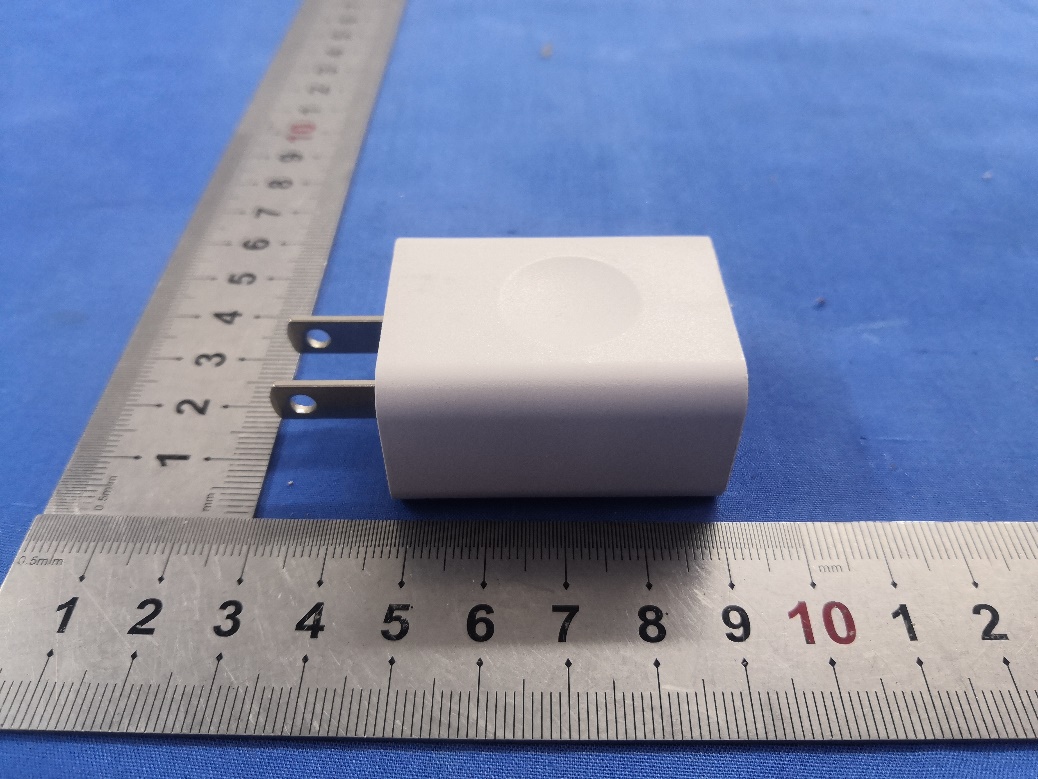

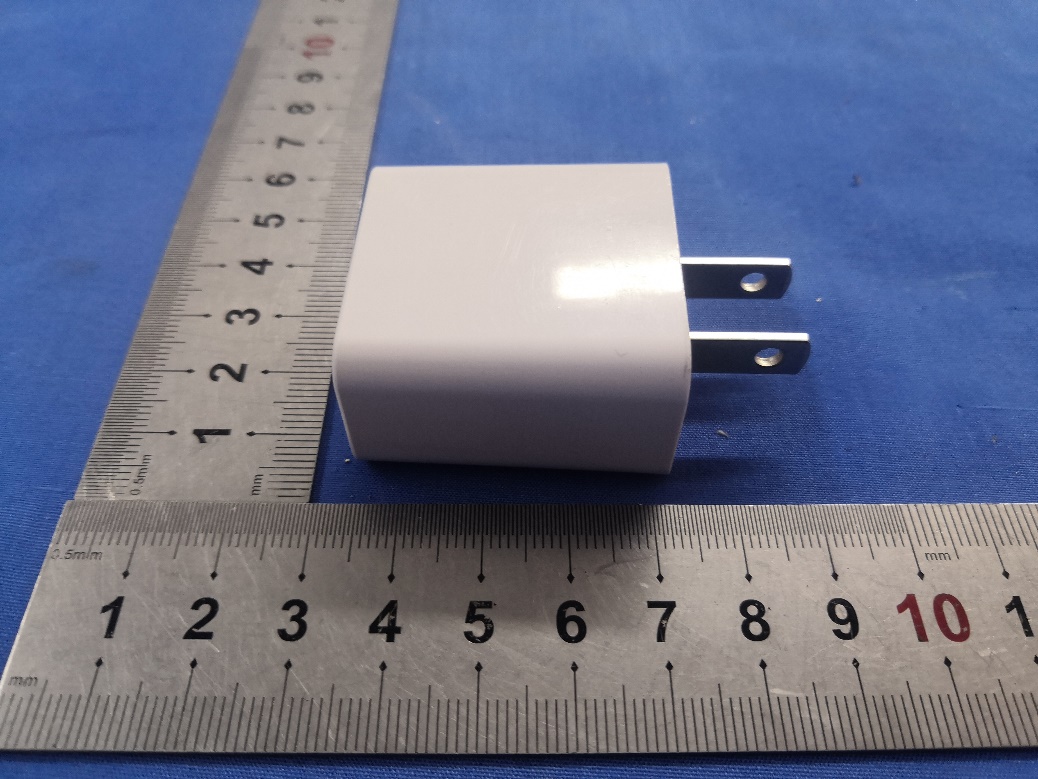

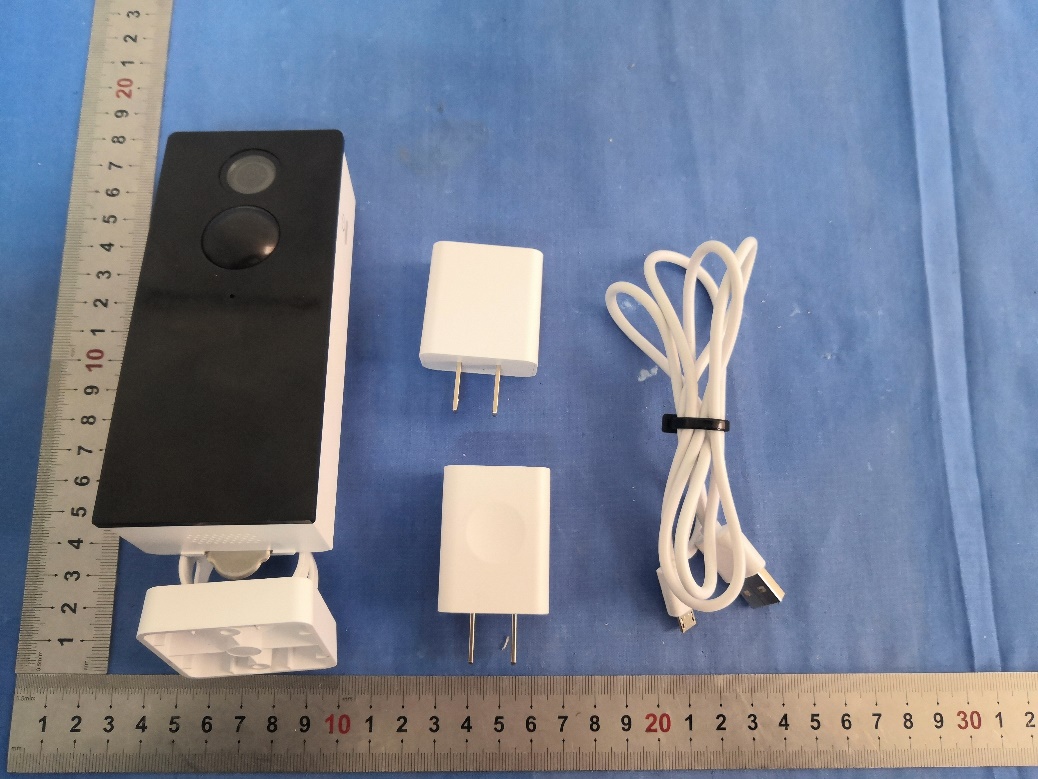

EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS 2 3 4 5 Adapter-1: 6 7 Adapter-2: 8

Hangzhou Meari Technology Co., Ltd. Room 604-605, Building 1, No.768 Jianghong Road, Changhe street, Binjiang District, Hangzhou, Zhejiang, China Input:5V 1A S/N:056565099 FCC ID:2AG7CSNAP5

EXHIBIT B - EUT INTERNAL PHOTOGRAPHS Wi-Fi Antenna

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA210208002-00B FCC Part 15.247 Page 13 of 61 FCC §1.1310 & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §2.1091 and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency Range (MHz) Antenna Gain Tune-up Output Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 802.11b 2412~2462 1.67 1.47 24 251.19 20 0.0735 1.0 802.11g 1.67 1.47 22.5 177.83 20 0.0520 1.0 802.11 n-HT20 1.67 1.47 22.5 177.83 20 0.0520 1.0 Note: The Tune-up output power was declared by the Manufacturer. Conclusion: The device meets MPE at distance 20cm.

FCC PART 15.247 TEST REPORT For Hangzhou Meari Technology Co., Ltd. Room 604-605, Building 1, No.768 Jianghong Road, Changhe street, Binjiang District, Hangzhou, Zhejiang, China FCC ID: 2AG7CSNAP5 Report Type: Original Report Product Type: BATTERY CAMERA Project Engineer: Tyrone Wang Report Number: RSHA210208002-00B Report Date: 2021-03-26 Reviewed By: Oscar Ye EMC Manager Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu province, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA210208002-00B FCC Part 15.247 Page 2 of 61 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 9 EXTERNAL I/O CABLE .................................................................................................................................................. 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 Test Equipment List .................................................................................................................................................... 12 FCC §1.1310 & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................................... 13 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (a) - AC LINE CONDUCTED EMISSIONS ...................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 15 FACTOR & OVER LIMIT CALCULATION ...................................................................................................................... 16 TEST RESULTS SUMMARY .......................................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 16 FCC §15.209, §15.205 & §15.247(d) - Spurious Emissions ...................................................................................... 21 APPLICABLE STANDARD ............................................................................................................................................ 21 EUT SETUP ................................................................................................................................................................ 21 EMI TEST RECEIVER SETUP ....................................................................................................................................... 22 TEST PROCEDURE ...................................................................................................................................................... 22 TEST RESULTS SUMMARY .......................................…

Text truncated - open the document above for the full version.

EXHIBIT C - TEST SETUP PHOTOGRAPHS For Adapter 1: Conducted Emissions (Front View) Conducted Emissions (Side View) RadiatedEmissions (Below 1GHz) RadiatedEmissions (Above 1GHz) For Adapter 2: Conducted Emissions (Front View) Conducted Emissions (Side View) RadiatedEmissions (Below 1GHz)
