2AG87ACM-DB-2M-R2Wi-Fi Radio Transceiver

ACM-DB-3-R2 Rugged/Military grade 2.4/5 GHz 2x2 MIMO Wi-Fi® Radio Transceivers Features •Qualcomm-Atheros QCA9890-BR4B Chipset with Extended Temperature Range •Up to 1.3 Gbps Throughput with 2x2 MIMO Technology •Calibrated High Power 2.4 GHz (29 dBm) and 5 GHz operation (27 dBm) for Extended Range •802.11 Dynamic Frequency Selection (DFS) in AP and Client mode •Supported by OpenWRT and Ath10k Open-Source Driver •MiniPCIE Interface Installation and Usage The ACM-DB-3-R2 has been FCC certified for indoor usage with Superbat 3-dBi rubber-duck antennas (WA2-1321-S02SP1-030 in the 5-GHz bands, and WA2-995-S02SP1-030 antennas in the 2.4GHz band). The ACM-DB-3 mates with a standard PCIE-mini slot and integrates with the Ath10k software driver which is pre- installed in Linux-based systems. TECHNICAL SPECIFICATIONS Model No. ACM-DB-3-R2 (Rugged/Military Applications, 802.11ac) MAC Chipset QCA9890-BR4B with Extended Temperature range for Outdoor and Rugged models) Software Support Open Source Linux Driver ath10k OpenWRT (Wireless Router/Linux OS) Center Frequency Range 5.180 GHz ~ 5.825 GHz 2.412 GHz ~ 2.462 GHz This varies by the regulatory domain Channel Bandwidth/(No. of Non- overlapping Channels)* 20/(27), 40/(13) and 80/(6) MHz channels (5.x GHz) 20/(3), and 40/(1) MHz channels (2.4 GHz) Radio Modulation (Auto Adjust) BPSK, QPSK, 16 QAM, 64 QAM and 256 QAM (5.x GHz – 11ac models) CCK, BPSK, QPSK, 16 QAM, and 64 QAM (2.4 GHz – 11ac models) Data Rates Supported 802.11ac: MCS0-9 (5.x GHz) 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps (5.x GHz) 802.11n: MCS0-23 (5.x and 2.4 GHz) 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps (2.4 GHz) 802.11ac Wave 1 Capabilities ●802.11 dynamic frequency selection (DFS) as an AP and Client ●802.11ac Beam Forming ●Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), Maximal ratio combining (MRC), Cyclic shift diversity (CSD), Frame aggregation, block ACK, 802.11e compatible bursting, Spatial multiplexing, cyclic-delay diversity (CDD), low-density parity check (LDPC), Space Time Block Code (STBC) ●Phy data rates up to 1.3 Gbps (80 MHz channel) Operating Modes AP, STA and Adhoc modes to implement Point to Point, Point to multi Point, and Mesh networks MAC Protocol TDD with Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) Wireless Error Correction FEC, ARQ Wireless Data Security 128 bit AES, WEP, TKIP and WAPI hardware encryption. Support for IEEE 802.11d, e, h, i, k, r, v, w and time stamp standards FIPS Certification Loop back mode to facilitate FIPS AES certification, Small packet size (96 bytes) in AES encryption at full packet rate Tx/Rx Specification Data Rate Radio Modulation Throughput** Mbps (Cabled Test Setup) Max Tx Power (± 2 dBm) 3 Antennas Rx Sensitivity (± 2 dBm) 3 Antennas 5 GHz (20 MHz Channel) 802.11a, Single Stream, STBC 6 Mbps BPSK 5.5 27 -98 802.11a, Single Stream, STBC 24 Mbps 16 QAM 19 27 -89 802.11a, Single Stream, STBC 36 Mbps 16 QAM 25 25 -87 802.11a, Single Stream, STBC 48 Mbps 64 QAM 29 25 -85 802.11a, Single Stream, STBC 54 Mbps 64 QAM 33 24 -83 802.11ac, VHT20, 3 Streams MCS0 BPSK 18 27 -93 802.11ac, VHT20, 3 Streams MCS2 QPSK 54 27 -89 802.11ac, VHT20, 3 Streams MCS4 16 QAM 106 26 -82 802.11ac, VHT20, 3 Streams MCS7 64 QAM 171 23 -74 802.11ac, VHT20, 3 Streams MCS8 256 QAM 201 22 -70 5 GHz (40 MHz Channel) 802.11ac, VHT40, 3 Streams MCS0 BPSK 37 27 -90 802.11ac, VHT40, 3 Streams MCS2 QPSK 110 27 -82 802.11ac, VHT40, 3 Streams MCS4 16 QAM 210 26 -78 802.11ac, VHT40, 3 Streams MCS7 64 QAM 331 23 -71 802.11ac, VHT40, 3 Streams MCS8 256 QAM 405 22 -68 802.11ac, VHT40, 3 Streams MCS9 256 QAM 429 21 -66 5 GHz (80 MHz Channel) 802.11ac, VHT80, 3 Streams MCS0 BPSK 76 27 -87 802.11ac, VHT80, 3 Streams MCS2 QPSK 223 27 -81 802.11ac, VHT80, 3 Streams MCS4 16 QAM 404 26 -72 802.11ac, VHT80, 3 Streams MCS7 64 QAM 622 23 -66 802.11ac, VHT80, 3 Streams MCS8 256 QAM 686 21 -64 802.11ac, VHT80, 3 Streams MCS9 256 QAM 789 21 -62 2.4 GHz (20 MHz Channel) 802.11b, Single Stream, STBC 1 Mbps CCK 0.8 29 -100 802.11g, Single Stream, STBC 6 Mbps BPSK 5.5 29 -98 802.11g, Single Stream, STBC 24 Mbps 16 QAM 18 29 -90 802.11g, Single Stream, STBC 36 Mbps 16 QAM 24 27 -87 802.11g, Single Stream, STBC 48 Mbps 64 QAM 31 26 -84 802.11g, Single Stream, STBC 54 Mbps 64 QAM 32 26 -82 802.11n, HT20, 3 Streams MCS16 BPSK 18 29 -92 802.11n, HT20, 3 Streams MCS18 QPSK 54 29 -86 802.11n, HT20, 3 Streams MCS20 16QAM 108 27 -79 802.11n, HT20, 3 Streams MCS22 64 QAM 162 24 -75 802.11n, HT20, 3 Streams MCS23 64QAM 189 24 -74 2.4 GHz (40 MHz Channel) 802.11n, HT40, 3 Streams MCS16 BPSK 36 29 -87 802.11n, HT40, 3 Streams MCS18 QPSK 108 29 -80 802.11n, HT40, 3 Streams MCS20 16QAM 216 26 -74 802.11n, HT40, 3 Streams MCS22 64 QAM 470 24 -70 802.11n, HT40, 3 Streams MCS23 64QAM 486 23 -68 * It is advantageous to use the smallest Channel Bandwidth that can support the Throughput requirements. Smaller Bandwidths provide more channels to choose and help avoid interference issues. The system’s SNR is higher at smaller Channel Bandwidths and Range is longer. ** Throughput of a wireless link depends on many environmental parameters. Here the bench measurement results are shown to give an indication of the real life performance of Doodle Labs modules. These results are lower than the theoretical values published in most of the literature. They do not include distance related derating. Antenna Signal Strength -50 to -90 dBm (Recommended), Absolute Maximum=+12 dBm Antenna port isolation for concurrent operation Up to +10 dBm signal strength for 5 GHz signal without degrading 2.4 GHz operation Up to +5 dBm signal strength for 2.4 GHz signal without degrading 5.x GHz operation Integrated Antenna Port Protection >12 KV (Human Body Model) for Outdoor and Rugged models (ACO/ACM-DB-3 and NO/NM- DB-3) Receiver LNA Gain >12 dB Receiver Adjacent Channel Rejection (ACR) >28 dB @6 Mbps, 13 dB @54 Mbps, 3 dB @ VHT80, MCS9 Receiver Next to Adjacent Channel Rejection (ALCR) >…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.1 Doodle Labs (SG) Pt e Ltd FCC Software Configuration Control Declaration Date: Dec. 24, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA A ttn: OET Dept. P roduct/ Model Number: Wi-Fi® Radio Transceiver/ACM-DB-2M-R2 Regarding FCC Country Code Selection guidelines identified in KDB 594280 v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Dr Aaron DoDate: 2020-12-24 Title: Senior RF Engineer Signatureof applicant

DoodleLabs(SG)PteLtd Date:2020-12-24 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Long Term Confidentiality FCC ID: 2AG87ACM-DB-2M-R2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Dr Aaron Do Title: Senior RF Engineer

Doodle Labs (SG) Pte Ltd Agent Authorization Company: Doodle Labs (SG) Pte Ltd Address: 150 Kampong Ampat, KA Center, Suite 05-03, Singapore 368324, Singapore Product Name: Wi-Fi® Radio Transceiver Model Number(s): ACM-DB-2M-R2 Product Description: Wi-Fi® Radio Transceiver We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named eq uipment. We declare th at MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any a nd all acts carried out by MiCOM L abs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-12-24 Name:Dr Aaron Do Title:Senior RF Engineer Company: Doodle Labs (SG) Pte Ltd

Compliance list INTEGRATION INSTRUCTIONS for 996369 D03 OEM the and 996369 D03 OEM by Sections 2.2 through 2.10. RequirementYesN/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional‐radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required. 3 YES Refer to instruction FCC standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407 and FCC CFR Title 47 Part 15 Subpart C Section 15.247 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point‐to‐point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES Refer to instruction The module is limited to the following antenna: 2.4GWifi: Antenna 0：External Antenna Antenna 1：External Antenna Antenna Gain:7dBi 5G Wifi: Antenna 0 ：External Antenna Antenna 1：External Antenna Antenna Gain:5dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum No signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro‐Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements. 4 a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; d) Appropriate parts by manufacturer and specifications; e) Test procedures for design verification; and No f) Production test procedures for ensuring compliance. The module grantee shall provide a notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufacturer to use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end‐product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). YESRefer to instruction The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. 2.7 Antennas A list of antennas…

Text truncated - open the document above for the full version.

Doodle Labs (SG) Pte Ltd FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-12-24 Subject; Wi-Fi® Radio Transceiver Company name: Doodle Labs (S G) Pte Ltd FCC ID: 2AG87ACM-DB-2M-R2 Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In ac cordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v 02’. FCC ID: 2AG87ACM-DB-2M-R2 has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. The modular have RF own shielding The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. The modular transmitter have buffered modulation/data inputs The module must contain power supply regulation on the module. The modular transmitter have its own power supply regulation. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). The modular has a External Antenna, which has a unique antenna connector. The module must demonstrate compliance in a stand-alone configuration. The module compliance in a stand-alone configuration. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The FCC identification number can put on the modular with either a permanently affixed label The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. The instructions will be provided and apply to a complete transmitter and comply with specific rule. The module must comply with RF exposure requirements The total power density of modular transmitter final configuration comply with FCC RF Exposure Doodle Labs (SG) Pte Ltd FCC Modular Approval Request Rev 3.0 I Name: Dr Aaron Do Date: 2020-12-24 Title: Senior RF Engineer Signature of applicant

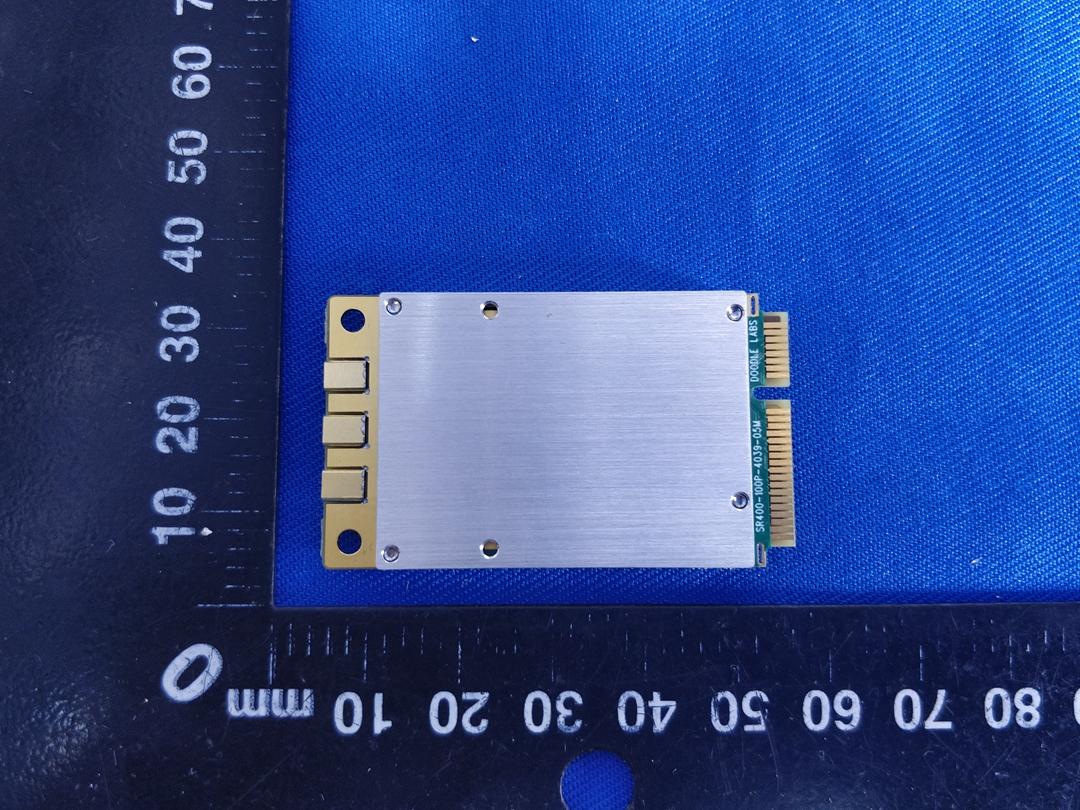

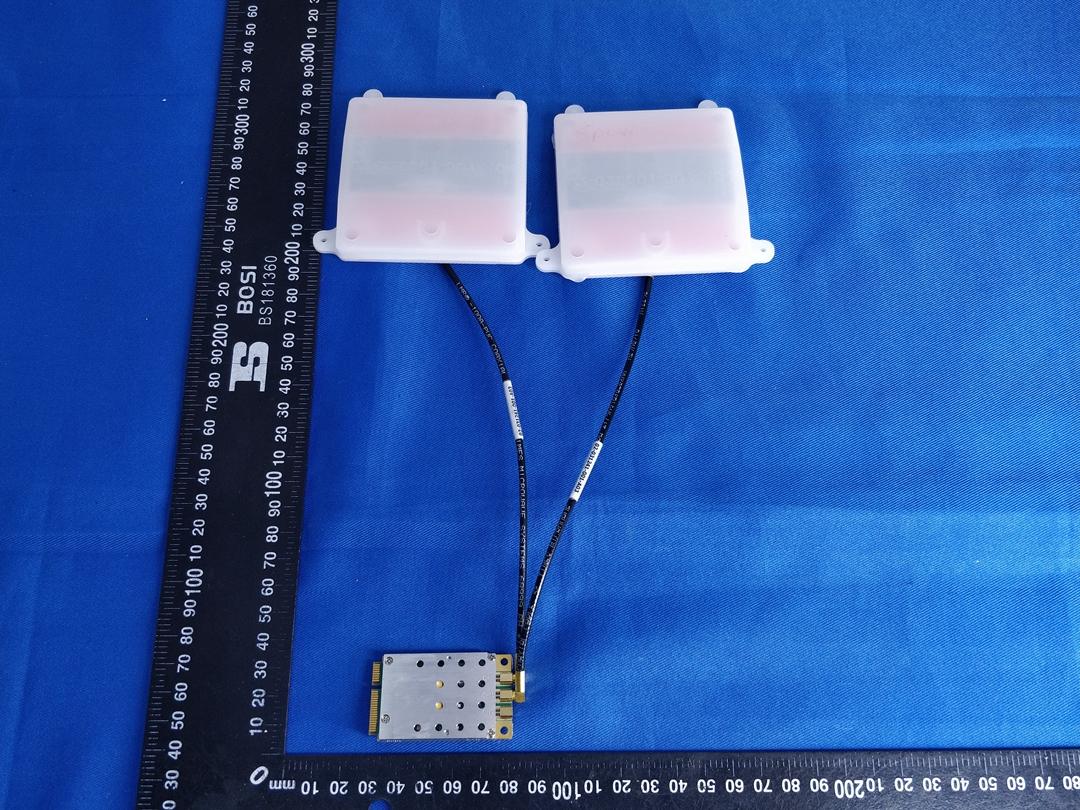

Page 1 of 4 Appendix B: Photographs of EUT Product: Wi-Fi® Radio Transceiver Model: ACM-DB-2M-R2 External Photos Antenna 1 Antenna 0 Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: ACM-DB-2M-R2 Label: W=30*16mm Location R2 -R2 -R2

Page 1 of 2 Appendix B: Photographs of EUT Product: Wi-Fi® Radio Transceiver Model: ACM-DB-2M-R2 Internal Photos Page 2 of 2

Maximum Permissible Exposure Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) MIMO MPE: For 2.4G WIFI: The maximum output power for antenna 0 is 24.88dBm (307.61mW) at 2412MHz, 7dBi antenna gain(with 5.01 numeric antenna gain.) The maximum output power for antenna 1 is 25.89dBm (388.15mW) at 2412MHz, 7dBi antenna gain(with 5.01 numeric antenna gain.) For Band 1: The maximum output power for antenna 0 is 18.94dBm (78.34mW) at 5200MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) The maximum output power for antenna 1 is 18.95dBm (78.52mW) at 5180MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) For Band 2A: The maximum output power for antenna 0 is 18.95dBm (78.52mW) at 5300MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) The maximum output power for antenna 1 is 18.98dBm (79.07mW) at 5300MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) For Band 2C: The maximum output power for antenna 0 is 18.98dBm (79.07mW) at 5500MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) The maximum output power for antenna 1 is 18.90dBm (77.62mW) at 5600MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) For Band 3: The maximum output power for antenna 0 is 18.95dBm (78.52mW) at 5745MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) The maximum output power for antenna 1 is 18.85dBm (76.74mW) at 5785MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G MPE 0: Mode Power(mW) numeric antenna gain Power density (mW/cm2) 2.4G WIFI 307.61 5.01 0.306684 Band 1 78.34 3.16 0.049263 Band 2A 78.52 3.16 0.049377 Band 2C 79.07 3.16 0.049722 Band 3 78.52 3.16 0.049377 MPE 1: Mode Power(mW) numeric antenna gain Power density (mW/cm2) 2.4G WIFI 388.15 5.01 0.386982 Band 1 78.52 3.16 0.049377 Band 2A 79.07 3.16 0.049722 Band 2C 77.62 3.16 0.048811 Band 3 76.74 3.16 0.048257 Total MPE: Maximum Emissions Level Mode MPE 0 MPE 1 Total MPE Limit (mW/cm2) Result 2.4G WIFI 0.306684 0.386982 0.693666 1.0 PASS Band 1 0.049263 0.049377 0.09864 Band 2A 0.049377 0.049722 0.099099 Band 2C 0.049722 0.048811 0.098533 Band 3 0.049377 0.048257 0.097634

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AG87ACM-DB-2M-R2 Product: Wi-Fi® Radio Transceiver Model No.: ACM-DB-2M-R2 Additional Model No.: N/A Trade Mark: N/A Report No.: TCT201111E025 Issued Date: Dec. 21, 2020 Issued for: Doodle Labs (SG) Pte Ltd 150 Kampong Ampat, KA Center, Suite 05-03, Singapore 368324 Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT201111E025 Page 2 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations ................................................................ 10 5.1. Facilities ............................................................................................................... 10 5.2. Location ............................................................................................................... 10 5.3. Measurement Uncertainty ................................................................................... 10 6. Test Results and Measurement Data ................................................... 11 6.1. Antenna requirement .......................................................................................... 11 6.2. Conducted Emission ........................................................................................... 12 6.3. Maximum Conducted Output Power .................................................................. 16 6.4. 6dB Emission Bandwidth.................................................................................... 22 6.5. 26dB Bandwidth and 99% Occupied Bandwidth .............................................. 23 6.6. Power Spectral Density ....................................................................................... 24 6.7. Band edge ............................................................................................................ 29 6.8. Unwanted Emissions .......................................................................................... 50 6.9. Frequency Stability Measurement ..................................................................... 68 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT201111E025 Page 3 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Wi-Fi® Radio Transceiver Model No.: ACM-DB-2M-R2 Additional Model No.: N/A Trade Mark: N/A Applicant: Doodle Labs (SG) Pte Ltd Address: 150 Kampong Ampat, KA Center, Suite 05-03, Singapore 368324 Manufacturer: Doodle Labs (SG) Pte Ltd Address: 150 Kampong Ampat, KA Center, Suite 05-03, Singapore 368324 Date of Test: Nov. 12, 2020 – Dec. 18, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407: 2016 KDB662911 D01 Multiple Transmitter Output v02r01 KDB789033 D02 General U-NII Test Procedures New Rules v02r01 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Dec. 18, 2020 Rleo Reviewed By: Date: Dec. 21, 2020 Beryl Zhao Approved By: Date: Dec. 21, 2020 Tomsin Report No.: TCT201111E025 Page 4 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(a) PASS 26dB Emission Bandwidth& 99% Occupied Bandwidth §15.407(a) PASS Power Spectral Density §15.407(a) PASS Restricted Bands around fundamental frequency §15.407(b) PASS Radiated Emission §15.407(b) PASS Frequency Stability §15.407(g) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 5.For the band 5.15-5.25GHz,EUT meet the requirements of 15.407(a)(ii). Report No.: TCT201111E025 Page 5 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Wi-Fi® Radio Transceiver Model No.: ACM-DB-2M-R2 Additional Model No.: N/A Trade Mark: N/A Operation Frequency: Band 1: 5180 MHz -5240 MHz Band 2A: 5260 MHz -5320 MHz Band 2C: 5500 MHz -5700 MHz Band 3: 5745 MHz -5825 MHz Channel Bandwidth: 802.11a: 20MHz 802.11n: 20MHz, 40MHz 802.11ac: 20MHz, 40MHz Modulation Technology: Orthogonal Frequency Division Mult…

Text truncated - open the document above for the full version.

Report No.: TCT201111E025 Page 86 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n20 5320MHz Duty Cycle NVNT n40 5270MHz Report No.: TCT201111E025 Page 87 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n40 5310MHz Duty Cycle NVNT a 5500MHz Report No.: TCT201111E025 Page 88 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT a 5600MHz Duty Cycle NVNT a 5700MHz Report No.: TCT201111E025 Page 89 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT ac20 5500MHz Duty Cycle NVNT ac20 5600MHz Report No.: TCT201111E025 Page 90 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT ac20 5700MHz Duty Cycle NVNT ac40 5510MHz Report No.: TCT201111E025 Page 91 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT ac40 5590MHz Duty Cycle NVNT ac40 5670MHz Report No.: TCT201111E025 Page 92 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n20 5500MHz Duty Cycle NVNT n20 5600MHz Report No.: TCT201111E025 Page 93 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n20 5700MHz Duty Cycle NVNT n40 5510MHz Report No.: TCT201111E025 Page 94 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n40 5590MHz Duty Cycle NVNT n40 5670MHz Report No.: TCT201111E025 Page 95 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT a 5745MHz Duty Cycle NVNT a 5785MHz Report No.: TCT201111E025 Page 96 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT a 5825MHz Duty Cycle NVNT ac20 5745MHz Report No.: TCT201111E025 Page 97 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT ac20 5785MHz Duty Cycle NVNT ac20 5825MHz Report No.: TCT201111E025 Page 98 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT ac40 5755MHz Duty Cycle NVNT ac40 5795MHz Report No.: TCT201111E025 Page 99 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n20 5745MHz Duty Cycle NVNT n20 5785MHz Report No.: TCT201111E025 Page 100 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n20 5825MHz Duty Cycle NVNT n40 5755MHz Report No.: TCT201111E025 Page 101 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n40 5795MHz Report No.: TCT201111E025 Page 102 of 363 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Maximum Conducted Output Power Mode Frequency (MHz) Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict a 5180 18.626 0 18.626 30 Pass a 5200 18.885 0 18.885 30 Pass a 5240 18.705 0 18.705 30 Pass ac20 5180 18.462 0 18.462 30 Pass ac20 5200 18.729 0 18.729 30 Pass ac20 5240 18.845 0 18.845 30 Pass ac40 5190 18.272 0 …

Text truncated - open the document above for the full version.
