2AG87RM2450-2LSmart Radio

Doodle Labs (SG) Pte Ltd 150 Kampong Ampat, KA Center, Suite 05-03, Singapore 368324, Singapore Page 1 of 1 Authority to Act as Agent Date: 2022-12-15 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint ________TUV Taiwan_______ to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with ____Doodle Labs (SG) Pte Ltd / 150 Kampong Ampat, KA Center, Suite 05-03, Singapore Singapore____. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: __15-Dec-2022_________ Agreement is valid for 12 months from the above date. By: __________________________ Dr Aaron Do ________ (Signature) (Print name) Senior RF Engineer _______ +65 62530100 _______ (Title) (Telephone) On behalf of: Doodle Labs (SG) Pte Ltd _____ (Company Name)

Doodle Labs (SG) Pte Ltd 150 Kampong Ampat, KA Center, Suite 05-03, Singapore 368324, Singapore 15-Dec-22 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Certification and Engineering Bureau Industry Canada 3701 Carling Ave., Bldg 94, Ottawa, ON, K2H 8S2 FCC ID: 2AG87RM2450-2L IC: 21411-RM24502L Models: RM-2450-2L, RM-2025-2L Declaration on Similarity We herewith confirm that for the models listed above the RF Transmitter Module is Electrically Identical. The differences are in the model numbers for marketing purpose. ___________________ Dr Aaron Do / Senior RF Engineer ___ (Signature) (Printed/Title)

Doodle Labs (SG) Pte Ltd 150 Kampong Ampat, KA Center, Suite 05-03, Singapore 368324, Singapore MS-0044715 Page 1 of 1 Revision 1 Date: 2022-12-15 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: 2AG87RM2450-2L Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction Doodle Labs (SG) Pte Ltd has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: ____________________________________ ___ Dr Aaron Do / Senior RF Engineer____ (Signature) (Print name/Title) Tel: +65 62530100 Email: [email protected]

Applicant/Grantee Doodle Labs (SG) Pte Ltd FCC ID: 2AG87RM2450-2L Section 15.212 Modular Transmitters / V Request for Modular Approval Request for Limited Modular Approval Requirements Device Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements must have the radio frequency circuitry must be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. The module has its own RF shielding.” Shield Casing is employed on the board structure, please see exhibition External Photo, the emission measurement was conducted without further shielding added. Y 2 The module shall have buffered All modulation and data input(s) are modulation/data input(s) (if such inputs are buffered.” The EUT has buffered data provided) to ensure that the module will inputs, it is integrated on the RF chip comply with the requirements set out in the applicable FCC standard under conditions of excessive data rates or over-modulation. Y 3 The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. Requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. Output power is controlled by the RF Chip and de-coupled from supply voltage variations (on board DC-DC and LDOs) Frequencies are determined by Crystal. Y 4 The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The Equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The modular has two external Antenna which comply with the antenna requirement of Section 15.203. Y 5 The module shall be tested for compliance with the applicable standard in a stand- alone configuration, i.e. the module must not be inside another device during testing. The modular transmitter was tested in a stand-alone configuration via a Data/ Control Interface. Y 6 The module shall comply with the Category I equipment labelling requirements. In the exhibition OEM manual, there are Instructions given to the OEM on how to label the end product. Y 7 The modular transmitter complies with all specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer will provide adequate instructions along with the module to explain any such requirements. A copy of these instructions is included in this application for equipment authorization: Instructions in User Manual Y 8a Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Please refer the Maximum Permissible Exposure Information. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Signature Name/Title: Dr Aaron Do / Senior RF Engineer Company Name: Doodle Labs (SG) Pte Ltd Date: 15/12/2022

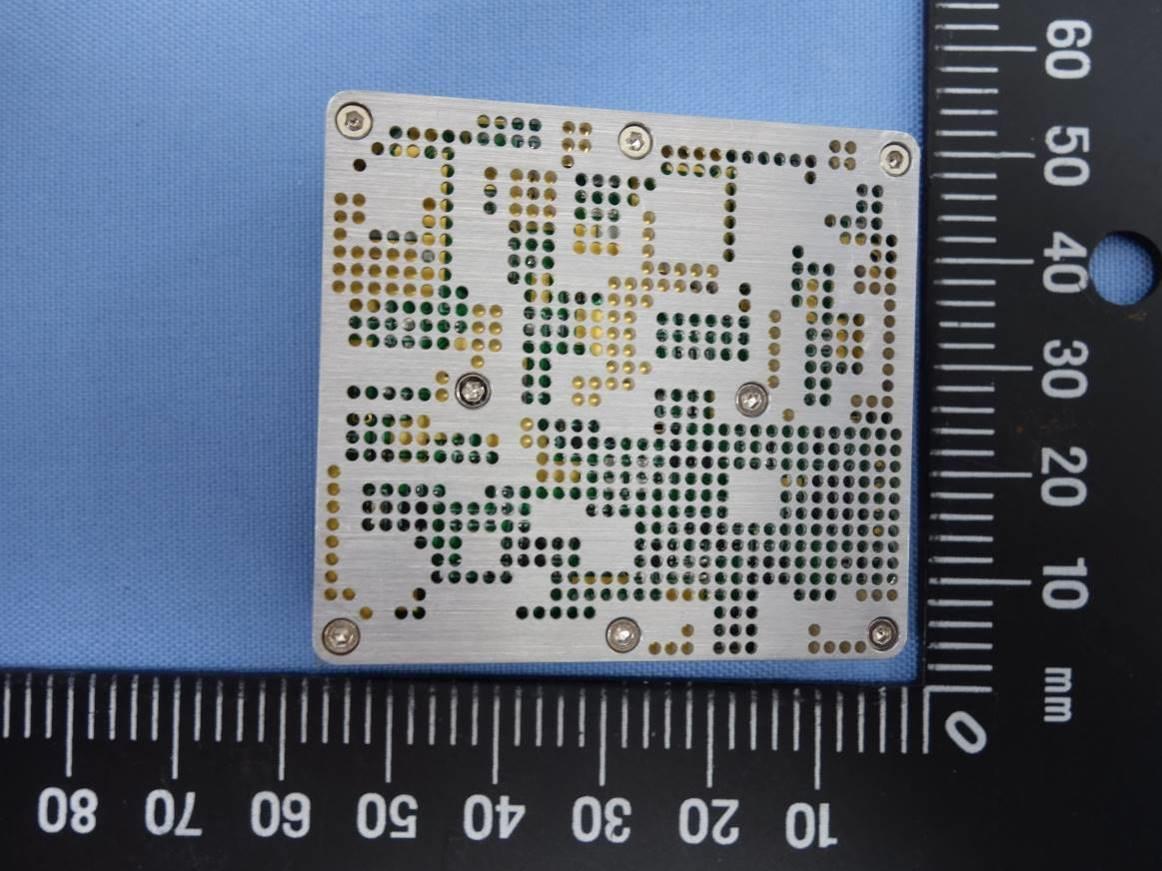

Appendix EP Photographs of EUT Page 1 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 2 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 3 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L

LABEL and LOCATION Size (3.0cm (L) x 2.0cm (W)) Smart Radio Model: RM-2450-2L FCC ID: 2AG87RM2450-2L Smart Radio Model: RM-2025-2L FCC ID: 2AG87RM2450-2L

Appendix EP Photographs of EUT Page 4 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 5 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 6 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 7 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 8 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 9 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 10 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 11 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 12 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 13 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 14 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 15 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L <Antenna with 2.2 dBi gain_RP-SMA> Appendix EP Photographs of EUT Page 16 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 17 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 18 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L <Antenna with 0.56 dBi gain_RP-SMA> Appendix EP Photographs of EUT Page 19 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 20 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 21 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L Appendix EP Photographs of EUT Page 22 of 22 CN2239JU (P15C-2.4G) 001 CN2239JU (FCC-MPE) 001 CN22ERW3 (RSS247-2.4G) 001 CN22ERW3 (ISED-MPE) 001 Product: Smart Radio Type Identification: RM-2450-2L , RM-2025-2L

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN2239JU (FCC-MPE) 001 Auftrags-Nr.: Order no.: 238547833 Seite 1 von 10 Page 1 of 10 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-09-13 Auftraggeber: Client: Doodle Labs (SG) Pte Ltd 150 Kampong Ampat, KA Center, Suite 05-03, Singapore, Singapore Prü fgegenstand: Test item: Smart Radio Bezeichnung / Typ-Nr.: Identification / Type no.: RM-2450-2L , RM-2025-2L Auftrags-Inhalt: Order content: FCC Certification Prü fgrundlage: Test specification: IEEE Std C95.1 47 CFR §2.1091 47 CFR §1.1310 KDB 447498 D04 Wareneingangsdatum: Date of sample receipt: 2022-09-20 Prü fmuster-Nr.: Test sample no: A003339515-003 Prü fzeitraum: Testing period: 2022-10-06 - 2022-12-20 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass ü berprü ft von: compiled by: Ryan Chen genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-12-27 Ausstellungsdatum: Issue date: 2022-12-27 Stellung / Position: Senior Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2239JU (FCC-MPE) 001 Seite 2 von 10 Page 2 of 10 Contents 1 GENERAL REMARKS ............................................................................................. 4 1.1 COMPLEMENTARY MATERIALS ............................................................................... 4 2 TEST SITES .......................................................................................................... 5 2.1 TEST FACILITIES ................................................................................................... 5 3 GENERAL PRODUCT INFORMATION ......................................................................... 6 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 6 3.2 RATINGS AND SYSTEM DETAILS ............................................................................. 6 4 MAXIMUM PERMISSIBLE EXPOSURE EVALUATION .................................................... 7 4.1 INTRODUCTION ..................................................................................................... 7 4.2 REFERENCE LEVELS ............................................................................................. 7 4.3 CLASSIFICATION OF THE ASSESSMENT METHODS.................................................... 9 5 TEST RESULTS ................................................................................................... 10 5.1 MAXIMUM POWER DENSITY ................................................................................. 10 APPENDIX EP - PHOTOGRAPHS OF EUT Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2239JU (FCC-MPE) 001 Seite 3 von 10 Page 3 of 10 HISTORY OF THIS TEST REPORT Report No. Description Date Issued CN2239JU (FCC-MPE) 001 Original Release 2022-12-27 Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2239JU (FCC-MPE) 001 Seite 4 von 10 Page 4 of 10 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix EP - Photographs of EUT 1.2 Decision Rule of Conformity The decision rule of conformity of this test report is following the requirements of the requested standard in the quotation, and agreed among testing laboratory and manufacturer (applicant) to exclude the consideration of Measurement Uncertainty, unless it is required by the specific standard. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2239JU (FCC-MPE) 001 Seite 5 von 10 Page 5 of 10 2 Test Sites 2.1 Test Facilities Taipei Testing Laboratories 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) 2.2 Test Facility Taipei Testing Laboratories No.458-18, Sec. 2, Fenliao Rd., Linkou Dist., New Taipei City 244 Taiwan (R.O.C.) Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2239JU (FCC-MPE) 001 Seite 6 von 10 Page 6 of 10 3 General Product Information 3.1 Product Function and Intended Use The EUT is Smart Radio. It contains radio module section enabling the user to communicate data through a Wireless interface. For details refer to the User Guide, Data Sheet and Circuit Diagram. 3.2 Ratings and System Details Basic Information of EUT Item EUT Information Kind of Equipment/Test Item Smart Radio Type Identification RM-2450-2L , RM-2025-2L FCC ID 2AG87RM2450-2L Technical Specification of EUT Item EUT Information Operating Frequency 10MHz: 2412 MHz ~ 2467 MHz 20MHz: 2412 MHz ~ 2462 MHz Modulation OFDM (BPSK, QPSK, 16QAM, 6…

Text truncated - open the document above for the full version.

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN2239JU (P15C-2.4G) 001 Auftrags-Nr.: Order no.: 238547833 Seite 1 von 33 Page 1 of 33 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-09-13 Auftraggeber: Client: Doodle Labs (SG) Pte Ltd 150 Kampong Ampat, KA Center, Suite 05-03, Singapore, Singapore Prü fgegenstand: Test item: Smart Radio Bezeichnung / Typ-Nr.: Identification / Type no.: RM-2450-2L , RM-2025-2L Auftrags-Inhalt: Order content: FCC Part 15C Test report (2.4GHz) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2022-09-20 Prü fmuster-Nr.: Test sample no: A003339515-003 Prü fzeitraum: Testing period: 2022-10-06 - 2022-12-20 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass überprü ft von: compiled by: Ryan Chen genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-12-27 Ausstellungsdatum: Issue date: 2022-12-27 Stellung / Position: Senior Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite 2 von 33 Page 2 of 33 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.247(b) & 15.203 Antenna Requirement Pass 5.1.2 15.247(b)(3) Peak Output Power Pass 5.1.3 15.247(a)(2) 6 dB Bandwidth Pass 5.1.3 2.1049 99% Occupied Bandwidth Pass 5.1.4 15.247(e) Power Spectral Density Pass 5.1.5 15.247(d) Conducted Spurious Emissions and Band Edges Pass 5.1.6 15.247(d) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.2.1 15.207 Mains Conducted Emission Pass Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite 3 von 33 Page 3 of 33 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................... 10 3.4 SUBMITTED DOCUMENTS ..................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................. 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 11 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 12 4.3 TEST OPERATION AND TEST SOFTWARE............................................................... 13 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 15 4.5 TEST SETUP DIAGRAM ........................................................................................ 15 4.6 DUTY CYCLE OF TEST SIGNAL ............................................................................. 17 5. TEST RESULTS ................................................................................................... 18 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ....................................................... 18 5.1.1 Antenna Requirement .........................................................................................................…

Text truncated - open the document above for the full version.

Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A1 von A112 Page A1 of A112 Appendix A: Test Results of Conducted Test Test Result of 6 dB Bandwidth g_10MHz: 2TX Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Ant 0 Ant 1 Channel 1 2412 7.83 7.83 > 0.5 Pass Channel 6 2437 8.03 7.99 > 0.5 Pass Channel 7 2442 7.75 7.99 > 0.5 Pass Channel 8 2447 7.83 8.11 > 0.5 Pass Channel 9 2452 7.67 8.03 > 0.5 Pass Channel 10 2457 7.71 7.91 > 0.5 Pass Channel 11 2462 7.75 7.71 > 0.5 Pass Channel 12 2467 7.79 8.15 > 0.5 Pass <Ant 0> Channel 1 Channel 6 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A2 von A112 Page A2 of A112 Channel 7 Channel 8 Channel 9 Channel 10 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A3 von A112 Page A3 of A112 Channel 11 Channel 12 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A4 von A112 Page A4 of A112 <Ant 1> Channel 1 Channel 6 Channel 7 Channel 8 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A5 von A112 Page A5 of A112 Channel 9 Channel 10 Channel 11 Channel 12 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A6 von A112 Page A6 of A112 g_20MHz: 2TX Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Ant 0 Ant 1 Channel 1 2412 14.51 15.18 > 0.5 Pass Channel 2 2417 15.19 15.19 > 0.5 Pass Channel 3 2422 13.27 15.19 > 0.5 Pass Channel 4 2427 15.11 15.19 > 0.5 Pass Channel 5 2432 15.11 15.15 > 0.5 Pass Channel 6 2437 15.46 15.14 > 0.5 Pass Channel 7 2442 14.47 14.43 > 0.5 Pass Channel 8 2447 15.19 15.19 > 0.5 Pass Channel 9 2452 15.15 15.19 > 0.5 Pass Channel 10 2457 15.15 15.39 > 0.5 Pass Channel 11 2462 14.91 15.18 > 0.5 Pass <Ant 0> Channel 1 Channel 2 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A7 von A112 Page A7 of A112 Channel 3 Channel 4 Channel 5 Channel 6 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A8 von A112 Page A8 of A112 Channel 7 Channel 8 Channel 9 Channel 10 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A9 von A112 Page A9 of A112 Channel 11 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A10 von A112 Page A10 of A112 <Ant 1> Channel 1 Channel 2 Channel 3 Channel 4 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A11 von A112 Page A11 of A112 Channel 5 Channel 6 Channel 7 Channel 8 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A12 von A112 Page A12 of A112 Channel 9 Channel 10 Channel 11 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A13 von A112 Page A13 of A112 n_10MHz: 2TX Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Ant 0 Ant 1 Channel 1 2412 8.87 8.15 > 0.5 Pass Channel 2 2417 7.83 7.91 > 0.5 Pass Channel 3 2422 7.91 8.63 > 0.5 Pass Channel 4 2427 8.03 8.03 > 0.5 Pass Channel 5 2432 7.87 8.07 > 0.5 Pass Channel 6 2437 7.83 7.95 > 0.5 Pass Channel 7 2442 8.39 7.95 > 0.5 Pass Channel 8 2447 8.04 8.08 > 0.5 Pass Channel 9 2452 7.83 8.03 > 0.5 Pass Channel 10 2457 7.91 7.95 > 0.5 Pass Channel 11 2462 7.67 7.75 > 0.5 Pass <Ant 0> Channel 1 Channel 2 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A14 von A112 Page A14 of A112 Channel 3 Channel 4 Channel 5 Channel 6 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A15 von A112 Page A15 of A112 Channel 7 Channel 8 Channel 9 Channel 10 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A16 von A112 Page A16 of A112 Channel 11 Channel 12 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A17 von A112 Page A17 of A112 <Ant 1> Channel 1 Channel 2 Channel 3 Channel 4 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A18 von A112 Page A18 of A112 Channel 5 Channel 6 Channel 7 Channel 8 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A19 von A112 Page A19 of A112 Channel 9 Channel 10 Channel 11 Channel 12 Prüfbericht - Nr.: Test Report No. CN2239JU (P15C-2.4G) 001 Seite A20 von A112 Page A20 of A112 n_20MHz: 2TX Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Ant 0 Ant 1 Channel 1 2412 15.10 15.18 > 0.5 Pass Channel 2 2417 15.18 15.18 > 0.5 Pass Channel 3 2422 13.83 15.03 > 0.5 Pass Channel 4 2427 15.18 15.18 > 0.5 Pass Channel 5 2432 15.18 15.14 > 0.5 Pass Channel 6 2437 15.10 16.58 > 0.5 Pass …
