2AGN7-NEO-X4K UHD Hi-end Media Player

Page 25 NEO X Introduction NEO X is an all-in-one device integrating 4K UHD media player, music streaming media player, audio and video media center, high-fidelity headphone amplifier, music decoder and Bluetooth decoder. As a 4K UHD media player, it can decode and output advanced 4K 12Bit HDR10+/Dolby vision. NEO X supports playing music from a variety of input sources, such as hard disk, computer and NAS server. Not only supporting almost all high-sampling master-tape music files such as MQA, SACD ISO, DFF, DSF, FLAC, WAV, APE etc., but also supporting managing local music resources and music streaming. Live streaming media app and DLNA streaming all can get good audio quality. NEO X adopts ESS9038Pro DAC chip for audio decoding and supports lossless Bluetooth, Coaxial, AES/EBU and asynchronous USB audio input, which can be used as an independent high-fidelity audio decoder. XLR balance, RCA stereo preamplifier output and high- performance headphone amplifier output are supported. No matter for local file playback or external audio input, excellent audio index can be obtained with the decoding processing of DAC, fully balanced operational amplifier circuit and audio components. It can parse lossless master-tape format files up to 22.5792 MHz DSD files (DSD512 Native mode), 768 kHz 32-bit PCM. NEO X can be controlled easily by cell phone with exclusive Zidoo Controller APP. The large 5-inch OLED HD screen can intuitively display general settings menu, music library data, playback status and input source sampling rate etc. Touch screen, physical volume and multifunctional control knobs are very convenient to operate. NEO X helps us solving devices connecting and matching problems, which is easy to use and pursuing for excellent performance. Page 26 4K UHD Hi-end Media player ChassisAviation aluminum alloy Display5-inch OLED HD touch screen OSAndroid 9.0 CPURealtek RTD1619DR ARM Cortex-A55(hexa-core) GPUARM Mali-G51 MP3 Internal Storage2GB DDR4 (RAM)+16GB eMMC DACESS 9038Pro BluetoothBT 4.2 Wi-Fi2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps Ethernet1*RJ-45(10/100/1000Mbps) HDMI Output 2.0a (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output) support audio passthrough Video Decoding4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby Vision Audio Decoding Support true-hd HD audio passthrough, stereo PCM decoding; Built-in DAC audio decoding: support up to stereo DSD512 24Bit, PCM 768KHz 32Bit, MQA Bluetooth Audio Input CSR8675 flagship Bluetooth audio module supports mainstream lossless audio protocols such as SBC/AAC USB Audio Input USB audio compatible system: Windows(7,10), Mac, Android Support up to stereo DSD512 24Bit, PCM 768KHz 32Bit, MQA Digital Audio InputUSB DAC IN*1, AES/EBU input*1, Coaxial input *1 Digital Audio OutputOptical output*1, Coaxial output*1 Analog Audio Output Preamplifier output: XLR(balanced)*1, RCA*1 Headphone amplifier output: 4.4mm balanced*1 6.35mm single end*1 Headphone Impedance 16-300Ω (low-gain mode: 16-32Ω/ high-gain mode: 32-300Ω) USB PortsUSB3.0*1，USB2.0*2 SATAInternal SATA3.0 (3.5-inch HDD bay, hard drives are not included) Control PortsIR IN*1, RS-232*1, TRIGGER (12V) IN/OUT, TCP/IP control (WOL) Power SupplyAC 110-240V 50/60Hz (dual linear power supply） Dimensions395mm*291mm*110mm Packing ListRemote control*1, Power cable*1, Antennas*3, Product manual*1 Specification Page 27 Analog Audio Characteristics XLR(balanced) Output Output Level: 4.1 Vrms THD+N: -110dB（0.00031%） Noise: 2uVrms SNR: 118dB(20Hz-20kHz) Frequency response: ±0.25dB(20Hz-20kHz) Crosstalk: -126dB(1kHz,Fs=44.1kHz) DNR: 118dB RCA Output Output level: 2.26 Vrms THD+N: -109dB（0.00035%） Noise: 2.6uVrms SNR: 115dB(20Hz-20kHz) Frequency response: ±0.258dB(20Hz-20kHz) Crosstalk: -132dB(1kHz,Fs=44.1kHz) DNR: 114dB Headphone 4.4mm Balanced Output Output level: 2.9 Vrms Output power: 410mW/32Ω THD+N : -110dB（0.00032%） Noise: 1.7uVrms SNR: 120dB(20Hz-20kHz) Frequency response: ±0.25dB(20Hz-20kHz) Crosstalk: -131dB(1kHz,Fs=44.1kHz) DNR: 118dB Headphone 6.35mm Single End Output Low-gain mode Output level: 1.45Vrms Output Power/ Headphone impedance: 110mW/32Ω THD+N: -108dB（0.0004%） Noise: 3.2uVrms SNR: 112dB(20Hz-20kHz) Frequency response: ±0.25dB(20Hz-20kHz) Crosstalk: -128dB(1kHz,Fs=44.1kHz) DNR: 110dB High-gain mode Output level: 2.56Vrms Output Power/ Headphone impedance: 42mW/300Ω THD+N: -108dB（0.0004%） Noise: 3.3uVrms SNR: 114dB(20Hz-20kHz) Frequency response: ±0.25dB(20Hz-20kHz) Crosstalk: -132dB(1kHz,Fs=44.1kHz) DNR: 108dB Specification Page 28 4K UHD Hi-end Media player 1.Front Hardware Introduction OLED TOUCH SCREENPOWER SELECT KNOB/CONFIRM4.4mm BALANCED6.35mm HEADPHONE IR RECEIVER USB2.0SWITCH VOLUME KNOBRETURN In addition to the touch screen of NEO X, the front panel is also designed with convenient control buttons to collaborate the operation of touch screen. ① Select Knob The Select knob is multifunctional, it can be used to rotate left/right and press down. Horizontal menu: rotate the Select Knob clockwise to move right, rotate the knob counterclockwise to move left, press down the knob to confirm. Vertical menu: rotate Select Knob clockwise to move downwards, rotate the knob counterclockwise to move upwards, press down the knob to confirm. ② Volume Knob Volume knob can be used to adjust the volume, rotate clockwise to increase output volume, and rotate counterclockwise to decrease output volume. * Under the DAC IN mode, volume can be adjusted with step 0.5db~3db in DAC setting. ③ Return Button Press Return Button will go back to previous menu. When long press Return Button,it will go back to Home page. Page 29 2.Back USB3.0GIGABIT LAN HDMI OUT XLR R/L (AUDIO OUT) IR IN USB DAC AES/EBU COAXIAL OUT COALXIAL IN R / L (AUDIO OUT) RS-232 OPTICAL TRIGGER OUT/ IN ANTENNA ANTENNA ANTENNA RST AC POWER ④ Switch Button Press Switch Button will directly go to the current music playback page. ⑤ Power Button Power on/off this device. Note: Except Power Button and Volume Knob, other buttons can o…

Text truncated - open the document above for the full version.

Shenzhen Zidoo Technology Co., Ltd. Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Tel: +86 0755-23500280 Fax: +86 0755-23500280 Date: 2021-5-15 Dear Sir/Madam, We, Shenzhen Zidoo Technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: 4K UHD Hi-end Media Player Model no.: NEO X, NEO X,X Sincerely, Name: Anbiao Ren Company: Shenzhen Zidoo Technology Co., Ltd. Address: Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Phone: +86 0755-23500280 Fax: +86 0755-23500280 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021/5/15 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AGN7-NEO-X NEO X, NEO X,X For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions Declaration Letter of Software Security Requirements The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Anbiao Ren Company: Shenzhen Zidoo Technology Co., Ltd. Address: Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Phone: +86 0755-23500280 Fax: +86 0755-23500280 E-Mail: [email protected]

Shenzhen Zidoo Technology Co., Ltd. Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Tel: +86 0755-23500280 Fax: +86 0755-23500280 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/19/2021 To whom it may concern: We, Shenzhen Zidoo Technology Co., Ltd.the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AGN7-NEO-X including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Anbiao Ren Company: Shenzhen Zidoo Technology Co., Ltd. Address: Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Phone: +86 0755-23500280 Fax: +86 0755-23500280 E-Mail: [email protected]

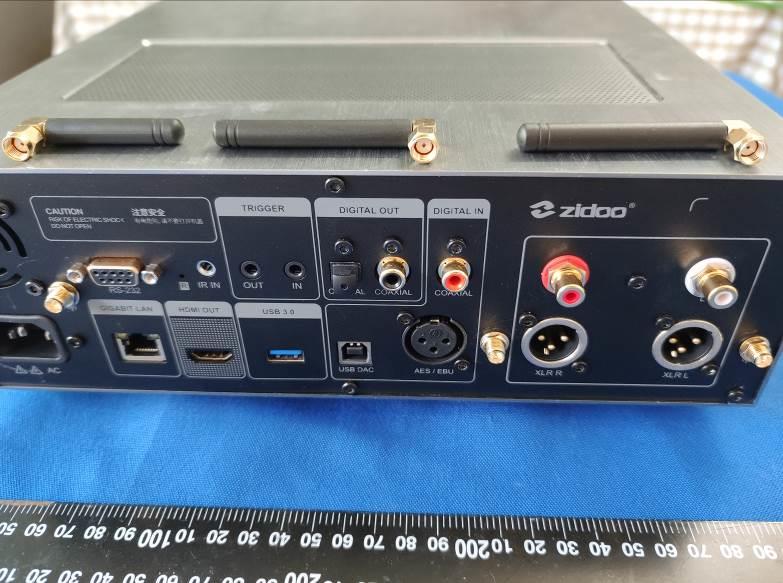

FCC ID: 2AGN7-NEO-X BT Antenna WIFI Antenna

4K UHD Hi-end Media Player Model: NEO X FCC ID: 2AGN7-NEO-X This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

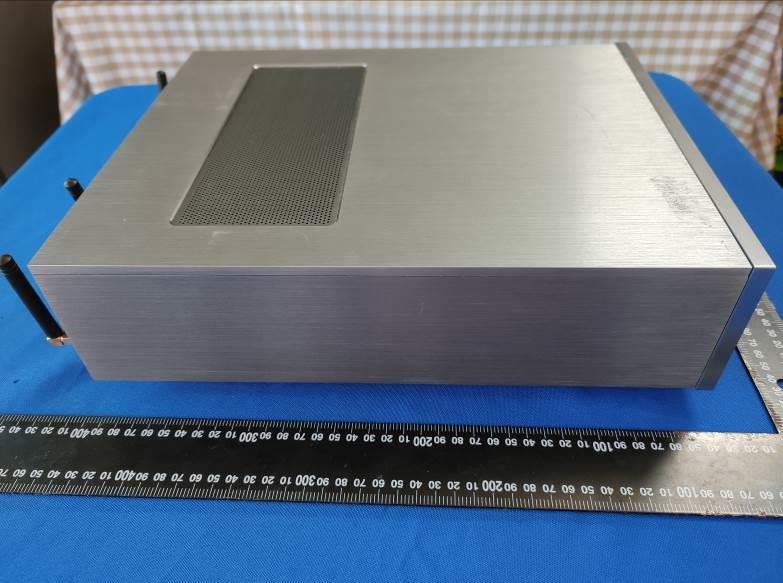

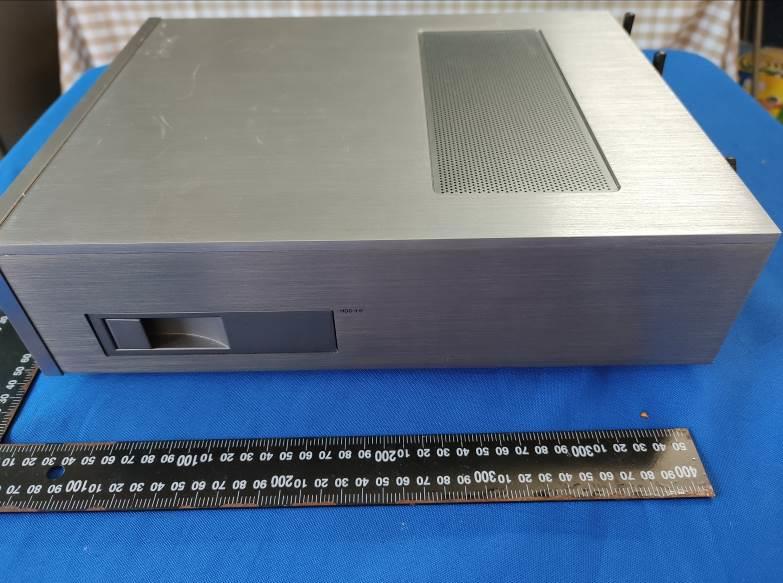

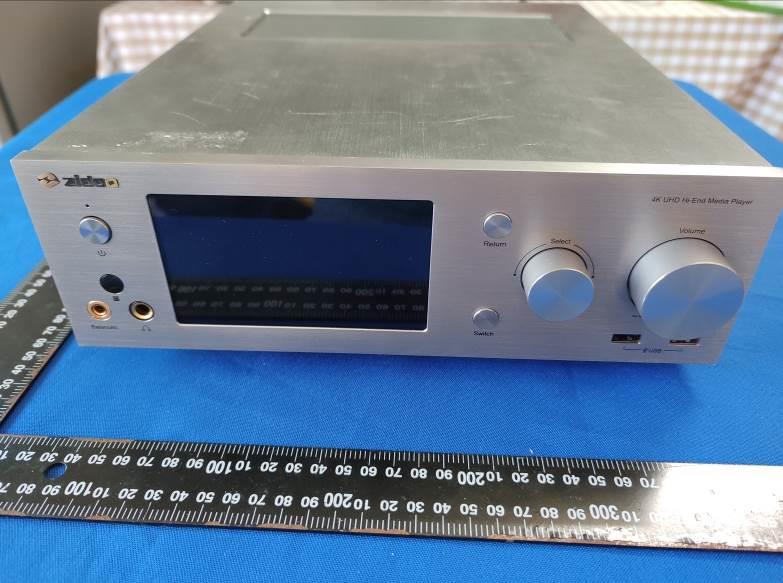

FCC ID: 2AGN7-NEO-X

RF Exposure evaluation FCC ID: 2AGN7-NEO-X Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information NEO X can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna Identification in Internal photos Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna 0 2.4G/5G Wifi Chain 0 External antenna 2.4GHz – 2.5 GHz 5.1GHz – 5.8 GHz 3.00 dBi Antenna 1 2.4G/5G Wifi Chain 1 External antenna 2.4GHz – 2.5 GHz 5.1GHz – 5.8 GHz 3.00 dBi Antenna 3 BT External antenna 2.4GHz – 2.5 GHz 3.00 dBi 5. Conducted power Bluetooth Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 3.72 39 2441 3.56 78 2480 3.37 π/4DQPSK 0 2402 3.69 39 2441 3.51 78 2480 3.32 8-DPSK 0 2402 3.81 39 2441 3.63 78 2480 3.45 [2.4GHz WLAN] Mode Channel Frequency Peak Conducted Output Power (dBm) Antenna0 Antenna1 IEEE 802.11b 1 2412 18.62 17.16 7 2437 18.10 16.65 13 2462 18.05 16.22 IEEE 802.11g 1 2412 23.25 22.44 7 2437 22.53 21.86 13 2462 22.23 21.39 IEEE 802.11n HT20 1 2412 23.24 22.13 7 2437 22.42 21.41 13 2462 22.17 21.04 IEEE 802.11n HT40 3 2422 23.40 22.16 7 2437 22.63 21.68 11 2452 22.43 21.23 [5GHz WLAN Band 1] Mode Channel Frequency Average Conducted Output Power (dBm) Antenna0 Antenna1 IEEE 802.11a 36 5180 11.36 10.72 40 5200 11.95 11.42 48 5240 12.86 12.17 IEEE 802.11n HT20 36 5180 11.54 10.91 40 5200 12.04 11.34 48 5240 13.14 12.14 IEEE 802.11ac VHT20 36 5180 11.48 10.90 40 5200 12.11 11.81 48 5240 11.38 10.75 IEEE 802.11n HT40 38 5190 12.04 11.37 46 5230 12.68 12.41 IEEE 802.11ac VHT40 38 5190 11.46 10.73 46 5230 12.41 11.39 IEEE 802.11ac VHT80 42 5210 11.59 10.76 [5GHz WLAN Band 3] Mode Channel Frequency Average Conducted Output Power (dBm) Antenna0 Antenna1 IEEE 802.11a 149 5745 13.34 12.51 157 5785 12.09 11.53 165 5825 11.35 10.35 IEEE 802.11n HT20 149 5745 13.03 12.51 157 5785 12.10 11.42 165 5825 11.13 10.52 IEEE 802.11ac VHT20 149 5745 12.87 12.54 157 5785 11.77 11.06 165 5825 13.00 12.66 IEEE 802.11n HT40 151 5755 12.08 11.60 159 5795 11.30 10.43 IEEE 802.11ac VHT40 151 5755 12.98 12.23 159 5795 11.35 11.19 IEEE 802.11ac VHT80 155 5775 12.46 11.84 6. Manufacturing Tolerance Bluetooth GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 2.4GHz WLAN IEEE 802.11b (Peak) Frequency (MHz) Antenna 0 Antenna 1 2412 2437 2462 2412 2437 2462 Target (dBm) 18.0 18.0 18.0 17.0 17.0 17.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11g (Peak) Frequency (MHz) Antenna 0 Antenna 1 2412 2437 2462 2412 2437 2462 Target (dBm) 23.0 22.0 22.0 22.0 21.0 21.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Frequency (MHz) Antenna 0 Antenna 1 2412 2437 2462 2412 2437 2462 Target (dBm) 23.0 22.0 22.0 22.0 21.0 21.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11n HT40 (Peak) Frequency (MHz) Antenna 0 Antenna 1 2422 2437 2452 2422 2437 2452 Target (dBm) 23.0 22.0 22.0 22.0 21.0 21.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 5GHz WLAN Band 1 IEEE 802.11a (Average) Frequency (MHz) Antenna 0 Antenna 1 5180 5200 5240 5180 5200 5240 Target (dBm) 11.0 11.0 12.0 11.0 11.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11n HT20 (Average) Frequency (MHz) Antenna 0 Antenna 1 5180 5200 5240 5180 5200 5240 Target (dBm) 11.0 12.0 13.0 11.0 12.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11ac VHT20 (Average) Frequency (MHz) Antenna 0 Antenna 1 5180 5200 5240 5180 5200 5240 Target (dBm) 11.0 12.0 13.0 11.0 12.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11n HT40 (Average) Frequency (MHz) Antenna 0 Antenna 1 5190 5230 5190 5230 Target (dBm) 11.0 12.0 11.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 IEEE 802.11ac VHT40 (Average) Frequency (MHz) Antenna 0 Antenna 1 5190 5230 5190 5230 Target (dBm) 11.0 12.0 11.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 IEEE 802.11ac VHT80 (Average) Frequency (MHz) Antenna 0 Antenna 1 5210 5210 Target (dBm) 11.0 11.0 Tolerance ± (dB) 1.0 1.0 5GHz WLAN Band 3 IEEE 802.11a (Average) Frequency (MHz) Antenna 0 Antenna 1 5745 5785 5825 5745 5785 5825 Target (dBm) 13.0 12.0 11.0 13.0 12.0 11.0 Tolerance ± (dB) 1.0 1.…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .....................: FCC ID. ........................................... : GTS20210428007-1-3 2AGN7-NEO-X Compiled by ( position+printed name+signature) ..: File administrators Jimmy Wang Supervised by ( position+printed name+signature) ..: Test Engineer Aaron Tan Approved by ( position+printed name+signature) ..: Manager Jason Hu Date of issue .....................................: May 06, 2021 Representative Laboratory Name .: Shenzhen Global Test Service Co., Ltd. Address ............................................: No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................: Shenzhen Zidoo Technology Co., Ltd. Address ............................................: Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Test specification ...........................: Standard ...........................................: FCC Part 15.247 TRF Originator ..................................: Shenzhen Global Test Service Co.,Ltd. Master TRF .......................................: Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: 4K UHD Hi-end Media Player Trade Mark .......................................: ZIDOO Manufacturer ....................................: Shenzhen Zidoo Technology Co., Ltd. Model/Type reference .......................: NEO X Listed Models ..................................: NEO X,X Modulation Type ...............................: GFSK, Π/4DQPSK, 8DPSK Operation Frequency ........................: From 2402MHz to 2480MHz Hardware Version ............................: NEO_1619 Software Version ..............................: V1.0 Rating ...............................................: 100-240V~ ,50/60Hz, Max 0.4A Result ...............................................: PASS Report No.: GTS20210428007-1-3 Page 2 of 44 T E S T R E P O R T Test Report No. : GTS20210428007-1-3 May 06, 2021 ____________________________________________________________________________________ Date of issue Equipment under Test : 4K UHD Hi-end Media Player Model /Type : NEO X Listed Models : NEO X,X Applicant : Shenzhen Zidoo Technology Co., Ltd. Address : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Manufacturer : Shenzhen Zidoo Technology Co., Ltd. Address : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20210428007-1-3 Page 3 of 44 Contents 1 T E S T S T A N D A R D S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2 S U M M A R Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Test Sample 5 2.4 Equipment Under Test 5 2.5 Short description of the Equipment under Test (EUT) 5 2.6 EUT operation mode 6 2.7 Block Diagram of Test Setup 6 2.8 Related Submittal(s) / Grant (s) 6 2.9 Modifications 6 3 T E S T E N V I R O N M E N T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 0 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 25 4.6 Number of hopping frequency 27 4.7 Time of Occupancy (Dwell Time) 29 4.8 Out-of-band Emissions 33 4.9 Pseudorandom Frequency Hopping Sequence 41 4.10 Antenna Requirement 42 5 T E S T S E T U P P H O T O S O F T H E E U T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 3 6 P H O T O S O F T H E E U T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 4 Report No.: GTS20210428007-1-3 Page 4 of 44 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The…

Text truncated - open the document above for the full version.

FCC ID: 2AGN7-NEO-X
