2AGN7-Z2000PRO4K UHD MEDIA PLAYER

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen Zidoo Technology Co., Ltd Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 05/27/2023 U.S. Agent Designation Shenzhen Zidoo Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AGN7-Z2000PRO): Name and company of U.S. agent: Giahan Music & Video Physical U.S. address of agent: 2100 East Colonial Drive, Orlando, Florida 32803,USA FRN of U.S. agent: 0033471996 Email address of U.S. agent: [email protected] Giahan Music & Video acknowledges their obligation to accept service of process on behalf of Shenzhen Zidoo Technology Co., Ltd Shenzhen Zidoo Technology Co., Ltd with the FRN 0025080797 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Signature [Name]: Anbiao Ren [Name of U.S. agent]：Kevin Ly [Title]: Manager [Title of U.S. agent]：PM [Company]: Shenzhen Zidoo Technology Co., Ltd [Company of U.S. agent]: Giahan Music & Video 48_[mo del] US_Agent_2.911(d)(7) - U, V04

Sincerely, Name/Title： Anbiao Ren /Manager Company: Shenzhen Zidoo Technology Co., Ltd. Address: Room 1301,1302,1303,1307,Chentian R&D Building, No.50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen China Phone: 0755-23500280 Fax: 0755-23500280 E-Mail: [email protected]

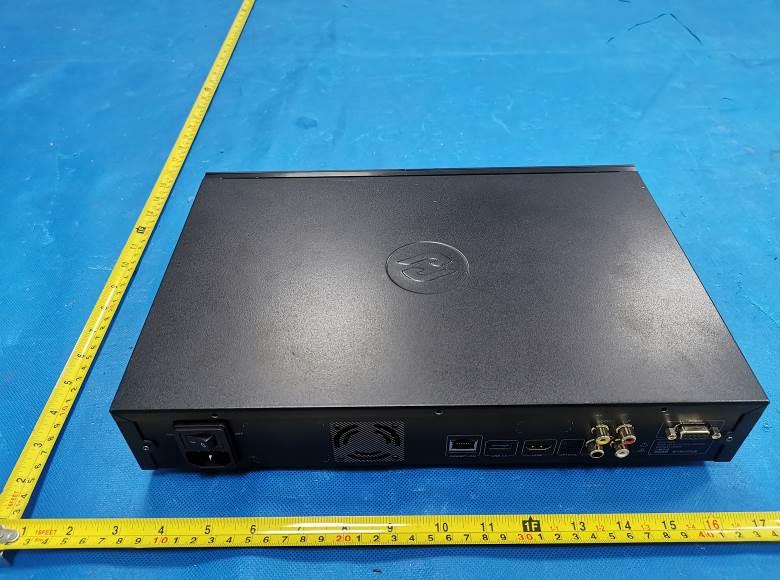

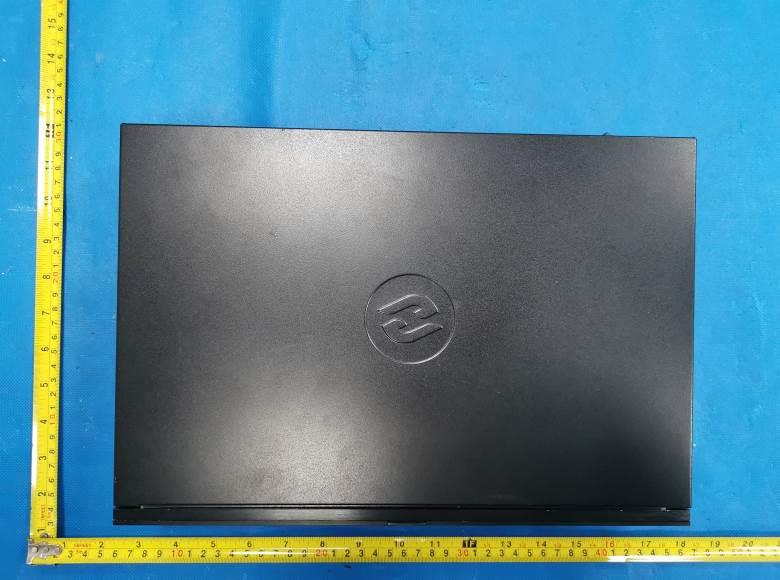

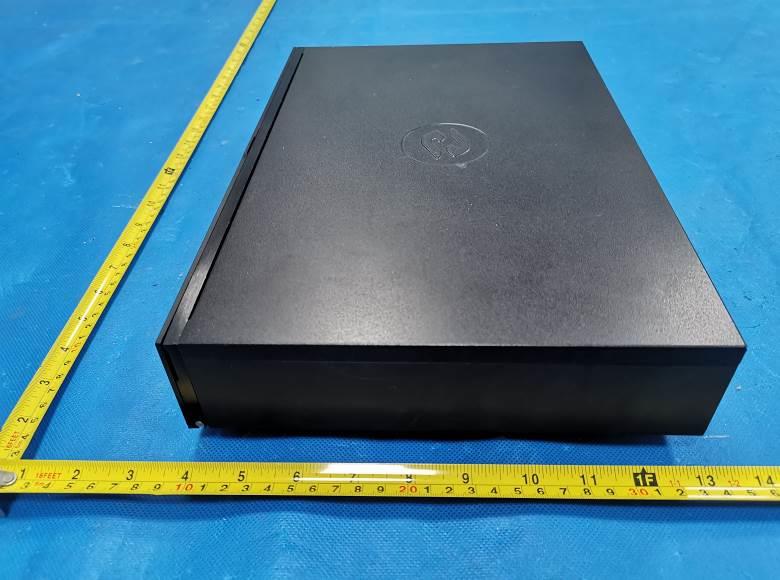

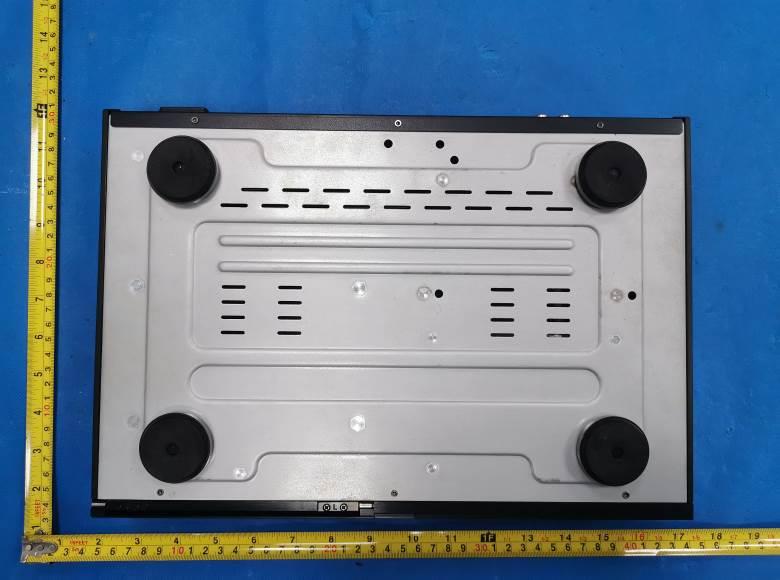

FCC ID: 2AGN7-Z2000PRO External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AGN7-Z2000PRO Photo 4 Photo 5 Photo 6 FCC ID: 2AGN7-Z2000PRO Photo 7

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location Model No.: Z2000 PRO FCC ID : 2AGN7-Z2000PRO Caution : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AGN7-Z2000PRO Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AGN7-Z2000PRO Photo 4 Photo 5 Photo 6 FCC ID: 2AGN7-Z2000PRO Photo 7 Photo 8 Photo 9 FCC ID: 2AGN7-Z2000PRO Photo 10 Photo 11 Photo 12 FCC ID: 2AGN7-Z2000PRO Photo 13 Photo 14 Photo 15 FCC ID: 2AGN7-Z2000PRO Photo 16 Photo 17 Photo 18 FCC ID: 2AGN7-Z2000PRO Photo 19 Photo 20 Photo 21 Antenna 0 BT/2.4G/5.2G/5.8GWIFI Internal Antenna Antenna 1 2.4G/5.2G/5.8GWIFI External Antenna FCC ID: 2AGN7-Z2000PRO Photo 22 Photo 23

RF Exposure evaluation FCC ID: 2AGN7-Z2000PRO Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information Z2000 PRO can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT/BLE / Internal antenna 1.24dBi for 2400-2500MHz; 2.4GWIFI / Internal antenna 1.24dBi for 2400-2500MHz for ANT 1&2 5.2GWIFI / Internal antenna 0.86dBi for 5180-5240MHz for ANT 1&2 5.8GWIFI / Internal antenna 1.40dBi for 5745-5825MHz for ANT 1&2 5. Manufacturing Tolerance BT GFSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 BTΠ/4DQPSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 2.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 BT 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 2.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 5.0 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 WIFI(Peak) ANT1 Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 WIFI(Peak) ANT2 Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 [5.2GHz WLAN] ANT 1 IEEE 802.11A (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5210 / Target (dBm) / 12.0 / Tolerance ± (dB) / 1.0 / IEEE 802.11ax20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 IEEE 802.11ax40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ax80 (Average) Frequency (MHz) / 5210 / Target (dBm) / 12.0 / Tolerance ± (dB) / 1.0 / [5.2GHz WLAN] ANT 2 IEEE 802.11A (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 14.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5210 / Target (dBm) / 12.0 / Tolerance ± (dB) / 1.0 / IEEE 802.11ax20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 13.0 12.0 12.0 IEEE 802.11ax40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ax80 (Average) Frequency (MHz) / 5210 / Target (dBm) / 12.0 / Tolerance ± (dB) / 1.0 / [5.8GHz WLAN] ANT1 IEEE 802.11A (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5775 / Target (dBm) / 12.0 / Tolerance ± (dB) / 1.0 / IEEE 802.11ax20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 12.0 12.0 12.0 IEEE 802.11ax40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IE…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Internal antenna Model Z2000 PRO Frequency range 2400-2500MHz Manufacturer Shenzhen Zidoo Technology Co., Ltd ANT Peak Gain 1.24 dBi 2. Antenna Photo: Length :40.19mm Width:8.00mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA23050900601 2AGN7-Z2000PRO Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : May 18, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Zidoo Technology Co., Ltd Address ............................................ : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: 4K UHD MEDIA PLAYER Trade Mark ....................................... : ZIDOO Manufacturer .................................... : Shenzhen Zidoo Technology Co., Ltd Model/Type reference....................... : Z2000 PRO Listed Models .................................. : N/A Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : AC 100-240V 50/60Hz Result................................................ : PASS Report No.: CTA23050900601 Page 2 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 4K UHD MEDIA PLAYER Model /Type : Z2000 PRO Listed Models : N/A Applicant : Shenzhen Zidoo Technology Co., Ltd Address : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Manufacturer : Shenzhen Zidoo Technology Co., Ltd Address : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23050900601 Page 3 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 P H O T O S O F T H E E U T ........................................................... 30 Report No.: CTA23050900601 Page 4 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA23050900601 Page 5 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an Di…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23050900603 2AGN7-Z2000PRO Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 18, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Zidoo Technology Co., Ltd Address ............................................ : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 4K UHD MEDIA PLAYER Trade Mark ....................................... : ZIDOO Manufacturer .................................... : Shenzhen Zidoo Technology Co., Ltd Model/Type reference ...................... : Z2000 PRO Listed Models .................................. : N/A Modulation Type ............................... : CCK/DSSS/ OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : AC 100-240V 50/60Hz Result ............................................... : PASS Report No.:CTA23050900603 Page 2 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 4K UHD MEDIA PLAYER Model /Type : Z2000 PRO Serial Models : N/A Applicant : Shenzhen Zidoo Technology Co., Ltd Address : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Manufacturer : Shenzhen Zidoo Technology Co., Ltd Address : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.:CTA23050900603 Page 3 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Conducted Output Power 19 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 27 4.6 Out-of-band Emissions 32 4.7 Antenna Requirement 45 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 46 6 P H O T O S O F T H E E U T ........................................................... 46 Report No.:CTA23050900603 Page 4 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Report No.:CTA2305090…

Text truncated - open the document above for the full version.

Report No.:CTA23050900603 Page 31 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT20) 802.11n(HT20) CH01 CH06 CH11 Report No.:CTA23050900603 Page 32 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.6 Out-of-band Emissions Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF con-ducted or a radiated measurement, pro-vided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter com-plies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. Test Procedure Connect the transmitter output to spectrum analyzer using a low loss RF cable, and set the spectrum analyzer to RBW=100 kHz, VBW= 300 kHz, peak detector , and max hold. Measurements utilizing these setting are made of the in-band reference level, bandedge and out-of-band emissions. Test Configuration EUT SPECTRUM ANALYZER Test Results Remark: The measurement frequency range is from 30MHz to the 10th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandage measurement data. And record the worst data in the report. Test plot as follows: Report No.:CTA23050900603 Page 33 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 1 802.11b Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.:CTA23050900603 Page 34 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11b 802.11g Reference Reference CH011 CH01 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.:CTA23050900603 Page 35 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.:CTA23050900603 Page 36 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.:CTA23050900603 Page 37 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference CH11 30MHz-3GHz 3GHz -25GHz Report No.:CTA23050900603 Page 38 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 2 802.11b Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.:CTA23050900603 Page 39 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11b 802.11g Reference Reference CH011 CH01 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz

Report No.:CTA23050900603 Page 40 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.:CTA23050900603 Page 41 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.:CTA23050900603 Page 42 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 / Reference CH11 / 30MHz-3GHz / 3GHz -25GHz Report No.:CTA23050900603 Page 43 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: ANT 1 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.:CTA23050900603 Page 44 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 2 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.:CTA23050900603 Page 45 of 46 Shenzhen CTA Testing Techn…
