2AGN7-U19BG4K UHD Media Player

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Sincerely, Name/Title： Anbiao Ren /Manager Company: Shenzhen Zidoo Technology Co., Ltd. Address: Room 1301,1302,1303,1307,Chentian R&D Building, No.50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen China Phone: 0755-23500280 Fax: 0755-23500280 E-Mail: [email protected]

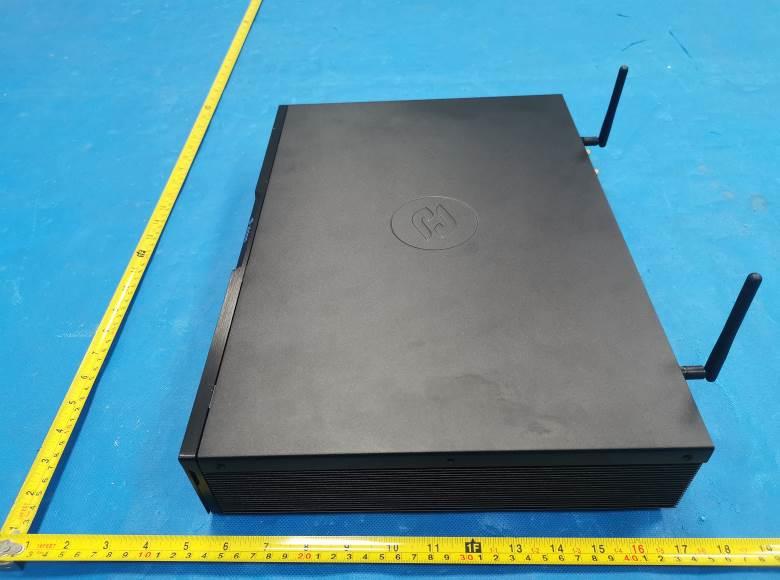

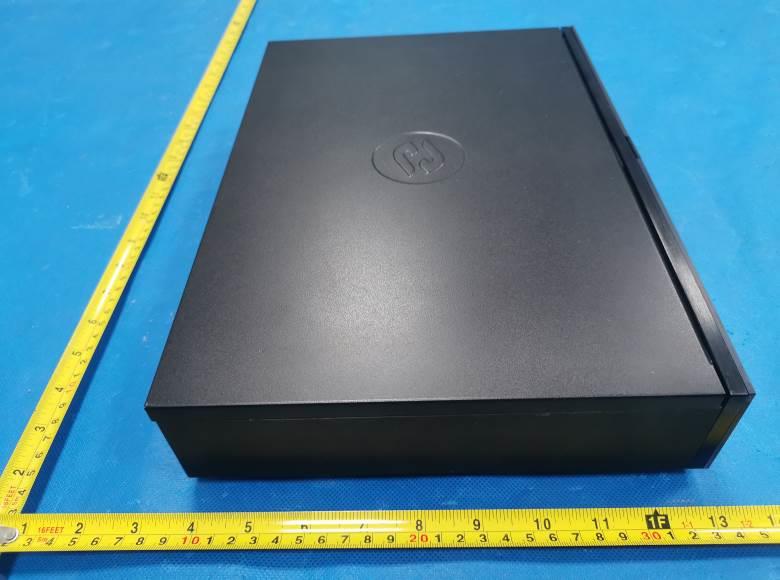

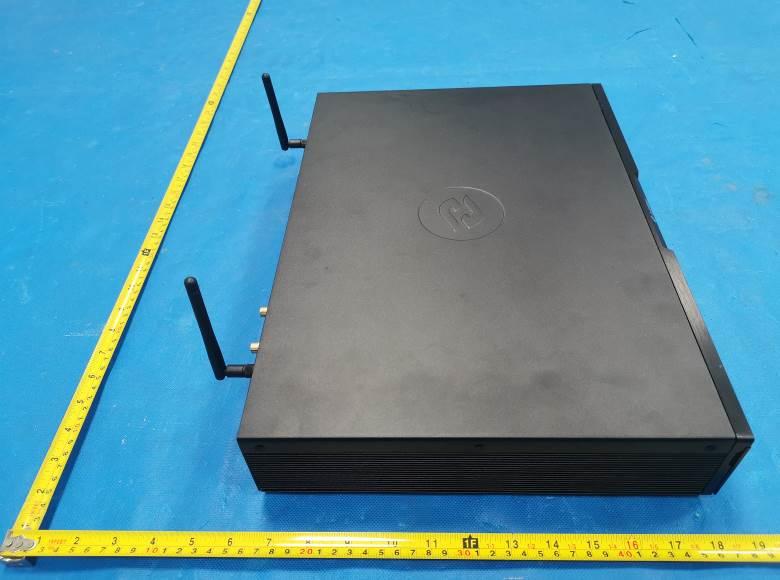

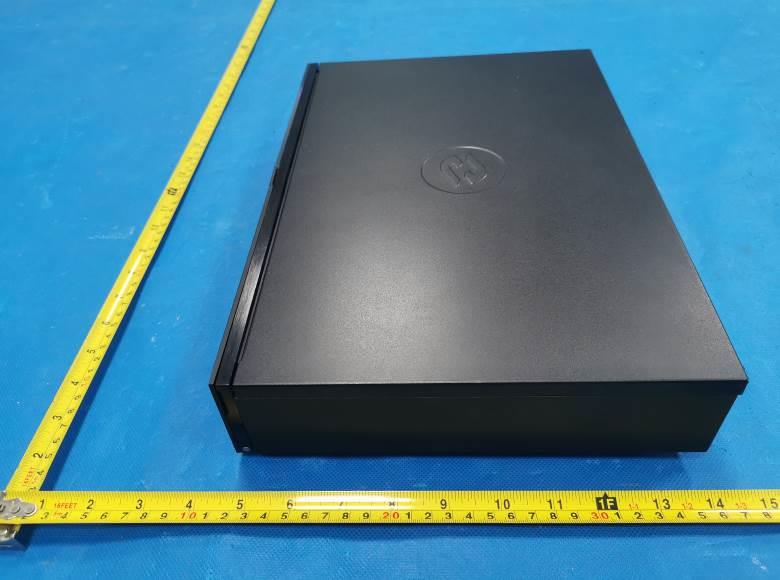

FCC ID: 2AGN7-U19BG External Photos of the EUT Photo 1 U19BG, UHD5000 Photo 2 Photo 3 FCC ID: 2AGN7-U19BG Photo 4 Photo 5 Photo 6 FCC ID: 2AGN7-U19BG Photo 7 Photo 8 Z2600 Photo 9 FCC ID: 2AGN7-U19BG Photo 10 Photo 11 Photo 12 FCC ID: 2AGN7-U19BG Photo 13 Photo 14 Photo 15

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location Model No.: U19BG FCC ID : 2AGN7-U19BG Caution : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AGN7-U19BG Internal Photos of the EUT U19BG, UHD5000 Photo 1 Photo 2 Photo 3 FCC ID: 2AGN7-U19BG Photo 4 Photo 5 Photo 6 FCC ID: 2AGN7-U19BG Photo 7 Photo 8 Z20 PRO Photo 9 FCC ID: 2AGN7-U19BG Photo 10 Photo 11 Photo 12 FCC ID: 2AGN7-U19BG Photo 13 Photo 14 Photo 15 FCC ID: 2AGN7-U19BG Photo 16 Photo 17 Photo 18 FCC ID: 2AGN7-U19BG Photo 19 Photo 20 Photo 21 Antenna 1 2.4G/5GWIFI External Antenna Antenna 0 BT/2.4G/5G WIFI External Antenna FCC ID: 2AGN7-U19BG Photo 22 Photo 23 Photo 24 FCC ID: 2AGN7-U19BG Photo 25 Photo 26 Photo 27 FCC ID: 2AGN7-U19BG Photo 28 Z2600 Photo 29 Photo 30 FCC ID: 2AGN7-U19BG Photo 31 Photo 32 Photo 33 FCC ID: 2AGN7-U19BG Photo 34 Photo 35 Photo 36 FCC ID: 2AGN7-U19BG Photo 37 Photo 38 Photo 39 FCC ID: 2AGN7-U19BG Photo 40 Photo 41 Photo 42 FCC ID: 2AGN7-U19BG Photo 43 Photo 44 Photo 45 Antenna 1 2.4G/5GWIFI External Antenna Antenna Antenna 0 BT/2.4G/5GWIFI External Antenna FCC ID: 2AGN7-U19BG Photo 46 Photo 47 Photo 48 FCC ID: 2AGN7-U19BG Photo 49 Photo 50

RF Exposure evaluation FCC ID: 2AGN7-U19BG Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information U19BG can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT/BLE / External Antenna 1.40dBi for 2400-2500MHz; 2.4GWIFI / External Antenna 1.40Bi for 2400-2500MHz for ANT 1&2 5.2GWIFI / External Antenna 0.73dBi for 5180-5240MHz for ANT 1&2 5.8GWIFI / External Antenna 1.28dBi for 5745-5825MHz for ANT 1&2 UHD5000, Z2600 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT/BLE / External Antenna 0.76dBi for 2400-2500MHz; 2.4GWIFI / External Antenna 0.76Bi for 2400-2500MHz for ANT 1&2 5.2GWIFI / External Antenna 0.2dBi for 5180-5240MHz for ANT 1&2 5.8GWIFI / External Antenna 0.61dBi for 5745-5825MHz for ANT 1&2 5. Manufacturing Tolerance BT Mode Max. Peak Conducted Output Power (dBm) Max. tune-up BT 1.74 2.0±1 BLE 4.32 4.0±1 2.4GWIFI Mode Max. Peak Conducted Output Power (dBm) Max. tune-up Antenna0 Antenna1 Antenna0 Antenna1 2.4GWIFI 12.94 12.94 13±1 13±1 5GWIFI Mode Max. Average Conducted Output Power (dBm) Max. tune-up Antenna0 Antenna1 Antenna0 Antenna1 5.2GWIFI 13.08 13.45 13±1 13±1 Mode Max. Average Conducted Output Power (dBm) Max. tune-up Antenna0 Antenna1 Antenna0 Antenna1 5.8GWIFI 13.94 14.45 14±1 14±1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT 3.0 1.9953 1.40 1.3804 0.0005 1.0000 BLE 5.0 3.1623 1.40 1.3804 0.0009 1.0000 2.4GWIFI ANT1 14.0 25.1189 1.40 1.3804 0.0069 1.0000 5.2GWIFI ANT1 14.0 25.1189 0.73 1.1830 0.0059 1.0000 5.8GWIFI ANT1 15.0 31.6228 1.28 1.3428 0.0085 1.0000 Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI ANT2 14.0 25.1189 1.40 1.3804 0.0069 1.0000 5.2GWIFI ANT2 14.0 25.1189 0.73 1.1830 0.0059 1.0000 5.8GWIFI ANT2 15.0 31.6228 1.28 1.3428 0.0085 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 3. Refer to section 4 we only use the Max antenna gain to assessment MPE evaluate. 7. simultaneous MPE Result WIFI ANT1 MPE (Ratio) WIFI ANT2 MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0085 0.0085 0.017 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type External antenna Model U19BG Frequency range 5180-5240MHz Manufacturer Shenzhen Zidoo Technology Co., Ltd ANT Peak Gain 0.73 dBi 2. Antenna Photo: Length :181.00mm Width:8.00mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5180MHz 5200MHz 5240MHz

1. Antenna Description: Antenna type External antenna Model Z2600 Frequency range 5180-5240MHz Manufacturer Shenzhen Zidoo Technology Co., Ltd ANT Peak Gain 0.20 dBi 2. Antenna Photo: Length :39.91mm Width:8.09mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5180MHz 5200MHz 5240MHz

1. Antenna Description: Antenna type External antenna Model U19BG Frequency range 5745-5825MHz Manufacturer Shenzhen Zidoo Technology Co., Ltd ANT Peak Gain 1.28 dBi 2. Antenna Photo: Length :181.00mm Width:8.00mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5745MHz 5785MHz 5825MHz

1. Antenna Description: Antenna type External antenna Model Z2600 Frequency range 5745-5825MHz Manufacturer Shenzhen Zidoo Technology Co., Ltd ANT Peak Gain 0.61 dBi 2. Antenna Photo: Length :39.91mm Width:8.09mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5745MHz 5785MHz 5825MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID............................................. : CTA23032801204 2AGN7-U19BG Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 12, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Zidoo Technology Co., Ltd Address ............................................ : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 4K UHD Media Player Trade Mark ....................................... : ZIDOO Manufacturer .................................... : Shenzhen Zidoo Technology Co., Ltd Model/Type reference ...................... : U19BG Listed Models .................................. : UHD5000, Z2600 Modulation ....................................... : OFDM Frequency ......................................... From 5180MHz-5240MHz, 5745MHz-5825MHz Ratings ............................................. : AC 100-240V 50/60Hz Result ............................................... : PASS Report No.: CTA23032801204 Page 2 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 4K UHD Media Player Model /Type : U19BG Serial Models : UHD5000, Z2600 Applicant : Shenzhen Zidoo Technology Co., Ltd Address : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Manufacturer : Shenzhen Zidoo Technology Co., Ltd Address : Room 1301,1302,1303,1307, Chentian R&D Building, No. 50 Baotian First Road, Chentian Community, Xixiang Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23032801204 Page 3 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 6 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions 13 4.3 Maximum Conducted Average Output Power 20 4.4 Power Spectral Density 27 4.5 Emission Bandwidth (26dB Bandwidth) 48 4.6 Minimum Emission Bandwidth (6dB Bandwidth) 58 4.7 Frequency Stability 68 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 71 6 P H O T O S O F T H E E U T ........................................................... 71 Report No.: CTA23032801204 Page 4 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15 Subpart E—Unlicensed National Information Infrastructure Devices ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB789033 D02: General UNII Test Procedures New Rules v01r02 Report No.: CTA23032801204 Page 5 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, B…

Text truncated - open the document above for the full version.

Report No.: CTA23032801204 Page 41 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 1 802.11a U-NII 1 U-NII 3 CH36 CH149 CH44 CH157 CH48 CH165 Report No.: CTA23032801204 Page 42 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT20) U-NII 1 U-NII 3 CH36 CH149 CH44 CH157 CH48 CH165 Report No.: CTA23032801204 Page 43 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) U-NII 1 U-NII 3 CH38 CH151 CH46 CH159 Report No.: CTA23032801204 Page 44 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT20) U-NII 1 U-NII 3 CH36 CH149 CH44 CH157 CH48 CH165 Report No.: CTA23032801204 Page 45 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) U-NII 1 U-NII 3 CH38 CH151 CH46 CH159 802.11ac(HT80) U-NII 1 U-NII 3 CH42 CH155 Report No.: CTA23032801204 Page 46 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ax(HT20) U-NII 1 U-NII 3 CH36 CH149 CH44 CH157 CH48 CH165 802.11ax(HT40) U-NII 1 U-NII 3 Report No.: CTA23032801204 Page 47 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn CH38 CH151 CH46 CH159 802.11ax(HT80) U-NII 1 U-NII 3 CH42 CH155 Report No.: CTA23032801204 Page 48 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.5 Emission Bandwidth (26dB Bandwidth) Limit N/A Test Procedure 1. Set resolution bandwidth (RBW) = approximately 1 % of the EBW. 2. Set the video bandwidth (VBW) > RBW. 3. Detector = Peak. 4. Trace mode = Max hold. 5. Measure the maximum width of the emission that is 26 dB down from the peak of the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and repeat measurement as needed until the RBW / EBW ratio is approximately 1 %. Test Configuration EUT SPECTRUM ANALYZER Test Results ANT 0 Type Bands Channel 26dB Bandwidth (MHz) Limit (MHz) Result 802.11a U-NII 1 36 18.440 N/A Pass 44 18.400 48 18.400 802.11n(HT20) U-NII 1 36 19.360 44 19.440 48 19.440 802.11n(HT40) U-NII 1 38 40.880 46 40.640 802.11ac(HT20) U-NII 1 36 19.440 44 19.480 48 19.440 802.11ac(HT40) U-NII 1 38 40.880 46 40.880 802.11ac(HT80) U-NII 1 42 80.640 802.11ax(HT20) U-NII 1 36 19.360 44 19.400 48 19.360 802.11ax(HT40) U-NII 1 38 40.640 46 40.720 802.11ax(HT80) U-NII 1 42 81.120 Report No.: CTA23032801204 Page 49 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 1 Type Bands Channel 26dB Bandwidth (MHz) Limit (MHz) Result 802.11a U-NII 1 36 18.320 N/A Pass 44 19.280 48 21.720 802.11n(HT20) U-NII 1 36 19.360 44 19.400 48 19.320 802.11n(HT40) U-NII 1 38 40.800 46 40.880 802.11ac(HT20) U-NII 1 36 19.520 44 19.280 48 19.440 802.11ac(HT40) U-NII 1 38 40.720 46 41.360 802.11ac(HT80) U-NII 1 42 81.280 802.11ax(HT20) U-NII 1 36 19.480 44 19.520 48 19.440 802.11ax(HT40) U-NII 1 38 40.560 46 40.720 802.11ax(HT80) U-NII 1 42 81.280 Test plot as follows: Report No.: CTA23032801204 Page 50 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 0 802.11a 802.11n(HT20) CH36 CH36 CH40 CH40 CH48 CH48

Report No.: CTA23032801204 Page 51 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH38 CH36 CH46 CH40 CH48 Report No.: CTA23032801204 Page 52 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH38 CH42 CH46 Report No.: CTA23032801204 Page 53 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ax(HT20) 802.11ax(HT40) CH36 CH38 CH44 CH46 802.11ax(HT80) CH48 CH42 Report No.: CTA23032801204 Page 54 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 1 802.11a 802.11n(HT20) CH36 CH36 CH44 CH44 CH48 CH48 Report No.: CTA23032801204 Page 55 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH38 CH36 CH46 CH44 CH48 Report No.: CTA23032801204 Page 56 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ax(HT20) CH38 CH36 CH46 CH44 802.11ac(HT80) CH42 CH48 Report No.: CTA23032801204 Page 57 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ax(HT40) 802.11ax(HT80) CH38 CH42 CH46 Report No.: CTA23032801204 Page 58 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.6 Minimum Emission Bandwidth (6dB Bandwidth) Limit Within the 5.725-5.85 GHz band, the minimum 6 dB bandwidth of U-NII devices shall be at least 500 kHz. Test Procedure 1. Set resolution bandwidth (RBW) = 100 kHz 2. Set the video bandwidth 3 x RBW. 3. Detector = Peak. 4. Trace mode = Max hold. 5. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Test Configuration EUT SPECTRUM ANALYZER Test Results ANT 0 Type Bands Channel 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a U-NII 3 149 16.480 ≥500KHz Pass 157 16.520 165 16.480 802.11n(HT20) U-NII 3 149 17.680 157 17.760 165 17.720 802.11n(HT40) U-NII 3 151 36.400 159 36.400 802.11ac(HT20) U-NII 3 149 17.720 157 17.640 165 17.760 802.11ac(HT40) U-NII 3 151 36.400 159 36.400 802.11ac(HT80) U-NII 3 155 76.320 802.11ax(HT20) U-NII 3 149 17.720 157 17.720 165 17.640 802.11ax(HT40) U-NII 3 151 36.400 159 36.320 802.11ax(HT80) U-NII 3 155 76.320 Report No.: CTA23032801204 Page 59 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 1 Bands Channel 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a U-NII 3 149 16.440 ≥500KHz Pass 157 16.480 165 16.480 802.11n(HT20) U-NII 3 149 17.680 157 17.720 165 17.720 802.11n(HT40) U-NII 3 151 36.400 159 36.400 802.11ac(HT20) U-NII 3 149 17.680 157 17.680 165 17.640 802.11ac(HT40) U-NII 3 151 36.400 159 36.400 802.11ac(HT80) U-NII 3 155 76.320 802.11ax(HT20) U-NII 3 149 17.720 157 17.680 165 17.640 802.11ax(HT40) U-NII 3 151 36.400 159 36.400 802.11ax(HT80) U-NII 3 155 76.320 Test plot as follows: Report No.: CTA23032801204 Page 60 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT0 802.11a 802.11n(HT20) CH149 CH149 CH157 CH157 CH165 CH165

Report No.: CTA23032801204 Page 61 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH151 CH149 CH159 CH157 CH165 Report No.: CTA23032801204 Page 62 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH151 CH155 CH159 Report No.: CTA23032801204 Page 63 of 71 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ax(HT20) 802.11ax(HT40) CH149 CH151 CH157 CH159 802.11ax(HT80) CH156 CH155 Report…
