2AGNTDF2409ADragon Fish

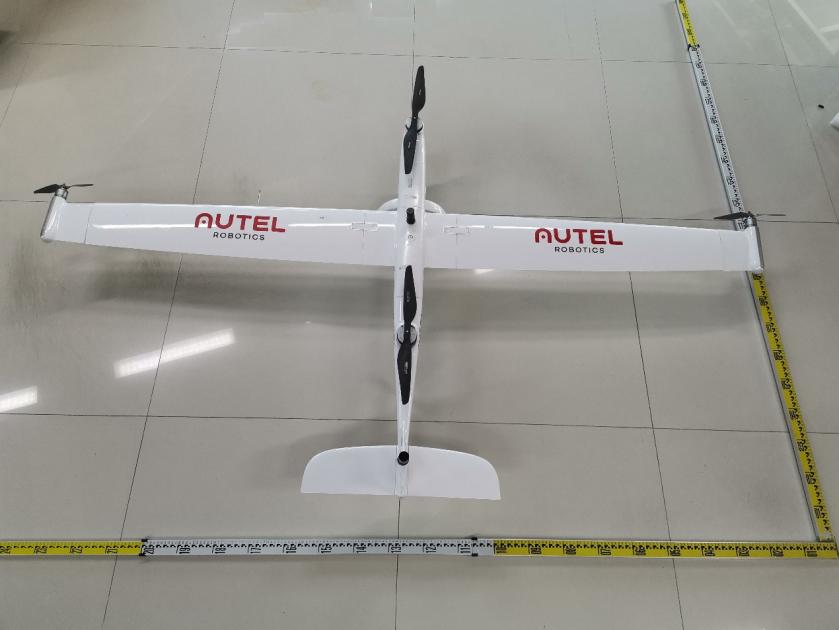

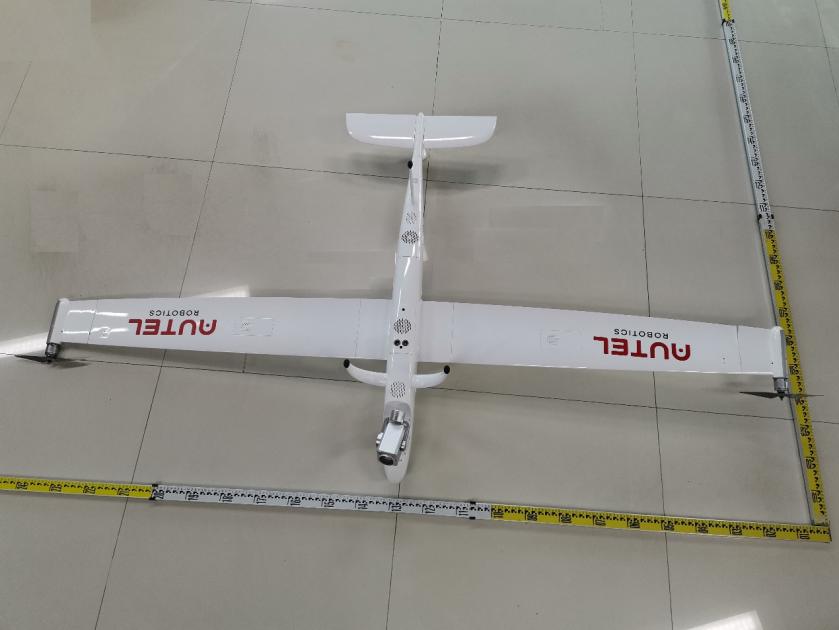

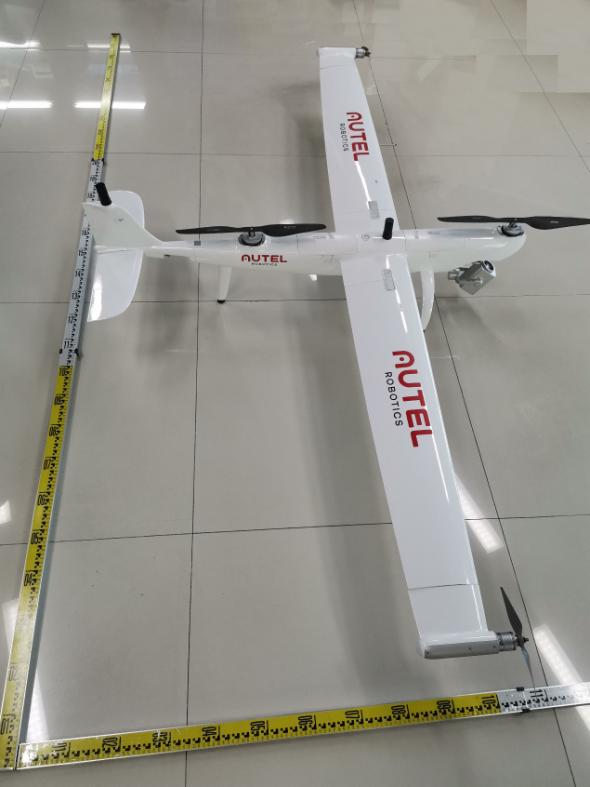

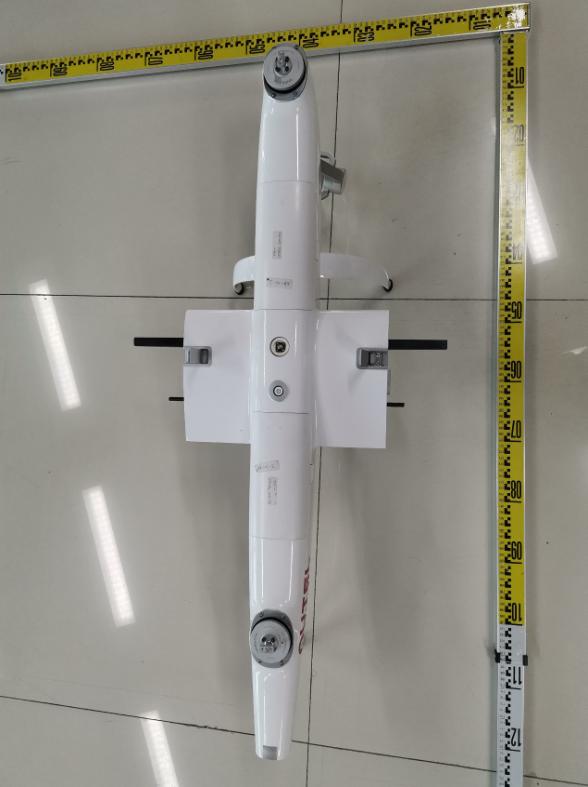

Dragon Fish Quick Guide Item List Fusel age x 1 9.7-inch ground station x 1 base statio n x 1 battery x 4 pieces (the actual quantity is to the subject purchased kit) Charg er + AC line x 1 wingtip propeller x 2 base statio n anten nas x2roo ts Feeder base x2 article statio n tray basex 1 station tripod x1base charg er statio n x1a TYPE C cable x1root repair tool set x1 sets head x1a(head models to the actual suit purchase date) wing x1 document x1parts (Dragon Fish, the base station, the ground station, the charger, battery fast guidelines disclaimer) tail x1 Strap ground stations x1a Recognize vehicle Dragon Fish DANGON FISH (hereinafter referred Dragon Fish) intelligent integrated channel excellence Flight control technology, gimbal technology, imaging technology, using a unique tilt-rotor design, quick release and efficient aerodynamic design of the whole machine, combines the dual advantages of multi-rotor take-off and landing flexibility and fixed-wing long endurance. It can realize one-key automatic take-off and landing, intelligent tracking, pointing flight, terrain following and fast mission flight functions. The protection level of the fuselage structure can reach IP43 during flight (refer to IEC60529 standard). The Dragon Fish takes up to 120 minutes to sail, the high- definition dual-frequency image transmission distance is as far as 30KM, the whole system is self-checked in 5 seconds, and it is quickly assembled in 3 minutes. The high-performance camera has a 240 times hybrid optical variable, a 2000-meter infrared detection capability, combined with Autel's advanced intelligent software and hardware technology, redefines productivity tools and empowers industry applications. Dragon Fish can be adapted to dual-optical, triple-optical, multi- spectral and third-party mounting, and supports PSDK to meet the needs of different customers. With Dragon Fish base station, high precision and accurate positioning can be achieved. Dragon Fish battery, IMU, barometer, compass, positioning system are all backed up, multiple redundancy, safe and reliable. 1. RTK antenna 2. Body paddle 3. Smart battery 4. Power button/indicator 5. Wing lock 6. Body motor 7. PTZ camera 8. Battery removal button 9. Front foot stand 10. Rear foot Frame 11. Wing tip propeller blade 12. Wing motor 13. Flat tail 14. Airspeed tube 15. Tilting wing tip 16. GPS 17. Ultrasonic ranging 18. Dust net 19. PTZ installation interface Understanding portable ground station Dragon fish is equipped with a 9.7-inch TFT-LCD capacitive touch screen, which is sensitive to the touch, and has a 2048*1536 ultra-high- definition resolution. The highest brightness reaches 1000 cd/m², which is about twice that of ordinary mobile devices. The bright screen can still display images clearly under strong light. Built-in 128G memory is convenient for storing aerial footage in time. The portable ground station has undergone careful signal modulation and innovative antenna design, and the image transmission distance is up to 30 kilometers. The ground station has a battery life of up to 3 hours, which solves the problem of insufficient battery life using mobile devices to monitor. 1. Antenna 2. Mode switch indicator 3. Gimbal pitch control wave wheel 4. Manual/auto mode switch key 5. Joystick 6. Home button 7. Power status indicator 8. Flight status indicator 9. Light sensor 10 Touch screen 11. Hook 12. Microphone 13. Photo/video button 14. Zoom button 15. PTZ horizontal control wave 16. Tripod mounting interface 17. Power button 18. Charging interface wheel19. USB interface 20. SD card slot 21. SIM card slot 22. HDMI interface 23. Custom buttons 24. Headphone jack 25. Air outlet to know the base station Dragon Fish GNSS base station is a high-precision satellite signal receiver, support GPS, Beidou, Galileo and Glonass navigation System 11 channels [see specifications] satellite signal reception, at the same time built-in carefully adjusted data transmission system, convenient for users to use in different application environments. The Dragon Fish GNSS base station can be used as an RTK base station, which improves the positioning accuracy of aircraft equipped with Autel's intelligent RTK positioning system from meter to centimeter level, and provides strong anti-magnetic interference capability in high-voltage lines, metal buildings and other strong magnetic interference environments Ensure reliable operation flight. Dragon Fish GNSS base station can achieve more precise fixed-point flight. 1. WiFi indicator 2. Linking indicator 3. RTK indicator 4. Power indicator 5. Charging port 6. Linking button 7. Power button 8. Port cover 9. Antenna interface 10. Turntable mounting hole use your Dragon Fish 1 Intelligent Flight Battery Charging 2.Ground Station Charging 3.Base Station Charging Set up the base station 1.Unfold the tripod, install the base station tray, and lock the tray. 2.Install the base station body to the tray, and tighten the lock on the tray nut. Ensure that the base station is level and stable. 3.Install the antenna on the tripod, and connect the antenna feeder to the base station antenna port. Assemble the aircraft 1.Install the left and right wings 2.Install the tail 3.Install the wingtip propeller Before installing or removing the propeller, turn off the power switch of the aircraft (the picture shows the installation process of the marked propeller and the marked motor base) 4.Install and mount align and mount Rotate the lock ring to the locked position 5.Unlock the mount 6.Install the intelligent flight battery turn on the power ︳Activate the aircraft 1.Turn on the power of the base station Press and hold the power button for 1 second to turn on the base station 2.Turn on the ground station power Long press the power button for 3 seconds to turn on the ground station. 3.power on the aircraft long press the fuselage power button for 3 seconds to turn on the aircraft power 4. activate the aircraft to open the Autel Voyager AP…

Text truncated - open the document above for the full version.

Autel Robotics Co., Ltd. Letter of Authorization Company: Autel Robotics Co., Ltd. Address: 9th Floor, Bldg.B1, Zhiyuan, 1001 Xueyuan Rd. Xili, Nanshan, Shenzhen, China Product Type: Dragon Fish Model Number(s): DF-1 Product Description: Dragon Fish We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-17 Name: Xiangxi Pan Title: President Company: Autel Robotics Co., Ltd.

Autel Robotics Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-11-17 Subject; Request for Confidentiality FCC ID: 2AGNTDF2409A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xiangxi Pan Title: President

FCC Software Configuration Control Declaration Autel Robotics Co., Ltd. FCC Software Configuration Control Declaration Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: Dragon Fish/ DF-1 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 V02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Xiangxi Pan Date: 2020/11/17 Title: President Signature of applicant

Label &Label location

Civil aviation and general aviation data receiving antenna port 5.8GHz data transmission antenna port 900MHz/2.4GHz image transmission antenna port 900MHz/2.4GHz image transmission Antenna 2 900MHz/2.4GHz image transmission Antenna 1 5.8GHz data transmission & Civil aviation and general aviation data receiving Antenna ------End------

FCC ID: 2AGNTDF2409A RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation Wireless function Output power to antenna (dBm) Antenna Gain(dBi) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 900MHz 26.12 2.0 409.261 0.12904 0.6 PASS 2.4GHz 26.69 4.6 466.659 0.26775 1.0 PASS 5.8GHz 21.97 -0.2 157.398 0.02990 1.0 PASS Simultaneous transmission: 900MHz+5.8GHz: 0.12904/0.6+0.02990/1.0=0.24497 2.4GHz +5.8GHz: 0.26775/1.0+0.02990/1.0=0.29765

Global United Technology Services Co., Ltd. Report No.: GTS202010000194F03 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 28 TEST REPORT Applicant: Autel Robotics Co.,Ltd. Address of Applicant: 9th Floor, Bldg.B1, Zhiyuan, 1001 Xueyuan Rd.,Xili, Nanshan, Shenzhen, China Manufacturer/Factory: Autel Robotics Co.,Ltd. Address of Manufacturer/Factory: 9th Floor, Bldg.B1, Zhiyuan, 1001 Xueyuan Rd.,Xili, Nanshan, Shenzhen, China Equipment Under Test (EUT) Product Name: Dragon Fish Model No.: DF-1 Trade Mark: AUTEL FCC ID: 2AGNTDF2409A Applicable standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407 Date of sample receipt: Sep. 10, 2020 Date of Test: Sep. 10 – Oct. 15, 2020 Date of report issued: Oct. 16, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202010000194F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 28 2 Version Version No. Date Description 00 Oct. 16, 2020 Original Prepared By: Date: Oct. 16, 2020 Project Engineer Check By: Date: Oct. 16, 2020 Reviewer Report No.: GTS202010000194F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 28 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 8 5.7 TEST LOCATION ................................................................................................................................. 8 6 TEST INSTRUMENTS LIST ..................................................................................................................... 9 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 11 7.1 ANTENNA REQUIREMENT ................................................................................................................... 11 7.2 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 12 7.3 CHANNEL BANDWIDTH ...................................................................................................................... 13 7.4 POWER SPECTRAL DENSITY ............................................................................................................. 15 7.5 BAND EDGE ...................................................................................................................................... 17 7.5.1 Radiated Emission Method ........................................................................................................ 17 7.6 SPURIOUS EMISSION ......................................................................................................................... 20 7.6.1 Radiated Emission Method ........................................................................................................ 20 7.7 FREQUENCY STABILITY ..................................................................................................................... 26 8 TEST SETUP PHOTO ............................................................................................................................ 28 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 28 Report No.: GTS202010000194F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 28 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 Pas…

Text truncated - open the document above for the full version.

Radiated Emission
