2AGNTMDCMS58BEVO II Mobile Station

EVO II Mobile Station Quick Guide Model：MDCMS-2 Disclaimer To ensure safe and successful operation of yourbase station, please strictly follow the operating instructions and steps in this manual. If the user does not abide by the safety operation instructions, DTO Smart will not be responsible for any product damage or loss during use-whether direct or indirect, legal, special, accident or economic loss (including but not limited to loss of profit)- Provide warranty service. Do not use incompatible parts or use any method that does not comply with the official instructions of Autel Smart to modify the product. The safety guidelines in this manual will be updated from time to time. To ensure that you get the latest version, pleasevisit www.auteldrones.com/support/downloads/ battery safety EVO II base preclude the use of lithium polymer batteries. Improper use of lithium polymer batteries can be dangerous. Please ensure that all the following battery usage, charging and storage guidelines are strictly followed. Warning ● Only use the battery and charger provided by DTO Smart. It is prohibited to modify the battery pack and its charger, or use third-party equipment to replace it. ● The electrolyte in the battery is extremely corrosive. If the electrolyte accidentally spills into your eyes or skin, please wash the affected area with clean water immediately and seek medical attention. Precautions 1. According to local radio regulations, use base stations with corresponding frequency bands and comply with local radio laws and regulations. 2. Do not excessively bend and fold the wire during installation. 3. When installing and placing, make sure that the base station is level with the horizontal plane. 4. Use the base station in an open environment free from radio interference. Be sure to turn off other wireless devices in the same frequency band before using it. 5. Please make sure that the antennas of all devices are not blocked during use. 6. Use original accessories or accessories certified by Autel. The use of non-original accessories may cause danger to the safe use of the system. 7. Make sure that no foreign objects (such as water, oil and other liquids, sand, etc.) enter the parts. 8. Do not remove any parts installed at the factory by yourself. 9. When using in rain or snow, please take necessary waterproof measures for the base station. Please use caution in thunder and lightning weather and pay attention to lightning protection. Introduction EVO II GNSS base station (hereinafter referred to as "base station") is a high-precision satellite signal receiver that supports 11-frequencyGPS, Beidou, Galileo and GLONASS navigation systems 1 satellite signal reception of, as well as built-in carefully tuned data transmission The system is convenient for users to use in different application environments. EVO II GNSSbase station asRTKbase station,so that the positioning accuracy EVO II centimeter, but also provides a powerful magnetic immunity, protection and reliable flight operations at ambient power lines, metal construction and other magnetic interference. Item list serial num ber picture name quantity 1 base station (including base station cover) 1 PCS 2 multi-function charger 1 PCS 3 TYPE-C charging cable 1 PCS 4 Document (Quick Guide) 1 component description base station body 2. WiFi indicator 3. RTK indicator 4. Power indicator 5. USB-C charging port 7. Power button 8 Port cover 10. Turntable mounting hole 11. Heat sink tripod 1. Fixing screw 2. Knob 3. Telescopic pole 4. Foot nail ready for charging Short press (<1 second) the power button once to check the battery level. Description of power indicator Green: Electricity>60% Yellow: Electricity>30% Red: Electricity>10% Red flashing slowly: Electricity <10% charging methodcharge When using thefor the first time, be sure to fullythe battery. Please use a dedicated charger to charge the base station. 1、 Plug the Type-C power cord into the Type-C port of the base station, and the base station will automatically enter the charging mode (either when it is turned on or off). 2、 When charging, the base station power indicator light flashes, and the battery power is indicated by different colors. When connected to a charging power source, the base station power indicator light is steady green to indicate that it is fully charged. Turn on/off the base station Turn on The base station has 2 working modes, namely normal mode and disabled RTK mode, which can be used in different operating scenarios. Follow the instructions below to turn on the base station and enter different working modes. 1. When the base station is off, press and hold the power button for 1 second to enter the normal mode. 2. When the base station is off, press and hold the power button for 3 seconds to enter the disabled RTK mode. When entering, the buzzer will beep 3 times and the RTK indicator will be steady red. Turn off Long press the power button for 1 second to turn off the RTK indicator light Description Green: Number of satellites>16, good signal (normal flight) Yellow: Number of satellites 6-15, poor signal (it is recommended to adjust the base station to an open area) Red Slow flashing: number of satellites <6, poor signal (recommend the base station to be placed in an open area) Light off: no RTK signal (indoors or abnormal base station RTK) use to connect to a ground station or aircraft connection method Take the normal mode as an example, the specific operation is as follows. Connect the ground station to the base station 1、 turn on the power of thestation; 2、 turn on the remote control and run the Autel Voyager App, select "Settings -> Base Station", you can see the base station wifi hotspot after entering, enter the password: 12345678, wait a few seconds until the remote control is successfully connected to the base station;; 3、 exitSetting interface, enter the mission flight interface, click the gear icon in the upper right corner, enter the settings menu, clic…

Text truncated - open the document above for the full version.

Autel Robotics Co., Ltd. Letter of Authorization Company:Autel Robotics Co., Ltd. Address:9th Floor, Bldg.B1, Zhiyuan, 1001 Xueyuan Rd. Xili, Nanshan, Shenzhen, China ProductType:EVO II Mobile Station Model Number(s):MDCMS-2 Product Description:EVO II Mobile Station We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-30 Name: Xiangxi Pan Title: President Company: Autel Robotics Co., Ltd.

Autel Robotics Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021- 04-30 Subject; Request for Confidentiality FCC ID: 2AGNTMDCMS58B To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 dayspursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Xiangxi Pan Title:President

FCC Software Configuration Control Declaration Autel Robotics Co., Ltd. FCC Software Configuration Control Declaration Date: 2021/04/30 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: EVO II Mobile Station/ MDCMS-2 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 V02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Xiangxi Pan Date: 2021/04/30 Title: President Signature of applicant

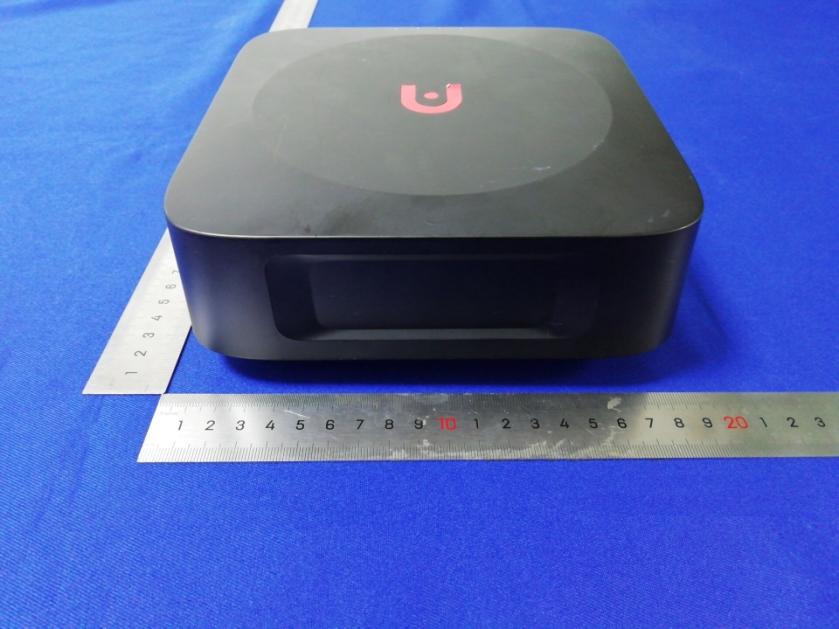

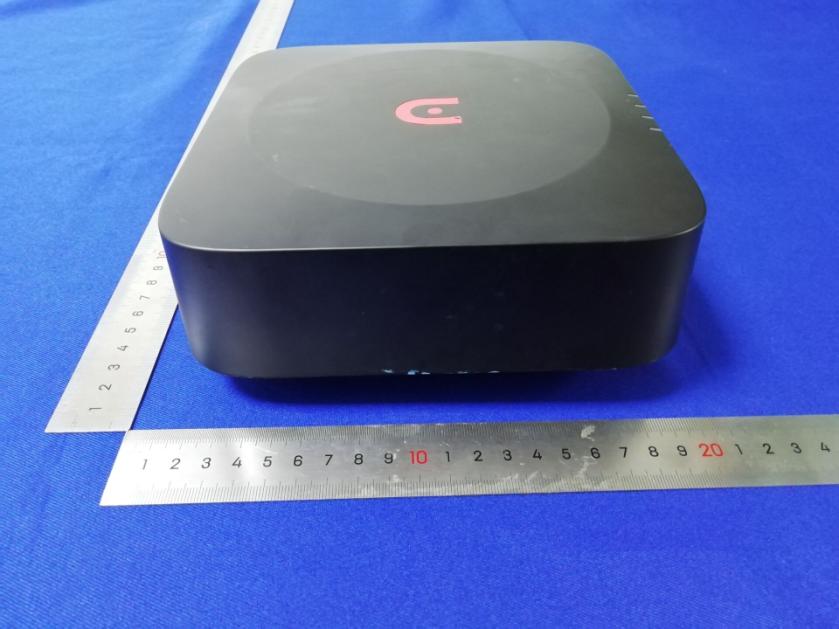

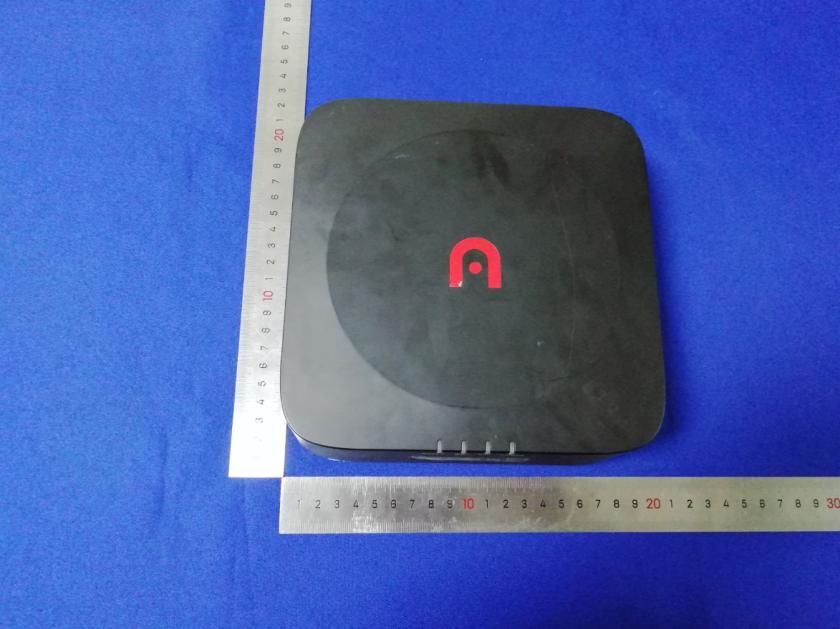

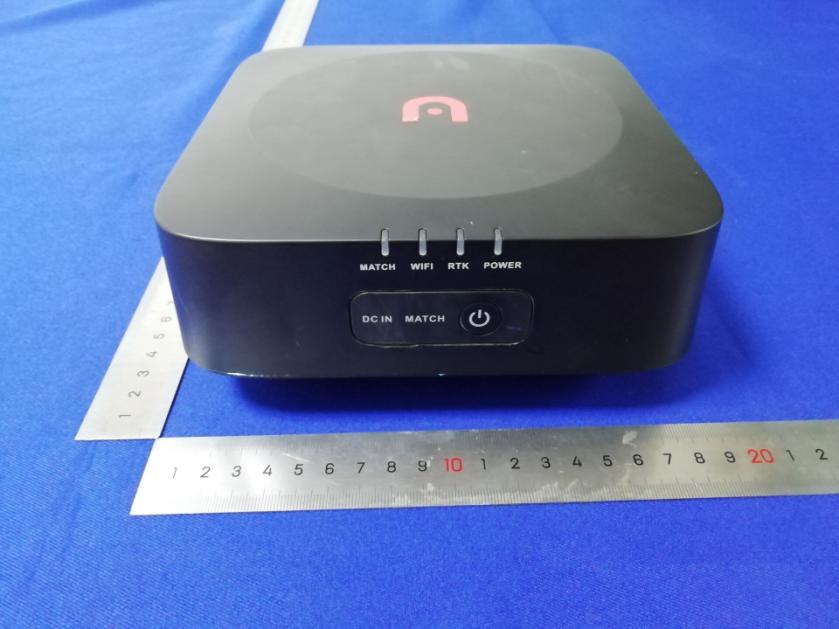

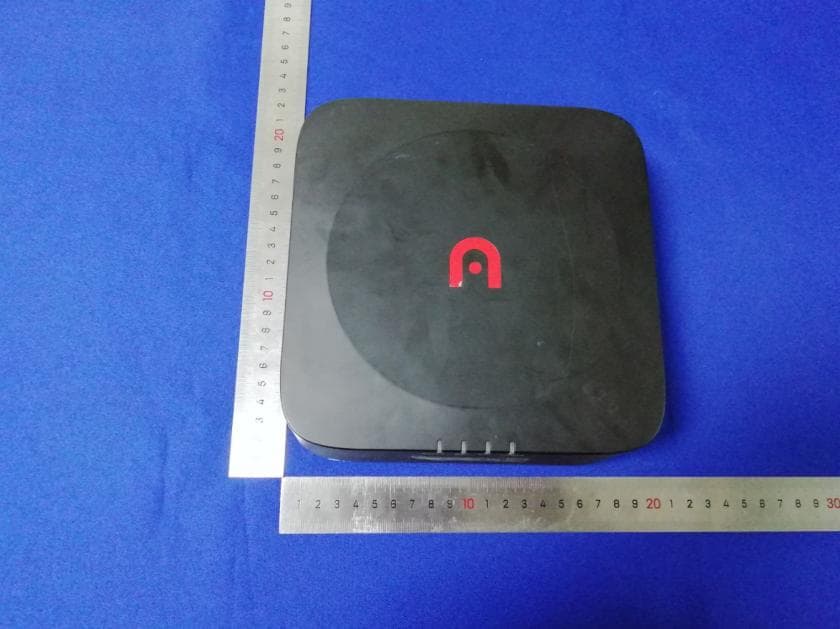

GTSL202104000267 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 4 Product Name: EVO II Mobile Station Test Model No.: MDCMS-2 EUT Constructional Details （all view） GTSL202104000267 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 4 GTSL202104000267 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 4 GTSL202104000267 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 4 ------End------

Label &Label location Size:61.6mm x 139.56mm

GTSL202104000268 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 8 Product Name: EVO II Mobile Station Test Model No.: MDCMS-2 EUT Constructional Details GPS antenna GTSL202104000268 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 8 5.1G&5.8G WiFi antenna 1 5.1G&5.8G WiFi antenna 2 GTSL202104000268 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 8 close-up of the 5.1G&5.8G WiFi antenna photo GTSL202104000268 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 8 GTSL202104000268 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 5 of 8 GTSL202104000268 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 6 of 8 GTSL202104000268 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 7 of 8 GTSL202104000268 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 8 of 8 ------End------

FCC ID: 2AGNTMDCMS58B RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation The minimum mobile separation distance, d=0.2m, as well as the gain of the antenna is 4.2 dBi（5.2G）and 3.4 dBi（5.8G）, the RF power density can be obtained. ANT 1 and ANT 2 have the same antenna gain at band 1 and band 4 which is declared by manufacturer. TEST RESULTS Maximum measured transmitter power Directional gain= 4.2+10log2=7.21 For 5G WIFI Operatio n Mode(wo rse case) Chann el Freque ncy (MHz) Measured Power(ANT 1) dBm Measured Power(AN T 2) dBm Antenn a Gain (Numer ic) Power Density At 20cm (mW/cm 2 ) Power Density Limit (mW/cm 2 ) Test Result s Ant 1 Ant 2 Sum 5.15- 5.25G 5240 20.74 20.76 2.63 0.062 0.062 0.124 1.000 Pass 5.745- 5.825G 5785 21.05 21.09 2.19 0.055 0.056 0.111 1.000 Pass

Global United Technology Services Co., Ltd. Report No.: GTSL202104000267F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 33 TEST REPORT Applicant: Autel Robotics Co., Ltd. Address of Applicant: 9th Floor, Bldg.B1, Zhiyuan, 1001 Xueyuan Rd. Xili, Nanshan, Shenzhen, China Manufacturer/Factory: Autel Robotics Co., Ltd. Address of Manufacturer/Factory: 9th Floor, Bldg.B1, Zhiyuan, 1001 Xueyuan Rd. Xili, Nanshan, Shenzhen, China Equipment Under Test (EUT) Product Name: EVO II Mobile Station Model No.: MDCMS-2 Trade Mark: AUTEL ROBOTICS FCC ID: 2AGNTMDCMS58B Applicable standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407 Date of sample receipt: April. 12, 2021 Date of Test: April. 12 –April. 29, 2021 Date of report issue: April. 30, 2021 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202104000267F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 33 2 Version Version No. Date Description 00 April. 30, 2021 Original Prepared By: Date: April. 30, 2021 Project Engineer Check By: Date: April. 30, 2021 Reviewer Report No.: GTSL202104000267F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 33 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 4.1 MEASUREMENT UNCERTAINTY .............................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................6 5.3 TEST FACILITY.....................................................................................................................................6 5.4 TEST LOCATION...................................................................................................................................6 5.5 DESCRIPTION OF SUPPORT UNITS ........................................................................................................6 5.6 DEVIATION FROM STANDARDS ..............................................................................................................6 5.7 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................6 6 TEST INSTRUMENTS LIST ......................................................................................................................7 7 TEST RESULTS AND MEASUREMENT DATA .......................................................................................9 7.1 ANTENNA REQUIREMENT: .....................................................................................................................9 7.2 CONDUCTED EMISSIONS ....................................................................................................................10 7.3 EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH ....................................................................13 7.4 CONDUCTED TRANSMITTER OUTPUT POWER ......................................................................................14 7.5 POWER SPECTRAL DENSITY ..............................................................................................................16 7.6 BAND EDGE.......................................................................................................................................18 7.7 RADIATED EMISSION ..........................................................................................................................23 7.8 FREQUENCY STABILITY ......................................................................................................................31 8 TEST SETUP PHOTO .............................................................................................................................33 9 EUT PHOTO ............................................................................................................................................33 Report No.: GTSL202104000267F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 33 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 PASS AC Power Line Conducted Emission 15.207 PASS Peak Transmit Power 15.407(a)(1) PASS Power Spectral De…

Text truncated - open the document above for the full version.

Global United Technology Services Co., Ltd. Report No.: GTSL202104000267F02 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 33 TEST REPORT Applicant: Autel Robotics Co., Ltd. Address of Applicant: 9th Floor, Bldg.B1, Zhiyuan, 1001 Xueyuan Rd. Xili, Nanshan, Shenzhen, China Manufacturer/Factory: Autel Robotics Co., Ltd. Address of Manufacturer/Factory: 9th Floor, Bldg.B1, Zhiyuan, 1001 Xueyuan Rd. Xili, Nanshan, Shenzhen, China Equipment Under Test (EUT) Product Name: EVO II Mobile Station Model No.: MDCMS-2 Trade Mark: AUTEL ROBOTICS FCC ID: 2AGNTMDCMS58B Applicable standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407 Date of sample receipt: April. 12, 2021 Date of Test: April. 12 –April. 29, 2021 Date of report issued: April. 30, 2021 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202104000267F02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 33 2 Version Version No. Date Description 00 April. 30, 2021 Original Prepared By: Date: April. 30, 2021 Project Engineer Check By: Date: April. 30, 2021 Reviewer Report No.: GTSL202104000267F02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 33 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 4.1 MEASUREMENT UNCERTAINTY .............................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................7 5.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................7 5.4 DEVIATION FROM STANDARDS ..............................................................................................................7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 5.6 TEST FACILITY ....................................................................................................................................8 5.7 TEST LOCATION ..................................................................................................................................8 6 TEST INSTRUMENTS LIST ......................................................................................................................9 7 TEST RESULTS AND MEASUREMENT DATA .....................................................................................11 7.1 ANTENNA REQUIREMENT ....................................................................................................................11 7.2 CONDUCTED EMISSIONS ....................................................................................................................12 7.3 CONDUCTED TRANSMITTER OUTPUT POWER.......................................................................................15 7.4 CHANNEL BANDWIDTH .......................................................................................................................17 7.5 POWER SPECTRAL DENSITY ..............................................................................................................18 7.6 BAND EDGE .......................................................................................................................................20 7.6.1 Radiated Emission Method .........................................................................................................20 7.7 SPURIOUS EMISSION .........................................................................................................................25 7.7.1 Radiated Emission Method .........................................................................................................25 7.8 FREQUENCY STABILITY ......................................................................................................................31 8 TEST SETUP PHOTO .............................................................................................................................33 9 EUT PHOTO ............................................................................................................................................33 Report No.: GTSL202104000267F02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan…

Text truncated - open the document above for the full version.

AppendixA:26dbEBW TestResult TestModeAntennaChannel 26dbEBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict 11AMIMO Ant1518021.6005169.240 5190.840---PASS Ant2518021.6405169.400 5191.040---PASS Ant1520021.4805189.280 5210.760---PASS Ant2520021.9605189.000 5210.960---PASS Ant1524021.5605229.280 5250.840---PASS Ant2524022.0405229.440 5251.480---PASS Ant1574522.1605733.640 5755.800---PASS Ant2574521.8805733.760 5755.640---PASS Ant1578521.7205774.080 5795.800---PASS Ant2578521.5205774.000 5795.520---PASS Ant1582522.0005813.920 5835.920---PASS Ant2582521.6405814.000 5835.640---PASS 11N40MIMO Ant1519048.1605166.880 5215.040---PASS Ant2519047.2005166.960 5214.160---PASS Ant1523046.9605207.200 5254.160---PASS Ant2523047.1205206.880 5254.000---PASS Ant1575548.2405730.760 5779.000---PASS Ant2575547.3605731.080 5778.440---PASS Ant1579548.0005770.840 5818.840---PASS Ant2579547.5205770.840 5818.360---PASS 11N20MIMO Ant1518022.3205168.960 5191.280---PASS Ant2518023.0405168.800 5191.840---PASS Ant1520022.4405189.000 5211.440---PASS Ant2520022.3205188.920 5211.240---PASS Ant1524022.8005228.880 5251.680---PASS Ant2524022.7605228.840 5251.600---PASS Ant1574521.8005734.120 5755.920---PASS Ant2574522.8005733.760 5756.560---PASS Ant1578523.0805773.160 5796.240---PASS Ant2578522.9605773.760 5796.720---PASS Ant1582522.4805813.560 5836.040---PASS Ant2582522.6805813.520 5836.200---PASS TestGraphs 11AMIMO_Ant1_5180 11AMIMO_Ant2_5180 11AMIMO_Ant1_5200 11AMIMO_Ant2_5200 11AMIMO_Ant1_5240 11AMIMO_Ant2_5240 11AMIMO_Ant1_5745 11AMIMO_Ant2_5745 11AMIMO_Ant1_5785 11AMIMO_Ant2_5785 11AMIMO_Ant1_5825 11AMIMO_Ant2_5825 11N40MIMO_Ant1_5190 11N40MIMO_Ant2_5190 11N40MIMO_Ant1_5230 11N40MIMO_Ant2_5230 11N40MIMO_Ant1_5755 11N40MIMO_Ant2_5755 11N40MIMO_Ant1_5795 11N40MIMO_Ant2_5795

11N20MIMO_Ant1_5180 11N20MIMO_Ant2_5180 11N20MIMO_Ant1_5200 11N20MIMO_Ant2_5200 11N20MIMO_Ant1_5240 11N20MIMO_Ant2_5240 11N20MIMO_Ant1_5745 11N20MIMO_Ant2_5745 11N20MIMO_Ant1_5785 11N20MIMO_Ant2_5785 11N20MIMO_Ant1_5825 11N20MIMO_Ant2_5825 AppendixB:Occupiedchannel bandwidth TestResult TestModeAntennaChannel OCB [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict 11AMIMO Ant1518017.6225171.289 5188.911---PASS Ant2518017.6625171.249 5188.911---PASS Ant1520017.6625191.249 5208.911---PASS Ant2520017.6625191.249 5208.911---PASS Ant1524017.6625231.249 5248.911---PASS Ant2524017.6625231.249 5248.911---PASS Ant1574517.7025736.089 5753.791---PASS Ant2574517.7025736.129 5753.831---PASS Ant1578517.7025776.089 5793.791---PASS Ant2578517.7025776.089 5793.791---PASS Ant1582517.6625816.129 5833.791---PASS Ant258…

Text truncated - open the document above for the full version.
