2AGR4-100500Adak BT Speaker IX7

1 2 3 4 5 6 7 9 8 10 Adak BT Speaker IX7 IC : 21530-100500 FCC ID: 2AGR4-100500 Model: 100500-001B Bluetooth version: Bluetooth® V5.0 Profiles supported: A2DPAVRCPHFPHSP Battery: 3600mAh Input voltage: DC5V/2.4A Frequency Response: 115Hz-15kHz SNR:≥80DB Product size: 186x50x62mm IPX7 waterproof Bluetooth® Speaker USB Charging Cable Audio Cable User Manual Gift Box 1.Power LED indicator 2.Power switch 3.PREVIOUS/VOL- 4.Multi-function button(MFB) 5.NEXT/VOL+ Product structure: 6.Mode switching 7.LED indicator 8.Micro SD card slot 9.Type-C charging interface 10.AUX in Power ON/OFF 1.Long press the power switch for 2 seconds to turn on, the LED status indicator flashes blue and the power LED indicator lights up white. 2.Long press the power switch for 2 seconds to turn off, the LED status indicator goes off. Bluetooth Operation 1. Please ensure that the Bluetooth function has been turned on in the settings of your Bluetooth enabled device. 2. Turn the speaker on, the indicator light will flash to detect Bluetooth enabled devices near you and will enter pairing mode. The indicator light will go off if no Bluetooth devices are detected within 10 minutes. 3.”GEMLINE SPKR” will appear on the Bluetooth device list, select “GEMLINE SPKR” to establish pairing. If instructed to enter a PIN code, please enter ‘0000’. 4. When you want to play audio from another Bluetooth device, disconnect the speaker from the original device and follow steps 1-3 to re-pair the speaker with a new Bluetooth enabled device. Answer incoming calls Press the MFB button to answer incoming calls. Tip: Since some mobile phones default to answer calls via their own receiver, please refer to the instructions of your phone and set on your phone. End the call Press the MFB button once to end the current call. Refuse incoming calls Long press the MFB button for 2s to reject when there comes a call. Last number redial Dual press the MFB button to redial the last calling number. Mode switching Short press M to select mode. (Bluetooth/Micro SD card/AUX in) Bluetooth disconnection Long press the MFB button for 2 seconds to cut off the Bluetooth connection. TWS connection 1. Long press the M button for 2 seconds to cut off the speakers TWS connection. 2. Long press the M button for 5 seconds to erase the pairing record. (The speaker will automatically shut down when the pairing record erased successfully.) Micro SD card mode Insert a micro SD card, the speaker will automatically recognize (with a voice prompt) and automatically broadcasts MP3 format music in it. (The Max storage of the micro SD card is 32GB). AUX mode Connecting your music player/phone to the speaker via the provided dual 3.5mm audio cable, then the speaker will automatically recognize. Music playing 1. Short press the MFB to pause/play; 2. Long press the “-”for PREV; 3. Long press the “+”for NEXT. 4. Short press the“-”for VOL; 5. Short press the“+”for VOL. True Wireless Stereo (TWS) Fit for two GEMLINE SPKR speakers You can connect two GEMLINE SPKR speakers as a pair for stronger stereo and surrounding effect. 1. Make sure the Bluetooth function is OFF on your Bluetooth player; 2. Turn on two speakers; 3. Long press M button on either speaker for 2 seconds, then there comes up a melody which means the two speakers are now in TWS pairing status. Until LED of the right channel speaker lights up steady blue and the LED of the left channel speaker flashes, the TWS connection is successful. 4. Then active the Bluetooth of your phone and search for "GEMLINE SPKR". Click manually to connect. The two speaker LED turns to be steady blue if the connection is successful. 5.The function of TWS must be matched before connecting to the mobile devices. Otherwise, the function of TWS cannot be matched after connecting to mobile devices. 6. The two speakers can automatically achieve TWS re-connection for the future use. 7. Long press the M for 5s after power on can reset and restart the speak. 8. In TWS connection, only the left channel speaker has hands-free call function. Charging 1.As product has built-in non-removable and rechargeable battery, please use the provided micro USB cable to charge. 2.Charging voltage and current is 5V/2.4A, PLS charge the speaker with the input power below 5V/2.4A. 3. Please choose the charger that is certified by the regular manufacturer. 4. The battery performance may decrease as repeating charging and using the speaker. It’s a normal phenomenon for all rechargeable batteries. 5.Charge if the power LED indicator lights up red, and it goes off upon charging finished. WARNING 1. Do not disassemble, repair, or modify the speaker. 2. Do not place product in or near fire to avoid danger, as it uses a lithium battery. 3. Avoid storage at extreme temperatures, this can shorten the battery life and may affect the speaker. 4. Keep the speaker dry and do not store the speaker in damp areas to avoid damage to the speaker. 5. Avoid dropping the speaker as it may damage the speaker. KIND REMINDER 1. To prolong the speaker’s life span and to avoid hearing damage, please do not listen to music under high volume for long periods of time. 2. When an error occurs with the speaker, please turn off the speaker and restart it to troubleshoot. 3. When the speaker’s power is low, the Bluetooth range may be affected. Please charge the speaker to avoid disruptions during use. Page 10Page 11

The Gem Group, Inc. Agent Authorization Company: The Gem Group, Inc. Address: 9 International Way, Lawrence, MA 01843, USA Product Name: Adak BT Speaker IX7 Trade Mark: Gemline Model Number: 100500-001B FCC ID: 2AGR4-100500 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-03-10 Name: Tina Song Title: Manager Company: The Gem Group, Inc.

The Gem Group, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-03-10 Subject; Request for Confidentiality FCC ID: 2AGR4-100500 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tina Song Title: Manager

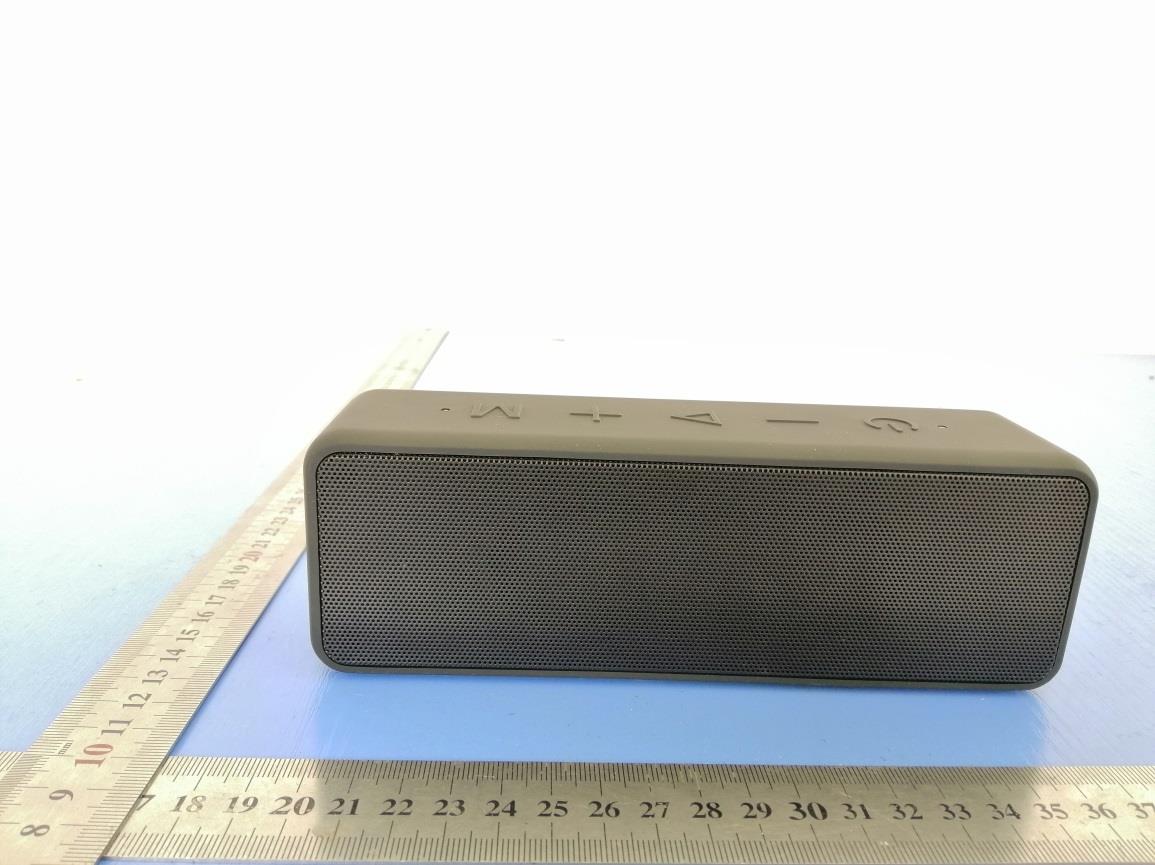

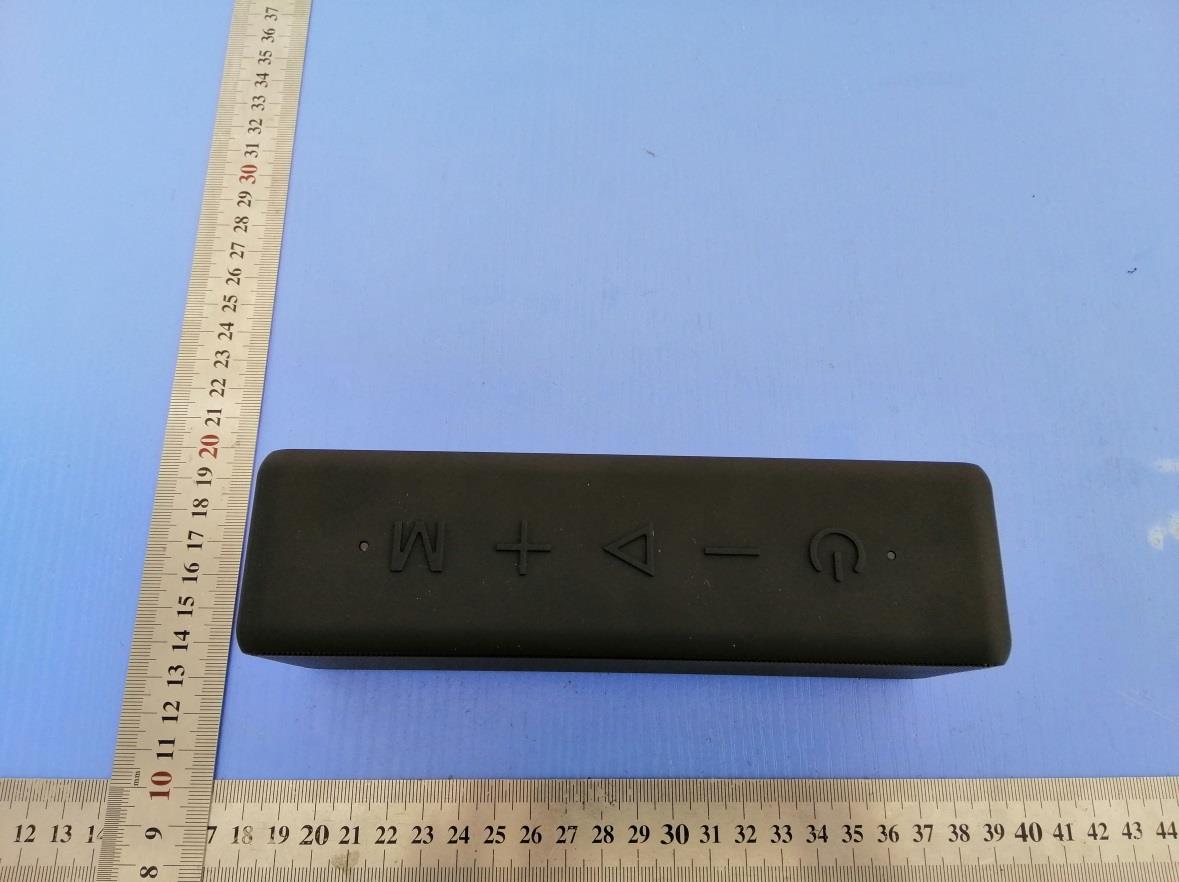

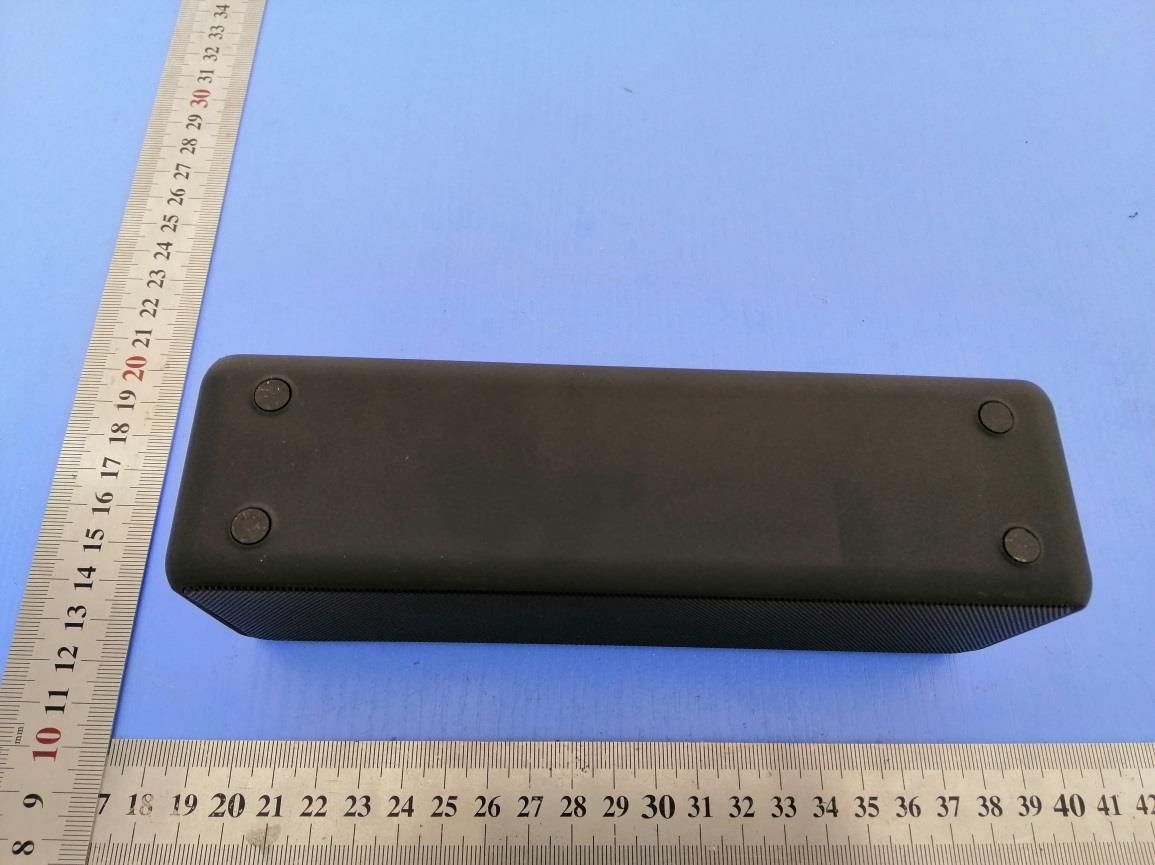

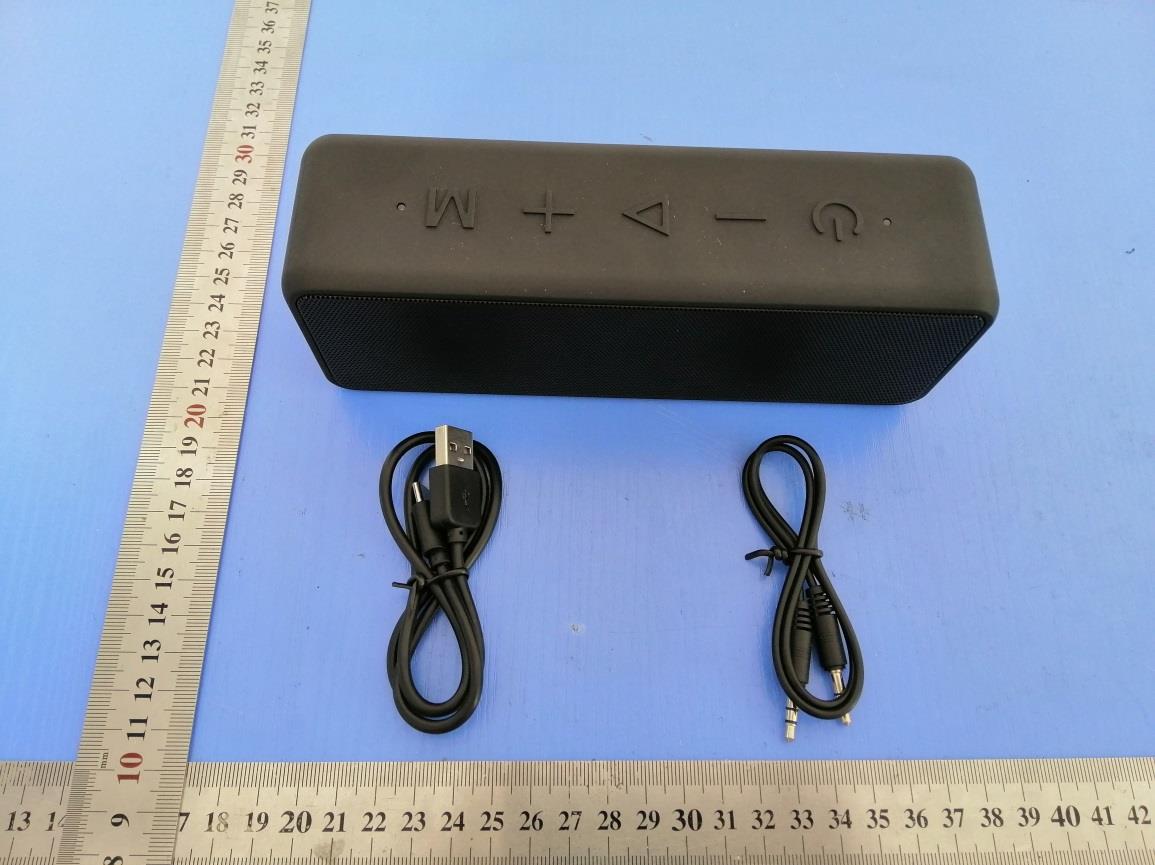

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 1. EXTERIOR PHOTOGRAPH Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4.0cm*W: 3.0cm Label Location Adak BT Speaker IX7 Model No.: 100500-001B IC: 21530-100500 HVIN : 100500-001B FCC ID: 2AGR4-100500 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 Fig.5 Fig.6 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AGR4-100500 Product name : Adak BT Speaker IX7 Test Model : 100500-001B Power supply : DC 7.4V by Rechargeable Li-ion Battery, 1800mAh, 13.32Wh Recharged by DC 5V/0.5A Operation frequency : 2402-2480MHz Channel Number : 79 Channels for Bluetooth V5.0 (DSS) Channel Spacing : 1MHz for Bluetooth V5.0 (DSS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (DSS) Bluetooth Version : V5.0 Antenna Type : PCB Antenna Antenna Gain : 0.5dBi Hardware version : V3.1 Software version : V2.21 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.143 39 2441 -0.603 78 2480 -0.589 π/4DQPSK 0 2402 3.124 39 2441 2.585 78 2480 2.715 8DPSK 0 2402 -0.594 39 2441 -1.266 78 2480 -1.635 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing Tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 3…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 1 of 47 Appendix A RF Test Data for BT V5.0(BDR/EDR) (Conducted Measurement) Product Name: Adak BT Speaker IX7 Trade Mark: Gemline Test Model: 100500-001B Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Qu Xin Supervised by: Tom.Liu A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.143 30 PASS MCH -0.603 30 PASS HCH -0.589 30 PASS π/4DQPSK LCH 3.124 21 PASS MCH 2.585 21 PASS HCH 2.715 21 PASS 8DPSK LCH -0.594 21 PASS MCH -1.266 21 PASS HCH -1.635 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9340 Not Specified PASS MCH 0.9370 Not Specified PASS HCH 0.9352 Not Specified PASS π/4DQPSK LCH 1.282 Not Specified PASS MCH 1.282 Not Specified PASS HCH 1.285 Not Specified PASS 8DPSK LCH 1.291 Not Specified PASS MCH 1.294 Not Specified PASS HCH 1.294 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.008 0.934 PASS MCH 1.098 0.937 PASS HCH 1.198 0.935 PASS π/4DQPSK LCH 1.140 0.857 PASS MCH 1.320 0.857 PASS HCH 1.014 0.857 PASS 8DPSK LCH 0.996 0.863 PASS MCH 1.008 0.863 PASS HCH 1.140 0.863 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.87 106.7 0.306 0.4 PASS DH5 MCH 2.87 106.7 0.306 0.4 PASS DH5 HCH 2.87 106.7 0.306 0.4 PASS π/4DQPSK 2DH5 LCH 2.87 106.7 0.307 0.4 PASS 2DH5 MCH 2.87 106.7 0.307 0.4 PASS 2DH5 HCH 2.87 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.87 106.7 0.307 0.4 PASS 3DH5 MCH 2.87 106.7 0.307 0.4 PASS 3DH5 HCH 2.87 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -0.196 -36.332 -20.196 PASS MCH -1.218 -37.980 -21.218 PASS HCH -0.946 -36.986 -20.946 PASS π/4DQPSK LCH -0.427 -37.636 -20.427 PASS MCH -1.643 -36.735 -21.643 PASS HCH -1.067 -37.101 -21.067 PASS 8DPSK LCH -4.417 -37.640 -24.417 PASS MCH -5.142 -38.144 -25.142 PASS HCH -5.282 -38.049 -25.282 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIAN…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 34 FCC TEST REPORT FOR The Gem Group, Inc. Adak BT Speaker IX7 Test Model: 100500-001B Prepared for : The Gem Group, Inc. Address : 9 International Way, Lawrence, MA 01843, USA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 04, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : January 04, 2020 ~ January 18, 2020 Date of Report : February 27, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200103023AEA Date of Issue ................................... : February 27, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : The Gem Group, Inc. Address ........................................... : 9 International Way, Lawrence, MA 01843, USA Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Adak BT Speaker IX7 Trade Mark ...................................... : Gemline Test Model ...................................... : 100500-001B Ratings ............................................ : DC 7.4V by Rechargeable Li-ion Battery, 1800mAh, 13.32Wh Recharged by DC 5V/2.4A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Jin Wang/ Administrators Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 34 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200103023AEA February 27, 2020 Date of issue Test Model........................... : 100500-001B EUT......................................... : Adak BT Speaker IX7 Applicant............................... : The Gem Group, Inc. Address.................................. : 9 International Way, Lawrence, MA 01843, USA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : The Gem Group, Inc. Address................................... : 9 International Way, Lawrence, MA 01843, USA Telephone............................... : / Fax.......................................... : / Factory................................... : The Gem Group, Inc. Address................................... : 9 International Way, Lawrence, MA 01843, USA Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 February 27, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100500 Report No.: LCS200103023AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 34 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ....................................................................................................... 6 1.1 Description of Device (EUT) ............................................................................................................ 6 1.2 Support equipment List .................................................................................................................... 6 1.3 External I/O Cable ............................................................................................................................. 6 1.4 Description of Test Facility ............................................................................................................... 6 1.5 Statement of the Measurement Uncertainty .............................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 _______________________________________________________________________________________________ TEST SETUP Photographs Radiated Emissions Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21530-100500 FCC ID: 2AGR4-100500 _______________________________________________________________________________________________ Conducted Emissions Fig. 3
