2AGR4-100936Quinn 5-in-1 Wireless Charging Station

Operation Overview Packing • Quinn 5-in-1 Wireless Charging Station • Adaptor • User Manual Indicating status and protection function 1. LED blue light: Standby 2. LED green light: Charging 3. Blue light flashing: Device is not correctly placed on the wireless charger, over temperature protection, or detects metal on the back of the device. Note: Only the QC2.0/QC3.0 Standard power adapter can support this product's fast charging. 1. Plug the power adapter into the wall socket. 2. The DC male head of the adaptor connects to the wireless charging pad, the LED light will illuminate blue which means the unit is ready to charge your device. 3. Place your device on to the wireless charger, the LED light will change from blue to green which denotes the device is being charged. Power Adapter Specification Instruction Manual IC: 21530-100936 FCC ID: 2AGR4-100936 Input: 12V/3.75A Output: 1, Wireless Charger: 10W*3 2, USB: 5W*2 Charging frequency: 110.7-148 KHz Transmission Distance: ≤5mm Efficiency: ≥75% Product size: L272*W85*H14.5mm FCC Statement This device complies with part 15 and part 18 of the FCC Rules. Operation is Subject To the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not explicitly approved by the party responsible for compliance could void the user's authority to operate this equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and candidate radio frequency energy and, if not installed and used in accordance with the instructions, ma y cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected. This device complies with Part 18 of the FCC Rules. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ISED Statement This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: ● This device may not cause interference; and ● This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: ● l’appareil ne doit pas produire de brouillage; ● l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 10 cm surrounding the device and 10 cm above the top surface of the device must be respected. Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. au cours de l'opération de l'appareil sur une distance de 10 cm autour de l'appareil et de 10 cm au - dessus de la surface supérieure de l'appareil doit être respecté. ● Increase the separation between the equipment and any other radio device. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. page 03 page 04 page 02 page 06 page 07 page 08page 05 instruction sheets 1) The folded size should be 3”W x 3”H. 2) Please exactly follow all the trim marks and fold marks. 3) Please exactly follow the page in proper order.(The page numbers do not need to print.) 4) Use 128gsm gloss art paper for bulk production. 5) The color of this kind instruction is : 1C(C0M0Y0K100) 6) “S” fold should be used for this item. DC male head USB 5W DC female port Indicator Light Quinn 5-in-1 Wireless Charging Station

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-4-15> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AGR4-100936 100936-121 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Tina Song/Manager Company: The Gem Group, Inc. Address: 9 International Way, Lawrence, MA 01843, United States Phone: +86-755-2730-9361 Fax: +86-755-2370-9367 E-Mail: [email protected]

The Gem Group, Inc. 9 International Way, Lawrence, MA 01843, United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-4-15 To whom it may concern: We, The Gem Group, Inc. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AGR4-100936 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Tina Song/Manager Company: The Gem Group, Inc. Address: 9 International Way, Lawrence, MA 01843, United States Phone: +86-755-2730-9361 Fax: +86-755-2370-9367 E-Mail: [email protected]

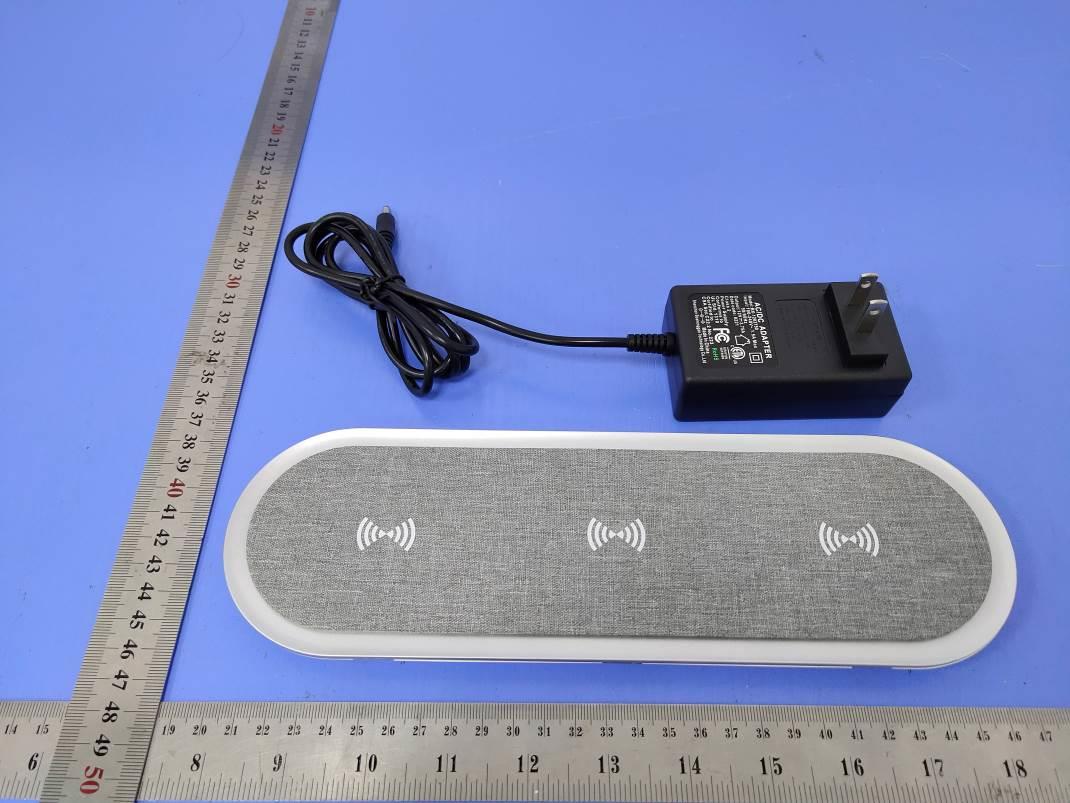

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 IC: 21530-100936 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 IC: 21530-100936 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 IC: 21530-100936 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 IC: 21530-100936 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 IC: 21530-100936 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 5.0cm*W: 3.0cm Label Location Item#: 100936-121 FCC ID: 2AGR4-100936 IC: 21530-100936 Input: DC 12V/3.75A Output: 1, Wireless Charger: 10W(max)*3 2, USB: 5W*2 Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 IC: 21530-100936 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Coil Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 IC: 21530-100936 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Fig. 3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 29 RF Exposure Evaluation Report 1. Product Information FCC ID: 2AGR4-100936 Number of tested samples 1 Sample number 210312022A Product Name Quinn 5-in-1 Wireless Charging Station Model Number 100936-121 Power Supply Input: DC 12V/3.75A Output (USB): 5W*2 Wireless Output: 10W(max)*3 Adapter parameters: Input: 100-240V 50/60Hz 1.5A Output: DC 12V/3.75A Modulation Type CW (Continuous Wave) Frequency Range 110.7 KHz - 148 KHz Operation Frequency 139.6 KHz Antenna Type Coil Antenna Hardware version FC-HM03-V33 Software version / Accessories Mobile Phone(iPhone 12)*3 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; a) Consumer wireless power transfer devices approved under Parts 15 and 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Sections 2.1091 and 2.1093 of the rules. (1) SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to Sections 1.1307 (c) and (d) of the FCC rules. (2) Evaluation of RF Exposure test data for determining compliance of wireless power transfer (WPT) systems (both portable and not) operating at frequencies below 100 kHz is provided on a case-bycase basis following a KDB inquiry. In these situations, a WPT device may be considered acceptable when supporting data from measurements and/or numerical simulations show that, for all the positions of space relevant for the body exposure, the external (unperturbed) temporal peak field strengths do not exceed the following reference levels: - 83 V/m for the electric field , and - 90 A/m for the magnetic field. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 29 b) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For someconditions where users and bystanders may be exposed at closer than 20 cm, Section 2.1091(d) (4) of the rules may apply. c) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. Below 100 kHz, applicable reference levels for maximum instantaneous exposure field strengths are defined in clause 3.a).(2). d) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above several MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. e) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation, they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces. 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging App v03r01: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 Report No.: LCS210312022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 20 FCC TEST REPORT For The Gem Group, Inc. Quinn 5-in-1 Wireless Charging Station Test Model: 100936-121 Prepared for : The Gem Group, Inc. Address : 9 International Way, Lawrence, MA 01843, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 12, 2021 Number of tested samples : 1 Sample number : 210312022A Serial number : Prototype Date of Test : March 12, 2021 ~ April 9, 2021 Date of Report : April 9, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 Report No.: LCS210312022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 20 FCC TEST REPORT FCC CFR 47 PART 18 Report Reference No. ................ : LCS210312022AEA Date Of Issue ................................. : April 9, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : The Gem Group, Inc. Address .......................................... : 9 International Way, Lawrence, MA 01843, United States Test Specification Standard ......................................... : FCC CFR 47 PART 18 Test Report Form No. .................... : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Quinn 5-in-1 Wireless Charging Station Trade Mark ..................................... : Gemline Test Model ...................................... : 100936-121 Power Supply ................................. : Input: DC 12V/3.75A Output (USB): 5W*2 Wireless Output: 10W(max)*3 Adapter parameters: Input: 100-240V 50/60Hz 1.5A Output: DC 12V/3.75A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Lh Li/ Administrator Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 Report No.: LCS210312022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 20 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210312022AEA April 9, 2021 Date of issue Test Model.............................. : 100936-121 EUT......................................... : Quinn 5-in-1 Wireless Charging Station Applicant............................... : The Gem Group, Inc. Address.................................. : 9 International Way, Lawrence, MA 01843, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Future charger Technology Co., Ltd Address................................... : Yong feng tian industiral park, 3rd industrial zone, fenghuang, Fuyong, Bao’an District, Shenzhen, China.51810 Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Future charger Technology Co., Ltd Address................................... : Yong feng tian industiral park, 3rd industrial zone, fenghuang, Fuyong, Bao’an District, Shenzhen, China.51810 Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 Report No.: LCS210312022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 20 Revision History Revision Issue Date Revisions Revised By 000 April 9, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 Report No.: LCS210312022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 20 TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) .............................................................................................................. 6 1.2 Support equipment List ....................................................................................................................... 6 1.3 External I/O Cable .....................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 IC: 21530-100936 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Appendix A Photographs of Test Setup Conducted Emission Radiated Emission below 30MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGR4-100936 IC: 21530-100936 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission below 1GHz
