2AHCR-RT61HyPanel Lux

ForHyPanelLux Contents Introduction...................................................................................................................................1 BeforeYouStart..........................................................................................................................2 Whatthehomecenterdeviceis....................................................................................3 Logintouserwebportal.................................................................................................4 Getstarted.....................................................................................................................................6 YourHyPanelLux..............................................................................................................6 WakeandUnlockHyPanelLux......................................................................................7 Wakethepanel.............................................................................................................7 UnlocktheScreen........................................................................................................8 InteractwithHyPanelLux..............................................................................................8 Touchscreen..................................................................................................................9 Outerrim........................................................................................................................9 Physicalbuttons...........................................................................................................9 Checktheserverstatus...................................................................................................10 PersonalizeYourSystem.........................................................................................................13 ConnecttotheInternet..................................................................................................13 ChangeyourWi-Finetwork.................................................................................14 ConfigureLANnetwork..........................................................................................14 Changesystemlanguage.................................................................................................15 Changethedateandtime.............................................................................................16 ChangetheHomescreenstyle.....................................................................................17 PutHyPanelLuxinstandbymode............................................................................19 Changethescreensaversettings................................................................................20 Adjustthescreenbrightness.........................................................................................21 Adjustbrightnessmanually...................................................................................21 Adjustbrightnessautomaticallywhenlightingchanges...........................22 Setsoundsandringtones...............................................................................................22 Changesoundsandringtones...............................................................................23 SetupDoNotDisturb.....................................................................................................24 QuicklyturnDNDonoroff..................................................................................24 ScheduletheDNDtoturnonautomatically.................................................25 ProtectyourHyPanelLux.............................................................................................26 Setupscreenlock.....................................................................................................27 Setupsettingsscreenlock....................................................................................27 UseHyPanelLuxwithoutCloudconnectivity........................................................28 ManageDevices...........................................................................................................................30 AddZigbeeDevices...........................................................................................................30 PutDevicesinparingmode..................................................................................31 PairdeviceswithHyPanelLux............................................................................32 Addthird-partysmarthomedevices......................................................................34 Seedeviceinformation....................................................................................................35 Checkifthedeviceisconnected..........................................................................35 Seewherethedeviceislocated...........................................................................36 Filterdevicesbylocations.......................................................................................36 AdddevicestoFavorites.................................................................................................37 CustomizetheAllDevicesscreen................................................................................39 Rearrangethedevices..............................................................................................39 Reordertheroomlist..............................................................................................39 Controldevices....................................................................................................................40 Controlrelays..............................................................................................................40 Controlsockets............................................................................................................42 Controldoorlocks............…

Text truncated - open the document above for the full version.

AKUVOX (XIAMEN) NETWORKS CO., LTD. Add: 10/F, No.56 Guanri Road, Software Park II, Xiamen 361009, China Tel: 086-0591-83057798 Fax: 086-0591-83057798 Email: [email protected] Attestation Letter Date: 2024-4-15 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, AKUVOX (XIAMEN) NETWORKS CO., LTD., hereby authorize Bay Area ComplianceLaboratories Corp.(Dongguan) to act as a laboratory for testing and test report generation for thefollowing project(s): Product Name: HyPanel Lux, Model Name:RT61, FCC ID:2AHCR-RT61 The RF module only supports BT(GFSK,π/4-DQPSK,8DPSK)(include BLE),WiFi 2.4G(2412-2462MHz,2422-2452MHz 802.11b/g/n ht20/n ht40 ) /5G(5150-5250MHz,5250-5350MHz,5470-5725MHz,5725-5850MHz 802.11a/n ht20/ac vht20,802.11n ht40/ac vht40,802.11ac vht80),Zigbee, but for this device other functions was disabled by software. Sincerely, Printed Name:Bo Yang Title:Manager

ATTESTATION STATEMENT Applicant:AKUVOX (XIAMEN) NETWORKS CO., LTD. Add:10/F, No.56 Guanri Road, Software Park II, Xiamen 361009, China Tel:086-0591-83057798 Fax: 086-0591-83057798 Email:[email protected] Date: 2024-4-15 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(i), (ii) Filing FCC ID:2AHCR-RT61 AKUVOX (XIAMEN) NETWORKS CO., LTD.(“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. And AKUVOX (XIAMEN) NETWORKS CO., LTD. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signed by (printed name):Bo Yang Signature: Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2024-4-15 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID:2AHCR-RT61 AKUVOX (XIAMEN) NETWORKS CO., LTD. (“the Applicant”) certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. AKUVOX (XIAMEN) NETWORKS CO., LTD. (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant:AKUVOX (XIAMEN) NETWORKS CO., LTD. Address:10/F, No.56 Guanri Road, Software Park II, Xiamen 361009, China FRN:0025226762 Tel:086-0591-83057798 Email:[email protected] Signed by (printed name): Bo Yang Signature:

QA-FR-170-B Company: AKUVOX (XIAMEN) NETWORKS CO., LTD. Add: 10/F, No.56 Guanri Road, Software Park II, Xiamen 361009, China Tel: 086-0591-83057798 Fax: 086-0591-83057798 Email: [email protected] FCC Authorization Date: 2024-4-15 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , AKUVOX (XIAMEN) NETWORKS CO., LTD., Hereby authorizes Bay Area Compliance Laboratories Corp.(Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp.(Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Bo Yang Title: Manager

QA-FR-171-A AKUVOX (XIAMEN) NETWORKS CO., LTD. Add: 10/F, No.56 Guanri Road, Software Park II, Xiamen 361009, China Tel: 086-0591-83057798 Fax: 086-0591-83057798 Email: [email protected] FCC Confidential Authorization Date: 2024-4-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2AHCR-RT61 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, AKUVOX (XIAMEN) NETWORKS CO., LTD. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  QA-FR-431-C U-NII Device Security Declaration The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Bo Yang Title: Manager

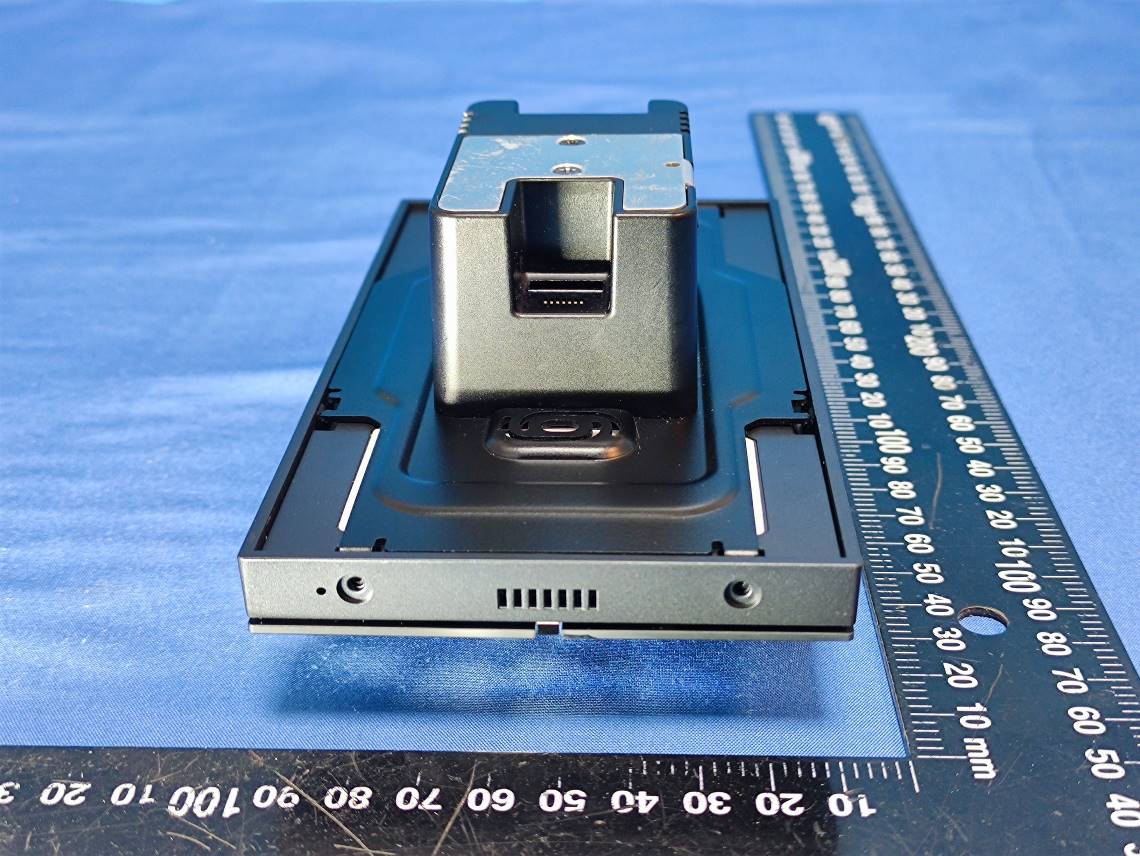

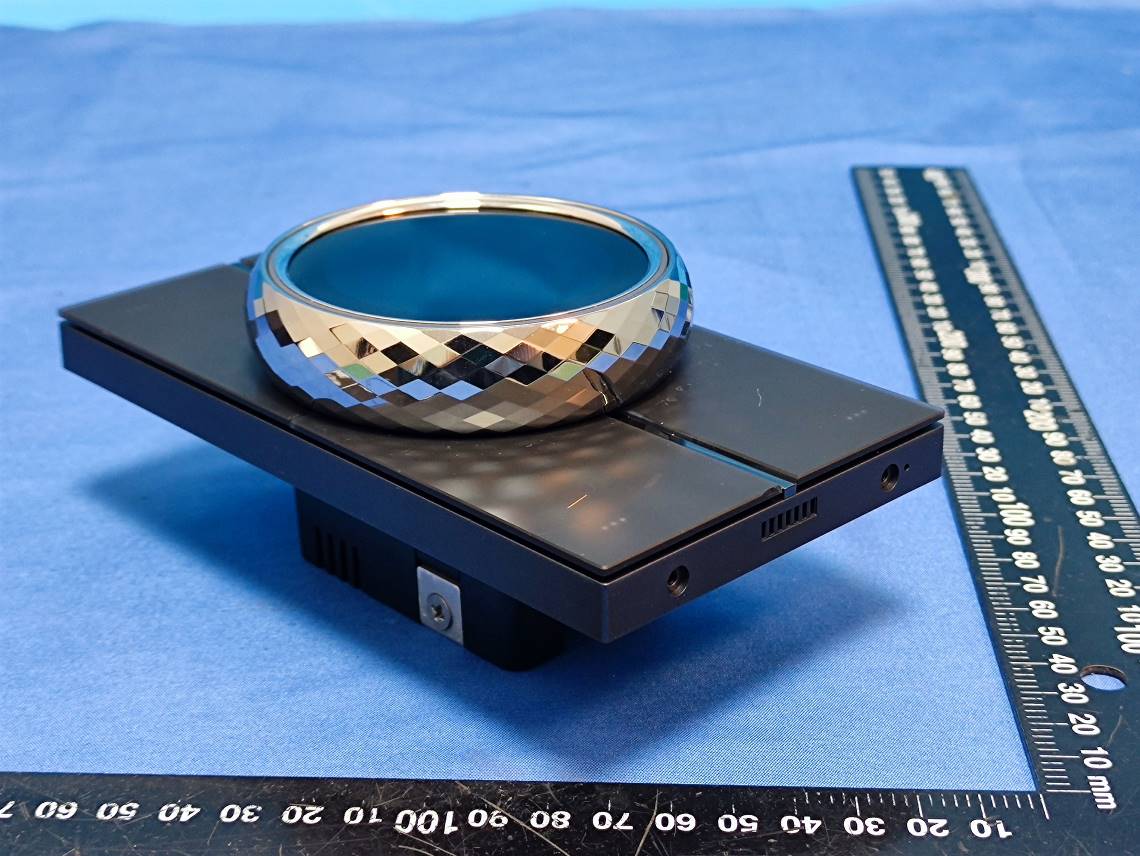

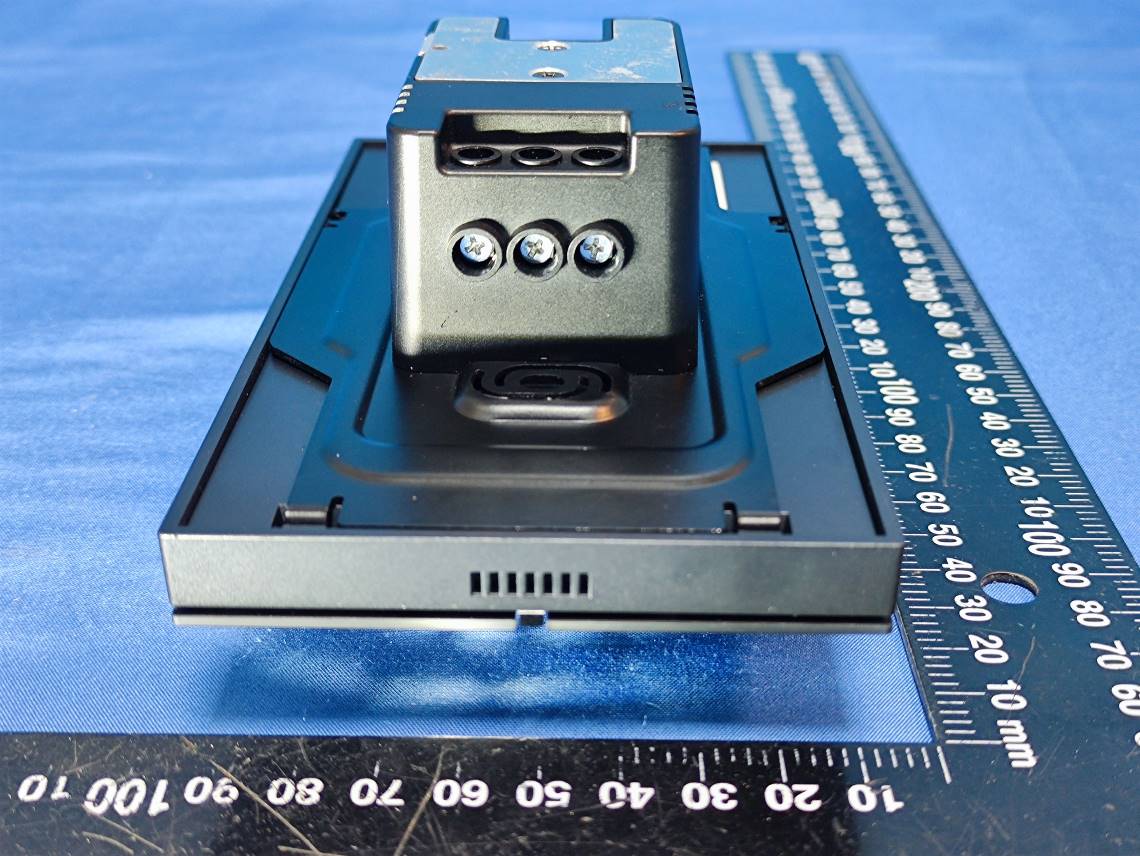

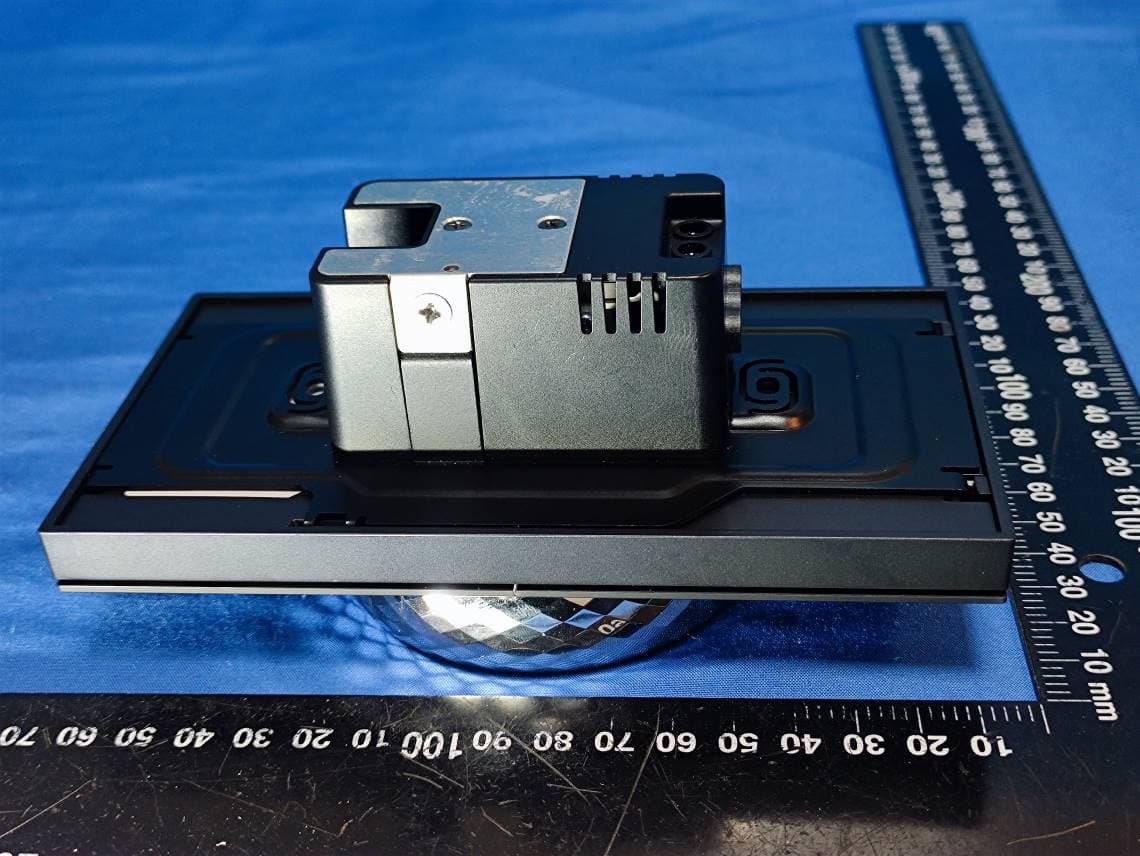

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-EXP Page 1 / 4 EUT EXTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-EXP Page 2 / 4 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-EXP Page 3 / 4 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-EXP Page 4 / 4

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 1 / 18 EUT INTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 2 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 3 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 4 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 5 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 6 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 7 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 8 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 9 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 10 / 18 WIFI/Bluetooth Module Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 11 / 18 Zigbee Module Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 12 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 13 / 18 Zigbee Antenna Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 14 / 18 WIFI/Bluetooth Antenna Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 15 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 16 / 18

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 17 / 18 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-INP Page 18 / 18

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 141 of 142 APPENDIX C - RF EXPOSURE EVALUATION Maximum Permissible Exposure (MPE) Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 142 of 142 Calculated Data: Radio Operation Modes Frequency (MHz) Antenna Gain Conducted output power including Tune-up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) WiFi/BT Module WiFi 2.4G 2412-2462 2.5 1.78 22 158.49 20.00 0.0561 1.0 WiFi 5.2G 5150-5250 3.4 2.19 17 50.12 20.00 0.0218 1.0 WiFi 5.3G 5250-5350 3.5 2.24 16 39.81 20.00 0.0177 1.0 WiFi 5.6G 5470-5725 3.4 2.19 10 10.00 20.00 0.0044 1.0 WiFi 5.8G 5725-5850 3.8 2.40 17 50.12 20.00 0.0239 1.0 Bluetooth 2402-2480 2.5 1.78 75.01 20.00 0.0018 1.0 BLE 2402-2480 2.5 1.78 11.26 20.00 0.0004 1.0 Zigbee Module Zigbee 2405-2480 2.9 1.95 5 3.16 20.00 0.0012 1.0 The Conducted output power including Tune-up Tolerance provided by manufacturer The WiFi/BT Module and Zigbee Module can transmit simultaneously, operation modes in WiFi/BT module can`t transmit simultaneously: =S WiFi/BT /S limit- WiFi/BT + S Zigbee /S limit- Zigbee =0.0561/1+0.0012/1 =0.0573 < 1.0 Result: The device meet FCC MPE at 20 cm distance ***** END OF REPORT *****

客 户 CUSTOMER: 客户料号 RT61 CUSTOMER NO: 品 名 WIFI Antenna L=33mm MHF PART NAME: 供方料号 WE007N.F0128.V01 SUPPLIER NO : 送样日期 Date: 福州市瀚宇正达电子有限公司 Word Easy Electronics Co.,Ltd. 供方确认 SUPPLIER SIGNATURE APPROVAL CHECK DESIGN Hunter Zhou Hongtao Fang 客户确认CUSTOMER APPROVED BY APPROVAL CHIEF SUPERVISOR 日 期 2022/11/02 Date 编 号 22110201 File No 版 本 1.0 Revision 规 格 承 认 书 SPECIFICATION FOR APPROVAL WE-RD-F01-A NO. 内 容 （Contents） 页 数 （Number of Page） 页 码 （Page Code） 1 承认书封面 （Spec Cover） 1 1 2 承认书项目表（Spec Item ） 1 2 3 工程成品图 （Drawing） 1 3 4 天线规格（Antenna Specification） 1 4 5 S参数测试 （S Parameter ） 1 5 6 无源测试 （Passive Test ） 3 6 ~ 8 7 天线装配图（Antenna Profile） 2 9 ~ 10 8 RoHS报告（ RoHS Test Report ） ** ** 9 N/A N/A N/A 10 - - - 11 - - - 12 - - - 天 线 规 格 Antenna Specification Electrical Properties Frequency 2400-2500MHz 5150~5850MHz Impedance 50 Ohm Nominal V.S.W.R <1.8 Return Loss <-11dB Radiation Omni-directional Gain (Peak) 2.5dBi@2400 -2500MHz 3.8dBi@5150~5850MHz Polarization Linear Connector 1 I-PEX Physical Properties Antenna Material FPC Cable Type O.D.1.13//L=33mm Operating Temp. -10 ~ +60 ̊C Storage Temp. -10 ~ +70 ̊C Cable Color Gray Agilent E5071C S Parameter Test // WIFI Antenna Performance Test Antenna Passive Test Passive Test For WIFI（2.4G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 49.8 -3.0 1.9 2410 47.7 -3.2 1.8 2420 43.7 -3.6 1.5 2430 45.8 -3.4 1.8 2440 46.0 -3.4 1.9 2450 51.7 -2.9 2.4 2460 51.8 -2.9 2.5 2470 48.2 -3.2 2.1 2480 44.3 -3.5 1.6 2490 43.7 -3.6 1.5 2500 50.3 -3.0 2.0 Passive Test For WiFi(5.8G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 5150 51.4 -2.9 3.4 5200 47.0 -3.3 3.3 5250 47.9 -3.2 3.4 5300 44.9 -3.5 3.1 5350 51.6 -2.9 3.5 5400 48.6 -3.1 3.1 5450 51.0 -2.9 3.4 5500 47.0 -3.3 3.0 5550 51.2 -2.9 3.3 5600 48.8 -3.1 2.9 5650 52.0 -2.8 3.1 5700 56.6 -2.5 3.4 5750 56.6 -2.5 3.6 5800 58.1 -2.4 3.8 5850 57.7 -2.4 3.8 Device Antenna WIFI Zigbee Antenna Profile Assembly Drawing WIFI Antenna Zigbee Antenna 客 户 CUSTOMER: 客户料号 RT61 CUSTOMER NO: 品 名 Zigbee Antenna L=33mm MHF PART NAME: 供方料号 WE007N.F0129.V01 SUPPLIER NO : 送样日期 Date: 福州市瀚宇正达电子有限公司 Word Easy Electronics Co.,Ltd. 供方确认 SUPPLIER SIGNATURE APPROVAL CHECK DESIGN Hunter Zhou Hongtao Fang 客户确认CUSTOMER APPROVED BY APPROVAL CHIEF SUPERVISOR 日 期 2022/11/02 Date 编 号 22110202 File No 版 本 1.0 Revision 规 格 承 认 书 SPECIFICATION FOR APPROVAL WE-RD-F01-A NO. 内 容 （Contents） 页 数 （Number of Page） 页 码 （Page Code） 1 承认书封面 （Spec Cover） 1 1 2 承认书项目表（Spec Item ） 1 2 3 工程成品图 （Drawing） 1 3 4 天线规格（Antenna Specification） 1 4 5 S参数测试 （S Parameter ） 1 5 6 无源测试 （Passive Test ） 2 6 ~ 7 7 天线装配图（Antenna Profile） 2 8 ~ 9 8 RoHS报告（ RoHS Test Report ） ** ** 9 N/A N/A N/A 10 - - - 11 - - - 12 - - - 天 线 规 格 Antenna Specification Electrical Properties Frequency 2400-2500MHz Impedance 50 Ohm Nominal V.S.W.R <1.5 Return Loss <-14dB Radiation Omni-directional Gain (Peak) 2.9dBi Polarization Linear Connector 1代I-PEX Physical Properties Antenna Material FPC Cable Type O.D.1.13//L=33mm Operating Temp. -30 ~ +60 ̊C Storage Temp. -30 ~ +70 ̊C Cable Color Gray Agilent E5071C S Parameter Test // Zigbee Antenna Performance Test Antenna Passive Test Passive Test For Zigbee Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 60.7 -2.2 2.9 2410 60.5 -2.2 2.9 2420 58.0 -2.4 2.7 2430 61.7 -2.1 2.8 2440 62.5 -2.0 2.5 2450 67.7 -1.7 2.8 2460 65.3 -1.9 2.6 2470 61.0 -2.1 2.3 2480 56.9 -2.5 1.9 2490 62.3 -2.1 2.2 2500 60.7 -2.2 2.0 Device Antenna WIFI Zigbee Antenna Profile Assembly Drawing WIFI Antenna Zigbee Antenna

TEST REPORT Applicant: AKUVOX (XIAMEN) NETWORKS CO., LTD. Address: 10/F, No.56 Guanri Road，Software Park II , Xiamen 361009, China Product Name: HyPanel Lux FCC ID: 2AHCR-RT61 Standard(s): 47 CFR Part 15, Subpart E(15.407) ANSI C63.10-2013 KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 Report Number: XMDN231122-69423E-RF-00C Report Date: 2024/6/3 The above device has been tested and found compliant with the requirement of the relative standards by Bay Area Compliance Laboratories Corp. (Dongguan). Reviewed By: Gavin Xu Approved By: Ivan Cao Title: RF Engineer Title: EMC Manager Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Note: The information marked ▲ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with ★.This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 2 of 142 CONTENTS DOCUMENT REVISION HISTORY ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1. GENERAL INFORMATION ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 1.2 ACCESSORY INFORMATION ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 1.3 ANTENNA INFORMATION DETAIL▲ ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 1.4 EQUIPMENT MODIFICATIONS ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 2. SUMMARY OF TEST RESULTS ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 3. DESCRIPTION OF TEST CONFIGURATION ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 3.1 OPERATION FREQUENCY DETAIL ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 3.2 EUT OPERATION CONDITION ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 3.3 SUPPORT EQUIPMENT LIST AND DETAILS ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 3.4 SUPPORT CABLE LIST AND DETAILS ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 3.5 BLOCK DIAGRAM OF TEST SETUP ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 9 3.6 TEST FACILITY ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 10 3.7 MEASUREMENT UNCERTAINTY ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 10 4. REQUIREMENTS AND TEST PROCEDURES ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 11 4.1 AC LINE CONDUCTED EMISSIONS ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 11 4.1.1 Applicable Standard ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 11 4.1.2 EUT Setupꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 12 4.1.3 EMI Test Receiver Setup ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 12 4.1.4 Test Procedure ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 13 4.1.5 Corrected Amplitude & Margin Calculation ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 13 4.1.6 Test Result ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 13 4.2 RADIATION SPURIOUS EMISSIONS ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 14 4.2.1 Applicable Standard ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 14 4.2.2 EUT Setupꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 15 4.2.3 EMI Test Receiver & Spectrum Analyzer Setup ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 16 4.2.4 Test Procedure ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 17 4.2.5 Corrected Result & Margin Calculation ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 17 4.2.6 Test Result ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 17 4.3 EMISSION BANDWIDTH ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 18 4.3.1 Applicable Standard ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 18 4.3.2 EUT Setupꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 18 4.3.3 Test Procedure ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 18 4.3.4 Test Result ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 19 4.4 MAXIMUM CONDUCTED OUTPUT POWER ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 20 4.4.1 Applicable Standard ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 20 4.4.2 EUT Setupꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 104 of 142 5250-5350MHz: a_5260MHz_Chain 0 a_5280MHz_Chain 0 a_5320MHz_Chain 0 n20_5260MHz_Chain 0 n20_5280MHz_Chain 0 n20_5320MHz_Chain 0 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 105 of 142 n40_5270MHz_Chain 0 n40_5310MHz_Chain 0 ac80_5290MHz_Chain 0 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 106 of 142 5470-5725MHz: a_5500MHz_Chain 0 a_5580MHz_Chain 0 a_5700MHz_Chain 0 a_5720MHz_Chain 0 n20_5500MHz_Chain 0 n20_5580MHz_Chain 0 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 107 of 142 n20_5700MHz_Chain 0 n20_5720MHz_Chain 0 n40_5510MHz_Chain 0 n40_5550MHz_Chain 0 n40_5670MHz_Chain 0 n40_5710MHz_Chain 0 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 108 of 142 ac80_5530MHz_Chain 0 ac80_5610MHz_Chain 0 ac80_5690MHz_Chain 0 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 109 of 142 5725-5850MHz: Minimum 6dB Bandwidth: a_ 5745 MHz_Chain 0 a_5785MHz_Chain 0 a_5825MHz_Chain 0 n20_5745MHz_Chain 0 n20_5785MHz_Chain 0 n20_5825MHz_Chain 0 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 110 of 142 n40_5755MHz_Chain 0 n40_5795MHz_Chain 0 ac80_5775MHz_Chain 0 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 111 of 142 5.4 99% Occupied Bandwidth Serial No.: 2EB1-1 Test Date: 2024/2/27~2024/4/28 Test Site: RF Test Mode: Transmitting Tester: Jojo Zhou Test Result: / Environmental Conditions: Temperature: (°C) 23.8~25.2 Relative Humidity: (%) 48~51 ATM Pressure: (kPa) 100.2~101.8 Test Equipment List and Details: Manufacturer Description Model Serial Number Calibration Date Calibration Due Date R&S Spectrum Anal yzer FSV40 101947 2023/10/18 2024/10/17 yzjingcheng Coaxial Cable KTRFBU-141- 50 41010012 2023/9/1 2024/8/31 E-Microwave Coaxial Attenuators EMCA10- 5RN-6 OE01203239 2023/9/1 2024/8/31 * Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have been performed, traceable to National Primary Standards and International System of Units (SI). 5150-5250 MHz: Mode 99% OBW (MHz) a_5180MHz_Chain 0 27.07 a_5200MHz_Chain 0 25.99 a_5240MHz_Chain 0 17.13 n20_5180MHz_Chain 0 29.10 n20_5200MHz_Chain 0 29.82 n20_5240MHz_Chain 0 18.08 n40_5190MHz_Chain 0 58.44 n40_5230MHz_Chain 0 37.37 ac80_5210MHz_Chain 0 77.60 Note: The 99% Occupied Bandwidth have not fall into the band 5250-5350MHz, please refer to the test plots of 99% Occupied Bandwidth. 5250-5350 MHz: Mode 99% OBW (MHz) a_5260MHz_Chain 0 28.14 a_5280MHz_Chain 0 27.43 a_5320MHz_Chain 0 27.78 n20_5260MHz_Chain 0 29.70 n20_5280MHz_Chain 0 29.70 n20_5320MHz_Chain 0 29.94 n40_5270MHz_Chain 0 57.01 n40_5310MHz_Chain 0 54.13 ac80_5290MHz_Chain 0 126.63 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: XMDN231122-69423E-RF-00C Report Template Version: FCC-WiFi5-Client V1.2 Page 112 of 142 5470-5725 MHz: Mode 99% OBW (MHz) a_5500MHz_Chain 0 17.25 a_5580MHz_Chain 0 17.25 a_5700MHz_Chain 0 17.33 a_5720MHz_Chain 0 17.49 n20_5500MHz_Chain 0 18.20 n20_5580MHz_Chain 0 18.12 n20_5700MHz_Chain 0 18.20 n20_5720MHz_Chain 0 18.28 n40_5510MHz_Chain 0 36.89 n40_5550MHz_Chain 0 36.41 n40_5670MHz_Chain 0 37.05 n40_5710MHz_Chain 0 37.05 ac80_5530MHz_Chain 0 91.82 ac80_5610MHz_Chain 0 95.41 ac80_5690MHz_Chain 0 99.80 5725-5850 MHz: Mode 99% OBW (MHz) a_5745MHz_Chain 0 29.34 a_5785MHz_Chain 0 29.70 a_5825MHz_Chain 0 28.50 n20_5745MHz_Chain 0 29.94 n20_5785MHz_Chain 0 28.98 n20_58…
