2AHV3KK20R/C drone

Farther.Faster.Clearer Quick Start MEW4-1 Aircraft *Please turn to User Manual for detailed information of flight environment requirements. 1. Brushless motor 2. Undercarriage 3. Propeller 4. Camera 5. Ultrasonic sensor 6. Bottom lights 7. Vision positioning lens 8. Battery 9. Rear light 10. Power switch ŗ ř Ś ś ŝ Ş Ŝ ş Ř  1 Gimbal trimmer Remote Controller A B Short-press to take photos; Long-press to take videos. Photo/Video One-key RTHOne-key unlock/lock Light switch (short-press); High/Low speed switch (long-press) Short-press to enter into RTH procedure; Press again to exit RTH. Short-press to unlock; Long-press to lock. Short press to turn on/off the LED lights; Long-press to switch High/Low speed. 1. Power switch 2. One-key RTH 3. Left stick 4. Right stick 5. Photo/Video 6. One-key unlock/lock 7. Mobile phone holder 8. Antenna 9. Hand stick 10. LCD display 11. One-key takeoff/One-key landing 12. Light switch (short-press); High/Low speed switch (long-press) 13. Gimbal trimmer 14. GPS/Gesture mode switch One-key takeoff/ One-key landing Short-press to switch one-key takeoff or one-key landing. GPS/Gesture mode switch OFF - Gesture Mode; ON - GPS Mode. Ŝ Ş ş ŗ Ř ř Ś ś ŝ      The camera can be rotated by 180 degrees. A B 180° 2 LCD screen display The icon is on during the RTH procedure and will be off once RTH procedure canceled. Return to Home (RTH) icon Aircraft battery level Distance against Home Point GPS mode Satellite amount It indicates current aircraft battery level. It indicates current aircraft flying distance against recorded Home Point. Once the GPS signal amount is over 7, Home Point will be recorded at the location where the aircraft takes off. Remote controller throttle mode It indicates current throttle mode. Throttle mode is set at Mode 2 by default. Remote controller battery level GPS mode Satellite amount Altitude against Home Point Photo/Video Return to Home (RTH) icon Aircraft battery level Remote controller throttle mode Distance against Home Point Signal strength High/Low speed mode It indicates the signal strength that the remote controller receives from the aircraft. Altitude against Home Point It indicates aircraft current altitude against Home Point. High/Low speed mode Signal strength It indicates remote controller current battery level. Remote controller battery level Flashing once to take photos; Keep flashing to take videos. Photo/Video LOW - Low Speed; HIGH - High Speed. ON - GPS Mode; OFF - Gesture Mode. 3 ANDROID APP ON Available on the App Store Download the software “X-DRONE” APP Prepare your MEW4-1 Preparation before Use Flight Preparation Install 2*AA batteries into the remote controller. Install the aircraft battery. Unfold the arms. Insert the TF Card (TF Card is not included). Ɣ)RU$SSOH,26V\VWHPSOHDVHWXUQWR$SSOHVWRUHVHDUFK³;'521( ́RUVFDQWKH45FRGHWRGRZQORDGWKHVRIWZDUH Ɣ)RU$QGURLGV\VWHPSOHDVHVFDQWKH³*RRJOHSOD\ ́45FRGHRUVHDUFK³;'521( ́LQ³*RRJOHSOD\ ́WRGRZQORDGWKHVRIWZDUH AA AA 4 Signal connection Keep pressing the unlock button and turn on the remote controller. Power on the aircraft by pressing the switch on the aircraft for 3 seconds. Compass calibration Connect your mobile device with MEW4-1 Step 1. Rotate the MEW4-1 360 degrees for 3 circles horizontally. Step 2. Rotate the MEW4-1 360 degrees for 3 circles vertically. Tap “X-DRONE” App Connect WIFI Setting Wi-Fi drone**** 5 Unlock the aircraft Flight Short-press the unlock button. Control the aircraft Throttle mode is set at Mode 2 by default. Left stick determines the aircraft’s altitude and orientation; Right stick controls the stick’s movement. Mode 1 is opposite to Mode 2. That’s to say, in Mode 1, right stick determines the aircraft’s altitude and orientation; Left stick controls the stick’s movement. Left stick Right stickLeft stick Right stick A s c e n t D e s c e n t A s c e n t D e s c e n t R i g h t w a r d f l i g h t L e f t w a r d f l i g h t T u r n r i g h t T u r n l e f t R i g h t w a r d f l i g h t L e f t w a r d f l i g h t T u r n r i g h t T u r n l e f t F o r w a r d B a c k w a r d F o r w a r d B a c k w a r d Change the throttle mode Keep pressing the unlock button and turn on the remote controller. Keep pressing the RTH button for 3 seconds to change the throttle mode. 6 MEW4-1 ANDROID APP ON Available on the App Store X-DRONE Charge the Aircraft Battery Turn off the remote controller and aircraft Long-press the unlock button and turn off the remote controller. Power off your aircraft by pressing the switch for 3 seconds. Ɣ7KHDLUFUDIW¶VEDWWHU\QHHGVWREHIXOOFKDUJHGEHIRUHHYHU\IOLJKW Ɣ3OHDVHXVHWKHRULJLQDOGHIDXOWFKDUJLQJGHYLFHIRUWKLVDLUFUDIW Ɣ)XOO&KDUJLQJWLPHWDNHVDERXWPLQXWHV Power adaptor (not included) USB cableChargerBattery 86%

Farther.Faster.Clearer User Manual MEW4-1 Contents Product Profile Introduction Prepare Your MEW4-1 Prepare the Remote Controller Major Parts & Functional Switch Flight Modes Aircraft Status Indicator Lights Return to Home (RTH) Vision System Aircraft Power Switch Aircraft Battery Attach and Detach the Propellers Remote Controller Functions and Status Throttle Control Stick Mode Install Mobile Phone Holder FPV Real-time Image Transmission Software “X-DRONE” Flight Environment Requirements Pre-flight Checklist Aircraft Operations Test Flight Product Parameters Packing Detail Important Statement Flight Safety Guidelines 1 1 2 3 5 6 7 8 10 10 11 13 17 18 19 21 21 22 26 27 30 31 31 Aircraft Remote Controller App Download & Installation Flight Appendix Unfold the aircraft The aircraft is folded inside the package. Please unfold the aircraft before use. ● Equipped with Vision System and GPS System, your MEW4-1 can precisely position, hover and automatically return. It is also capable of flying in the intelligent flight modes like Point of Interest, Follow Me and Waypoint Flight. Features a single-axis gimbal, your MEW4-1 can shoot 2K, 2-megapixel photos and adjust camera angle 90 degrees in flight. ● The aircraft and camera can easily be controlled using the onboard buttons. Real-time images and aircraft data information can be shown on the “X-DRONE” APP. Foldable hand sticks and pull-out holder design make the remote controller easier to operate and carry. Prepare Your MEW4-1 Introduction Product Profile This section mainly introduces functions and installation guidelines of MEW4-1 and lists the components of the aircraft and remote controller. -1- Install the battery of remote controller Prepare the Remote Controller ! ● Insert batteries with correct polarity. ● Non rechargeable batteries are not to be charged; the transmitter need 2*AA batteries for work. ● Do not mix old and new batteries. ● Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. ● Rechargeable batteries are to be removed from the aircraft before being charged. ● Rechargeable batteries are only to be charged under adult supervision. ● Exhausted batteries are to be removed from the aircraft. ● The supply terminals are not to be short-circuited. Step 1: Unfold the hand sticks and open the battery door (Pic. 1); Step 2: Install 2*AA batteries into the battery compartment according to the given polarity (Pic. 2); Step 3: Close the battery compartment (Pic. 3). Pic. 1Pic. 2 MEW4-1 User Manual Battery installation ! Step 1. Insert the battery into socket at the top of the aircraft (Pic. 1); Step 2. Slide the battery into the compartment by pushing with appropriate force. Make sure that you hear a click sound indicating the battery is firmly installed (Pic. 2). Attention: The battery should be installed firmly, failure to do so may affect the flight safety of your aircraft. The aircraft may crash due to power-cut during the flight. Pic. 1Pic. 2Pic. 3 -2- MEW4-1 User Manual [1] [2] [3] [4] [6] [7] [5] [1] Photo/Video [2] Left stick [3] One-key unlock/lock [4] One-key RTH [5] Right stick [6] Power switch [7] LCD display [9] [7] Ultrasonic sensor [8] Bottom lights [9] Vision positioning lens [7] [8] [1] Power switch [2] Brushless motor [3] Undercarriage [4] Battery [5] Propeller [6] Camera [1] [2] [3] [5] Major Parts & Functional Switch [6] [4] -3- MEW4-1 User Manual [11] [11] GPS/Gesture mode switch [8] One-key takeoff/ one-key landing [9] Gimbal trimmer [10] Light switch (short-press); High/Low speed switch (long-press) [8][10] [9] -4- Flight Modes Pic. 1Pic. 2 GPS mode: ON Your MEW4-1 has 3 flights modes: Gesture mode: OFF Slide the button down to “OFF” (Pic. 2), the aircraft is in Gesture mode that GPS is not used for positioning, and the aircraft only uses the barometer to maintain altitude. The aircraft will not fly with precise positioning and hovering. Gesture mode requests pilot with good skill. In Gesture Mode, the aircraft cannot position itself or brake automatically, which increases the risk of potential flight hazards. The aircraft will be also more easily affected by its surroundings. Environmental factors such as wind can result in horizontal shifting, which may present hazards, especially when flying in confined spaces. Aircraft This section introduces functions and features of the MEW4-1. Vision positioning mode: Once the GPS signal is weak or unavailable and the flying altitude is less than 3 meters, the aircraft will automatically enter into vision positioning mode. Assisted by the vision system, the aircraft could perform precise positioning. Slide the button up at the right side to position “ON” (Pic.1), the aircraft is in GPS mode and can precisely position and hover by the assistance of the GPS module. Warm tips: When the GPS signal is weak, the aircraft will automatically enter into Gesture mode (flying altitude ≥ 3 meters) or vision positioning mode (flying altitude 3 meters). -5- MEW4-1 User Manual Aircraft status indicator Rear light flashes red once, stop for 1.5 second.Something wrong with the gyroscope. 12 11 Rear light flashes red five times rapidly. Something wrong with ultrasonic altitude hold data and the aircraft is in barometer altitude hold. 10 Rear light flashes red twice, stop for 1.5 second.Something wrong with the barometer. No. 1Rear light flashes yellow rapidly.Aircraft 2.4GHz disconnected. 2Rear light flashes red, green and yellow alternatively.Aircraft is in initialization detection status. 3Rear light glows solid yellow.No GPS signal, aircraft is in gesture mode. Indicator statusMeanings 4Rear light glows solid green.Good GPS signal, aircraft is preparing for GPS mode. 5Rear light flashes green rapidly.Aircraft is in gyroscope calibration status. 6Rear light flashes yellow slowly.Aircraft is in compass horizontal calibration. 7Rear light flashes green slowly.Aircraft is in compass vertical calibration. 8Rear light flashes red slowly.Aircraft is nearly lo…

Text truncated - open the document above for the full version.

Authority to Act as Agent [Dec. 24, 2019]] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (Guangdong Meijiaxin Innovative Technology Co., Ltd) FCC ID: (2AHV3KK20) To Whom It May Concern: Shenzhen UnionTrust Quality and Technology Co., Ltd. is authorized to act on our behalf, until otherwise notified, for applications to Intertek Testing Services. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 months By: Hellen Lin ________ (Signature 1 ) (Print name) Title: [Senior Marketing Executive] On behalf of: [Guangdong Meijiaxin Innovative Technology Co., Ltd] Telephone: 86-0754-85510798 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

FCC ID: 2AHV3KK20 Page 1 of 5 Appendix II: EUT External PHOTOS FCC ID: 2AHV3KK20 Page 2 of 5 FCC ID: 2AHV3KK20 Page 3 of 5 FCC ID: 2AHV3KK20 Page 4 of 5 FCC ID: 2AHV3KK20 Page 5 of 5

Label Location

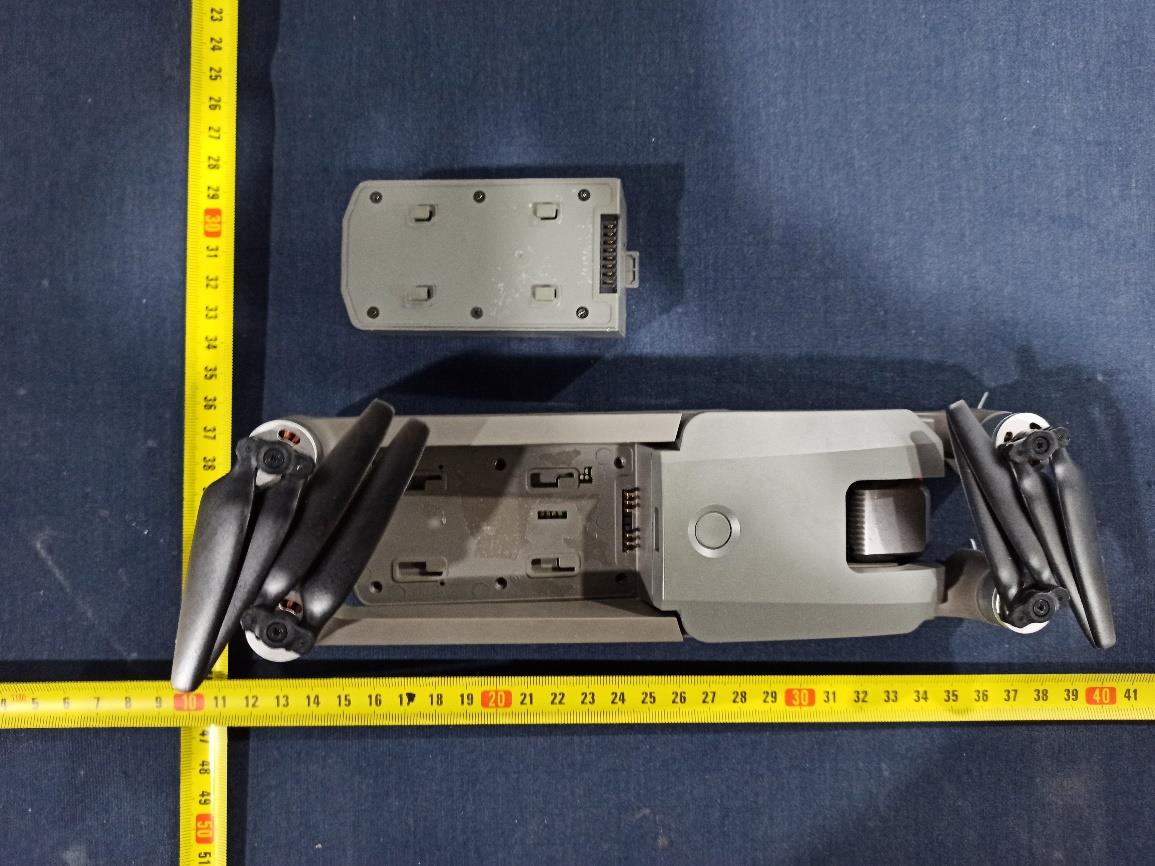

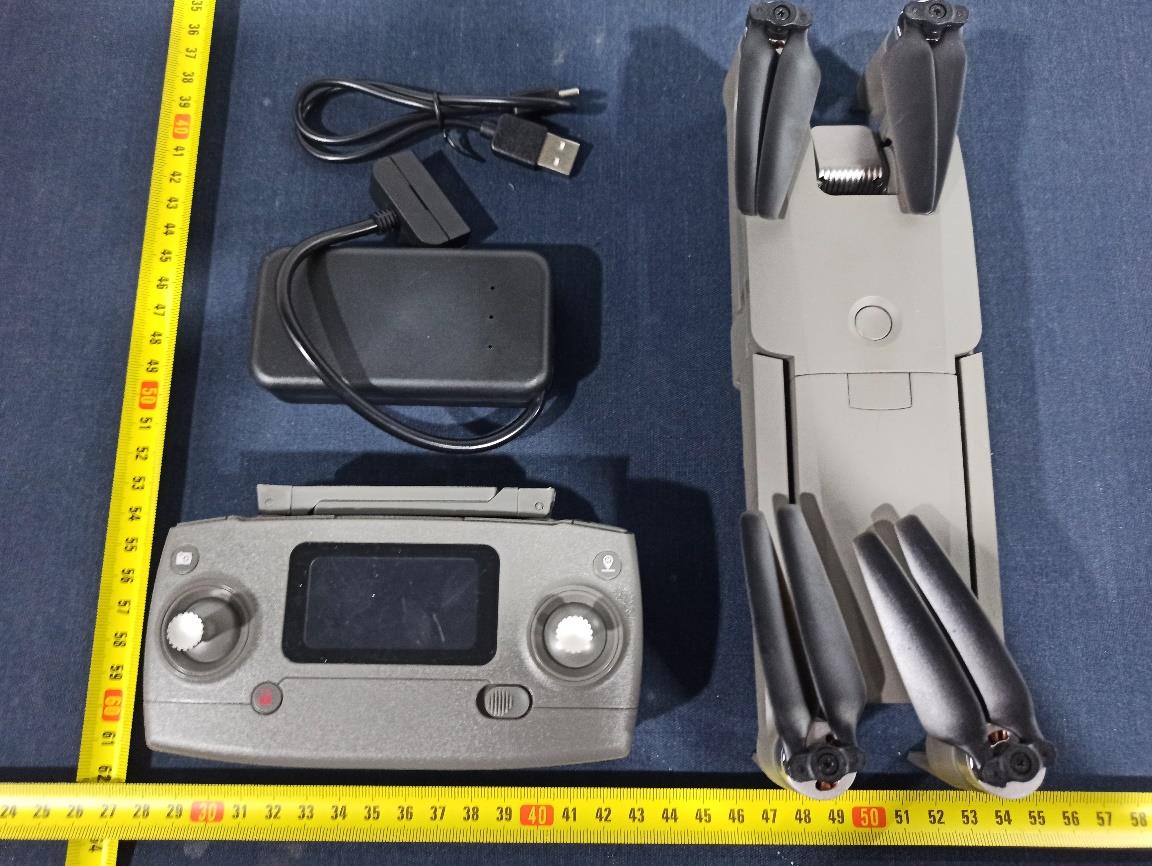

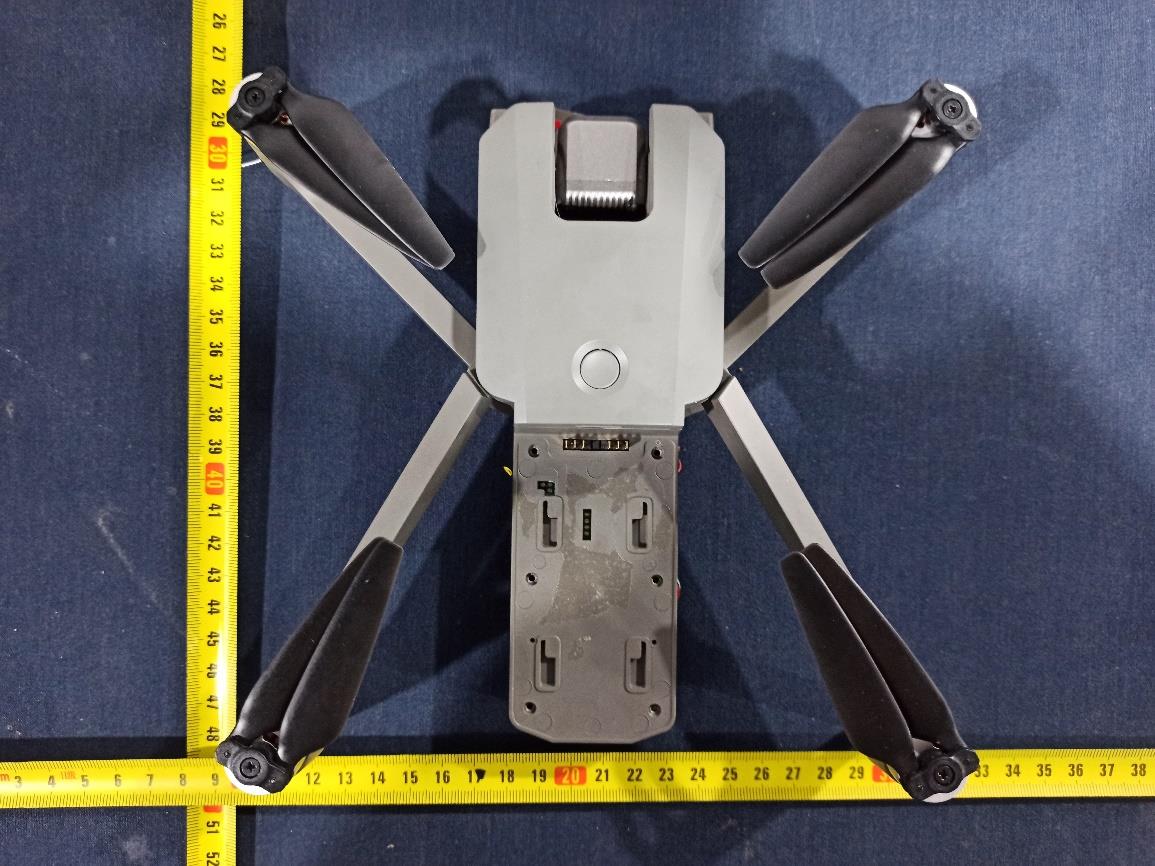

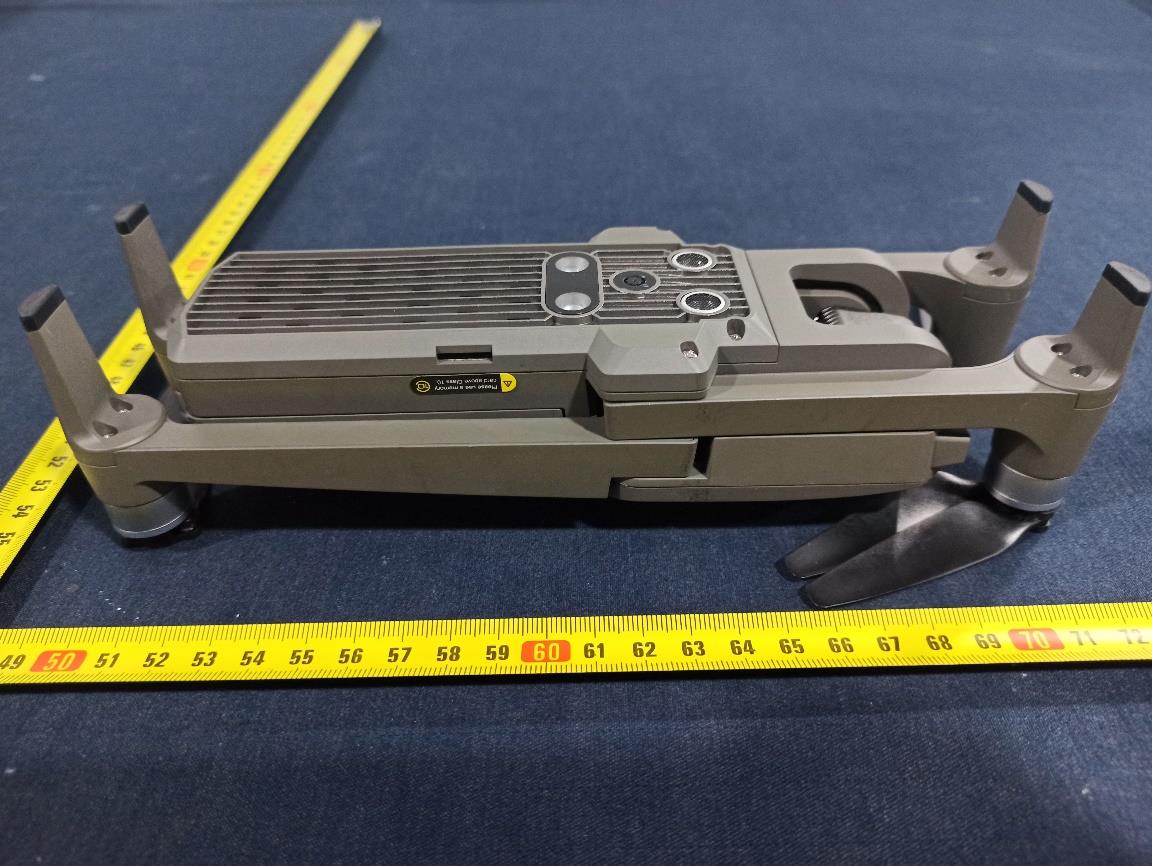

FCC ID: 2AHV3KK20 Page 1 of 14 Appendix II: EUT Internal PHOTOS FCC ID: 2AHV3KK20 Page 2 of 14 FCC ID: 2AHV3KK20 Page 3 of 14 5G WiFi Module: ACC1340 FCC ID: 2AHV3KK20 Page 4 of 14 FCC ID: 2AHV3KK20 Page 5 of 14 FCC ID: 2AHV3KK20 Page 6 of 14 FCC ID: 2AHV3KK20 Page 7 of 14 FCC ID: 2AHV3KK20 Page 8 of 14 2.4G Module: N76E003AT20 FCC ID: 2AHV3KK20 Page 9 of 14 FCC ID: 2AHV3KK20 Page 10 of 14 FCC ID: 2AHV3KK20 Page 11 of 14 FCC ID: 2AHV3KK20 Page 12 of 14 FCC ID: 2AHV3KK20 Page 13 of 14 FCC ID: 2AHV3KK20 Page 14 of 14 5G WiFi Antenna 2.4G Antenna
