2AHV3KK21R/C drone

Bugs 7 User Manual Low battery warning ● If the rear indicator light flash slow, the battery icon in transmitter LCD screen is “ ”. As only the aircraft is beyond 30 meters altitude or 100 meters distance, the aircraft will return home automatically. As long as the aircraft is in 100 meters distance, the user can cancel the return by “ ”. ● When the battery icon “ ” is shown on the LCD screen (Pic. 2) with steady “beep ...beep” sound, it means that the aircraft battery is in low voltage. At this time, the aircraft front lights glow solid on and rear lights flash rapidly. The aircraft will return when the altitude is over 15m or the distance is over 15m; if either the flying altitude or flying distance is less than 15m, the aircraft will land to the ground. Pic. 1Pic. 2 ! Attention: When the aircraft is not inserted with TF card or the TF card is malfunction, photos and videos taking can not be done by pressing the button of the remote controller, but by the icon on the APP interface. One-key takeoff/landing ● After the B7 unlocked, short-press the “ ” button (indicated as below), the aircraft will automatically take off and hover at 1.5m altitude. ● When the aircraft is flying, short-press the “ ” button (indicated as below), the aircraft will automatically land on the ground. In aircraft’s landing automatically, press any joystick, the aircraft will exit the mode. One-key RTH button ● Press the “ ” with the buzzer having “Di”, it means the auto- return home is on. ● The aircraft will return to lasted home point. Press the button shortly again, the return home will be closed. -15- Bugs 7 User Manual Optimal transmission zone To obtain a satisfied flight experience, please make sure that your B7 is flying ahead of the remote controller and no obstacles between the aircraft and the remote controller. Optimal transmission zone Remote control low voltage warning When the “ ” icon appears on the LCD screen and the remote control emits “beep beep” sound, it means that the remote control battery is nearly out of power. Please change new battery for the remote control. Signal strength indicator ● Signal strength bar “ ” shows the strength of the received signal. The more, the better. ● When the strength bar “ ” changes from weak to strong circularly, it means that the remote controller is under signal connection status. ● There are 2 situations that the strength bar “ ” is less than 2 grids or no displaying with steady long beep sounds. 1) The distance between the aircraft and the remote controller is too far causing a weak signal. 2) The battery is removed after the aircraft connects to the remote controller. -16- Bugs 7 User Manual ! Attention: To change the stick mode of the remote controller, please make sure that the remote controller is under signal connection status (the indicator light keep flashing). If not, the stick mode could not be changed. How to change throttle mode Step 1. Keep pressing the red button “ ” and turn on the remote controller, the remote controller is under signal connection status (Pic. 1); Step 2. Keep pressing the RTH button “ ” for 3 seconds to choose the throttle control mode (Pic. 2). The throttle control mode will change according to each press. The mode number is shown on the LCD screen. The throttle control mode is set at mode 2 by default. Pic. 1Pic. 2 Throttle mode switch Mode 1: The right stick serves as the throttle. Mode 2: The left stick serves as the throttle. ● The remote controller is set at Mode 2 by default. Throttle Control Stick Mode Mode 2 (Default) Mode 1 Throttle control Leftward/ Rightward flight control Forward/ Backward control Turn Left/ Right control Throttle control Leftward/ Rightward flight control Forward/ Backward control Turn Left/ Right contro -17- Bugs 7 User Manual Install the Mobile Phone Holder 1. Pull out the mobile phone holder upwards completely (Pic. 1); 2. Tilt the holder 30 degrees towards you and then you will hear a click sound (Pic. 2); 3. Rotate and fix the support board in place (Pic. 3); 4. Adjust the mobile phone holder upward or downward according to the size of your mobile phone (Pic. 4). Pic. 1Pic. 2 Pic. 3Pic. 4 -18- APP Download & Installation This section introduces how to download the “M RC PRO” APP and connect with mobile device. Where to download “M RC PRO” APP ● For Apple IOS system, please turn to Apple store, search “M RC PRO” or scan the QR code at right side to download the software. ● For Android system, please turn to Google play, search “M RC PRO” or scan the QR code at right side to download the software. Or scan “MJXRC. NET” QR code to download the software. FPV Real-time Image Transmission Software “M RC PRO” App Store MJXRC.NET -19- 1. Forbid to fly in following locations, surroundings and scenes. 2. The drone is for 16+ years old, otherwise please play under qualified supervisor. 3. Please comply with local flight laws and regulations, fly reasonably and legally. SkyscraperCrowdsTreesSouth pole & North pole Strong windRainSandstormSnow Base station nearbyHigh voltage wire WatersNo-fly zone Bugs 7 User Manual Setting Wi-Fi Drone4_******* Connect WIFI How to link the “M RC PRO” to the camera Power on the aircraft, then enter phone setting option. Turn on WiFi, find “Drone4_*******” on the list and connect it. When “ ” legend is shown, it means WiFi connection is successful. Exit settings and tap “M RC PRO” APP at your mobile device. Photos and video saving feature 1. If the camera is without TF card, videos and photos will be saved at the APP. (The image definition of video and photo is APP received image quality). 2. If the camera is with TF card, videos and photos will be saved at the TF card. 3. Videos and photos in the TF card can be downloaded to the APP. ! Tips: Only mobile phones that support 5G WIFI (802.11.ac) can make FPV connections. -20- Flight limits and GEO zones Abide by all laws and regulations when flying your B7. Flight limitations are applied by default to help users operate …

Text truncated - open the document above for the full version.

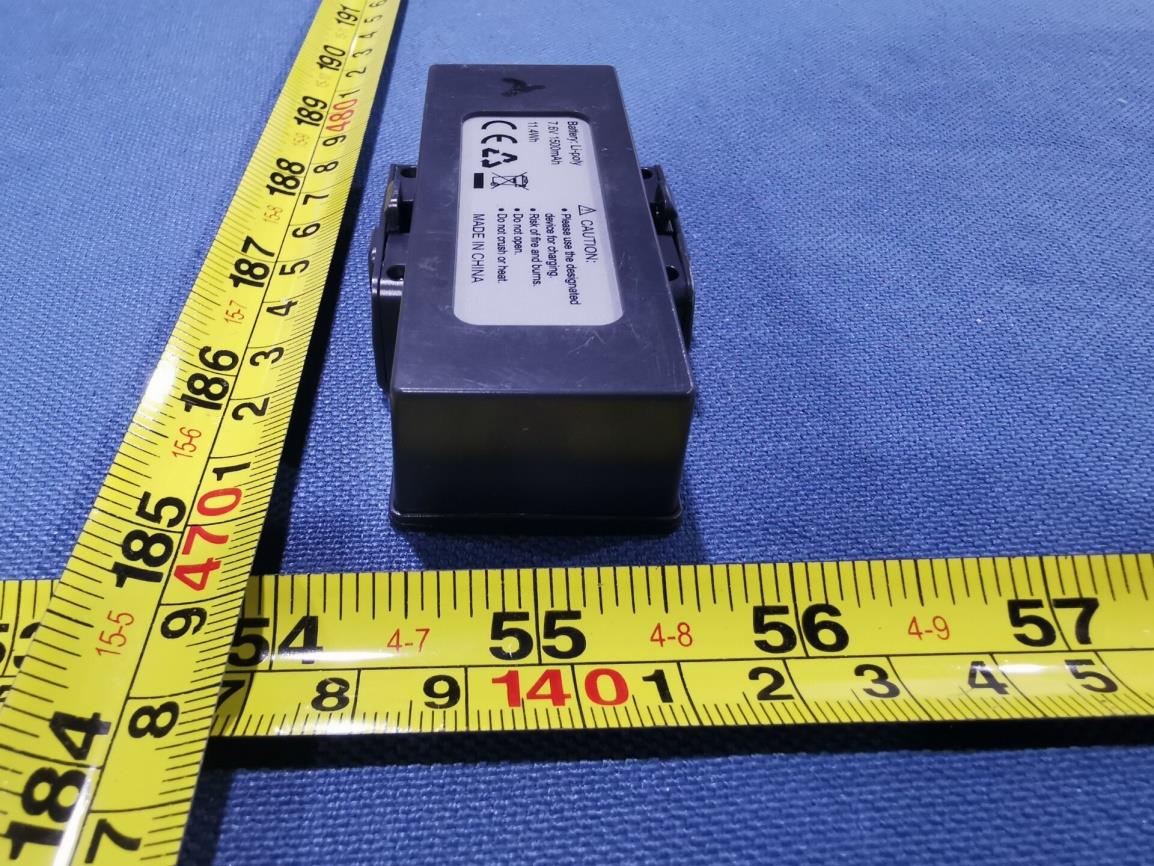

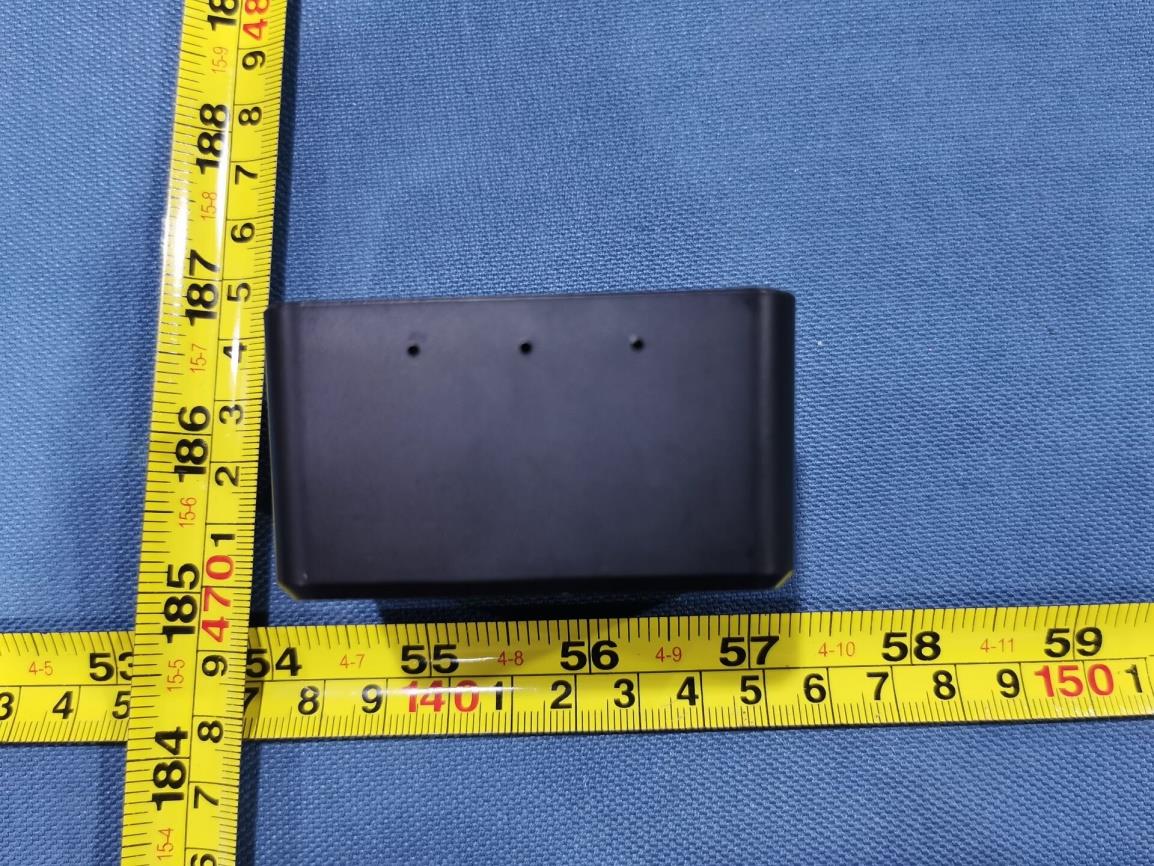

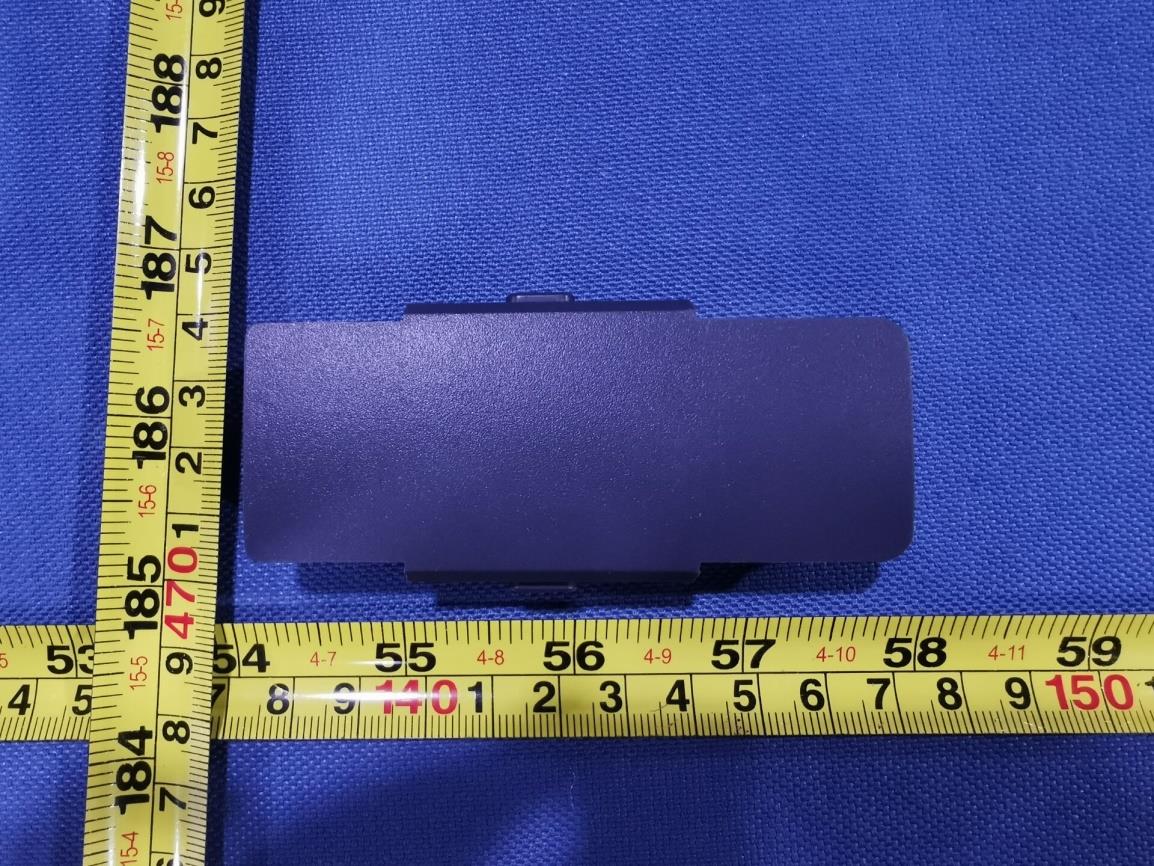

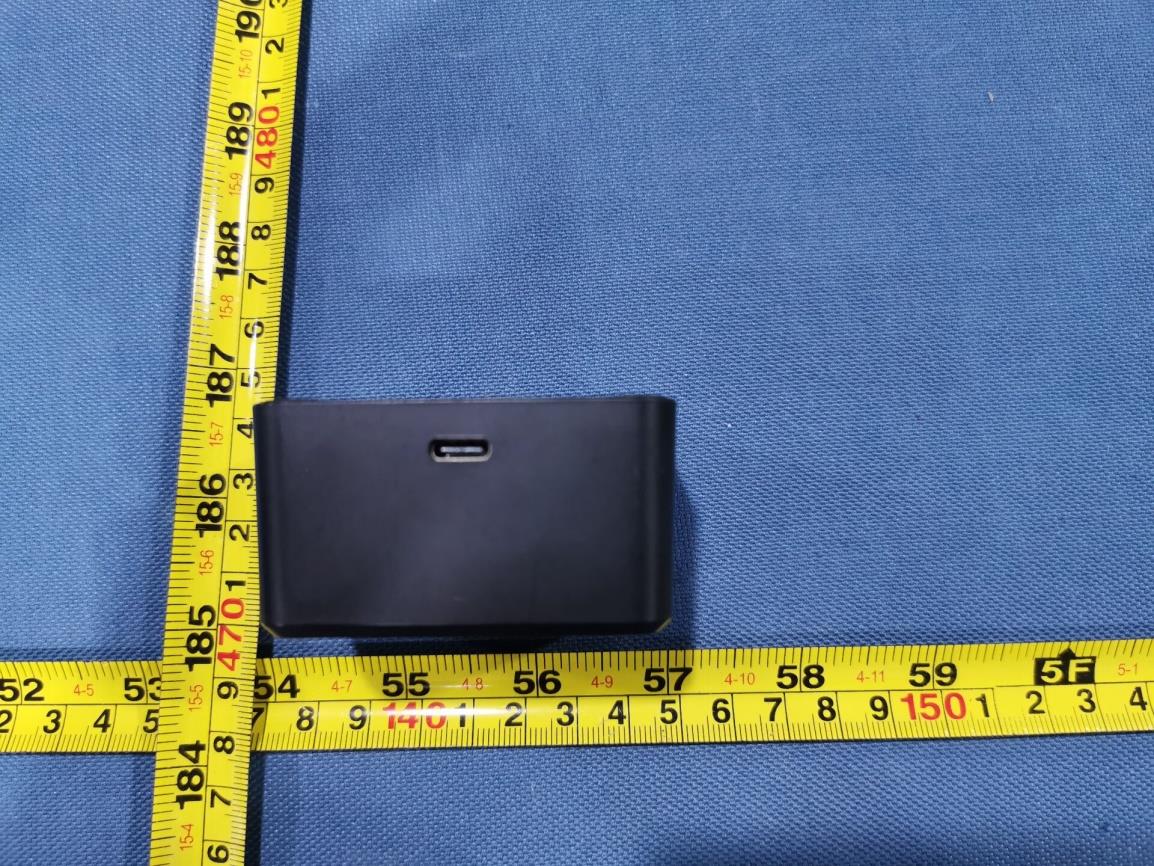

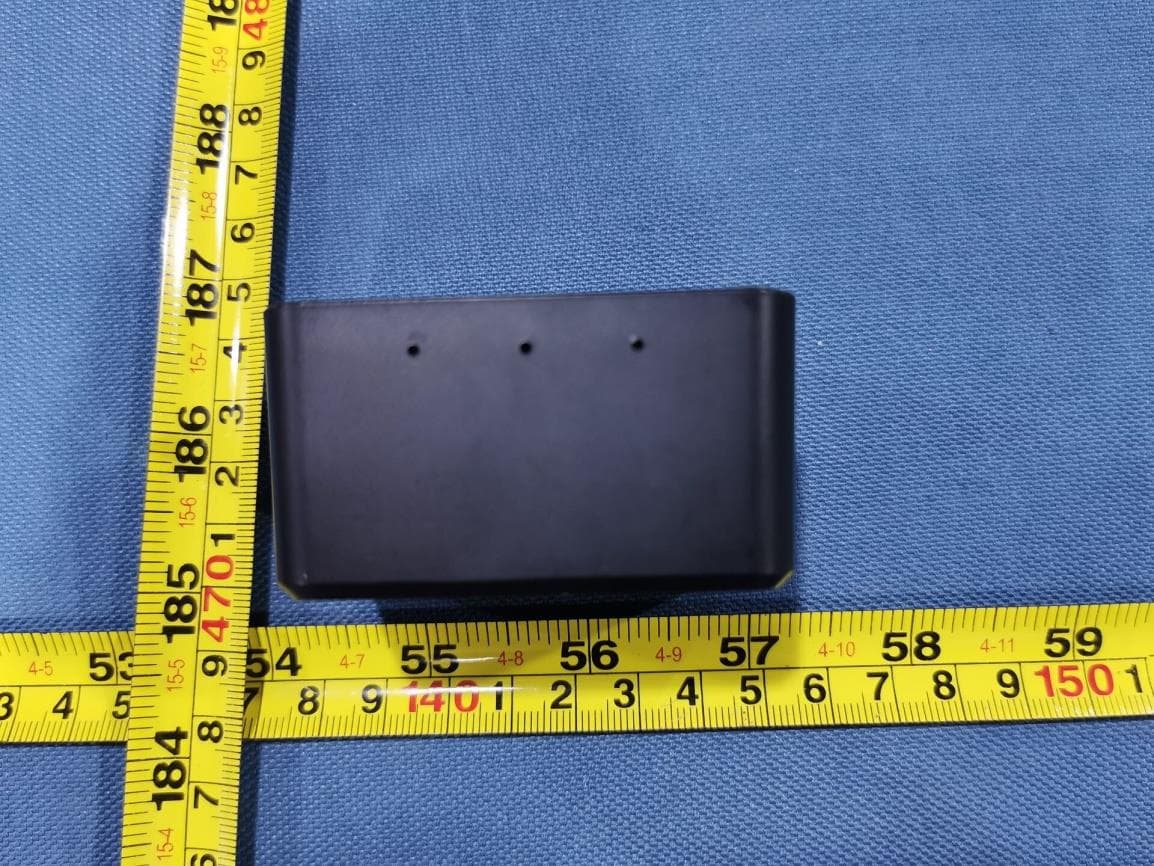

FCC ID: 2AHV3KK21 Page 1 of 11 Appendix II: EUT External Photos FCC ID: 2AHV3KK21 Page 2 of 11 FCC ID: 2AHV3KK21 Page 3 of 11 FCC ID: 2AHV3KK21 Page 4 of 11 FCC ID: 2AHV3KK21 Page 5 of 11 FCC ID: 2AHV3KK21 Page 6 of 11 FCC ID: 2AHV3KK21 Page 7 of 11 FCC ID: 2AHV3KK21 Page 8 of 11 FCC ID: 2AHV3KK21 Page 9 of 11 FCC ID: 2AHV3KK21 Page 10 of 11 FCC ID: 2AHV3KK21 Page 11 of 11

Label Location 美嘉欣B7M-机身贴纸 PANTONE Cool Gray 7C PANTONE Black 6C ITEM NO. B7 FCC ID: 2AHV3KK21 WiFi SSID: Drone4_******* Operation voltage: 7.6V ! CAUTION: ● Please use the designated battery for this aircraft. ● Risk of fire and burns. ● Do not open. ● Do not crush or heat. MADE IN CHINA

FCC ID: 2AHV3KK21 Page 1 of 16 Appendix II: EUT Internal Photos FCC ID: 2AHV3KK21 Page 2 of 16 FCC ID: 2AHV3KK21 Page 3 of 16 FCC ID: 2AHV3KK21 Page 4 of 16 FCC ID: 2AHV3KK21 Page 5 of 16 FCC ID: 2AHV3KK21 Page 6 of 16 FCC ID: 2AHV3KK21 Page 7 of 16 5G Module: UB29 FCC ID: 2AHV3KK21 Page 8 of 16 FCC ID: 2AHV3KK21 Page 9 of 16 FCC ID: 2AHV3KK21 Page 10 of 16 FCC ID: 2AHV3KK21 Page 11 of 16 2.4G Module: N76E003AT20 FCC ID: 2AHV3KK21 Page 12 of 16 FCC ID: 2AHV3KK21 Page 13 of 16 FCC ID: 2AHV3KK21 Page 14 of 16 5G WiFi Antenna 2.4G Antenna FCC ID: 2AHV3KK21 Page 15 of 16 Charging Dock FCC ID: 2AHV3KK21 Page 16 of 16

Guangdong Meijiaxin Innovative Technology Co., Ltd. MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: B7 REPORT NUMBER: 200602834SHA-003 ISSUE DATE: August 31, 2020 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 8 Report no.: 200602834SHA-003 Applicant: Guangdong Meijiaxin Innovative Technology Co., Ltd. Xingye South Road, Laimei Industrial Park, Chenghai, Shantou, Guangdong, China Manufacturer: Guangdong Meijiaxin Innovative Technology Co., Ltd. Xingye South Road, Laimei Industrial Park, Chenghai, Shantou, Guangdong, China FCC ID: 2AHV3KK21 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part 2.1091, FCC Part 2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Wade Zang Reviewer Daniel Zhao Report No.: 200602834SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 8 Revision History Report No. Version Description Issued Date 200602834SHA-003 Rev. 01 Initial issue of report August 31, 2020 Report No.: 200602834SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 8 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Quadcopter Type/Model: B7 Add Model: V1,V2,V3,V4,V5,V6,V7,V8,V9,V10， X103W,X104G,X105W,X106,X107,X108,X109,MEW4-1,MEW4-2,MEW4- 3,MEW4-4 B2,B3,B3mini,B4W,B5W,B9,B10,B11,B12EIS,B16,B16Pro,B18,B18EIS. B19, B19EIS, B20EIS. B22pro, BX Pro,B21 Trade Mark Description of EUT: The EUT is an aircraft with general 2.4G and 5G Wi-Fi (11a/11n) technology. Rating: DC 7.6V (Powered by a 7.6V Battery) Sample received date: June 23, 2020 Date of test: May 15, 2020 ~ June 20, 2020 1.2 Technical Specification General 2.4GHz Frequency Range: 2452~2474MHz Channel Number: 23 Channel Separation: 1 MHz Antenna Information: Internal antenna, 2dBi Peak gain 5G Wi-Fi Frequency Range: 5180MHz Support Standards: 802.11a, 802.11n (HT20) Type of Modulation: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) Channel Number: For 5150MHz band: Channel 36 Antenna Information: Internal antenna, 2dBi Peak gain Report No.: 200602834SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 8 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN1175 IC Registration Lab Registration code No.: 2042B-1 VCCI Registration Lab Registration No.: R-4243, G-845, C-4723, T-2252 NVLAP Accreditation Lab NVLAP LAB CODE: 200849-0 A2LA Accreditation Lab Certificate Number: 3309.02 Tests were sub-contracted. Name: Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Telephone: +86 (0) 755 2823 0888 Telefax: +86 (0) 755 2823 0886 The test facility is recognized, certified, or accredited by these organizations: Shenzhen UnionTrust Quality and Technology Co., Ltd. CNAS Accreditation Lab Registration No. CNAS L9069 Report No.: 200602834SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 8 2 MPE Assessment Test result: Pass 2.1 MPE Assessment Limit Mobile device exposure for standalone operations: Frequency range E-field strength (V/m) H-field strength (A/m) B-field (uT) Equivalent plane wave power density S eq (W/m 2 ) 0-1 Hz - 3,2 × 10 4 4 × 10 4 - 1-8 Hz 10 000 3,2 × 10 4 /f 2 4 × 10 4 /f 2 - 8-25 Hz 10 000 4 000/f 5 000/f - 0,025-0,8 kHz 250/f 4/f 5/f - 0,8-3 kHz 250/f 5 6,25 - 3-150 kHz 87 5 6,25 - 0,15-1 MHz 87 0,73/f 0,92/f - 1-10 MHz 87/f 1/2 0,73/f 0,92/f - 10-400 MHz 28 0,073 0,092 2 400-2 000 MHz 1,375 f 1/2 0,0037 f 1/2 0,0046 f 1/2 f/200 2-300 GHz 61 0,16 0,20 10 Mobile device exposure for simultaneous transmission operations: the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 200602834SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 8 2.2 Assessment Results Power density (S) is calculated according to the formula: S = P / (4πR²) Where S = power density in mW/cm² P = Radiated transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report 200602834SHA-001 / 200602834SHA-002: The maximum radiated power of General 2.4GHz < 0dBm = 1 mW; Here R is chosen to be 20cm, S = P / (4πR²) = 1 / (4 * 3.14 * 20 * 20) = 0.0002 mW/cm² < 1 mW/cm² The maximum radiated power of 5G Wi-Fi <20dBm = 100 mW; Here R is chosen to be 20cm, S = P / (4πR²) = 100 / (4 * 3.14 * 20 * 20) = 0.0199mW/cm² < 1 mW/cm² the sum of the MPE ratios for all simultaneously …
