2AI7B-X9FSLED table lamp

CONGRATULATIONS! You’ve purchased the finest in natural lighting technology with your new OttLite ® product. WARNING: To prevent electric shock, make sure the lamp is not plugged in until all steps are complete. NOTE: THIS UNIT IS FULLY ASSEMBLED 1. Remove the lamp from the packaging and place on a flat surface. 2. Connect power adapter input (A) into connector (B) in the rear-bottom of the lamp. 3. Plug the power adapter (E) into a standard household 120V AC outlet. Note: Only use with the supplied power adapter to avoid damage or fire. 4. Power switch (F) is a “touch” switch that controls ON/OFF power, the LED brightness settings and the colour mode function of the lamp. 5. Touch button (F) to turn the lamp ON/OFF and adjust the brightness. 6. Touching and holding button (F) will change the colour mode. This lamp provides three colour modes 5000°K, 4000°K, 2700°K. 7. To position the shade simply bend the flex-neck as needed to point the light. Please hold the lamp base while adjusting the lamp. WIRELESS CHARGING INSTRUCTIONS: Wireless charging requires a Qi-certified device. To determine if your device is Qi-certified, please visit the Wireless Power Consortium website. To wirelessly charge a device, perform the following: • Place the device, which supports Qi wireless charging standard, face up on the middle of the Qi wireless charging emblem (C). NOTE: Phone will charge in either vertical or horizontal position. • A red indicator light (G) will come on to indicate charging. • Check the charge level on your device periodically to determine when device is fully charged. NOTE: Lamp DOES NOT provide any indication of when device is fully charged. CAUTION! DEVICE MAY BECOME WARM DURING CHARGING. THIS IS NORMAL AND PART OF THE PROCESS. CHARGING TIMES VARY BY DEVICE. USB CHARGING PORT THIS LAMP CONTAINS a 5V, 2,1A USB output port (D) located on the bottom rear of lamp. USB port can charge items such as tablets, cellular phones, etc. SAFETY WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS 1. Turn lamp off and WAIT UNTIL LAMP HEAD IS COOL before handling. 2. The LED panel might get hot after several hours of continuous use DO NOT place your hands directly on LED light panel. 3. Never use with an extension cord unless the plug can be fully inserted into the receptacles in the extension cord. 4. Do not alter the plug. 5. The lamp head included with this unit cannot be replaced by the consumer. 6. INDOOR USE ONLY. NOTE: The important safety instructions appearing in this instruction sheet are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution, and care must be used with any electrical product. CAUTION! IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS LUMINAIRE IS DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE MANUFACTURER OR ITS SERVICE AGENT OR A SIMILAR QUALIFIED PERSON IN ORDER TO AVOID A HAZARD. INDOOR USE ONLY. CAUTION! THE LIGHT SOURCE OF THIS LUMINAIRE IS NOT REPLACEABLE; WHEN THE LIGHT SOURCE REACHES ITS END OF LIFE THE WHOLE LUMINAIRE SHALL BE REPLACED. FCC PART 15 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. CAUTION: ENGLISH Wireless Charging LED Desk Lamp with Phone Stand A C G Wireless Charging LED Desk Lamp with Phone Stand CSNQC00Z-CA CSNQCG5Z-CA 9569000 X9FS INS200572 REV051220 B D F E • Connect the equipment into an o utlet on a circuit different from that to which the receiver is connected. POWER ADAPT ER SPECIFICATION: Input: AC 100-2 40V, 50/60 Hz, 1.2A Max Output: 12V DC , 2.5A with a Male DC Plug The “Qi” symbol is a tr ademark of the Wireless Powe r Consortium Qi CHAR GER SPECIFIC ATION: Output: up to 5 Watts depending on de vice • Consult the dealer or an experie nced radio/TV technician for help. Changes or modifications not ex pressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. This device complies with Part 1 5 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept a ny interference received, including interference that may cause undesired ope ration. FCC/IC RF RAD IATION EXPOSURE STATEMENT CAUTION: To maintain com pliance with the FCC’s RF exposu re guidelines, place the product at least 20cm from nearb y persons. IC CANA DA This device contains licence-exempt transmitter (s)/receiver that comply with Innovation, Scie nce and Economic Development Canada’s licence-exempt RSS (s). Operation is sub ject to the following two conditi ons: 1. This device m ay not cause interference. 2. This device m ust accept any interference, inc luding interference that may ca use undesired operation of the device. Any change or modification to product not ex pressly recognized by OttLite Technol ogies voids OttLite’s responsib ility for proper function of prod uct. CAN RSS-216/CNR-216 CAN ICES-005 (B)/NMB-005 (B) FRANÇAIS Lampe à DEL à chargement sans fil avec socle pour téléphone naturel avec votre produit OttLite. ® AVERTISSEMENT : pour éviter les électrocutions, assurez-vous que la la…

Text truncated - open the document above for the full version.

1(2) OTTlite Technoligies Inc Attention: Certification reviewer RE: Request for Confidentiality FCC ID: 2AI7B-X9FS To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1. Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2. Describe how public access is restricted for products serviceable by professional designated technicians. 3. A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are always held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of [please enter 1 to 180] days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure 2(2) Parts List Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, _________________ Kyle Albinus Quality Manager 2020/5/19

ETL LISTED CONFORMS TO UL STD. 153 TO CSA STD. C22.2 NO. 250.4 LISTÉ ETL CONFORME AU STAND ARD UL 153 CERTIFIÉ CSA STANDARD C22.2 NO. 250.4 CERTIFIED Size: 60*20mm INDOOR USE ONLY/UTILISATION À L'INTÉRIEUR SEULEMENT 7220/7221(CSNQC00Z-CA) 06 2020 7037/7040/7041/7042/7088/7089/7090/7091/7092/7214/7217/7218/7219/ BATCH NO/LOTNO.COS0218/0219/0220/0222/0223/1215/1216/2217/ FCC ID: 2AI7B-X9FS IC:21754-X9FS CAN ICES-005(B)/NMB-005(B) et(2) Cet appareil doit accepter toute interférence reçue,y compris les interferences pouvant entraîner son dysfonctionnement. Son utilisation est assujettie aux deux conditions suivantes :(1) Cet appareil ne doit pas causer d’interférences nuisibles, Cet appareil est conforme aux exigences de la Section 15 des règles de la Commission fédérale des communications (FCC). including interference that may cause undesired operation. (1) this device may not cause harmful interference, and(2) this device must accept any interference received, This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: Size: 50*27mm FABRIQUÉ EN CHINE BREVET EN INSTANCE 1715 N Westshore Blvd Suite 950, Tampa, FL 33607 USA LED 5W ,INPUT/ ENTRÉE DC 12V 2.5A MODEL/MODÈLE:X9FS Size: 50*27mm Bottom

OttLite Technologies, Inc. TEST REPORT SCOPE OF WORK SAR Assessment– X9FS REPORT NUMBER 200421048SZN-002 ISSUE DATE [REVISED DATE] 13 May 2020 [--------------------] PAGES 6 DOCUMENT CONTROL NUMBER RF Exposure © 2017 INTERTEK TEST REPORT Intertek No.: 200421048SZN-002 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page 1 of 6 RF Exposure 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com Test Report Applicant : OttLite Technologies, Inc. 1715 N Westshore Blvd STE 950 Tampa, FL 33607 United States Sample Description Product : LED table lamp Model No. : X9FS Brand Name : OttLite Electrical Rating : Input: DC 12V, 2500mA from adapter Wireless charging output: DC5V, 1A USB port output: DC5V, 2.1A Date Received : 21 April 2020 Date Test Conducted : 21 April 2020 to 10 May 2020 Test Requested : Test for compliance with CFR 47 part 1 Test Method : Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(c) and (d), 1.1310 Test Result : Pass Conclusion : When determining of test conclusion, measurement uncertainty of tests have been considered. ******************************** End of Page ******************************** Prepared and Checked By: Approved By: Jeff Liang Kidd Yang Engineer Technical Supervisor Date: 13 May 2020 TEST REPORT Intertek No.: 200421048SZN-002 Version: 01-November-2017 Page 2 of 6 RF Exposure Test Report Test Setup Configuration Note - The RF exposure test is performed in the shield room. - The test distance is between the edge of the charger and the geometric centre of probe. Test Equipment List Name of instrument Model Manufacturer Cal. Date Due Date Electric and Magnetic Field Analyzer EHP-50F Narda 2019-06-27 2020-06-27 TEST REPORT Intertek No.: 200421048SZN-002 Version: 01-November-2017 Page 3 of 6 RF Exposure Reference Limit: Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(c) and (d), 1.1310 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range ( MHz ) Electric Field strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3 – 3.0 614 1.63 (100) * 6 (B) Limits for General Population/Uncontrolled Exposure 0.3 – 1.34 614 1.63 (100) * 30 Note: * = Plane wave equivalent power density Test Result: H-Field Strength at 15 cm surrounding the EUT and 20cm above the top surface of the EUT Frequency Range (MHz) EUT Operation mode Probe Position Front (A/m) Probe Position Rear (A/m) Probe Position Left (A/m) Probe Position Right (A/m) Probe Position Top (A/m) Limits (A/m) 0.110- 0.205 1% Battery Level 0.0521 0.0648 0.0521 0.0659 0.0599 1.63 0.110- 0.205 50% Battery Level 0.0511 0.0642 0.0522 0.0668 0.0592 1.63 0.110- 0.205 99% Battery Level 0.0519 0.4644 0.0531 0.0664 0.0608 1.63 0.110- 0.205 Stand-by 0.0498 0.0480 0.0449 0.0451 0.0435 1.63 E-Field Strength at 15 cm surrounding the EUT and 20cm above the top surface of the EUT Frequency Range (MHz) EUT Operation mode Probe Position Front (V/m) Probe Position Rear (V/m) Probe Position Left (V/m) Probe Position Right (V/m) Probe Position Top (V/m) Limits (V/m) 0.110- 0.205 1% Battery Level 0.7265 0.3768 0.6602 0.5988 0.4724 614 0.110- 0.205 50% Battery Level 0.7260 0.3755 0.6598 0.5679 0.4711 614 0.110- 0.205 99% Battery Level 0.7235 0.3747 0.6601 0.5663 0.4714 614 0.110- 0.205 Stand-by 0.4088 0.4501 0.4208 0.4681 0.4120 614 TEST REPORT Intertek No.: 200421048SZN-002 Version: 01-November-2017 Page 4 of 6 RF Exposure Configuration photo of the test: H-Field & E-Field Strength test photos Front Rear TEST REPORT Intertek No.: 200421048SZN-002 Version: 01-November-2017 Page 5 of 6 RF Exposure Left Right TEST REPORT Intertek No.: 200421048SZN-002 Version: 01-November-2017 Page 6 of 6 RF Exposure Top ****************************** End of Report******************************

Ottlite Technologies Inc. TEST REPORT SCOPE OF WORK FCC TESTING–X9FS REPORT NUMBER 200421048SZN-001 ISSUE DATE [REVISED DATE] 13 May 2020 [--------------------] PAGES 19 DOCUMENT CONTROL NUMBER FCC ID 209_b © 2017 INTERTEK Test Report This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 19 FCC ID 209_b 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com Ottlite Technologies Inc. Application For Certification FCC ID: 2AI7B-X9FS LED table lamp Model: X9FS Brand name: Transmitter Report No.: 200421048SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-18] Prepared and Checked by: Approved by: Jeff Liang Kidd Yang Engineer Technical Supervisor Date: 13 May 2020 Test Report Intertek Report No.: 200421048SZN-001 Version: 01-November-2017 Page: 2 of 19 FCC ID 209_b MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DCD - Part 15 Low Power Transmitter Below 1705 kHz Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-18] Edition] provision. Report prepared by: Jeff Liang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8614 0743 Fax: (86 755) 8601 6751 Test Report Intertek Report No.: 200421048SZN-001 Version: 01-November-2017 Page: 3 of 19 FCC ID 209_b Table of Contents 1.0 Summary of Test Results ..................................................................................... 4 2.0 General Description .............................................................................................. 5 2.1 Product Description .............................................................................................. 5 2.2 Related Submittal(s) Grants ................................................................................. 5 2.3 Test Methodology ................................................................................................ 5 2.4 Test Facility ......................................................................................................... 5 3.0 System Test Configuration ................................................................................... 6 3.1 Justification ......................................................................................................... 6 3.2 EUT Exercising Software ..................................................................................... 6 3.3 Special Accessories ............................................................................................. 6 3.4 Equipment Modification ........................................................................................ 6 3.5 Measurement Uncertainty .................................................................................... 7 3.6 Support Equipment List and Description ............................................................. 7 4.0 Measurement Results ........................................................................................... 8 4.1 Field Strength Calculation .................................................................................... 8 4.2 Radiated Emission Configuration Photograph .................................................... 9 4.3 Radiated Spurious Emission ................................................................................ 9 4.4 Conducted Emission Configuration Photograph ................................................. 12 4.5 Conducted Emission.......................................................................................... 12 5.0 Equipment Photographs .................................................................................... 15 6.0 Product Labelling ................................................................................................ 15 7.0 Technical Specifications .................................................................................... 15 8.0 Instruction Manual .............................................................................................. 15 9.0 Miscellaneous Information ................................................................................. 16 9.1 20dB Bandwidth ................................................................................................ 16 9.2 Emissions Test Proc…

Text truncated - open the document above for the full version.

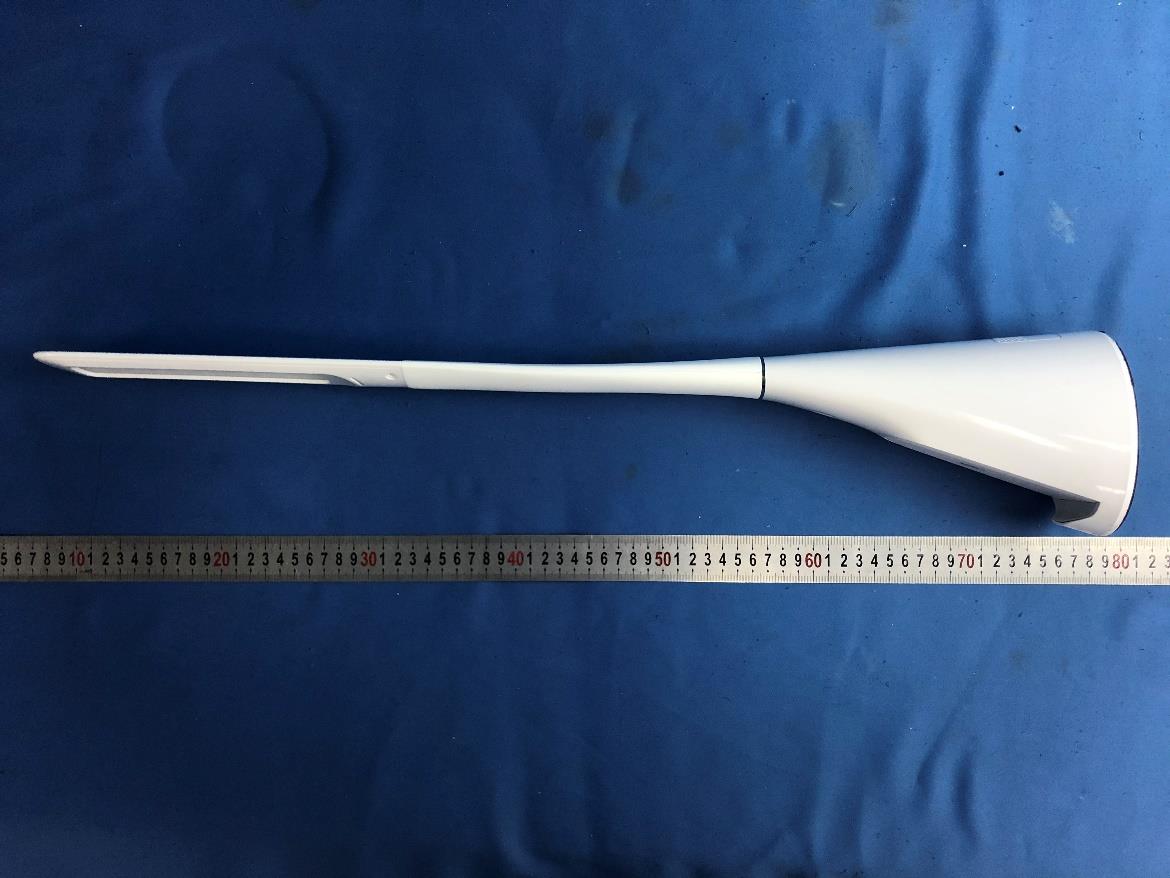

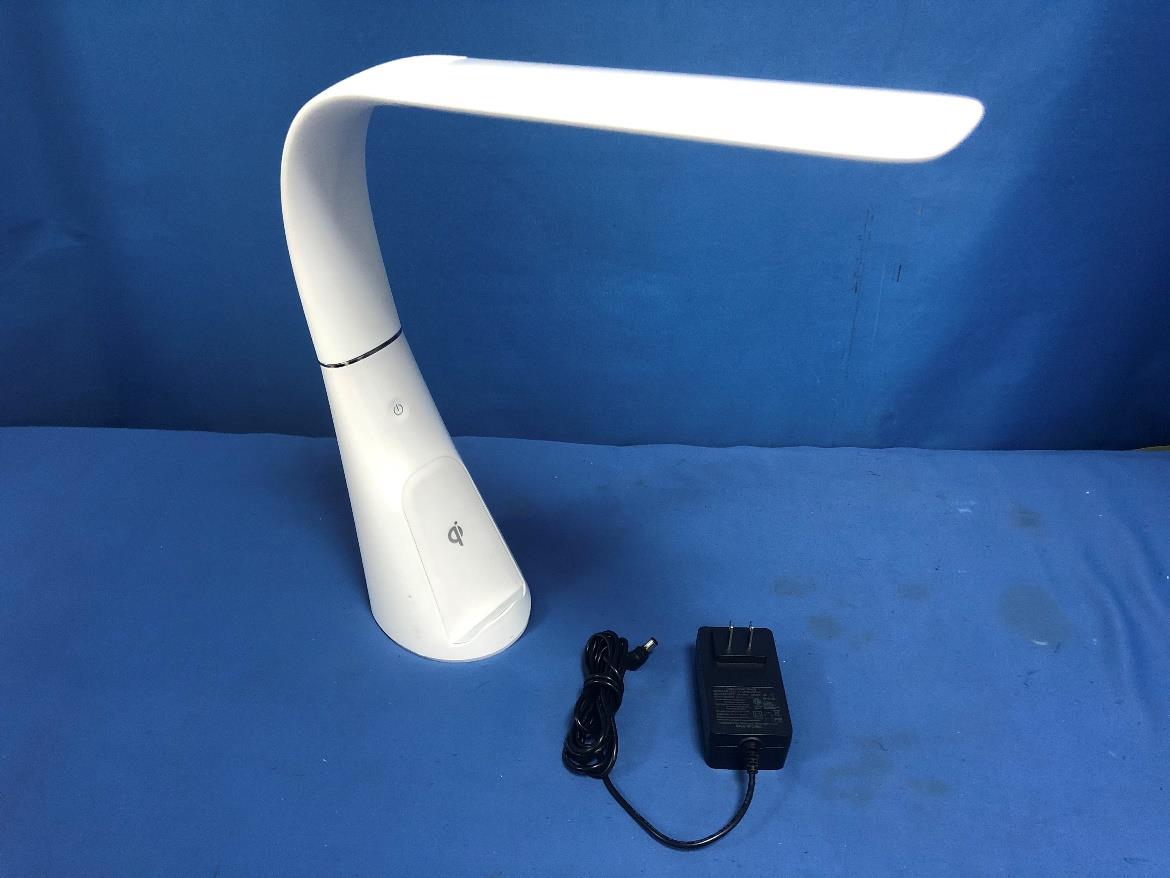

Front View Side View

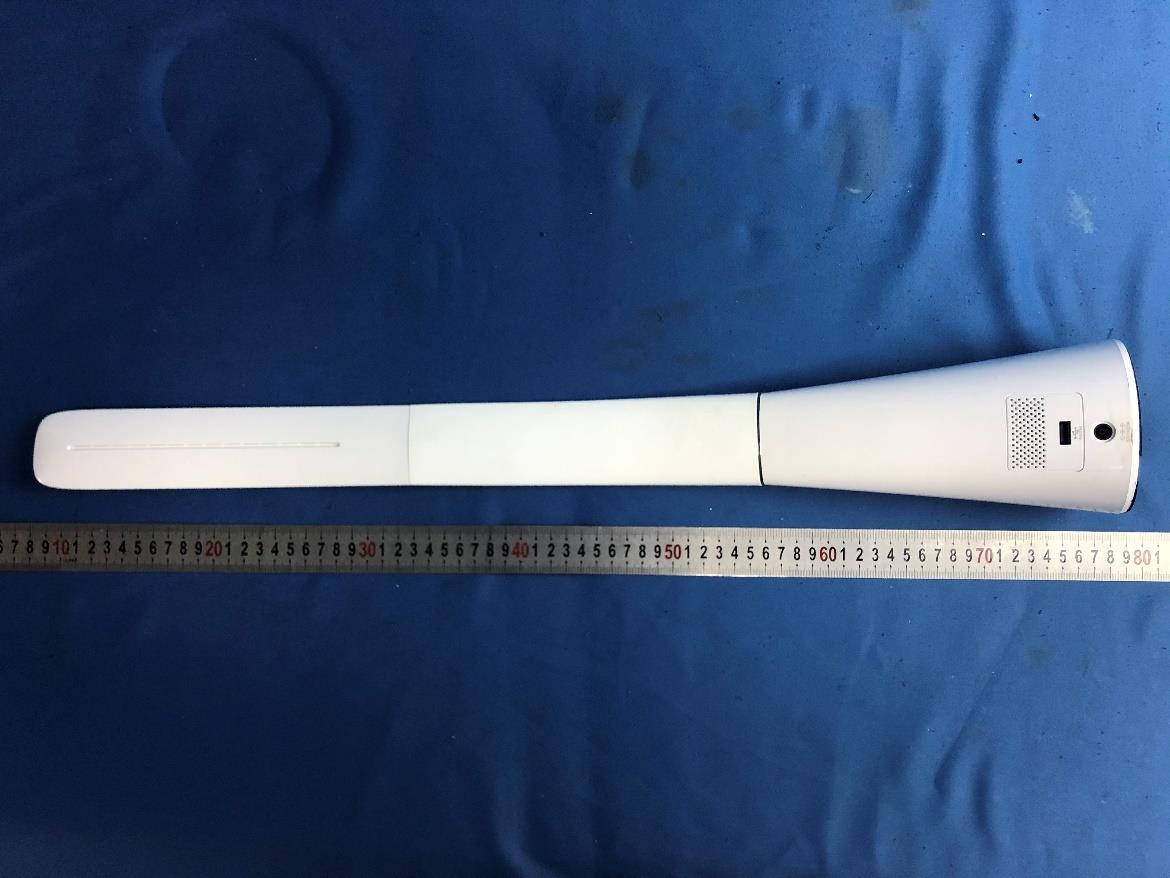

Front View Back View
