Android -106dBm GPS2G/3G/4G B1/B3/B7/B8/B20/B28 B1/B8 B3/B8 0-40°C Sound output power B2/B4/B5/B7/B12/B17 B38/B40/(A.B)/B66 B2/B5 B5/B2 SAR tests are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value Before a new model device is a available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC, Tests for each device are performed in positions and locations (worn on the body)as required by the FCC. For face-up,10mm was used for test, this equipment should be installed and operated with minimum distance 10mm. For body worn operation, this model device has been tested and meets the FCC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that Contains no metal and that positions the handset a minimum of 0 cm from the body Non-compliance with the above restrictions may result in violation of RF exposure guidelines warning Any Changes or modifications not expressly could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. approved by the party responsible for compliance Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help

Shenzhen Inrico Electronics Co.,Ltd ADD: 3/F, Building No.118, High Tech Industrial Park, 72 Guowei Road, Luohu District, Shenzhen TEL: 0755-83273589 FAX: 0755-82689912 E-mail: [email protected] Date: 2020-08-14 Dear Sir/Madam, We, Shenzhen Inrico Electronics Co.,Ltd , hereby authorize Bay Area Compliance Laboratories Corp. to act as a laboratory for testing and test report generation for the following project(s): t name: Intelligent Two Way Radio, Model name: T529A,FCC ID:2AIV6-T529A The chipset MT6739V supports LTE Band, But only Band2/4/5/7/12/17/38/40/66 were active,The other were disable by software. Sincerely, Signature: Wenshun Zhang Manager China FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Produc

QA-FR-170-B Shenzhen Inrico Electronics Co.,Ltd ADD: 3/F, Building No.118, High Tech Industrial Park, 72 Guowei Road, Luohu District, Shenzhen TEL: 0755-83273589 FAX: 0755-82689912 E-mail: [email protected] FCC Authorization Date: 2020-04-09 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Shenzhen Inrico Electronics Co.,Ltd , Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Wenshun Zhang Title: Manager China

QA-FR -171-A FCC Conf idential Authorization Date:2020 -04-09 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subj ect: Confidentiality Request regarding application for certification of FCC ID: 2AIV 6-T529A In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Inrico Electronics Co.,Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Shenzhen Inrico Electronics Co.,Ltd ADD: 3/F, Building No.118, High Tech Industrial Park, 72 Guowei Road, Luohu District, Shenzhen TEL: 0755-83273589 FAX: 0755-82689912 E-mail: [email protected] Printed Name: Wenshun Zhang Title: Manager China Parts List/Tune up procedure 

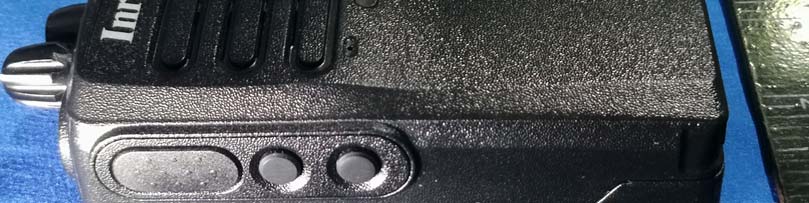

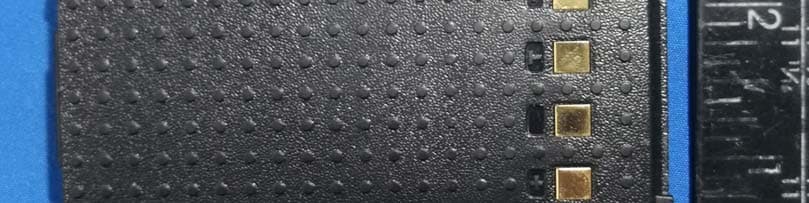

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Antenna

FCC ID:2AIV6-T529A

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” SAR EVALUATION REPORT For Shenzhen Inrico Electronics Co.,Ltd 3/F, Building No.118, High Tech Industrial Park, 72 Guowei Road, Luohu District, Shenzhen China FCC ID: 2AIV6-T529A Report Type: Original Report Product Type: Intelligent Two Way Radio Report Number: RDG200407009-20 Report Date: 2020-08-14 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200407009-20 SAR Evaluation Report 2 of 70 Attestation of Test Results EUT Information EUT Description Intelligent Two Way Radio Tested Model T529A FCC ID 2AIV6-T529A Serial Number RDG200407009-SA-S1 Test Date 2020-05-10 ~ 2020-05-11 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR(Face Up) 0.75 1.6 1g Body SAR 0.69 PCS 1900 1g Head SAR(Face Up) 0.26 1g Body SAR 0.49 WCDMA Band 2 1g Head SAR(Face Up) 0.32 1g Body SAR 0.48 WCDMA Band 5 1g Head SAR(Face Up) 0.65 1g Body SAR 0.45 LTE Band 2 1g Head SAR(Face Up) 0.30 1g Body SAR 0.47 LTE Band 5 1g Head SAR(Face Up) 0.74 1g Body SAR 0.63 LTE Band 7 1g Head SAR(Face Up) 0.29 1g Body SAR 0.39 LTE Band 12&17 1g Head SAR(Face Up) 0.35 1g Body SAR 0.31 LTE Band 38 1g Head SAR(Face Up) 0.06 1g Body SAR 0.30 LTE Band 40 1g Head SAR(Face Up) 0.13 1g Body SAR 0.11 LTE Band 66&4 1g Head SAR(Face Up) 0.13 1g Body SAR 0.72 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200407009-20 SAR Evaluation Report 3 of 70 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200407009-20 SAR Evaluation Report 4 of 70 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 19 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 20 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 26 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 26 CHEEK/TOUCH POSITION ........................................................................................................................................... 27 EAR/TILT P…

Text truncated - open the document above for the full version.

PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: RDG200407009-20 Page 1 of 40 Test Plot 1#:GSM 850_Face Up_Mid DUT: Intelligent Two Way Radio; Type: T529A; Serial: RDG200407009-SA-S1 Communication System: Generic GPRS-2 slots; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 0.894 S/m; ε r = 40.812; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.776 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.33 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.804 W/kg SAR(1 g) = 0.732 W/kg; SAR(10 g) = 0.609 W/kg Maximum value of SAR (measured) = 0.758 W/kg 0 dB = 0.758 W/kg = -1.20 dBW/kg Report No.: RDG200407009-20 Page 2 of 40 Test Plot 2#:GSM 850_Body Back_Mid DUT: Intelligent Two Way Radio; Type: T529A; Serial: RDG200407009-SA-S1 Communication System: Generic GPRS-2 slots; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 0.894 S/m; ε r = 40.812; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.693 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.48 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.753 W/kg SAR(1 g) = 0.673 W/kg; SAR(10 g) = 0.560 W/kg Maximum value of SAR (measured) = 0.697 W/kg 0 dB = 0.697 W/kg = -1.57 dBW/kg Report No.: RDG200407009-20 Page 3 of 40 Test Plot 3#:PCS 1900_Face Up_Mid DUT: Intelligent Two Way Radio; Type: T529A; Serial: RDG200407009-SA-S1 Communication System: Generic GPRS-4 slots; Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.39 S/m; ε r = 39.06; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(8.05, 8.05, 8.05) @ 1880 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.267 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.329 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.348 W/kg SAR(1 g) = 0.245 W/kg; SAR(10 g) = 0.166 W/kg Maximum value of SAR (measured) = 0.259 W/kg 0 dB = 0.259 W/kg = -5.87 dBW/kg Report No.: RDG200407009-20 Page 4 of 40 Test Plot 4#:PCS 1900_Body Back_Mid DUT: Intelligent Two Way Radio; Type: T529A; Serial: RDG200407009-SA-S1 Communication System: Generic GPRS-4 slots; Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.39 S/m; ε r = 39.06; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(8.05, 8.05, 8.05) @ 1880 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.486 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.639 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.743 W/kg SAR(1 g) = 0.455 W/kg; SAR(10 g) = 0.273 W/kg Maximum value of SAR (measured) = 0.485 W/kg 0 dB = 0.485 W/kg = -3.14 dBW/kg Report No.: RDG200407009-20 Page 5 of 40 Test Plot 5#:WCDMA Band 2_Face Up_Mid DUT: Intelligent Two Way Radio; Type: T529A; Serial: RDG200407009-SA-S1 Communication System: WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.39 S/m; ε r = 39.06; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(8.05, 8.05, 8.05) @ 1880 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.344 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.823 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.463 W/kg SAR(1 g) = 0.318 W/kg; SAR(10 g) = 0.213 W/kg Maximum value of SAR (measured) = 0.339 W/kg 0 dB = 0.339 W/kg = -4.70 dBW/kg Report No.: RDG200407009-20 Page 6 of 40 Test Plot 6#:WCDMA Band 2_Body Back_Mid DUT: Intelligent Two Way Radio; Type: T529A; Serial: RDG200407009-SA-S1 Communication System: WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.39 S/m; ε r = 39.06; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(8.05, 8.05, 8.05) @ 1880 MHz; Calibrated: 2020/2/8  Sensor…

Text truncated - open the document above for the full version.

Report No.: RDG200407009-20 Page 1 of 2 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874 Head Face Up Setup Photo(10mm) 10mm Report No.: RDG200407009-20 Page 2 of 2 Body Back Setup Photo(0mm) Body Back With Microphone Setup Photo(0mm)

3/F, Bu F M S uilding No.1 Repo r Origin Re Tes FCC PA MEASU Shenzh 18, High Te rt Type: nal Report eport Numb Report Da Reviewed B st Laborator ART 22 REME hen Inr ech Industri t er: RDG 2 ate: 2020-0 By: Ivan C Assist ry: Bay A No.69 Tang x Tel: +8 Fax: + www.b FC 2H, PA ENT AN For rico Ele ial Park, 72 Pro d Intell 200407009-0 08-20 Cao tant Manager Area Complia Pulongcun, xia, Donggua 86-769-8685 +86-769-8685 baclcorp.com CC ID:2AIV ART 24E ND TES ectroni Guowei Ro duct Type ligent Two W 00B r ance Laborato Puxinhu Ind an, Guangdon 58888 58891 m.cn V6-T529A E,PAR ST REP ics Co. oad, Luohu e: Way Radio ories Corp. ( dustry Area, ng, China RT 27 PORT .,Ltd District, Sh (Dongguan) henzhen China Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200407009-00B Page 2 of 251 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 JUSTIFICATION ............................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 CONFIGURATION OF TEST SETUP ................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §1.1310 & §2.1093- RF EXPOSURE .................................................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST RESULT ............................................................................................................................................................... 9 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................ 10 FCC § 2.1046, § 22.913 (A) & § 24.232 (C) & § 27.50- RF OUTPUT POWER ...................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 18 TEST DATA ................................................................................................................................................................ 18 FCC §2.1049, §22.917, §22.905 & §24.238 & §27.53- OCCUPIED BANDWIDTH ............................................... 49 APPLICABLE STANDARD ............................................................................................................................................ 49 TEST PROCEDURE ...................................................................................................................................................... 49 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 49 TEST DATA ................................................................................................................................................................ 49 FCC §2.1051, §22.917(A) & §24.238(A) & §27.53- SPURIOUS EMISSIONS AT ANTENNA TERMINALS ... 97 APPLICABLE STANDARD ............................................................................................................................................ 97 TEST PROCEDURE ...................................................................................................................................................... 97 TEST EQUIPMENT LIST AND DETAILS .........................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200407009-00B Page 81 of 251 LTE Band 17 QPSK_5 MHz QPSK_10 MHz Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 710 MHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -7.57 dBm 707.440000000 MHz 1 Delta 1 [T1 ] -1.21 dB 5.160000000 MHz OBW 4.520000000 MHz T1 Temp 1 [T1 OBW] 11.22 dBm 707.740000000 MHz T2 Temp 2 [T1 OBW] 13.04 dBm 712.260000000 MHz D1 17.32 dBm D2 -8.68 dBm Date: 25.JUL.2020 12:24:15 Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 710 MHzSpan 20 MHz2 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -11.86 dBm 705.000000000 MHz 1 Delta 1 [T1 ] 0.80 dB 9.840000000 MHz OBW 8.960000000 MHz T1 Temp 1 [T1 OBW] 10.17 dBm 705.520000000 MHz T2 Temp 2 [T1 OBW] 11.77 dBm 714.480000000 MHz D1 14.6 dBm D2 -11.4 dBm Date: 25.JUL.2020 12:25:03 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200407009-00B Page 82 of 251 16QAM_5 MHz 16QAM_10 MHz Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 710 MHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -9.76 dBm 707.420000000 MHz 1 Delta 1 [T1 ] 1.21 dB 5.140000000 MHz OBW 4.520000000 MHz T1 Temp 1 [T1 OBW] 10.26 dBm 707.740000000 MHz T2 Temp 2 [T1 OBW] 11.77 dBm 712.260000000 MHz D1 17.37 dBm D2 -8.63 dBm Date: 25.JUL.2020 12:24:37 Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 710 MHzSpan 20 MHz2 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -12.72 dBm 705.120000000 MHz 1 Delta 1 [T1 ] 0.45 dB 9.800000000 MHz OBW 8.960000000 MHz T1 Temp 1 [T1 OBW] 9.20 dBm 705.520000000 MHz T2 Temp 2 [T1 OBW] 9.57 dBm 714.480000000 MHz D1 13.86 dBm D2 -12.14 dBm Date: 25.JUL.2020 12:25:26 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200407009-00B Page 83 of 251 LTE Band 38 QPSK_5 MHz QPSK_10 MHz Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 2.595 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -6.74 dBm 2.592480000 GHz 1 Delta 1 [T1 ] 0.51 dB 5.060000000 MHz OBW 4.520000000 MHz T1 Temp 1 [T1 OBW] 13.05 dBm 2.592740000 GHz T2 Temp 2 [T1 OBW] 13.62 dBm 2.597260000 GHz D1 18.86 dBm D2 -7.14 dBm Date: 25.JUL.2020 12:26:20 Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 2.595 GHzSpan 20 MHz2 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -9.89 dBm 2.590080000 GHz 1 Delta 1 [T1 ] -0.86 dB 9.760000000 MHz OBW 9.000000000 MHz T1 Temp 1 [T1 OBW] 11.08 dBm 2.590520000 GHz T2 Temp 2 [T1 OBW] 11.63 dBm 2.599520000 GHz D1 15.42 dBm D2 -10.58 dBm Date: 25.JUL.2020 12:27:20 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200407009-00B Page 84 of 251 QPSK_15 MHz QPSK_20 MHz Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 2.595 GHzSpan 30 MHz3 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -6.09 dBm 2.587440000 GHz 1 Delta 1 [T1 ] 0.23 dB 15.120000000 MHz OBW 13.620000000 MHz T1 Temp 1 [T1 OBW] 13.27 dBm 2.588220000 GHz T2 Temp 2 [T1 OBW] 12.38 dBm 2.601840000 GHz D1 19.23 dBm D2 -6.77 dBm Date: 25.JUL.2020 12:28:27 Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 2.595 GHzSpan 40 MHz4 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -7.18 dBm 2.585160000 GHz 1 Delta 1 [T1 ] 1.67 dB 19.520000000 MHz OBW 18.000000000 MHz T1 Temp 1 [T1 OBW] 11.44 dBm 2.586040000 GHz T2 Temp 2 [T1 OBW] 12.35 dBm 2.604040000 GHz D1 18.33 dBm D2 -7.67 dBm Date: 25.JUL.2020 12:29:26 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200407009-00B Page 85 of 251 16QAM_5 MHz 16QAM_10 MHz Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 2.595 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -9.08 dBm 2.592440000 GHz 1 Delta 1 [T1 ] 0.80 dB 5.140000000 MHz OBW 4.520000000 MHz T1 Temp 1 [T1 OBW] 11.41 dBm 2.592740000 GHz T2 Temp 2 [T1 OBW] 11.32 dBm 2.597260000 GHz D1 16.63 dBm D2 -9.37 dBm Date: 25.JUL.2020 12:26:45 Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 2.595 GHzSpan 20 MHz2 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -9.62 dBm 2.590200000 GHz 1 Delta 1 [T1 ] -1.10 dB 9.600000000 MHz OBW 8.960000000 MHz T1 Temp 1 [T1 OBW] 10.31 dBm 2.590520000 GHz T2 Temp 2 [T1 OBW] 11.30 dBm 2.599480000 GHz D1 16.21 dBm D2 -9.79 dBm Date: 25.JUL.2020 12:27:47 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200407009-00B Page 86 of 251 16QAM_15 MHz 16QAM_20 MHz Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 2.595 GHzSpan 30 MHz3 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -8.29 dBm 2.587380000 GHz 1 Delta 1 [T1 ] 0.62 dB 15.900000000 MHz OBW 13.560000000 MHz T1 Temp 1 [T1 OBW] 10.88 dBm 2.588220000 GHz T2 Temp 2 [T1 OBW] 13.44 dBm 2.601780000 GHz D1 17.68 dBm D2 -8.32 dBm Date: 25.JUL.2020 12:28:58 Att 30 dB * A AC Ref 25 dBm Offset 9 dB LVL Center 2.595 GHzSpan 40 MHz4 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -8.99 dBm 2.585240000 GHz 1 Delta 1 [T1 ] -0.41 dB 19.760000000 MHz OBW 18.000000000 MHz T1 Temp 1 [T1 OBW] 12.11 dBm 2.586040000 GHz T2 Temp 2 [T1 OBW] 11.97 dBm 2.604040000 GHz D1 16.62 dBm D2 -9.38 dBm Date: 25.JUL.2020 12:29:55 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG20…

Text truncated - open the document above for the full version.
