2AIV9-M6SRobot vacuum cleaner

- 00 - Robot vacuum cleaner M6S User Manual Thank you for purchasing this product. Please read the user guide carefully before use. A0 - 01 - Thank you for purchasing the M6S Robot vacuum cleaner. I hope you will enjoy it! If you have any questions about the product during use, please call our service hotline. Hotline: 4006-788-228 Table of Contents 1. Safety Instructions..............................2-4 5. Product Maintenance........................ 11-14 1.1 Instructions for use 5.1 Clean the charging pole pieces 1.2 Safety precautions 5.2 Clean the dust box 1.3 About child safety 5.3 Clean the middle sweeper 1.4 About the batteries 5.4 Clean the side brush 1.5 Scope of use of the product 5.5 Clean the wheels 1.6 Disclaimers 5.6 Clean the sensor 2. Product Composition........................5-6 2.1 Host machine and accessories of the product 2.2 Names of parts 3. Product Installation.............................. 7 6. Troubleshooting....................................15 4. Product Use....................................8-10 7. Technical Parameters..............................16 4.1 Use of the host machine 4.2 Charging method 4.3 Use of the remote controller (optional) 4.4 APP Operation Guide (optional) 4.5 Instructions for Use of Wet Mop Assembly (optional) 4.6 Instructions for Using Virtual Magnetic Stripe Wall (optional) -01- - 02 - 1. Safety Instructions 1.1 Instructions for use Please pay attention to the following basic safety precautions before using the product: * Read the user manual carefully and follow the instructions in the user annual when using the product. * Keep the user manual well for future reference. * If you need to transfer the product to a third party, please attach the user manual along with the product. * Any operation not in conformity to the instructions in the user manual may result in serious personal injury or damage to the product itself. 1.2 Safety precautions Warning This product can only use the adapter, batteries and charging dock that are provided with this product. Failure to do so may result in damage to the product, electrical shock, or fire caused by high voltage. Do not use this product if the host machine and accessories of this product are found to be damaged. Contact our after-sales service department. Except for the service technicians designated or authorized by our company, no one may disassemble, repair or modify this product. Unplug the product before maintenance. Do not touch the power plug or the product when your hands are wet, as this may result in electrical shock. If the power cord is damaged, it must be replaced by the manufacturer, its service department or a similar professional to avoid danger. To prevent the product from falling accidentally, do not use this product in a suspended place without a protective fence, which may result in personal injury. The user shall not replace the batteries privately. Prevent clothing or any part of your body (hair, fingers, etc.) from getting caught in the brush or wheel of the vacuum cleaner. Failure to do so may result in personal injury. Do not place the product near fire or flammable/explosive/corrosive materials. If the user manual is missing, please contact your local dealer or call the after-sales service department to obtain an electronic user manual. - 03 - Caution This product can only be used indoors. Prevent the suction of water, oil or other liquids, which may damage the vacuum cleaner. Arrange scattered wires on the floor before use for fear of affecting the normal operation of the vacuum cleaner. Remove fragile objects before use. High voltage! Please dry your hands before operation for fear of electrical shock! The charging dock shall be placed against the wall and on a flat floor for fear of affecting product functionality. Unplug the charging dock if it remains unused for a long time. When the product is working, removal of the charging dock will affect the normal recharging of the machine. Do not use this product to suck in sharp objects (e.g. shattered glass and nails) for fear of damage to the product. Do not use this product in a wet, flammable, explosive or corrosive environment. 1.3 About child safety 1.4 About the batteries * Children under the age of 8 are not allowed to use this product. Persons with physical, sensory or intellectual disabilities or lack of relevant experience/knowledge cannot use the machine unless under supervision, operating instructions or awareness of the danger. Children are not allowed to play with the machine or clean/repair the machine unless under supervision. * Children are not allowed to play with the product's packaging bag for fear of suffocation. 1. Only the batteries provided by the manufacturer are applicable to the product. 2. The batteries shall be removed when the product is discarded. 3. If you need to replace the battery of the host machine, please contact our after-sales service department. Use of wrong batteries may cause a safety accident. 4. If the batteries leak, prevent the contact of the liquid with the skin or clothing. Immediately wipe it with a dry cloth and send it to the recycling station or designated maintenance point. Do not discard it. 5. Please properly dispose of the old batteries of the product. The batteries contain hazardous substances harmful to the environment. Please follow the local environmental regulations and send them to the designated recycling site. - 04 - - non-rechargeable batteries are not to be recharged; - different types of batteries or new and used batteries are not to be mixed; - batteries are to be inserted with the correct polarity; - exhausted batteries are to be removed from the appliance and safely disposed of; - if the appliance is to be stored unused for a long period, the batteries should be removed; - the supply terminals are not to be short -circuited. 1.5 Scope of use of the product Scope of application The product is suitable for the following floors: Wooden floor Ceramic til…

Text truncated - open the document above for the full version.

Beijing Visual World Technology Co., Ltd. Agent Authorization Company: Beijing Visual World Technology Co., Ltd. Address: 501 & 5F, 102 No, Building No. 2, No 6 Jiuxianqiao Rd, Chaoyang District, Beijing, China Product Name: Robot vacuum cleaner Trade Mark: Model Number: M6s FCC ID: 2AIV9-M6S We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-12-23 Name: Liling Ge Title: Manager Company: Beijing Visual World Technology Co., Ltd.

Beijing Visual World Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-12-23 Subject; Request for Confidentiality FCC ID: 2AIV9-M6S To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Liling Ge Title: Manager

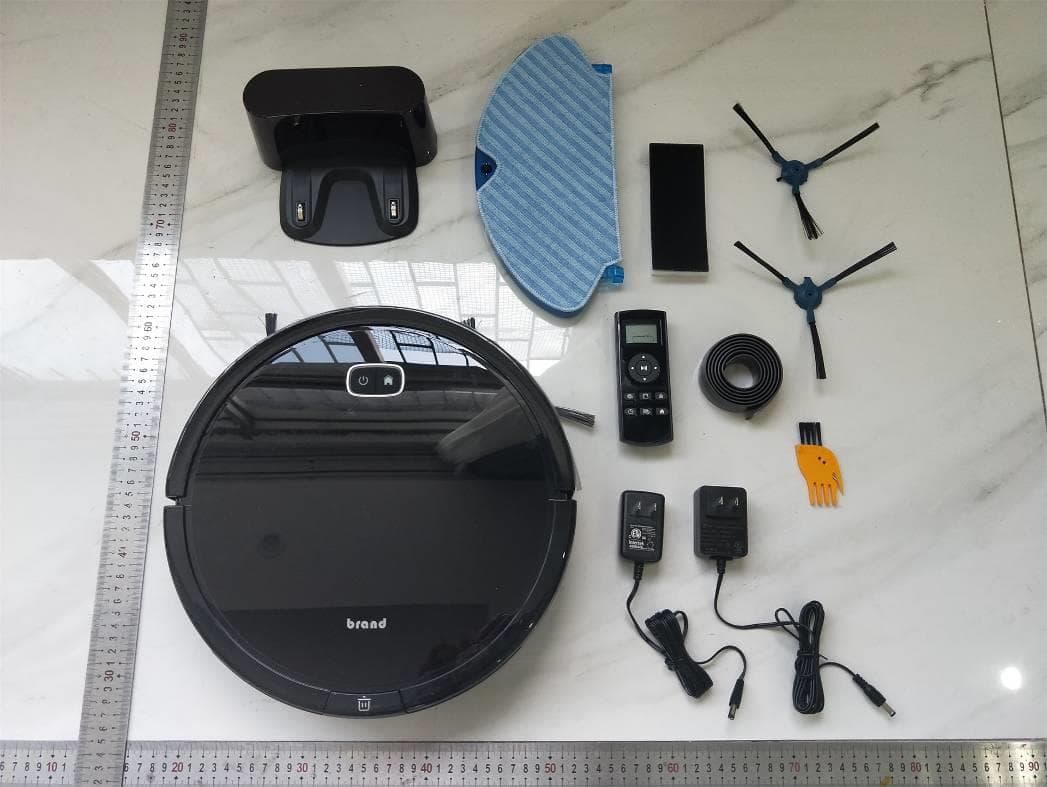

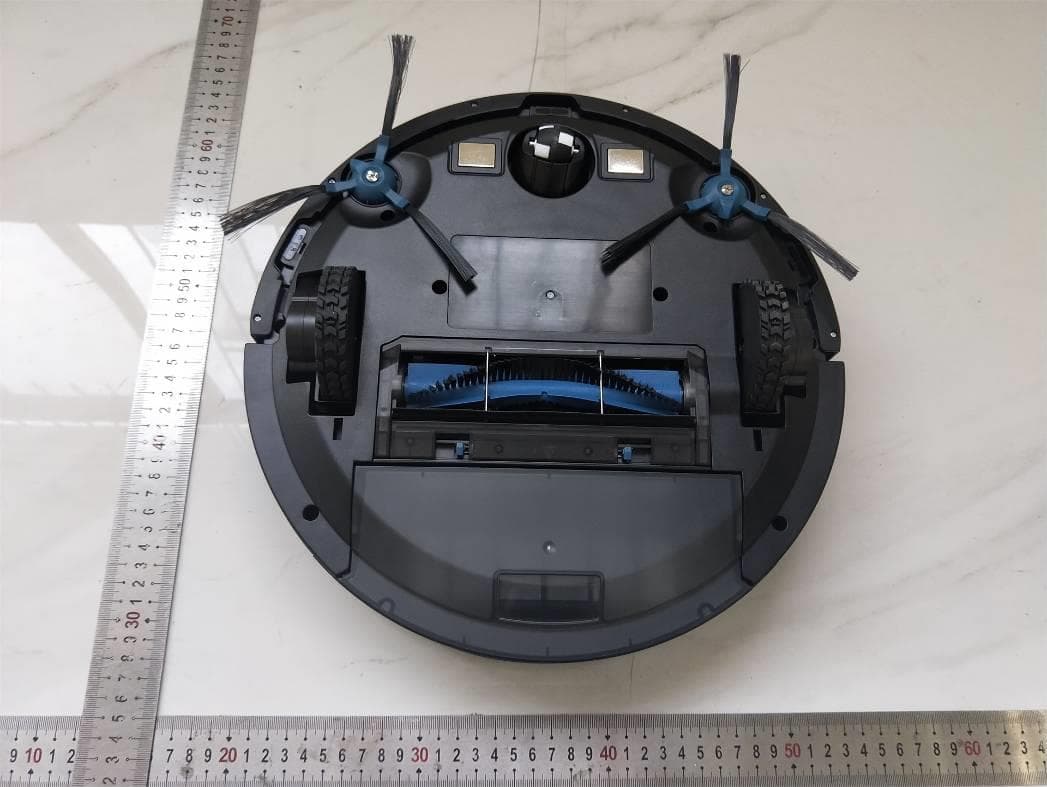

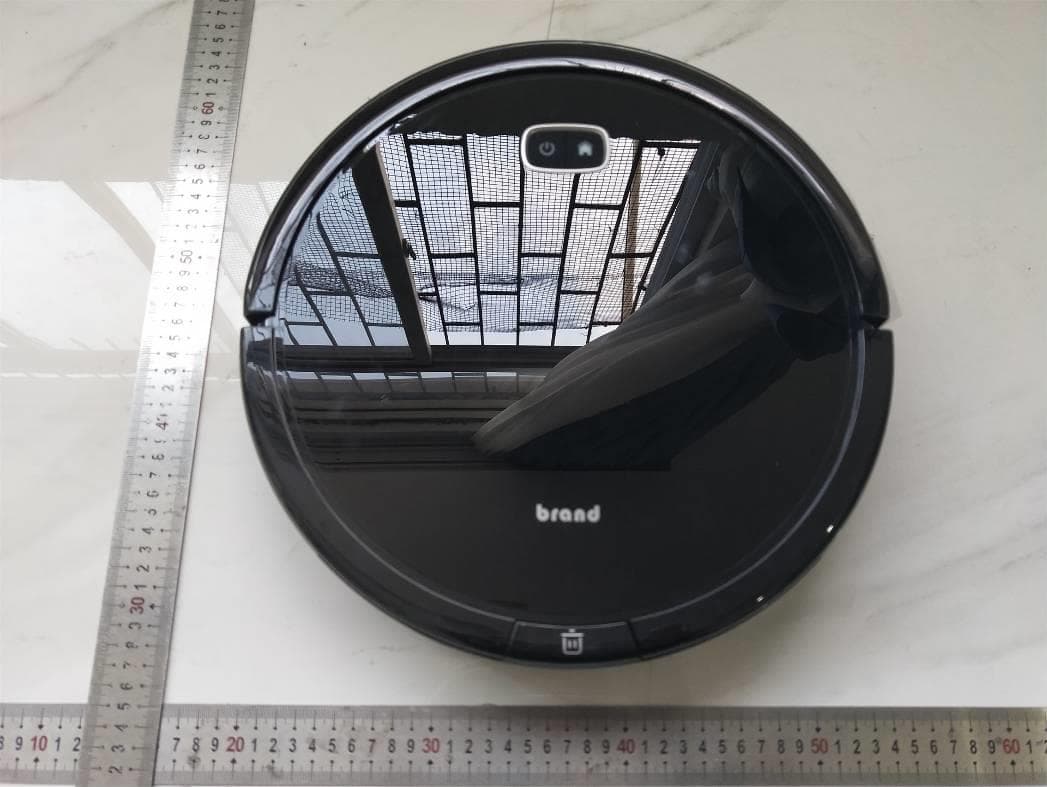

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 10cm*W: 7cm Label Location Robot vacuum cleaner Trade Mark: Model No.: M6s FCC ID : 2AIV9-M6S This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Maximum Permissible Exposure Report 1. Product Information FCC ID 2AIV9-M6S Product name Robot vacuum cleaner Model number M6s Power supply DC 14.4V by Rechargeable Li-ion Battery(2600mAh) Recharged by DC 19V, 0.6A Adapter Modulation Type IEEE 802.11b: DSSS(CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Channel Number 11 Channels for 20MHz bandwidth(2412~2462MHz) 9 Channels for 40MHz bandwidth(2422~2452MHz) Channel Spacing 5MHz Antenna Type PCB Antenna Antenna Gain 2.5dBi (Max.) Hardware version / Software version / Bluetooth Operation frequency 2.412-2.462GHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device Model Declaration / 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Letter Clock with BT Speaker can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note WiFi ANT PCB ANT/ 1PC 2000 MHz – 2500 MHz 2.5 dBi PCB ANT 6. Conducted Power Mode Channel Meas.Level [dBm] 11B LCH 12.32 MCH 13.37 HCH 13.13 11G LCH 13.53 MCH 13.74 HCH 13.38 11N20SISO LCH 14.63 MCH 14.39 HCH 13.83 11N40SISO LCH 14.09 MCH 14.53 HCH 14.34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 7. Manufacturing Tolerance 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13 13 13 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13 13 13 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 14 14 14 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 14 14 14 Tolerance ±(dB) 1.0 1.0 1.0 8. Measurement Results 8.1 Standalone MPE Evaluation As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Robot vacuum cleaner Trade Mark: Test Model: M6s Environmental Conditions Temperature: 23.3  C Relative Humidity: 53.8% ATM Pressure: 100.0 kPa Test Engineer: Alisa Huang Supervised by: Tom.Liu A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 12.32 30 PASS MCH 13.37 30 PASS HCH 13.13 30 PASS 11G LCH 13.53 30 PASS MCH 13.74 30 PASS HCH 13.38 30 PASS 11N20SISO LCH 14.63 30 PASS MCH 14.39 30 PASS HCH 13.83 30 PASS 11N40SISO LCH 14.09 30 PASS MCH 14.53 30 PASS HCH 14.34 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas. Level [dBm/30KHz] Convert Factor Result [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -6.051 -10 -16.05 8 PASS MCH -4.807 -10 -14.81 8 PASS HCH -5.254 -10 -15.25 8 PASS 11G LCH -9.907 -10 -19.91 8 PASS MCH -10.630 -10 -20.63 8 PASS HCH -10.805 -10 -20.81 8 PASS 11N20SISO LCH -10.243 -10 -20.24 8 PASS MCH -10.641 -10 -20.64 8 PASS HCH -11.133 -10 -21.13 8 PASS 11N40SISO LCH -12.794 -10 -22.79 8 PASS MCH -12.414 -10 -22.41 8 PASS HCH -12.525 -10 -22.53 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 11.11 ≥0.5 PASS MCH 10.16 ≥0.5 PASS HCH 11.08 ≥0.5 PASS 11G LCH 16.57 ≥0.5 PASS MCH 16.59 ≥0.5 PASS HCH 16.60 ≥0.5 PASS 11N20SISO LCH 17.70 ≥0.5 PASS MCH 17.70 ≥0.5 PASS HCH 17.69 ≥0.5 PASS 11N40SISO LCH 36.33 ≥0.5 PASS MCH 36.31 ≥0.5 PASS HCH 36.33 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict 11B LCH -1.096 -37.613 -21.096 PASS MCH 0.173 -37.500 -19.827 PASS HCH -0.258 -37.878 -20.258 PASS 11G LCH -7.319 -37.478 -27.319 PASS MCH -8.033 -37.851 -28.033 PASS HCH -8.373 -36.634 -28.373 PASS 11N20 SISO LCH -6.777 -37.891 -26.777 PASS MCH -7.025 -37.759 -27.025 PASS HCH -7.857 -37.804 -27.857 PASS 11N40 SISO LCH -9.846 -36.627 -29.846 PASS MCH -9.338 -38.005 -29.338 PASS HCH -9.436 -37.288 -29.436 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LA…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 49 FCC TEST REPORT For Beijing Visual World Technology Co., Ltd. Robot vacuum cleaner Model No.: M6s Prepared for : Beijing Visual World Technology Co., Ltd. Address : 501 & 5F, 102 No, Building No. 2, No 6 Jiuxianqiao Rd, Chaoyang District, Beijing, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : November 18, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : November 18, 2019 ~ November 29, 2019 Date of Report : December 03, 2019 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 49 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS191108074AEA Date of Issue ................................... : December 03, 2019 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Beijing Visual World Technology Co., Ltd. Address ........................................... : 501 & 5F, 102 No, Building No. 2, No 6 Jiuxianqiao Rd, Chaoyang District, Beijing, China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................. : Robot vacuum cleaner Trade Mark ...................................... : Model/ Type reference .................... : M6s Ratings ............................................ : DC 14.4V by Rechargeable Li-ion Battery(2600mAh) Recharged by DC 19V, 0.6A Adapter Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang/ File administrator Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 49 FCC -- TEST REPORT EUT........................................ : Robot vacuum cleaner Type / Model........................... : M6s Applicant............................... : Beijing Visual World Technology Co., Ltd. Address.................................. : 501 & 5F, 102 No, Building No. 2, No 6 Jiuxianqiao Rd, Chaoyang District, Beijing, China Telephone.............................. : / Fax......................................... : / Manufacturer........................ : Beijing Visual World Technology Co., Ltd. Address................................... : 501 & 5F, 102 No, Building No. 2, No 6 Jiuxianqiao Rd, Chaoyang District, Beijing, China Telephone.............................. : / Fax......................................... : / Factory.................................. : Shenzhen Silver Star Intelligent Technology Co., Ltd. Address.................................. : Building A1, Silver Star Hi-Tech Industrial Park, Guanguang Road, Guanlan Street, Longhua District, Shenzhen, Guangdong, China Telephone.............................. : / Fax......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191108074AEA December 03, 2019 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 49 Revision History Revision Issue Date Revisions Revised By 000 December 03, 2019 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S REPORT NO.: LCS191108074AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 49 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CA…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Test Setup Photos of the EUT Radiated Emissions Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIV9-M6S _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Conducted Emissions Fig. 3 adapter 1 Fig. 4 adapter 2
