2AIV9-P4PROBotslab Indoor Cam Pan&Tilt

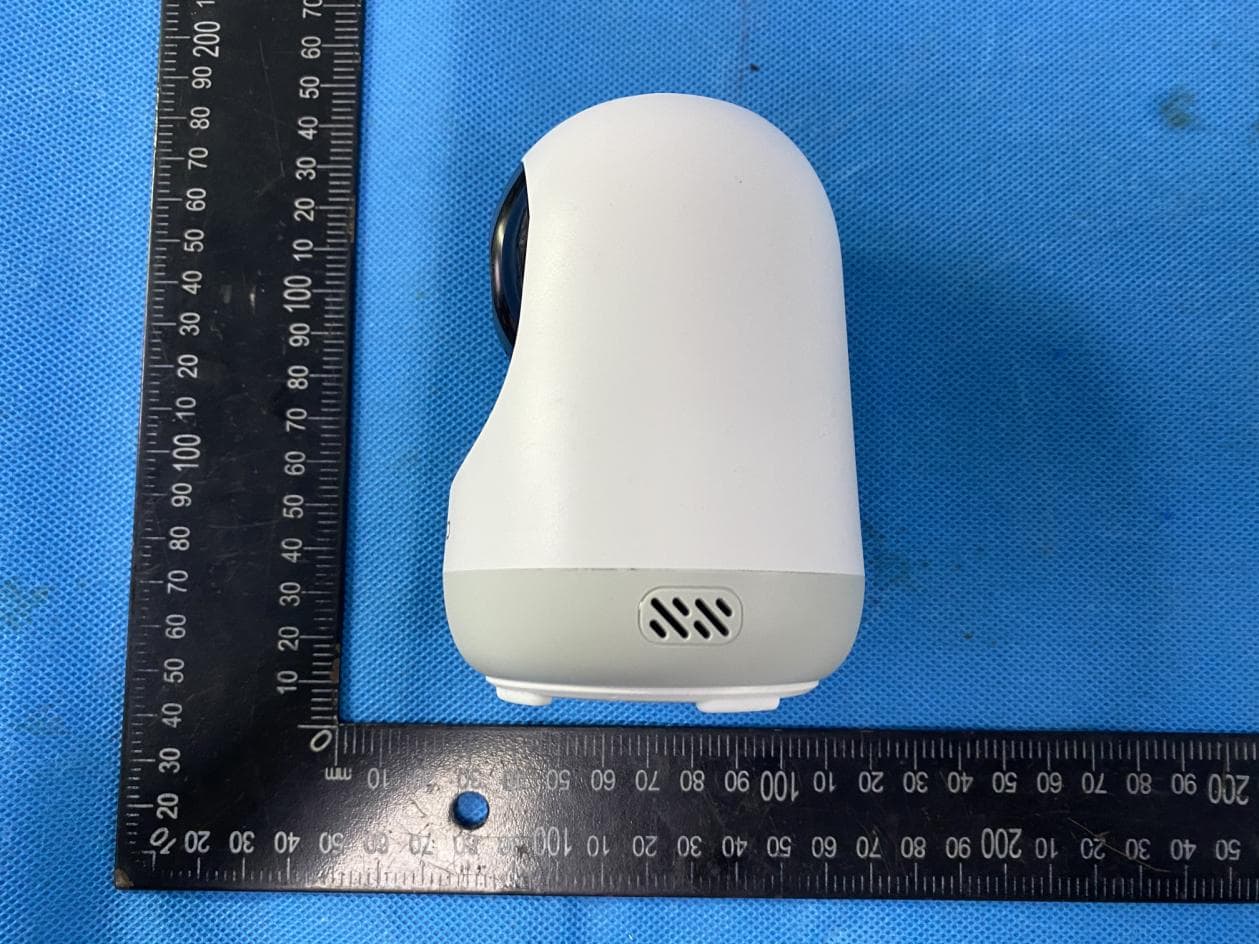

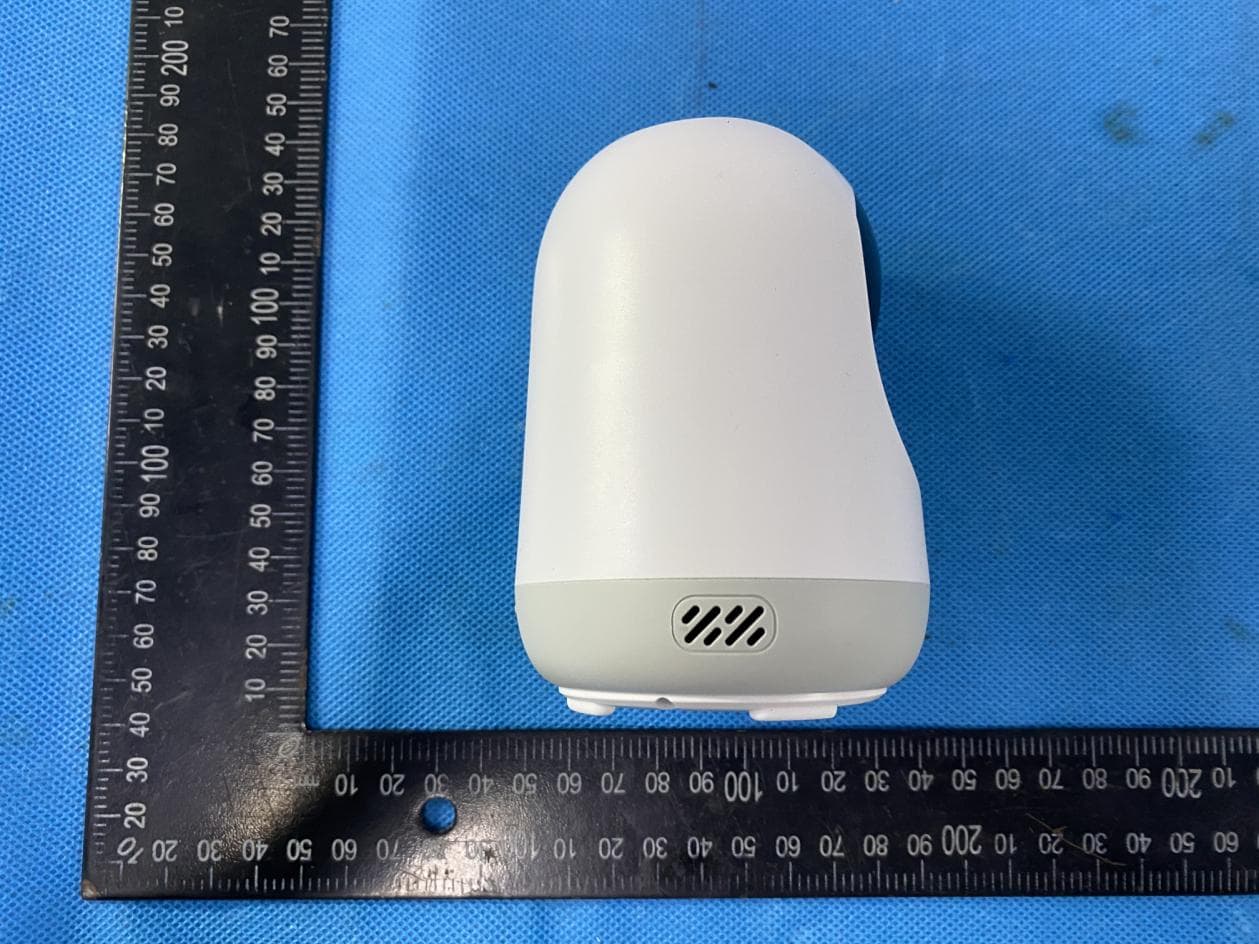

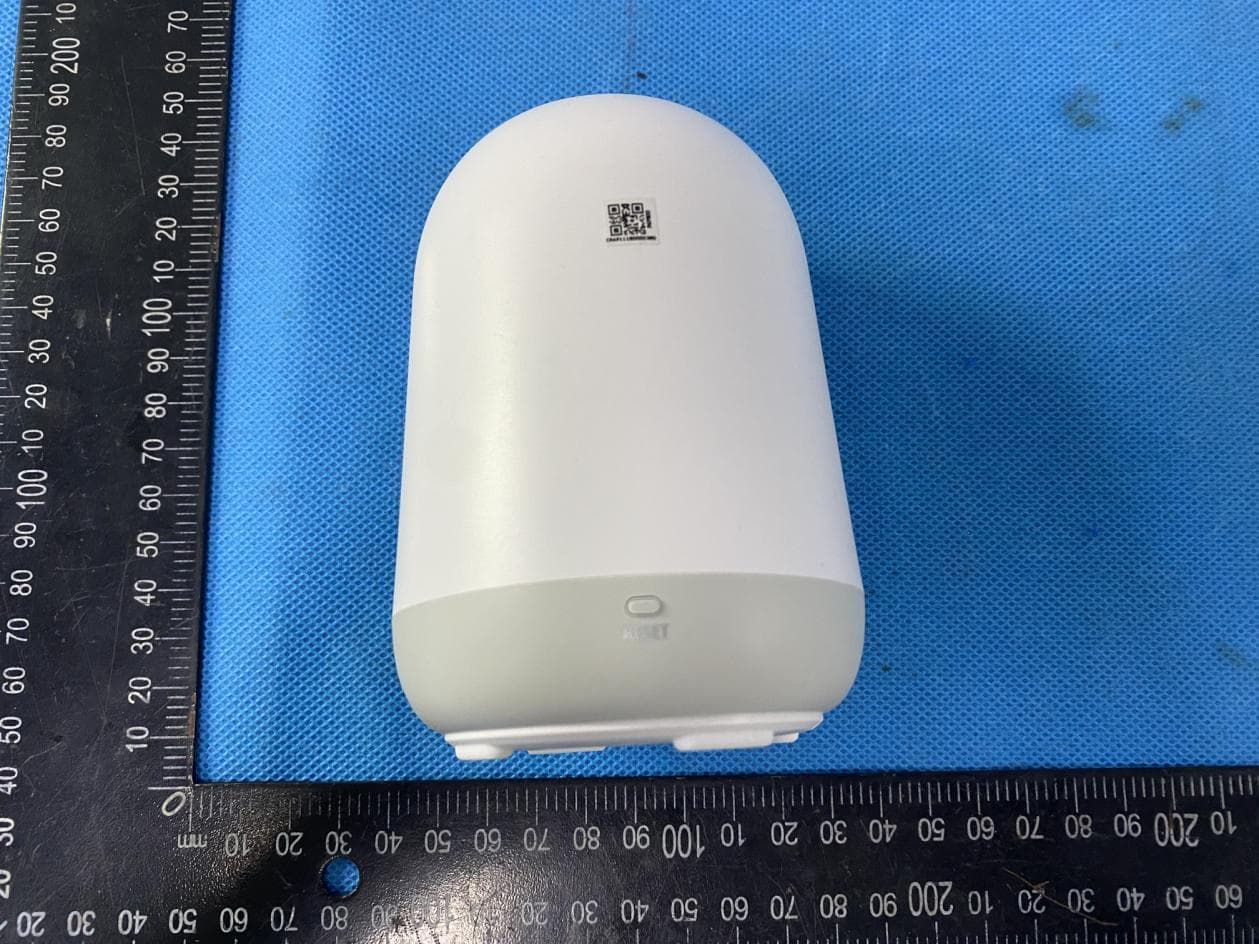

FCC ID:2AIV9-P4PRO ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 FCC ID:2AIV9-P4PRO Photo 3 Photo 4 FCC ID:2AIV9-P4PRO Photo 5 Photo 6 FCC ID:2AIV9-P4PRO Photo 7 Photo 8 FCC ID:2AIV9-P4PRO Photo 9 Photo 10 Adapter 1 FCC ID:2AIV9-P4PRO Photo 11 Photo 12 FCC ID:2AIV9-P4PRO Photo 13 Adapter 2 Photo 14

FCC ID:2AIV9-P4PRO Photo 15 Photo 16 FCC ID:2AIV9-P4PRO Photo 17 Photo 18 FCC ID:2AIV9-P4PRO Photo 19 Photo 20 FCC ID:2AIV9-P4PRO Photo 21 Photo 22 FCC ID:2AIV9-P4PRO Photo 23 Photo 24 FCC ID:2AIV9-P4PRO Photo 25 Photo 26 2.4G WIFI ANT FCC ID:2AIV9-P4PRO Photo 27 Photo 28

version01 Beijing Visual World Technology Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: P4 Pro FCC ID: 2AIV9-P4PRO fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: Metal Plate spring Antenna Gain of the antenna: Frequency range: 0.75 dBi 2412-2472 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Beijing Visual World Technology Co., Ltd. Address: 1721 and 15th floor, Build3, NO.10 (A) Jiuxianqiao Road, Chaoyang district, Beijing, China City: Beijing ZIP / Postal code: Country: China Name: Yongyi Duan Date: 2021/06/21 Signature:

FCC ID: 2AIV9-P4PRO Maximum Permissible Exposure (MPE) According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result 2.4G WIFI: Operation Frequency: WIFI 802.11b/g/n HT(20/40): 2412-2462MHz, Power density limited: 1mW/ cm 2 Antenna Type: Metal Plate spring Antenna WIFI antenna gain: 0.75dBi; R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(0.75/10)=1.19 Conclusion: For the max result : 0.01331≤ 1.0 for Max Power Density, No RF exposure evaluation is required. Signature: Date: 2021-06-21 NAME AND TITLE (Please print or type): alex li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China. conducted power Tune-up power Antenna Evaluation result at 20cm Power density Limits Gain (dBm)(mW)Numeric 241216.1316.5±117.556.234131.190.013311 243717.0216.5±117.556.234131.190.013311 246215.6916.5±117.556.234131.190.013311 241214.0414±11531.622781.190.007491 243714.7514±11531.622781.190.007491 246213.4114±11531.622781.190.007491 241213.9914±11531.622781.190.007491 243714.4914±11531.622781.190.007491 246213.3714±11531.622781.190.007491 242213.0513±11425.118861.190.005951 243712.8413±11425.118861.190.005951 245212.8813±11425.118861.190.005951 Channel Freq. (MHz) modulation (dBm) 802.11b 802.11n(HT 40) Power density(mW/cm2 ) (mW/cm2) (dBm) 802.11g 802.11n H20 Max tune-up power

Report No.: S210514003005001 Version.1.3 Page 1 of 87 FCC RADIO TEST REPORT FCC ID:2AIV9-P4PRO Product: Botslab Indoor Cam Pan&Tilt Trade Mark: Botslab, +360 Model No.: P4 Pro Family Model: P4 Pro-NA13, P4 Pro-EU13, P4 Pro-HK13, P4 Pro-TW13, P4 Pro-JP13, P4 Pro-VT13, P4 Pro-AT13, P4 Pro-1A13 Report No.: S210514003005001 Issue Date: Jun 11. 2021 Prepared for Beijing Visual World Technology Co., Ltd. 1721 and 15th floor, Build3, NO.10 (A) Jiuxianqiao Road, Chaoyang district, Beijing, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website:http://www.ntek.org.cn Report No.: S210514003005001 Version.1.3 Page 2 of 87 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 19 7.3 6DB BANDWIDTH ....................................................................................................................................... 30 7.4 DUTY CYCLE ............................................................................................................................................... 31 7.5 MAXIMUM OUTPUT POWER .................................................................................................................... 33 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 34 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 35 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................ 36 7.9 ANTENNA APPLICATION .......................................................................................................................... 37 8 TEST RESULT ..................................................................................................................................................... 38 8.1 DUTY CYCLE .................................................................................................................................................. 38 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 45 8.3 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 46 8.4 MAXIMUM POWER SPECTRAL DENSITY LEVEL ............................................................................................... 59 8.5 BAND EDGE .................................................................................................................................................... 66 8.6 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 75 Report No.: S210514003005001 Version.1.3 Page 3 of 87 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Beijing Visual World Technology Co., Ltd. Address ....................................... : 1721 and 15th floor, Build3, NO.10 (A) Jiuxianqiao Road, Chaoyang district, Beijing, China Manufacturer's Name .................. : Beijing Visual World Technology Co., Ltd. Address ....................................... : 1721 and 15th floor, Build3, NO.10 (A) Jiuxianqiao Road, Chaoyang district, Beijing, China Product description Product name .............................. : Botslab Indoor Cam Pan&Tilt Model and/or type reference ..... : P4 Pro Family Model ............................... : P4 Pro-NA13, P4 Pro-EU13, P4 Pro-HK13, P4 Pro-TW13, P4 Pro-JP13, P4 Pro-VT13, P4 Pro-AT13, P4 Pro-1A13 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 …

Text truncated - open the document above for the full version.

Report No.: S210514003005001 Version.1.3 Page 61 of 87 PSD NVNT 802.11g 2412MHz Ant1 PSD NVNT 802.11g 2437MHz Ant1 Report No.: S210514003005001 Version.1.3 Page 62 of 87 PSD NVNT 802.11g 2462MHz Ant1 PSD NVNT 802.11n(HT20) 2412MHz Ant1 Report No.: S210514003005001 Version.1.3 Page 63 of 87 PSD NVNT 802.11n(HT20) 2437MHz Ant1 PSD NVNT 802.11n(HT20) 2462MHz Ant1 Report No.: S210514003005001 Version.1.3 Page 64 of 87 PSD NVNT 802.11n(HT40) 2422MHz Ant1 PSD NVNT 802.11n(HT40) 2437MHz Ant1 Report No.: S210514003005001 Version.1.3 Page 65 of 87 PSD NVNT 802.11n(HT40) 2452MHz Ant1 Report No.: S210514003005001 Version.1.3 Page 66 of 87 8.5 BAND EDGE Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 802.11b 2412 Ant 1 -57.29 -20 Pass NVNT 802.11b 2462 Ant 1 -55.79 -20 Pass NVNT 802.11g 2412 Ant 1 -47.11 -20 Pass NVNT 802.11g 2462 Ant 1 -49.95 -20 Pass NVNT 802.11n(HT20) 2412 Ant 1 -48.81 -20 Pass NVNT 802.11n(HT20) 2462 Ant 1 -49.47 -20 Pass NVNT 802.11n(HT40) 2422 Ant 1 -42.08 -20 Pass NVNT 802.11n(HT40) 2452 Ant 1 -46.37 -20 Pass Band Edge NVNT 802.11b 2412MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 67 of 87 Band Edge NVNT 802.11b 2412MHz Ant1 Emission Band Edge NVNT 802.11b 2462MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 68 of 87 Band Edge NVNT 802.11b 2462MHz Ant1 Emission Band Edge NVNT 802.11g 2412MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 69 of 87 Band Edge NVNT 802.11g 2412MHz Ant1 Emission Band Edge NVNT 802.11g 2462MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 70 of 87 Band Edge NVNT 802.11g 2462MHz Ant1 Emission Band Edge NVNT 802.11n(HT20) 2412MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 71 of 87 Band Edge NVNT 802.11n(HT20) 2412MHz Ant1 Emission Band Edge NVNT 802.11n(HT20) 2462MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 72 of 87 Band Edge NVNT 802.11n(HT20) 2462MHz Ant1 Emission Band Edge NVNT 802.11n(HT40) 2422MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 73 of 87 Band Edge NVNT 802.11n(HT40) 2422MHz Ant1 Emission Band Edge NVNT 802.11n(HT40) 2452MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 74 of 87 Band Edge NVNT 802.11n(HT40) 2452MHz Ant1 Emission Report No.: S210514003005001 Version.1.3 Page 75 of 87 8.6 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 802.11b 2412 Ant 1 -50.19 -20 Pass NVNT 802.11b 2437 Ant 1 -50.68 -20 Pass NVNT 802.11b 2462 Ant 1 -45.43 -20 Pass NVNT 802.11g 2412 Ant 1 -47.99 -20 Pass NVNT 802.11g 2437 Ant 1 -49.47 -20 Pass NVNT 802.11g 2462 Ant 1 -47.82 -20 Pass NVNT 802.11n(HT20) 2412 Ant 1 -48.36 -20 Pass NVNT 802.11n(HT20) 2437 Ant 1 -49.08 -20 Pass NVNT 802.11n(HT20) 2462 Ant 1 -48.51 -20 Pass NVNT 802.11n(HT40) 2422 Ant 1 -44.78 -20 Pass NVNT 802.11n(HT40) 2437 Ant 1 -44.88 -20 Pass NVNT 802.11n(HT40) 2452 Ant 1 -44.87 -20 Pass Tx. Spurious NVNT 802.11b 2412MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 76 of 87 Tx. Spurious NVNT 802.11b 2412MHz Ant1 Emission Tx. Spurious NVNT 802.11b 2437MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 77 of 87 Tx. Spurious NVNT 802.11b 2437MHz Ant1 Emission Tx. Spurious NVNT 802.11b 2462MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 78 of 87 Tx. Spurious NVNT 802.11b 2462MHz Ant1 Emission Tx. Spurious NVNT 802.11g 2412MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 79 of 87 Tx. Spurious NVNT 802.11g 2412MHz Ant1 Emission Tx. Spurious NVNT 802.11g 2437MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 80 of 87 Tx. Spurious NVNT 802.11g 2437MHz Ant1 Emission Tx. Spurious NVNT 802.11g 2462MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 81 of 87 Tx. Spurious NVNT 802.11g 2462MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT20) 2412MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 82 of 87 Tx. Spurious NVNT 802.11n(HT20) 2412MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT20) 2437MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 83 of 87 Tx. Spurious NVNT 802.11n(HT20) 2437MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT20) 2462MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 84 of 87 Tx. Spurious NVNT 802.11n(HT20) 2462MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT40) 2422MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 85 of 87 Tx. Spurious NVNT 802.11n(HT40) 2422MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT40) 2437MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 86 of 87 Tx. Spurious NVNT 802.11n(HT40) 2437MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT40) 2452MHz Ant1 Ref Report No.: S210514003005001 Version.1.3 Page 87 of 87 Tx. Spurious NVNT 802.11n(HT40) 2452MHz Ant1 Emission END OF REPORT

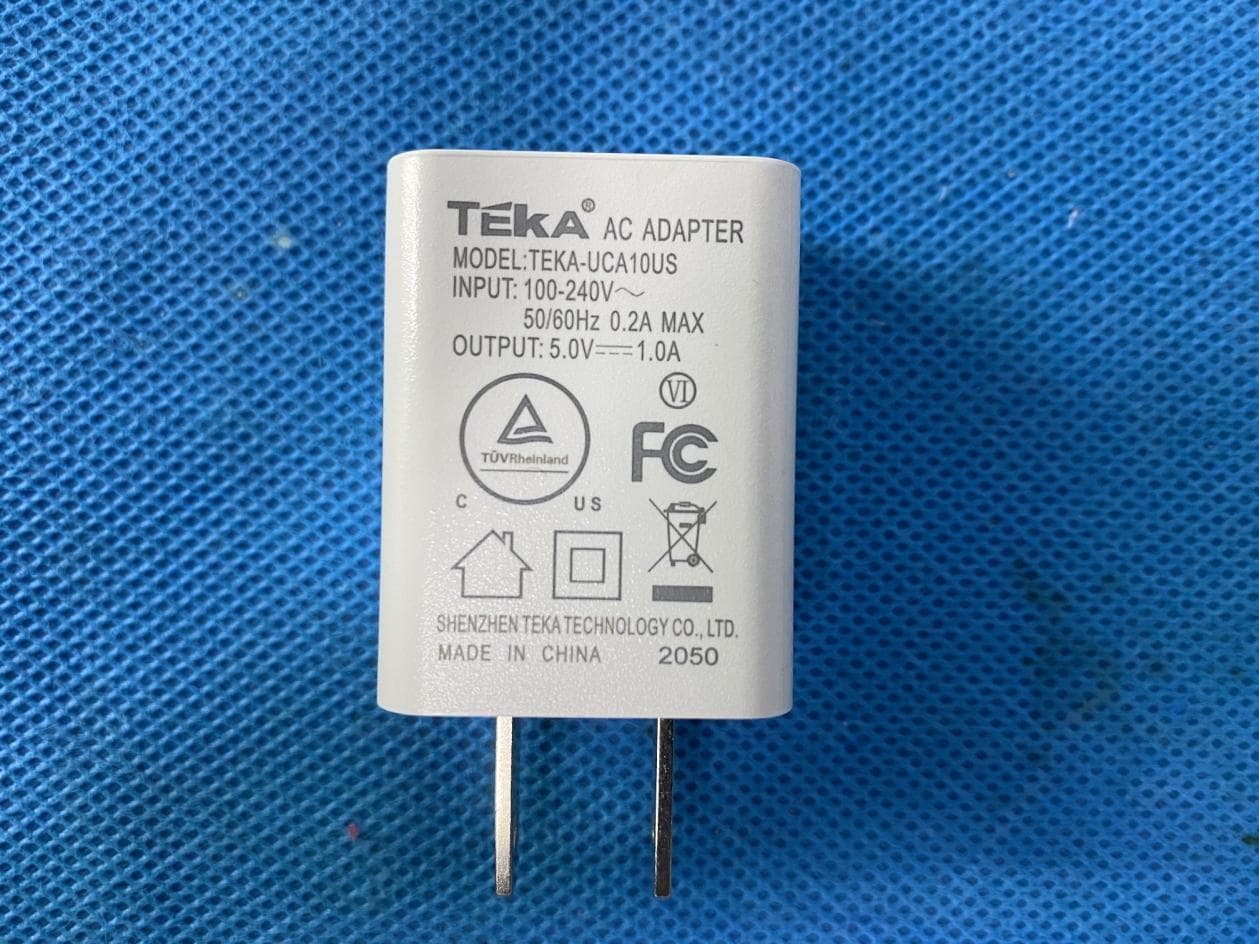

FCC ID:2AIV9-P4PRO Test Setup photo FCC ID:2AIV9-P4PRO AC Conducted Measurement Photos TEKA-UCA10US A18A-050100U-US2
