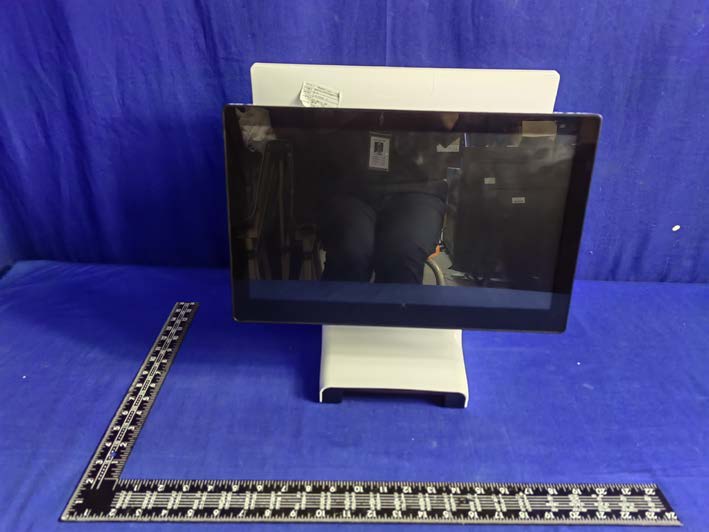

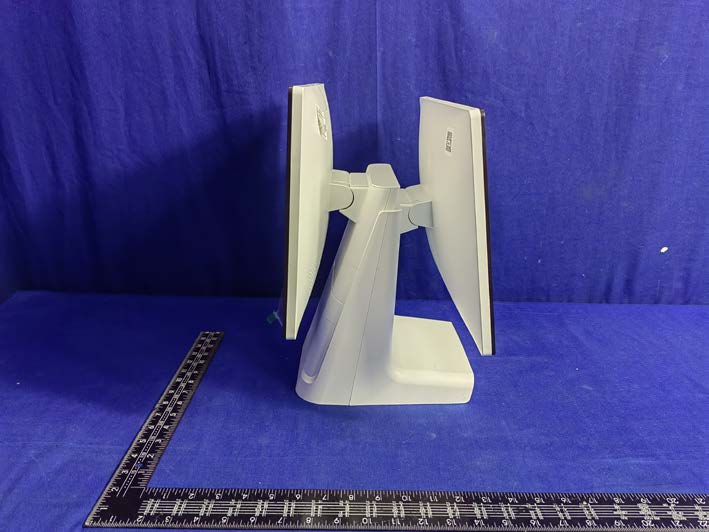

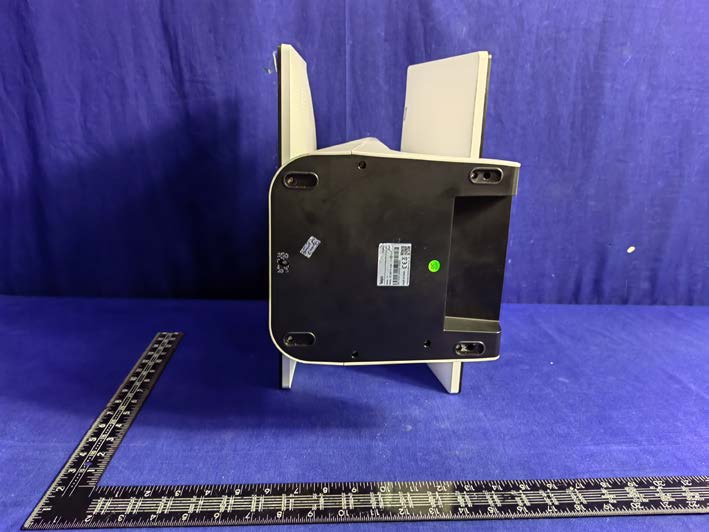

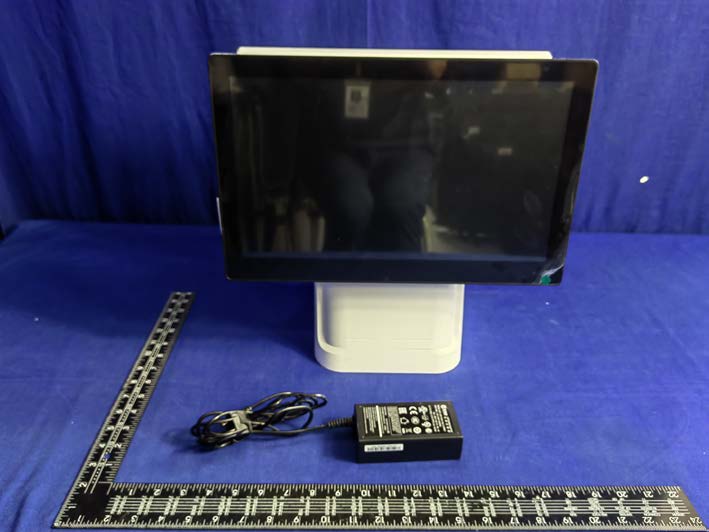

EUT EXTERNAL PHOTOGRAPHS ----------------The end---------------- All ports

EUT INTERNAL PHOTOGRAPHS FPC ANT

----------------The end----------------

FCC ID : 2AJ2B-C1 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result BT Antenna gain: 3.9 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2.63 1 to 3 3 2.45 0.00097 1 BLE Antenna gain: 3.9 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 9.09 8 to 10 10 2.45 0.00488 1 Wifi 2.4G Antenna gain: 3.9 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 13.24 12 to 14 14 2.45 0.01227 1 Wifi 5G Antenna gain: 6.7 dBi Frequency band Measure d power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 5150MHz- 5250MHz 14.13 13.0 to 15 15 4.68 0.02943 1 5250MHz- 5350MHz 13.87 12 to 14 14 4.68 0.02337 1 5470MHz- 5725MHz 13.65 12 to 14 14 4.68 0.02337 1 5725MHz- 5850MHz 11.91 10 to 12 12 4.68 0.01475 1 MAX RF EXPOSURE EVALUATION Wifi 5G BLE Summation of Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 0.02943 0.00488 0.03431 <1 Wifi 2.4G Wifi 5G Summation of Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 0.01227 0.02943 0.0417 <1

Report No.ENS2204290166W00204R Page 1 of 195 Ver.1.0 TEST REPORT Product Name : Pos Terminal Model Number : C1, C1A, C1B, C1P, C1Q, C1 Pro FCC ID : 2AJ2B-C1 Prepared for : Telepower Communication Co., Ltd. Address : 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District, Foshan, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone,Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2204290166W00204R Date(s) of Tests : April 29, 2022 to July 1, 2022 Date of issue : July 1, 2022 $二维码$ Report No.ENS2204290166W00204R Page 2 of 195 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Telepower Communication Co., Ltd. Address : 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District, Foshan, China Manufacturer : Telepower Communication Co., Ltd. Address : 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District, Foshan, China EUT : Pos Terminal Model Name : C1, C1A, C1B, C1P, C1Q, C1 Pro Trademark : Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart E PASS IC RSS-GEN, Issue 5(04-2018)+A1(03-2019)+A2(02-2021) IC RSS-247 Issue 2(02-2017) PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2, Part 15.407, IC RSS-247 Issue 2 and IC RSS-GEN, Issue 5. The test results of this report relate only to the tested sample identified in this report. Date of Test : April 29, 2022 to July 1, 2022 Prepared by : Luo peiye /Editor Reviewer : Joe Xia/Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No.ENS2204290166W00204R Page 3 of 195 Ver.1.0 Modified History Version Report No. Revision Date Summary V1.0 ENS2204290166W00204R / Original Report Report No.ENS2204290166W00204R Page 4 of 195 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ....................................................................................................... 2 2 EUT TECHNICAL DESCRIPTION ..................................................................................................... 5 3 SUMMARY OF TEST RESULT .......................................................................................................... 7 4 TEST METHODOLOGY ..................................................................................................................... 8 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................... 8 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 8 4.3 DESCRIPTION OF TEST MODES .............................................................................................. 10 5 FACILITIES AND ACCREDITATIONS ............................................................................................. 14 5.1 FACILITIES ................................................................................................................................. 14 5.2 EQUIPMENT ............................................................................................................................... 14 5.3 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................. 14 6 TEST SYSTEM UNCERTAINTY ...................................................................................................... 15 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................... 16 7.1 RADIO FREQUENCY TEST SETUP .......................................................................................... 16 7.2 RADIO FREQUENCY TEST SETUP .......................................................................................... 16 7.3 CONDUCTED EMISSION TEST SETUP .................................................................................... 18 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ........................................................ 19 7.5 SUPPORT EQUIPMENT ............................................................................................................ 19 8 TEST REQUIREMENTS ................................................................................................................... 20 8.1 BANDWIDTH MEASUREMENT ................................................................................................. 20 8.2 MAXIMUM CONDUCTED OUTPUT POWER ............................................................................. 94 8.3 MAXIMUM PEAK POWER DENSITY ....................................................................................... 128 8.4 UNDESIRABLE RADIATED SPURIOUS EMISSION ................................................................ 162 8.5 POWER LINE CONDUCTED EMISSIONS ............................................................................... 191 8.6 ANTENNA APPLICATION ......................................................................................................... 194 Report No.ENS2204290166W00204R Page 5 of 195 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Characteristics Description Product: Pos Terminal Model Number: C1, C1A, C1B, C1P, C1Q, C1 Pro (These models are identical in circuitry and electrical, mechanical and physical construction; Only indicates for different market purposes; We chose C1 as the final test prototype) Sample Number: 2# Wifi Type: Wifi 5G with 5150MHz-5250MHz Band Wifi 5G with 5250MHz-5350MHz Band Wifi 5G with 5470MHz-5725MHz Band Wifi 5G with 5725MHz-5850MHz Band WLAN Supported: 802.11a/n/ac Data Rate : 802.11a: 54/48/36/24/18/12/9/6Mbps 802.11n: MCS0-MCS15 802.11ac: MCS0-MCS9 Modulation: OFDM w…

Text truncated - open the document above for the full version.

Report No.ENS2204290166W00204R Page 60 of 195 Ver.1.0 11A_Ant1_5700 11A_Ant1_5745 Report No.ENS2204290166W00204R Page 61 of 195 Ver.1.0 11A_Ant1_5785 11A_Ant1_5825 Report No.ENS2204290166W00204R Page 62 of 195 Ver.1.0 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 Report No.ENS2204290166W00204R Page 63 of 195 Ver.1.0 11N20SISO_Ant1_5240 11N20SISO_Ant1_5260 Report No.ENS2204290166W00204R Page 64 of 195 Ver.1.0 11N20SISO_Ant1_5300 11N20SISO_Ant1_5320 Report No.ENS2204290166W00204R Page 65 of 195 Ver.1.0 11N20SISO_Ant1_5500 11N20SISO_Ant1_5580 Report No.ENS2204290166W00204R Page 66 of 195 Ver.1.0 11N20SISO_Ant1_5700 11N20SISO_Ant1_5745 Report No.ENS2204290166W00204R Page 67 of 195 Ver.1.0 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 Report No.ENS2204290166W00204R Page 68 of 195 Ver.1.0 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 Report No.ENS2204290166W00204R Page 69 of 195 Ver.1.0 11N40SISO_Ant1_5270 11N40SISO_Ant1_5310 Report No.ENS2204290166W00204R Page 70 of 195 Ver.1.0 11N40SISO_Ant1_5510 11N40SISO_Ant1_5550 Report No.ENS2204290166W00204R Page 71 of 195 Ver.1.0 11N40SISO_Ant1_5670 11N40SISO_Ant1_5755 Report No.ENS2204290166W00204R Page 72 of 195 Ver.1.0 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 Report No.ENS2204290166W00204R Page 73 of 195 Ver.1.0 11AC20SISO_Ant1_5220 11AC20SISO_Ant1_5240 Report No.ENS2204290166W00204R Page 74 of 195 Ver.1.0 11AC20SISO_Ant1_5260 11AC20SISO_Ant1_5300 Report No.ENS2204290166W00204R Page 75 of 195 Ver.1.0 11AC20SISO_Ant1_5320 11AC20SISO_Ant1_5500 Report No.ENS2204290166W00204R Page 76 of 195 Ver.1.0 11AC20SISO_Ant1_5580 11AC20SISO_Ant1_5700 Report No.ENS2204290166W00204R Page 77 of 195 Ver.1.0 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 Report No.ENS2204290166W00204R Page 78 of 195 Ver.1.0 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 Report No.ENS2204290166W00204R Page 79 of 195 Ver.1.0 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5270 Report No.ENS2204290166W00204R Page 80 of 195 Ver.1.0 11AC40SISO_Ant1_5310 11AC40SISO_Ant1_5510 Report No.ENS2204290166W00204R Page 81 of 195 Ver.1.0 11AC40SISO_Ant1_5550 11AC40SISO_Ant1_5670 Report No.ENS2204290166W00204R Page 82 of 195 Ver.1.0 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 Report No.ENS2204290166W00204R Page 83 of 195 Ver.1.0 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5290 Report No.ENS2204290166W00204R Page 84 of 195 Ver.1.0 11AC80SISO_Ant1_5530 11AC80SISO_Ant1_5610 Report No.ENS2204290166W00204R Page 85 of 195 Ver.1.0 11AC80SISO_Ant1_5775 Report No.ENS2204290166W00204R Page 86 of 195 Ver.1.0 TestMode Antenna Frequency[MHz] 6db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 15.920 5736.840 5752.760 0.5 PASS 5785 16.360 5776.800 5793.160 0.5 PASS 5825 16.280 5816.840 5833.120 0.5 PASS 11N20SISO Ant1 5745 12.840 5737.560 5750.400 0.5 PASS 5785 16.520 5776.600 5793.120 0.5 PASS 5825 10.400 5819.960 5830.360 0.5 PASS 11N40SISO Ant1 5755 33.760 5738.760 5772.520 0.5 PASS 5795 34.400 5777.240 5811.640 0.5 PASS 11AC20SISO Ant1 5745 17.160 5736.200 5753.360 0.5 PASS 5785 17.160 5776.200 5793.360 0.5 PASS 5825 17.560 5816.200 5833.760 0.5 PASS 11AC40SISO Ant1 5755 35.360 5737.160 5772.520 0.5 PASS 5795 35.680 5776.840 5812.520 0.5 PASS 11AC80SISO Ant1 5775 75.040 5737.400 5812.440 0.5 PASS Report No.ENS2204290166W00204R Page 87 of 195 Ver.1.0 11A_Ant1_5745 11A_Ant1_5785 Report No.ENS2204290166W00204R Page 88 of 195 Ver.1.0 11A_Ant1_5825 11N20SISO_Ant1_5745 Report No.ENS2204290166W00204R Page 89 of 195 Ver.1.0 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 Report No.ENS2204290166W00204R Page 90 of 195 Ver.1.0 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 Report No.ENS2204290166W00204R Page 91 of 195 Ver.1.0 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 Report No.ENS2204290166W00204R Page 92 of 195 Ver.1.0 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 Report No.ENS2204290166W00204R Page 93 of 195 Ver.1.0 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5775 Report No.ENS2204290166W00204R Page 94 of 195 Ver.1.0 8.2 MAXIMUM CONDUCTED OUTPUT POWER 8.2.1 Applicable Standard According to FCC Part 15.407(a)(1) for UNIIBand I According to FCC Part 15.407(a)(2) for UNIIBand II-A and UNIIBand II-C According to FCC Part 15.407(a)(3) for UNIIBand III According to 789033 D02 Section II(E) According to RSS 247, 6.2 8.2.2 Conformance Limit FCC Limit:  For the band 5.15-5.25 GHz (a)(1) (i) For an outdoor access point, the maximum conducted output power over the frequency band of operation shall not exceed 1 W provided the maximum antenna gain does not exceed 6 dBi. If transmitting antennas of directional gain greater than 6 dBi are used, the maximum conducted output power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. The maximum e.i.r.p. at any elevation angle above 30 degrees as measured from the horizon must not exceed 125 mW (21 dBm). (a) (1) (ii) For an indoor access point, the maximum conducted output power over the frequency band of operation shall not exceed 1 W provided the maximum antenna gain does not exceed 6 dBi. If transmitting antennas of directional gain greater than 6 dBi are used, the maximum conducted output power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. (a) (1) (iii) For fixed point-to -point access points, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. Fixed point-to -point U-NII devices may employ antennas with directional gain up to 23 dBi without any corresponding reduction in the maximum conducted output power. For fixed point-to -point transmitters that employ a directional antenna gain greater than 23 dBi, a 1 dB reduction in maximum conducted output power is required for each 1 dB of antenna gain in excess of 23 dBi. Fixed, point-to -point operations exclude the use of point-to -multipoint systems, omnidirectional applications, and multiple collocated transmitters transmitting the same information. The operator of the U-NII device, or if the equipment is professionally installed, the installer, is responsible for ensurin…

Text truncated - open the document above for the full version.

Report No.ENS2204290166W00204R Page 109 of 195 Ver.1.0 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 Report No.ENS2204290166W00204R Page 110 of 195 Ver.1.0 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 Report No.ENS2204290166W00204R Page 111 of 195 Ver.1.0 11N40SISO_Ant1_5270 11N40SISO_Ant1_5310 Report No.ENS2204290166W00204R Page 112 of 195 Ver.1.0 11N40SISO_Ant1_5510 11N40SISO_Ant1_5550 Report No.ENS2204290166W00204R Page 113 of 195 Ver.1.0 11N40SISO_Ant1_5670 11N40SISO_Ant1_5755 Report No.ENS2204290166W00204R Page 114 of 195 Ver.1.0 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 Report No.ENS2204290166W00204R Page 115 of 195 Ver.1.0 11AC20SISO_Ant1_5220 11AC20SISO_Ant1_5240 Report No.ENS2204290166W00204R Page 116 of 195 Ver.1.0 11AC20SISO_Ant1_5260 11AC20SISO_Ant1_5300 Report No.ENS2204290166W00204R Page 117 of 195 Ver.1.0 11AC20SISO_Ant1_5320 11AC20SISO_Ant1_5500 Report No.ENS2204290166W00204R Page 118 of 195 Ver.1.0 11AC20SISO_Ant1_5580 11AC20SISO_Ant1_5700 Report No.ENS2204290166W00204R Page 119 of 195 Ver.1.0 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 Report No.ENS2204290166W00204R Page 120 of 195 Ver.1.0 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 Report No.ENS2204290166W00204R Page 121 of 195 Ver.1.0 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5270 Report No.ENS2204290166W00204R Page 122 of 195 Ver.1.0 11AC40SISO_Ant1_5310 11AC40SISO_Ant1_5510 Report No.ENS2204290166W00204R Page 123 of 195 Ver.1.0 11AC40SISO_Ant1_5550 11AC40SISO_Ant1_5670 Report No.ENS2204290166W00204R Page 124 of 195 Ver.1.0 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 Report No.ENS2204290166W00204R Page 125 of 195 Ver.1.0 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5290 Report No.ENS2204290166W00204R Page 126 of 195 Ver.1.0 11AC80SISO_Ant1_5530 11AC80SISO_Ant1_5610 Report No.ENS2204290166W00204R Page 127 of 195 Ver.1.0 11AC80SISO_Ant1_5775 Report No.ENS2204290166W00204R Page 128 of 195 Ver.1.0 8.3 MAXIMUMPEAK POWER DENSITY 8.3.1 Applicable Standard According to FCC Part 15.407(a)(1) for UNIIBand I According to FCC Part 15.407(a)(2) for UNIIBand II-A and UNIIBand II-C According to FCC Part 15.407(a)(3) for UNIIBand III According to 789033 D02 Section II(F) According to RSS 247, 6.2 8.3.2 Conformance Limit FCC Limit:  For the band 5.15-5.25 GHz, (a)(1) (i) For an outdoor access point, the maximum power spectral density shall not exceed 17 dBm in any 1 megahertz bandprovided the maximum antenna gain does not exceed 6 dBi. If transmitting antennas of directional gain greater than 6 dBi are used, the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. (a) (1) (ii) For an indoor access point, the maximum power spectral density shall not exceed 17 dBm in any 1 megahertz bandprovided the maximum antenna gain does not exceed 6 dBi. If transmitting antennas of directional gain greater than 6 dBi are used, the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. (a) (1) (iii) For fixed point-to -point access points, the maximum power spectral density shall not exceed 17 dBm in any 1 megahertz band. Fixed point-to -point U-NII devices may employ antennas with directional gain up to 23 dBi without any corresponding reduction in the maximum power spectral density. For fixed point-to -point transmitters that employ a directional antenna gain greater than 23 dBi, a 1 dB reduction in maximum power spectral density is required for each 1 dB of antenna gain in excess of 23 dBi. Fixed, point-to -point operations exclude the use of point-to -multipoint systems, omnidirectional applications, and multiple collocated transmitters transmitting the same information. The operator of the U-NII device, or if the equipment is professionally installed, the installer, is responsible for ensuring that systems employing high gain directional antennas are used exclusively for fixed, point-to -point operations. (a) (1) (iv) For client devices, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz bandprovided the maximum antenna gain does not exceed 6 dBi. If transmitting antennas of directional gain greater than 6 dBi are used, the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi.  For the 5.25-5.35 GHz and 5.47-5.725 GHz bands (b) (2)The maximum power spectral density shall not exceed 11 dBm in any 1 megahertz bandprovided the maximum antenna gain does not exceed 6 dBi. If transmitting antennas of directional gain greater than 6 dBi are used, the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi.  For the band 5.725-5.85 GHz (a) (3)The maximum power spectral density shall not exceed 30 dBm in any 500-kHz bandprovided the maximum antenna gain does not exceed 6 dBi. If transmitting antennas of directional gain greater than 6 dBi are used, the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. However, fixed point-to -point U-NII devices operating in this band may employ transmitting antennas with directional gain greater than 6 dBi without any corresponding reduction in transmitter conducted power. Fixed, point-to -point operations exclude the use of point-to -multipoint systems, omnidirectional applications, and multiple collocated transmitters transmitting the same information. The operator of the U-NII device, or if the equipment is professionally installed, the installer, is responsible for ensuring that systems employing high gain directional antennas are used exclusively for fixed, point-to -point operations Report No.ENS2204290166W00204R Page 129 of 195 Ver.1.0 IC Limit:  Frequency band 5150-5250 MHz The e.i.r.p. spectral density shall not exceed 10 dBm in any 1.0 MHz band.  Frequency band 5250-5350 MHz The power spectral density shall not exceed 11 dBm in any 1.0 MHz band.  Frequency bands…

Text truncated - open the document above for the full version.

Report No.ENS2204290166W00204R Page 159 of 195 Ver.1.0 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5290 Report No.ENS2204290166W00204R Page 160 of 195 Ver.1.0 11AC80SISO_Ant1_5530 11AC80SISO_Ant1_5610 Report No.ENS2204290166W00204R Page 161 of 195 Ver.1.0 11AC80SISO_Ant1_5775 Report No.ENS2204290166W00204R Page 162 of 195 Ver.1.0 8.4 UNDESIRABLE RADIATED SPURIOUS EMISSION 8.4.1 Applicable Standard According to FCC Part 15.407 (b), 15.209, 15.205 According to 789033 D02 SectionII(G) According to RSS-GEN 8.9, 8.10 and 6.13 8.4.2 Conformance Limit For transmitters operating in the 5.15-5.25 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. For transmitters operating in the 5.25-5.35 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. For transmitters operating in the 5.47-5.725 GHz band: All emissions outside of the 5.47-5.725 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. For transmitters operating in the 5.725-5.85 GHz band: All emissions shall be limited to a level of −27 dBm/MHz at 75 MHz or more above or below the band edge increasing linearly to 10 dBm/MHz at 25 MHz above or below the band edge, and from 25 MHz above or below the band edge increasing linearly to a level of 15.6 dBm/MHz at 5 MHz above or below the band edge, and from 5 MHz above or below the band edge increasing linearly to a level of 27 dBm/MHz at the band edge. The emission measurements shall be performed using a minimum resolution bandwidth of 1 MHz. A lower resolution bandwidth may be employed near the band edge, when necessary, provided the measured energy is integrated to show the total power over 1 MHz. Unwanted emissions below 1 GHz must comply with the general field strength limits set forth in §15.209 The emissions from an intentional radiator shall not exceed the field strength levels specified in the following table 15.209(a): Restricted Frequency(MHz) Field Strength (μV/m) Field Strength (dBμV/m) Measurement Distance 0.009-0.490 2400/F(KHz) 20 log (uV/m) 300 0.490-1.705 24000/F(KHz) 20 log (uV/m) 30 1.705-30 30 29.5 30 30-88 100 40 3 88-216 150 43.5 3 216-960 200 46 3 Above 960 500 54 3 The provisions of §15.205 apply to intentional radiators operating under this section,15.205 Restricted bands of operation MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 10.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475-156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2690-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3600-4400 (2) 13.36-13.41 Report No.ENS2204290166W00204R Page 163 of 195 Ver.1.0 Remark: 1. Emission level in dBuV/m=20 log (uV/m) 2. Measurement was performed at an antenna to the closed point of EUT distance of meters. 3. Only s…
