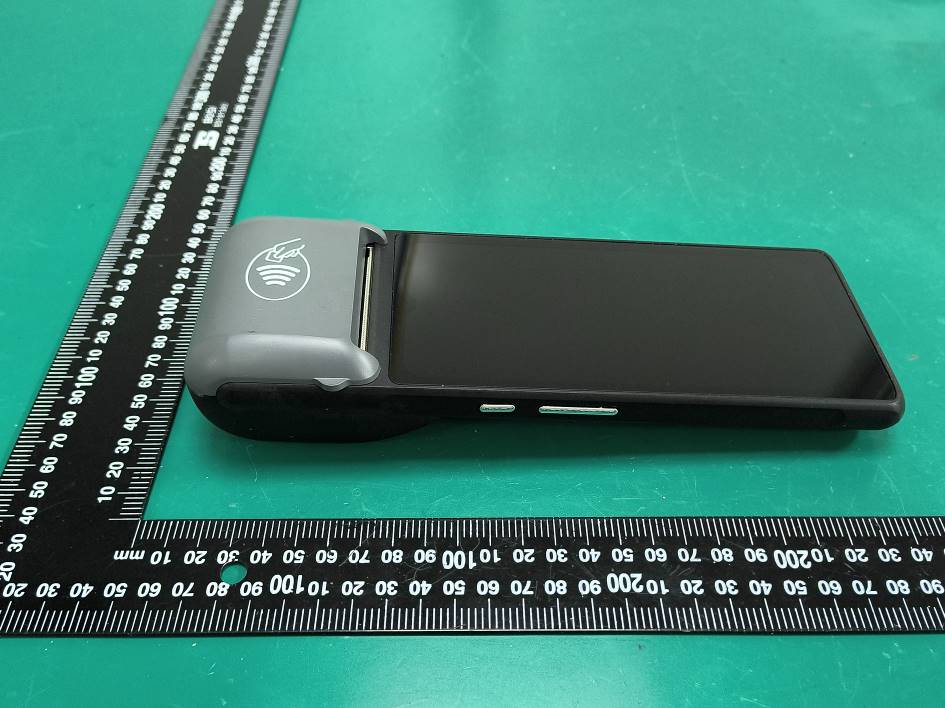

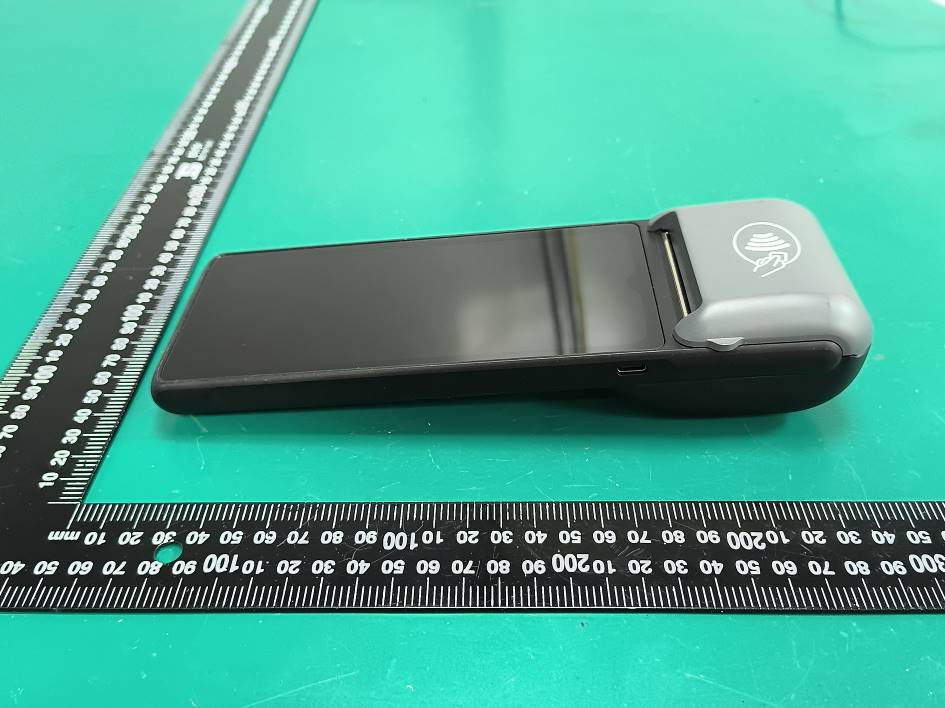

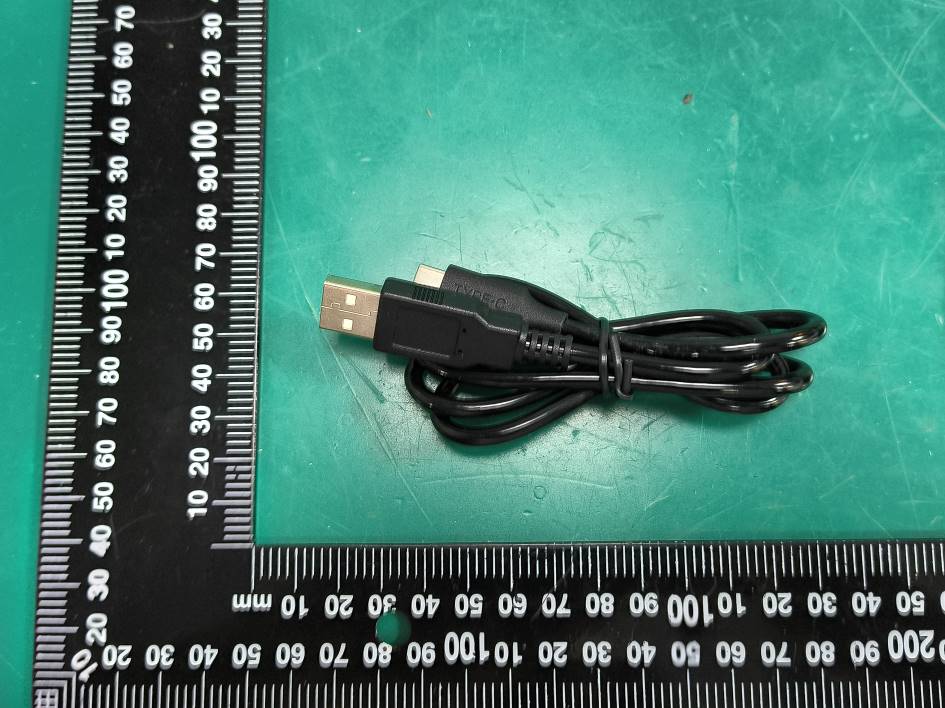

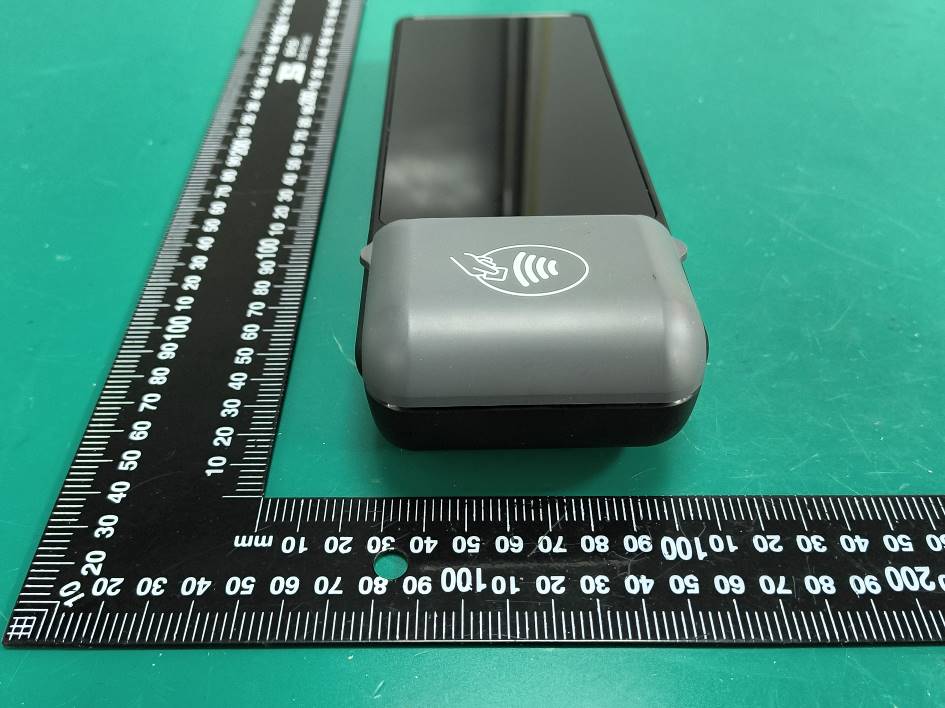

2AJ2B-M1TPOS Terminal

Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Page 16 of 62 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Page 17 of 62 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Page 18 of 62 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Page 19 of 62 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Page 20 of 62 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Page 21 of 62 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Page 22 of 62 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Page 23 of 62 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Page 24 of 62

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R02814E-RF -TSPA Page 1 of 3 TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R02814E-RF -TSPA Page 2 of 3 Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R02814E-RF -TSPA Page 3 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF003 Page 1 of 83 Version 4.1 TEST REPORT Applicant Name:Telpo Technology Co.,Ltd. Address:No.15, Juyuan South Road, Guicheng Street, Nanhai District, Foshan City, Guangdong, China Report Number:2601R02814E-RF-00A FCC ID:2AJ2B-M1T Test Standard (s) FCC PART 15.247 Sample Description Product Type:POS Terminal Model No.:M1T Multiple Model(s) No.:N/A Trade Mark:Telpo Date Received:2026-03-20 Issue Date:2026-07-03 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: GaLa LiuNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R02814E-RF-00A TR-EM-RF003 Page 2 of 83 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................9 TEST EQUIPMENT LIST ..........................................................................................................................................10 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................12 AC LINE CONDUCTED EMISSIONS...............................................................................................................................12 UNWANTED EMISSION FREQUENCIES AND RESTRICTED BANDS .................................................................................14 6 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH....................................................................................17 PEAK OUTPUT POWER MEASUREMENT .......................................................................................................................19 POWER SPECTRAL DENSITY ........................................................................................................................................20 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE....................................................................................................21 CONDUCTED SPURIOUS EMISSION...............................................................................................................................22 DUTY CYCLE ...............................................................................................................................................................23 RF EXPOSURE EVALUATION ................................................................................................................................24 ANTENNA REQUIREMENT .....................................................................................................................................25 TEST DATA AND RESULTS .....................................................................................................................................26 AC LINE CONDUCTED EMISSIONS...............................................................................................................................26 UNWANTED EMISSION FREQUENCIES AND RESTRICTED BANDS .................................................................................29 6DB EMISSION BANDWIDTH........................................................................................................................................63 99% OCCUPIED BANDWIDTH ......................................................................................................................................66 MAXIMUM CONDUCTED OUTPUT POWER ...................................................................................................................69 …

Text truncated - open the document above for the full version.

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF004 Page 1 of 115 Version 4.1 TEST REPORT Applicant Name:Telpo Technology Co.,Ltd. Address:No.15, Juyuan South Road, Guicheng Street, Nanhai District, Foshan City, Guangdong, China Report Number:2601R02814E-RF-00C FCC ID:2AJ2B-M1T Test Standard (s) FCC PART 15.247 Sample Description Product Type:POS Terminal Model No.:M1T Multiple Model(s) No.:N/A Trade Mark:Telpo Date Received:2026-03-20 Issue Date:2026-07-03 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: GaLa LiuNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R02814E-RF-00C TR-EM-RF004 Page 2 of 115 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................8 TEST EQUIPMENT LIST ............................................................................................................................................9 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................11 AC LINE CONDUCTED EMISSIONS...............................................................................................................................11 SPURIOUS EMISSIONS ..................................................................................................................................................13 6 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH ....................................................................................16 MAXIMUM CONDUCTED OUTPUT POWER ...................................................................................................................18 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE....................................................................................................19 CONDUCTED SPURIOUS EMISSION...............................................................................................................................20 POWER SPECTRAL DENSITY ........................................................................................................................................21 DUTY CYCLE ...............................................................................................................................................................24 RF EXPOSURE EVALUATION ................................................................................................................................25 APPLICABLE STANDARD ............................................................................................................................................25 TEST RESULT .............................................................................................................................................................25 ANTENNA REQUIREMENT .....................................................................................................................................26 TEST DATA AND RESULTS .....................................................................................................................................27 AC LINE CONDUCTED EMISSIONS...............................................................................................................................27 SPURIOUS EMISSIONS ..................................................................................................................................................30 6DB EMISSION BANDWIDTH..............................................…

Text truncated - open the document above for the full version.

Antenna specification Antenna information: Antenna Name information SY-M1KC-WiFi- V0.2 Frequency Range: BT:2.4~2.5GHz WIFI:2.4~2.5GHz；5.1~5.3GHZ Maximum Gain 0.7dBi @2.4GHz 5.2dBi @5GHz Antenna Type/ Pattern: FPC Antenna/Internal Antenna picture: Unit: mm 2.4G 2.4G 5G ÿ ÿ Freq:5150MHz Freq:5150MHz Manufacturer Shenzhen Shangyuan Technology Co.,Ltd. Shenzhen R&D Center: 6th Floor, Building 5, Nantai Cloud Innovation Valley Center, Guangming District, Shenzhen Email: [email protected] Web: www.sunnyway-iot.com Freq:5150MHz

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA, or any agency of the Federal Government. The information marked ―#‖ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included but no need marked. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Tel: +86 755-26503290 Web: www.atc-lab.com Rev:A/4.0(2024/11/01) Page 1 of 60 TR-4-E-R050 TEST REPORT Applicant Name: Telpo Technology Co.,Ltd. Address: No.15, Juyuan South Road, Guicheng Street, Nanhai District, Foshan City, Guangdong, China Report Number: 2604R02814E-SA FCC ID: 2AJ2B-M1T Test Standard (s) FCC 47 CFR part 2.1093 Sample Description Product Name: POS Terminal Model No.: M1T Multiple Model(s) No.: N/A Trade Mark: Telpo Date Received: 2026-03-18 Issue Date: 2026-06-11 Test Result: The EUT complied with the standards above. Prepared and Checked By: Approved By: Jack Yang Lance Li SAR Engineer SAR Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Rev:A/4.0(2024/11/01) Page 2 of 60 TR-4-E-R050 Mode Max. Reported SAR Level(s) (W/kg) Limit (W/kg) GSM 850 1g Body SAR 0.63 1.6 GSM 1900 1g Body SAR 0.56 WCDMA Band 2 1g Body SAR 0.58 WCDMA Band 5 1g Body SAR 0.19 LTE Band 2 1g Body SAR 0.60 LTE Band 4 1g Body SAR 0.27 LTE Band 7 1g Body SAR 1.18 WIFI 2.4G 1g Body SAR 0.36 WIFI 5.2G 1g Body SAR 0.24 Simultaneous 1g Body SAR 1.54 1g Body SAR 1.54(Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiation exposure evaluation: portable devices RF Exposure Procedures: TCB WorkshopApril2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802.11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Unless otherwise stated there are no any additions to, deviations, or exclusions from the method. Shenzhen Accurate Technology Co., Ltd. Report No.: 2604R02814E-SA Rev:A/4.0(2024/11/01) Page 3 of 60 TR-4-E-R050 TABLE OF CONTENTS DOCUMENT REVISION HISTORY .......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION........................................................................................................................................ 5 REFERENCE, STANDARDS, AND GUILDELINES .............................................................................................. 6 SAR LIMITS ................................................................................................................................................................ 6 FACILITIES................................................................................................................................................................... 7 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 8 Recommended Tissue Dielectric Parameters for Head liquid .................................................................... 13 EQUIPMENT LIST AND CALIBRATION ............................................................................................................... 14 EQUIPMENT’S LIST & CALIBRATION INFORMATION ................................................................................................ 14 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................... 15 LIQUID VERIFICATION ............................................................................................................................................... 15 SYSTEM ACCURACY VERIFICATION ......................................................................................................................... 17 SAR SYSTEM VALIDATION DATA ....................................................................................................................... 18 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................. 19 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ......................................................................... 19 TEST DISTANCE FOR SAR EVALUATION.................................................................................................................. 19 SAR EVALUATION PROCEDURE ...........................................................................................…

Text truncated - open the document above for the full version.

System Performance Check Report Summary Dipole Frequency [MHz] TSL Power [dBm] Dev. 1g [%] Dev. 10g [%] Dev. Peak [%] Iso. Error [%] D835V2 - SN4d103 835.0 HSL 20.0 N/A N/A N/A N/A Exposure Conditions Phantom Section, TSL Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 15 CW, 0-- 835.000, 0 9.04 0.909 43.1 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2124 HBBL600-10000V6220406-1, 2026-Apr-27 EX3DV4 - SN7783, 2026-04-20 DAE4 Sn1724, 2026-04-17 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.5 MAIA N/A N/A Surface Detection All points All points Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2026-04-27, 00:23 2026-04-27, 00:32 psSAR1g [W/Kg] 0.857 0.899 psSAR10g [W/Kg] 0.522 0.591 Power Drift [dB] -0.15 0.11 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction Warning(s) / Error(s) Details Area Scan Zoom Scan Warning(s) Error(s) System Performance Check Report Summary Dipole Frequency [MHz] TSL Power [dBm] Dev. 1g [%] Dev. 10g [%] Dev. Peak [%] Iso. Error [%] D1800V2 - SN2d018 1800.0 HSL 20.0 N/A N/A N/A N/A Exposure Conditions Phantom Section, TSL Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 10 CW, 0-- 1800.000, 0 7.71 1.41 41.3 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2124 HBBL600-10000V6220406-1, 2026-Apr-28 EX3DV4 - SN7783, 2026-04-20 DAE4 Sn1724, 2026-04-17 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.5 MAIA N/A N/A Surface Detection All points All points Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2026-04-28, 23:09 2026-04-28, 23:19 psSAR1g [W/Kg] 3.69 3.78 psSAR10g [W/Kg] 1.63 1.92 Power Drift [dB] 0.02 0.05 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction Warning(s) / Error(s) Details Area Scan Zoom Scan Warning(s) Error(s) System Performance Check Report Summary Dipole Frequency [MHz] TSL Power [dBm] Dev. 1g [%] Dev. 10g [%] Dev. Peak [%] Iso. Error [%] D1900V2 - SN5d128 1900.0 HSL 20.0 N/A N/A N/A N/A Exposure Conditions Phantom Section, TSL Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 10 CW, 0-- 1900.000, 0 7.50 1.41 41.1 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2124 HBBL600-10000V6220406-1, 2026-Apr-28 EX3DV4 - SN7783, 2026-04-20 DAE4 Sn1724, 2026-04-17 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.5 MAIA N/A N/A Surface Detection All points All points Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2026-04-28, 00:43 2026-04-28, 00:52 psSAR1g [W/Kg] 3.56 3.75 psSAR10g [W/Kg] 1.88 2.17 Power Drift [dB] -0.01 0.12 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction Warning(s) / Error(s) Details Area Scan Zoom Scan Warning(s) Error(s) System Performance Check Report Summary Dipole Frequency [MHz] TSL Power [dBm] Dev. 1g [%] Dev. 10g [%] Dev. Peak [%] Iso. Error [%] D2450V2 – SN751 2450.0 HSL 20.0 N/A N/A N/A N/A Exposure Conditions Phantom Section, TSL Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 10 CW, 0-- 2450.000, 0 6.95 1.75 40.6 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2124 HBBL600-10000V6220406-1, 2026-Apr-29 EX3DV4 - SN7783, 2026-04-20 DAE4 Sn1724, 2026-04-17 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 10.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.5 MAIA N/A N/A Surface Detection All points All points Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2026-04-29, 00:22 2026-04-29, 00:35 psSAR1g [W/Kg] 4.72 4.86 psSAR10g [W/Kg] 2.19 2.55 Power Drift [dB] 0.15 -0.02 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction Warning(s) / Error(s) Details Area Scan Zoom Scan Warning(s) Error(s) System Performance Check Report Summary Dipole Frequency [MHz] TSL Power [dBm] Dev. 1g [%] Dev. 10g [%] Dev. Peak [%] Iso. Error [%] D2600V2 – SN1073 2600.0 HSL 20.0 N/A N/A N/A N/A Exposure Conditions Phantom Section, TSL Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 10 CW, 0-- 2600.000, 0 6.77 2.01 40.4 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2124 HBBL600-10000V6220406-1, 2026-Apr-29 EX3DV4 - SN7783, 2026-04-20 DAE4 Sn1724, 2026-04-17 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 10.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.5 MAIA N/A N/A Surface Detection All points All points Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2026-04-29, 00:45 2026-04-29, 00:58 psSAR1g [W/Kg] 4.73 5.11 psSAR10g [W/Kg] 2.07 2.48 Power Drift [dB] -0.14 0.06 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No cor…

Text truncated - open the document above for the full version.

1 1#.Measurement Report for M1T, EDGE RIGHT, GSM 850, UID 10021 DAC, Channel 190 (836.600MHz) Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type M1T, 231.0 x 82.0 x 47.0 Other Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL EDGE RIGHT, 0.00 GSM 850 GSM, 10021-DAC 836.600, 190 9.04 0.909 43.1 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2124 HBBL600-10000V6220406-1, 2026-Apr-27 EX3DV4 - SN7783, 2026-04-20 DAE4 Sn1724, 2026-04-17 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 90.0 x 270.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.5 MAIA N/A N/A Surface Detection All points All points Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2026-04-27, 11:32 2026-04-27, 11:47 psSAR1g [W/kg] 0.603 0.602 psSAR10g [W/kg] 0.366 0.346 Power Drift [dB] -0.17 0.14 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 65.5 Dist 3dB Peak [mm] 9.7 Warning(s) / Error(s) Details Area Scan Zoom Scan Warning(s) Error(s) 2 2#.Measurement Report for M1T, EDGE RIGHT, PCS 1900, UID 10021 DAC, Channel 661 (1880.000MHz) Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type M1T, 231.0 x 82.0 x 47.0 Other Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL EDGE RIGHT, 0.00 PCS 1900 GSM, 10021-DAC 1880.000, 661 7.5 1.40 40.9 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2124 HBBL600-10000V6220406-1, 2026-Apr-28 EX3DV4 - SN7783, 2026-04-20 DAE4 Sn1724, 2026-04-17 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 90.0 x 270.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.5 MAIA N/A N/A Surface Detection All points All points Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2026-04-28, 01:40 2026-04-28, 01:55 psSAR1g [W/kg] 0.477 0.506 psSAR10g [W/kg] 0.252 0.276 Power Drift [dB] 0.10 0.05 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 79.2 Dist 3dB Peak [mm] 9.7 Warning(s) / Error(s) Details Area Scan Zoom Scan Warning(s) Error(s) 3 3#.Measurement Report for M1T, EDGE RIGHT, Band 2, UID 10011 CAC, Channel 9400 (1880.000MHz) Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type M1T, 231.0 x 82.0 x 47.0 Other Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL EDGE RIGHT, 0.00 Band 2 WCDMA, 10011-CAC 1880.000, 9400 7.5 1.40 40.9 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2124 HBBL600-10000V6220406-1, 2026-Apr-28 EX3DV4 - SN7783, 2026-04-20 DAE4 Sn1724, 2026-04-17 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 90.0 x 270.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.5 MAIA N/A N/A Surface Detection All points All points Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2026-04-28, 01:08 2026-04-28, 01:23 psSAR1g [W/kg] 0.449 0.536 psSAR10g [W/kg] 0.252 0.295 Power Drift [dB] 0.06 0.11 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 80.2 Dist 3dB Peak [mm] 9.9 Warning(s) / Error(s) Details Area Scan Zoom Scan Warning(s) Error(s) 4 4#.Measurement Report for M1T, EDGE RIGHT, Band 5, UID 10011 CAC, Channel 4183 (836.600MHz) Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type M1T, 231.0 x 82.0 x 47.0 Other Exposure Conditions Phantom Section, TSL Position, Test Distan…

Text truncated - open the document above for the full version.
