2AJ2B-M10Pos terminal

Card Reading 1. NFC tag, put the NFC tag over the printer case of the device. Fiscal Memory Room and the Interface specification 1. Remove the screws from the fiscal memory room cover and you will see the room. User Manual Android POS Accessories Main Device 1Set Power Adapter 1Piece Printer Paper 1Piece User Guide 1Volume Before using the POS terminal, ensure that all the accessories above are included in the package. If you have any problems, please contact the services provider of the distributors. Specification Processor Octa-Core 2.0GHz OS Memory 4GB DDR, 64GB eMMC, Ext. TF card slot 3GB DDR, 32GB eMMC (Optional) Display 10.1-inch, IPS 1280*800 Customer display:4-inch Keypad 1* Power (lock screen) button 2* Volume (+/-) button 1* Functional Key Android 12 Indicator and status logic 1. Long press the power key for about 3 seconds. Network status Indicator logic: Unable to connect network- red light networking - Flashing yellow light Networking successful - Steady green light Data transfer - Flashing green light Network status Indicator Scan the 1D/2D code 1. Place the eletronic 1D/2D code(like in your cellphone) adown towards the camera vertically. Lead seal screw position Notes: 1. Fiscal Memory Room maximum size: 24mm*37mm*10.5mm 5V_3V3_IO GND RS232_UART5_RTS RS232_UART5_TXDTAX_DET_IO Thermal Printer Paper width: 80mm, φ80mm Contactless Card Reader (Optional) ISO14443 Type A/B, Mifare ISO18092 compliant Camera 2M Pixel, auto focus (Barcode software decoding) SIM Slots 2 Nano SIMs eSIMs (Optional) SAM Slots (Optional) 2 SAMs CommunicationsLTE/WCDMA/GPRS/WiFi/Bluetooth GNSS (Optional) GPS L1 C/A, BDS B1I Power Supply 24V/2.5A Peripheral Ports 1 Tpye-C, 4 USB, 1 RJ12(drawer port 24V), 1 RJ11(RS232), 1 RJ45 Audio Digital Audio Speaker,Microphone MDM (Optional)Mobile Device Management Environmental Operating temperature: -5 °C~ 45 °C Storage temperature: -25 °C~ 60 °C Indicator 1 lights Printing instruction This device support 80mm thermal paper with specfications of 80±0.5mm*80mm. Press the button to open the paper container. Feed the paper correctly into the paper container in the direction as shown, and pull some paper outside the cutter. Close the cover of thepaper container to finish printing paper fedding. Note: If the printed paper is blank, please check whether the paper roll has been install in the correct direction. Power on 1. Long press the power key for about 3 seconds. SIM Card, PSAM Card&TF Card Installation 1. Take out the card cover, and the card sockets wil be shown. 2. Push the card into the socket correctly.Be sure the card is in the right position. Product Description Power key Short press: wake up the sreen, lock the screen. Long press: long press for 2-3 second in power off mode to switch on the device. Long ptess for 2-3 seconds in nomal operation mode to select power off or reboot. Volume key Volume adjustment. Customer display For Customizing the display of tickets, data and other content. Scanner For payment scanning and 1D/2D code quick scanning. SIM Card Slots/PSAM Card Slots Note: To prevent system error, please make sure the device is turnded off when you insert or remove the SIM cards. TF Card Slots For device adding additional storage space. Note: To prevent system error, please make sure the device is turned off when you insert or remove the TF card. Environmental/Material Operating temperature: -5°C~45°C Storage temperature: -25°C~60°C 1.2 M Anti-Drop Functional Key Main Screen Second display Printer Interface Card Cover Functional Key For adding customization function. Fiscal memory room For installing the fiscal memory. TF Card Slots SIM Card Slots PSAM Card Slots Fiscal memory room NFC Scanner Power key Volume key fiscal room Cover Press Printer button RS232_UART5_RXD Android POS Manufacturer Information: Telepower Communication Co., Ltd. UNITS 502 & 504 5/F, UNITS 201 & 203 2/F, BUILDING 5 ZONE A, HANTIAN SCIENCE & TECHNOLOGY PARK, NO.17 SHENHAI RD., GUICHENG STREET,NANHAI DISTRICT, FOSHAN, GUANGDONG, CHINA Transmitter Frequency: EGSM 900: 880-915MHz DCS 1800: 1710-1785MHz WCDMA 2100: 1920-1980MHz WCDMA 900: 880-915MHz LTE Band 1: 1920-1980MHz LTE Band 3: 1710-1785MHz LTE Band 7: 2500-2570MHz LTE Band 8: 880-915MHz LTE Band 20: 832-862MHz LTE Band 28: 703-748MHz LTE Band 38: 2570-2620MHz LTE Band 40: 2300-2400MHz LTE Band 41: 2496-2690MHz Bluetooth/BLE: 2402-2480MHz 2.4G Wi-Fi: 2412-2472MHz 5G Wi-Fi: 5150-5250MHz NFC:13.56MHz Receiver Frequency: EGSM 900: 925-960MHz DCS 1800: 1805-1880MHz WCDMA 2100: 2110-2170MHz WCDMA 900: 925-960MHz LTE Band 1: 2110-2170MHz LTE Band 3: 1805-1880MHz LTE Band 7: 2620-2690MHz LTE Band 8: 925-960MHz LTE Band 20: 791-821MHz LTE Band 28: 758-803MHz LTE Band 38: 2570-2620MHz LTE Band 40: 2300-2400MHz LTE Band 41: 2496-2690MHz Bluetooth/BLE: 2402-2480MHz 2.4G Wi-Fi: 2412-2472MHz 5G Wi-Fi: 5150-5250MHz NFC:13.56MHz GPS L1 C/A, BDS B1I: 1559-1610 MHz RF-Output Power: ERP/EIRP/ Conducted EGSM900: 32.91dBm (GMSK), 26.67dBm (8PSK) DCS 1800: 29.03dBm (GMSK), 25.47dBm (8PSK) WCDMA 2100: 23.12dBm WCDMA 900: 24.02dBm LTE Band 1: 22.4dBm LTE Band 3: 22.5dBm LTE Band 7: 21.9dBm LTE Band 8: 23.1dBm LTE Band 20: 23.2dBm LTE Band 28: 22.9dBm LTE Band 38: 22.0dBm LTE Band 40: 21.5dBm LTE Band 41: 22.3dBm Bluetooth: 7.72 dBm BLE: 4.97dBm 2.4G Wi-Fi: 18.74dBm 5G Wi-Fi: 5150-5250 MHz: 18.85dBm NFC: 21.24dBuA/m @ 3m Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against h…

Text truncated - open the document above for the full version.

Telepower Communication Co., Ltd. 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District Foshan China Tel: 0757-86337898 Fax: 0757-86337898 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2024-04-30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AJ2B-M10 Telepower Communication Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Mike Mai Product Director

Telepower Communication Co., Ltd. 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District Foshan China Tel: 0757-86337898 Fax: 0757-86337898 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2024-04-30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AJ2B-M10 Telepower Communication Co., Ltd. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Mike Mai Product Director

U.S. AGENT LETTER OF ATTESTATION Date: 2024-04-30 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AJ2B-M10 Telepower Communication Co., Ltd. certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Telepower Communication Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Telepower Communication Co., Ltd. Address: 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District Foshan China FRN: 0025951815 Tel: 0757-86337898 Email: [email protected] Signed by (printed name): Mike Mai Signature:

Telepower Communication Co., Ltd. 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District Foshan China Tel: 0757-86337898 Fax: 0757-86337898 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2024-04-30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Telepower Communication Co., Ltd., the undersigned, hereby authorizes Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Mike Mai Product Director

Telepower Communication Co., Ltd. 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District Foshan China Tel: 0757-86337898 Fax: 0757-86337898 Email: [email protected] FCC Confidential Authorization Date: 2024-04-30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AJ2B-M10 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Telepower Communication Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Part list/Tune up Procedure  Software Security Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Mike Mai Product Director

Telepower Communication Co., Ltd. 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District Foshan China Tel: 0757-86337898 Fax: 0757-86337898 Email: [email protected] Date: 2024-04-30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attestation letter Dear Sir or Madam, Our product Pos terminal, model: M10,M10P, FCC ID: 2AJ2B-M10, for marketing purpose, this product only supports BT(GFSK, π/4-DQPSK, 8DPSK), BLE 1M&2M, 2.4G Wi-Fi(2412-2462MHz, 802.11b/g/n20/n40 modes), 5G Wi-Fi (5150-5250 MHz, 802.11 a/n20/n40/ac20/ac40/ac80 modes), GSM 850, DCS 1900,WCDMA 2/5, LTE band 2/4/5/7/38/40(Lower: 2305-2315MHz; Upper: 2350-2360MHz)/41, NFC. The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Signature: Mike Mai Product Director

Telepower Communication Co., Ltd. 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District Foshan China Tel: 0757-86337898 Fax: 0757-86337898 Email: [email protected] Product Difference Declaration 2024-04-30 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Telepower Communication Co., Ltd., declare that our product Pos terminal, the models M10, M10P (FCC ID：2AJ2B-M10 ) , all the models are identical in electrically, the difference is model number. No other changes are made on them. We confirm that all information above is true, and we will be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Mike Mai Product Director

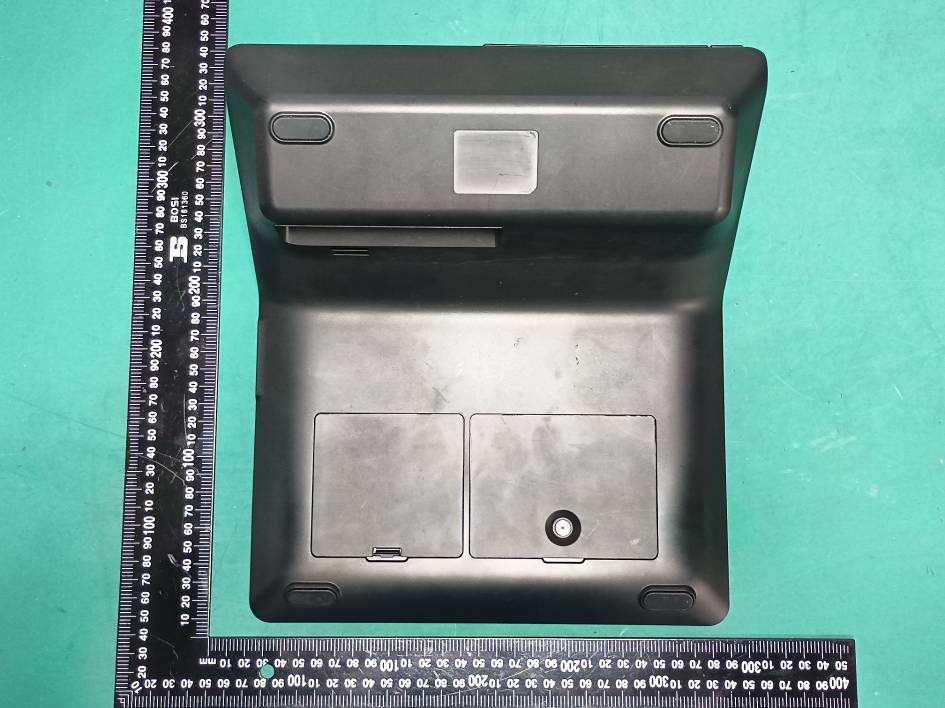

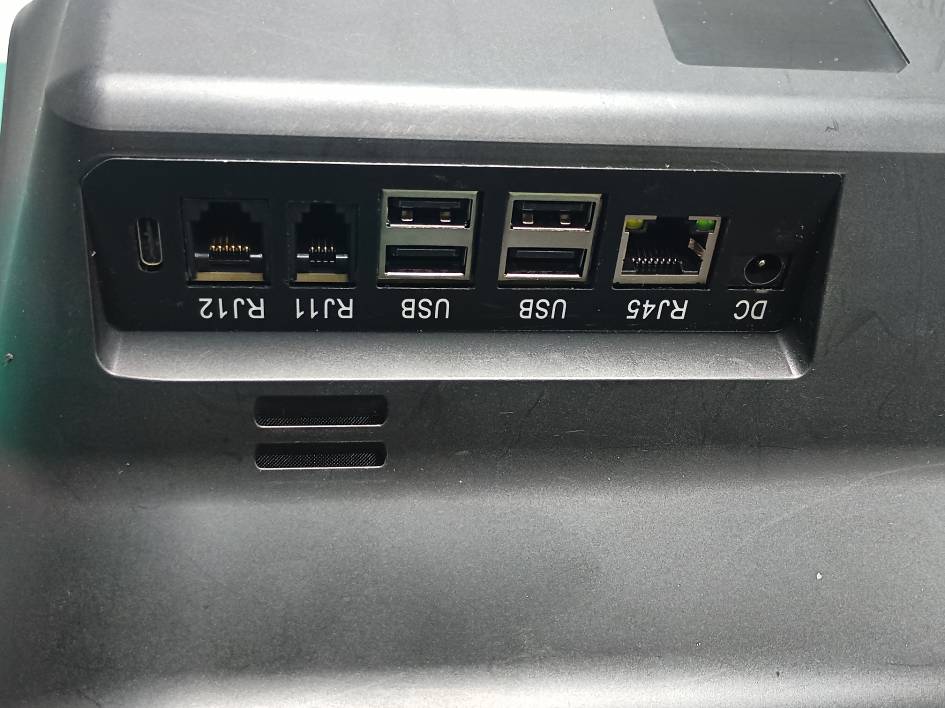

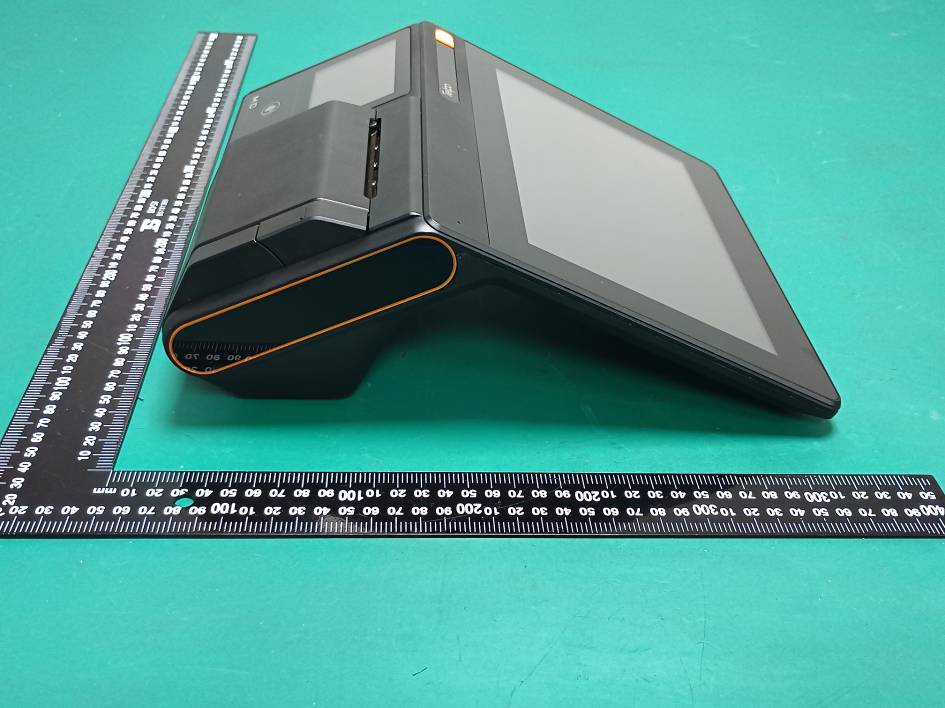

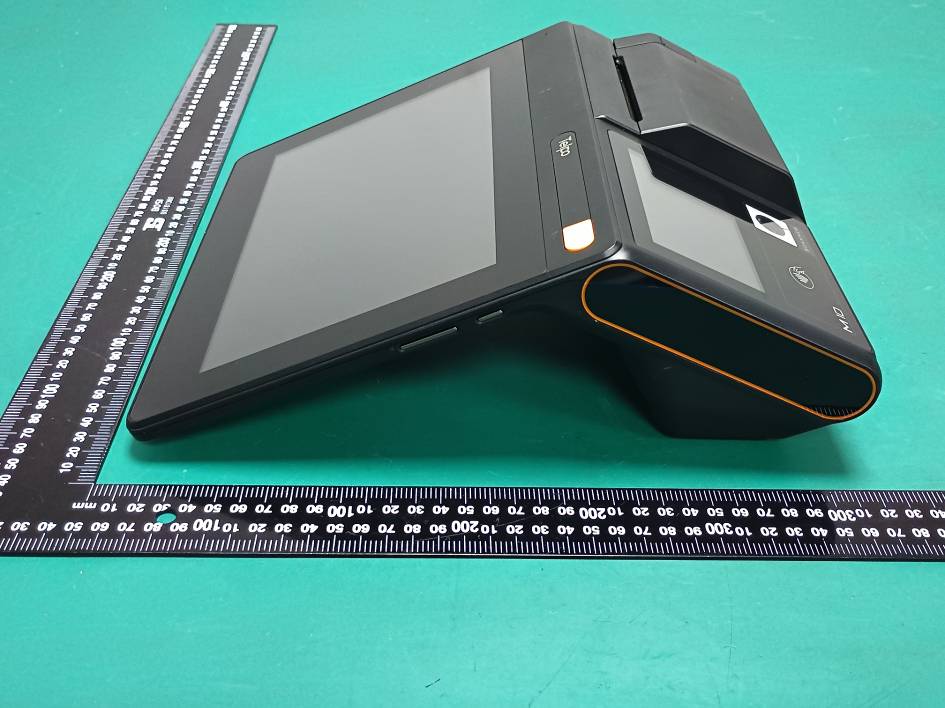

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 1 of 6 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 2 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 3 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 4 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 5 of 6 Adapter Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 6 of 6

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 1 of 22 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 2 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 3 of 22 BT&BLE&Wi-Fi Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 4 of 22 GPS Antenna DIV Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 5 of 22 2G&3G&4G Main Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 6 of 22 NFC Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 7 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 8 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 9 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 10 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 11 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 12 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 13 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 14 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 15 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 16 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 17 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 18 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 19 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 20 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 21 of 22 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240308-11533E-RF Page 22 of 22

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240308-11533E-RF-00D TR-EM-RF045 Page 12 of 38 Version 1.0 (2023/10/07) FCC §1.1307 (B) & §2.1091- MPE-BASED EXEMPTION Applicable Standard According to subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 Interim General RF Exposure Guidance MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power(ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(1)(i)(C)] to support an exemptionfrom further evaluation from 300 kHz through 100 GHz. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation: Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240308-11533E-RF-00D TR-EM-RF045 Page 13 of 38 Version 1.0 (2023/10/07) Result Mode Frequency (MHz) Tune up conducted power # Antenna Gain # ERP Evaluation Distance (m) ERP Limit (mW) (dBm) (dBi)(dBd)(dBm)(mW) BT 2402-2480 11.5 2.97 0.82 12.32 17.06 0.2 768 BLE 2402-2480 2.5 2.97 0.82 3.32 2.15 0.2 768 2.4G Wi-Fi 2412-2462 20.0 2.97 0.82 20.82 120.78 0.2 768 5.2G Wi-Fi 5180-5240 16.5 4.34 2.19 18.69 73.96 0.2 768 GSM850* 824-849 26.24 -0.8 -2.95 23.29 213.30 0.2 422 PCS1900* 1850-1910 20.99 3.58 1.43 22.42 174.58 0.2 768 WCDMA B2 1850-1910 22.5 3.58 1.43 23.93 247.17 0.2 768 WCDMA B5 824-849 24.0 -0.8 -2.95 21.05 127.35 0.2 422 LTE B2 1850-1910 22.0 3.58 1.43 23.43 220.29 0.2 768 LTE B4 1710-1755 22.0 3.73 1.58 23.58 228.03 0.2 768 LTE B5 824-849 23.0 -0.8 -2.95 20.05 101.16 0.2 422 LTE B7 2500-2570 21.5 5.08 2.93 24.43 277.33 0.2 768 LTE B38 2570-2620 21.5 5.00 2.85 24.35 272.27 0.2 768 LTE B40 Lower 2305-2315 19.5 5.32 3.17 22.67 184.93 0.2 768 LTE B40 Upper 2350-2360 19.5 5.32 3.17 22.67 184.93 0.2 768 LTE B41 2496-2690 22.0 5.08 2.93 24.93 311.17 0.2 768 Note: 1. The tune up conducted power and antenna gain was declared by the applicant. 2. The BT, 2.4G Wi-Fi and 5G Wi-Fi can transmit at same time. 3. 0dBd=2.15dBi Note*: It was the time average power according to the duty cycle. Mode Tune-up Peak Output Power (dBm) Tune-up Average Output Power (dBm) Low Middle High Low Middle High GPRS850 1 slot 32.5 32.5 32.5 23.47 23.47 23.47 2 slots 31.5 31.5 31.5 25.48 25.48 25.48 3 slots 30.5 30.5 30.5 26.24 26.24 26.24 4 slots 28.5 28.5 28.5 25.49 25.49 25.49 GPRS1900 1 slot 28.0 28.0 28.0 18.97 18.97 18.97 2 slots 26.5 26.5 26.5 20.48 20.48 20.48 3 slots 25.0 25.0 25.0 20.74 20.74 20.74 4 slots 24.0 24.0 24.0 20.99 20.99 20.99 Note: the duty cycle for 1 slot is 1/8, 2 slots is 1/4, 3 slots is 3/8, 4 slots is 1/2 The average power=Peak power+ duty cycle factor Duty cycle factor=10*log (duty cycle) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240308-11533E-RF-00D TR-EM-RF045 Page 14 of 38 Version 1.0 (2023/10/07) NFC: Mode Frequency (MHz) Maximum E-Field (dBuV/m@3m) Maximum EIRP (dBm) ERP Evaluation Distance (m) ERP Limit (mW) (dBm)(mW) NFC 13.56 72.09 -23.11 -25.26 0.0030.2 751 Note: EIRP = E-Field – 95.2 @3m, ERP = EIRP-2.15 Simultaneous transmitting consideration (worst case): The ratio=ERP BT /limit+ERP 2.4G Wi-Fi /limit+ERP 5G Wi-Fi /limit +ERP GSM850 /limit+ ERP NFC /limit = 17.06/768+ 120.78/768+ 73.96/768+ 213.3/422+ 0.003/751 =0.781＜1.0 So simultaneous exposure is compliant. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant.

Application ※NFC Name and address of the antenna manufacturer Telepower Communication Co., Ltd. 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District Foshan China Model number of the antenna M10-NFC Type of the antenna Loop antenna Frequency 13.56MHz Antenna:

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF045 Page 1 of 38 Version 1.0 (2023/10/07) TEST REPORT Applicant Name: Telepower Communication Co., Ltd. Address: 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District Foshan China Report Number: SZ1240308-11533E-RF-00D FCC ID: 2AJ2B-M10 Test Standard (s) FCC PART 15.225 Sample Description Product Type: Pos terminal Model No.: M10 Multiple Model(s) No.: M10P Trade Mark: Telpo Date Received: 2024/03/12 Issue Date: 2024/06/11 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Andy Yu Nancy Wang RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240308-11533E-RF-00D TR-EM-RF045 Page 2 of 38 Version 1.0 (2023/10/07) TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERALINFORMATION ........................................................................................................................................ 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC§15.203 - ANTENNA REQUIREMENT ............................................................................................................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTED CONSTRUCTION .................................................................................................................... 11 FCC §1.1307 (B) & §2.1091- MPE-BASED EXEMPTION ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 RESULT ...................................................................................................................................................................... 13 FCC §15.207 – AC LINE CONDUCTED EMISSION ............................................................................................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP .................................................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240308-11533E-RFB Page 1 of 3 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240308-11533E-RFB Page 2 of 3 Radiated Emissions View (Below 30MHz) Parallel Radiated Emissions View (Below 30MHz) Perpendicular Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240308-11533E-RFB Page 3 of 3 Radiated Emissions View (Below 30MHz) Ground-parallel Radiated Emissions View (Below 1 GHz)
