2AJ3GCH728H4CWA28PWWireless Camera

Bullet Camera InstallationBullet Camera Installation Ceiling Mounting Expansion Bolt Mounting Screws Insert three expansion bolts in place into the ceiling and fix the equipment with three m screws. ounting Completion of Installation Vandal Proof Dome Camera Installation - Vandal Proof Dome Camera Installation - Ceiling Mounting Apply the position sticker to the desired camera mounting position. Position Sticker HD Network Camera Quick Start Guide Attention:There are two connection modes: 1. For non-PoE router,pls connect the camera by a PoE switch or a PoE injector. 2. For a POE NVR,pls connect the camera directly to the POE NVR, then follow the below steps. 06 Dome Camera Installation Ceiling Mounting Setup of Sticker Dome Camera Remove the collar off the camera by rotating it down Collar Expansion Bolt Locking Screw Fix the pedestal by drilling locking holes around the sticker and insertingthree expansion bolts into the holes and fastening it with three lockingscrews. Adjust it to an appropriate angle. Mount the collar back by rotating it up Completion of Installation Camera Connection Diagram Installation Paste the sticker in place at the properposition as selected. Wireless RS-CH728H4C-WA28PW Open “RXCamView” you will see the following interface to add the cameras. , 3 Open the Internet Explorer and input the device's IP address; . Input the username & password in the following interface to login the device. 4 After login click Remote Setting” to change the setting . ,. “ 5 In Windows 6 In MAC OS 2. Under "Device Config Tool", you can modify the information of a selected device. Including IP, Media Port, Web Port, Gateway, Net Mask, Net Mode. ( The default username & password is: admin & admin) Please refer to “Help” section for more detailed instruction. ※ 1. Open your router web interface and login. 2. Find the "Attached device" or "Connected device" menu. Find the device's IP address according to it's MAC address. The Mac address is labeled on the device. 3. Input the device's IP address in Safari, login with your username & password.4. After login, click "Remote Setting" to modify the setting. Picture for reference only There are two methods to install the App. Search for “RXCamView” in App Store or Google Play. Install the APP Scan the QR code below to download the App. Camera Settings 1.Click menu 2.Click Device List When choose Manual Add, input thecorrect camera information and thenclick Save. If add the device successfully, you will see the following interface. Click Help log in the website and click “Device Search for Windows” www.al8.co to download “Device Config Tool”, it will help to search all the availabledevices on your local network. 1. Use the position indicated on the position sticker to drill the holes needed Tighten the Remove the cover component by loosening the three locking screws with the included hex wrench. Expansion Bolt Mounting Screw to mount the camera base. Insert the expansion bolt into the holes. Match the base's mount openings to the expansion bolts position, then place the mounting screws through the base's mount opening into the expansion bolt. Tighten the m to ensure the camera base mounted securely. ounting screws Place the cover component back onto the base. Cover ComponentCover Component Completion of Installation ※ Locking Screws Please make sure the locking screw position on the cover component ※ matches the locking post on the base. ※ 07 08 09 10 11 12 13 For IOS For Android locking screws after the cover component is in the correct position. FCC StatementChanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for helpThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operatedwith minimum distance 20cm between the radiator & your body

Zhuhai RaySharp Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020.11.09 Subject; Request for Long Term Confidentiality FCC ID: 2AJ3GCH728H4CWA28PW To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: John Fang Title: Certification Engineer

Zhuhai RaySharp Technology Co., Ltd NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Statement Product: Wireless Camera Model: RS-CH728H4C-WA28PW Additional Model: zzyy-CHxxxzyz-zzz-zzyyyyzz-zzz; (x= 0-9; y=0-9 or blank; z= A-Z or blank;) Trademark: N/A We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/11/09 Name: John Fang Company Name : Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Tel / Fax: +860756-8598267/+860756-8598208-802 E-Mail: [email protected]

Zhuhai RaySharp Technology Co., Ltd Agent Authorization Company: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Product Name: Wireless Camera Model Number(s): RS-CH728H4C-WA28PW, zzyy-CHxxxzyz-zzz-zzyyyyzz-zzz; (x= 0-9; y=0-9 or blank; z= A-Z or blank;) Product Description: Wireless Camera We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-09 Name: John Fang Title: Certification Engineer Company: Zhuhai RaySharp Technology Co., Ltd

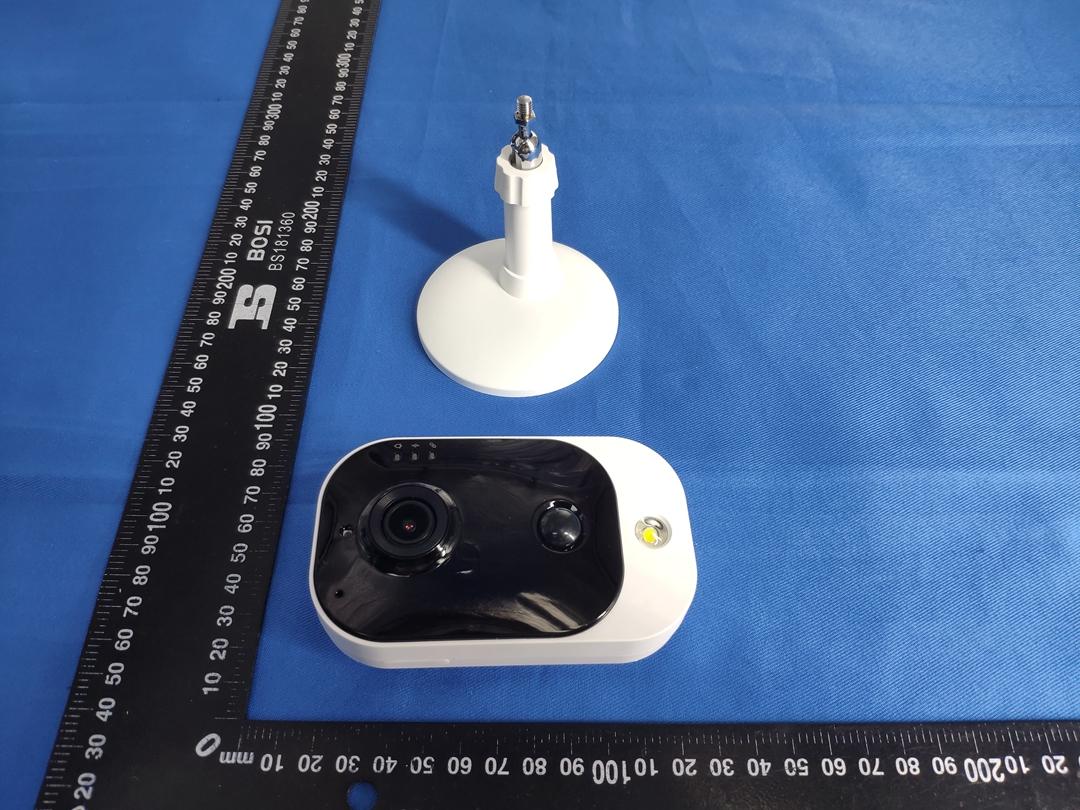

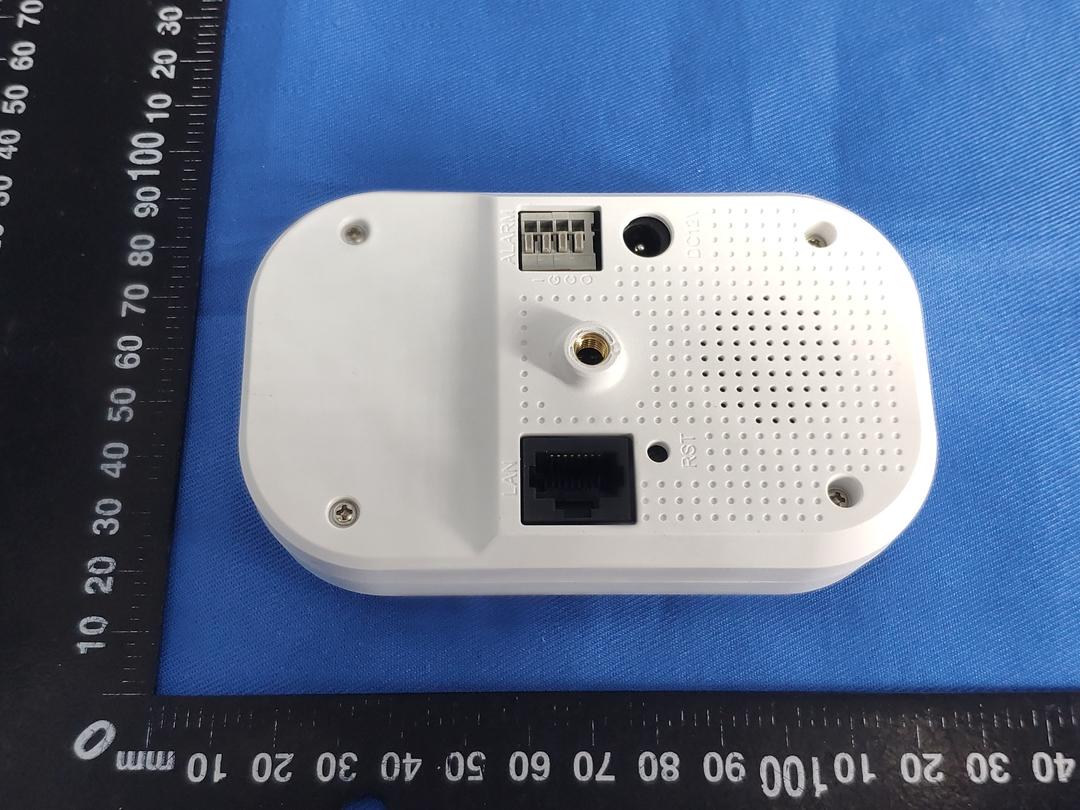

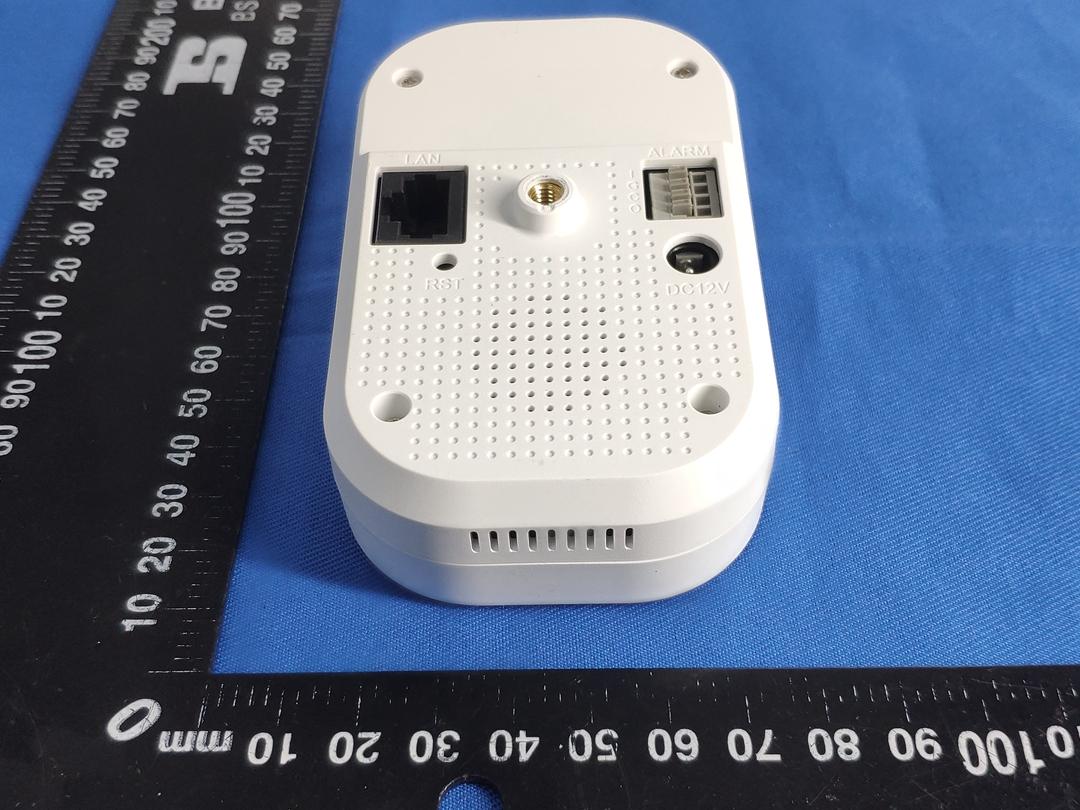

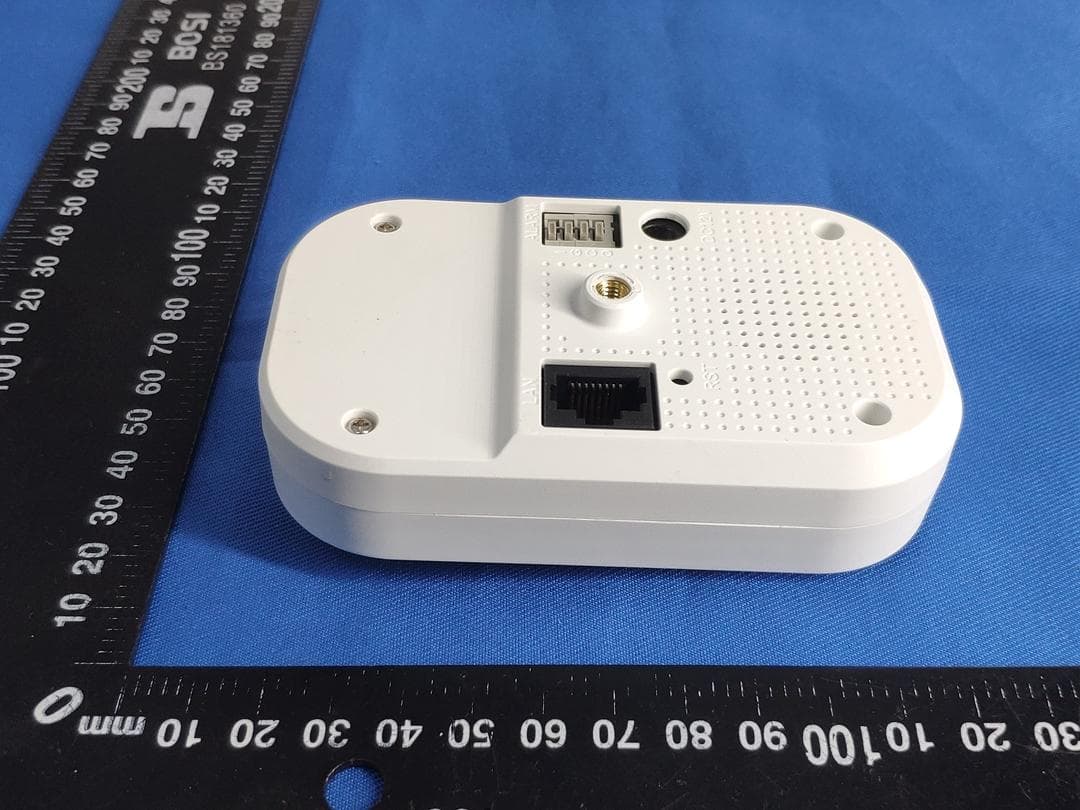

Page 1 of 4 Appendix B: Photographs of EUT Product: Wireless Camera Model: RS-CH728H4C-WA28PW External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: RS-CH728H4C-WA28PW Label: Size: L*W=38*25mm Wireless Camera Model: RS-CH728H4C-WA28PW FCC ID: 2AJ3GCH728H4CWA28PW This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Location

Page 1 of 8 Appendix B: Photographs of EUT Product: Wireless Camera Model: RS-CH728H4C-WA28PW Internal Photos Antenna Page 2 of 8 Page 3 of 8 Page 4 of 8 Page 5 of 8 Page 6 of 8 Page 7 of 8 Page 8 of 8

Maximum Permissible Exposure Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) The maximum output power for antenna is 15.49dBm (35.40mW) at 2437MHz, 2dBi antenna gain(with 1.58 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Maximum Permissible Exposure output power= 35.40mW Numeric Antenna gain= 1.58 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 Power density= 0.011130mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AJ3GCH728H4CWA28PW Product: Wireless Camera Model No.: RS-CH728H4C-WA28PW Additional Model No.: zzyy-CHxxxzyz-zzz-zzyyyyzz-zzz; (x= 0-9; y=0-9 or blank; z= A-Z or blank;) Trade Mark: N/A Report No.: TCT201012E012 Issued Date: Oct. 28, 2020 Issued for: Zhuhai RaySharp Technology Co., Ltd NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT201012E012 Page 2 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. General Information .................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations ................................................................... 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data .................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 17 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 18 6.7. Radiated Spurious Emission Measurement ...................................................... 20 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT201012E012 Page 3 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Wireless Camera Model No.: RS-CH728H4C-WA28PW Additional Model No.: zzyy-CHxxxzyz-zzz-zzyyyyzz-zzz; (x= 0-9; y=0-9 or blank; z= A-Z or blank;) Trade Mark: N/A Applicant: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Manufacturer: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Date of Test: Oct. 13, 2020 – Oct. 27, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Oct. 27, 2020 Brave Zeng Reviewed By: Date: Oct. 28, 2020 Beryl Zhao Approved By: Date: Oct. 28, 2020 Tomsin Report No.: TCT201012E012 Page 4 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT201012E012 Page 5 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Wireless Camera Model No.: RS-CH728H4C-WA28PW Additional Model No.: zzyy-CHxxxzyz-zzz-zzyyyyzz-zzz; (x= 0-9; y=0-9 or blank; z= A-Z or blank;) Trade Mark: N/A Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) 2422MHz~2452MHz (802.11n(HT40)) Channel Separation: 5MHz Number of Channel: 11 for 802.11b/802.11g/802.11n(HT20) 7 for 802.11n(HT40) Modulation Technology: (IEEE 802.11b) Direct Sequence Spread Spectrum (DSSS) Modulation Technology: (IEEE 802.11g/802.11n) Orthogonal Frequency Division Multiplexing(OFDM) Data speed (IEEE 802.11b): 1Mbps, 2Mbps, 5.5Mbps, 11Mbps Data speed (IEEE 802.11g): 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps,…

Text truncated - open the document above for the full version.

Report No.: TCT201012E012 Page 51 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: TCT201012E012 Page 52 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: TCT201012E012 Page 53 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 54 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band edge measurements Test Result Test Mode Antenna Ch Name Channel Ref Level[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.82 -39.43 <=-25.18 PASS High 2462 4.89 -50.18 <=-25.11 PASS 11G Ant1 Low 2412 -0.17 -31.68 <=-30.17 PASS High 2462 -0.16 -45.64 <=-30.16 PASS 11N20SISO Ant1 Low 2412 -0.60 -34.05 <=-30.6 PASS High 2462 -0.01 -44.89 <=-30.01 PASS 11N40SISO Ant1 Low 2422 -4.45 -37.37 <=-34.45 PASS High 2452 -4.01 -40.59 <=-34.01 PASS Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 Report No.: TCT201012E012 Page 55 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Report No.: TCT201012E012 Page 56 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Report No.: TCT201012E012 Page 57 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted SpuriousEmission Test Result Test Mode Antenna Channel Freq Range [Mhz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 4.81 4.81 --- PASS 30~1000 30~1000 -69.135 <=-25.188 PASS 1000~26500 1000~26500 -42.982 <=-25.188 PASS 2437 Reference 5.31 5.31 --- PASS 30~1000 30~1000 -68.834 <=-24.686 PASS 1000~26500 1000~26500 -43.793 <=-24.686 PASS 2462 Reference 4.84 4.84 --- PASS 30~1000 30~1000 -69.016 <=-25.164 PASS 1000~26500 1000~26500 -41.827 <=-25.164 PASS 11G Ant1 2412 Reference -0.15 -0.15 --- PASS 30~1000 30~1000 -68.544 <=-30.149 PASS 1000~26500 1000~26500 -43.11 <=-30.149 PASS 2437 Reference -0.15 -0.15 --- PASS 30~1000 30~1000 -67.669 <=-30.149 PASS 1000~26500 1000~26500 -43.201 <=-30.149 PASS 2462 Reference -0.22 -0.22 --- PASS 30~1000 30~1000 -68.056 <=-30.222 PASS 1000~26500 1000~26500 -42.54 <=-30.222 PASS 11N20SISO Ant1 2412 Reference -0.61 -0.61 --- PASS 30~1000 30~1000 -68.326 <=-30.612 PASS 1000~26500 1000~26500 -42.311 <=-30.612 PASS 2437 Reference -0.15 -0.15 --- PASS 30~1000 30~1000 -68.98 <=-30.152 PASS 1000~26500 1000~26500 -43.173 <=-30.152 PASS 2462 Reference -0.38 -0.38 --- PASS 30~1000 30~1000 -68.95 <=-30.383 PASS 1000~26500 1000~26500 -41.368 <=-30.383 PASS 11N40SISO Ant1 2422 Reference -3.97 -3.97 --- PASS 30~1000 30~1000 -69.439 <=-33.973 PASS 1000~26500 1000~26500 -43.419 <=-33.973 PASS 2437 Reference -4.47 -4.47 --- PASS 30~1000 30~1000 -69.431 <=-34.468 PASS 1000~26500 1000~26500 -42.941 <=-34.468 PASS 2452 Reference -4.16 -4.16 --- PASS 30~1000 30~1000 -68.197 <=-34.156 PASS 1000~26500 1000~26500 -42.921 <=-34.156 PASS Report No.: TCT201012E012 Page 58 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 Report No.: TCT201012E012 Page 59 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference Report No.: TCT201012E012 Page 60 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference Report No.: TCT201012E012 Page 61 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference Report No.: TCT201012E012 Page 62 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference Report No.: TCT201012E012 Page 63 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference Report No.: TCT201012E012 Page 64 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference Report No.: TCT201012E012 Page 65 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference Report No.: TCT201012E012 Page 66 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference Report No.: TCT201012E012 Page 67 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference Report No.: TCT201012E012 Page 68 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference Report No.: TCT201012E012 Page 69 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 Report No.: TCT201012E012 Page 70 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result Test Mode Antenna Channel Transmission Duration [ms] Transmission Period [ms…

Text truncated - open the document above for the full version.

Report No.: TCT201012E012 Page 71 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No.: TCT201012E012 Page 72 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: TCT201012E012 Page 73 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: TCT201012E012 Page 74 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 75 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix B: Photographs of Test Setup Product: Wireless Camera Model: RS-CH728H4C-WA28PW Radiated Emission Report No.: TCT201012E012 Page 76 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Emission Report No.: TCT201012E012 Page 77 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix C: Photographs of EUT Product: Wireless Camera Model: RS-CH728H4C-WA28PW External Photos Report No.: TCT201012E012 Page 78 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 79 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 80 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 81 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Product: Wireless Camera Model: RS-CH728H4C-WA28PW Internal Photos Report No.: TCT201012E012 Page 82 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 83 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 84 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 85 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 86 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 87 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT201012E012 Page 88 of 88 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com *****END OF REPORT*****

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Wireless Camera Model: RS-CH728H4C-WA28PW Radiated Emission Page 2 of 2 Conducted Emission
