2AJ3GRS-CH222H1CGAWireless Camera

STEP 3: Connecting with RXCamView STEP 2: Setting Up the Recorder 1. Connect the wireless receiver to the USB port on the back panel of the recorder. 2. Connect the recorder to your router using the included Ethernet cable. 3. Connect the included power adapter to the recorder. Wait a few minutes for the system to start up. To set up the recorder: NOTE: The receiver includes double-sided tape and mounting screws for optional wall mounting for improved line-of-sight with cameras. To install your cameras: 1. Set the mounting bracket in the desired mounting position. Mark holes through the mounting bracket (shown as orange X’s on the right). 2. Drill holes where marked for the mounting screws using the included drill bit . 3. Secure the bracket to the mounting surface with the included mounting screws (×4). Make sure all screws are fastened tightly using the included screwdriver. NOTES: • Insert the included drywall anchors if you are mounting the camera onto drywall. • The hole at the top of the mounting bracket will be used in step 5, once the camera is attached 4. Lower the camera base onto the mounting bracket so the 2 tabs in the mounting bracket lock into the 2 slots in the camera base. ATTENTION: This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and indicates that the camer D¿O ter is working. STEP 4A: Installing the Cameras Follow the instructions below to mount the cameras. It is recommended that you refer to the “Installation Tips” section to help you select good mounting locations. 5. Insert the security screw through the fasteners on the top of the camera base and mounting bracket to secure the camera to the mounting bracket. Tighten using the included screwdriver. 6. OPTIONAL: Tighten the pre-installed locking screw on the base of the Power Pack using the included screwdriver. STEP 4B: Installation Tips • See images to the right for ideal setup. It is recommended to place your camera at least 7ft (2.1m) above the ground and angle it slightly downward toward the monitoring area, excluding any busy areas (e.g., sidewalks or roadways). • Ensure the camera image is free of obstructions (i.e., tree branches). • Position the camera no more than 20ft (6.1m) away from the area you wish to monitor. • See the “Optimizing Motion Detection” section to customize motion settings for each camera on your system. • Ensure you have con ¿JX red the active area for motion detection so that only areas of interest are selected. See the “Optimizing Motion Detection” section for details. • For best performance, position the camera so that objects of interest will move from side-to-side across the camera image, rather than moving towards or away from the camera. Install the camera within range of the recorder (noted in the camera ¶VVSHFL¿F ations). • This camera is weather resistant for outdoor use (IP66 Follow the tips below for more accurate motion detection and to optimize battery life: 7. Adjust the angle of the camera: Charging the Power Pack Connect the included power adapter to the micro USB port on the Power Pack. NOTE: You will need to loosen the locking screw to remove the Power Pack in the future. Pairing the Camera Your cameras should be paired to the recorder and ready to use out of the package. If a camera becomes unpaired, or if you have purchased a wire-free add-on camera (max. 6 cameras per system), follow the instructions below. 1. From Live view, tap any free channel you would like to pair a camera to (marked with a icon). 2. Tap PAIR. A timer for 30 seconds appears. 3. Press and hold the pair button on the back of the camera for 3 seconds. NOTE: A “pairing successful” message should appear on screen. If you do not see this message, repeat the steps above. Optimizing Motion Detection Customize motion detection settings to ensure motion events are being recorded and reduce false alarms. To optimize motion detection:1. 2. Tap , then tap Remote Setting. 3. 4. Con ¿JX re the following as needed: a. Sensitivity: The amount of motion needed to trigger recording (e.g., higher sensitivity requires less motion to trigger recording). b. Area Selection: Set the active area for motion detection. Video appears with a red grid overlayed, meaning the whole image is active. Tap red squares to disable motion detection in those areas (see example image to the right). Tap Save ZKHQ¿QLVKHG TIP: Disable areas that will trigger unwanted motion events, like busy streets or trees and shrubs that will move in the wind. c. Distance Setting: Con ¿JX re distance setting for motion detection. While watching the camera’s video on your mobile device, recreate a motion event in front of your camera. The icon will change from to when motion is detected by the camera. Change the distance setting if motion detection is being triggered by unwanted events. NOTE: Distance will be affected by temperature. d. Buzzer: Set the recorder to sound an alarm when motion is detected. 5. Tap Save ZKHQ¿QLVKHG Repeat for other cameras on the system. to the mounting plate. rated). Installation in a sheltered location is recommended. • Battery life will vary based on temperature, settings and number of events. 8. Use the included cable clips to complete the installation. Power cable Mounting surface NOTE: The Power P DFN/('ÀDVKHV red while outside the safe charging temperature of 32-113°F (0-45°C). In this state, the camera remains powered up, but the Power Pack will not charge outside the safe temperature range. To connect with RXCamView : 1. Download and install the free RXCamView app from the App Store or Google Play Store. 2. Tap the RXCamView icon to launch the app. Connect to your system using the free RXCamView app for smartphones and tablets (iOS and Android). 3. Tap to open the menu. Tap Device , then tap . 5. Your cameras will appear on the Live screen of the app. Tap the p…

Text truncated - open the document above for the full version.

Zhuhai RaySharp Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020.01.16 Subject; Request for Long Term Confidentiality FCC ID: 2AJ3GRS-CH222H1CGA To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: John Fang Title: Certification Engineer

Zhuhai RaySharp Technology Co., Ltd NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Statement Product: Wireless Camera Model: RS-CH222H1CGA-WL-36W Additional Model: RS-CHxxxyxzzz-xxyy-zz-xxzz-zz (x= 0-9 or blank; y=A-Z; z = A-Z or blank) Trademark: N/A We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/01/16 Name: John Fang Company Name: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Tel / Fax: +860756-8598267/+860756-8598208-802 E-Mail: [email protected]

Zhuhai RaySharp Technology Co., Ltd Agent Authorization Company: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Product Name: Wireless Camera Model Number(s): RS-CH222H1CGA-WL-36W, RS-CHxxxyxzzz-xxyy-zz-xxzz-zz (x= 0-9 or blank; y=A-Z; z = A-Z or blank) Product Description: Wireless Camera We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-01-16 Name: John Fang Title: Certification Engineer Company: Zhuhai RaySharp Technology Co., Ltd

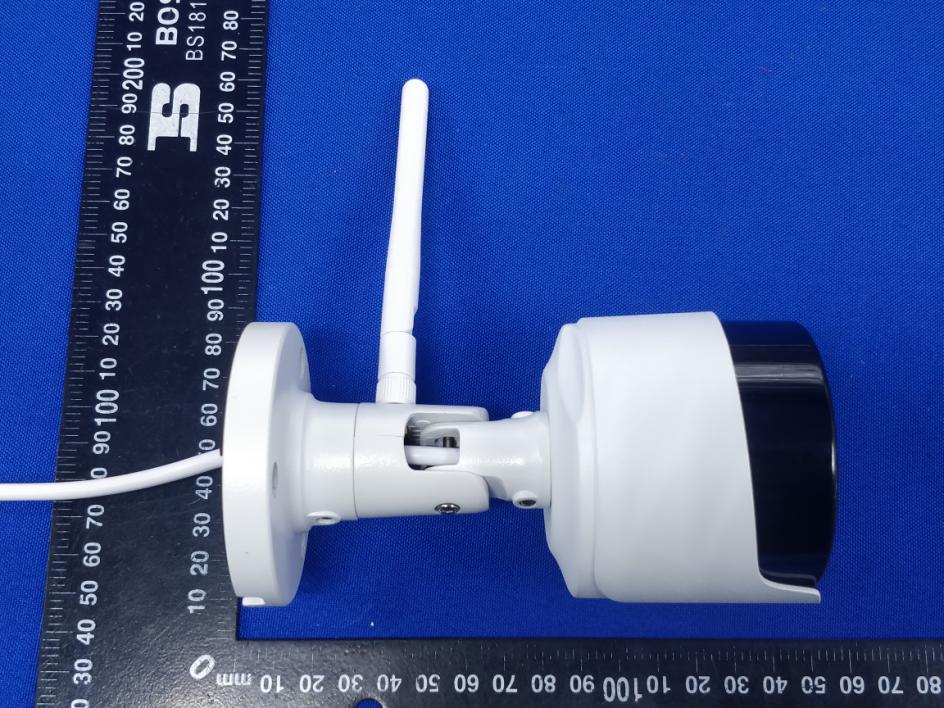

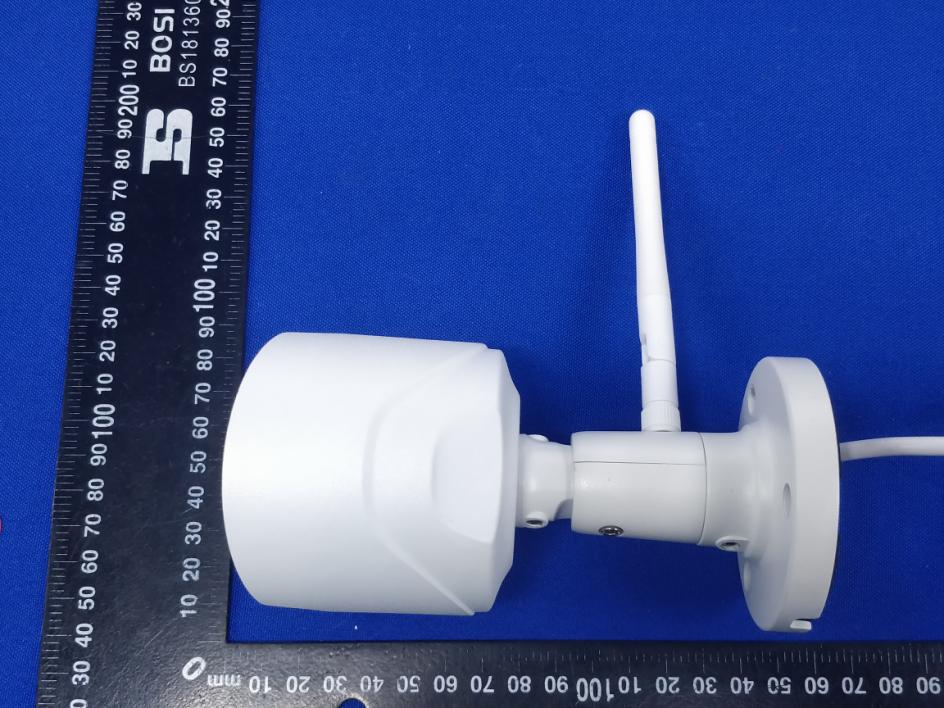

Page 1 of 4 Appendix B: Photographs of EUT Product: Wireless Camera Model: RS-CH222H1CGA-WL-36W External Photos Antenna Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: RS-CH222H1CGA-WL-36W Label: Size: L*W=65*53mm Wireless Camera Model: RS-CH222H1CGA-WL-36W FCC ID: 2AJ3GRS-CH222H1CGA This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Location

Page 1 of 6 Appendix B: Photographs of EUT Product: Wireless Camera Model: RS-CH222H1CGA-WL-36W Internal Photos Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Page 6 of 6

Maximum Permissible Exposure FCC ID: 2AJ3GRS-CH222H1CGA Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) The maximum output power for antenna is 18.19dBm (65.92mW) at 2462MHz, 2dBi antenna gain(with 1.58 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Maximum Permissible Exposure output power= 65.92mW Numeric Antenna gain= 1.58 Substituting the MPE safe distance using d= 20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 Power density= 0.020727mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AJ3GRS-CH222H1CGA Product: Wireless Camera Model No.: RS-CH222H1CGA-WL-36W Additional Model No.: RS-CHxxxyxzzz-xxyy-zz-xxzz-zz (x= 0-9 or blank; y=A-Z; z = A-Z or blank) Trade Mark: N/A Report No.: TCT191016E017 Issued Date: Jan. 14, 2020 Issued for : Zhuhai RaySharp Technology Co., Ltd NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT191016E017 Page 2 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. General Information .................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations ................................................................... 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data .................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 17 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 18 6.7. Radiated Spurious Emission Measurement ...................................................... 20 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT191016E017 Page 3 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Wireless Camera Model No.: RS-CH222H1CGA-WL-36W Additional Model: RS-CHxxxyxzzz-xxyy-zz-xxzz-zz (x= 0-9 or blank; y=A-Z; z = A-Z or blank) Trade Mark: N/A Applicant: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Manufacturer: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Date of Test: Oct. 17, 2019 - Jan. 13, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Jan. 13, 2020 Rleo Reviewed By: Date: Jan. 14, 2020 Beryl Zhao Approved By: Date: Jan. 14, 2020 Tomsin Report No.: TCT191016E017 Page 4 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT191016E017 Page 5 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Wireless Camera Model No.: RS-CH222H1CGA-WL-36W Additional Model: RS-CHxxxyxzzz-xxyy-zz-xxzz-zz (x= 0-9 or blank; y=A-Z; z = A-Z or blank) Trade Mark: N/A Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) 2422MHz~2452MHz (802.11n(HT40)) Channel Separation: 5MHz Number of Channel: 11 for 802.11b/802.11g/802.11n(HT20) 7 for 802.11n(HT40) Modulation Technology: (IEEE 802.11b) Direct Sequence Spread Spectrum (DSSS) Modulation Technology: (IEEE 802.11g/802.11n) Orthogonal Frequency Division Multiplexing(OFDM) Data speed (IEEE 802.11b): 1Mbps, 2Mbps, 5.5Mbps, 11Mbps Data speed (IEEE 802.11g): 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbp…

Text truncated - open the document above for the full version.

Report No.: TCT191016E017 Page 51 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/HCH 11N40SISO/LCH 11N40SISO/HCH Report No.: TCT191016E017 Page 52 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com RF Conducted Spurious Emissions Result Table Mode Channel Pref [dBm] Puw [dBm] Verdict 11B LCH 8.45 <Limit PASS 11B MCH 8.953 <Limit PASS 11B HCH 9.067 <Limit PASS 11G LCH -0.056 <Limit PASS 11G MCH 1.162 <Limit PASS 11G HCH 0.764 <Limit PASS 11N20SISO LCH 0.069 <Limit PASS 11N20SISO MCH 0.76 <Limit PASS 11N20SISO HCH 0.826 <Limit PASS 11N40SISO LCH -3.008 <Limit PASS 11N40SISO MCH -1.986 <Limit PASS 11N40SISO HCH -2.463 <Limit PASS Test Graph 11B_LCH_Graphs Pref/11B/LCH Report No.: TCT191016E017 Page 53 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11B/LCH Report No.: TCT191016E017 Page 54 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_MCH_Graphs Pref/11B/MCH Report No.: TCT191016E017 Page 55 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11B/MCH Report No.: TCT191016E017 Page 56 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_HCH_Graphs Pref/11B/HCH Report No.: TCT191016E017 Page 57 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11B/HCH Report No.: TCT191016E017 Page 58 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_LCH_Graphs Pref/11G/LCH Report No.: TCT191016E017 Page 59 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11G/LCH Report No.: TCT191016E017 Page 60 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_MCH_Graphs Pref/11G/MCH Report No.: TCT191016E017 Page 61 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11G/MCH Report No.: TCT191016E017 Page 62 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_HCH_Graphs Pref/11G/HCH Report No.: TCT191016E017 Page 63 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11G/HCH Report No.: TCT191016E017 Page 64 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Report No.: TCT191016E017 Page 65 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com /11N20SISO/L CH Report No.: TCT191016E017 Page 66 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_MCH_Graphs Pref/11N20SIS O/MCH Report No.: TCT191016E017 Page 67 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11N20SIS O/MCH Report No.: TCT191016E017 Page 68 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_HCH_Graphs Pref/11N20SIS O/HCH Report No.: TCT191016E017 Page 69 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11N20SIS O/HCH Report No.: TCT191016E017 Page 70 of 92 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_LCH_Graphs Pref/11N40SIS O/LCH

Report No.: TCT191016E017 Page 71 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11N40SIS O/LCH Report No.: TCT191016E017 Page 72 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_MCH_Graphs Pref/11N40SIS O/MCH Report No.: TCT191016E017 Page 73 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11N40SIS O/MCH Report No.: TCT191016E017 Page 74 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_HCH_Graphs Pref/11N40SIS O/HCH Report No.: TCT191016E017 Page 75 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Puw/11N40SIS O/HCH Report No.: TCT191016E017 Page 76 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E017 Page 77 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Power Spectral Density Result Table Mode Channel Meas.Level [dBm] Verdict 11B LCH -8.560 PASS 11B MCH -7.408 PASS 11B HCH -7.185 PASS 11G LCH -16.169 PASS 11G MCH -16.352 PASS 11G HCH -16.604 PASS 11N20SISO LCH -18.076 PASS 11N20SISO MCH -17.821 PASS 11N20SISO HCH -17.436 PASS 11N40SISO LCH -23.080 PASS 11N40SISO MCH -21.714 PASS 11N40SISO HCH -21.463 PASS Test Graph Graphs 11B/LCH Report No.: TCT191016E017 Page 78 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B/MCH 11B/HCH 11G/LCH Report No.: TCT191016E017 Page 79 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/MCH 11G/HCH 11N20SISO/LCH Report No.: TCT191016E017 Page 80 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/MCH 11N20SISO/HCH 11N40SISO/LCH Report No.: TCT191016E017 Page 81 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO/MCH 11N40SISO/HCH Report No.: TCT191016E017 Page 82 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix A: Photographs of Test Setup Product: Wireless Camera Model: RS-CH222H1CGA-WL-36W Radiated Emission Report No.: TCT191016E017 Page 83 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Emission Report No.: TCT191016E017 Page 84 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix B: Photographs of EUT Product: Wireless Camera Model: RS-CH222H1CGA-WL-36W External Photos Report No.: TCT191016E017 Page 85 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E017 Page 86 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E017 Page 87 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E017 Page 88 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Product: Wireless Camera Model: RS-CH222H1CGA-WL-36W Internal Photos Report No.: TCT191016E017 Page 89 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E017 Page 90 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E017 Page 91 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E017 Page 92 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E017 Page 93 of 93 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com *****END OF REPORT*****

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Wireless Camera Model: RS-CH222H1CGA-WL-36W Radiated Emission Page 2 of 2 Conducted Emission
