2AJ3GRS-H4504HR-N-WWireless Network Video Recorder

Zhuhai Raysharp Technology Co.,Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jan 14, 2020
Application Purpose: Original Equipment
Date of Application: Jan 14, 2020
Equipment Note: Wireless Network Video Recorder
Frequency Range: 2412.00000000 - 2462.00000000
Company: Zhuhai Raysharp Technology Co.,Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

USER MANUAL 1 USER MANUAL 2 Chapter 1 Safety Instruction ............................................................................... 4 Chapter 2 Product Overview............................................................................... 5 1.1 Rear Panel ............................................................................................................ 5 1.2 Remote Controller (For Reference Only) .................................................................. 6 Chapter 3 WIRELESS NVR Common Operations ............................................ 7 3.1 Using the Supplied Mouse ....................................................................................... 7 3.2 Using the Virtual Keyboard ...................................................................................... 7 3.3 Password .................................................................................................................. 8 Chapter 4 WIRELESS NVR Starting up ............................................................. 9 4.1 Startup Wizard ......................................................................................................... 9 4.1.1 Start Wizard ....................................................................................................... 9 4.1.2 Network Configuration ...................................................................................... 9 4.1.3 Date/Time ........................................................................................................ 11 4.1.4 Disk .................................................................................................................. 12 4.1.5 Resolution ........................................................................................................ 13 4.1.6 Mobile.............................................................................................................. 13 4.1.7 Summary.......................................................................................................... 14 4.2 Live Viewing Screen ................................................................................................ 14 4.2.1 Camera Quick Toolbar ..................................................................................... 15 4.2.2 Taskbar ............................................................................................................. 16 4.2.3 Start Menu ....................................................................................................... 16 Chapter 5 WIRELESS System Setup ............................................................... 19 5.1 Channel .................................................................................................................. 19 5.1.2. Live ................................................................................................................ 20 5.1.3 Motion ............................................................................................................. 21 5.1.4 Alarm ............................................................................................................... 21 5.1.5 Video Cover ..................................................................................................... 23 5.2 Record .................................................................................................................... 24 5.2.1 Record ........................................................................................................... 24 5.2.2 Record Schedule ......................................................................................... 25 5.2.3 Capture .......................................................................................................... 26 5.3 Alarm ...................................................................................................................... 28 5.3.1 Motion ............................................................................................................. 28 5.3.2 Exception ......................................................................................................... 28 5.4 Network .................................................................................................................. 29 5.4.1 General ........................................................................................................... 29 5.4.2 DDNS ................................................................................................................ 32 5.4.3 Email ................................................................................................................ 33 5.4.4 FTP ................................................................................................................... 35 5. 5 Device .................................................................................................................... 36 USER MANUAL 3 5. 5.1 Disk ................................................................................................................. 36 5.5.2 S.M.A.R.T ......................................................................................................... 37 5.5.3 Cloud.............................................................................................................. 38 5.6 System .................................................................................................................... 39 5.6.1 General ............................................................................................................ 39 5.6.2 Output Configuration ...................................................................................... 42 5.6.3 Multi-user ........................................................................................................ 44 5.6.4 Maintenance .................................................................................................... 47 5.6.5 IP Camera Maintain ....................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Zhuhai RaySharp Technology Co., Ltd O ffice of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020.01.08 Subject; Request for Long Term Confidentiality FCC ID: 2AJ3GRS-H4504HR-N-W T o Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. T hese documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure I t is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. S incerely, S ignature: Name: John Fang T itle: Certification Engineer

Cover Letter(s)

Statement Product: Wireless Network Video Recorder Model: RS-H4504HR-N-W Additional Model: RS-Hxxxxyy-zzz-zzz-zzzz (x= 0-9 or blank; y=A-Z; z = A-Z or blank ) Trademark: N/A We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/01/08 Name: John Fang Company Name: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Tel / Fax: +860756-8598267/+860756-8598208-802 E-Mail: [email protected]

Cover Letter(s)

Zhuhai RaySharp Technology Co., Ltd Agent Authorization Company: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Product Name: Wireless Network Video Recorder Model Number(s): RS-Hxxxxyy-zzz-zzz-zzzz (x= 0-9 or blank; y=A-Z; z = A-Z or blank ) Product Description: Wireless Network Video Recorder We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-01-08 Name: John Fang Title: Certification Engineer Company: Zhuhai RaySharp Technology Co., Ltd

External Photos

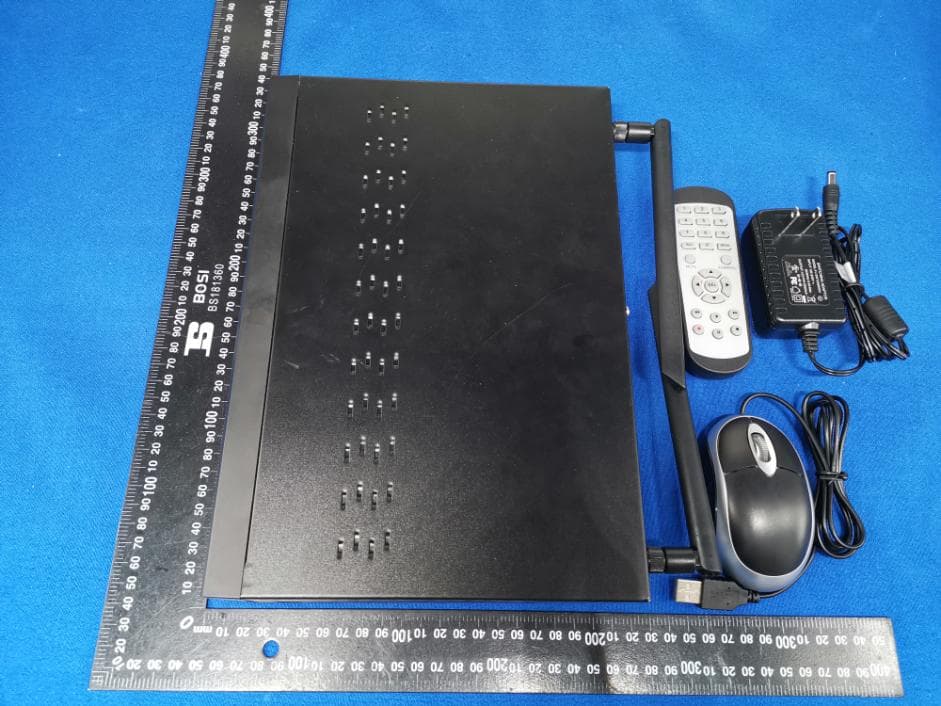

Page 1 of 5 Appendix B: Photographs of EUT Product: Wireless Network Video Recorder Model: RS-H4504HR-N-W External Photos Page 2 of 5 Page 3 of 5 Antenna 0 Antenna 1 Page 4 of 5 Page 5 of 5

ID Label/Location Info

Label Artwork and Location Model: RS-H4504HR-N-W Label: Size: L*W=65*53mm Wireless Network Video Recorder Model: RS-H4504HR-N-W FCC ID: 2AJ3GRS-H4504HR-N-W This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Location

Internal Photos

Page 1 of 8 Appendix B: Photographs of EUT Product: Wireless Network Video Recorder Model: RS-H4504HR-N-W Internal Photos Page 2 of 8 Page 3 of 8 Page 4 of 8 Page 5 of 8 Page 6 of 8 Page 7 of 8 Page 8 of 8

RF Exposure Info

Maximum Permissible Exposure FCC ID: 2AJ3GRS-H4504HR-N-W Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) The maximum output power for antenna is 14.93dBm (31.12mW) at 2437MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Maximum Permissible Exposure output power= 31.12mW Numeric Antenna gain= 3.16 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 Power density= 0.019570mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.) Remark: 1) The total maximum output power for Antenna 0(12.82dBm), Antenna 1(14.84dBm) at 2437MHz (802.11n H40), 5dBi antenna gain(with 3.16 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser Maximum Permissible Exposure for ANT0 output power=19.14mW Numeric Antenna gain= 3.16 Substituting the MPE safe distance using d=20cm into above equation. Yields: S 0 =0.000199*P*G Where P=Power in mW G=Numeric antenna gain S 0 =Power density in mW/cm 2 Power density= 0.012046mW/cm 2 Maximum Permissible Exposure for ANT1 output power=30.48mW Numeric Antenna gain= 3.16 Substituting the MPE safe distance using d=20cm into above equation. Yields: S 0 =0.000199*P*G Where P=Power in mW G=Numeric antenna gain S 0 =Power density in mW/cm 2 Power density= 0.01918mW/cm 2 Total MPE=MPE0+MPE1=0.03123 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Test Report

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AJ3GRS-H4504HR-N-W Product: Wireless Network Video Recorder Model No.: RS-H4504HR-N-W Additional Model No.: RS-Hxxxxyy-zzz-zzz-zzzz (x= 0-9 or blank; y=A-Z; z = A-Z or blank ) Trade Mark: N/A Report No.: TCT191016E013 Issued Date: Dec. 31, 2019 Issued for : Zhuhai RaySharp Technology Co., Ltd NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT191016E013 Page 2 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. General Information .................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 7 5. Facilities and Accreditations ................................................................... 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data .................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 17 6.5. Power Spectral Density ....................................................................................... 18 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 20 6.7. Radiated Spurious Emission Measurement ...................................................... 22 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT191016E013 Page 3 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Wireless Network Video Recorder Model No.: RS-H4504HR-N-W Additional Model: RS-Hxxxxyy-zzz-zzz-zzzz (x= 0-9 or blank; y=A-Z; z = A-Z or blank ) Trade Mark: N/A Applicant: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Manufacturer: Zhuhai RaySharp Technology Co., Ltd Address: NO.100 OF TECHNOLOGY ROAD 6, NATIONAL HI-TECH ZONE, ZHUHAI, China Date of Test: Oct. 17, 2019 – Dec. 30, 2019 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Dec. 30, 2019 Brews Xu Reviewed By: Date: Dec. 31, 2019 Beryl Zhao Approved By: Date: Dec. 31, 2019 Tomsin Report No.: TCT191016E013 Page 4 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT191016E013 Page 5 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Wireless Network Video Recorder Model No.: RS-H4504HR-N-W Additional Model: RS-Hxxxxyy-zzz-zzz-zzzz (x= 0-9 or blank; y=A-Z; z = A-Z or blank ) Trade Mark: N/A Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) 2422MHz~2452MHz (802.11n(HT40)) Channel Separation: 5MHz Number of Channel: 11 for 802.11b/802.11g/802.11n(HT20) 7 for 802.11n(HT40) Modulation Technology: (IEEE 802.11b) Direct Sequence Spread Spectrum (DSSS) Modulation Technology: (IEEE 802.11g/802.11n) Orthogonal Frequency Division Multiplexing(OFDM) Data speed (IEEE 802.11b): 1Mbps, 2Mbps, 5.5Mbps, 11Mbps Data speed (IEEE 802.11g): 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbp…

Text truncated - open the document above for the full version.

Test Report

Report No.: TCT191016E013 Page 51 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band-edge for RF Conducted Emissions Result Table Mode Channel Carrier Power [dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict 11B LCH -4.993 -58.049 -34.99 PASS 11B HCH -2.255 -58.298 -32.26 PASS 11G LCH -6.710 -61.149 -36.71 PASS 11G HCH -5.159 -58.262 -35.16 PASS 11N20SISO LCH -7.688 -61.878 -37.69 PASS 11N20SISO HCH -6.140 -58.510 -36.14 PASS 11N40SISO LCH -11.298 -60.404 -41.3 PASS 11N40SISO HCH -9.266 -59.059 -39.27 PASS Test Graph Graphs 11B/LCH 11B/HCH Report No.: TCT191016E013 Page 52 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/LCH 11G/HCH 11N20SISO/LCH Report No.: TCT191016E013 Page 53 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/HCH 11N40SISO/LCH 11N40SISO/HCH Report No.: TCT191016E013 Page 54 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com RF Conducted Spurious Emissions Result Table Mode Channel Pref [dBm] Puw [dBm] Verdict 11B LCH 3.667 <Limit PASS 11B MCH 5.248 <Limit PASS 11B HCH 6.079 <Limit PASS 11G LCH -1.063 <Limit PASS 11G MCH 0.007 <Limit PASS 11G HCH 0.451 <Limit PASS 11N20SISO LCH -2.053 <Limit PASS 11N20SISO MCH -0.248 <Limit PASS 11N20SISO HCH -0.146 <Limit PASS 11N40SISO LCH -3.689 <Limit PASS 11N40SISO MCH -1.131 <Limit PASS 11N40SISO HCH -1.365 <Limit PASS Test Graph 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH Report No.: TCT191016E013 Page 55 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 56 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH Report No.: TCT191016E013 Page 57 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 58 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH Report No.: TCT191016E013 Page 59 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 60 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH Report No.: TCT191016E013 Page 61 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 62 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH Report No.: TCT191016E013 Page 63 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 64 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH Report No.: TCT191016E013 Page 65 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 66 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH /11N20SISO/L CH Report No.: TCT191016E013 Page 67 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 68 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_MCH_Graphs Pref/11N20SIS O/MCH Puw/11N20SIS O/MCH Report No.: TCT191016E013 Page 69 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 70 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_HCH_Graphs Pref/11N20SIS O/HCH Puw/11N20SIS O/HCH

Test Report

Report No.: TCT191016E013 Page 71 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 72 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_LCH_Graphs Pref/11N40SIS O/LCH Puw/11N40SIS O/LCH Report No.: TCT191016E013 Page 73 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 74 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_MCH_Graphs Pref/11N40SIS O/MCH Puw/11N40SIS O/MCH Report No.: TCT191016E013 Page 75 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 76 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_HCH_Graphs Pref/11N40SIS O/HCH Puw/11N40SIS O/HCH Report No.: TCT191016E013 Page 77 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 78 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 79 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Power Spectral Density Result Table Mode Channel Meas.Level [dBm] Verdict 11B LCH -9.731 PASS 11B MCH -8.152 PASS 11B HCH -7.589 PASS 11G LCH -11.194 PASS 11G MCH -10.614 PASS 11G HCH -9.721 PASS 11N20SISO LCH -12.125 PASS 11N20SISO MCH -10.451 PASS 11N20SISO HCH -10.635 PASS 11N40SISO LCH -15.998 PASS 11N40SISO MCH -13.631 PASS 11N40SISO HCH -13.953 PASS Test Graph Graphs 11B/LCH 11B/MCH Report No.: TCT191016E013 Page 80 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B/HCH 11G/LCH 11G/MCH Report No.: TCT191016E013 Page 81 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/HCH 11N20SISO/LCH 11N20SISO/MCH Report No.: TCT191016E013 Page 82 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/HCH 11N40SISO/LCH 11N40SISO/MCH Report No.: TCT191016E013 Page 83 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO/HCH Report No.: TCT191016E013 Page 84 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Antenna1 Duty Cycle Result Table Mode Channel Meas.Level [dBm] 11B LCH 100 11B MCH 100 11B HCH 100 11G LCH 100 11G MCH 100 11G HCH 100 11N20SISO LCH 100 11N20SISO MCH 100 11N20SISO HCH 100 11N40SISO LCH 100 11N40SISO MCH 100 11N40SISO HCH 100 Test Graph Graphs 11B/LCH 11B/MCH Report No.: TCT191016E013 Page 85 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B/HCH 11G/LCH 11G/MCH Report No.: TCT191016E013 Page 86 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/HCH 11N20SISO/LCH 11N20SISO/MCH Report No.: TCT191016E013 Page 87 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/HCH 11N40SISO/LCH 11N40SISO/MCH Report No.: TCT191016E013 Page 88 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO/HCH Report No.: TCT191016E013 Page 89 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Average Output Power Result Table Mode Channel Meas.Level [dBm] Av.Power [dBm] Verdict 11B LCH 11.13 11.13 PASS 11B MCH 14.93 14.93 PASS 11B HCH 14.82 14.82 PASS 11G LCH 11.56 11.56 PASS 11G MCH 14.01 14.01 PASS 11G HCH 13.87 13.87 PASS 11N20SISO LCH 11.16 11.16 PASS 11N20SISO MCH 12.54 12.54 PASS 11N20SISO HCH 13.37 13.37 PASS 11N40SISO LCH 12.64 12.64 PASS 11N40SISO MCH 14.84 14.84 PASS 11N40SISO HCH 14.61 14.61 PASS Test Graph Graphs 11B/LCH 11B/MCH Report No.: TCT191016E013 Page 90 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B/HCH 11G/LCH 11G/MCH Report No.: TCT191016E013 Page 91 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/HCH 11N20SISO/LCH 11N20SISO/MCH

Test Report

Report No.: TCT191016E013 Page 91 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/HCH 11N20SISO/LCH 11N20SISO/MCH Report No.: TCT191016E013 Page 92 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/HCH 11N40SISO/LCH 11N40SISO/MCH Report No.: TCT191016E013 Page 93 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO/HCH Report No.: TCT191016E013 Page 94 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 6dB Occupied Bandwidth Result Table Mode Channel 6dB Bandwidth [MHz] 99% OBW [MHz] Verdict 11B LCH 9.058 14.091 PASS 11B MCH 9.516 14.126 PASS 11B HCH 9.061 14.132 PASS 11G LCH 16.31 16.343 PASS 11G MCH 16.37 16.329 PASS 11G HCH 15.56 16.325 PASS 11N20SISO LCH 16.75 17.508 PASS 11N20SISO MCH 16.85 17.505 PASS 11N20SISO HCH 17.21 17.528 PASS 11N40SISO LCH 35.01 35.762 PASS 11N40SISO MCH 34.05 35.835 PASS 11N40SISO HCH 35.58 35.842 PASS Test Graph Graphs 11B/LCH 11B/MCH Report No.: TCT191016E013 Page 95 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B/HCH 11G/LCH 11G/MCH Report No.: TCT191016E013 Page 96 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/HCH 11N20SISO/LCH 11N20SISO/MCH Report No.: TCT191016E013 Page 97 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/HCH 11N40SISO/LCH 11N40SISO/MCH Report No.: TCT191016E013 Page 98 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO/HCH Report No.: TCT191016E013 Page 99 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band-edge for RF Conducted Emissions Result Table Mode Channel Carrier Power [dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict 11B LCH -6.313 -59.704 -36.31 PASS 11B HCH -2.288 -59.978 -32.29 PASS 11G LCH -7.247 -60.978 -37.25 PASS 11G HCH -4.976 -55.911 -34.98 PASS 11N20SISO LCH -7.526 -60.763 -37.53 PASS 11N20SISO HCH -4.796 -55.478 -34.8 PASS 11N40SISO LCH -8.935 -51.823 -38.94 PASS 11N40SISO HCH -7.055 -45.210 -37.06 PASS Test Graph Graphs 11B/LCH 11B/HCH Report No.: TCT191016E013 Page 100 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/LCH 11G/HCH 11N20SISO/LCH Report No.: TCT191016E013 Page 101 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/HCH 11N40SISO/LCH 11N40SISO/HCH Report No.: TCT191016E013 Page 102 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com RF Conducted Spurious Emissions Result Table Mode Channel Pref [dBm] Puw [dBm] Verdict 11B LCH 1.936 <Limit PASS 11B MCH 6.268 <Limit PASS 11B HCH 6.36 <Limit PASS 11G LCH 0.822 <Limit PASS 11G MCH 3.807 <Limit PASS 11G HCH 2.816 <Limit PASS 11N20SISO LCH -0.855 <Limit PASS 11N20SISO MCH 0.679 <Limit PASS 11N20SISO HCH 2.223 <Limit PASS 11N40SISO LCH -1.55 <Limit PASS 11N40SISO MCH 0.844 <Limit PASS 11N40SISO HCH 0.752 <Limit PASS Test Graph 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH Report No.: TCT191016E013 Page 103 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 104 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH Report No.: TCT191016E013 Page 105 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT191016E013 Page 106 of 146 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_HCH_Graphs Pref/11B/HCH Puw/11B…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Xuanpeng Zhu(Certification Engineer)

[email protected]+860756-8598267Fax: +860756-8598208-802

Technical Contact

Zhuhai RaySharp Technology Co., Ltd

[email protected]

China

Test Firm

SHENZHEN TONGCE TESTING LABBeryl Zhao

[email protected]+8675527208735

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	49.70 mW

Confidentiality

Long Term

Grant Notes

Output power listed is maximum combined conducted power. This device contains 20 and 40 MHz signal bandwidth. Device is a 2x2 MIMO as is described in the filing. The antennas used with this transmitter must be installed to provide a minimum separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-users must be provided with operating procedures for satisfying RF exposure compliance.
