2AJ55HOLYSTONE4Wquadcopter

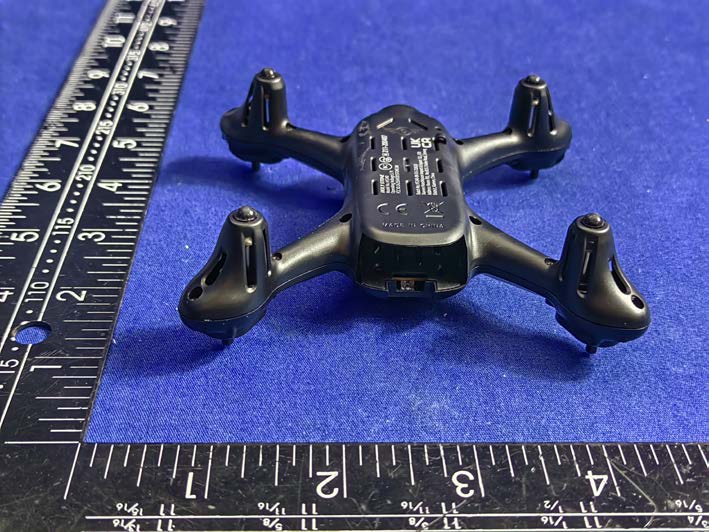

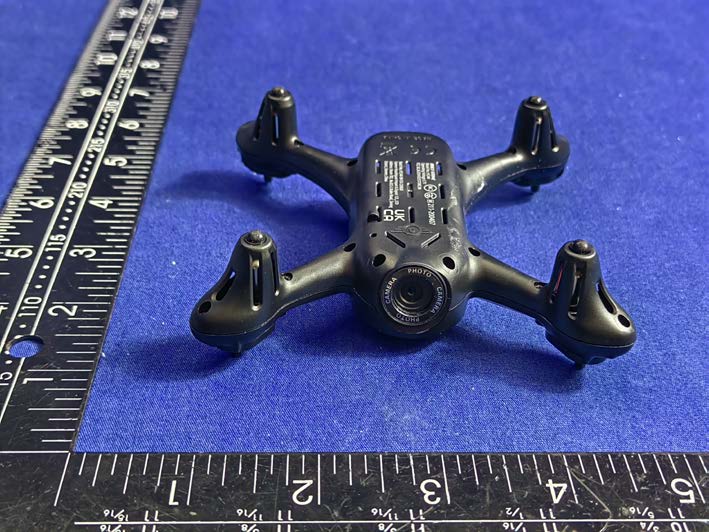

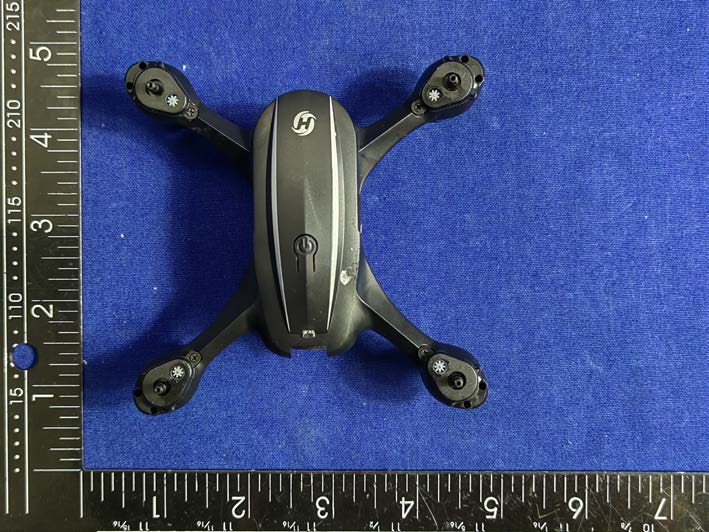

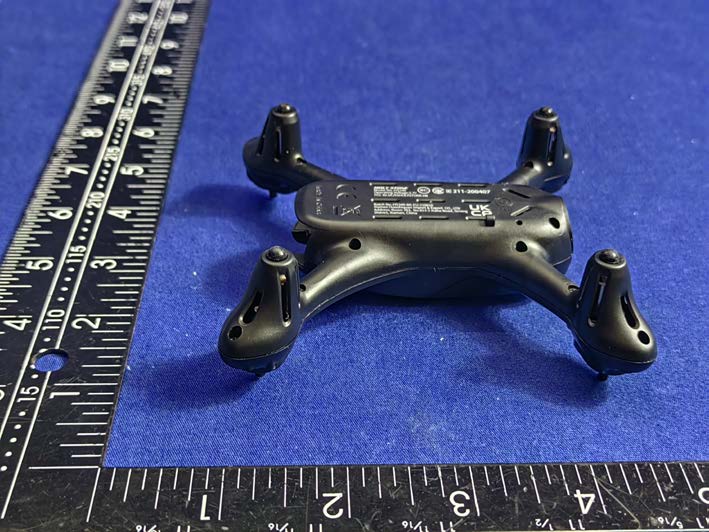

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

Label location

EUT INTERNAL PHOTOGRAPHS WIFI ANT ----------------The end----------------

FCC ID : 2AJ55HOLYSTONE4W RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 1.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in 20cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 1.2 Measurement Result Mode Max Measured power (dBm) Max tune-up power (dBm) Antenna gain Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2.4G WIF 12.14 13 2.82 1.91 0.0758 1 ----------------THE END OF REPORT---------------

Report No. ENS2202210082W00201R Page 1 of 54 Ver.1.0 TEST REPORT Product Name ： quadcopter Model Number ： HS340, HT02, HT02W, HT25, HT25W, HS260, D23, D23W, HS320, HT30, HS610, HS176, HS290, HS380, HS390, HS400, HS460, HS480, HS490, HS500, HS520, HS530, HS540, HS560, HS570, HS580, HS590, HS610, HS620, HS630, HS640, HS660, HS670, HS680, HS690, HS730, HS740, HS750, HS760, HS770, HS780, HS790, HS800, HS810, HS820, HS830, HS840, HS850, HS860, HS870, HS880, HS890, HS900, HS910, HT300, HT40, HT15, HT35, HT45, HT05, HT10, D11, D33, D60, D70, D80, D35, D55, D20L, HS130, HS280, HT50, HT60, HT65, HT70 HT75, HT90, D65, D75, D85 FCC ID ： 2AJ55HOLYSTONE4W Prepared for : Xiamen Huoshiquan Import & Export CO., LTD Address : Unit. 33, Room 806, NO. 2 Huming Road, Siming District, Xiamen, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone,Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2202210082W00201R Date(s) of Tests : February 28, 2022 to March 31, 2022 Date of issue : March 31, 2022 $二维码$ Report No. ENS2202210082W00201R Page 2 of 54 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................................. 6 4.2 MEASUREMENT EQUIPMENT USED ............................................................................................ 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 8 5.1 FACILITIES ...................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ....................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP ........................................................................................ 11 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ........................................................... 12 7.5 SUPPORT EQUIPMENT ................................................................................................................ 12 8 TEST REQUIREMENTS ......................................................................................................................... 13 8.1 DTS (6DB) BANDWIDTH ............................................................................................................... 13 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ..................................................................... 19 8.3 MAXIMUM POWER SPECTRAL DENSITY ................................................................................... 26 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ................................... 32 8.5 RADIATED SPURIOUS EMISSION ............................................................................................... 37 8.6 CONDUCTED EMISSIONS TEST ................................................................................................. 50 8.7 ANTENNA APPLICATION .............................................................................................................. 53 Report No. ENS2202210082W00201R Page 3 of 54 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Xiamen Huoshiquan Import & Export CO., LTD Address Unit. 33, Room 806, NO. 2 Huming Road, Siming District, Xiamen, China Manufacturer : Xiamen Huoshiquan Import & Export CO., LTD Address Unit. 33, Room 806, NO. 2 Huming Road, Siming District, Xiamen, China EUT : quadcopter Model Name : HS340, HT02, HT02W, HT25, HT25W, HS260, D23, D23W, HS320, HT30, HS610, HS176, HS290, HS380, HS390, HS400, HS460, HS480, HS490, HS500, HS520, HS530, HS540, HS560, HS570, HS580, HS590, HS610, HS620, HS630, HS640, HS660, HS670, HS680, HS690, HS730, HS740, HS750, HS760, HS770, HS780, HS790, HS800, HS810, HS820, HS830, HS840, HS850, HS860, HS870, HS880, HS890, HS900, HS910, HT300, HT40, HT15, HT35, HT45, HT05, HT10, D11, D33, D60, D70, D80, D35, D55, D20L, HS130, HS280, HT50, HT60, HT65, HT70 HT75, HT90, D65, D75, D85 Trademark : Holy Stone Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. Date of Te s t : February 28, 2022 to March 31, 2022…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
