2AJ55HOLYSTONED7quadcopter

D70 V 1.0 Instructions For Use Gebrauchsanweisungen +1(855)777-8866 [email protected] (USA)[email protected] (EU) [email protected] (JP) English01-33 Deutsch 日本語 34-59 60-90 Contents Disclaimer & Warning ................................................................................ Safety Guidelines ......................................................................................... Maintenance ................................................................................................. Package Contents ........................................................................................ Drone Details ................................................................................................ Transmitter Functions ................................................................................ Joystick Mode ............................................................................................... Preparation Before Flight Charging .................................................................................................. Download App ...................................................................................... Arms .......................................................................................................... Drone Battery ......................................................................................... Propellers ................................................................................................. Phone Holder ......................................................................................... Flight Pairing ....................................................................................................... Connect to Wi-Fi .................................................................................... One Key Takeoff/Landing .................................................................. Functions Details Take Photo/Record Video .................................................................. Camera Angle Adjustment ................................................................ High-Speed Rotation ............................................................................ Circle Fly ................................................................................................... Speed Switch .......................................................................................... 1 1 5 6 7 8 9 10 11 11 12 13 14 15 16 17 18 18 19 19 20 Emergency Stop .................................................................................... 360° Flip .................................................................................................. Altitude-Hold Function ....................................................................... Headless Mode ...................................................................................... Attitude Adjustment Trimmer ................................................................................................... Calibrate the Gyro................................................................................. Specification .................................................................................................. Contact Us ..................................................................................................... General Information ................................................................................... 20 21 21 22 24 25 26 27 28 -1- SAFETY GUIDELINES CHECK BEFORE USE DISCLAIMER & WARNING 1. Please read this Disclaimer & Warning and Safety Guidelines carefully before using our product. This product is not recommended for people under the age of 14. By using this product, you hereby agree to this disclaimer and signify that you have read it fully. You agree that you are responsible for your own conduct and any damage caused while using this product, and any consequence. You agree to only use this product for it's designed purposes and in accordance with the local laws, regulations and all applicable policies and guidelines that DEERC may provide. 2. When using this product, please be sure to strictly abide by the specification requirements and safety guidelines stated in this document. Any personal injury, property damage, legal disputes and all other adverse events caused by the violation of any of the safety instructions or due to any other factor, WILL NOT be DEERC’s responsi- bility. This product is a high precision drone that integrates various electronic stability and control mechanisms. Please be sure to configure this drone carefully and correctly to ensure safe, accident-free operation Ensure that the batteries of the drone and transmitter are clean, undamaged, and fully charged before every use. Ensure that all the propellers are undamaged and are installed in the correct orientation. -2- FLIGHT ENVIRONMENT Fly in Open Areas Maintain Line of Sight - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Fly Below 131 ft (40 m) Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear off on the propellers, battery power and effectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved. Avoid flying over or near obstacles, crowds, high voltage power lines, trees, airports or bodies of water. DO NOT fly near strong electromagnetic sources such as power lines and base stations as it may affect the onboard compass. DO NOT use this drone in adverse weather conditions such as rain, snow, fog, and wind. SAFETY GUIDELINES -3- OPERATION REQUIREMENTS USE OF BATTERY ⑥ Stay away from the rotating propellers and motors. DO NOT fly in any spaces where drones are prohibited. Please respect people's right…

Text truncated - open the document above for the full version.

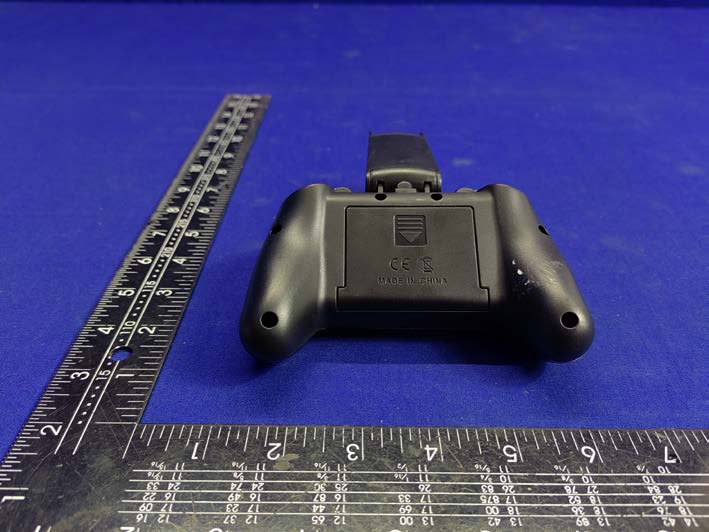

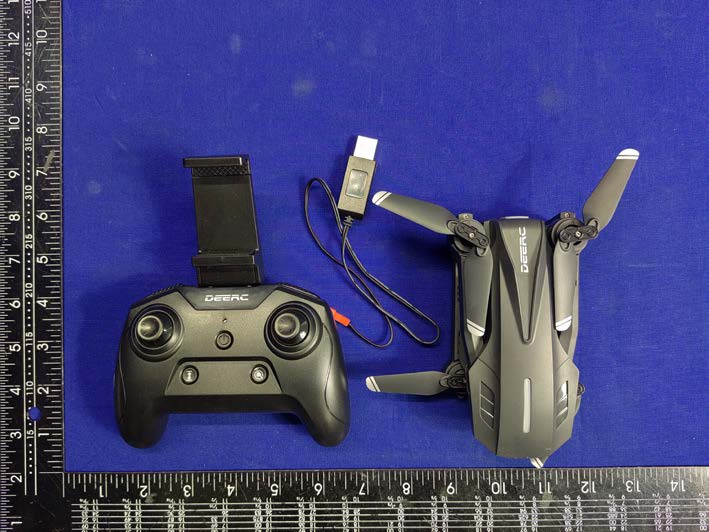

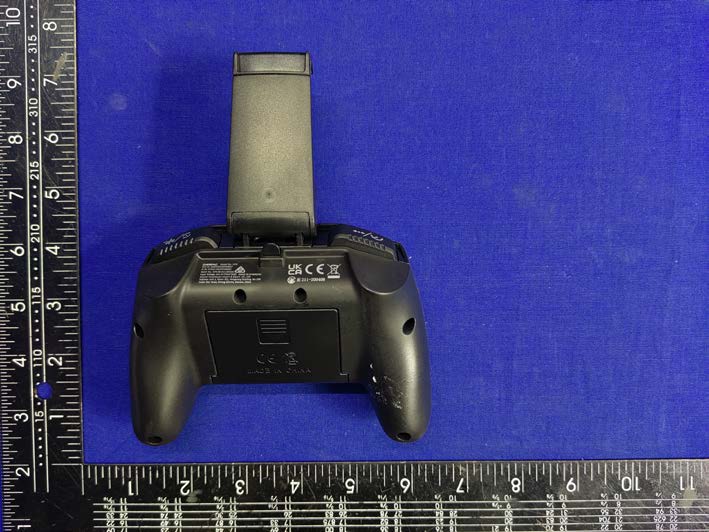

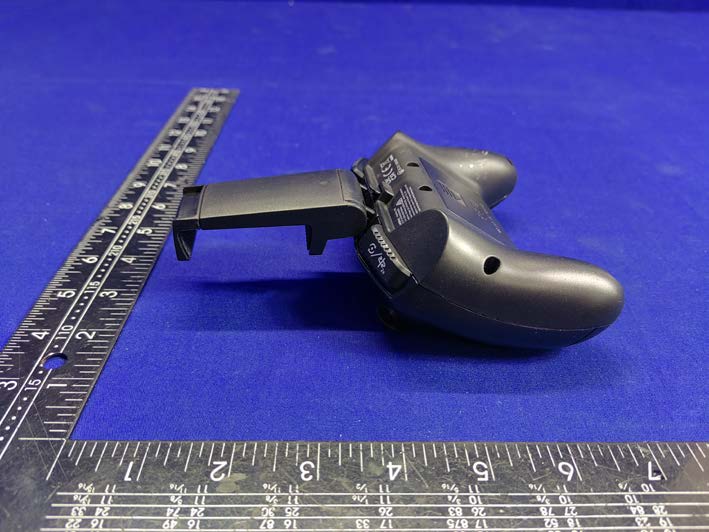

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

EUT INTERNAL PHOTOGRAPHS SRD 2.4G ANT ----------------The end----------------

Antenna Specification for Approval 2.4G Copper tube antenna C113F-BT450-93R Customer Name： Product Name： Product Name: Part NO.: Write By： Issued Date: 2019-4-15 Product Specification A.Electrical Characteristics Frequency 2400MHz ~2500MHz VSWR <2.0 Efficiency >75% Impedance 50 Ohm Polarization Line Gain 2DBi B.Material & Mechanical Characteristics Material of Radiator Cu Cable Type 1.13 Connector Type : NO Dimension C.Environmental Operation Temperature - 30 °C ~ + 80 °C Storage Temperature - 30 °C ~ + 85 °C Test Equipment & Conditions 1．Network Analyzers : Agilent 8753D 5071B 2． Communications Test Set: Agilent E5515C 3． 3D Chamber Test System Effiency &Gain Freq Effi Gain (MHz) (%%) (dBi) 2400 76.95 2.4 2410 74.84 2.86 2420 74.68 2.8 2430 72.55 2.97 2440 66.66 2.51 2450 72.06 2.73 2460 71.87 2.86 2470 72.95 2.80 2480 72.43 2.78 2490 68.41 2.72 2500 67.46 2.33 S11 Radiation Pattern: XY XZ YZ 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500

Report No. ENS2212130001W00201R Page 1 of 31 Ver.1.0 TEST REPORT Product Name ： quadcopter Model Number ： D70, D70S, D70E, D70R, D70G, D60, D60S, D60E, D60G, HS120S, HS270D, HS270S, F7, D65, D75, D80, D85, D90, D11, D33, D100, D200, HT40, HT50, HT60, HT65, HT70, HT300, HS290, HS320, HS390, HS410, HS460, HS480, HS490, HS520, HS530, HS540, HS560, HS570, HS580, HS590, HS610, HS620, HS630, HS640, HS650, HS660, HS670, HS680, HS690, HS730, HS740, HS750, HS760, HS770, HS780, HS790, HS810, HS820, HS900, HS176, HS101, HS155, HS176, D89, DC10, DC11, DC12, HS210F, JY08, JY03, JY01, 1812, Z6pro FCC ID ： 2AJ55HOLYSTONED7 Prepared for : Xiamen Huoshiquan Import & Export CO., LTD Address : Unit 1, Room 501, Hongxiang Building, No.258 Hubin Nan Road, Siming District, Xiamen, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2212130001W00201R Date(s) of Tests : December 13, 2022 to January 3, 2023 Date of issue : January 3, 2023 $二维码$ Report No. ENS2212130001W00201R Page 2 of 31 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................ 6 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 9 5.1 FACILITIES .................................................................................................................................... 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 9 6 TEST SYSTEM UNCERTAINTY ............................................................................................................ 10 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP 1 ......................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2 ......................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ..................................................................................... 13 7.4 SUPPORT EQUIPMENT ............................................................................................................. 13 8 TEST REQUIREMENTS ......................................................................................................................... 14 8.1 BANDWIDTH TEST ..................................................................................................................... 14 8.2 RADIATED SPURIOUS EMISSION ............................................................................................. 17 8.3 CONDUCTED EMISSIONS TEST ............................................................................................... 29 8.4 ANTENNA APPLICATION ............................................................................................................ 30 Report No. ENS2212130001W00201R Page 3 of 31 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Xiamen Huoshiquan Import & Export CO., LTD Address : Unit 1, Room 501, Hongxiang Building, No.258 Hubin Nan Road, Siming District, Xiamen, China Manufacturer : Xiamen Huoshiquan Import & Export CO., LTD Address : Unit 1, Room 501, Hongxiang Building, No.258 Hubin Nan Road, Siming District, Xiamen, China EUT : quadcopter Model Name : D70, D70S, D70E, D70R, D70G, D60, D60S, D60E, D60G, HS120S, HS270D, HS270S, F7, D65, D75, D80, D85, D90, D11, D33, D100, D200, HT40, HT50, HT60, HT65, HT70, HT300, HS290, HS320, HS390, HS410, HS460, HS480, HS490, HS520, HS530, HS540, HS560, HS570, HS580, HS590, HS610, HS620, HS630, HS640, HS650, HS660, HS670, HS680, HS690, HS730, HS740, HS750, HS760, HS770, HS780, HS790, HS810, HS820, HS900, HS176, HS101, HS155, HS176, D89, DC10, DC11, DC12, HS210F, JY08, JY03, JY01, 1812, Z6pro Trademark : Holy Stone Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.249 The test results of this report relate only to the tested sample identified in this report Date of Test : December 13, 2022 to January 3, 2023 Prepared by : Luo peiye /Editor Reviewer : Joe Xia/Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No. ENS2212130001W00201R Page 4 of 31 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Product: quadcopter Model Number: D70, D70S, D70E, D70R, D70G, D60, D60S, D60E, D60G, HS120S, HS270D, HS270S, F7, D65, D75, D80, D85, D90, D11, D33, D100, D200, HT40, HT50, HT60, HT65, HT70, HT300, HS290, HS320, HS390, HS410, HS460, HS480, HS490, HS520, HS530, HS540, HS560, …

Text truncated - open the document above for the full version.

1.1. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
