2AJ55HOLYSTONEBMRemote ID Broadcast Module

X iamen Hu os h i qu an I m p o r t & Exp o r t CO., LTD Attestation Statements 2-18-2023 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Par! 2.911(d)(7) request for 2AJSSHOLYSTONEBM Xiamen Huoshiquan Import & Export CO., LTD, the undersigned, hereby authorize ZIIGU INC to act as our designated U.S. agent for service of process, Xiamen Huoshiquan Import & Export CO., LTD accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. ZIIGU INC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information: Company name: Xiamen Huoshiquan Import & Export CO., LTD Contact Name: Junxian Chen Address: Unit 1, Room 501, Hongxiang Building, No.258 Hubin Nan Road, Siming District, Xiamen, China Telephone No: +86 13358327006 Email: [email protected] 占γt.,1协γU (k U.S. Agent Information: Company Name: Z川GU INC Address: 1810 E SAHARA AVE STE 215 LAS VEGAS, NV 89104 FRN: 0033411737 Contact Name: CLOVER Telephone No: 626-244-9541 Email: [email protected] ob阳

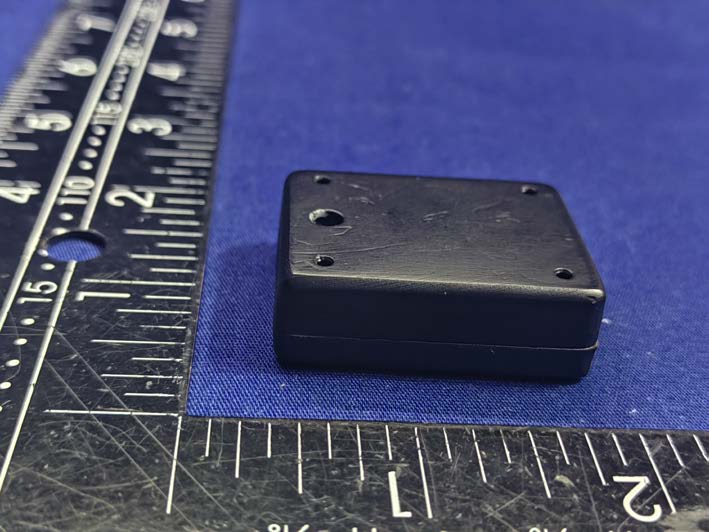

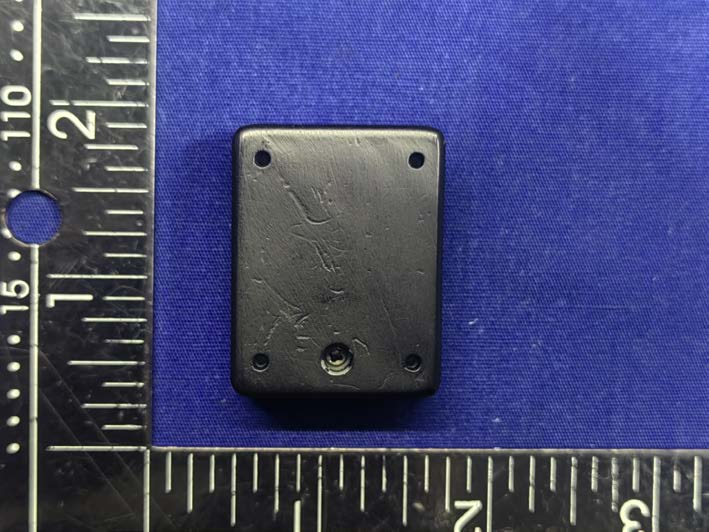

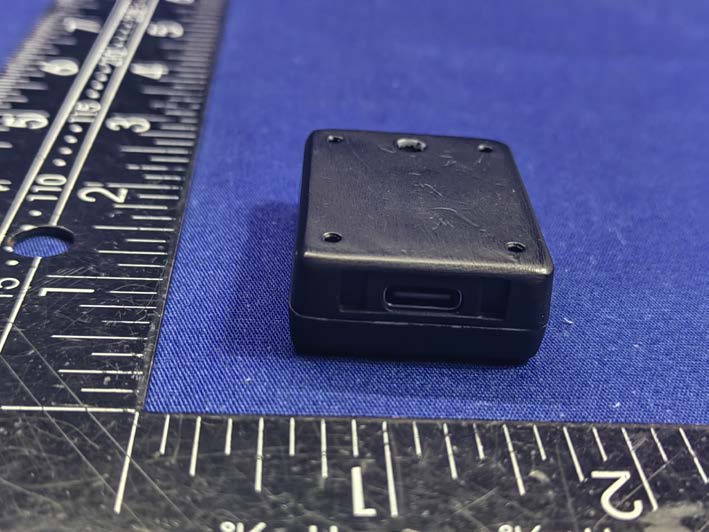

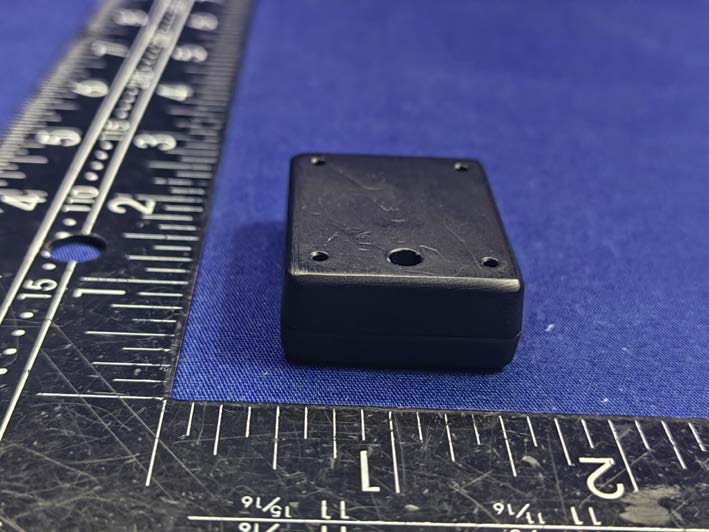

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

Model No.: HSRID01 FCC ID: 2AJ55HOLYSTONEBM Operating Voltage: 3.7 V Batch No.: HSRID-B-EU-220213 Xiamen Huoshiquan Import & Export CO., LTD Address: Unit 1, Room 501, Hong Xiang Building, No.258 Hubin Nan Road, Siming District, Xiamen, China MADE IN CHINA (CN)

EUT INTERNAL PHOTOGRAPHS Antenna ----------------The end----------------

FCC ID : 2AJ55HOLYSTONEBM RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result BLE Antenna gain: 0.59dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) -0.89 0 to 1 1 1.15 0.00029 1

Report No. ENS2302060023W00201R Page 1 of 64 Ver.1.0 TEST REPORT Product Name ： Remote ID Broadcast Module Model Number ： HSRID01, HSRID02, HSRID03, HSRID04, HSRID05, HSRID06, HSRID07, HSRID08, HSRID09 FCC ID ： 2AJ55HOLYSTONEBM Prepared for : Xiamen Huoshiquan Import & Export CO., LTD Address : Unit 1, Room 501, Hongxiang Building, No.258 Hubin Nan Road, Siming District, Xiamen, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2302060023W00201R Date(s) of Tests : February 6, 2023 to February 10, 2023 Date of issue : February 10, 2023 $二维码$ Report No. ENS2302060023W00201R Page 2 of 64 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ....................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ..................................................................................................... 5 3 SUMMARY OF TEST RESULT .......................................................................................................... 6 4 TEST METHODOLOGY ..................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 7 4.2 MEASUREMENT EQUIPMENT USED ....................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................. 9 5 FACILITIES AND ACCREDITATIONS ............................................................................................. 10 5.1 FACILITIES ............................................................................................................................... 10 5.2 EQUIPMENT ............................................................................................................................. 10 5.3 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................ 10 6 TEST SYSTEM UNCERTAINTY ...................................................................................................... 11 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................... 12 7.1 RADIO FREQUENCY TEST SETUP 1 ..................................................................................... 12 7.2 RADIO FREQUENCY TEST SETUP 2 ..................................................................................... 12 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................. 15 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................... 16 7.5 SUPPORT EQUIPMENT .......................................................................................................... 16 8 TEST REQUIREMENTS ................................................................................................................... 17 8.1 DTS 6DB BANDWIDTH ............................................................................................................ 17 8.2 DTS 99% BANDWIDTH ............................................................................................................ 21 8.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................... 25 8.4 MAXIMUM POWER SPECTRAL DENSITY ............................................................................. 30 8.5 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ............................. 34 8.6 RADIATED SPURIOUS EMISSION ......................................................................................... 49 8.7 CONDUCTED EMISSIONS TEST ............................................................................................ 61 8.8 ANTENNA APPLICATION ......................................................................................................... 64 Report No. ENS2302060023W00201R Page 3 of 64 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Xiamen Huoshiquan Import & Export CO., LTD Address : Unit 1, Room 501, Hongxiang Building, No.258 Hubin Nan Road, Siming District, Xiamen, China Manufacturer : Xiamen Huoshiquan Import & Export CO., LTD Address : Unit 1, Room 501, Hongxiang Building, No.258 Hubin Nan Road, Siming District, Xiamen, China EUT : Remote ID Broadcast Module Model Name : HSRID01, HSRID02, HSRID03, HSRID04, HSRID05, HSRID06, HSRID07, HSRID08, HSRID09 Trademark : Holy Stone Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS IC RSS-GEN, Issue 5(04-2018)+A1(03-2019)+A2(02-2021) IC RSS-247 Issue 2(02-2017) PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2, Part 15.247, IC RSS-247 Issue 2 and IC RSS-GEN, Issue 5. The test results of this report relate only to the tested sample identified in this report. Date of Test : February 6, 2023 to February 10, 2023 Prepared by : Luo peiye /Editor Reviewer : Joe Xia /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No. ENS2302060023W00201R Page 4 of 64 Ver.1.0 Modified History Version Report No. Revision Date Summary V1.0 ENS2302060023W00201R / Original Report Report No. ENS2302060023W00201R Page 5 of 64 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Characteristics Description Product: Remote ID Broadcast Module Model Number: HSRID01, HSRID02, HSRID03, HSRID04, HSRID05, HSRID06, HSRID07, HSRID08, HSRID09 Sample nu…

Text truncated - open the document above for the full version.

Dongguan Lixinwei Electronics Co., Ltd Antenna test report Customer Name： Meijiaxin Innovative Technology Co.,Ltd Product Name： 2.4G antenna length 36 Product Name: Part NO.: C14-33-3 Write By： Zhou Min Issued Date: 2022-6-25 Customer: R&D DeptBusiness DeptApproved By Supplier R&D Dept Engineer Dept Approval Test Equipment & Conditions 1． Network Analyzers : Agilent 8753D 5071B 2． Communications Test Set: Agilent E5515C 3． 3D Chamber Test System Specification Overview electrical characteristics frequency 2400MHz ~2500MHz Return loss <-10dB productiveness >27% gain 0.59 dbi impedance 50 ohm Polarization mode linear polarization Material and mechanical properties material / Wire type Wire diameter 1.4 mm Terminal type / Drawing size See drawing for details silk-screen printing / Environmental characteristics Storage temperature - 30 ̊C ~ + 85 ̊C FPCwelding temperature / RF wire welding temperature 320±5°C 2-3 s Matching circuit Return Loss L1 / L2 / L3 / L4 / The matching circuit of the original main board Module end Antenna end L1 L2 L3 L4 Effiency &Gain Freq (MHz) Effi (%) Gain (dBi) 2400 23.66 0.47 2410 23.19 0.38 2420 23.03 0.49 2430 22.41 0.42 2440 21.67 0.45 2450 20.24 0.52 2460 20.61 0.51 2470 21.41 0.59 2480 23.89 0.56 2490 26.46 0.53 2500 25.73 0.46 Radiation Pattern Reliability test Test items Test conditions equipment standard result 1 Low temperature test Temperature: - 30 °C, humidity: 65%, time: 48 hours Test conditions: Place the antenna in a high and low temperature test box, keep the temperature at 25 °C and humidity at 65% for 1 hour, then reduce the temperature to - 30 °C within 1 hour, keep it for 44 hours, and then raise the temperature to 25 °C, keep it for 2 hours High and low temperature tester Material deformation is not allowed Good electronic performance pass 2 hot test Temperature: 85 °C, humidity: 85%, time: 48 hours Test conditions: Place the antenna in a high and low temperature test box, keep the temperature at 25 °C and the humidity at 65% for 1 hour, and then raise the temperature to 80 °C and the humidity at 85% for 44 hours within 1 hour, and then lower the temperature to 25 °C for 2 hours. High and low temperature tester Material deformation is not allowed Good electronic performance pass 3 Salt spray test Salt spray test: Place the antenna in the salt spray tester Set up the test environment: Temperature 35 ± 2 °C Humidity 85% Salt spray: 5 ± 1% PH value 6.5~7.2 Time: 24 hours Salt spray tester No color change No rust pass

Report No. ENS2302060023W00201R Page 40 of 64 Ver.1.0 BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 BLE_2M_Ant1_Low_2402 Report No. ENS2302060023W00201R Page 41 of 64 Ver.1.0 BLE_2M_Ant1_High_2480 Report No. ENS2302060023W00201R Page 42 of 64 Ver.1.0 TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 30~1000 -3.41 -49.21 ≤-23.41 PASS 1000~26500 -3.41 -44.79 ≤-23.41 PASS 2440 30~1000 -2.44 -48.12 ≤-22.44 PASS 1000~26500 -2.44 -44.98 ≤-22.44 PASS 2480 30~1000 -1.57 -49.32 ≤-21.57 PASS 1000~26500 -1.57 -44.38 ≤-21.57 PASS BLE_2M Ant1 2402 30~1000 -4.00 -48.8 ≤-24 PASS 1000~26500 -4.00 -44.08 ≤-24 PASS 2440 30~1000 -3.05 -49.61 ≤-23.05 PASS 1000~26500 -3.05 -45.7 ≤-23.05 PASS 2480 30~1000 -2.17 -49.2 ≤-22.17 PASS 1000~26500 -2.17 -45.65 ≤-22.17 PASS Report No. ENS2302060023W00201R Page 43 of 64 Ver.1.0 BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_30~1000 Report No. ENS2302060023W00201R Page 44 of 64 Ver.1.0 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_30~1000 Report No. ENS2302060023W00201R Page 45 of 64 Ver.1.0 BLE_1M_Ant1_2480_1000~26500 BLE_2M_Ant1_2402_30~1000 Report No. ENS2302060023W00201R Page 46 of 64 Ver.1.0 BLE_2M_Ant1_2402_1000~26500 BLE_2M_Ant1_2440_30~1000 Report No. ENS2302060023W00201R Page 47 of 64 Ver.1.0 BLE_2M_Ant1_2440_1000~26500 BLE_2M_Ant1_2480_30~1000 Report No. ENS2302060023W00201R Page 48 of 64 Ver.1.0 BLE_2M_Ant1_2480_1000~26500 Report No. ENS2302060023W00201R Page 49 of 64 Ver.1.0 8.6 RADIATED SPURIOUS EMISSION 8.6.1 Applicable Standard According to FCC Part 15.247(d),15.205, 15.209 and KDB 558074 D01 15.247 Meas Guidancev05r02 According to IC RSS-Gen and RSS-247 8.6.2 Conformance Limit According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). According to FCC Part15.205, Restricted bands MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 10.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475-156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2690-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3600-4400 (2) 13.36-13.41 According to FCC Part15.205,the level of any transmitter spurious emission in Restricted bands shall not exceed the level of the emission specified in the following table Restricted Frequency(MHz) Field Strength (μV/m) Field Strength (dBμV/m) Measurement Distance 0.009-0.490 2400/F(KHz) 20 log (uV/m) 300 0.490-1.705 24000/F(KHz) 20 log (uV/m) 30 1.705-30 30 29.5 30 30-88 100 40 3 88-216 150 43.5 3 216-960 200 46 3 Above 960 500 54 3 8.6.3 Test Configuration Test according to clause 7.2 radio frequency test setup 2 8.6.4 Test Procedure This test is required for any spurious emission that falls in a Restricted Band, as defined in Section 15.205. It must be performed with the highest gain of each type of antenna proposed for use with the EUT. Use the following spectrum analyzer settings: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 1 MHz for f ≥ 1 GHz(1GHz to 25GHz), 100 kHz for f < 1 GHz(30MHz to 1GHz) Report No. ENS2302060023W00201R Page 50 of 64 Ver.1.0 VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold Follow the guidelines in ANSI C63.10-2013 with respect to maximizing the emission by rotating the EUT, measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the measurement antenna height and polarization, etc. A pre-amp and a high pass filter are required for this test, in order to provide the measuring system with sufficient sensitivity. Allow the trace to stabilize. The peak reading of the emission, after being corrected by the antenna factor, cable loss, pre-amp gain, etc., is the peak field strength, which must comply with the limit specified in Section 15.35(b). Submit this data. Now set the VBW to 10 Hz, while maintaining all of the other instrument settings. This peak level, once corrected, must comply with the limit specified in Section 15.209. If the dwell time per channel of the hopping signal is less than 100 ms, then the reading obtained with the 10 Hz VBW may be further adjusted by a “duty cycle correction factor”, derived from 20log(dwell time/100 ms), in an effort to demonstrate compliance with the 15.209 limit. Submit this data. Repeat above procedures until all frequency measured was complete. 8.6.5 Test Results Temperature: 22 ̊ C Relative Humidity: 43% ATM Pressure: 1011 mbar  Spurious Emission below 30MHz(9KHz to 30MHz) Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV -- -- -- -- -- -- -- -- Note: the amplitude of spurious emission that is attenuated by more than 20dB below the permissible limit has no need to be reported. Distance extrapolation factor =40log(Specific distance/ test distance)( dB); Limit line=Specific limits(dBuV) + distance extrapolation factor Report No. ENS2302060023W00201R Page 51 of 64 Ver.1.0  Spurious Emission Above 1GHz(1GHz to 25GHz) All the antenna(Antenna 1) and modes(BLE_1M, BLE_2M) mode have been tested, and the worst(Antenna 1,BLE_1M) resultrecorded was report as below: Test mode: BLE_1M Frequency: Channel 0: 2402MHz Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV 4…

Text truncated - open the document above for the full version.

Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
