BLUETOOTH HANDSFREE CAR KIT with noise cancellation technology Model: BT88C User Manual Brief Introduction Thanks for choosing our Bluetooth FM Transmitter. This device streams music and call directly from your Bluetooth devices to your car FM stereo system. The separated microphone provides you with an amazing hands free function and it also features quick charge 3.0 greatly saving your mobile charging time. Please read the user manual carefully before using. Hope this device makes your driving more interesting and safer. Packing contents:  Bluetooth device  User manual  Hook and loop fasteners Specification:  Bluetooth version: Action V5.0  Bluetooth protocol: AVRCP,HFP,A2DP  Frequency range: 87.5-108.0MHZ  Frequency stability: ±10ppm  Product input:12-24V  Charger output: QC3.0 +5V/1A  Music format: MP3/WAV/WMA/APE /FLAC  USB disk (Max capacity): 32G  Bluetooth transmission Distance: 7m  Product size of FM transmitter: Ф33.8*78.2mm  Product size of Microphone: Ф28.0*12.0mm  Length of cable: 60cm  Product weight: 37.6g  Material: ABS Features: 1. Wirelessly transmits phone call & audio to the car FM stereo system via Bluetooth. 2. Switches to handsfree mode automatically from music streaming status when receiving phone call. 3. Adopts ProMic to get a better voice pickup . 4. Dual USB ports output: QC3.0 +5V/1A. 5. Detects and display the voltage of car battery when powered on. 6. Full 206 channels optional from 87.5-108MHz. 7. Supports to read USB disk. 8. Quickly activate Siri,Google Assistant etc. 9. User-friendly switch to private call. 10. Hook and loop fasteners. Compatibility: This device can be paired as a hands free kit with any compatible Bluetooth enabled devices. Precautions: Please read all safety instruction and warnings carefully before using this product. Improper use of this product may result in damage. To ensure it works well, please never use this in the following conditions : 1. Moist or underwater conditions. 2. Conditions near heater or high-temperature service. 3. Conditions with direct and strong sunshine. 4. Conditions with apt falling. 5 Never dismantle the product without due permission, otherwise it may nullify the warranty clause. Product Overview: Using FM Transmitter function: 1. Plug the FM transmitter into your vehicle’s cigarette lighter or power port. The LED displays the voltage of car battery for 3 seconds. Then the device enters into Bluetooth pairing mode, LED also displays “bt”. 2. Tune your radio to an unused FM frequency, then match the same frequency of this unit. 3. Insert a USB disk containing MP3 files into USB disk slot of this unit and it will play and transmit the MP3 files automatically. Using Bluetooth function: 1. Paste 3M Adhesive Tape on the place you need. 2. Using Bluetooth for the first time, you need to pair your mobile phone with this unit. Activate your mobile phone's Bluetooth function, then search new device. When the mobile phone detects this unit (named as "BT88C"), please pair or connect by using the original password "0000" if request. 3. In the music playing mode, when there is an incoming call, this unit will automatically switch to telephone mode. 4. On music playing mode, press to pause music for 3 seconds. The device will automatically switch USB mode if there is a USB disk. Bluetooth calling: 1. Please press to answer the incoming call or hang off a call. 2. Please press and hold for 2 seconds during call to reject the incoming call in Bluetooth calling mode. 3. Please press twice to dial the last number automatically. 4. When the call connected , long press to switch a private call. Using USB charger function: Connect the USB Charger port (two ports both ok) to your mobile phone, with a USB cable (not included) when this product powered from car lighter socket, The product will serve as mobile phone charger. Please note: The maximum output of right USB port is 1mAh; The left USB port is quick charge 3.0 ; Read MP3/WAV/WMA/APE /FLAC files in USB disk by right USB port. About QC3.0 USB Port: If your mobile support the Quick charge, it will charge based on Qualcomm QC 3.0 protocol. Here also listed the compatible Devices for reference: Galaxy S7/S6/Edge/Edge Plus, Galaxy Note 5/4/ Edge, LG G4/G5,LG G Flex2,Nexus 6,HTC One M8/ M9,Droid Turbo, Xperia Z3/Z3 Compact/Z3 Tablet Compact/Z4 Tablet and many more (please check the official Qualcomm QC product list for more update) But if you plug mobile which not listed among above, it will detect the phone voltage automatically and output accordingly. Siri/Google assistant activation: When Bluetooth is connected successfully, press and hold 3 seconds to quick activate Siri/Google assistant of your mobile phone. Quick Guide: Operation Guide On FM transmitter 1. Answer / hang up the call: Press "" button: answer the call Press "" button: hang up the call 2. Ignore call Press “” and hold for 3 seconds to reject incoming calls 3. Call last Number Press “” twice to dial the last number automatically. 4. Private calling When answering a call ,press “” and hold for 3 seconds to switch to private call mode. 5. Play and Pause the music: Press button: Play the music Press button again: Pause playing 6. Adjust the Volume: Press “ >” and hold for 2 seconds to increase the volume Press “ <” and hold for 2 seconds to decrease volume 7. Set frequency: Press “CH” first Then press “>” : increase the frequency Or press “<”: decrease the frequency 8. Choose music: Press “>” button: play the next song Press “<”button: play the previous song 9. Music sources switch: Under Bluetooth connected, press to pause music for 3 sec. The device will automatically switch USB mode (If there is a USB disk). 10. Activate Siri/Google assistant Under Bluetooth connected, press and hold 3 seconds to quick activate Siri/Google assistant of your mobile phone. FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-12-02> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID 2AJ5B-BT88C Model name BT88C, 60343073694 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Fred Xiao/General Manager Co mpany: SAGE HUMAN ELECTRONICS INTERNATIONAL CO.,LTD. Address: 4F., A Building, Rongli Industrial Park, No.2 Guiyuan Rd. Guihua Community, Guanlan Town, Longhua New Dist., Shenzhen, China Phone: +86-755-28079392 Fax: +86-755-28079393 E -Mail: [email protected]

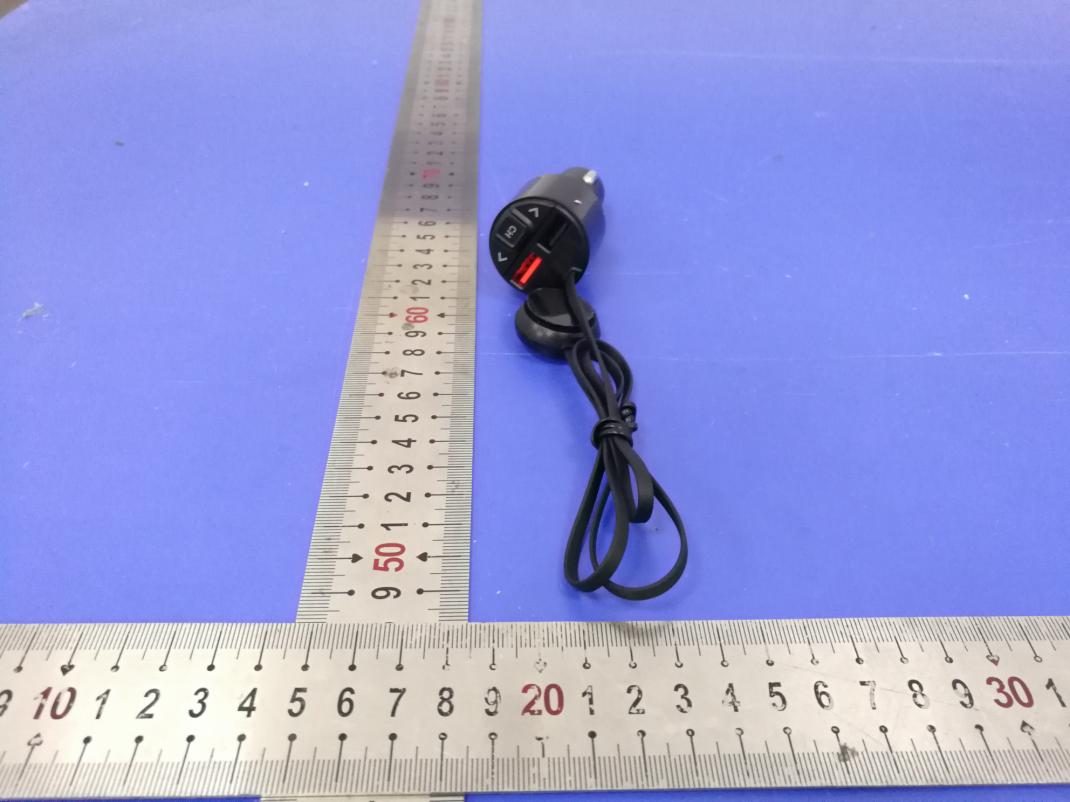

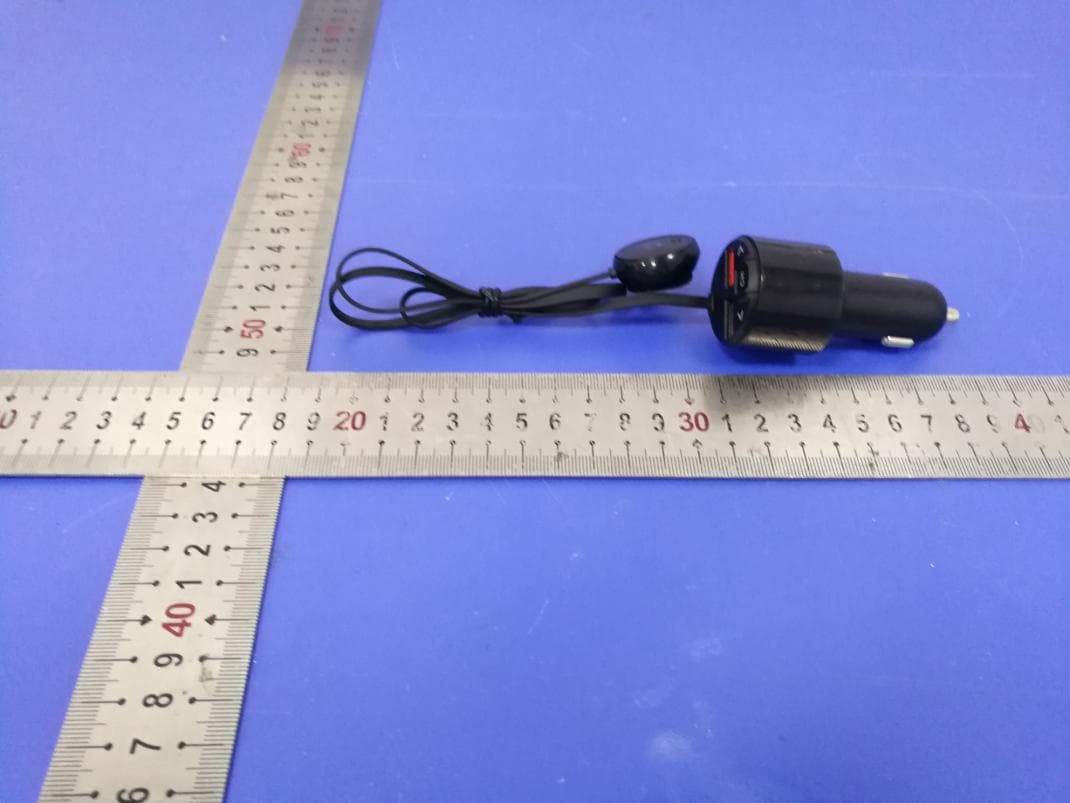

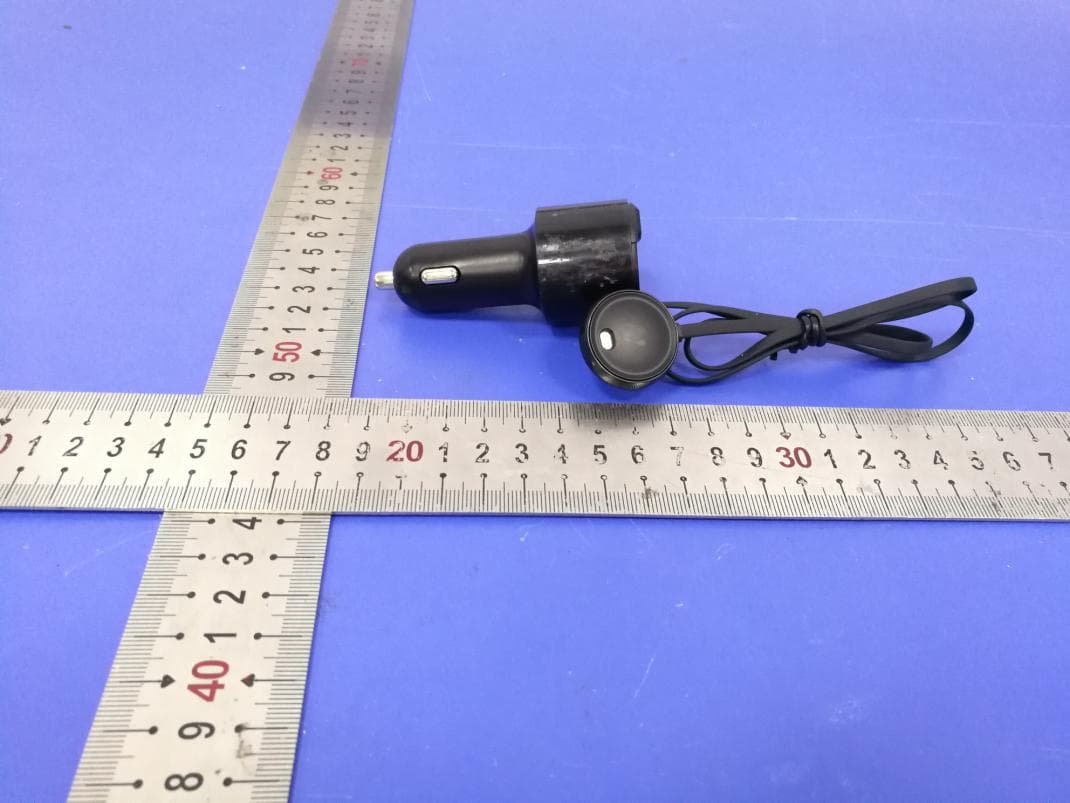

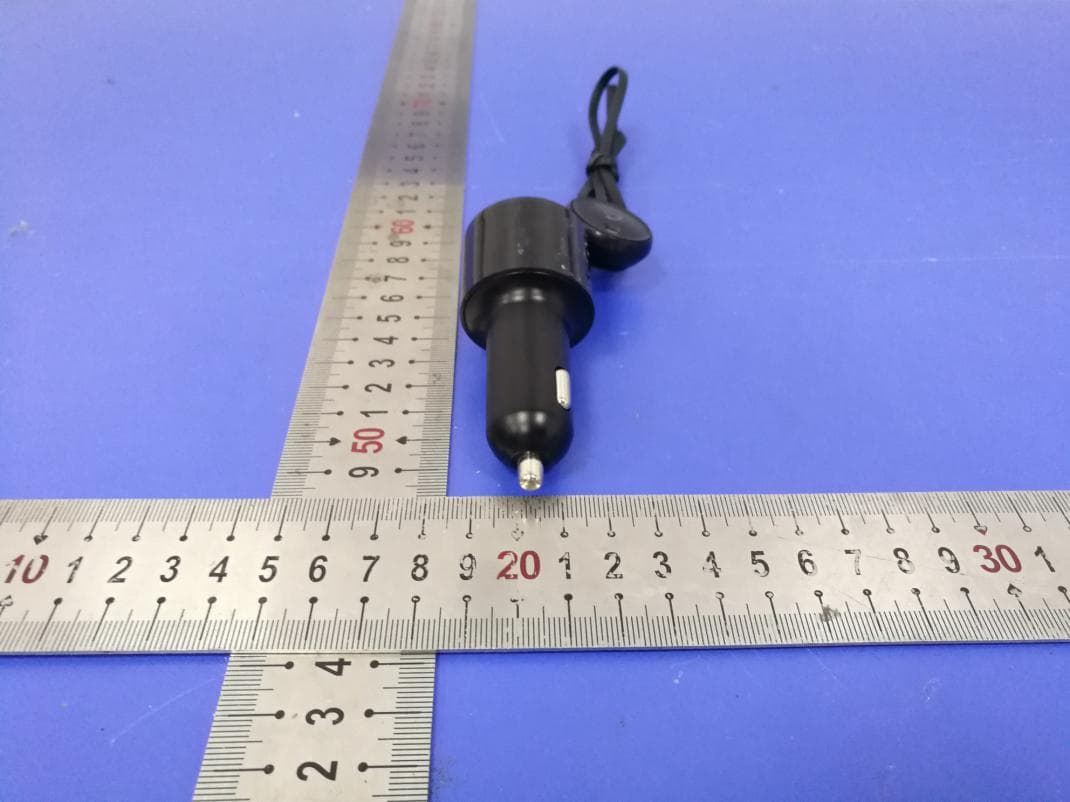

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.5cm*W2.0cm Label And Location BT FM Transmitter with QC/ 1A Dual USB Ports and Handsfree Mic Model No.: BT88C FCC ID: 2AJ5B-BT88C

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Fig. 5 Fig. 6 BT Antenna FM Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AJ5B-BT88C This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID : 2AJ5B-BT88C EUT : BT FM Transmitter with QC/ 1A Dual USB Ports and Handsfree Mic Additional Model No. : BT88C Model Declaration : 60343073694 Test Model : PCB board, structure and internal of these models are the same, Only the model names are different for these models. Power Supply : DC 12-24V Hardware version : BT88C_2819_8027_V1.2/BT88C_8825_8824_V1.2/BT88C_KEY_V 1.0 Software version : V5.0 Bluetooth (2.4G Band) : BluetoothOperation frequency : 2402MHz ~ 2480MHz Bluetooth Version : V5.0 Bluetooth Channel Number : 79 channels for Bluetooth V5.0 (BDR/EDR) Bluetooth Channel Spacing : 1MHz for Bluetooth V4.0 (BDR/EDR) Bluetooth Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (BDR/EDR) Antenna Description Internal Antenna, -0.68dBi(Max.) FM Transmitter Frequency Range : 88.1~107.9MHz Channel Number : 199 Channel Spacing : 100KHz Channel frequency : 88.1~107.9MHz(Channel Number: 199, Channel Frequency=88.1+0.1(K-1), K=1, 2, 3 ......199) Modulation Type : FM Antenna Description : Internal antenna, 1.5 dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Mobile Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AJ5B-BT88C This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AJ5B-BT88C This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information BT88C can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna Identification in Internal photos Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna Bluetooth Internal Antenna 2.4GHz – 2.4835 GHz -0.68 dBi 6. Conducted Power [Bluetooth] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -1.496 39 2441 -2.432 78 2480 -3.951 π/4DQPSK 0 2402 -1.397 39 2441 -2.231 78 2480 -3.764 8-DPSK 0 2402 -0.936 39 2441 -1.599 78 2480 -3.131 7. Manufacturing Tolerance [Bluetooth] GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -2.0 -3.0 Tolerance ± (dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -2.0 -3.0 Tolerance ± (dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 -1.0 -3.0 Tolerance ± (dB) 1.0 1.0 1.0 SHENZHEN L…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 1 of 47 Appendix A RF Test Data for BT V4.1(BDR/EDR) (Conducted Measurement) Product Name: BT FM Transmitter with QC/ 1A Dual USB Ports and Handsfree Mic Trade Mark: cigii Test Model: BT88C Environmental Conditions Temperature: 23.8  C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Ben Jin Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -1.496 30 PASS MCH -2.432 30 PASS HCH -3.951 30 PASS π/4DQPSK LCH -1.397 21 PASS MCH -2.231 21 PASS HCH -3.764 21 PASS 8DPSK LCH -0.936 21 PASS MCH -1.599 21 PASS HCH -3.131 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.7230 Not Specified PASS MCH 0.7261 Not Specified PASS HCH 0.7252 Not Specified PASS π/4DQPSK LCH 1.113 Not Specified PASS MCH 1.117 Not Specified PASS HCH 1.115 Not Specified PASS 8DPSK LCH 1.270 Not Specified PASS MCH 1.271 Not Specified PASS HCH 1.272 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.999 0.484 PASS MCH 1.000 0.484 PASS HCH 1.004 0.484 PASS π/4DQPSK LCH 0.850 0.745 PASS MCH 0.840 0.745 PASS HCH 1.098 0.745 PASS 8DPSK LCH 1.006 0.848 PASS MCH 1.160 0.848 PASS HCH 0.848 0.848 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 17 of 47 Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.9 106.7 0.309 0.4 PASS DH5 MCH 2.9 106.7 0.309 0.4 PASS DH5 HCH 2.9 106.7 0.309 0.4 PASS π/4DQPSK 2DH5 LCH 2.9 106.7 0.31 0.4 PASS 2DH5 MCH 2.9 106.7 0.31 0.4 PASS 2DH5 HCH 2.9 106.7 0.309 0.4 PASS 8DPSK 3DH5 LCH 2.9 106.7 0.31 0.4 PASS 3DH5 MCH 2.9 106.7 0.31 0.4 PASS 3DH5 HCH 2.9 106.7 0.31 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -1.8 -36.947 -21.800 PASS MCH -2.765 -33.923 -22.765 PASS HCH -4.308 -33.117 -24.308 PASS π/4DQPSK LCH -1.936 -38.295 -21.936 PASS MCH -2.873 -32.670 -22.873 PASS HCH -4.308 -36.895 -24.308 PASS 8DPSK LCH -1.807 -38.078 -21.807 PASS MCH -2.87 -33.017 -22.870 PASS HCH -4.445 -29.492 -24.445 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANC…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT For SAGE HUMAN ELECTRONICS INTERNATIONAL CO.,LTD. BT FM Transmitter with QC/ 1A Dual USB Ports and Handsfree Mic Test Model: BT88C Additional Model No. : 60343073694 Prepared for : SAGE HUMAN ELECTRONICS INTERNATIONAL CO.,LTD. Address : 4F., A Building, Rongli Industrial Park, No.2 Guiyuan Rd. Guihua Community, Guanlan Town, Longhua New Dist., Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 28, 2020 Number of tested samples : 2 Sample number : 201023001A-1, 201023001A-2 Serial number : Prototype Date of Test : October 28, 2020 ~ November 20, 2020 Date of Report : November 23, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS201023001AEA Date of Issue .................................. : November 23, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : SAGE HUMAN ELECTRONICS INTERNATIONAL CO.,LTD. Address .......................................... : 4F., A Building, Rongli Industrial Park, No.2 Guiyuan Rd. Guihua Community, Guanlan Town, Longhua New Dist., Shenzhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : BT FM Transmitter with QC/ 1A Dual USB Ports and Handsfree Mic Trade Mark ..................................... : cigii Test Model ...................................... : BT88C Ratings ........................................... : DC 12-24V Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He/ Administrator Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT Test Model............................... : BT88C EUT......................................... : BT FM Transmitter with QC/ 1A Dual USB Ports and Handsfree Mic Applicant............................... : SAGE HUMAN ELECTRONICS INTERNATIONAL CO.,LTD. Address.................................. : 4F., A Building, Rongli Industrial Park, No.2 Guiyuan Rd. Guihua Community, Guanlan Town, Longhua New Dist., Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SAGE HUMAN ELECTRONICS INTERNATIONAL CO.,LTD. Address................................... : 4F., A Building, Rongli Industrial Park, No.2 Guiyuan Rd. Guihua Community, Guanlan Town, Longhua New Dist., Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS201023001AEA November 23, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 November 23, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C Report No.: LCS201023001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) .................................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ5B-BT88C _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Test Setup Photos of the EUT Radiated Emissions Fig. 1 Fig. 2
