2AJ6BBHTV40D000Wearable Haptic Vest

Wearable Haptic Vest User Manual & Warranty www.bhaptics.com © 2020 bHaptics Inc. All rights Reserved. X40X16 Before Getting Started Be sure to read the user manual before using the product to ensure safe and proper use of the product. •Please read carefully the bHaptics Limited Warranty before using the product. •Do not use the product for any purpose other than the intended purpose. •Do not attempt to modify, disassemble or repair the product. •Do not drop the product or subject the product to other forms of strong impacts. •Users with sensitive skin should avoid wearing the product directly on the skin. •Do not excessively pull on the side straps while wearing the product, as it may irritate your body. •This product is not waterproof. Store the product in a dry place free from humidity and moisture. •The main body of the product contains electronic components and must not be washed in water under any circumstances. Should the product need to be cleaned, gently wipe it with a soft cloth. The mesh lining may be removed, and machine washed with neutral detergent. (Do not use strong chemicals or strong detergents.) •The latest user manual for the device and related software can be found at https://www. bhaptics.com/support/download. • a.Rule Part 15.19(a)(3): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. b.Rule Part 15.21: The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Table of Contents 01 Overview General Information 4 What’s in the Box 5 Part Names 6 LED Indicator 8 02 Getting Started Product Charging 9 Power On / Off 10 Product Fitting 11 Enjoy12 03 How to Play PC VR 14 Standalone VR 18 PC Game 20 Music / Movie 20 Console21 04 bHaptics Software bHaptics Player (PC) 23 bHaptics Player (Mobile) 26 bHaptics Studio 29 bHaptics Designer 31 05 Appendix Product Specifications 32 Support34 Health & Safety Warnings 36 Cautions40 Limited Customer Warranty 46 4 Overview Introducing the Tactsuit X40, a wireless haptic vest that packs 40 individually controllable vibro- tactile motors. Stay immersed in your content with positional haptic feedback delivered to every corner of your body. Tactsuit is compatible with a wide range of platforms, including PC, VR, Mobile, and console. Tactsuit X16 is designed to be a strong, yet lightweight haptic vest that you can wear for hours. The short and breathable design makes long sit-down gaming sessions much more enjoyable. Tactsuit X16 packs the same vibro-tactile motors used in the Tactsuit X40, giving you the same powerful haptic feedback. General Information Overview 01 Overview 5 Basic Components Tactsuit X40 or Tactsuit X16 Mesh Lining* *Mesh Lining is attached to the device. Bluetooth DongleUSB-C Type Charging CableManual Additional Components (purchased separately) Additional Components can be purchased from bHaptics online shop. Y JackAudio CableAdditional Mesh Lining What’s in the Box shop.bhaptics.com 6 Overview Part Names Hanger Loop Shoulder Snap Buttons Haptic Motor * 40 Mesh Lining Detachable Logo Zipper Main controller Audio Port Power Button & LED Indicator Audio Cable Holder Side Straps * 4 Elastic Loop Strap Adjuster Charging Port This product uses 3.63V, 9,800mAh, and 35.574Wh battery and charges to 5V (maximum 2A). Overview 7 Part Names Hanger Loop Shoulder Snap Buttons Haptic Motor * 16 Mesh Lining Detachable Logo Zipper Main controller Audio Port Power Button & LED Indicator Charging Port Audio Cable Holder Side Straps * 4 Elastic Loop Strap Adjuster This product uses 3.63V, 4,900mAh, and 17.787Wh battery and charges to 5V (maximum 2A). 8 Overview LED ColorStatus Signature Pattern ActivatedPower on Blinking BlueWaiting to be paired Solid BluePaired Solid PurpleAudio Jack Connected Solid Purple+BlueAudio Jack Connected + Paired Solid RedLow Battery Solid GreenFully Charged LED Indicator Getting Started 9 Getting Started 02 Product Charging Fully charge the device before use for stable use of the device. You can use 2A charging cable included in the package to charge the device. It takes about 5 hours, Tactsuit X40, and 2.5 hours, Tactsuit X16, to fully charge the device using 2A charging current. LED Indication for each battery status Solid Green Fully ChargedChargingLow Battery 0~33%34~66%67~99% Solid RedSolid Red Be sure to use an authorized AC adapter and included charging cable to charge the product. Use of an unauthorized device or accessory may result in personnel injury, may cause damage of the product or your property, and may void your warranty. If the product is left unattended for a long time while the battery is discharged, the LED may not light even if the charging cable is connected. In this case, the light turns on again after charging for more than 1 hour. 10 Getting Started Power On / Off Power on PushLights will turn on in 3 stages Ready to be Paired when Blinking Blue If the power does not turn on, check if it is sufficiently charged. Auto Power Off The device will turn off automatically after 3 minutes if it is not paired. Blinking BlueLights will turn off in 3 stages Manual Power Off Lights will turn off in 3 stages ※ If the device is still paired when powered off, it will pair automatically when you turn on the device again. Getting Started 11 Product Fitting 1 Loosen all the side straps and unzip the zipper. 2 Zip up and pull the side straps (*4) towards the front to adjust the suit and fit to your body. 3 After adjusting the size, organize the straps hanging with the Elastic Loop located at the end of the strap. You do not need to repeat this step again once it is organized to fit yo…

Text truncated - open the document above for the full version.

bHaptics Inc. Add: 70, Yuseong-daero 1689beon-gil, Yuseong-gu, Bldg 3-Unit 503, Daejeon, South Korea January 28, 2021 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AJ6BBHTV40D000 including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from bHaptics Inc. LTA Co.,LTD. (Contact Person) Contact name: Ja-Beom Koo Position: Manager Phone:(82)31-323-6008 E- mail: [email protected] Sincerely, Kiuk Gwak / CEO bHaptics Inc.

bHaptics Inc. Add: 70, Yuseong-daero 1689beon-gil, Yuseong-gu, Bldg 3-Unit 503, Daejeon, South Korea January 28, 2021 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : bHaptics Inc. FCC ID : 2AJ6BBHTV40D000 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), bHaptics Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give bHaptics Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX 2AJ6BBHTV40D000 SCH DIA.pdf Parts list CONF APPENDIX 2AJ6BBHTV40D000 PL.pdf Block diagram CONF APPENDIX 2AJ6BBHTV40D000 BLK DIA.pdf Operational description CONF APPENDIX 2AJ6BBHTV40D000 OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF 2AJ6BBHTV40D000EXT Photo.pdf Internal Photos SHORT-TERM CONF 2AJ6BBHTV40D000 INT Photo.pdf Te s t-Setup Photos SHORT-TERM CONF 2AJ6BBHTV40D000 Test Photo.pdf User’s Manual SHORT-TERM CONF 2AJ6BBHTV40D000 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Kiuk Gwak / CEO bHaptics Inc.

bHaptics Inc. Add: 70, Yuseong-daero 1689beon-gil, Yuseong-gu, Bldg 3-Unit 503, Daejeon, South Korea January 28, 2021 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : bHaptics Inc. FCC Application for FCC ID : 2AJ6BBHTV40D000 To whom it may concern: We, the undersigned, hereby attest to the fact that we will apply the Supplier’s Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Sincerely, Kiuk Gwak / CEO bHaptics Inc.

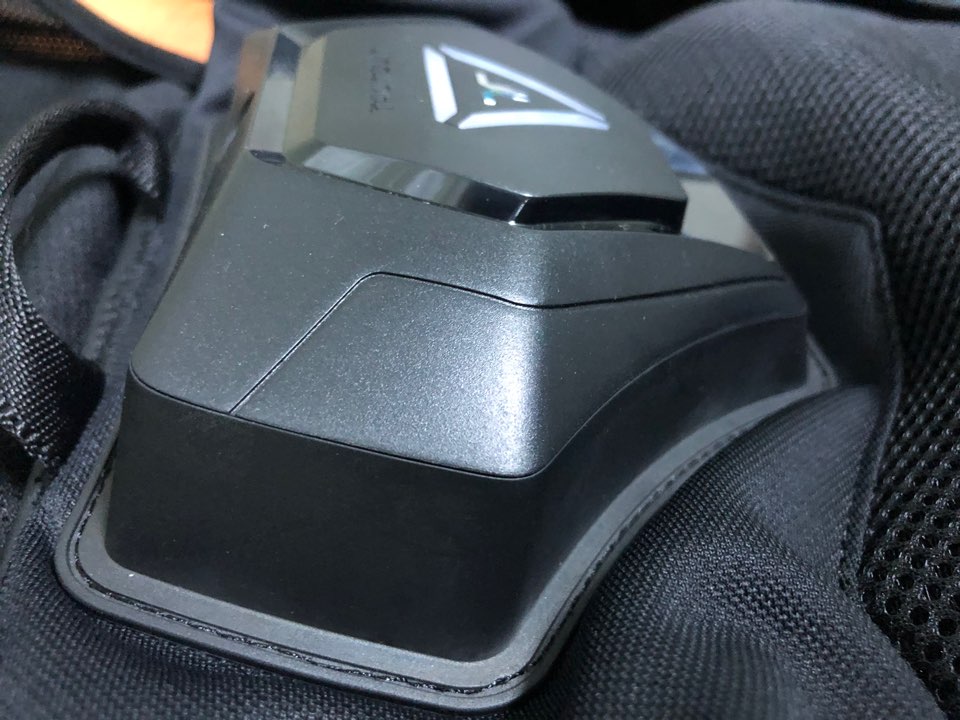

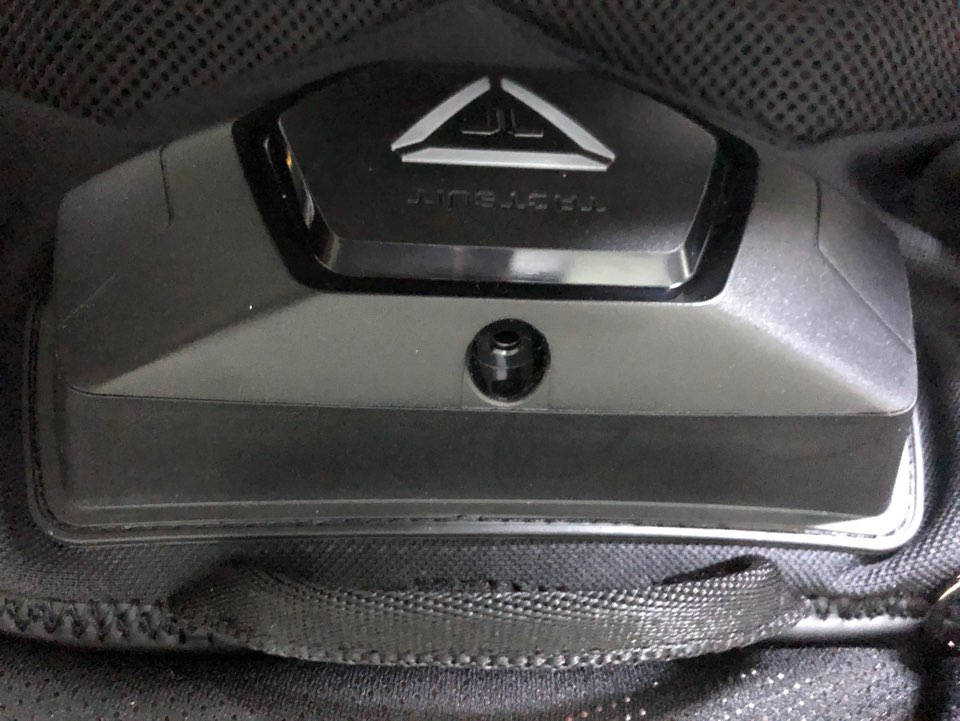

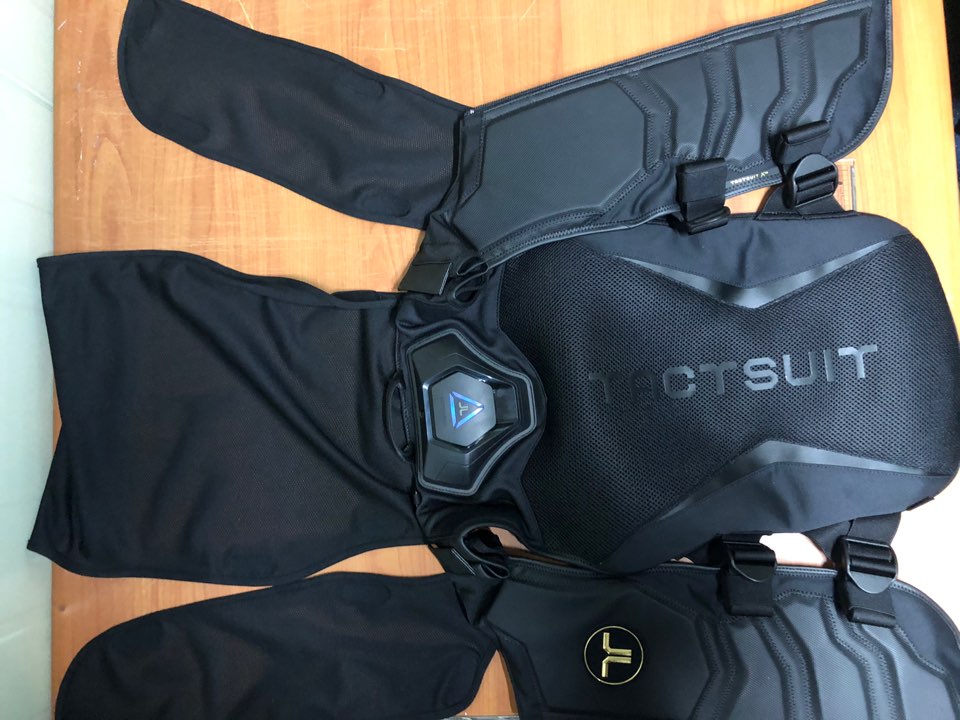

FCC ID: 2AJ6BBHTV40D000 Front Rear Copyright ○ c 2021, LTA Co., Ltd .Page 1 of 4 FCC ID: 2AJ6BBHTV40D000 To p Bottom Copyright ○ c 2021, LTA Co., Ltd .Page 2 of 4 FCC ID: 2AJ6BBHTV40D000 Left Right Copyright ○ c 2021, LTA Co., Ltd .Page 3 of 4 FCC ID: 2AJ6BBHTV40D000 ANTENNA(2.4 GHz) Label Position Copyright ○ c 2021, LTA Co., Ltd .Page 4 of 4

FCC ID: 2AJ6BBHTV40D000 SAMPLE LABEL & LOCATION EUT Inside position bHaptics Inc. Model : BHTV40D000 Rated Voltage : 3.63 V FCC ID : 2AJ6BBHTV40D000 Made in Korea Copyright Ⓒ 2021, LTA Co., Ltd.

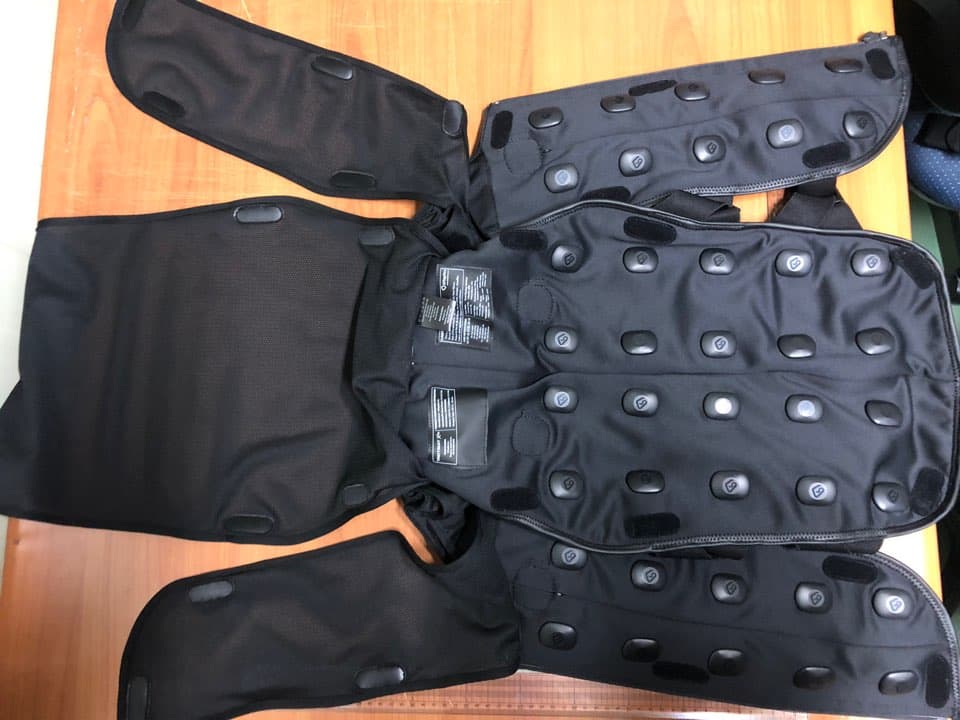

FCC ID: 2AJ6BBHTV40D000 MainBoard–Front MainBoard–Rear Copyright ○ c 2021, LTA Co., Ltd. Page 1 of 3 FCC ID: 2AJ6BBHTV40D000 Antenna Copyright ○ c 2021, LTA Co., Ltd. Page 2 of 3 FCC ID: 2AJ6BBHTV40D000 Internal Copyright ○ c 2021, LTA Co., Ltd. Page 3 of 3

FCC ID: 2AJ6BBHTV40D000 ATTACHMENT RF EXPOSURE EVULATION 1.1 Limit According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength Magnetic field Strength Power density Averaging time 1.34 - 30....................................... 824/f 2.19/f *(180/ f²) 30 30 - 300....................................... 27.5 0.073 0.2 30 300 - 1500.................................... ............... ............... f/1500 30 1500 - 100.000................................. ............... ............... 1.0 30 F = frequency in MHz * = Plane-wave equivalent power density 1.2 MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20 cm = limit for MPE) S = (0.07 * 0.09) / (4 * 5 2 * π) S = 0.03 mW/cm 2 FCC ID: 2AJ6BBHTV40D000 ATTACHMENT 1.3 MAXIMUM PERMISSIBLE EXPOSURE Prediction - Calculated under the worst-case conditions of each mode. (Measured power -11 dBm ± 0.5dB) 3-1. 2.4 GHz Mode Max Peak output Power at antenna input terminal -11.29 dBm Max Peak output Power at antenna input terminal 0.07 mW Prediction distance 5 mm Prediction frequency 2,402 MHz Antenna Gain(typical) 1.3 dBi Antenna Gain(numeric) 1.35 - Power density at prediction frequency( S) 0.03 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.005 mW/cm 2 SAR Test exclusion thresholds for 100MHz to 6GHz at test separation distance ≤ 50 mm = Used [(max.power of channel, including tune-up torelance, mW)/(min. test separation distance, mm)] * [√f(GHz)] = [0.07 / 5 ] * [ √2.402 ] = 0.02 ≤ 3.0, for 1g SAR Thus, SAR for this device is not required.

Ref. No.: LR500112102B 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 17159 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: Dec 17,2020 ~ Jan 27, 2021 Test Report S/N: LR500112102B Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. IC ID APPLICANT Equipment Class : Digital Transmission System (DTS) Manufacturing Description : Wearable Haptic Vest Manufacturer : bHaptics Inc. Model name : BHTV40D000 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C ; ANSI C63.10 - 2013 RSS-247 Issue 2 2017 RSS-gen Issue 5 2019 Frequency Range : BLE 2402 ~ 2480 MHz Max. Output Power : Max -11.29 dBm - Conducted Data of issue : January 28, 2021 This test report is issued under the authority of: The test was supervised by: Ja-Beom Koo, Manager Eun-Hwan Jung, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 2AJ6BBHTV40D000 24747-BHTV40D000 bHaptics Inc. Copyright ○ c 2021, LTA Co., Ltd. Page 1 of 29 Ref. No.: LR500112102B TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT ------------------------------------------------------------------------------------------ 3.1 SUMMARY OF TESTS ---------------------------------------------------------------------------- 3.2 TECHNICAL CHARACTERISTICS TEST ---------------------------------------------------- 3.2.1 6 dB BANDWIDTH -------------------------------------------------------------------------- 3.2.2 PEAK OUTPUT POWER -------------------------------------------------------------------- 3.2.3 POWER SPECTRAL DENSITY ------------------------------------------------------------ 3.2.4 BAND EDGE ---------------------------------------------------------------------------------- 3.2.5 CONDUCTED SPURIOUS EMISSIONS ------------------------------------------------- 3.2.6 RADIATED SPURIOUS EMISSIONS ---------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 12 14 16 29 Copyright ○ c 2021, LTA Co., Ltd. Page 2 of 29 Ref. No.: LR500112102B 1. General information 1- 1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 17159 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6 008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1- 2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2021-09-30 ECT accredited Lab. RRA KOREA KR0049 - EMC accredited Lab. FCC U.S.A 649054 2023-01-25 FCC CAB VCCI JAPAN C-4948, 2023-09-10 VCCI registration VCCI JAPAN T-2416, 2023-09-10 VCCI registration VCCI JAPAN R-4483(10 m), 2023-08-15 VCCI registration VCCI JAPAN G-847 2021-12-13 VCCI registration IC CANADA 5799A-1 2022-10-18 IC filing KOLAS KOREA NO.551 2021-08-20 KOLAS accredited Lab. Copyright ○ c 2021, LTA Co., Ltd. Page 3 of 29 Ref. No.: LR500112102B 2. Information about test item 2-1 Client & Manufacturer Client Company name : bHaptics Inc. Address : 70, Yuseong-daero 1689beon-gil, Yuseong-gu, Bldg 3-Unit 503, Daejeon, South Korea Tel / Fax : +82-42-867-2468 / +82- 42-867-2467 Manufacturer bHaptics Inc. Address 70, Yuseong-daero 1689beon-gil, Yuseong-gu, Bldg 3-Unit 503, Daejeon, South Korea Tel / Fax +82-42-867-2468 / +82- 42-867-2467 2- 2 Equipment Under Test (EUT) Model name : BHTV40D000 Serial number : Identical prototype Date of receipt : Dec 17, 2020 EUT condition : Pre-production, not damaged Antenna type : SMD Antenna (Max Gain : 1.3 dBi) Frequency Range : 2402 MHz ~ 2480 MHz - Bluetooth BLE RF output power : Max -11.29 dBm – Conducted Type of Modulation : GFSK, Power Source : DC 3.63 V 2- 3 Tested frequency LOW MID HIGH Frequency (MHz) BLE 2402 2442 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook - MS-1736 MSI Copyright ○ c 2021, LTA Co., Ltd. Page 4 of 29 Ref. No.: LR500112102B 3. Te s t R eport 3.1 Summary of tests FCC Part Section(s) IC Part Section(s) Parameter Test Condition Status (note 1) 15.247(a) RSS-247 Issue 2 RSS-gen Issue 5 6 dB Bandwidth Conducted C 15.247(b) RSS-247 Issue 2 RSS-gen Issue 5 Transmitter Peak Output Power C 15.247(e) RSS-247 Issue 2 Transmitter Power Spectral Density C 15.247(d) RSS-247 Issue 2 Band Edge & Conducted Spurious emission C 15.209 RSS-247 Issue 2 Transmitter emission Radiated C 15.207 RSS-gen Issue 5 AC Conducted Emissions Conducted N/A 15.203 RSS-gen Issue 5 Antenna requirement - C N/A : This product is battery-enabled and excludes the test. The above equipment was tested by LTA Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. The tests were performed according to the method of measurements prescribed in KDB No.558074.  Antenna Requirement bHaptics Inc. FCC ID: 2AJ6BBHTV40D000 unit complies with the requirement of §15.203. The antenna type is SMD Antenna Copyright ○ c 2021, LTA Co., Ltd. Page 5 of 29 Ref. No.: LR500112102B 3.2 Technical Char…

Text truncated - open the document above for the full version.

FCC ID: 2AJ6BBHTV40D000 Radiate Emission Copyright ○ c 2021, LTA Co., Ltd. Page 1 of 3 FCC ID: 2AJ6BBHTV40D000 Copyright ○ c 2021, LTA Co., Ltd. Page 2 of 3 FCC ID: 2AJ6BBHTV40D000 Copyright ○ c 2021, LTA Co., Ltd. Page 3 of 3
