2AJAN-SMCPALCellular Signal Booster

LTE700+CDMA/GSM850+PCS/GSM1900+AWS Full Band Series Repeater U60C with N Type，U60C with F Type， U65C with N Type，U65C with F Type， U65XC with N Type，U65XC with F Type UM50 with SMA，UM2M with SMA User Manual - 2 - 1. SAFETY WARNINGS ......................................................................................................................................................... 3 2. INTRODUCTION ................................................................................................................................................................. 3 3. SYSTEM CHARACTERISTICS .......................................................................................................................................... 5 3.1. FEATURES ...................................................................................................................................................................... 5 3.2. APPEARANCE OF THE REPEATERS ................................................................................................................................... 5 4. BLOCK DIAGRAM AND WORK PRINCIPLE .................................................................................................................... 6 5. RECOMMENDED BOOSTER ANTENNA KITTING .......................................................................................................... 8 5.1. RECOMMENDED DONOR/OUTDOOR ANTENNA.................................................................................................................... 8 5.2. RECOMMENDED SERVICE/INDOOR ANTENNA ..................................................................................................................... 9 6. MAIN TECHNICAL SPECIFICATION............................................................................................................................... 11 6.1. RF TECHNICAL SPECIFICATION ....................................................................................................................................... 11 6.2. MECHANICAL SPECIFICATION ......................................................................................................................................... 11 6.3. ENVIRONMENT CONDITIONS .......................................................................................................................................... 12 6.4. REQUIREMENTS FOR ADAPTERS .................................................................................................................................... 12 7. INSTALLATION ................................................................................................................................................................ 12 7.1. INSTALLATION LOCATION REQUIREMENT ........................................................................................................................ 12 7.2. POWER REQUIREMENT .................................................................................................................................................. 12 7.3. INSTALLATION TOOLS AND ACCESSORY ........................................................................................................................... 13 7.4. INSTALLATION OF DONOR ANTENNA ................................................................................................................................ 13 7.5. CABLE LAYOUT AND CONNECTOR ASSEMBLY ................................................................................................................... 18 7.6. INDOOR ANTENNA INSTALLATION .................................................................................................................................... 19 7.7. REPEATER INSTALLATION .............................................................................................................................................. 20 7.7.1. Installation Steps ............................................................................................................................................ 20 7.7.2. Repeater’s ports description .......................................................................................................................... 20 7.7.3. Accessories selection ..................................................................................................................................... 20 7.8. REPEATER SETTINGS .................................................................................................................................................... 20 7.8.1. Switch on power ............................................................................................................................................. 20 7.8.2. Repeater Commissioning ............................................................................................................................... 22 7.9. SYSTEM TEST .............................................................................................................................................................. 24 7.9.1. Check whether the coverage is good ............................................................................................................. 24 7.9.2. Repeater can not communicate in Power-ON status ..................................................................................... 25 8. FCC RF EXPOSURE STATEMENT ................................................................................................................................. 26 9. FCC WARNING ................................................................................................................................................................ 26 10.ISEDC WARNING ..................................................................................................................................................... 27 ISEDC Statement .................................................................................................…

Text truncated - open the document above for the full version.

Signifi Mobile Inc Agent Authorization Company: Signifi Mobile Inc Address: 2207-1751 Richardson St.Montreal, Quebec,H3K 1G6,Canada Product Name: Cellular Signal Booster Trade Mark: Signifi Mobile Model Number(s): U65XC with N Type, U60C with N Type,U60C with F Type,U65C with N Type,U65C with F Type,U65XC with F Type,UM50 with SMA, UM2M with SMA FCC ID: 2AJAN-SMCPAL We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-01-05 Name: Ari Schachter Title: Director of Operations Company: Signifi Mobile Inc

Signifi Mobile Inc Address: 2207-1751 Richardson St.Montreal, Quebec,H3K 1G6,Canada Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, Signifi Mobile Inc Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only models name is different for these models: Product Name: Cellular Signal Booster Trade Mark: Signifi Mobile Model Number(s): U65XC with N Type, U60C with N Type,U60C with F Type,U65C with N Type,U65C with F Type,U65XC with F Type,UM50 with SMA, UM2M with SMA FCC ID: 2AJAN-SMCPAL Signature: Date: 2023-01-05 Name: Ari Schachter Title: Director of Operations Company: Signifi Mobile Inc

Signifi Mobile Inc Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-01-05 Subject; Request for Confidentiality FCC ID: 2AJAN-SMCPAL To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Ari Schachter Title:Director of Operations

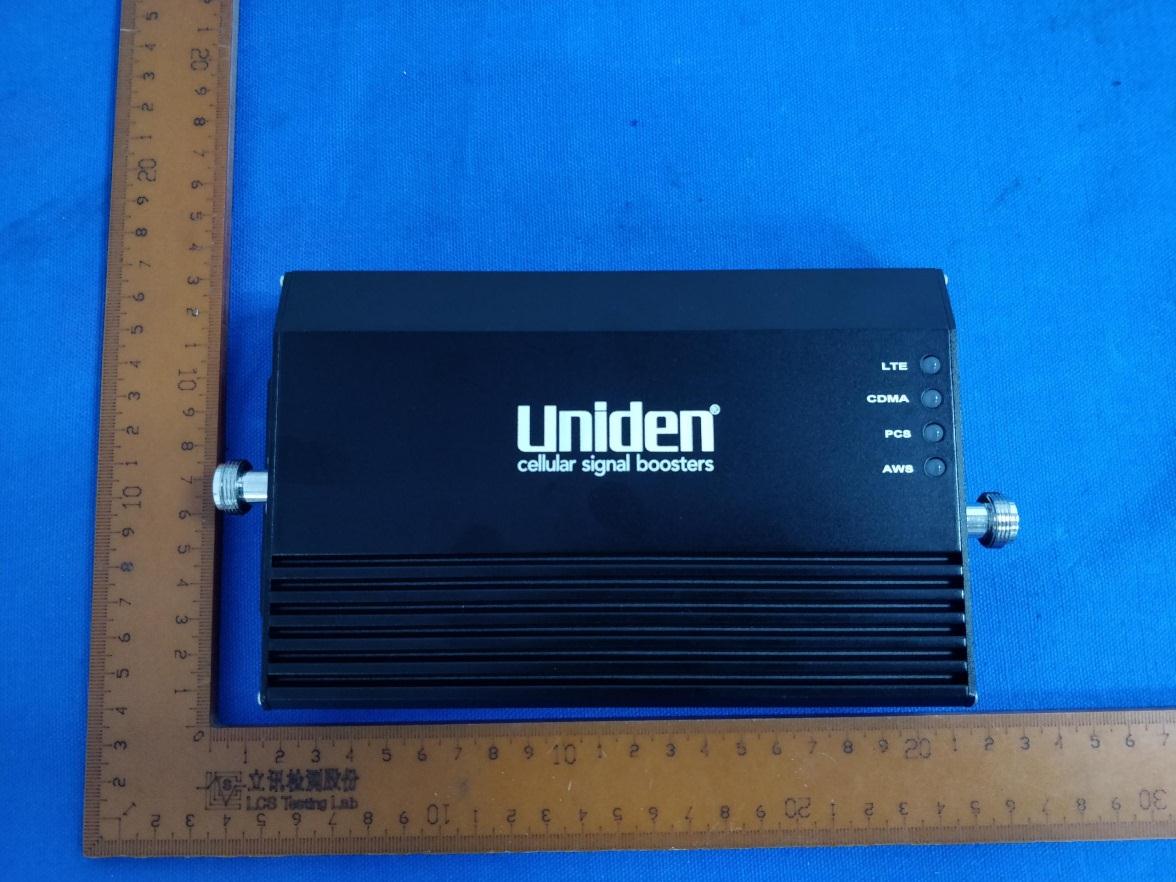

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJAN-SMCPAL Exterior Photographs Fig.1 Fig.2 Indoor Antenna Outdoor Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJAN-SMCPAL Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJAN-SMCPAL Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJAN-SMCPAL Fig.7 Fig.8

Label Location Warning Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJAN-SMCPAL Interior Photographs Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJAN-SMCPAL Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJAN-SMCPAL Fig.5 Fig.6

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 6 Maximum Permissible Exposure Report 1. Product Information FCCID : 2AJAN-SMCPAL EUT : Cellular Signal Booster Equipment Type : Fixed Wideband Consumer Signal Booster Test Model : U65XC with N Type Additional Model No. : U60C with N Type,U60C with F Type,U65C with N Type, U65C with F Type,U65XC with F Type,UM50 with SMA, UM2M with SMA Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply : For AC Adapter(model: GM53-120300-F): Input: AC 100-240V,50/60Hz, 2.0A Output: DC 12.0V3.0A,36.0W Hardware Version : LCPA33C-FCC-V01 Software Version : LCPA33C-FCC-V01.hex Frequency Range : Lower 700MHz Band(B12) Uplink: 698~716MHz, Downlink: 728~746 MHz Upper 700MHz Band(B13) Uplink: 776~787MHz, Downlink: 746~757 MHz Cellular Band(B5) Uplink: 824~849MHz, Downlink: 869~894 MHz PCS Band(B2&B25) Uplink: 1850~1915MHz, Downlink: 1930~1995 MHz AWS Band(B4) Uplink: 1710~1755MHz, Downlink: 2110~2155 MHz Emission Designator : F9W, G7D, G7W, GXW, W7D FCC Classification : B2W/Wideband Consumer Booster(CMRS) Operating Temperature : -25ºC~+55ºC Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : fixed Device Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 6 Antenna Information: External Antenna can only use antennas certificated as follows provided by manufacturer: Outdoor Antenna Outdoor Antenna Gain Lower 700MHz Upper 700MHz Celluler PCS AWS Yagi antenna 9.5 9.5 9.5 10 10 Panel antenna 7 7 7 9 9 Outdoor Cable Outdoor cable Outdoor Cable Loss Lower 700MHz Upper 700MHz Celluler PCS AWS 10m 5D-FB 1.7 1.7 1.7 2.7 2.7 Indoor Antenna Indoor Antenna Indoor Antenna Gain Lower 700MHz Upper 700MHz Celluler PCS AWS Omni Antenna 3 3 3 3 3 Panel Antenna 7 7 7 9 9 Indoor Cable Indoor Cable Indoor Cable Loss Lower 700MHz Upper 700MHz Celluler PCS AWS 5m 5D-FB 0.8 0.8 0.8 1.4 1.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 6 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 6 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of…

Text truncated - open the document above for the full version.

Signifi Mobile Inc January 04, 2023 Attestation for signal booster: FCC ID: 2AJAN-SMCPAL Each Signal Booster certificated under FCC ID: 2AJAN-SMCPAL is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent for Fixed consumer booster has been obtained (consent be made available upon FCC/TCB request) (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5) This Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation. (6) Future software upgrade will not cause non-compliance. Yours sincerely, Ari Schachter

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 86 FCC TEST REPORT FOR Signifi Mobile Inc Cellular Signal Booster Test Model: U65XC with N Type Additional Model No.: U60C with N Type,U60C with F Type,U65C with N Type, U65C with F Type,U65XC with F Type,UM50 with SMA, UM2M with SMA Prepared for : Signifi Mobile Inc Address : 2207-1751 Richardson St.Montreal, Quebec,H3K 1G6,Canada Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : November 25, 2022 Number of tested samples : 2 Serial number : Prototype Date of Test : November 25, 2022 ~ December 19,2022 Date of Report : December 19,2022 Scan code to check authenticity Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 86 FCC TEST REPORT FCC CFR 47 PART 20.21 Report Reference No. ....................... : LCSA112222040EA Date of Issue ......................................... : December 19,2022 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................. : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : Signifi Mobile Inc Address ................................................. : 2207-1751 Richardson St.Montreal, Quebec,H3K 1G6,Canada Test Specification Standard................................................ : FCC CFR Title 47 Part 20.21 Test Report Form No............................ : LCSEMC-1.0 TRF Originator ..................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ........................ : Cellular Signal Booster Trade Mark ........................................... : Signifi Mobile Test Model ........................................... : U65XC with N Type Ratings.................................................. : For AC Adapter(model: GM53-120300-F): Input: AC 100-240V,50/60Hz,2.0A Output: DC 12.0V3.0A,36.0W Result ................................................. : Positive Compiled by: Supervised by: Approved by: Jack Liu/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 86 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA112222040EA December 19,2022 Date of issue Test Model........................... : U65XC with N Type EUT......................................... : Cellular Signal Booster Applicant............................... : Signifi Mobile Inc Address.................................. : 2207-1751 Richardson St.Montreal, Quebec,H3K 1G6,Canada Telephone............................... : 514-500-1181 Fax.......................................... : 514-500-1181 Manufacturer........................ : Signifi Mobile Inc Address................................... : 2207-1751 Richardson St.Montreal, Quebec,H3K 1G6,Canada Telephone............................... : 514-500-1181 Fax.......................................... : 514-500-1181 Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 86 Revision History Revision Issue Date Revisions Revised By 000 December 19,2022 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 86 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) ................................................................................................................... 6 1.2 Support equipment List ............................................................................................................................ 8 1.3 External I/O Cable ..........................................…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 41 of 86 Upper 700MHz band CDMA DL Left Side Pre AGC Upper 700MHz band CDMA DL Left Side 10dB Above AGC Upper 700MHz band CDMA DL Right Side Pre AGC Upper 700MHz band CDMA DL Right Side 10dB Above AGC PCS Band LTE DL Left Side Pre AGC PCS Band LTE DL Left Side 10dB Above AGC PCS Band LTE DL Right Side Pre AGC PCS Band LTE DL Right Side 10dB Above AGC Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 42 of 86 AWS Band LTE DL Left Side Pre AGC AWS Band LTE .DL Left Side 10dB Above AGC AWS Band LTE DL Right Side Pre AGC AWS Band LTE DL Right Side 10dB Above AGC Cellular Band LTE DL Left Side Pre AGC Cellular Band LTE DL Left Side 10dB Above AGC Cellular Band LTE DL Right Side Pre AGC Cellular Band LTE DL Right Side 10dB Above AGC Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 43 of 86 Lower 700MHz band LTE DL Left Side Pre AGC Lower 700MHz band LTE DL Left Side 10dB Above AGC Lower 700MHz band LTE DL Right Side Pre AGC Lower 700MHz band LTE DL Right Side 10dB Above AGC Upper 700MHz band LTE DL Left Side Pre AGC Upper 700MHz band LTE DL Left Side 10dB Above AGC Upper 700MHz band LTE DL Right Side Pre AGC Upper 700MHz band LTE DL Right Side 10dB Above AGC Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 44 of 86 6.6. Conducted Spurious Emission Applicable Standard According to § 20.21(e)(8)(i)(E) Out of Band Emission Limits: Booster out of band emissions (OOBE) shall be at least 6 dB below the FCC's mobile emission limits for the supported bands of operation. Compliance to OOBE limits will utilize high peak-to-average CMRS signal types. So the Conducted emissions limit = -19 dBm Test Procedure According to section 7.6 of KDB 935210 D03 Signal Booster Measurement v04r04: The following procedures shall be used to demonstrate compliance to the applicable conducted spurious emissions limits as per Section 2.1051. NOTE–For frequencies below 1 GHz, an RBW of 1 MHz may be used in a preliminary measurement. If non-compliant emissions are detected, a final measurement shall be made with a 100 kHz RBW. Additionally, a peak detector may also be used for the preliminary measurement. If non-compliant emissions are detected then a final measurement of these emissions shall be made with the power averaging (rms) detector. a) Connect the EUT to the test equipment as shown in Figure 1. Begin with the uplink output (donor) port connected to the spectrum analyzer. b) Configure the signal generator for AWGN with a 99% OBW of 4.1 MHz, with a center frequency corresponding to the center of the CMRS band under test. c) Set the signal generator amplitude to the level determined in the power measurement procedure in 7.2. d) Turn on the signal generator RF output and measure the spurious emission power levels with an appropriate measuring instrument as follows. 1) Set RBW = measurement bandwidth specified in the applicable rule section for the operational frequency band under consideration (see Appendix A for relevant cross-references). Note that many of the individual rule sections permit the use of a narrower RBW [typically ≥ 1% of the emission bandwidth (EBW)] to enhance measurement accuracy, but the result must then be integrated over the specified measurement bandwidth. 2) Set VBW = 3 RBW. 3) Select the power averaging (rms) detector. (See above note regarding the use of a peak detector for preliminary measurements.) 4) Sweep time = auto-couple. 5) Set the analyzer start frequency to the lowest radio frequency signal generated in the equipment, without going below 9 kHz, and the stop frequency to the lower band/block edge frequency minus 100 kHz or 1 MHz, as specified in the applicable rule part. Note that the number of measurement points in each sweep must be ≥ (2 span/RBW), which may require that the measurement range defined by the preceding start and stop frequencies be subdivided, depending on the available number of measurement points of the spectrum analyzer. Trace average at least 10 traces in power averaging (i.e., rms) mode. 6) Sweep time = auto-couple. 7) Use the peak marker function to identify the highest amplitude level over each measured frequency range. Record the frequency and amplitude and capture a plot for inclusion in the test report. 8) Reset the analyzer start frequency to the upper band/block edge frequency plus 100 kHz or 1 MHz, as specified in the applicable rule part, and the analyzer stop frequency to 10 times the highest frequency of the fundamental emission. Note that the number of measurement points in each sweep must be ≥ (2 span/RBW) which may require that the measurement range defined by the start and stop frequencies above be subdivided, depending on the available number of measurement points provided by the spectrum analyzer. 9) Use the peak marker function to identify the highest amplitude level over each of the measured frequency ranges. Record the frequency and amplitude and capture a plot for inclusion in the test report. Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2AJAN-SMCPAL Report No.: LCSA112222040EA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 45 of 86 e) Repeat 7.6b) through 7.6d) for each suppo…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID:2AJAN-SMCPAL Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2
