2AJAN-SMH20017Hero 200 DAS

Signifi Mobile Inc
Hero 200 DAS - FCC ID 2AJAN-SMH20017 - Signifi Mobile Inc
Click to zoom

Application Details

Equipment Class
B2I - Part 20 Industrial Booster (CMRS)
Date of Grant
Dec 20, 2020
Application Purpose
Original Equipment
Date of Application
Dec 20, 2020
Equipment Note
Hero 200 DAS
Frequency Range
728.00000000 - 746.00000000
Company
Signifi Mobile Inc
Country
Canada

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Models: SMH200-17 SMH200-13 SMH200-10 Contact Tech Support at 1.800.215.7015 or email at [email protected] 2 TABLE OF CONTENTS 3 5 6 7 8 9 10 12 13 13 16 17 19 23 25 26 27 29 About The Booster Kits ......................................................................... Booster Kit Components ...................................................................... Tools Required / Optional Equipment ................................................ How It Works .......................................................................................... Technical Specifications.......................................................................... Overview ................................................................................................ Getting Started ...................................................................................... Check For Signal Strength .................................................................... Run Coaxial Cable ................................................................................. Install the Signal (Outdoor) Antennas ................................................. Understand the Different Signal (Outdoor) Antennas ......................... Install & Connect the Distribution (Indoor) Antennas ........................ Understand the Different Distribution (Indoor) Antennas .................. Power Up Your Cellular Booster ........................................................... Check the Cellular Booster Status ....................................................... FCC Warning ............................................................................. Troubleshooting .................................................................................... FAQ ........................................................................................................ Contact Tech Support at 1.800.215.7015 or email at [email protected] 3 Our goal is to give you a proven solution that ends your frustration with weak and dropped cellular signals so you can enjoy excellent call quality, more convenience and greater productivity. ABOUT THE BOOSTER KITS INSTALLATION INSTRUCTIONS FOR THE FOLLOWING CELLULAR BOOSTERS: NOTE: This manual contains important safety and operating information. Please read and follow the instructions in this manual, failure to do so could be hazardous and result in damage to your cellular booster. Only professionals are authorized to install Models: SMH200-17 SMH200-13 SMH200-10 Contact T ech Support at 1.800.215.7015 or email at [email protected] 4 S AFETY AND WARNINGS •T urn AC power OFF at the mains before working on any electrical connections. • All AC power wiring and coaxial cable wiring must conform to local or national codes. •The AC line voltage must be within 10% of the voltage specified for the booster . • A solid copper conductor no less than No. 8 AWG should be connected to gr ound. • DO NOT connect a gr ound wire to a gas supply line. • DO NOT open the booster .There are no serviceable parts inside. Touching internal parts could cause damage from static electrical discharge. Opening the base unit DOES VOID THE WARRANTY. ! Contact Tech Support at 1.800.215.7015 or email at support@signifi mobile.com 5 BOOSTER KIT COMPONENTS BOOSTER U5D YAGI LDPAPANEL OUTDOOR ANTENNAS (signal) PANELDOME INDOOR ANTENNAS(distribution) CABLES(various lengths available) Contact Tech Support at 1.800.215.7015 or email at support@signifi mobile.com 6 OPTIONAL ACCESSORIES (sold separately) 2 Way Expansion Kit Lightning Surge Protector 3 Way Expansion Kit Universal Antenna Mounting Pole Phillips ScrewdriverDrillCellular Phone (to check signal strength) Drill Drill TOOLS REQUIRED Contact Tech Support at 1.800.215.7015 or email at support@ signifimobile.com 7 Electrical Specification UplinkDownlink Frequenecy RangeBand 12698~ 716 MHz728 ~746 MHz Band 14788~ 798MHz758 ~768 MHz Max. GainSMH200 50dB53dB Max. Output PowerSMH200 22dBm18dBm Band WidthWide Band Automatic Level Control 15dB Manual Gain Control≥31dB / 1dB step Spurious Emission9KHz~1GHz ≤ -13dBm 1GHz~12.75GHz ≤ -13dBm Gain Flatness≤8dB Noise Figure≤8dB VSWR≤3 Group Delay≤ 1.0μs Frequency stability≤ 0.01ppm Power LEDPower Indicator ALC LEDOrange @ ALC 1~5dB, Red @ ALC 15dB~20dB, Off after 5 seconds red ISO LEDFlashing Red indicates not enought separation, Solid Red when sufficient SMART FunctionUplink & Downlink Gain is automatically adjusted Output Signal StrengthOutput is displayed with signal bars I /O PortN-Female Impedance50 ohm Operating Temperature-25ºC~+55ºC Environment ConditionsIP40 Dimensions175*131*33mm Weight0.7 kg Power Supply DC 7.0V/3A Contact Tech Support at 1.800.215.7015 or email at support@signifimobile .com 8 This guide will help you properly install your cellular booster kit. It is important to read through all of the installation steps before installing your equipment. Thoroughly read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. If you do not understand the instructions in full, please contact technical support at 1-800-215-7015. OVERVIEW Distributed antenna systems A DAS network is used to distribute RF signals from a central hub to a specific area with poor coverage or inadequate capacity. Because the facilities deployed at each node of a DAS are physically much smaller than for example macrocell base station and antenna equipment, they can be placed on a variety of short structures or on rooftops. Macrocells and small cells are usually operator-managed and support use by a single wireless service provider, whereas DAS networks can often accommodate multiple wireless providers using different frequencies and/or wireless air interfaces. A DAS network consists of: (i) a number of remote communications nodes deployed throughout the desired coverage area, each including at least one antenna for the transmission and reception of …

Text truncated - open the document above for the full version.

Cover Letter(s)

SignifiMobileInc Address:1001RueLenoirSuiteA-414,Montreal,Quebec,H4C2Z6,Canada OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA ProductName:Hero200DAS TradeMark:SignifiMobile ModelNumber(s):SMH200-17,SMH200-13,SMH200-10 FCCID:2AJAN-SMH20017 DearSir/Madam, We,SignifiMobileIncHerebydeclaresthefollowingstatementforMiCOMLabsInc, ThefollowingFCCwarningsshouldbeattachedinanypromotionalmaterials,manual, packagingandlabels. Signature:Date:2020-12-14 Name:AriSchachter Title:DirectorofOperations Company:SignifiMobileInc

Cover Letter(s)

SignifiMobileInc AgentAuthorization Company:SignifiMobileInc Address:1001RueLenoirSuiteA-414,Montreal,Quebec,H4C2Z6,Canada ProductName:Hero200DAS TradeMark:SignifiMobile ModelNumber(s):SMH200-17,SMH200-13,SMH200-10 FCCID:2AJAN-SMH20017 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2020-12-14 Name:AriSchachter Title:DirectorofOperations Company:SignifiMobileInc

Cover Letter(s)

SignifiMobileInc Address:1001RueLenoirSuiteA-414,Montreal,Quebec,H4C2Z6,Canada OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA DearSir/Madam, We,SignifiMobileIncHerebydeclaresthefollowingstatementforMiCOMLabsInc,PCB board,structureandinternalofthesemodel(s)arethesame,Onlymodelsnameis differentforthesemodels: ProductName:Hero200DAS TradeMark:SignifiMobile ModelNumber(s):SMH200-17,SMH200-13,SMH200-10 FCCID:2AJAN-SMH20017 Signature:Date:2020-12-14 Name:AriSchachter Title:DirectorofOperations Company:SignifiMobileInc

Cover Letter(s)

SignifiMobileInc OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2020-12-14 Subject;RequestforConfidentiality FCCID:2AJAN-SMH20017 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsForU-NIIDevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:AriSchachter Title:DirectorofOperations

External Photos

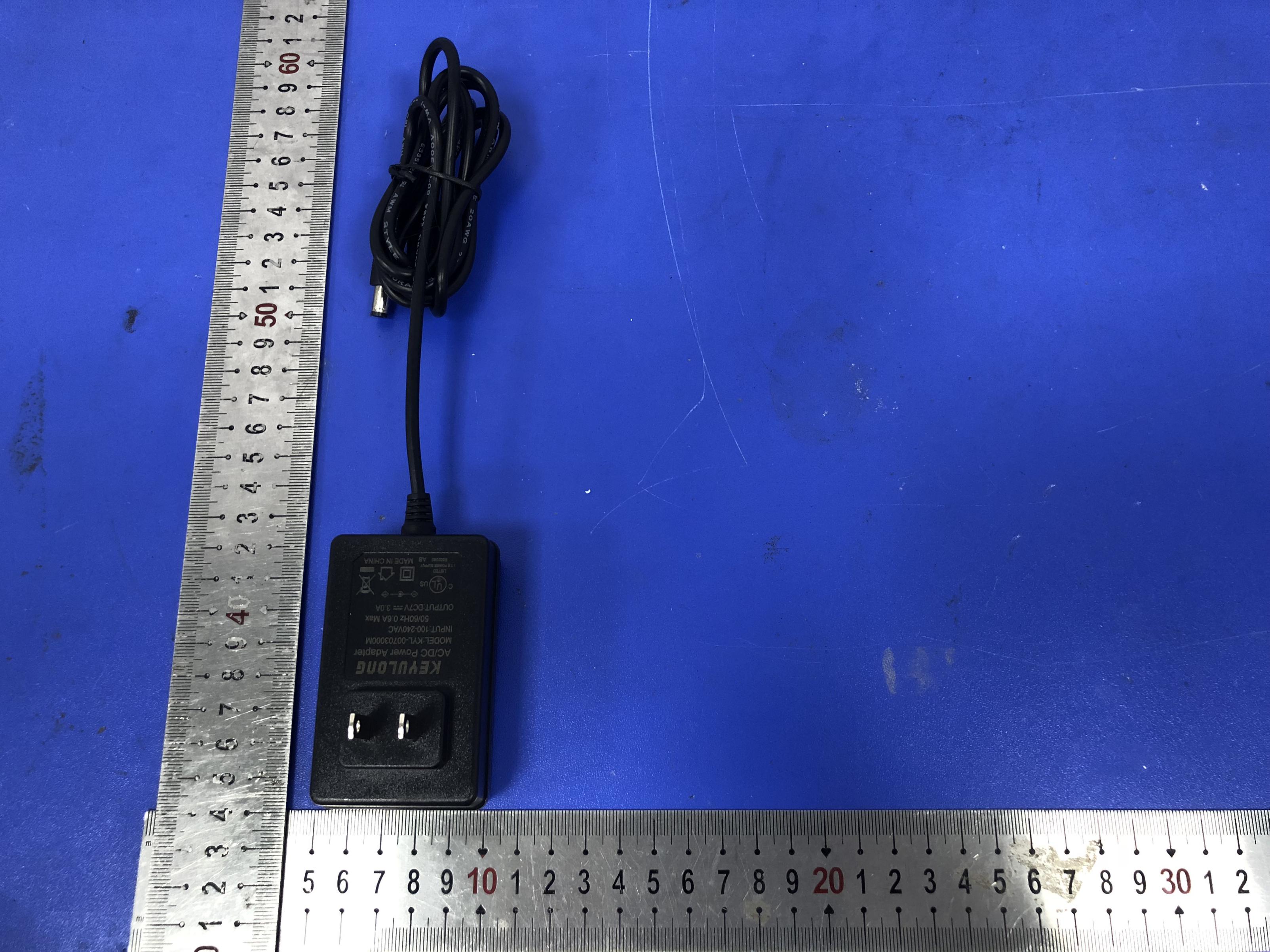

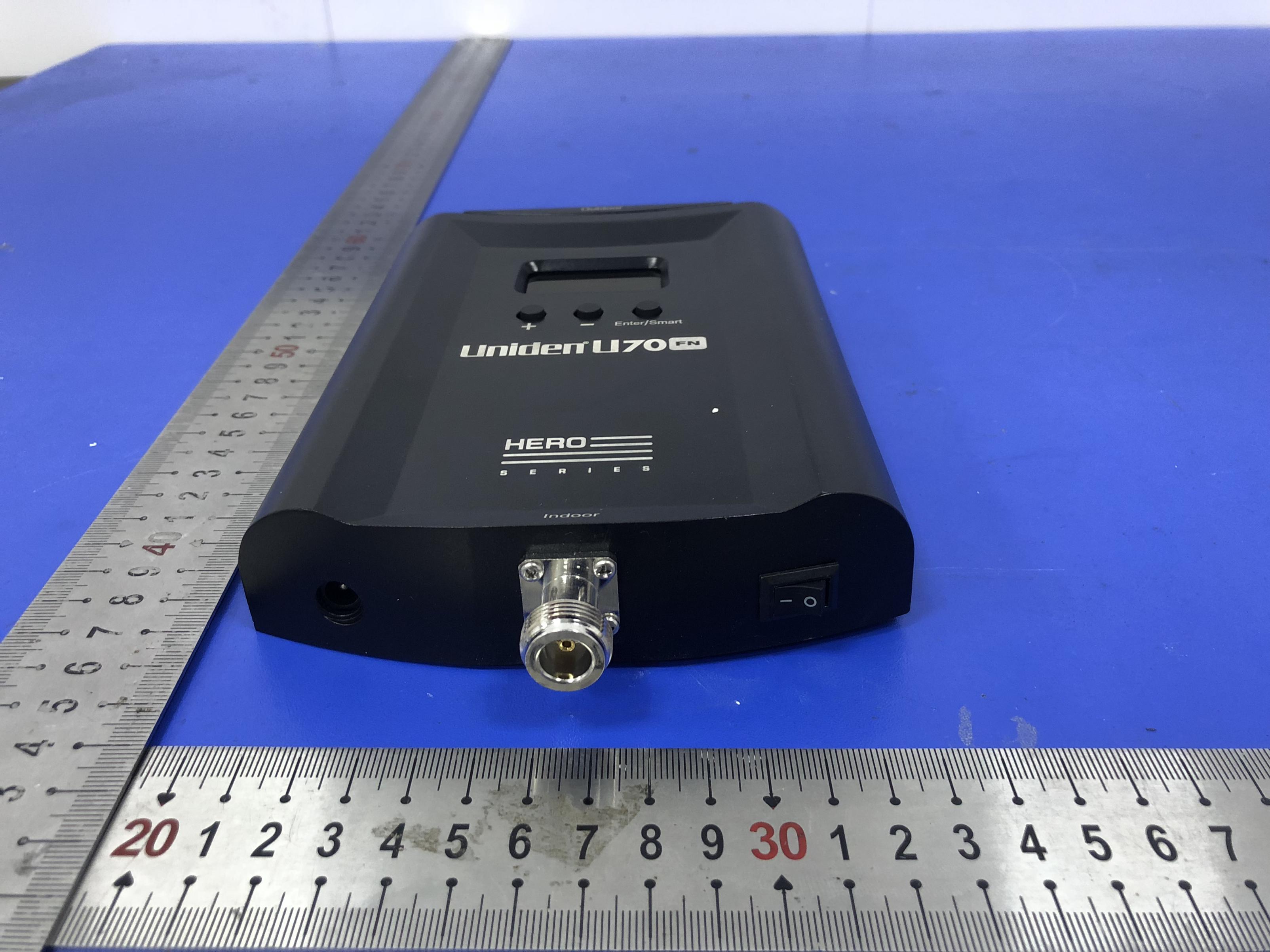

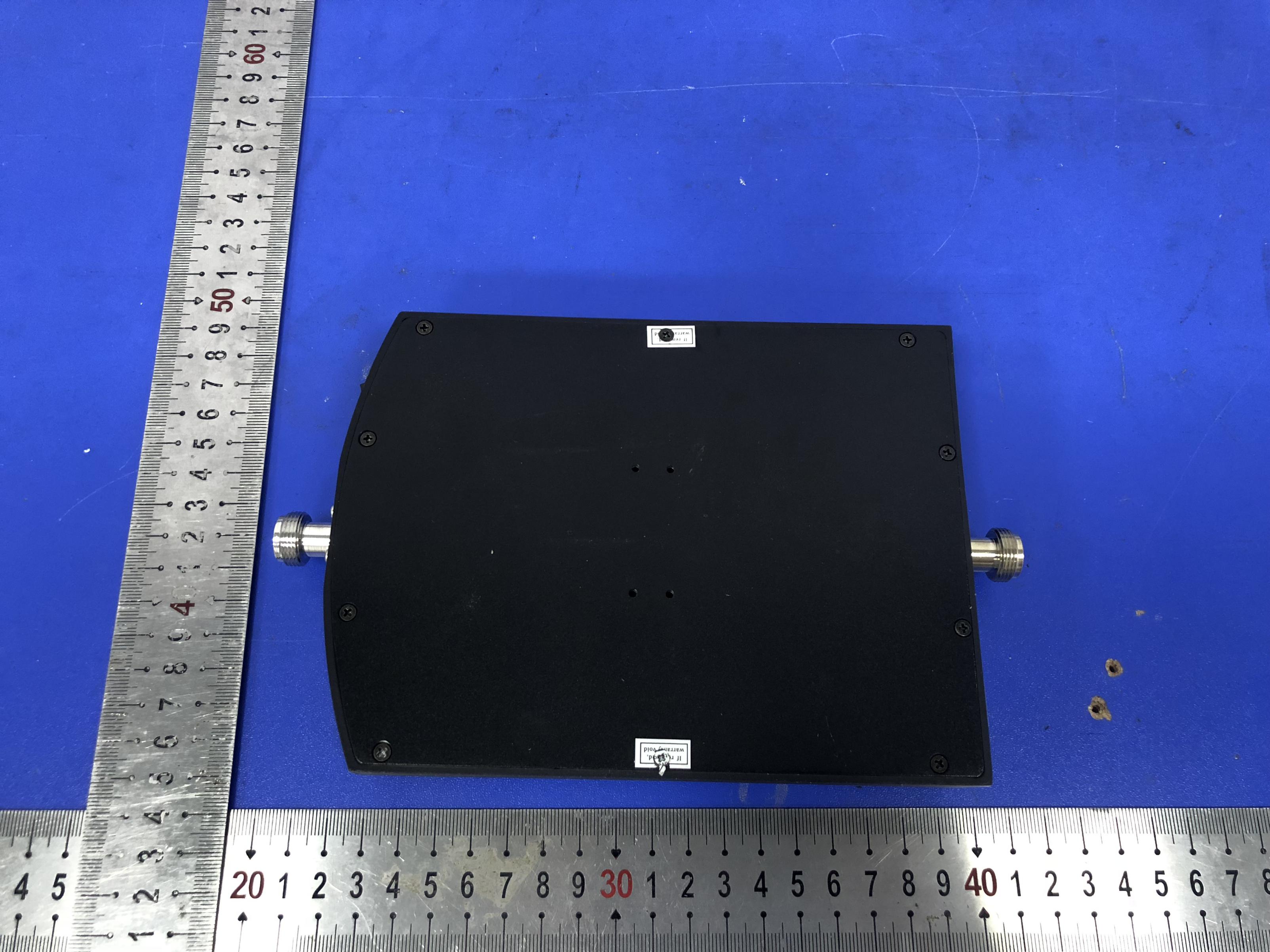

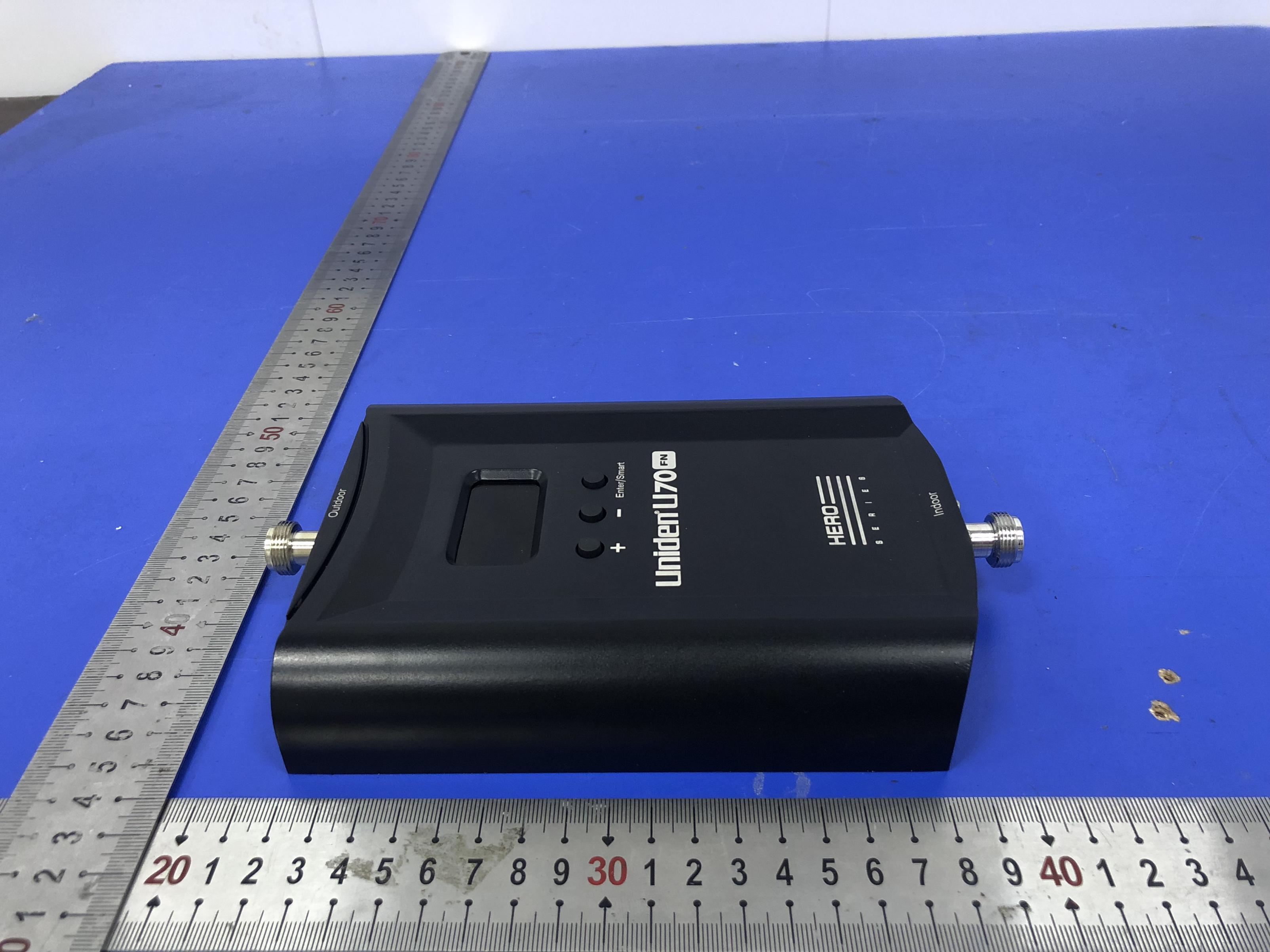

1.EXTERIORPHOTOGRAPHS Fig.1 Fig.2 IndoorAntenna SYN-IPA-8D OutdoorAntenna SYN-BY-9D OutdoorAntenna SYN-OPA-8D IndoorAntenna SYN-CA-3D Fig.3 Fig.4 Fig.5 Fig.6 Fig.7 Fig.8 Fig.9
