2AJAN5035CPALUniden Cellular Signal Booster

Contact Tech Support at 1.800.215.7015 or email at [email protected] 2 TABLE OF CONTENTS 3 4 5 6 7 9 10 13 15 20 20 24 28 29 31 33 Safety & Warnings ......................................................................... Booster Kit Components ...................................................................... Tools Required / Optional Equipment ................................................ How It Works .......................................................................................... Overview ................................................................................................ Siyata Connect APP ............................................................................... Check For Signal Strength .................................................................... LCD Features .......................................................................................... Manual Gain Control ............................................................................. Run Coaxial Cable ................................................................................. Install the Donor (Outdoor) Antennas ................................................. Install the Server (Indoor) Antennas ..................................................... Antenna Separation ............................................................................... Power Up Your Cellular Booster ........................................................... Troubleshooting .................................................................................... FAQ ........................................................................................................ NOTE: This manual contains important safety and operating information. Please read and follow the instructions in this manual, failure to do so could be hazardous and result in damage to your cellular booster. Contact Tech Support at 1.800.215.7015 or email at [email protected] 3 INSTALLATION INSTRUCTIONS FOR THE FOLLOWING CELLULAR BOOSTERS: 1 SAFETY AND WARNINGS • Turn AC power OFF at the main circuit breaker before working on any electrical connections. • All AC power wiring and coaxial cable wiring must conform to local or national codes. • The AC rated input power must be within 10% of the voltage requirements of the device. • When grounding the system, a solid copper conductor no smaller than 8 AWG should be used. • DO NOT connect a ground wire to a gas supply line. • DO NOT open the booster. Touching internal parts could cause injury or damage. This will void the waranty. ! Contact Tech Support at 1.800.215.7015 or email at [email protected] 4 BOOSTER KIT COMPONENTS BOOSTERS U5D OUTDOOR ANTENNAS (Donor) CABLES (various lengths available) 1 YAGI PANEL INDOOR ANTENNAS (Server) PANEL DOME Contact Tech Support at 1.800.215.7015 or email at [email protected] 5 OPTIONAL ACCESSORIES (sold separately) 2 Way Expansion Kit Lightning Surge Protector 3 Way Expansion Kit Universal Antenna Mounting Pole Phillips ScrewdriverDrillCellular Phone (to check signal strength) Drill TOOLS REQUIRED Contact Tech Support at 1.800.215.7015 or email at [email protected] 6 HOW IT WORKS The Uniden smart cellular booster provides enhanced in building coverage by improving cellular signal strength in homes, buildings, offi ces, and other areas where coverage is weak or unreliable. The system amplifi es the incoming signal from the nearest cellular tower This manual provides simple installation instructions that will have your cellular booster kit up and running in record time. OUTDOOR ANTENNACELLULAR BOOSTERINDOOR ANTENNA Contact Tech Support at 1.800.215.7015 or email at [email protected] 7 This guide will help you properly install your cellular booster kit. It is important to read through all of the installation steps before installing your equipment. Thoroughly read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. If you do not understand the instructions in full, please contact technical support at 1-800-215-7015. OVERVIEW Donor Antenna (outdoor) Surge Protector Booster Server Antenna (indoor) Splitter (if using mutliple antenna) Server Antennas (optional antennas for additional coverage) 1 2 4 3 5 67 & 1 2 467 35 GETTING STARTED Plan the layout of your system Before you get started you will need to plan the layout of your system. This involves checking signal strength for signals coming from the cellular tower, as well as antenna, booster and cable placement. Contact Tech Support at 1.800.215.7015 or email at [email protected] 8 BOOSTER – select location Install the booster in an area that is protected from the weather, properly ventilated and is away from excessive heat and moisture. 1 DONOR ANTENNA (outdoor) - select location Mount the donor (outdoor) antenna in an elevated outdoor location so that it points towards the cellular tower and away from where the inside antenna will be located. 3 OUTDOOR COAXIAL CABLE - select location The outdoor coaxial cable is used to connect the donor (outdoor) antenna to the booster. 4 INDOOR COAXIAL CABLE - (if used) The indoor coaxial cable is used to connect the server (indoor) antenna to the booster. 5 SERVER ANTENNA (indoor) The ideal location for the server antenna will be the area of your property where you need to improve the signal most. NOTE: The signal strength will be strongest closest to the antenna. 6 7 COMMISSIONING THE SYSTEM REGISTER BOOSTER TO SIYATA CONNECT Download, Open, Create Account/Log In to the Siyata Connect App to assist with antenna installation as well as monitor and management of your cellular booster. 2 Contact Tech Support at 1.800.215.7015 or email at [email protected] 9 INSTALL THE SIYATA CONNECT APP Using the Siyata Connect App will make the installation process easier because it allows you to monitor your booster as y…

Text truncated - open the document above for the full version.

SignifiMobileInc Address:1001RueLenoir,SuiteA-414,Montreal,Quebec,H4C2Z6,Canada Email:[email protected] Tel:+1-514-500-1181 Fax:+1-514-500-1181 Date:2021-2-1 AttestationLetter To: FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 DearSirorMadam: We,SignifiMobileInc,herebydeclarethatthecertifiedUnidenCellularSignalBoosterunderFCCID: 2AJAN5035CPAL,Modelnumber:5035CPAL,5025CPAL,5015CPALwhichismanufacturedandtest toensureFCCcompliance: (1)Licenseeconsentforprovider-specificboosterhasbeenobtained(consentbemadeavailableupon FCC/TCBrequest) (2)NPSandothercompliance/safeguardfeatureshavebeenimplemented (3)NPSandothercompliance/safeguardfeaturesaredefaultedto“ON”configuration(inoperation) (4)NPSandothercompliance/safeguardfeaturescannotbefieldreconfigured,disabledorremoved (5)Consumerboosterisnotuserprogrammable,doesnotneedfinetuningoradjustment,doesnot requireprofessionalinstallation (6)Futuresoftwareupgradewillnotcausenon-compliance SincerelyYours, Signature: AriSchachter Title:COO

SignifiMobileInc Address:1001RueLenoir,SuiteA-414,Montreal,Quebec,H4C2Z6,Canada Email:[email protected] Tel:+1-514-500-1181 Fax:+1-514-500-1181 ProductSimilarityDeclaration Date:2021-2-1 To: FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 DearSir/Madam, We,SignifiMobileInc,herebydeclarethatwehaveaproductnamedas UnidenCellularSignalBooster,(model:5035CPAL,FCCID:2AJAN5035CPAL)was testedbyBACL,Meanwhile,forourmarketingpurpose,wewouldliketolistaseries model(5025CPAL,5015CPAL)onreportsandcertificate. Theyaredifferentinmodelname,alltheothercharacteristiclikePCBLayout, circuits,enclosure(dimensionsandmaterial),areexactlysame.Nootherchangesare madeonthem. Weconfirmthatallinformationaboveistrue,andwe’llberesponsibleforallthe consequences.Pleasecontactmeifyouhaveanyquestion. Sincerely, Signature: AriSchachter Title:COO

Signifi Mobile Inc Address: 1001 Rue Lenoir,Suite A-414, Montreal, Quebec, H4C 2Z6,Canada Email: [email protected] Tel: +1-514-500-1181 Fax: +1-514-500-1181 FCC Confidential Authorization 2020-09-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AJAN5035CPAL In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Signifi Mobile Inc) hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description Parts List/Tune up procedure The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Ari Schachter Title: COO

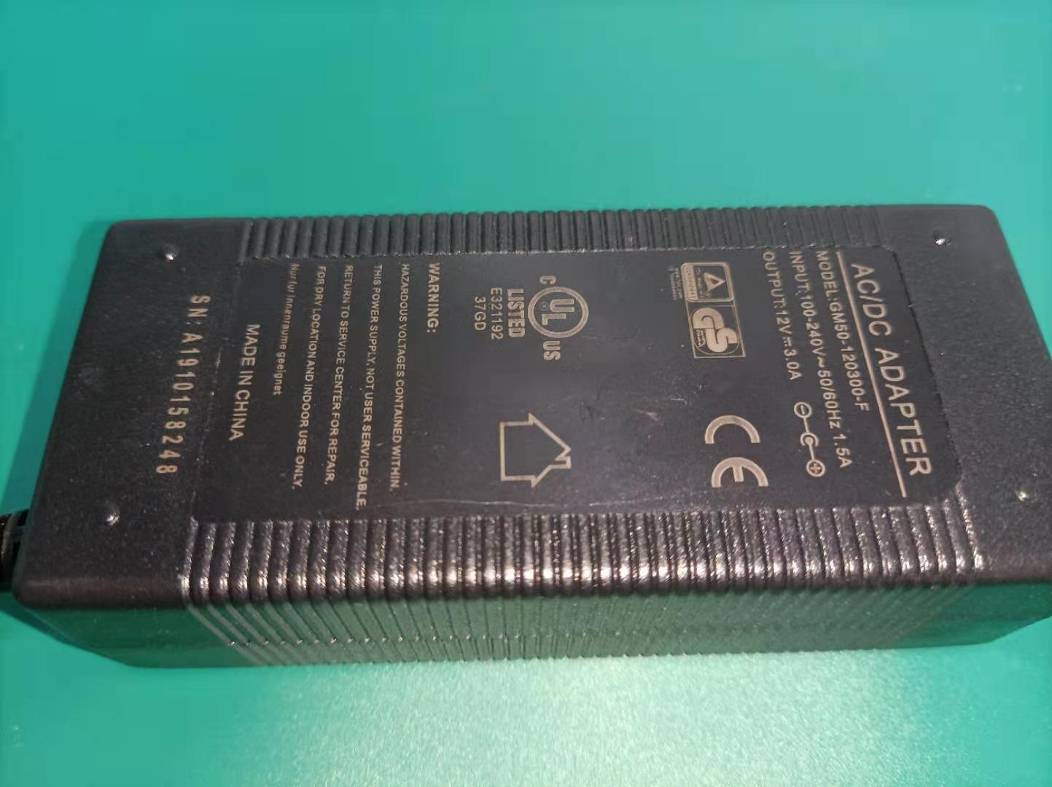

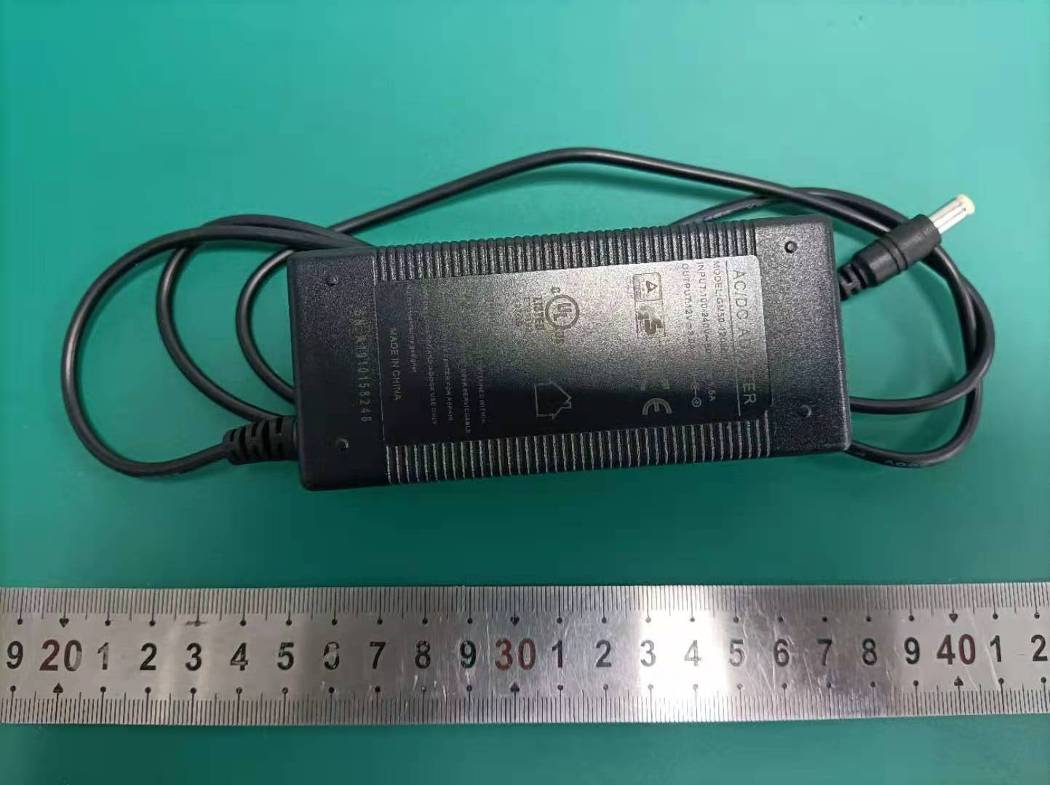

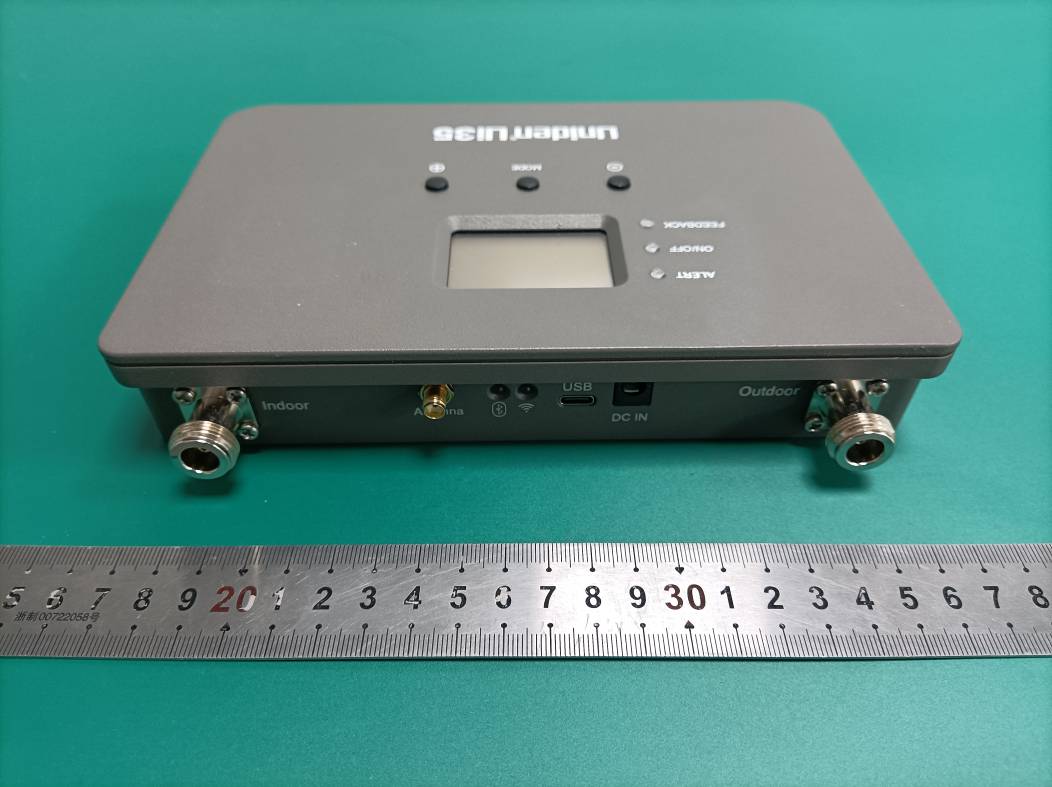

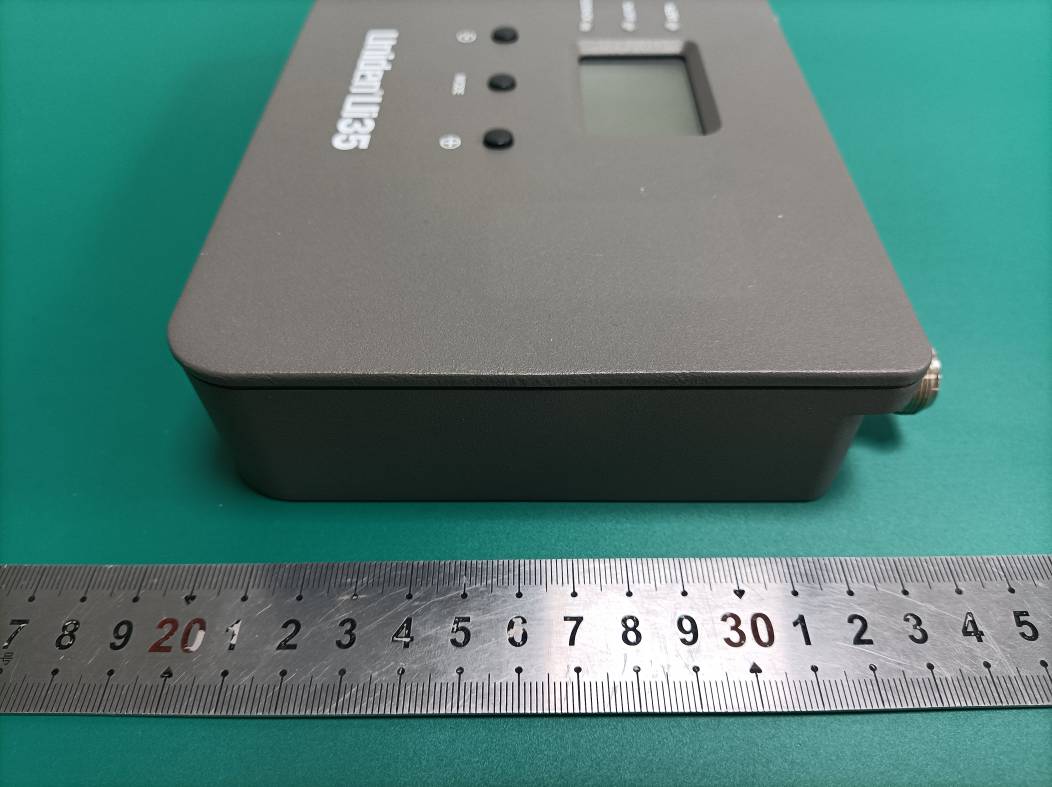

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Page 1 of 5 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Page 4 of 5 Adapter Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Page 5 of 5 Wi-Fi & Bluetooth Antenna

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label Model: 5035CPAL Label 1 Label 2 FCC ID Label Location Information Label 2 Label 1 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Model: 5025CPAL Label 1 Label 2 FCC ID Label Location Information Label 2 Label 1 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Model: 5015CPAL Label 1 Label 2 FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label 2 Label 1 Package Label location Package Label location Package Label location

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Page 1 of 5 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Page 4 of 5 IC 1 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210105002-RF Page 5 of 5 IC 2 Wi-Fi Module

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ210105002-00 FCC Part 20.21 Page 1 of 2 FCC §1.1307 (b) (1) & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Calculated : Predication of MPE limit at a given distance S = 2 4R PG π S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ210105002-00 FCC Part 20.21 Page 2 of 2 MPE Results Tune-Up Power Including Tolerance: Note: *The EUT contains a certified module (FCC ID: 2AC7Z-ESP32WROVERB) According to the MPE reports of FCC ID: 2AC7Z-ESP32WROVERB, Wi-Fi and Bluetooth can’t transmit simultaneously, so consider the Booster and Wi-Fi transmitting simultaneously is the worst case: The ratio= MPE/Limit Booster + MPE/Limit Wi-Fi =0.063/0.465+0.079/1=0.214<1.0 The maximum power density was calculated base on the maximum value of antenna gain and cable loss combination. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Pass Mode Frequency band (MHz) Antenna Gain Maximum Tune-up Power Cable Loss (dB) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm) Uplink 698-716 8 6.31 22 4.97 20 0.063 0.465 776-787 8 6.31 22 4.97 20 0.063 0.517 824-849 8 6.31 21 5.17 20 0.048 0.549 1710-1755 9 7.94 21 7.51 20 0.035 1.0 1850-1915 9 7.94 22 7.51 20 0.044 1.0 Downlink 728-746 5 3.16 17 4.97 20 0.010 0.485 746-757 5 3.16 17 4.97 20 0.010 0.497 869-894 5 3.16 17 5.17 20 0.010 0.579 2110-2155 7 5.01 17 7.51 20 0.009 1.0 1930-1995 7 5.01 17 7.51 20 0.009 1.0 Wi-Fi* 2412-2462 2.0 1.58 24 0 20 0.079 1.0 BLE* 2402-2480 2.0 1.58 2 0 20 0.0005 1.0 BT* 2402-2480 2.0 1.58 5.5 0 20 0.001 1.0

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 20.21 TEST REPORT For Signifi Mobile Inc 1001 Rue Lenoir Suite A-414 Montreal Quebec, H4C 2Z6 Canada FCC ID: 2AJAN5035CPAL Report Type: Original Report Product Type: Uniden Cellular Signal Booster Re port Number: RSZ210105002-00 Re port Date: 2021-01-30 Reviewed B y: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ210105002-00 FCC Part 20.21 Page 2 of 190 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 § 20.21(E)(3) – AUTHORIZED FREQUENCY BAND VERIFICATION ............................................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 12 § 20.21(e)(8)(i)(D) ,§ 20.21(e)(8)(i)(B)& §20.21(e)(4)– MAXIMUM POWER MEASUREMENT ....................... 18 APPLICABLE STANDARD ............................................................................................................................................ 18 TEST PROCEDURE ...................................................................................................................................................... 18 TEST DATA ................................................................................................................................................................ 19 § 20.21(e)(8)(i)(C)(2), § 20.21(e)(8)(i)(B)&§20.21(e)(4) – MAXIMUM BOOSTER GAIN COMPUTATION .... 21 APPLICABLE STANDARDS........................................................................................................................................... 21 TEST PROCEDURE ...................................................................................................................................................... 21 TEST DATA ................................................................................................................................................................ 21 § 20.21(e)(8)(i)(F)- INTERMODULATION PRODUCT.......................................................................................... 23 APPLICABLE STANDARDS...........................…
