2AJKE-LHESPA0Lumos Snapix

LUMOS SNAPIX QUICK START GUIDE Visit: www.ridelumos.com/support for more information. QR CODE AND WEBSITE OF THE SUPPORT CENTER 1 WHAT’S IN THE BOX 3. User Manual 1. Snapix Helmet2. Sticker x3 4. Quick Start Guide 1. 3. 2. 4. USER MANUAL GUIDE DE L’UTILISATEUR BENUTZERHANDBUCH B1 2 HOW TO USE THE HELMET Power Button Charging Port 3 POWER BUTTON Power Button Press Power on Press and hold Power off Mode Switching Press when powered on: Cycle through 3 light modes: Solid / Fast Flash / Slow Flash Explore more colors and light patterns in the Lumos App. Double Press Sync current light pattern with Lumos devices 4 Charging Status Pulsing Red: Below35% Pulsing Orange: Battery 35% –70% Pulsing Green: Above70% Solid Green: Fully charged Charging Port CHARGING Lift the rubber cover to access the charging port. 5 1. Enter pairing mode: With helmet off, press and hold Power button for 3s until the rear LED flashes red. 2. Search device: Launch Lumos App, allow permissions, and tap + on All Devices page. 3. Complete pairing: Select your helmet, tap Pair, then tap Continue once Paired. 6 PAIRING WITH APP Unlock REPLACEABLE ELECTRONIC MODULE Front Light Removal 1. Ensure the helmet is turned off. 2. Slide the module horizontally to the left. 3. Pull the module off the mounting base once it snaps free. 7 Rear Light Removal 1. Ensure the helmet is turned off. 2. Slide the module horizontally to the left. 3. Pull the module off the mounting base once it snaps free. Unlock 8 Lock Installation 1. Align the module with the three slots on the base (refer to the "Install" arrow and lock icon). 2. Slide the module horizontally to the right until it snaps securely into place. Lock 9 CAUTION Do Not Repeatedly Remove and Install the Lights Only remove the lights when replacing the helmet or light units. Frequent disassembly may cause unpredictable structural damage. Do Not Ride Without Lights Installed Never ride if the front or rear lights are missing. The lights are essential for your safety; riding without them compromises protection. Do Not Disassemble the Light Units Do not open or alter the light units. They feature a waterproof structure; self-disassembly will destroy the seals and cause water damage. 10 IMPORTER INFORMATION 11 Importer in USA: Lumen Labs Inc. 4550 New Linden Hill Road, Suite 201, Wilmington, DE 19808 (617) 528-9968 Importer in Netherlands: GROFA® Action Sports GmbH Otto-Hahn-Straße 17 Bad Camberg 65520 Germany +49 6434 2008200 Importer in Germany: GROFA® Action Sports GmbH Otto-Hahn-Straße 17 Bad Camberg 65520 Germany +49 6434 2008200 Importer in Switzerland: Bucher et Walt SA Route de Soleure 8 CH-2072 St-Blaise Switzerland +41 32 755 95 00 Importer in UK: Lumos Labs International Pte Ltd Unit I, Hove Technology Centre St Josephs Close Hove East Sussex Importer in France: Now Company sprl Avenue Leonard de Vinci 14, Wavre 1300, Belgium +32 48562002 Importer in Vietnam: SAFFRONCLUB VIETNAM COMPANY, LTD P7-33.OT02, Park 7 Vinhomes Central Park, 720A Dien Bien Phu street, Thanh My Tay Ward, Ho Chi Minh City Importer in Philippines: Liberty & Co. 20 Talisay Road Barangay Forbes Park Makati City 1219 Philippines Importer in Japan: Riteway Products Japan Ikebukuro City Heights 102, 3-18-34, Minami Ikebukuro Toshima-ku,Tokyo, Japan Importer in Singapore: Kian Hong Cycle Pte Ltd 13 Kaki Bukit Road 1 #02-08 Eunos Technolink Singapore 415928 +65 6749 5787 Importer in Indonesia: Khcycle Indonesia Ruko the Prominence, Jl. Jalur Sutera 38D, No. 5 Alam Sutera - Tangerang City 15143 Indonesia +6222-30052581 Importer in Malaysia: Khcycle Malaysia Sdn Bhd No. 9, Jalan PJU 3/48, Sunway Damansara Technology Park, 47810 Petaling Jaya, Selangor, Malaysia +603 7865 2188 12 Importer in Norway: Deler AS Hestehagen 4 NO-1448 Drøbak Norway +47 47 48 94 18 13 Importer in Denmark: Søndergård & Sønner A/S Fabrikvej 3 8260 Viby J Denmark +45 86 28 10 22

USER MANUAL MANUEL DE L’UTILISATEUR BENUTZERHANDBUCH A1 1 If there are variations between different languages, the English version will prevail. Lumos Helmet User Manual Before using your Lumos Helmet, review the user manual at: www.ridelumos.com/support Safety and Handling See “Fitting instructions and usage warnings” in the Lumos Helmet User Manual. Fitting Instructions The helmet must fit properly to be effective. With proper fit, the helmet will not move back and forth or side to side while fastened. The helmet can only protect if it fits well. Refer to the following image: With every helmet, clear information in the language of the country of sale shall be given as follows: (1) that the helmet can only protect if it fits well and that the buyer should try different sizes and choose the size which feels secure and comfortable on the head; (2) that the helmet should be adjusted to fit the user, e.g. the straps positioned so that they do not cover the ears, the buckle positioned away from the jawbone and the straps and buckle adjusted to be both comfortable and firm; (3) helmet should be positioned on the head to ensure the intended protection is provided (e.g. that it should be placed so as to protect the forehead and not be pushed too far over the back of the head); (4) that a helmet cannot always protect against injury; (5) that a helmet subjected to a severe impact should be EN 2 discarded and destroyed; (6) a statement of the danger of modifying or removing any of the original component parts of the helmet other than as recommended by the manufacturer, and that helmets should not be adapted for the purpose of fitting accessories in a way not recommended by the manufacturer. EU Declaration of Conformity This helmet is in conformity with the PPE regulation (EU) 2016/425 Notified Body: Kiwa Nederland B.V. with its office located at Wilmersdorf 50,7327 Ac Apeldoorn, The Netherlands. Notified Body No.0063 Lumos helmet complies with RED 2014/53/EU. Full DOC: www.ridelumos.com/EU_DOC CE EN 1078:2012 + A1:2012 (EU PPE 2016/425) US CPSC 16 CFR Part 1203 / ASTM F1447-24 EU Type Exam: TÜV SÜD DANMARK ApS (NB 2443) Intended Use: Recreational cycling/roller-skating only. Not for tricks, downhill racing or roller hockey. Patent pending. Specific Statement - United States of America All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular purpose, are hereby limited to the duration of the limited warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. FCC - Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. EN 3 This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help. RF Warning - Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Specific Statement - Canada This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions:(1) This device may not cause interference, and(2) This device must accept any interference, including interference that may cause undesired operation of the device. Lumos One-Year Limited Warranty Lumos warrants all products sold by Lumos to be free of defects in material and workmanship for a period of one (1) year from the date of purchase unless otherwise specified on the product. If a product is found to be defective by Lumos, in its sole discretion, Lumos’ only responsibility will be to replace or repair the defective product. Lumos will not be responsible for any costs, losses or damages incurred because of the loss or use of any of its products, and Lumos specifically disclaims all claims for consequential and incidental damages. This limited warranty is subject to several important restrictions:This limited warranty only applies to products purchased directly from Lumos. If purchased from a Lumos Authorized Reseller, please contact them EN 4 directly.This limited warranty is valid only for the original purchaser of a product, and it cannot be transferred to another person upon the sale, lease, or transfer of the product.This limited warranty does not cover normal wear and tear.This limited warranty does not apply to anything other than defects in the manufacturing and workmanship of the product.The limited warranty is waived if you seek to repair the product using anything other than approved Lumos products and services, or if you seek to combine the product with any third party product (like sealants, …

Text truncated - open the document above for the full version.

Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 Annex D. Label FCC Label Sample Label Size: 2cm*1cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 Annex C. Test Photos Radiated Emission Test View 1 Radiated Emission Test View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 Conducted Emission Test View 1

Report No: SSP26070509-1 FCC Test Report Page 1 of 47 FCC TEST REPORT FCC ID: 2AJKE-LHESPA0 Report No. : SSP26070509-1 Applicant : Lumen Labs (HK) Limited Product Name : Lumos Snapix Model Name : LHESP-A0 Test Standard : FCC Part 15.247 Date of Issue : 2026-08-20 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.zrlklab.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26070509-1 FCC Test Report Page 2 of 47 Test Report Basic Information Applicant..................................: Lumen Labs (HK) Limited Address of Applicant...............: 21st Floor, CMA Building, 64 Connaught Road, Central, Hong Kong,China Manufacturer..........................: Lumen Labs (HK) Limited Address of Manufacturer........: 21st Floor, CMA Building, 64 Connaught Road, Central, Hong Kong,China Product Name.........................: Lumos Snapix Brand Name.............................: LUMOS Main Model..............................: LHESP-A0 Series Models..........................: LHESP-M0 Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020+Cor 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Date of Test .............................: 2026-07-30 to 2026-08-11 Test Result...............................: PASS Tested By ................................: (Colin Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26070509-1 FCC Test Report Page 3 of 47 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 33 6.1 Standard and Limit.............................................................................................................................................. 33 6.2 Test Procedure.................................................................................................................................................... 33 6.3 Test Data and Results .......................................................................................................................................... 33 7. Maximum Peak Conducted Output Power ..…

Text truncated - open the document above for the full version.

1. General Information 1.1 Antenna Information Manufacturer: Lumen Labs (HK) Limited Address of Manufacturer: 21st Floor, CMA Building, 64 Connaught Road, Central, Hong Kong,China Product Name: 2.4GHz Antenna Model Name: LHESP-A0 Frequency Range: 2400MHz - 2500MHz Type of Antenna: PCB Antenna Antenna Gain: 0dBi (Max.) Impedance: 50 ohm Antenna View: Unit: mm 2. Antenna Specification information 2.1 Gain Frequency Peak Gain (dBi) Polarity 2400MHz 0 Horizontal 2400MHz -0.54 Vertical 2450MHz -1.25 Horizontal 2450MHz -1.51 Vertical 2500MHz -1.68 Horizontal 2500MHz -1.27 Vertical 2.2 Radiation Pattern View

FCC ID: 2AJKE-LHESPA0 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BLE Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -0.88 0(±1) 1 1.26 2440 5 0.393636 3.0 So a SAR test is not required

Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-M0 (Black) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 LHESP-M0 (white) EUT View 1 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 2 EUT View 3 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 4 EUT View 5 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-M0 (pink) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 LHESP-M0 (baby blue) EUT View 1 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 2 EUT View 3 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 4 EUT View 5 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-M0 (creamy white) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 LHESP-M0 (green) EUT View 1 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 2 EUT View 3 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 4 EUT View 5

Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 Annex B. EUT Internal Photos LHESP-A0 (Black) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 LHESP-A0 (white) EUT View 1 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 2 EUT View 3 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 4 EUT View 5 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-A0 (pink) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 LHESP-A0 (baby blue) EUT View 1 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 2 EUT View 3 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 4 EUT View 5 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-A0 (creamy white) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 LHESP-A0 (green) EUT View 1 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 2 EUT View 3 PCB ANT Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 4 EUT View 5

Rev 1/26/2023 Lumen Labs (HK) Limited Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 27, 2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AJKE-LHESPA0 [Lumen Labs (HK) Limited] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Lumen Labs (HK) Limited] (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, Name: Kwang Xiong Sim Signature: Rev 1/26/2023 Lumen Labs (HK) Limited Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 27, 2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AJKE-LHESPA0 [Lumen Labs (HK) Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Name: Kwang Xiong Sim Signature:

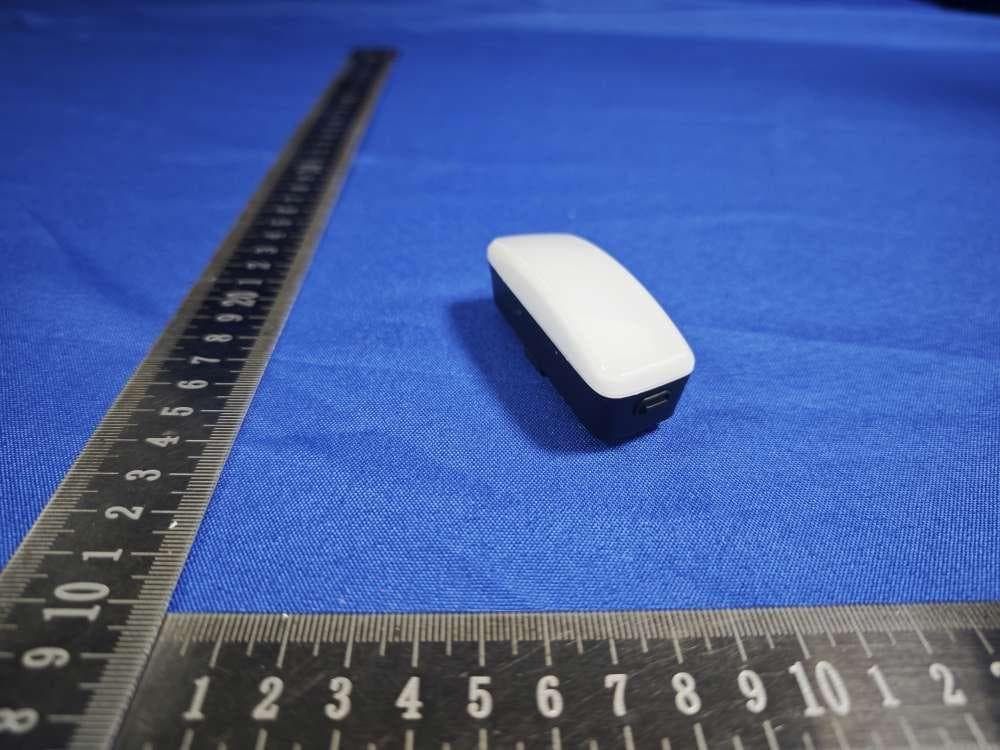

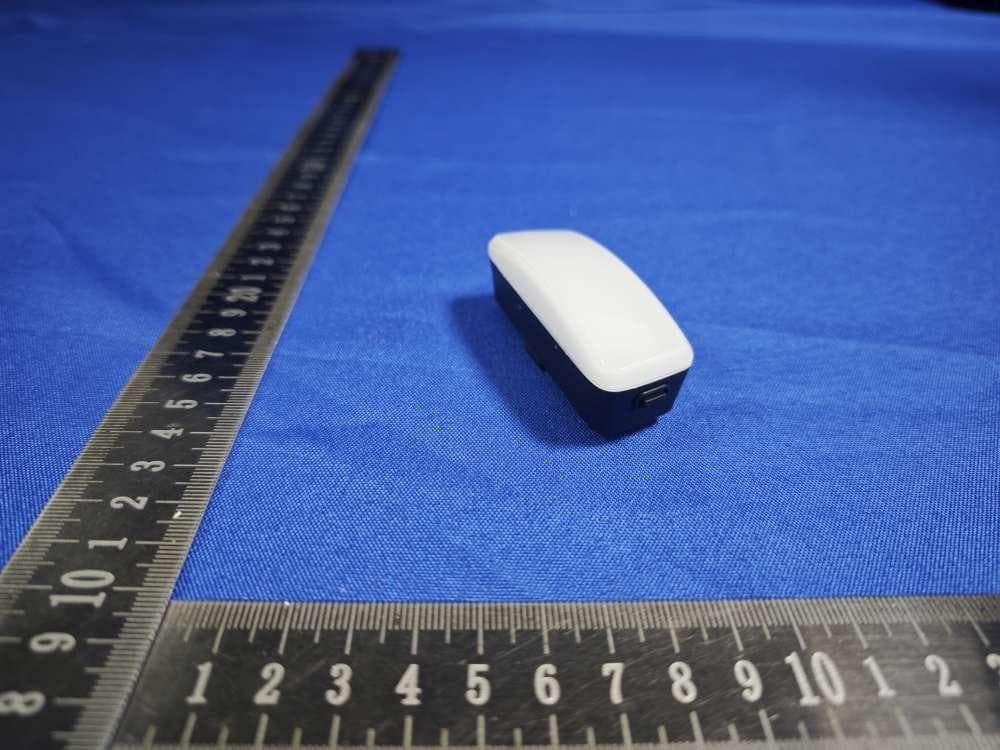

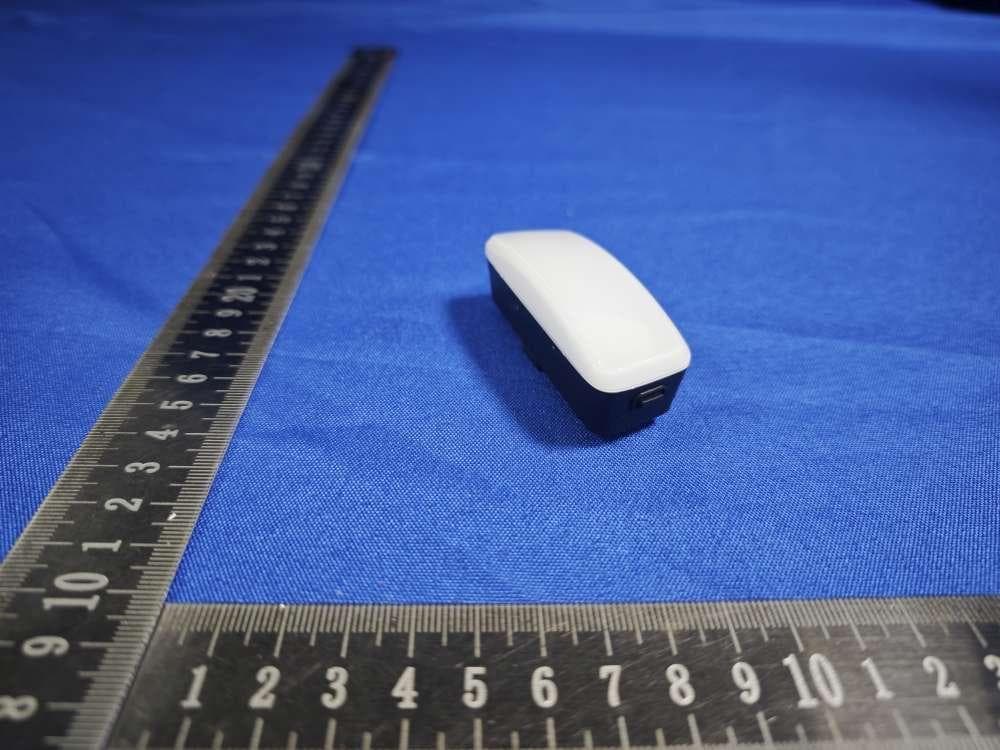

Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 Annex A. EUT External Photos LHESP-A0 (Black) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 EUT View 6 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 7 EUT View 8 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 9 EUT View 10 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-A0 (white) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 EUT View 6 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 7 EUT View 8 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 9 EUT View 10 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-A0 (pink) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 EUT View 6 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 7 EUT View 8 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 9 EUT View 10 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-A0 (baby blue) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 EUT View 6 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 7 EUT View 8 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 9 EUT View 10 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-A0 (creamy white) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 EUT View 6 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 7 EUT View 8 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 9 EUT View 10 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-A0 (green) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 EUT View 6 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 7 EUT View 8 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 9 EUT View 10

Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-M0 (Black) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 EUT View 6 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 7 EUT View 8 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 9 EUT View 10 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 11 LHESP-M0 (white) EUT View 1 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 2 EUT View 3 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 4 EUT View 5 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 6 EUT View 7 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 8 EUT View 9 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 10 EUT View 11 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-M0 (pink) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 EUT View 6 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 7 EUT View 8 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 9 EUT View 10 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 11 LHESP-M0 (baby blue) EUT View 1 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 2 EUT View 3 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 4 EUT View 5 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 6 EUT View 7 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 8 EUT View 9 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 10 EUT View 11 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 LHESP-M0 (creamy white) EUT View 1 EUT View 2 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 3 EUT View 4 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 5 EUT View 6 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 7 EUT View 8 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 9 EUT View 10 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 11 LHESP-M0 (green) EUT View 1 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 2 EUT View 3 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 4 EUT View 5 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 6 EUT View 7 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 8 EUT View 9 Report No: SSP26070509-1 FCC ID: 2AJKE-LHESPA0 EUT View 10 EUT View 11

Lumen Labs (HK) Limited Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: August 27, 2026 SUBJECT: FCC Application for FCC ID: 2AJKE-LHESPA0 To Whom It May Concern: We, the undersigned, hereby authorize Lahm Peng at Shenzhen CCUT Quality Technology Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Lahm Peng at Shenzhen CCUT Quality Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Name: Kwang Xiong Sim Signature:

Lumen Labs (HK) Limited Model Difference Statement DATE: August 28, 2026 FCC ID: 2AJKE-LHESPA0 IC: 21853-LHESPA0 Dear Sir/Madam, Added models LHESP-M0 basis of the original product LHESP-A0 The appearance color, accessories, and model name of the listed series models differ from those of the main model, but the manufacturer states that their circuitry and electronic structure are identical. LHESP-A0 (Black) EUT View 1 LHESP-A0 (white) EUT View 1 Lumen Labs (HK) Limited LHESP-A0 (pink) EUT View 1 LHESP-A0 (baby blue) EUT View 1 Lumen Labs (HK) Limited LHESP-A0 (creamy white) EUT View 1 LHESP-A0 (green) EUT View 1 Lumen Labs (HK) Limited LHESP-M0 (Black) EUT View 1 LHESP-M0 (white) EUT View 1 Lumen Labs (HK) Limited LHESP-M0 (pink) EUT View 1 LHESP-M0 (baby blue) EUT View 1 Lumen Labs (HK) Limited LHESP-M0 (creamy white) EUT View 1 LHESP-M0 (green) EUT View 1 Sincerely, Name: Kwang Xiong Sim Signature: Title: Manager Company name: Lumen Labs (HK) Limited

Rev 11/20/07 Lumen Labs (HK) Limited Date: August 27, 2026 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AJKE-LHESPA0 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Block Diagram, Schem…

Text truncated - open the document above for the full version.
