LUM OS Lumos Remote Lite User Guide Remote Lite is a remote control meant to control the turn signals on Lumos products. Setting Up and Usage lnstructi。ns 1) Place the remote。n the handle bar, somewhere cl。se enough t。yourhands such that they can be easily accessible during your ride. 2) Secure the remote to y。urhandlebar using。ne of the 4 silicone rubber bands provided. 3) T。pair remote with helmet, put helmet in pairing mode, and hold down Land R buttons until blinking, then press L。r R t。completethe pairing 4)T·。blinkleft turn signal, press L. T。blinkright turn signal, press R. FCC-Statement This device complies with Part 15。f the FCC Rules. Operation is subject to the following tw。conditions:(1) This device may n。t cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or m。dificati。ns not expressly approved by the party responsible for E。mpliancecould void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15。f the FC Rules. These limits are designed to pr。vide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if n。t installed and used in accordance with the instructi。ns, may cause harmful interference t。radiocommunicati。ns. H。wever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference t。radioor television reception, which can be determined by turning the equipment o忏and on, the user is encouraged t。try t。 c。rrectthe interference by。ne or more。f the foll。wingmeasures: Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver c。nnectthe equipment into an outlet on a circuit different from that to which the receiver is c。nnected. c。nsultthe dealer or an experienced radi。/TV technician for help. Rem。te Model: Lumos Remote Lite Remote Model Number: LRELTN-AO Voltage: 3.0V The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. IC Caution: This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux apparei ls radio exempts de lice nce. L'exploitation est autorisée aux deux conditions suivantes: (1)l' appareil ne doit pas p roduire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition withou t restriction. L'appareil a été évalué pour répondre a ux exigences générales d'exposition RF. L'appareil peut être utilisé dans des conditions d'exposition portables sans restriction.

Lumen Labs(HK) Limited Agent Authorization Company: Lumen Labs(HK) Limited Address: 21st Floor, CMA Building, 64 Connaught Road, Central, Hong Kong, China Product Name: Remote Lite Model Number(s ): LRELTN-A0 Product Description: Remote Lite We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/03/24 Name: Sim Kwang Xiong Title: Head of Products Company: Lumen Labs(HK) Limited

Lumen Labs(HK) Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/03/24 Subject; Request for Confidentiality FCC ID: 2AJKELRELTN-A0 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sim Kwang Xiong Title: Head of Products

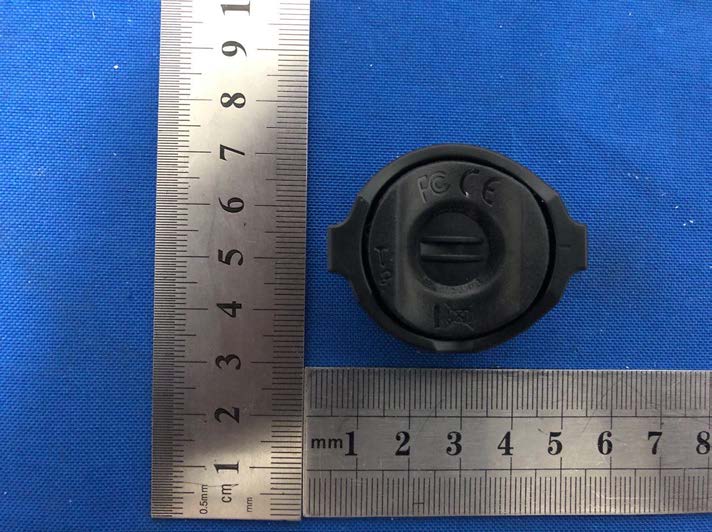

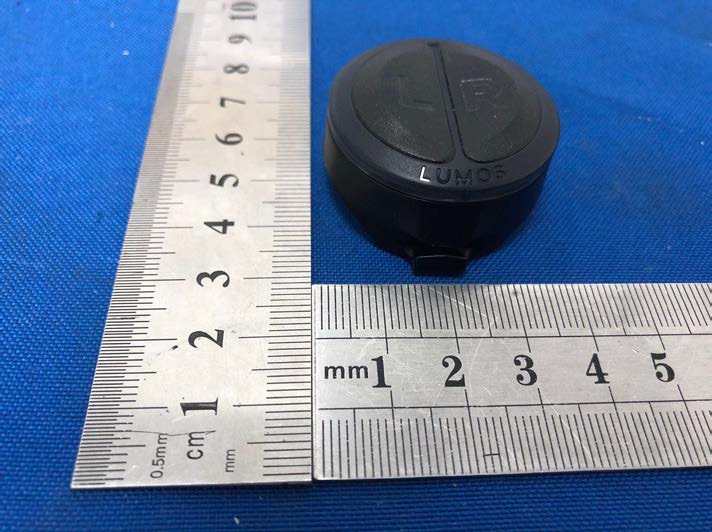

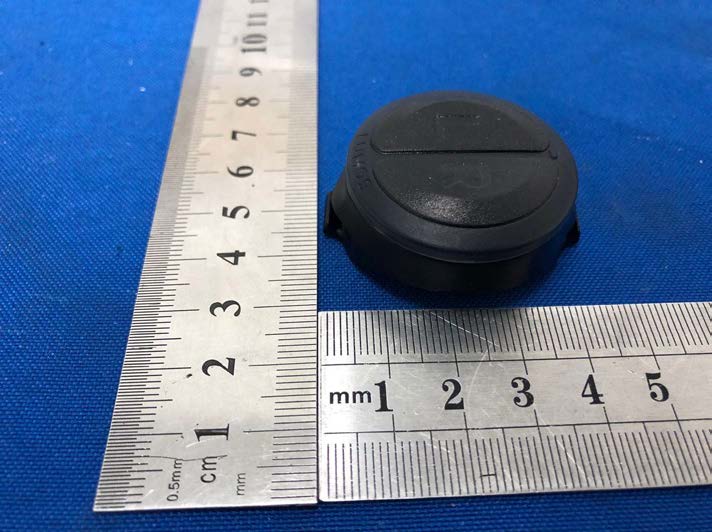

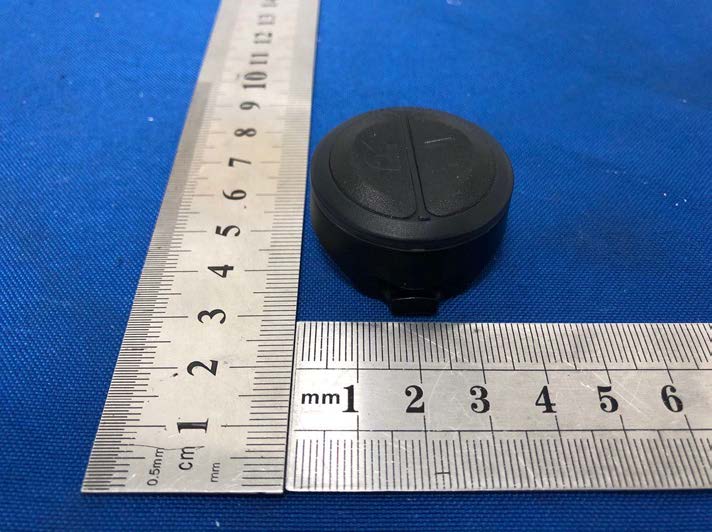

External Photos

Label & label location Model: L R E LT N-A0 FCC ID: 2AJKELRELTN-A0 IC: 21853-LRELTNA0

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2AJKELRELTN-A0 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. max possible output power (PK,conducted)：-3±1dbm 1dBi logarithmic terms convert to numeric result is nearly 1.259 -2dbm=0.63mW 2455MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=0.63/5*√2.455 =0.20≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. Modulation Frequency (MHz) Output Power (dBm) Max Antenna Gain (dBi) GFSK 2455 -3.672 1

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000134E Test Report FCC ID: 2AJKELRELTN-A0 Product Name: Remote Lite Trademark: LUMOS Model Name : LRELTN-A0 Prepared For : Lumen Labs(HK) Limited Address : 21st Floor, CMA Building, 64 Connaught Road, Central, Hong Kong, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Mar. 03, 2020 – Mar. 10, 2020 Date of Report : Mar. 10, 2020 Report No.: BCTC2003000134E Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 1 of 36 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000134E TEST RESULT CERTIFICATION Applicant’s name ................. : Lumen Labs(HK) Limited Address ................................. : 21st Floor, CMA Building, 64 Connaught Road, Central, Hong Kong, China Manufacture's Name ............ : Lumen Labs(HK) Limited Address ................................. : 21st Floor, CMA Building, 64 Connaught Road, Central, Hong Kong, China Product description Product name ........................... : Remote Lite Trademark ................................. : LUMOS Model and/or type reference : LRELTN-A0 Standards ............................. : FCC Part15.247 ANSI C63.10:2013 KDB 558074 D01 15.247 Meas Guidance v05r02 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Willem Wang Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 2 of 36 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000134E Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 14 3.2.1 RADIATED EMISSION LIMITS 14 3.2.2 TEST PROCEDURE 15 3.2.3 DEVIATION FROM TEST STANDARD 15 3.2.4 TEST SETUP 16 3.2.5 EUT OPERATING CONDITIONS 17 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 18 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 22 3.3.1 TEST REQUIREMENT: 22 3.3.2 TEST PROCEDURE 22 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 23 3.3.5 EUT OPERATING CONDITIONS 23 4 . POWER SPECTRAL DENSITY TEST 25 4.1 APPLIED PROCEDURES / LIMIT 25 4.1.1 TEST PROCEDURE 25 4.1.2 DEVIATION FROM STANDARD 25 Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 3 of 36 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000134E Table of Contents Page 4.1.3 TEST SETUP 25 4.1.4 EUT OPERATION CONDITIONS 25 4.1.5 TEST RESULTS 26 5 . BANDWIDTH TEST 27 5.1 APPLIED PROCEDURES / LIMIT 27 5.1.1 TEST PROCEDURE 27 5.1.2 DEVIATION FROM STANDARD 27 5.1.3 TEST SETUP 27 5.1.4 EUT OPERATION CONDITIONS 27 5.1.5 TEST RESULTS 28 6 . PEAK OUTPUT POWER TEST 29 6.1 APPLIED PROCEDURES / LIMIT 29 6.1.1 TEST PROCEDURE 29 6.1.2 DEVIATION FROM STANDARD 29 6.1.3 TEST SETUP 29 6.1.4 EUT OPERATION CONDITIONS 29 6.1.5 TEST RESULTS 30 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 31 7.1 APPLICABLE STANDARD 31 7.2 TEST PROCEDURE 31 7.3 DEVIATION FROM STANDARD 31 7.4 TEST SETUP 31 7.5 EUT OPERATION CONDITIONS 31 8 . ANTENNA REQUIREMENT 34 8.1 STANDARD REQUIREMENT 34 8.2 EUT ANTENNA 34 9 . EUT TEST PHOTO 35 10 . EUT PHOTO 36 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 4 of 36 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000134E 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark FCC Part15.207 Conducted Emission N/A FCC Part 15.247 (a)(2) 6dB Bandwidth PASS FCC Part 15.247 (b) Peak Output Power PASS FCC Part 15.247 (d) FCC Part 15.209 Radiated Spurious Emission PASS FCC Part 15.247 (e) Power Spectral Density PASS FCC Part 15.205 Restricted Band of Operation PASS FCC Part 15.247(d) Band Edge (Out of Band Emissions) PASS FCC Part15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 5 of 36 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000134E 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add.: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 3 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 4 Conducted Adjacent channel power U=1.38dB 5 Conducted output power uncertainty Above 1G U=1.…
