2AJN9-UBP20000MPower Stand Mag

Welcome Guide 90 90 USB-C Input/Output -Wireless output: click the button to start wireless charging. Port output: no need to press the button, automatic output after plugging in. USB-A Output 1 USB-A Output 2 Wireless Charging Floding Bracket LED Display Power Button Paid service:customer will incur a repair charge as follows: -No valid warranty card or warranty card incompatible. -No S/N or S/N incompatible with warranty card -Malfunction caused by artificial damages(like external impact or submerging product into water,ect.) -Misuse of the product.User has not followed the instructions in the manual. -Product disassembled or repaired by individual or unauthorized service center. -Damages caused by storing the product in a hot or humid environment. -Defects or malfunctions due to force majeure. Thank you for purchasing the iWALK product. Our product’s warranty period is 12 months starting from the date of purchase.Within the warranty period, free service will be provided to the consumer. if the product has any quality problems(requiring warranty card with distributor’s official stamp and valid S/N). Carte de garantie | Garantiekarte | Scheda di garanzia Hoja de garantía | 製品パラメータ Warranty card Dealer’s Information (Please complete warranty card and use for any future warranty service) User’s Information Dealer Name: Product Type: Tel: Sales Date: Model No.: Product Name: User’s Name: E-mail: Tel: ADD: Warranty Content: 注意：请务必妥善填写并保存本保修卡以备保修使用！ 感谢您购买本公司的产品。 本产品的保修期为购买之日起12个月，在此期间遇到质量问题可凭保修卡（须加盖销售商公章及有效产品S/N号） 到销售商享受免费服务。 收费服务-以下情况属于有偿服务 -无有效的保修卡及保修卡内容不符 -无产品S/N号或S/N号与保修卡上填写不一致 -人为损坏（外力撞击、进水等）导致故障发生 -违规操作 -非服务中心人员自行拆卸或修理 -因将产品放置在高温或潮湿的环境中所导致的故障 用户信息 经销商名称： 产品类型： 电话： 销售日期： 产品型号： 产品名称： 用户姓名： 邮 箱： 电话： 地 址： 保修内容： 保 修 卡 经销商信息 Made in China PA1156 (Click the button to start wireless charging, double click to shut down) 使用说明书 | user's manual | Manuel d'utilisation Bedienungsanleitung | Manuale d’istruzione Manual de instrucciones | 取扱説明書 产品参数/Specifications/Paramètre produit/Produktparameter Parametri del prodotto/Parámetros del producto/製品パラメータ UBP20000M 产品名称: “魔咔宝”无线充移动电源 产品型号: UBP20000M 锂聚合物电池容量: 3.7V 20000mAh 额定能量: 74Wh 转换率: 63% 额定容量: 12600mAh(5V/3A) 输入: USB-C口 5V 2.4A, 9V 2A, 12V 1.5A 输出: USB-C口 5V 3A, 9V 2.22A, 12V 1.67A USB-A1口 5V 4.5A; 5V 2.4A, 9V 2A, 12V 1.5A USB-A2口 5V 2.4A, 9V 2A, 12V 1.5A 无线充电: 5W/7.5W/10W/15W (多端口同时输出时, 5V输出3A Max) 产品尺寸: 158.5x77x27mm 产品重量: 418g 执行标准: GB/T35590-2017 USB-C -Support up to 3 devices to charge at the same time. - Supporta fino a 3 dispositivi da caricare contemporaneamente. - Admite hasta 3 dispositivos para cargar al mismo tiempo. - 本产品最多可支持3个设备同时充电。 - Prend en charge jusqu'à 3 appareils pour charger en même temps. - 边充边放功能 - Pass-through Charging - 同時に充電する最大3台のデバイスをサポート. - Unterstützt bis zu 3 Geräte zum gleichzeitigen Laden. - Función de carga y descarga al mismo tiempo - Funktion der gleichzeitigen Ladung und Entladung - Fonction de charge et de décharge simultanée - Funzione di contestuale ricarica e riproduzione - 充電しながら放電機能 Product Name: PowerStand Mag Model No.: UBP20000M Capacity: 20000mAh 3.7V/74Wh Input: USB-C 5V 2.4A, 9V 2A, 12V 1.5A Output: USB-C 5V 3A, 9V 2.22A, 12V 1.67A USB-A1 5V 4.5A; 5V 2.4A, 9V 2A, 12V 1.5A USB-A2 5V 2.4A, 9V 2A, 12V 1.5A Wireless Charging: 5W/7.5W/10W/15W Size: 158.5x77x27mm Weight: 418g PowerStand Mag x3 x1 x1x1 MagStickerAlignment PaperCharge Cable 包装内包含/Package Contains/L’emballage contenant/Die verpackung umfasst/ Imballaggi contenenti/El paquete contiene/包装に含まれる 产品介绍/Product Introduction/Présentation des produits/Beschreibung der erzeugnisse/Introduzione dei prodotti/Presentación del producto/製品の紹介 1）为保证电池寿命，请每 4个月至少使用并给产品充电一次。 2）使用原装或者通过认证的线材。 3）请勿接触液体。 4）请勿拆卸。 5）避免跌落产品。 6）避免在过低或过高温度下使用。 7）无线充电时引起的发热属于正常现象(环境温度也会影响发热)。 1）Pour assurer la durée de vie de la batterie, veuillez utiliser et charger le produit au moins une fois tous les 4 mois. 2）Utilisez du câble d'origine ou certifié. 3）Ne le laisser pas toucher du liquide. 4）Veuillez ne pas démonter. 5）Évitez la chute du produit. 6）Évitez de l'utiliser à des températures trop faibles ou trop élevées. 7) la chaleur provoquée par la charge sans fil est un phénomène normal (la température ambiante peut également influer sur la chaleur). 安全注意事项 1）To preserve battery lifespan, use and recharge at least once every 4 mouths. 2）Use original or certified cables. 3）Do not expose to liquids. 4）Do not disassemble. 5）Avoid dropping. 6）Avoid extreme temperatures. 7) The heating caused by wireless charging is a normal phenomenon (the ambient temperature will also affect the heating). Safety Precautions 1）Verwenden und laden Sie das Produkt mindestens alle 4 Monate auf, um die Lebensdauer der Batterie zu gewährleisten. 2）Verwenden Sie Original- oder zertifizierte Drähte. Sicherheitsvorkehrungen Précautions de sécurité 1）Para garantizar la duración de la batería, debe usar y cargar al producto al menos una vez por cada 4 meses. 2）Utilizar los alambres originales o homologados. 3）No tocar con el líquido. 4）No lo desmonte. 5）Evitar la caída del producto. 6）Evite el uso del presente a temperaturas demasiado bajas o demasiado altas. 7) el calor causado por la carga inalámbrica es UN fenómeno normal (la temperatura ambiente también influye en el calor). Precauciones de seguridad 1）Per assicurare la vita della batteria, Le preghiamo di utilizzare e ricaricare il prodotto almeno una volta per ogni 4 mesi. 2）Utilizzare la confezione originale o il cavo certificato. 3）Non toccare il liquido. 4）Non smantellare il prodotto. 5）Evitare la caduta del prodotto. 6）Evitare l’utilizzo alla temperatura troppo bassa o alta. 7) Il calore causato dalla ricarica wireless è normale (anche la temperatura ambiente influirà sul calore). Precauzioni di sicurezza 1）電池の寿命を保証するために、最低でも4ヶ月おきに本製品に充電してください。 2）オリジナルまたは認証された線材を使ってください。 3）液体との接触を避けてください。 4）無断に解体しないでください。 6）度が低すぎまたは高すぎな環境での使用を避けてください。 7) 無線充電時の発熱は正常です(発熱には周囲温度も影響します)。 安全注意事項 3）Berühren Sie keine Flüssigkeiten. 4）Zerlegen Sie das Gerät nicht. 5）Vermei…

Text truncated - open the document above for the full version.

U2O GLOBAL CO., LTD. Agent Authorization Company: U2O GLOBAL CO., LTD. Address: Huanzhu Road No.385, 4 Floor, Jimei District, Xiamen, China. Product Name: Power Stand Mag Trade Mark: iWALK Model Number(s): UBP20000M FCC ID: 2AJN9-UBP20000M We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-28 Name: Zhide Wu Title: Engineering Manager Company: U2O GLOBAL CO., LTD.

U2O GLOBAL CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-05-28 Subject; Request for Confidentiality FCC ID: 2AJN9-UBP20000M To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Zhide Wu Title: Engineering Manager

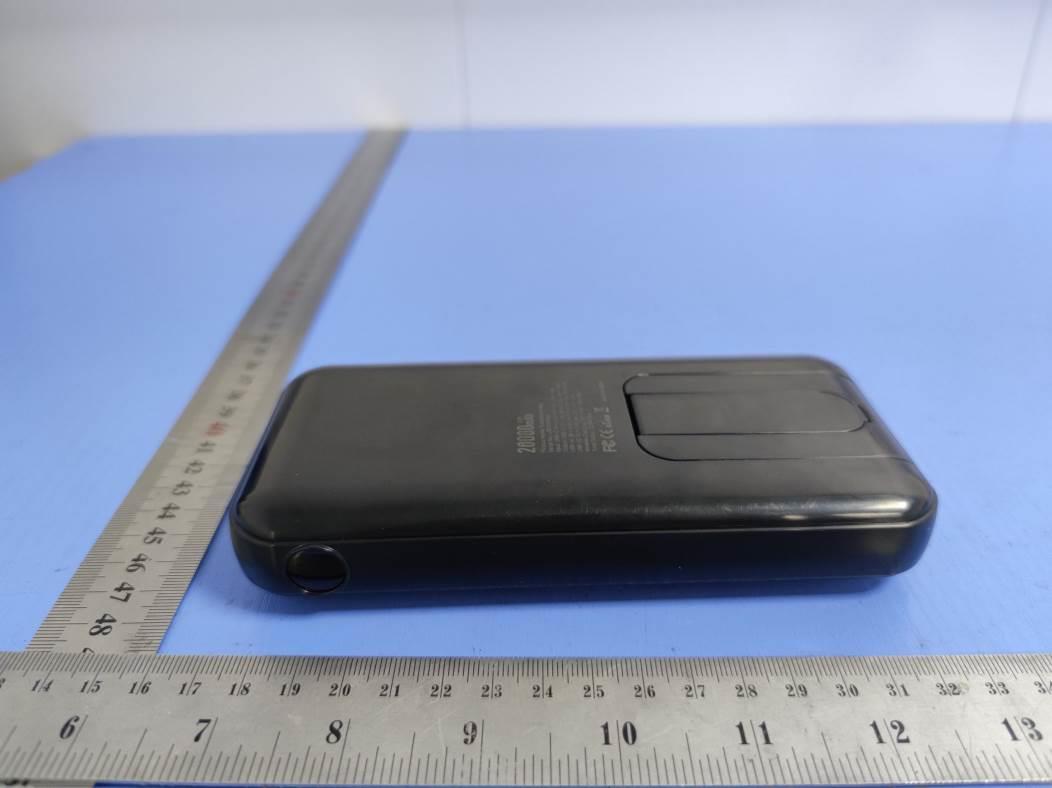

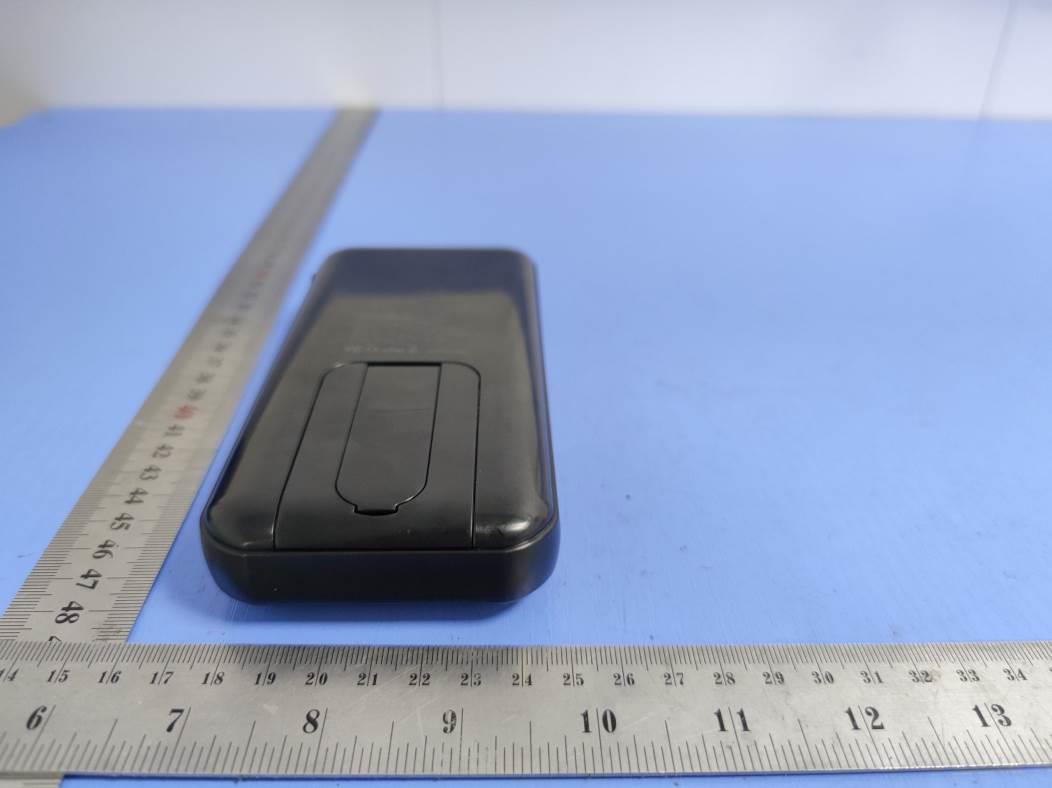

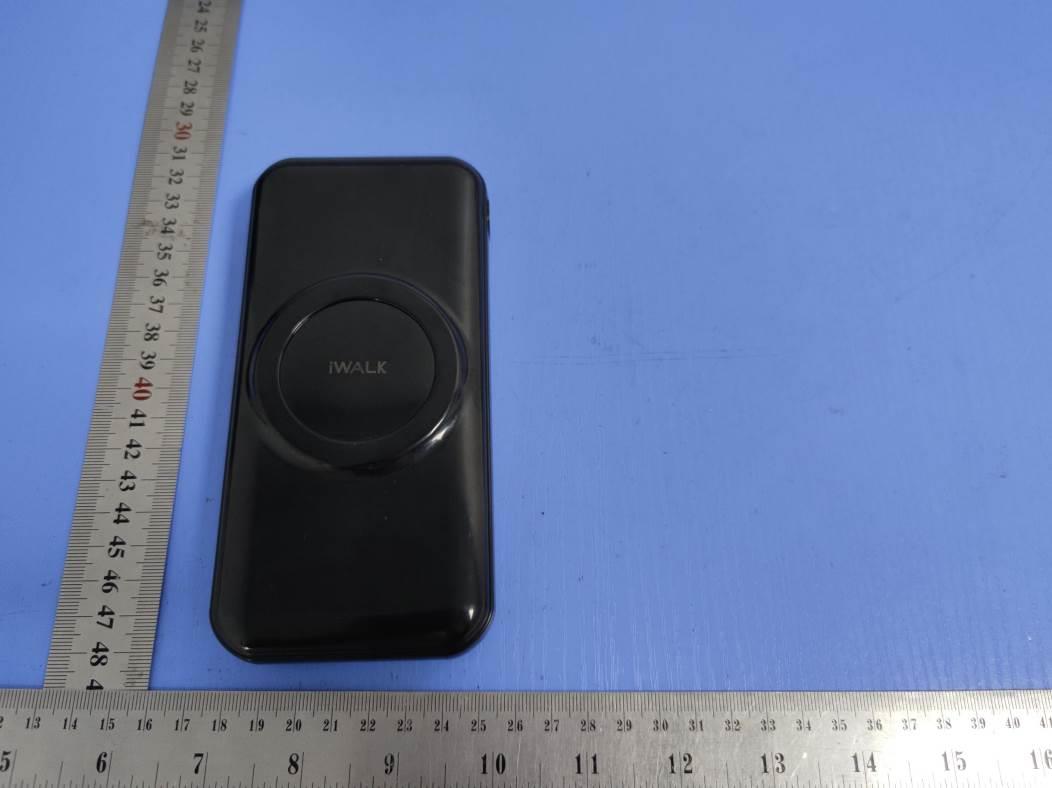

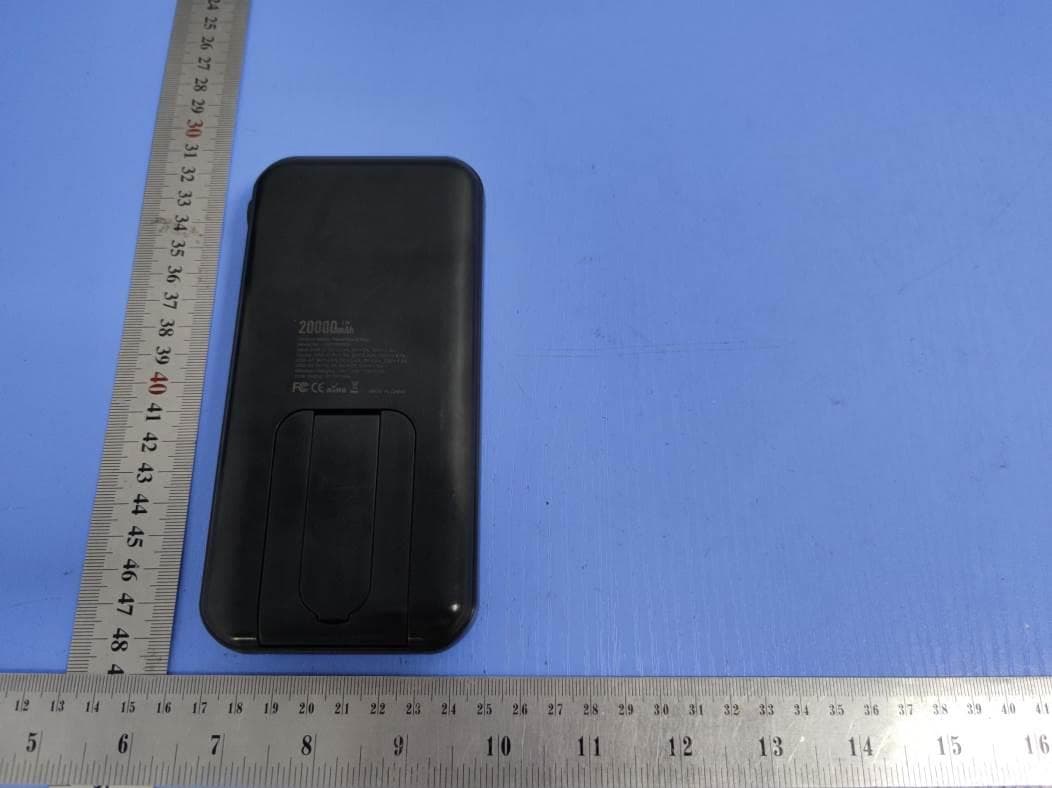

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 2.0cm*W: 2.0cm Label Location PowerStand Mag Model No.: UBP20000M FCC ID : 2AJN9-UBP20000M Input: USB-C 5V2.4A; 9V2A; 12V1.5A Output: USB-C 5V3A; 9V2.22A; 12V1.67A USB-A1: 5V4.5A; 5V2.4A; 9V2A; 12V1.5A USB-A2: 5V2.4A; 9V2A; 12V1.5A Wireless Charging: 5W/7.5W/10W/15W This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Internal Photos of the EUT Fig.1 Fig.2 Coil Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Fig.3 Fig.4

RF Exposure Evaluation Report 1. Product Information FCC ID: 2AJN9-UBP20000M Product Name Power Stand Mag Model Number UBP20000M Power Supply Input: USB-C 5V2.4A; 9V2A; 12V1.5A Output: USB-C 5V3A; 9V2.22A; 12V1.67A USB-A1: 5V4.5A; 5V2.4A; 9V2A; 12V1.5A USB-A2: 5V2.4A; 9V2A; 12V1.5A Wireless Charging: 5W/7.5W/10W/15W Modulation Type CW (Continuous Wave) Frequency Range 110 KHz - 205 KHz Operation Frequency 178 KHz Antenna Type Coil Antenna Hardware version / Software version / Accessories Mobile phone Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type portable Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices FCC CFR 47 part 18.107: Indusial, Scientific, and Medical Equipment 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 / / f/300 6 1,500-100,000 / / 5 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 / / f/1500 30 1,500-100,000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density According to FCC KDB 680106 D01 Section 3. RF Exposure Requirements clause 3 the Emission-Limits in the frequency range from 100 KHz to 300 KHz should be assessed versus the limits at 300 KHz in Table 1 of CFR 47…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M Report No.: LCS210506105AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 24 FCC TEST REPORT For U2O GLOBAL CO., LTD. Power Stand Mag Test Model: UBP20000M Prepared for : U2O GLOBAL CO., LTD. Address : Huanzhu Road No.385, 4 Floor, Jimei District, Xiamen, China. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 07, 2021 Number of tested samples : 2 Serial number : 210506015A-1, 210506015A-2 Date of Test : May 07, 2021 ~ May 21, 2021 Date of Report : May 24, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M Report No.: LCS210506105AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 24 FCC TEST REPORT FCC CFR 47 PART 15C Report Reference No. ................ : LCS210506015AEA Date Of Issue ................................. : May 24, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : U2O GLOBAL CO., LTD. Address .......................................... : Huanzhu Road No.385, 4 Floor, Jimei District, Xiamen, China. Test Specification Standard ......................................... : FCC CFR 47 PART 15C Test Report Form No. .................... : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Power Stand Mag Trade Mark ..................................... : iWALK Test Model ...................................... : UBP20000M Power Supply ................................. : Input: USB-C 5V2.4A; 9V2A; 12V1.5A Output: USB-C 5V3A; 9V2.22A; 12V1.67A USB-A1: 5V4.5A; 5V2.4A; 9V2A; 12V1.5A USB-A2: 5V2.4A; 9V2A; 12V1.5A Wireless Charging: 5W/7.5W/10W/15W Result ........................................... : Positive Compiled by: Supervised by: Approved by: Jin Wang/ File administrator Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M Report No.: LCS210506105AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 24 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210506015AEA May 24, 2021 Date of issue Test Model.............................. : UBP20000M EUT......................................... : Power Stand Mag Applicant............................... : U2O GLOBAL CO., LTD. Address.................................. : Huanzhu Road No.385, 4 Floor, Jimei District, Xiamen, China. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : U2O GLOBAL CO., LTD. Address................................... : Huanzhu Road No.385, 4 Floor, Jimei District, Xiamen, China. Telephone............................... : / Fax.......................................... : / Factory................................... : U2O GLOBAL CO., LTD. Address................................... : Huanzhu Road No.385, 4 Floor, Jimei District, Xiamen, China. Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M Report No.: LCS210506105AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 24 Revision History Revision Issue Date Revisions Revised By 000 May 24, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M Report No.: LCS210506105AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 24 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................... 6 1.1 Description of Device (EUT) ........................................................................................................... 6 1.2 Support equipment List .................................................................................................................... 6 1.3 External I/O Cable ............................................................................................................................ 6 1.4 Description of Test Facility .......................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Appendix A Photographs of Test Setup Conducted Emission-AC adapter charge mode Radiated Emission below 30MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJN9-UBP20000M _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission Below 1 GHz
