2AJUZ-RHF2S027loT gateway base on LoRaWAN

RHF2S027 WEB User Manual 1.Guide The Guide page includes changing the initial password, selecting the network, checking the network status, and generating the TWO-DIMENSIONAL code of Helium connection 1. The password is used for web login and terminal login 2. Select network, scan WIFI, select the specified WIFI, enter the password, click Connect to complete network access, you can also skip this step 3. Checking network Status 4. Enter your wallet address and click the button "Generate" Helium TWO-DIMENSIONAL code, which will be used to enter the chain in the Onboarding 5. Click the button "Onboarding Finsh" to end the Guide page 2.Login You can use the built-in Web configuration interface to configure and manage gateways easily and quickly. Password: the initial custom password of the Guide page You can access the built-in Web configuration page in the following ways: 1. The PC and gateway are on the same LAN, you can use the DHCP IP address to open the browser and log in to the built-in web configuration page. For example, 192.168.31.49 is used. 3.Side navigation bar Navigation bar include the main configuration and management items of the gateway device. Device status: indicates the basic status of the gateway Helium：Generation of the Onboarding qr-code and hotspot information Network management: The configuration and operation of network functions System management: Time zone management, NTP upstream server configuration 3.1Device Information Device information page displays basic gateway information, including the device model, system time (the values in brackets after system time indicate the time area), system running duration, MAC address, local IP address, firmware version, hardware version, and return network. 3.2Helium Generation of the Onboarding qr-code helium miner Information, including Hotspot name, Hotspot address, region, firmware information, and Helium Hotspot API 3.3Network management 1.WIFI configuration Scan WIFI, select the specified WIFI, enter the password, and click Connect to complete network access 2.Check the network, including network status, wifi disconnection, ping, Traceroute, and Nslookup 2.1 Network status, display the current network status, disconnect WIFI operation, WIFI disconnect 2.2 Ping Ping operation is used to check whether the device can access the Internet and whether the gateway can directly connect to the gw.risinghf.com server. Users can also define their own server addresses. Enter the server address, click the "Ping" button, and wait for a while to see the prompt message. 2.3Traceroute Traceroute operation is used to check whether the device can access the Internet and test the route through which the gateway connects to gw.risinghf.com. Users can also define their own server addresses. Enter the server address, click the "Traceroute" button, and wait for a while to see the routing information. 2.4 Nslookup Nslookup operation is used to check whether the device can access the Internet and test the DNS server used by the gateway. Users can define their own server addresses. Enter the server address, click "Nslookup" button, and wait for a while to see the prompt information. 3.4 system management system management includes time zone Settings and NTP upstream server Settings. 1. System time: Displays the current time and time zone of the gateway system. You can customize the system time zone 2. NTP: The current upstream NTP server is displayed. Only one user-defined upstream NTP server is added. The subsequent modification will overwrite the user-defined NTP service address 4.Shortcut Button A set of shortcut buttons are integrated in the upper right corner of the home page, including changing passwords and logging out. 4.1Change Passwd Click the "Change Password" button, the page will pop up a sub-page, enter the correct old password, enter the new password and click "OK" to complete the password modification. 4.2Logout Click "Logout" button, the page will return to the login interface. 5. Chinese-English switching There are Chinese-English switching buttons on the upper right corner of the login page and the main page to facilitate switching between Chinese and English. 6.FCC/CE STATEMENT FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body CE STATEMENT : Operat…

Text truncated - open the document above for the full version.

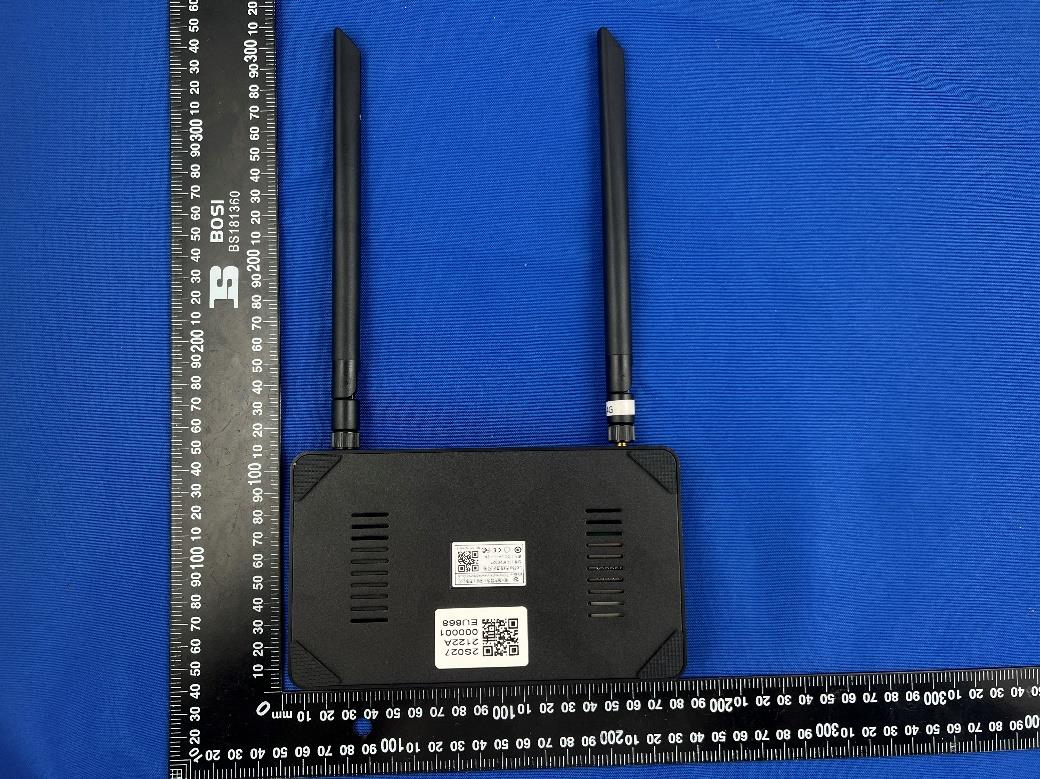

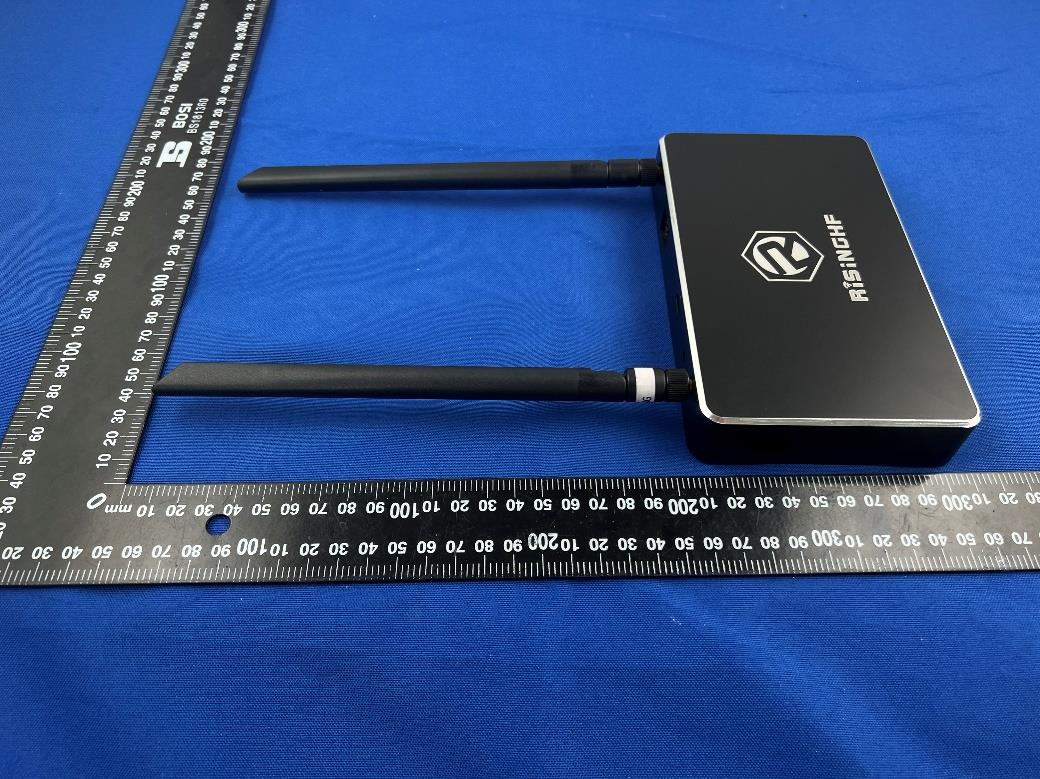

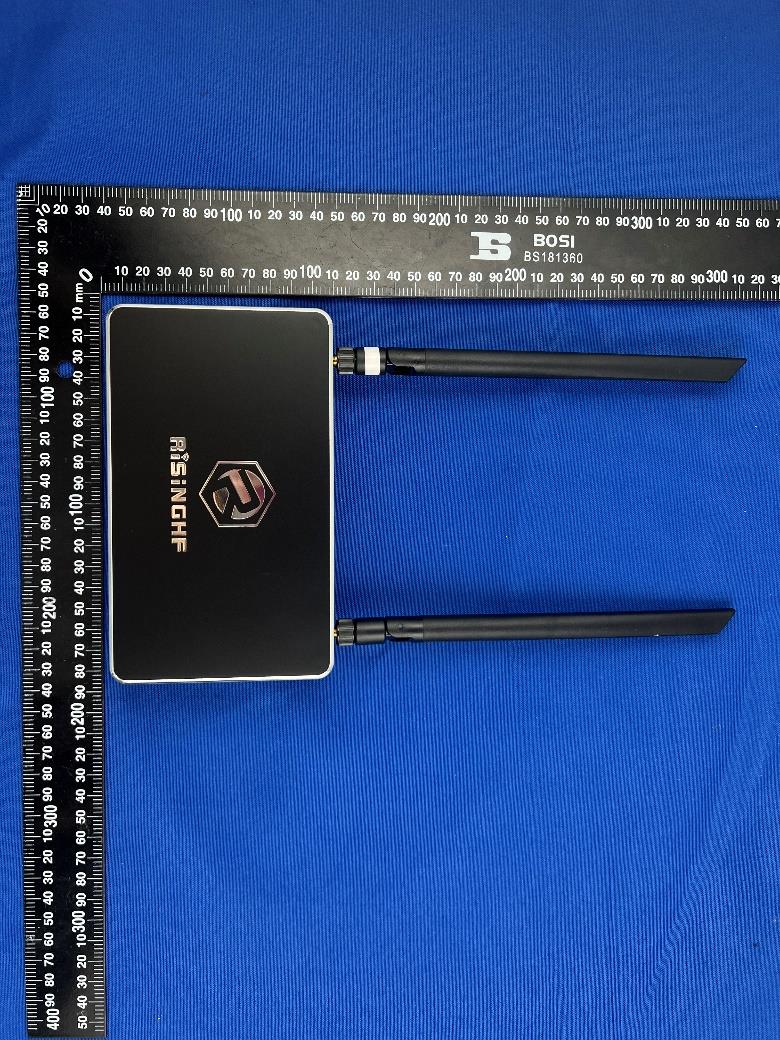

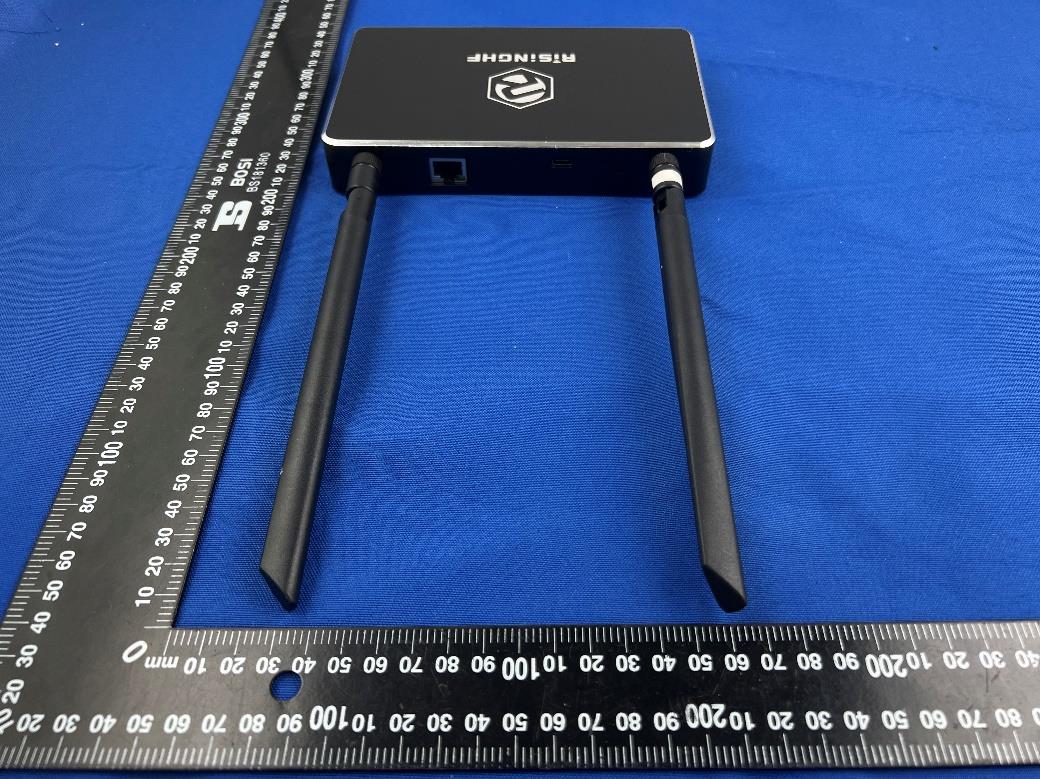

Report No.: BL-SZ2230536-AW 1 / 4 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2230536-AW 2 / 4 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: BL-SZ2230536-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ2230536-AW 4 / 4 CLOSER-UP Accessory-TYPE-C Cable

FCC ID：2AJUZ-RHF2S027

Report No.: BL-SZ2230536-AI 1 / 6 EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 EUT UNCOVER VIEW 2 2.4G WIFI Antenna LoRa Antenna Report No.: BL-SZ2230536-AI 2 / 6 CLOSE-UP EUT UNCOVER VIEW 3 Report No.: BL-SZ2230536-AI 3 / 6 MAIN BOARD TOP VIEW 1 (WITH SHIELDING) MAIN BOARD TOP VIEW 1 (WITHOUT SHIELDING) RF Chip GPS Antenna Report No.: BL-SZ2230536-AI 4 / 6 MAIN BOARD REAR VIEW 1 (WITH SHIELDING) MAIN BOARD TOP VIEW 2 (WITH SHIELDING) Report No.: BL-SZ2230536-AI 5 / 6 MAIN BOARD TOP VIEW 2 (WITHOUT SHIELDING) MAIN BOARD REAR VIEW 2 (WITH SHIELDING) Report No.: BL-SZ2230536-AI 6 / 6 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW

Report No.: BL-SZ2230536-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-04-06) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China TEST REPORT Applicant: Ruixing Hengfang Network (Shenzhen) Co., Ltd Address: Room 201, building 6 Software Park(Phase 1), Gaoxin Mid 3rd Road, Science and Technology Park, NanShan District, Shenzhen, Guangdong, China 518017 Equipment Type: loT gateway base on LoRaWAN Model Name: RHF2S027 Brand Name: RisingHF FCC ID: 2AJUZ-RHF2S027 Test Standard: 47 CFR Part 2.1091 KDB 447498 D01 v06 Test Date Mar. 22, 2022 - Apr. 20, 2022 Date of Issue: Apr. 26, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie Zhu Checked by: Liyao Zong Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-SZ2230536-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-04-06) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Revision History Version Issue Date Revisions Content Rev. 01 Apr. 26, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 3 1.1 Identification of the Testing Laboratory .......................................................................... 3 1.2 Identification of the Responsible Testing Location ......................................................... 3 2 PRODUCT INFORMATION ......................................................................................................... 4 2.1 Applicant Information ...................................................................................................... 4 2.2 Manufacturer Information ............................................................................................... 4 2.3 Factory Information ........................................................................................................ 4 2.4 General Description for Equipment under Test (EUT) ................................................... 4 2.5 Ancillary Equipment ........................................................................................................ 4 2.6 Technical Information ..................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................... 6 3.1 Test Standards ............................................................................................................... 6 4 DEVICE CATEGORY AND LEVELS LIMITS .............................................................................. 7 5 ASSESSMENT RESULT ............................................................................................................. 9 5.1 Output Power ................................................................................................................. 9 5.2 Turn-up power ................................................................................................................ 9 5.3 RF Exposure Evaluation Result ..................................................................................... 9 5.4 Collocated Power Density Calculation ......................................................................... 10 5.5 Conclusion .................................................................................................................... 10 Report No.: BL-SZ2230536-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-04-06) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China 1 GENERAL INFORMATION 1.1 Identification of the Testing Laboratory Company Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Phone Number +86 755 6685 0100 1.2 Identification of the Responsible Testing Location Test Location Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Description All measurement facilities used to collect the measurement data are located at Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Report No.: BL-SZ2230536-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-04-06) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Ruixing Hengfang Network (Shenzhen) Co., Ltd Address Room 201, building 6 Software Park(Phase 1), Gaoxin Mid 3rd Road, Science and Technology Park, NanShan District, Shenzhen, Guangdong, China 518017 2.2 Manufacturer Information Manufacturer Ruixing Hengfang Network (Shenzhen) Co., Ltd Address Room 201, building 6 Software Park(Phase 1), Gaoxin Mid 3rd Road, Science and Technology Park, NanShan District, Shenzhen, Guangdong, China 518017 2.3 Factory Information Factory N/A Address N/A 2.4 General Description for Equipment under Test (EUT) EUT Name loT gateway base on LoRaWAN Model Name Under Test RHF2S027 Series Model Name N/A Description of Model name differentiation N/A Hardware Version RHF2S027_MF_V4 RHF2S027_MC_V4 Software Version V1.0.0 Dimensions (Approx.) N/A Weight (A…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2230536-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 73 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China TEST REPORT Applicant: Ruixing Hengfang Network (Shenzhen) Co., Ltd Address: Room 201, building 6 Software Park(Phase 1), Gaoxin Mid 3rd Road, Science and Technology Park, NanShan District, Shenzhen, Guangdong, China 518017 Equipment Type: loT gateway base on LoRaWAN Model Name: RHF2S027 Brand Name: RisingHF FCC ID: 2AJUZ-RHF2S027 Test Standard: 47 CFR Part 15 Subpart C (refer section 3.1) Test Date Mar. 22, 2022 - Apr. 20, 2022 Date of Issue: Apr. 26, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie Zhu Checked by: Ye Hongji Approved by: Liao Jianming (Technical Director) _______________ _______________ _______________ Report No.: BL-SZ2230536-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 73 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Revision History Version Issue Date Revisions Rev. 01 Apr. 26, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 4 1.1 Identification of the Testing Laboratory .......................................................................... 4 1.2 Identification of the Responsible Testing Location ......................................................... 4 2 PRODUCT INFORMATION ......................................................................................................... 5 2.1 Applicant Information ...................................................................................................... 5 2.2 Manufacturer Information ............................................................................................... 5 2.3 Factory Information ........................................................................................................ 5 2.4 General Description for Equipment under Test (EUT) ................................................... 5 2.5 Technical Information ..................................................................................................... 6 2.6 Additional Instructions .................................................................................................... 8 3 SUMMARY OF TEST RESULTS ................................................................................................. 9 3.1 Test Standards ............................................................................................................... 9 3.2 Test Verdict .................................................................................................................... 9 4 GENERAL TEST CONFIGURATIONS ...................................................................................... 10 4.1 Test Environments ....................................................................................................... 10 4.2 Test Equipment List ...................................................................................................... 10 4.3 Test Software List ......................................................................................................... 10 4.4 Measurement Uncertainty ............................................................................................ 11 4.5 Description of Test Setup ............................................................................................. 11 4.6 Measurement Results Explanation Example ................................................................ 14 5 TEST ITEMS .............................................................................................................................. 15 5.1 Antenna Requirements ................................................................................................. 15 5.2 Output Power ............................................................................................................... 16 5.3 6dB Bandwidth ............................................................................................................. 18 Report No.: BL-SZ2230536-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 73 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China 5.4 Conducted Spurious Emission ..................................................................................... 19 5.5 Band Edge (Authorized-band band-edge) .................................................................... 21 5.6 Conducted Emission .................................................................................................... 23 5.7 Radiated Spurious Emission ........................................................................................ 24 5.8 Band Edge (Restricted-band band-edge) ..................................................................... 29 5.9 Power Spectral density (PSD) ...................................................................................... 30 ANNEX A TEST RESULT ............................................................................................................. 31 A.1 Output Power ............................................................................................................... 31 A.2 Bandwidth ..................................................................................................................... 33 A.3 Conducted Spurious Emissions ................................................................................... 38 A.4 Band Edge (Authorized-band band-edge) ................................................…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2230536-602 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 52 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China TEST REPORT Applicant: Ruixing Hengfang Network (Shenzhen) Co., Ltd Address: Room 201, building 6 Software Park(Phase 1), Gaoxin Mid 3rd Road, Science and Technology Park, NanShan District, Shenzhen, Guangdong, China 518017 Equipment Type: loT gateway base on LoRaWAN Model Name: RHF2S027 Brand Name: RisingHF FCC ID: 2AJUZ-RHF2S027 Test Standard: 47 CFR Part 15 Subpart C (refer section 3.1) Test Date Apr. 19, 2022 - Apr. 20, 2022 Date of Issue: Apr. 26, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie Zhu Checked by: Ye Hongji Approved by: Liao Jianming (Technical Director) _______________ _______________ _______________ Report No.: BL-SZ2230536-602 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 52 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Revision History Version Issue Date Revisions Rev. 01 Apr. 26, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 4 1.1 Identification of the Testing Laboratory .......................................................................... 4 1.2 Identification of the Responsible Testing Location ......................................................... 4 2 PRODUCT INFORMATION ......................................................................................................... 5 2.1 Applicant Information ...................................................................................................... 5 2.2 Manufacturer Information ............................................................................................... 5 2.3 Factory Information ........................................................................................................ 5 2.4 General Description for Equipment under Test (EUT) ................................................... 5 2.5 Technical Information ..................................................................................................... 6 2.6 Additional Instructions .................................................................................................... 7 3 SUMMARY OF TEST RESULTS ................................................................................................. 8 3.1 Test Standards ............................................................................................................... 8 3.2 Test Verdict .................................................................................................................... 8 4 GENERAL TEST CONFIGURATIONS ........................................................................................ 9 4.1 Test Environments ......................................................................................................... 9 4.2 Test Equipment List ........................................................................................................ 9 4.3 Measurement Uncertainty ............................................................................................ 10 4.4 Description of Test Setup ............................................................................................. 10 4.5 Measurement Results Explanation Example ................................................................ 13 5 TEST ITEMS .............................................................................................................................. 14 5.1 Antenna Requirements ................................................................................................. 14 5.2 Output Power ............................................................................................................... 15 5.3 Occupied Bandwidth .................................................................................................... 17 5.4 Conducted Spurious Emission ..................................................................................... 18 Report No.: BL-SZ2230536-602 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 52 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China 5.5 Band Edge (Authorized-band band-edge) .................................................................... 20 5.6 Conducted Emission .................................................................................................... 22 5.7 Radiated Spurious Emission ........................................................................................ 23 5.8 Band Edge (Restricted-band band-edge) ..................................................................... 25 5.9 Power Spectral density (PSD) ...................................................................................... 26 ANNEX A TEST RESULT ............................................................................................................. 27 A.1 Output Power ............................................................................................................... 27 A.2 Occupied Bandwidth .................................................................................................... 28 A.3 Conducted Spurious Emissions ................................................................................... 30 A.4 Band Edge (Authorized-band band-edge) .................................................................... 33 A.5 Conducted Emissions .............................................................................................…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2230536-AR 1 / 6 TEST SETUP PHOTOS 1 Radiated Test Photo Below 30MHz 30MHz-1GHz-WIFI Report No.: BL-SZ2230536-AR 2 / 6 Close-up-WIFI 30MHz-1GHz-LoRa Report No.: BL-SZ2230536-AR 3 / 6 Close-up-LoRa Above 1GHz Report No.: BL-SZ2230536-AR 4 / 6 Close-up 2 Conducted Test Photo Conducted Test-WIFI Report No.: BL-SZ2230536-AR 5 / 6 Conducted Test-LoRa DTS Conducted Test-LoRa Hopping Report No.: BL-SZ2230536-AR 6 / 6 3 Conducted Emissions Test Photo 1 Test Photo 2
