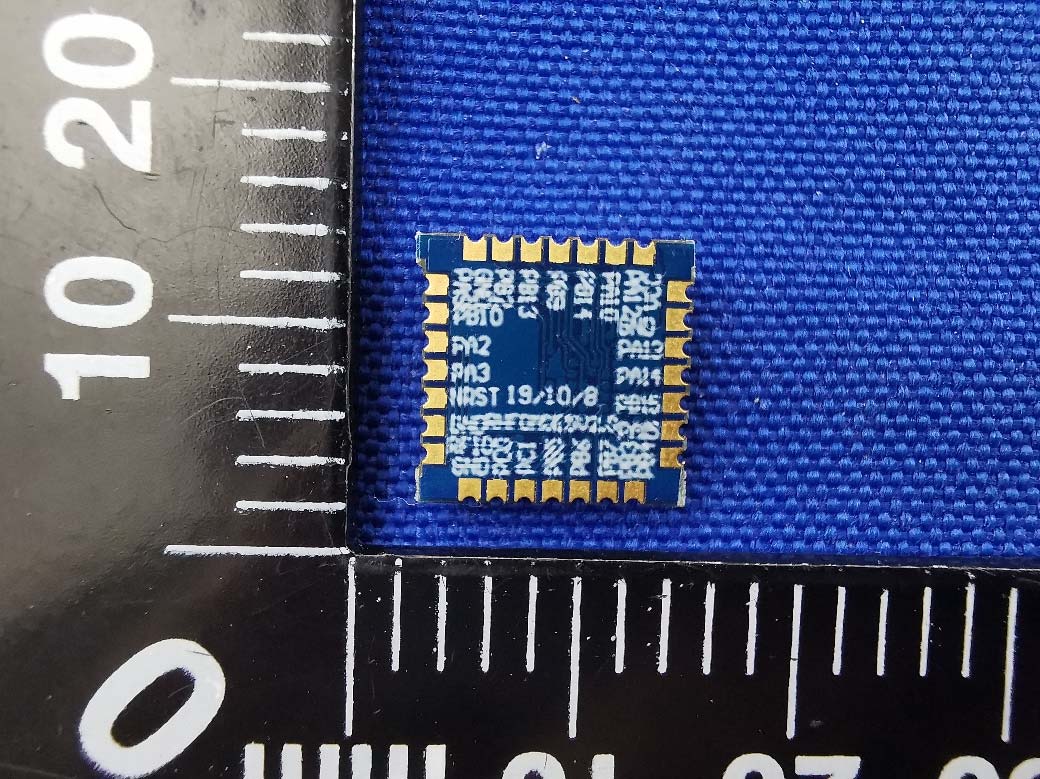

2AJUZ0M0E5LoRaWAN communication node

RHF0M0E5 User Manual RisingHF Document information Info Content Keywords RisingHF, User Manual, Instruction Abstract RHF0M0x5 module user manual to help users quickly use the module UM019180 RHF0M0E5 User Manual V1.2 RHF0M0E5 User Manual RisingHF Content Content .................................................................................................................................................. 2 1 Preface ............................................................................................................................................... 1 2 Hardware Description ......................................................................................................................... 1 2.1 Pin definition ................................................................................................................................. 1 2.2 Pin details..................................................................................................................................... 1 3 quick start ........................................................................................................................................... 2 3.1 ABP mode .................................................................................................................................... 2 3.1.1 ID query ................................................................................................................................. 2 3.1.2 Configure band ...................................................................................................................... 3 3.1.3 Configure channels ................................................................................................................ 3 3.1.4 Configure mode ..................................................................................................................... 3 3.1.5 Configure class ...................................................................................................................... 3 3.1.6 Communication ...................................................................................................................... 3 3.2 OTAA mode ................................................................................................................................. 4 3.2.1 ID query ................................................................................................................................. 4 3.2.2 Configure band ...................................................................................................................... 4 3.2.3 Configure channels ................................................................................................................ 4 3.2.4 Configure mode ..................................................................................................................... 4 3.2.5 Configure class ...................................................................................................................... 5 3.2.6 Join ........................................................................................................................................ 5 3.3 TEST mode .................................................................................................................................. 5 3.3.1 test noise floor ...................................................................................................................... 6 3.3.2 test TXCW ............................................................................................................................. 6 3.3.1 test CLORA ............................................................................................................................ 6 3.3.2 test send LORA packet .......................................................................................................... 6 3.3.3 test receive LORA packet ...................................................................................................... 6 4 FAQ .................................................................................................................................................... 7 Revision ............................................................................................................................................... 10 V1.2 2020-09-25 www.risinghf.com RHF0M0E5 User Manual RisingHF 1 1 Preface RHF0M0E5 is a low-cost, ultra-low power, ultra-small size LoRaWAN ® module designed by Rui Xing Heng Fang Network (Shenzhen) Co., Ltd. The module uses ST system on chip STM32WLE5JC, intergrated high-performance LoRa ® SX126X IP and ultra-low power Consumption of MCU. The target application of this module is wireless sensor networks and other Internet of Things devices, especially battery-powered low power consumption and long-distance occasions. 2 Hardware Description 2.1 Pin definition 28 pin SMT package for module: Figure 2-1 RHF0M0E5 Pin arrangement 2.2 Pin details PB0 is used for TCXO power supply and should not be used normally. Number Name Type Description 1 VCC - Supply voltage for the module 2 GND - Ground 3 PA13 I SWDIO of SWIM for program download 4 PA14 I/O SWCLK of SWIM for program download 5 PB15 I/O SCL of I2C2 from MCU 6 PA15 I/O SDA of I2C2 from MCU 7 PB4 I/O MCU GPIO 8 PB3 I/O MCU GPIO 9 PB7 I/O UART1_RX from MCU 10 PB6 I/O UART1_TX from MCU 11 PB5 I/O MCU GPIO V1.2 2020-09-25 www.risinghf.com RHF0M0E5 User Manual RisingHF 2 12 PC1 I/O MCU GPIO ；LPUART1_TX from MCU 13 PC0 I/O MCU GPIO ；LPUART1_RX from MCU 14 GND - Ground 15 RFIO I/O RF input/output 16 GND - Ground 17 RST I/O Reset trigger input for MCU 18 PA3 I/O MCU GPIO；USART2_RX from MCU 19 PA2 I/O MCU GPIO；USART2_TX from MCU 20 PB10 I/O MCU GPIO 21 PA9 I/O MCU GPIO 22 GND - Ground 23 PA0 I/O MCU GPIO 24 PB13 I/O SPI2_SCK from MCU; Boot pin(Active low) 25 PB9 I/O SPI2_NSS from MCU 26 PB14 I/O SPI2_MISO from MCU 27 PA10 I/O SPI2_MOSI from MCU 28 PB0 I/O Unavailable；Suspended treatm…

Text truncated - open the document above for the full version.
