2AJVKMO-SSD5Smart Dumbbell

User Manual MO-SSD5 USB Power Source Long metal block Short metal block Charging port To prevent the dumbbells from slipping out of your hands, sck the included non-slip protecve covers to the middle of the dumbbells (Please tear off the red film first.). Sign Up 2. Turn on the smart sensor, the Bluetooth icon on the LCD display flashes. 3. Launch the App, and tap Add Device or tap the icon on the home screen; it will automacally search for nearby devices. If the device is found, tap Add > . 4. Wait unl the Bluetooth icon stops flashing, and the icon appears on the phone screen, indicang that the connecon is complete. 5. Tap Done, then tap the dumbbell name to begin remotely controlling the bulb with the App. You can tap the icon to rename the dumbbell. Note: To be safely and permanently stored your fitness data, you need tap Sign Up to set up a new account. . If the device cannot be found, you can tap the Dumbbell icon on the Add Device screen to add manually or press the Reset buon at the back of the smart sensor to reset it. . Control
on
the
Smart
Dumbbell


.



Control
Via
The
MOTAG
SMART
FIT
APP


.



Smart Sensor Smart Sensor Icon
Description



Free Mode Bluetooth Home Screen In free mode, press and hold the Touch key for 2 seconds then release unl you hear a beep, and the free mode starts. Press the Touch key once to return to the Home screen. In ming mode, press and hold the Touch key for 2 seconds then release unl you hear a beep, and the ming dumbbell exercise starts. Press the Touch key once to return to the Home screen. Repeatedly press the Touch key to see the above symbol displays , and switch to Counng mode. Press and hold for 2 seconds then release unl you hear a beep, and the counng dumbbell exercise starts. Press the Touch key once to return to the Home screen. Material Operaon Temperature FCC
Statement


.



FCC ID: 2AJVKMO-SSD5 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. ©2022 MOTAG®, ALL RIGHTS RESERVED. The information contained in this user manual and all accompanying documentation is copyrighted and all rights are reserved. The MOTAG® Limited 1 Year Warranty guarantees the original purchaser that the product is free from any defect, in material and workmanship, in conjunction with the original purchaser using the product according to any accompanying labels and instructions. THIS GUARANTEE IS VALID FOR ONE YEAR FROM THE ORIGINAL DATE OF PURCHASE. MOTAG® agrees that it will, at its discretion, either repair the defect or replace the defective product, or part thereof, at no charge to the purchaser, for parts or labor, for the time period stated. This limited warranty does not cover any damage caused by accident, misuse, modication, or normal wear and tear, and is limited to the value of the product. The limited warranty described herein is in addition to applicable law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD FROM THE DATE OF ORIGINAL PURCHASE SET FORTH. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein or to extend the duration of any warranties beyond the time period described herein on the behalf of MOTAG®. The warranties described herein shall be the sole and exclusive warranties granted by MOTAG® and shall be the sole and exclusive remedy available to the purchaser. Corrections of defects, in the manner and for the period of time described herein, shall constitute complete fulllment of all liabilities and responsibilities of MOTAG® to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract negligence, strict liability or otherwise. In no event shall MOTAG® be liable or in any way responsible, for an incidental of consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. THIS LIMITED WARRANTY, GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. If you have any questions, please contact MOTAG at [email protected] or visit www.motag.com. Product
Limited
Warranty


.



1…

Text truncated - open the document above for the full version.

Rev 11/20/07 (Foto Electric Supply Co., INC.) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AJVKMO-SSD5 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, (Jared Melnicoff)

Foto Electric Supply Co., INC. Model Difference 2022-11-04 EUT NAME: Smart Dumbbell MODEL : MO-SSD5, MO-SSD10, MO-SSD20, SSD150, SSD200 FCC ID: 2AJVKMO-SSD5 All the model are the same circuit and RF module, only for model name and color. Regards Sincerely Client’s signature Client’s signature: Client’s name / title : Jared Melnicoff / Director Sourcing Contact information / address: 1 Rewe Street Brooklyn, NY 11211, USA

(Foto Electric Supply Co., INC.) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2022/11/04 SUBJECT: FCC Application for FCC ID: 2AJVKMO-SSD5 To Whom It May Concern: We, the undersigned, hereby authorize Alan Mei at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Alan Mei of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (Jared Melnicoff)

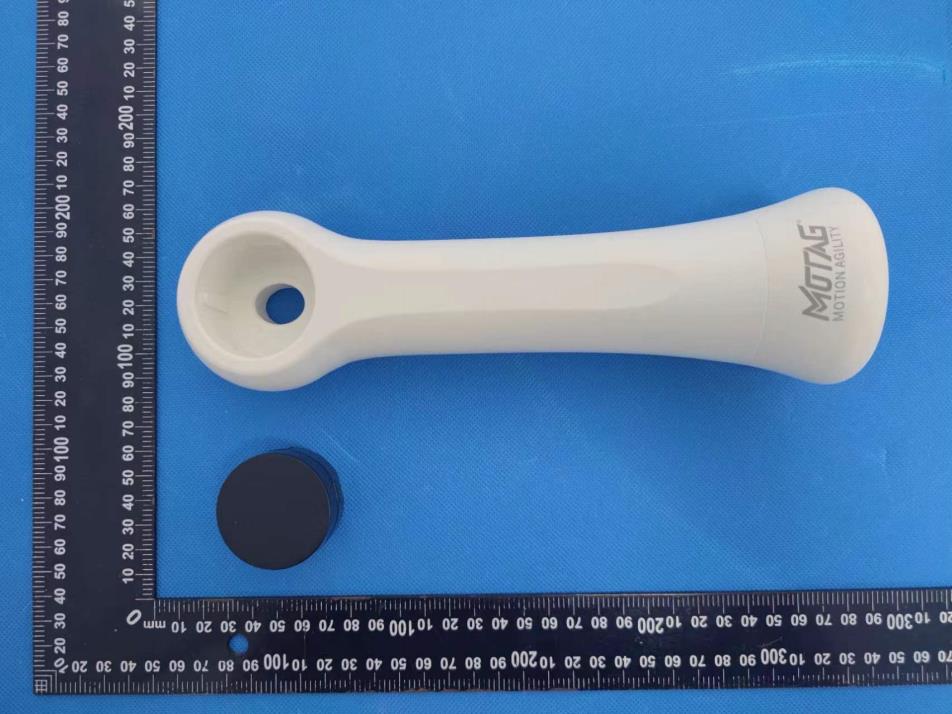

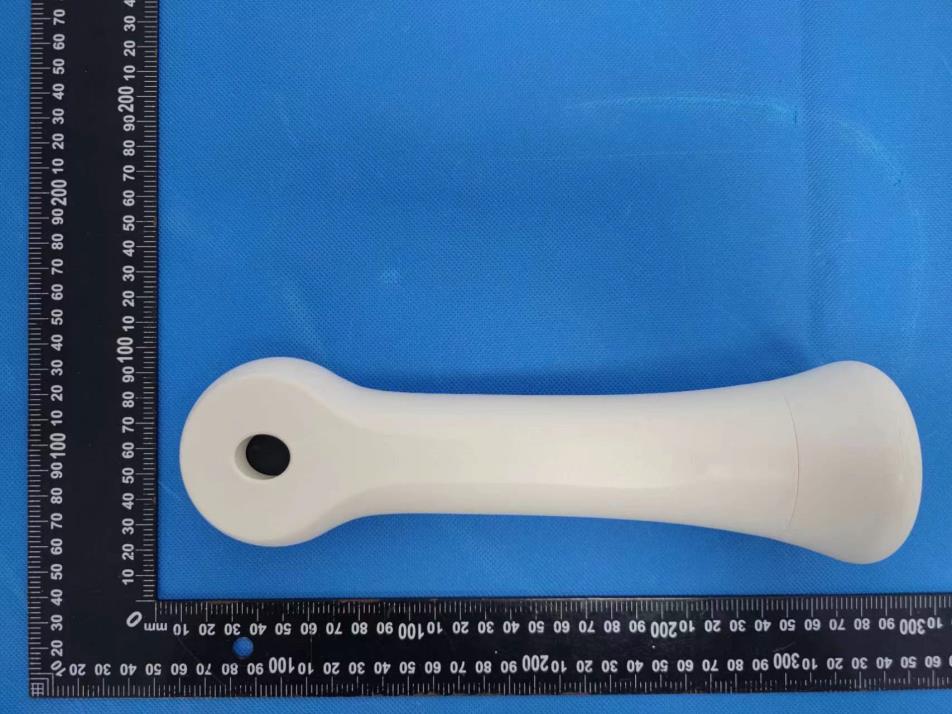

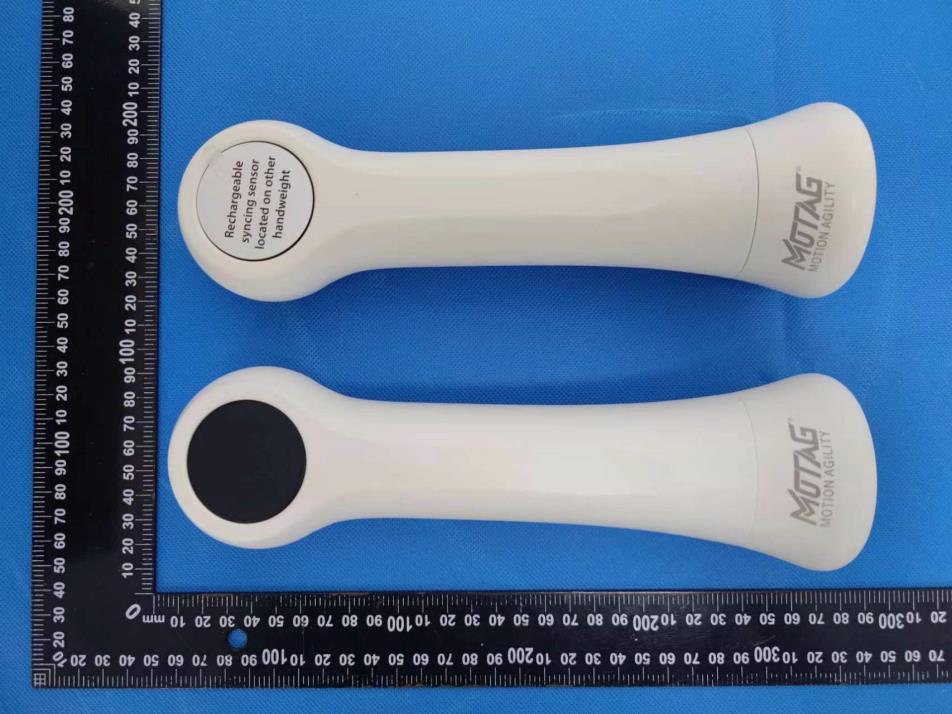

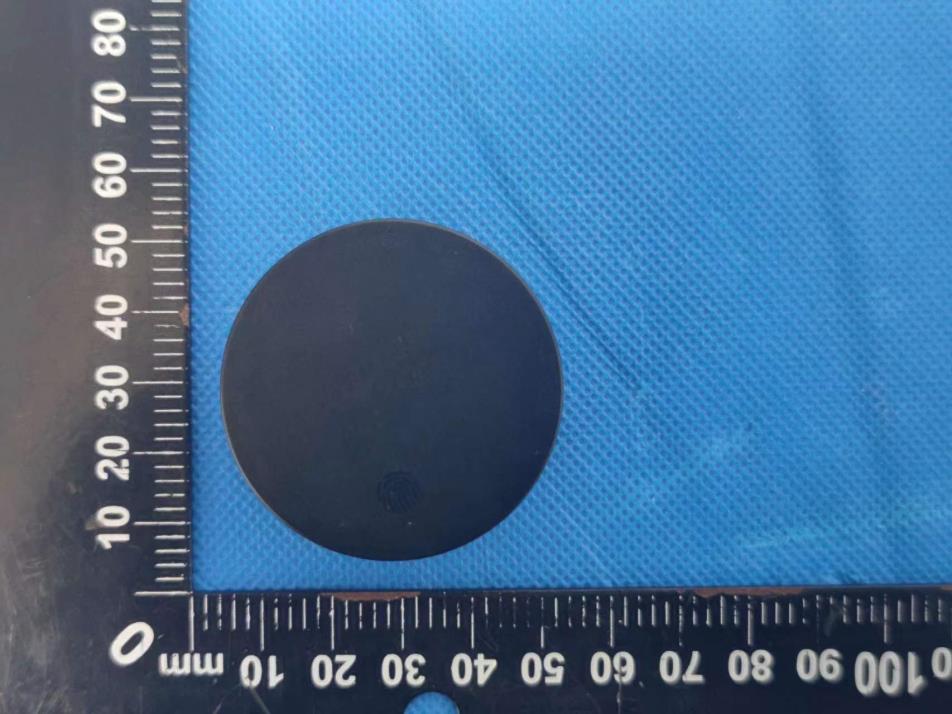

External Photos

Size:20*10mm Smart Dumbbell FCC ID: 2AJVKMO-SSD5 Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2AJVKMO-SSD5 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 -6.25 30 Pass NVNT BLE 1M 2440 -5.73 30 Pass NVNT BLE 1M 2480 -5.24 30 Pass max possible output power (PK,conducted)：-5±1dBm -4.57dBi logarithmic terms convert to numeric result is nearly 0.35 -4dBm=0.40mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.40/5*√2.402=0.124≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.40/5*√2.441=0.125≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.40/5*√2.48=0.126≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.
