2AJYU-8BC0001LTE wireless module

Copyright © 2020 SIMCom Wireless Solutions LimitedAll Rights Reserved Building B, SIM Technology Building, No.633, Jinzhong RoadChangningDistrict, Shanghai P.R.China Tel: 86-21-31575100Email:[email protected]:www.simcom.com A7605SA-H is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate. A7605SA-H supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7600 series modules. Meanwhile A7605SA-H integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoTapplications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc. Product Description Key Benefits uLCC+LGA form factor with abundantinterfaces uSuitable for LTE, UMTS and GSM networks uAbundantsoftware functions: FOTA, LBS, SSL uThe AT commands of A7605SA-H are compatible with SIM7600 series modules A7605SA-H Multi- Band Cat 4 LCC+LGA TCP/IP Compact Size FOTA GNSS*USB 2.0SSL V:2020.02 SIMComLTECat 4Module 2 Copyright © 2020 SIMCom Wireless Solutions LimitedAll Rights Reserved Building B, SIM Technology Building, No.633, Jinzhong RoadChangning District, Shanghai P.R.China Tel: 86 -21- 31575100Email: [email protected]: www.simcom.com General Features Frequency Bands Supply Voltage LTE-T DD B38/B41 LTE -FDD B1/B2/B3/B4/B5/B7/B8/ B20/B28/B66 UMTS/HSPA+ B1 /B2/B5/B8 GSM/GPRS/EDGE 850/900/1800/1900 MHz 3.4V ~ 4.2V, Typ : 3.8V Control Via AT Commands Operation temperature -30°C ~ +80°C Dimensions29.0* 32.0* 2.5mm Weight4.6±0.1g Data Transfer LTE Cat 4 Uplink up to 50Mbps Downlink up to150Mbps HSPA+ Uplink up to 5.76Mbps Downlink up to42 Mbps UMTSUplink/Downlinkup to 384Kbps EDGE Uplink/Downlinkup to 236.8Kbps GPRS Uplink/Downlinkup to 85.6Kbps Other Features USB Driver for Microsoft Windows7/8/10 USB Driver for Linux /Android RIL supporting for Android 5.0/6.0/7.0/8.0/9.0 Firmware update via USB/FOTA TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/ HTTPS/DNS RNDIS/PPP/ECM SMS SSL Interfaces USB2.0 UART (U)SIMcard (1.8V/3V ) PCM Analog audio RMII* PCIE*（Host Mode） MMC/SD SDIO * ADC I2C GPIO Antenna: Primary/Diversity*/GNSS* Certifications RoHS # /REACH # Note *: optional # : on going FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two cond itions: (1) this device may not cause harmful interference, and (2) this device must accept any int erference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could v oid the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital de vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec tion against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructi ons, may cause harmful interference to radio communications. However, there is no guarantee th at interference will not occur in a particular installation. If this equipment does cause harmful int erference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Important Note: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/Canada. This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2. The transmitter module may not be co-located with any other transmitter or antenna, As long as the three conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Important Note: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following" Contains FCC ID: 2AJYU -8BC0001 ". Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Antennas Antenna Specification are as follows: Type: External Antenna Gain: GSM/GPRS/EDGE 850: 2.02 dBi GSM/GPRS/EDGE 1900: 2.12 dBi WCDMA/HS…

Text truncated - open the document above for the full version.

TO: 、、Attestation Statements ” 0何ice。f Engineering Technol og y Federal Communications c。n’”’ission 7435 Oakland Mills Road c。lumbia，”D 21046 (5266091 X24 Ed.1 The Commission adopted rules that prohibit equipment authorization for "covered ” telecommuni臼tionsequipment and video surveillance equipment produced by entities identified on the C口mmission ’ s Cove「edList 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(S)(i)-(ii) Appli臼nt Company name: SIMCom Wireless Solutions Limited Gran仁eecode: 2AJYU FCC ID: 2AJYU-8BCD001 Contact Name: Yongsheng Li Addr它ss:SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shang hai,China Telephone No: +86 21 3252 3134 Fax No: +86 21 3252 3020 Email: [email protected] i.SIMCom Wi「eless Solutions Limited （ “ the applicant ” ） certifies that the equipment for which authorization is sought is not "covered ” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii.SIMCom Wi「eless Solutions Limited （ “ the applicant") certifies that, as of the date of the filing of the application, the applicant is not ident i fied on the Covered List as an entity producing “ covered ” equipment. The applicant must sign this certification. Date: 2023/02/09 Applicant ’ s Name: Yongsheng Li Title: Manager Signature \ / J γ’”、 户寸休4/l人 J 1 The Ca nmission's E旦旦旦且JJ且ispublished by the Public Safety and Homeland Security Bu陪au and posted on the Commis到。n s website This Ca,ered List, which is periodically updated, identifies pa叫：icularequipment produced by pa巾cularen悦目，thatconstitu阳 ” cmered ＇’ equipmenth吐cs:/ lwww fcc.aov旭uoo,chain/coveredlist 1 /1

C5266091_X10_Ed.2 1/1 SIMCom Wireless Solutions Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-01-23 Subject: Request for Confidentiality FCC ID: 2AJYU-8BC0001 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Yongsheng Li ☒

C5266091 X9 Ed.2 S IMCom Wireless Solutions Limited Modular Transmitter Approval Request Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: SIMCom叭fireless Solutions Limited FCC ID: 2AJYU-8BC0001 Gentlemen, In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 001 'Module C ertification Guide v02'. FCC ID: 2AJYU心BCOOOl has been examined against the following requirements. 1. The radio elements must ha,e the radio frequency circuit叩shielded.Physical c。mponen恒andtuning capacitar(s) may be l。ca恒dex恒rnalto the shield, b川 must be 。n the module assembl 2. The module must have buff � 陪d modulation/data inputs to ensure that the device will comply with Pa时15 requirements with any type of input signal 3 The module must c。ntainpower supply regulation on the module 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marke恒dand opera恒donly with specific an恒nna(s),per Sections 15.203, 15.204（时，15.204(c}, 15.212(al. 2.929(b 5. The module must demonstrate compliance m a stand­ alone configuration 6 The m。dulemust be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) 7. The module must comply with all specific阳les applicable to the transmitter including all the conditions pro听dedin the in恒日用lioninstructions by the gran恒e 8. The module must comply with RF exposure requirements The module has its own RF shielding. The modu恼rhas buffered data inputs, it is integrated in chip The modular has power supp y regulation Antenna is independent fixed All power lines derived from the hast device are regulated before energizing other circuits internal The label is independent fixed Compliant with all applicable FCC rules. Detail instructions are given in the User's Manual Approved to comply with the applicable RF exposure requireme时，pleasesee the M尸七evaluation Name: Yongsheng Li Date: 2023-02-09 Title: Manager Signature of applicant: 兴� ＜； L可L 1/1

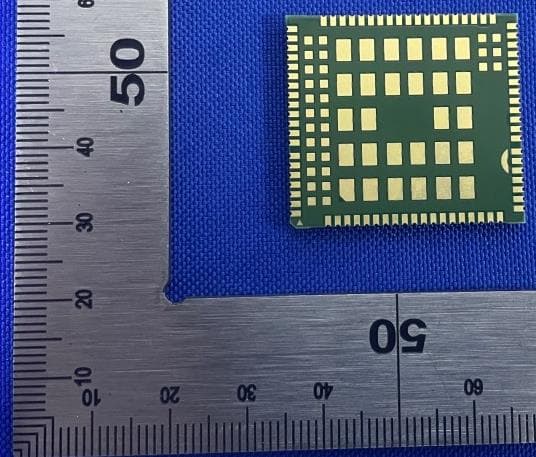

Document No: SHE23010013-02 Page 1 of 1 A7605SA-H External photo Front Rear

Document No: SHE23010013-02 Page 1 of 1 Label Location

Document No: SHE22120079-02 Page 1 of 1 A7605SA-H Internal photo Internal 1 Internal 2

MPE TEST REPORT Report No.: SHE23010013-02BE Date: 2023-03-01 Page 1 of 7 Applicant : SIMCom Wireless Solutions Limited Address of Applicant : SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai,China Product Name : LTE wireless module Brand Name : SIMCom Model No. : A7605SA-H Sample acquisition Method Sample No. : : Sent by Client E23010013-01#05 FCC ID : 2AJYU-8BC0001 Standard : FCC Part 2.1091 Date of Receipt : 2023-01-05 Date of Test : 2023-01-06 ~ 2023-03-01 Date of Issue : 2023-03-01 Remark: This report details the results of the testing carried out on one sample, the results contained in this report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. Prepared by： Reviewed by： Approved by： (Erik Yang) (Jennifer Zhou) (Authorized signatory: Guoyou Chi) MPE TEST REPORT Report No.: SHE23010013-02BE Date: 2023-03-01 Page 2 of 7 Contents 1 GENERAL INFORMATION ................................................................................................................................................... 3 1.1 TESTING LABORATORY ............................................................................................................................................................... 3 1.2 ENVIRONMENTAL CONDITIONS ................................................................................................................................................... 3 1.3 DETAILS OF APPLICATION .......................................................................................................................................................... 3 1.4 DETAILS OF EUT ........................................................................................................................................................................ 3 2 MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................................................................................................. 4 2.1 LIMITS ......................................................................................................................................................................................... 4 2.2 ASSESSMENT METHODS ............................................................................................................................................................. 5 2.3 TEST RESULT ............................................................................................................................................................................. 6 2.4 CONCLUSION .............................................................................................................................................................................. 6 3 APPENDIXES .......................................................................................................................................................................... 7 3.1 SAMPLE PHOTOGRAPH............................................................................................................................................................... 7 MPE TEST REPORT Report No.: SHE23010013-02BE Date: 2023-03-01 Page 3 of 7 1 General Information 1.1 Testing Laboratory Company Name ICAS Testing Technology Service (Shanghai) Co., Ltd. Address No.1298, Pingan Road, Minhang District, Shanghai, China Telephone 0086 21-51682999 Fax 0086 21-54711112 Homepage www.icasiso.com 1.2 Environmental conditions Temperature (C) 18-25 Humidity (%RH) 40-65 Barometric Pressure (mbar) 960-1060 Ambient noise & Reflection（W/kg） < 0.012 1.3 Details of Application Applicant Company Name SIMCom Wireless Solutions Limited Address SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai,China Contact Person Yongsheng Li Telephone +86 21 3252 3134 Email [email protected] Manufacturer Company Name SIMCom Wireless Solutions Limited Address SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai,China Factory Company Name SIMCom Wireless Solutions Limited Address SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai,China 1.4 Details of EUT Product Name LTE wireless module Brand Name SIMCom Test Model No. A7605SA-H FCC ID 2AJYU-8BC0001 Mode of Operation GSM/GPRS/EDGE 850/1900 WCDMA/HSDPA/HSUPA Band II/V LTE FDD Band 2/4/5/7/66 LTE TDD Band 38/41 Frequency Range Band Tx (MHz) Rx (MHz) GSM 850 824 ~ 849 869 ~ 894 MPE TEST REPORT Report No.: SHE23010013-02BE Date: 2023-03-01 Page 4 of 7 GSM 1900 1850 ~ 1910 1930 ~ 1990 WCDMA Band II 1850 ~ 1910 1930 ~ 1990 WCDMA Band V 824 ~ 849 869 ~ 894 LTE FDD Band 2 1850 ~ 1910 1930 ~ 1990 LTE FDD Band 4 1710 ~ 1755 2110 ~ 2155 LTE FDD Band 5 824 ~ 849 869 ~ 894 LTE FDD Band 7 2500 ~ 2570 2620 ~ 2690 LTE TDD Band 38 2570 ~ 2620 2570 ~ 2620 LTE TDD Band 41 2496 ~ 2690 2496 ~ 2690 LTE FDD Band 66 1710 ~ 1780 2110 ~ 2180 Modulation Type GSM/GPRS GMSK EGPRS 8PSK WCDMA QPSK HSDPA/HSUPA QPSK 16QAM LTE QPSK 16QAM Antenna Type External Antenna Antenna Gain GSM/GPRS/EDGE 850: 2.02 dBi GSM/GPRS/EDGE 1900: 2.12 dBi WCDMA/HSDPA/HSUPA Band II: 2.12 dBi WCDMA/HSDPA/HSUPA Band V: 2.02 dBi LTE FDD Band 2: 2.12 dBi LTE FDD Band 4: 3.12 dBi LTE FDD Band 5: 2.02 dBi LTE FDD Band 7: 3.20 dBi LTE TDD Band 38: 1.64 dBi LTE TDD Band 41: 3.20 dBi LTE FDD Band 66: 3.12 dBi Extreme Temperature Range -30°C~ +80°C Hardware version V1.02 Software version A7605M7_V5.0 2 Maximum Permissible Exposure (MPE) 2.1 Limits According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. MPE TEST REPORT Report No.: SHE23010013-02BE Date: 2023-03-01 Page 5 of 7 2.2 Assessment methods Calculation Formula from FCC OET 65: Where: S =…

Text truncated - open the document above for the full version.

TEST REPORT Report No.: SHE23010013-02AE Date: 2023-03-01 Page 1 of 114 Applicant : SIMCom Wireless Solutions Limited Address of Applicant : SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai,China Product Name : LTE wireless module Brand Name Model No. Sample acquisition Method : : : SIMCom A7605SA-H Sent by Client Sample No. : E23010013-01#05 FCC ID : 2AJYU-8BC0001 Standards : FCC CFR47 Part 2 (Others refer to chapter 1.4) Date of Receipt : 2023-01-05 Date of Test : 2023-01-06 ~ 2023-03-01 Date of Issue : 2023-03-01 Remark: This report details the results of the testing carried out on one sample, the results contained in this report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. Prepared by： Reviewed by： Approved by： (Shuai Li) (Jennifer Zhou) (Authorized signatory: Guoyou Chi) TEST REPORT Report No.: SHE23010013-02AE Date: 2023-03-01 Page 2 of 114 Contents 1 GENERAL INFORMATION ................................................................................................................................................... 4 1.1 TESTING LABORATORY ............................................................................................................................................................... 4 1.2 DETAILS OF APPLICATION .......................................................................................................................................................... 4 1.3 DETAILS OF EUT ........................................................................................................................................................................ 4 1.4 TEST METHODOLOGY ................................................................................................................................................................. 6 1.5 TEST VERDICT ............................................................................................................................................................................ 6 2 TEST CONDITION .................................................................................................................................................................. 8 2.1 ENVIRONMENTAL CONDITIONS ................................................................................................................................................... 8 2.2 TEST ENVIRONMENTS ................................................................................................................................................................ 8 2.3 EQUIPMENT LIST ........................................................................................................................................................................ 8 2.4 MEASUREMENT UNCERTAINTY................................................................................................................................................... 9 3 TEST SET-UP AND OPERATION MODES ...................................................................................................................... 10 3.1 DETAILS OF TEST MODE .......................................................................................................................................................... 10 3.2 TEST SETUP DIAGRAM ............................................................................................................................................................. 14 4 TEST ITEMS........................................................................................................................................................................... 17 4.1 TRANSMITTER RADIATED POWER (EIRP/ERP) ...................................................................................................................... 17 4.1.1 Limit .................................................................................................................................................................................... 17 4.1.2 Test Procedures ............................................................................................................................................................... 17 4.1.3 Test Result ........................................................................................................................................................................ 18 4.2 PEAK-TO-AVERAGE RATIO ....................................................................................................................................................... 19 4.2.1 Limit .................................................................................................................................................................................... 19 4.2.2 Test Procedures ............................................................................................................................................................... 19 4.2.3 Test Result ........................................................................................................................................................................ 19 4.3 OCCUPIED BANDWIDTH ............................................................................................................................................................ 20 4.3.1 Limit .................................................................................................................................................................................... 20 4.3.2 Test Procedures ............................................................................................................................................................... 20 4.3.3 Test Result .................................................................................................................................................…

Text truncated - open the document above for the full version.

Document No: SHE23010013-02AE Page 1 of 108 Annex A. Peak to Average Ratio 1. GSM_GSM850 1.1.GSM Peak to Average Ratio(NTNV)(Channel:128) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.2 0.1 10.39 13 Pass Document No: SHE23010013-02AE Page 2 of 108 1.2. GSM Peak to Average Ratio(NTNV)(Channel:190) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.6 0.1 10.53 13 Pass Document No: SHE23010013-02AE Page 3 of 108 1.3. GSM Peak to Average Ratio(NTNV)(Channel:251) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 848.8 0.1 10.44 13 Pass Document No: SHE23010013-02AE Page 4 of 108 2. GSM_PCS 2.1. GSM Peak to Average Ratio(NTNV)(Channel:512) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1850.2 0.1 10.39 13 Pass Document No: SHE23010013-02AE Page 5 of 108 2.2. GSM Peak to Average Ratio(NTNV)(Channel:661) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 10.55 13 Pass Document No: SHE23010013-02AE Page 6 of 108 2.3. GSM Peak to Average Ratio(NTNV)(Channel:810) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1909.8 0.1 10.52 13 Pass Document No: SHE23010013-02AE Page 7 of 108 3. GPRS_GSM850 3.1.GPRS Peak to Average Ratio(NTNV)(Channel:128) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.2 0.1 10.47 13 Pass Document No: SHE23010013-02AE Page 8 of 108 3.2. GPRS Peak to Average Ratio(NTNV)(Channel:190) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.6 0.1 10.29 13 Pass Document No: SHE23010013-02AE Page 9 of 108 3.3. GPRS Peak to Average Ratio(NTNV)(Channel:251) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 848.8 0.1 10.5 13 Pass Document No: SHE23010013-02AE Page 10 of 108 4. GPRS_PCS 4.1. GPRS Peak to Average Ratio(NTNV)(Channel:512) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1850.2 0.1 10.59 13 Pass Document No: SHE23010013-02AE Page 11 of 108 4.2. GPRS Peak to Average Ratio(NTNV)(Channel:661) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 10.62 13 Pass Document No: SHE23010013-02AE Page 12 of 108 4.3. GPRS Peak to Average Ratio(NTNV)(Channel:810) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1909.8 0.1 10.67 13 Pass Document No: SHE23010013-02AE Page 13 of 108 5. EGPRS_GSM850 5.1.EGPRS Peak to Average Ratio(NTNV)(Channel:128) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.2 0.1 10.62 13 Pass Document No: SHE23010013-02AE Page 14 of 108 5.2. EGPRS Peak to Average Ratio(NTNV)(Channel:190) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.6 0.1 10.55 13 Pass Document No: SHE23010013-02AE Page 15 of 108 5.3. EGPRS Peak to Average Ratio(NTNV)(Channel:251) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 848.8 0.1 10.73 13 Pass Document No: SHE23010013-02AE Page 16 of 108 6. EGPRS_PCS 6.1. EGPRS Peak to Average Ratio(NTNV)(Channel:512) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1850.2 0.1 10.69 13 Pass Document No: SHE23010013-02AE Page 17 of 108 6.2. EGPRS Peak to Average Ratio(NTNV)(Channel:661) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 10.66 13 Pass Document No: SHE23010013-02AE Page 18 of 108 6.3. EGPRS Peak to Average Ratio(NTNV)(Channel:810) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1909.8 0.1 10.69 13 Pass Document No: SHE23010013-02AE Page 19 of 108 7. WCDMA_Band2 7.1. WCDMA Peak to Average Ratio(NTNV)(Channel:9262) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1852.4 0.1 2.91 13 Pass Document No: SHE23010013-02AE Page 20 of 108 7.2. WCDMA Peak to Average Ratio(NTNV)(Channel:9400) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 2.89 13 Pass Document No: SHE23010013-02AE Page 21 of 108 7.3. WCDMA Peak to Average Ratio(NTNV)(Channel:9538) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1907.6 0.1 2.9 13 Pass Document No: SHE23010013-02AE Page 22 of 108 8. WCDMA_Band5 8.1. WCDMA Peak to Average Ratio(NTNV)(Channel:4132) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 826.4 0.1 2.84 13 Pass Document No: SHE23010013-02AE Page 23 of 108 8.2. WCDMA Peak to Average Ratio(NTNV)(Channel:4182) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.4 0.1 2.82 13 Pass Document No: SHE23010013-02AE Page 24 of 108 8.3. WCDMA Peak to Average Ratio(NTNV)(Channel:4233) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 846.6 0.1 2.84 13 Pass Document No: SHE23010013-02AE Page 25 of 108 9. LTE_Band2 9.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.28 13 Pass Document No: SHE23010013-02AE Page 26 of 108 9.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.61 13 Pass Document No: SHE23010013-02AE Page 27 of 108 9.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.59 13 Pass Document No: SHE23010013-02AE Page 28 of 108 9.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 6.41 13 Pass Document No: SHE23010013-02AE Page 29 of 108 9.5. LTE Peak to Average Ratio(NTNV)(Subtest:5, Channel:18900, B…
