SIMCom Wireless Solutions Limited TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.01.07 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, SIMCom Wireless Solutions Limited hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: yongsheng Li Signature: Title: Deputy General Manager Telephone: +86 21 32523134 E-mail: [email protected]

SIMCom Wireless Solutions Limited TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.01.20 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (NB/GNSS MODULE / SIM7080G /FCC ID: 2AJYU- 8VC0002) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description • Tune Up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: yongsheng Li Signature: Title: Manager Telephone: +86 21 32523134 E-mail: Deputy General Manager

Single Modular approval Declaration letter We ,apply Single modular approval for Product Name: NB/GNSS MODULE Model: SIM7080G FCC ID: 2AJYU-8VC0002 According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must beon the module assembly; Answer ：Yes，with shielded 2)The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer ：Yes ；All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer ：Yes ；A low drop out regulator is used for modular power supply regulation. 4)The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Yes ；Device is equipped with Integral antenna. (5)The module must demonstrate compliance in a stand-alone configuration; Answer ：Yes，distance between modular and all AEs are longer than 20cm ，refer to setup photo. (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer ：Yes ；The modular has a permanent fixed label, and below statement was listed in the User Manual;The host device must be labeled to display the FCCID of the module Contains FCC ID: 2AJYU-8VC0002 (7)The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer ：Yes ；The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8)The module must comply with RF exposure requirements Answer ：Yes ；Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPEReports and Refer to modular installation manual Sincerely, Name: yongsheng Li Signature: Title: Manager Telephone: +86 21 32523134 E-mail: [email protected]

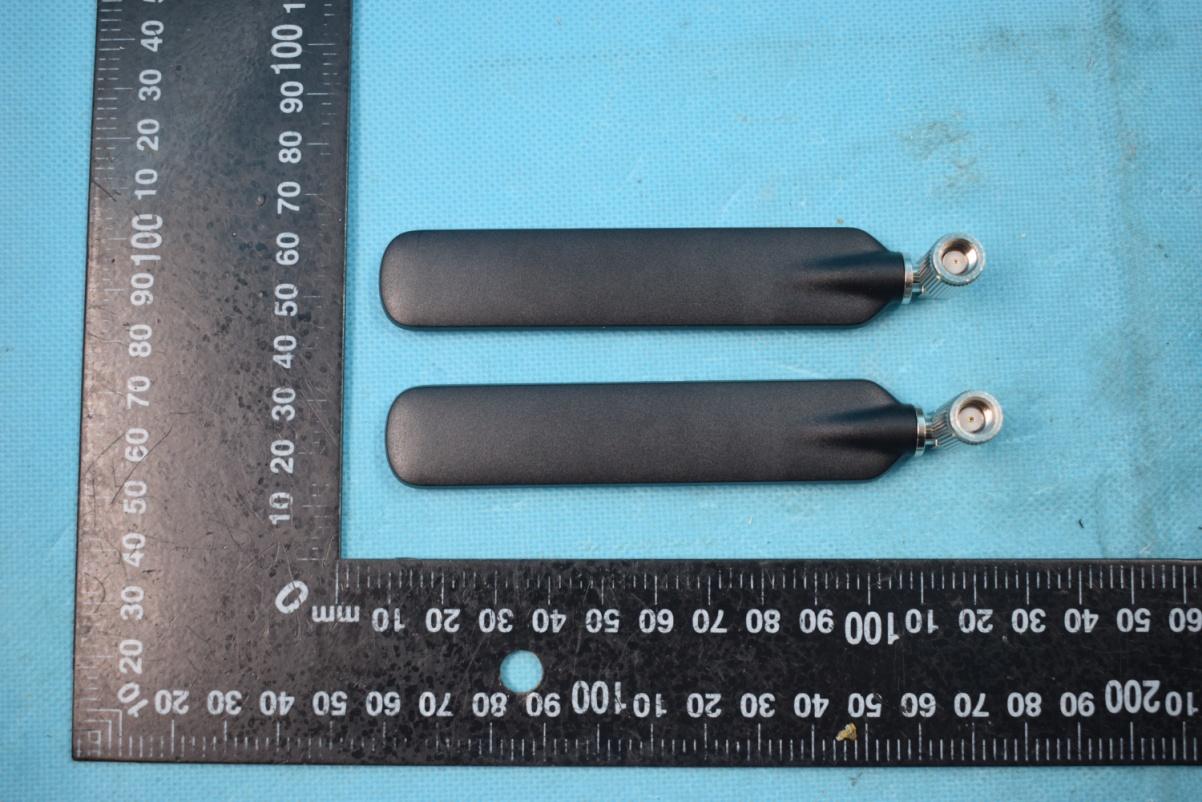

Page 1 of 2 Report No.: STS1911256 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model Name: SIM7080G Photo 1_Module Photo 2_Module Page 2 of 2 Report No.: STS1911256 Photo 3_ Antenna(Non-standard)

FCC Label NB/GNSS MODULE Model name: SIM7080G FCC ID: 2AJYU-8VC0002 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

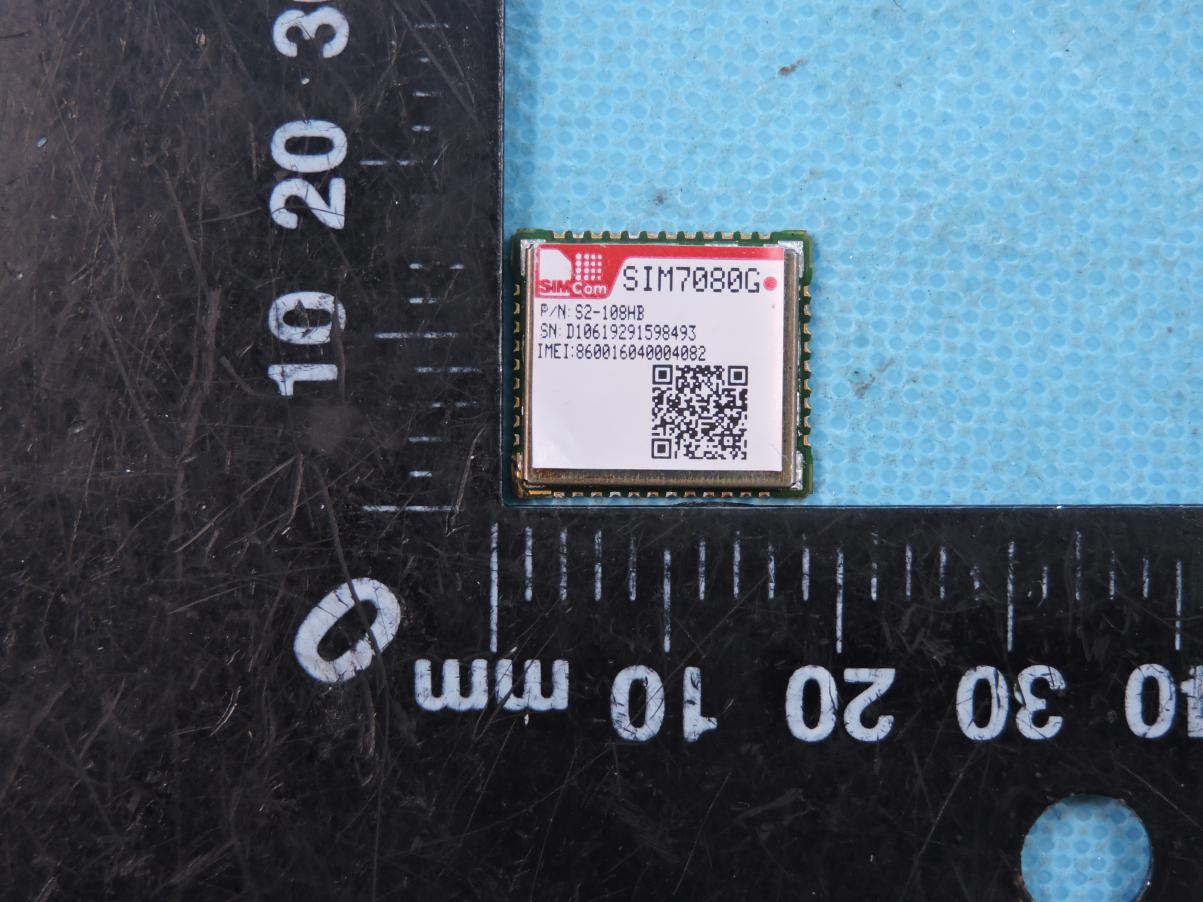

Page 1 of 1 Report No.: STS1911256 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1(SIM7080G module)

RF Exposure Report FCC ID: 2AJYU-8VC0002 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. LTE(CAT-M) Mode LTE Band 2:1850~1910MHz LTE Band 4:1710~1755MHz LTE Band 12:699~716MHz LTE Band 13:777~787MHz LTE Band 25:1850~1915MHz LTE Band 26:814~849MHz Detector PEAK Band 2 23±1dBm Band 4 22±1dBm Band 12 23±1dBm Band 13 23±1dBm Band 25 23±1dBm Band 26 24±1dBm Band 26(Part 90) 22±1dBm ANT Gain (G) Antenna gain : B2 / B4 / B25 : 3 dBi (gain of antenna in linear scale=2) B12 / B13 / B26 : 2dBi (gain of antenna in linear scale=1.58) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) Band2 2 1910 23 199.53 0.08 1.00 Band4 2 1755 23 199.53 0.08 1.00 Band12 1.58 716 23 199.53 0.06 0.48 Band13 1.58 787 23 199.53 0.06 0.52 Band25 2 1915 23 199.53 0.08 1.00 Band26 1.58 849 24 251.19 0.08 0.57 Band26(Part90) 1.58 849 22 158.49 0.05 0.57 LTE(NB-IOT) Mode NB-IOT Band 2:1850~1910MHz NB-IOT Band 4:1710~1755MHz NB-IOT Band 5:824~849MHz NB-IOT Band 12:699~716MHz NB-IOT Band 13:777~787MHz NB-IOT Band 71:663~698MHz Detector PEAK LTE Band 2 22±1dBm LTE Band 4 20±1dBm LTE Band 5 20±1dBm LTE Band 12 21±1dBm LTE Band 13 19±1dBm LTE Band 71 20±1dBm ANT Gain (G) Antenna gain : B2 / B4 : 3 dBi (gain of antenna in linear scale=2) B5 / B12 / B13 / B71 : 2dBi (gain of antenna in linear scale=1.58) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) Band2 2 1850 22 158.49 0.06 1.00 Band4 2 1710 20 100.00 0.04 1.00 Band5 1.58 824 20 100.00 0.03 0.55 Band12 1.58 699 21 125.89 0.04 0.47 Band13 1.58 777 19 79.43 0.02 0.52 Band71 1.58 663 20 100.00 0.03 0.44

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No:STS1911256W01 Issued for SIMCom Wireless Solutions Limited No.633, Jinzhong Road, Shanghai, China Product Name: NB/GNSS MODULE Brand Name: SIMCom Model Name: SIM7080G Series Model: N/A FCC ID: 2AJYU-8VC0002 Test Standard: 47 CFR Part 2, 22H, 24(E), 27, 90 December 20, 2018 S T L A B S Page 2 of 85 Report No.: STS1911256W01 TEST RESULT CERTIFICATION Applicant’s Name................: SIMCom Wireless Solutions Limited Address .................................. : No.633, Jinzhong Road, Shanghai, China Manufacture's Name ............ : SIMCom Wireless Solutions Limited Address .................................. : No.633, Jinzhong Road, Shanghai, China Product description Product Name ........................ : NB/GNSS MODULE Brand Name ......................... : SIMCom Model Name ........................... : SIM7080G Series Model .......................... : N/A Test Standards...................... : 47 CFR Part 2, 22H, 24(E), 27, 90 December 20, 2018 Test Procedure ....................... : KDB 971168 D01 v03r01, ANSI C63.26 2015 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................... : Date of receipt of test item ......... : 20 Nov. 2019 Date (s) of performance of tests : 20 Nov. 2019 ~ 24 Dec. 2019 Date of Issue ............................. : 27 Dec. 2019 Test Result ................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sunday Hu) Authorized Signatory : (Vita Li) Page 3 of 85 Report No.: STS1911256W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 2. GENERAL INFORMATION 7 3. CONDUCTED OUTPUT POWER 16 4. PEAK-TO-AVERAGE RATIO 21 5. RADIATED POWER AND EFFECTIVE ISOTROPIC RADIATED POWER 24 6. OCCUPIED BANDWIDTH 42 7. CONDUCTED BAND EDGE 45 8. CONDUCTED SPURIOUS EMISSIO 47 9. RADIATED SPURIOUS EMISSION 48 10. FREQUENCY STABILITY 77 APPENDIX-PHOTOS OF TEST SETUP 85 Page 4 of 85 Report No.: STS1911256W01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 27 Dec. 2019 STS1911256W01 ALL Initial Issue Page 5 of 85 Report No.: STS1911256W01 1. SUMMARY OF TEST RESULTS 1.1 TEST RESULTS DESCRIPTION AND LABORATORY INFORMATION FCC Rule Description Limit Result §2.1046 Conducted Output Power Reporting Only PASS §24.232(d) §22.913(d) §27.50(a)(B) Peak-to-Average Ratio <13 dB PASS §2.1049 §22.917 §24.238(b) §27.53(h)(3) §27.53(m)(6) §90.209 Occupied Bandwidth Reporting Only PASS §2.1051) §22.917 §24.238(a) §27.53(g) §27.53(h) Conducted Band Edge Measurement <43+10log10(P[Watts]) PASS §27.53(m)(4) <43+10log10(P[Watts]) PASS §2.1051 §22.917 §24.238(a) §27.53(g) §27.53(h) Conducted Spurious Emission <43+10log10(P[Watts]) PASS §27.53(m)(4) Conducted Spurious Emission < 55+10log10(P[Watts]) PASS §2.1055 §22.355 §24.235 §27.54 §90.213 Frequency Stability Temperature & Voltage < 2.5 ppm for Part 22 Within Authorized Band PASS §27.50(c)(10) Effective Radiated Power ERP < 3 Watt PASS §24.232(c) §27.50(h)(2) Equivalent Isotropic Radiated Power EIRP < 2Watt PASS §27.50(d)(4) Equivalent Isotropic Radiated Power EIRP < 1Watt PASS §22.913 Effective Radiated Power ERP < 7 Watt PASS §90.635(b) Effective Radiated Power ERP < 100Watt PASS §2.1053 §22.917 §24.238(a) §27.53(g) §27.53(h) Radiated Spurious Emission < 43+10log10(P[Watts]) PASS §2.1053 §27.53(m)(4) Radiated Spurious Emission < 55+10log10(P[Watts]) PASS Page 6 of 85 Report No.: STS1911256W01 1.1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±6.7dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±4.43dB 7 Conducted Emission (150KHz-30MHz) ±5dB Page 7 of 85 Report No.: STS1911256W01 2. GENERAL INFORMATION 2.1 TECHNICAL SPECIFICATIONS AND REGULATIONS 2.1.1 PRODUCT DESCRIPTION A major technical description of EUT is described as following: Product Name: NB/GNSS MODULE Trade Name SIMCom Model Name SIM7080G Series Model N/A Model Difference N/A Frequency Bands: U.S. Bands: CAT-M FDD Band 2 CAT-M FDD Band 4 CAT-M FDD Band 12 CAT-M FDD Band 13 CAT-M FDD Band 25 CAT-M FDD Band 26 SIM CARD: SIM 1 and SIM 2 is a chipset unit and tested as single chipset, SIM 1 is used to tested Antenna: External Antenna Antenna gain: B2/B4/B25:3 dBi B12/B13/B26:2dBi Power Rating: Input: DC 3.8V Extreme Vol. Limits: 2.7 V to 4.8V (Nominal 3.8V) Extreme Temp. Tolerance: -30°C to +50°C Hardware version number: V1.03 Software version number: R1951.01 Page 8 of 85 Report No.: STS1911256W01 2.1.2 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD Produ…
