2AJYU-8VC0003NB/CAT-M/GNSS MODULE

SIM7090G UserManual SIMComWirelessSolutionsLimited BuildingB,SIMTechnologyBuilding,No.633,JinzhongRoad ChangningDistrict,ShanghaiP.R.China Tel:86-21-31575100 [email protected] www.simcom.com LPWAModule SIM7090GUserManualV1.01 www.simcom.com 2 / 77 DocumentTitle: SIM7090GUserManual Version: V1.01 Date: 2020-06-03 Status: Released GENERALNOTES SIMCOMOFFERSTHISINFORMATIONASASERVICETOITSCUSTOMERS,TOSUPPORT APPLICATIONANDENGINEERINGEFFORTSTHATUSETHEPRODUCTSDESIGNEDBYSIMCOM. THEINFORMATIONPROVIDEDISBASEDUPONREQUIREMENTSSPECIFICALLYPROVIDEDTO SIMCOMBYTHECUSTOMERS.SIMCOMHASNOTUNDERTAKENANYINDEPENDENTSEARCH FORADDITIONALRELEVANTINFORMATION,INCLUDINGANYINFORMATIONTHATMAYBEINTHE CUSTOMER’SPOSSESSION.FURTHERMORE,SYSTEMVALIDATIONOFTHISPRODUCT DESIGNEDBYSIMCOMWITHINALARGERELECTRONICSYSTEMREMAINSTHERESPONSIBILITY OFTHECUSTOMERORTHECUSTOMER’SSYSTEMINTEGRATOR.ALLSPECIFICATIONS SUPPLIEDHEREINARESUBJECTTOCHANGE. COPYRIGHT THISDOCUMENTCONTAINSPROPRIETARYTECHNICALINFORMATIONWHICHISTHEPROPERTY OFSIMCOMWIRELESSSOLUTIONSLIMITEDCOPYING,TOOTHERSANDUSINGTHISDOCUMENT, AREFORBIDDENWITHOUTEXPRESSAUTHORITYBYSIMCOM.OFFENDERSARELIABLETOTHE PAYMENTOFINDEMNIFICATIONS.ALLRIGHTSRESERVEDBYSIMCOMINTHEPROPRIETARY TECHNICALINFORMATION，INCLUDINGBUTNOTLIMITEDTOREGISTRATIONGRANTINGOFA PATENT,AUTILITYMODELORDESIGN.ALLSPECIFICATIONSUPPLIEDHEREINARESUBJECTTO CHANGEWITHOUTNOTICEATANYTIME. FCCWarning Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1) Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid theuser'sauthoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurina SIM7090GUserManualV1.01 www.simcom.com 3 / 77 particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures:  -Reorientorrelocatethereceivingantenna.  -Increasetheseparationbetweentheequipmentandreceiver.  -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected.  -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. RFwarning: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.This equipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&your body. ICCaution: ThisdevicecomplieswithIndustryCanadalicence-exemptRSSstandard(s).Operationissubjecttothe followingtwoconditions: (1) Thisdevicemaynotcauseinterference,and (2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationof thedevice. LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexempts delicence.L'exploitationestautoriséeauxdeuxconditionssuivantes: (1)l'appareilnedoitpasproduiredebrouillage,et (2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageest susceptibled'encompromettrelefonctionnement ThisequipmentcomplieswithISEDradiationexposurelimitssetforthforanuncontrolledenvironment. Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator& yourbody. CematérielestcomplétéparuneexpositionderayonnementsICpourunenvironnementnaturel.Ce matérieldoitêtreinstalléetsefaireavecunedistanceminimalede20cmentrelesradiateursetles autresYourbodyshop. Forahostmanufacture’susingacertifiedmodular,if(1)themodule’sICnumberisnotvisiblewhen installedinthehost,or(2)ifthehostismarketedsothatendusersdonothavestraightforward commonlyusedmethodsforaccesstoremovethemodulesothattheICnumberofthemoduleis visible;thenanadditionalpermanentlabelreferringtotheenclosedmodule:“ContainsTransmitter ModucleIC:23761-8VC0003”or“ContainsIC:23761-8VC0003”mustbeused. ThisradiotransmitterIC:23761-8VC0003hasbeenapprovedbyImovation,SienceandEconomic DevelopmentCanadatooperatewiththeantennatypeslistedbelow,withthemaximmpermissiblegain indicated.Antennatypesnotincludedinthislistthathavegaingreaterthanthemaximmgainindicatedfor anytypelistedarestrictlyprohibiltedforusewiththisdevice. SIM7090GUserManualV1.01 www.simcom.com 4 / 77 SIMComWirelessSolutionsLimited BuildingB,SIMTechnologyBuilding,No.633JinzhongRoad,ChangningDistrict,ShanghaiP.R.China Tel:+862131575100 Email:[email protected] Formoreinformation,pleasevisit: https://www.simcom.com/download/list-863-en.html Fortechnicalsupport,ortoreportdocumentationerrors,pleasevisit: https://www.simcom.com/ask/oremailto:[email protected] Copyright©2020SIMComWirelessSolutionsLimitedAllRightsReserved. SIM7090GUserManualV1.01 www.simcom.com 5 / 77 VersionHistory DateVersionDescriptionofchangeAuthor 2020-01-221.00Origin HongjunTu XianjingZhao 2020-06-031.01Modifythedocumentcontentformat.Hongjun.Tu SIM7090GUserManualV1.01 www.simcom.com 6 / 77 Contents Contents................................................................................................................................................................6 TableIndex............................................................................................................................................................8 FigureIndex .......................................................................................................................................................... 9 1Introduction.....................................................................................................................................................10 1.1Pr…

Text truncated - open the document above for the full version.

Single Modular approval Declaration letter We ,apply Single modular approval for Product Name: NB/CAT-M/GNSS MODULE Model: SIM7090G FCC ID: 2AJYU-8VC0003 According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must beon the module assembly; Answer ：Yes，with shielded 2)The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer ：Yes ；All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer ：Yes ；A low drop out regulator is used for modular power supply regulation. 4)The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Yes ；Device is equipped with Integral antenna. (5)The module must demonstrate compliance in a stand-alone configuration; Answer ：Yes，distance between modular and all AEs are longer than 20cm ，refer to setup photo. (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer ：Yes ；The modular has a permanent fixed label, and below statement was listed in the User Manual;The host device must be labeled to display the FCCID of the module Contains FCC ID: 2AJYU-8VC0003 (7)The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer ：Yes ；The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8)The module must comply with RF exposure requirements Answer ：Yes ；Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPEReports and Refer to modular installation manual Sincerely, Name: yongsheng Li Signature: Title: Manager Telephone: +86 21 32523134 E-mail: [email protected]

SIMCom Wireless Solutions Limited TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.07.13 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (NB/CAT-M/GNSS MODULE /SIM7090G /FCC ID: 2AJYU-8VC0003) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description • Part List • Tune Up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: yongsheng Li Signature: Title: Manager Telephone: +86 21 32523134 E-mail: [email protected]

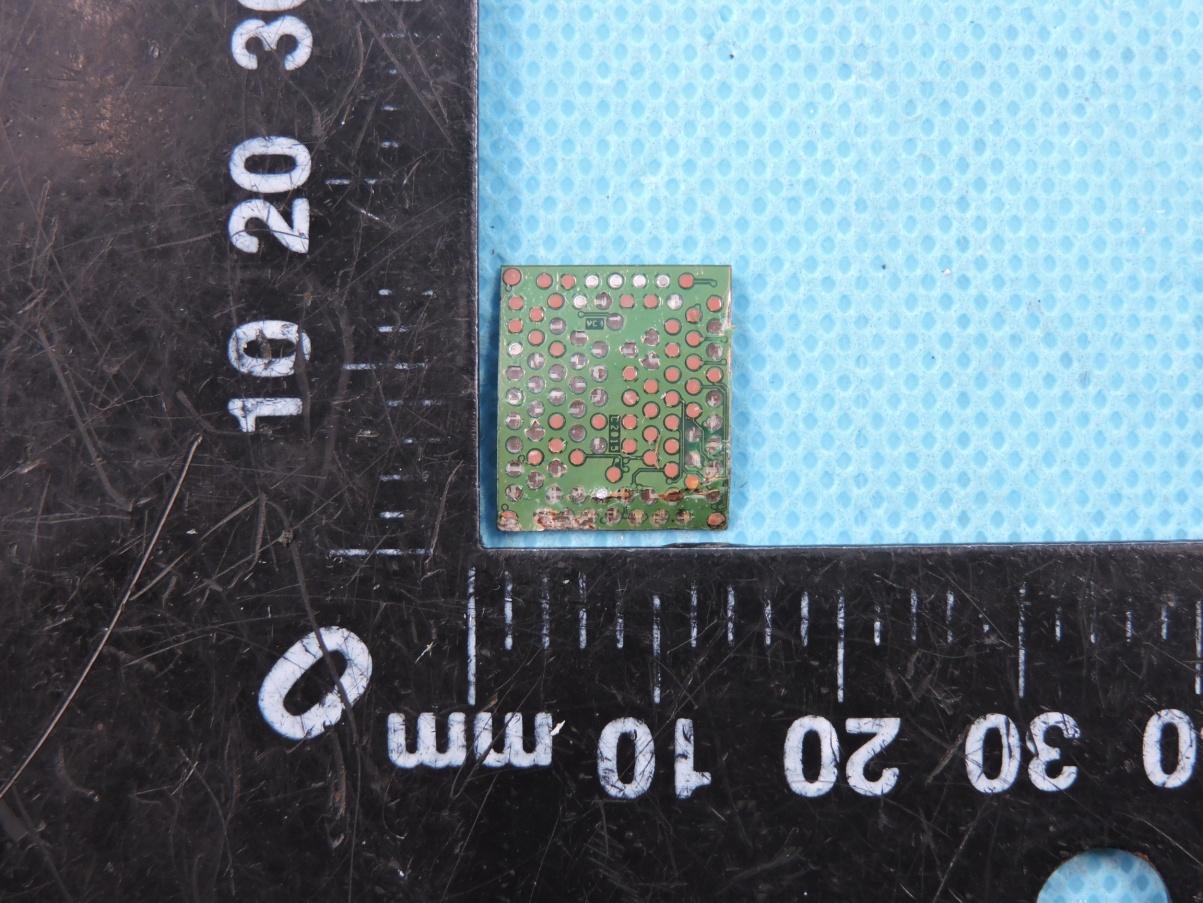

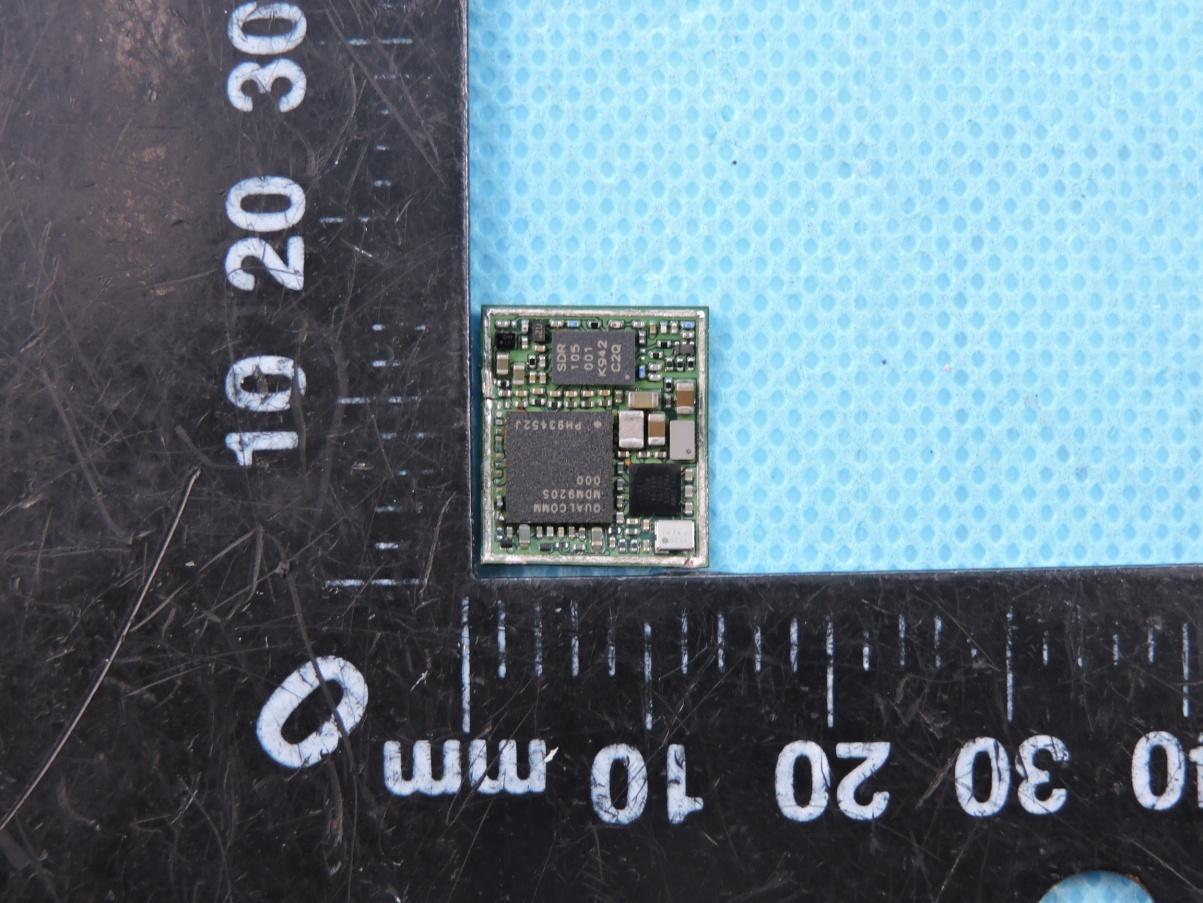

Page 1 of 3 Report No.: STS2006187 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2_Module Page 2 of 3 Report No.: STS2006187 Photo 3_Module Photo 4_ Module Page 3 of 3 Report No.: STS2006187 Photo 5_Antenna

SIM7090G FCC ID:2AJYU-8VC0003 IC: 23761-8VC0003 SIM7090G FCC ID:2AJYU-8VC0003 IC: 23761-8VC0003 14.14mm 1mm2.85mm 1mm 1.8mm 6mm 12.14mm 1.2mm 0.5mm 0.5mm 2mm 4mm 2mm SIM7090G FCC ID:2AJYU-8VC0003 IC: 23761-8VC0003 SIM7090G FCC ID:2AJYU-8VC0003 IC: 23761-8VC0003 14.14mm 1mm2.85mm 1mm 1.8mm 6mm 12.14mm 1.2mm 0.5mm 0.5mm 2mm 4mm 2mm

Page 1 of 1 Report No.: STS2006187 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2

RF Exposure Report FCC ID: 2AJYU-8VC0003 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. LTE(CAT-M) Mode LTE Band 2:1850~1910MHz LTE Band 4:1710~1755MHz LTE Band 12:699~716MHz LTE Band 13:777~787MHz LTE Band 25:1850~1915MHz LTE Band 26:814~849MHz Detector PEAK Band 2 23±1dBm Band 4 23±1dBm Band 12 21±1dBm Band 13 21±1dBm Band 25 23±1dBm Band 26 20±1dBm Band 26(Part 90) 20±1dBm ANT Gain (G) Antenna gain : B2 / B4 / B25 : 3 dBi (gain of antenna in linear scale=2) B12 / B13 / B26 : 2dBi (gain of antenna in linear scale=1.58) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) Band2 2 1910 24 251.19 0.10 1.00 Band4 2 1755 24 251.19 0.10 1.00 Band12 1.58 716 22 251.19 0.05 0.48 Band13 1.58 787 22 158.49 0.05 0.52 Band25 2 1915 24 251.19 0.08 1.00 Band26 1.58 849 21 125.89 0.04 0.57 Band26(Part90) 1.58 849 21 125.89 0.04 0.57 LTE(NB-IOT) Mode NB-IOT Band 2:1850~1910MHz NB-IOT Band 4:1710~1755MHz NB-IOT Band 5:824~849MHz NB-IOT Band 12:699~716MHz NB-IOT Band 13:777~787MHz NB-IOT Band 71:663~698MHz Detector PEAK LTE Band 2 21±1dBm LTE Band 4 21±1dBm LTE Band 5 19±1dBm LTE Band 12 21±1dBm LTE Band 13 20±1dBm LTE Band 71 19±1dBm ANT Gain (G) Antenna gain : B2 / B4 : 3 dBi (gain of antenna in linear scale=2) B5 / B12 / B13 / B71 : 2dBi (gain of antenna in linear scale=1.58) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) Band2 2 1850 22 158.49 0.06 1.00 Band4 2 1710 22 158.49 0.06 1.00 Band5 1.58 824 20 100.00 0.03 0.55 Band12 1.58 699 22 158.49 0.05 0.47 Band13 1.58 777 21 125.89 0.04 0.52 Band71 1.58 663 20 100.00 0.03 0.44
