2AJYU-8XN0004SIMCom Module with WCDMA, LTE and 5GNR

SIM8380G-M2Series HardwareDesign SIMComWirelessSolutionsLimited. SIMComHeadquartersBuilding,Building3,No.289Linhong ChangningDistrict,ShanghaiP.R.China Tel:86-21-31575100 [email protected] www.SIMcom.com 5GModule SIM8380G-M2SeriesHardwareDesignV1.07 www.(U)SIMcom.com 2 Documenttitle:SIM8380G-M2SeriesHardwareDesign Version:V1.07 Date:2023-05-31 Status:Release GENERALNOTES SIMCOMOFFERSTHISINFORMATIONASASERVICETOITSCUSTOMERSTOSUPPORTTHEAPPLICATION ANDENGINEERINGEFFORTSTHATUSETHEPRODUCTSDESIGNEDBYSIMCOM.THEINFORMATION PROVIDEDISBASEDONTHEREQUIREMENTSSPECIFICALLYFROMTHECUSTOMERS.SIMCOMHAS NOTUNDERTAKENANYINDEPENDENTSEARCHFORADDITIONALRELEVANTINFORMATION,INCLUDING ANYINFORMATIONTHATMAYBEINTHECUSTOMER’SPOSSESSION.FURTHERMORE,THESYSTEM VALIDATIONOFTHEPRODUCTDESIGNEDBYSIMCOMWITHINALARGERELECTRONICSYSTEM REMAINSTHERESPONSIBILITYOFTHECUSTOMERORTHECUSTOMER’SSYSTEMINTEGRATOR.ALL SPECIFICATIONSSUPPLIEDHEREINARESUBJECTTOCHANGEWITHOUTNOTICE. COPYRIGHT THISDOCUMENTCONTAINSTHEPROPRIETARYTECHNICALINFORMATIONWHICHISTHEPROPERTYOF SIMCOMLIMITED,COPYINGOFTHISDOCUMENT,GIVINGITTOOTHERS,THEUSINGOR COMMUNICATIONOFTHECONTENTSTHEREOFAREFORBIDDENWITHOUTTHEOFFICIALAUTHORITY BYSIMCOM.OFFENDERSARELIABLETOTHEPAYMENTOFTHEDAMAGES.ALLRIGHTSARERESERVED INTHEEVENTOFGRANTOFAPATENTORTHEREGISTRATIONOFAUTILITYMODELORDESIGN.ALL SPECIFICATIONSSUPPLIEDHEREINARESUBJECTTOCHANGEWITHOUTNOTICE. SIMComWirelessSolutionsLimited SIMComHeadquartersBuilding,Building3,No.289LinhongRoad,ChangningDistrict,ShanghaiP.R.China Tel:+862131575100 Email:[email protected] Formoreinformation,pleasevisit: https://www.SIMcom.com/download/list-863-en.html Fortechnicalsupport,ortoreportdocumentationerrors,pleasevisit: https://www.SIMcom.com/ask/oremailto:[email protected] Copyright©2022SIMComWirelessSolutionsLimitedAllRightsReserved. SIM8380G-M2SeriesHardwareDesignV1.07 www.(U)SIMcom.com 3 Contents Contents..............................................................................................................................................................................3 TableIndex .......................................................................................................................................................................... 5 FigureIndex........................................................................................................................................................................7 1.Introduction .................................................................................................................................................................... 8 1.1ProductOutline................................................................................................................................................................9 1.3FeatureOverview..........................................................................................................................................................11 2.1.2WLANZIFConnector.......................................................................................................................................14 2.1.3TestPointofModule.........................................................................................................................................15 2.2PinDescription..............................................................................................................................................................17 3.InterfaceApplication.................................................................................................................................................25 3.1PowerSupply................................................................................................................................................................25 3.1.1PowerSupplyDesignGuide...........................................................................................................................25 3.1.2RecommendedPowerSupplyCircuit............................................................................................................28 3.1.3VoltageMonitor..................................................................................................................................................31 3.2PowerOnandOffModule...........................................................................................................................................32 3.2.1PowerOn............................................................................................................................................................32 3.2.2PowerOff............................................................................................................................................................33 3.3ResetFunction..............................................................................................................................................................35 3.4I2CInterface..................................................................................................................................................................37 3.5WoWWAN#*...................................................................................................................................................................38 3.6USBInterface................................................................................................................................................................38 3.7PCIeInterface................................................................................................................................................................42 3.7.1PCIetiming.........................................................................................................................................................44 3.7.2USBandPCIeModes*.....................................................................................................................................44 3.7.3PCIeforW82.…

Text truncated - open the document above for the full version.

Rev 1/26/2023 SIMCom Wireless Solutions Limited SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai, China Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 05-22-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AJYU-8XN0004 SIMCom Wireless Solutions Limitedcertifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Contact Person: Mr Yongsheng Li E-mail: [email protected] Rev 1/26/2023 SIMCom Wireless Solutions Limited SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai, China Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 05-22-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AJYU-8XN0004 SIMCom Wireless Solutions Limited certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Contact Person: Mr Yongsheng Li E-mail: [email protected]

SIMCom Wireless Solutions Limited SIMCom Headquarters Building, Building 3, No.289, Linhong Road, Changning District, Shanghai, China Date: June 9, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AJYU-8XN0004 FRN: 0025948449 US Agent – Attestation Statement / Part 2.911(d)(7) SIMCom Wireless Solutions Limited certifies, that as of June 9, 2023, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AJYU-8XN0004. SIMCom Wireless Solutions Limited, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of SIMCom Wireless Solutions Limited for FCC ID: 2AJYU-8XN0004. Designated Agent Information: Company Name: FCC US Agent, LLC Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN: 0033402884 Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: SIMCom Wireless Solutions Limited Designated Agent: FCC US Agent, LLC Company Representative: SIMCom Wireless Solutions Limited Designated Agent Representative: Tim Payne Signature: Signature:

SIMCom Wireless Solutions Limited SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai, China Date: May 24, 2023 Power of Attorney To whom it may concern, Please be notified that I, Mr Yongsheng Li, have designated wu xuewen in Shenzhen Balun Technology Co., Ltd. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by wu xuewen in Shenzhen Balun Technology Co., Ltd. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: 2AJYU-8XN0004 If you have any acknowledgement and response, please send it to Shenzhen Balun Technology Co., Ltd. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person: Mr Yongsheng Li E-mail: [email protected]

SIMCom Wireless Solutions Limited SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai, China To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: SIMCom Wireless Solutions Limited FCC ID: 2AJYU-8XN0004 FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. SIMCom Wireless Solutions Limited requests that the following documents regarding this submission for FCC ID: 2AJYU-8XN0004 be kept Long-Term confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf Part list BOM.pdf Tune-Up-Procedure Tune up procedure.pdf And below exhibit kept short-term confidential (180 days): Exhibit Type File Name External Photos External Photos.pdf Internal Photos Internal Photos.pdf Test Setup Photos Test Setup Photos.pdf Users Manuals Users Manual.pdf Those documents contain detailed system and equipment description and related information about the product which SIMCom Wireless Solutions Limited considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, SIMCom Wireless Solutions Limited considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Name of the Manager: Mr Yongsheng Li E-mail: [email protected] Date: 2023/05/22 Signature:

SIMCom Wireless Solutions Limited SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai, China Statement We, SIMCom Wireless Solutions Limited, states that our device: FCC ID: 2AJYU-8XN0004 The hardware supports LTE band40 but it will be disabled by software and are not available in US market. Contact Person: Mr Yongsheng Li E-mail: [email protected]

SIMCom Wireless Solutions Limited PHOENIX TESTLAB GmbH Date: 27 July 2023 Product Certification Königswinkel 10 D 32825 Blomberg Attn: Reviewing Engineer Subject: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL To Whom It May Concern: We, SIMCom Wireless Solutions Limited, hereby requests for part 15 unlicensed modular transmitter approval of our device, described as follows: Brand name: SIMCom Model name: SIM8380G-M2 FCC ID: 2AJYU-8XN0004 In FCC Public Notice DA 00-1407 released June 26, 2000 there are eight numbered requirements that our device complies with: 1. The modular transmitter must have its own shielding. YES, please check the exhibition photo. 2. The modular transmitter must have buffered modulation/data inputs YES, please check the exhibition photo. 3. The modular transmitter must have its own power supply regulation YES, it has power supply regulation 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c YES, the requirements of antenna connector and spurious emission have been fulfilled. 5. The modular transmitter must be tested in a stand-alone configuration YES, please refer to the setup photo. 6. The modular transmitter must be labelled with its own FCC ID number YES, the module will be label with its own FCC ID. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. YES, the required FCC rule has been fulfilled and all the instruction for maintaining compliance have been clearly stated in the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. YES, the RF exposure requirements has been fulfilled. Please refer exhibition RF exposure for the compliance of MPE RF exposure rule. Yours sincerely, Yongsheng Li, Manager

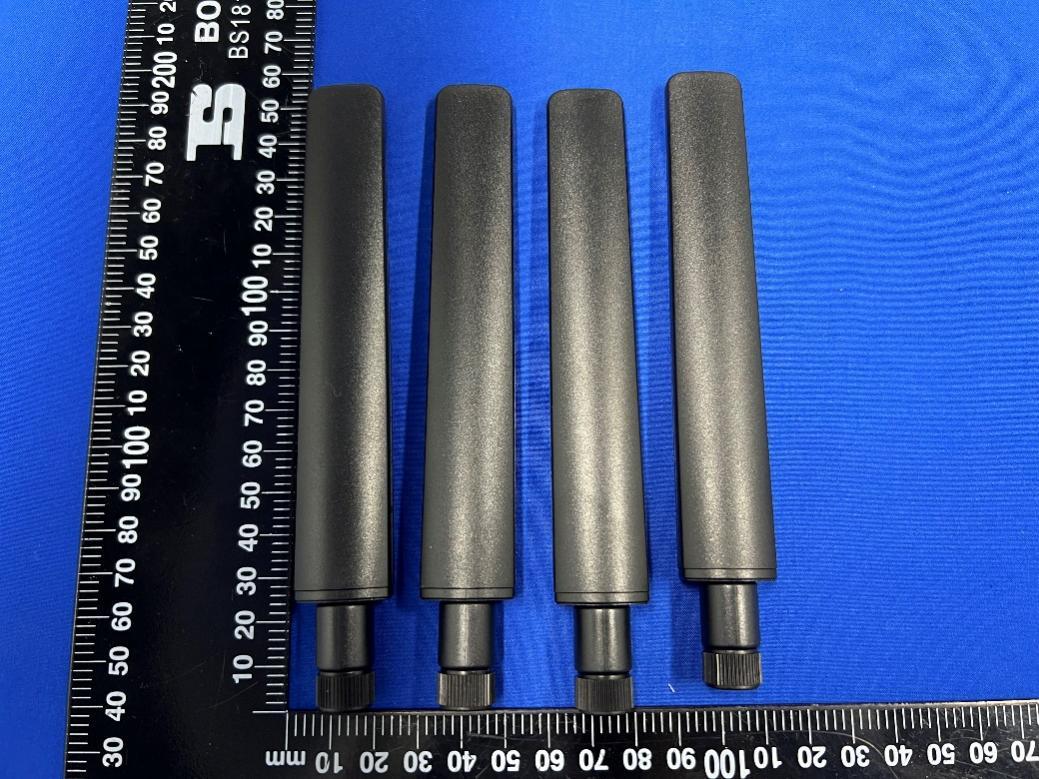

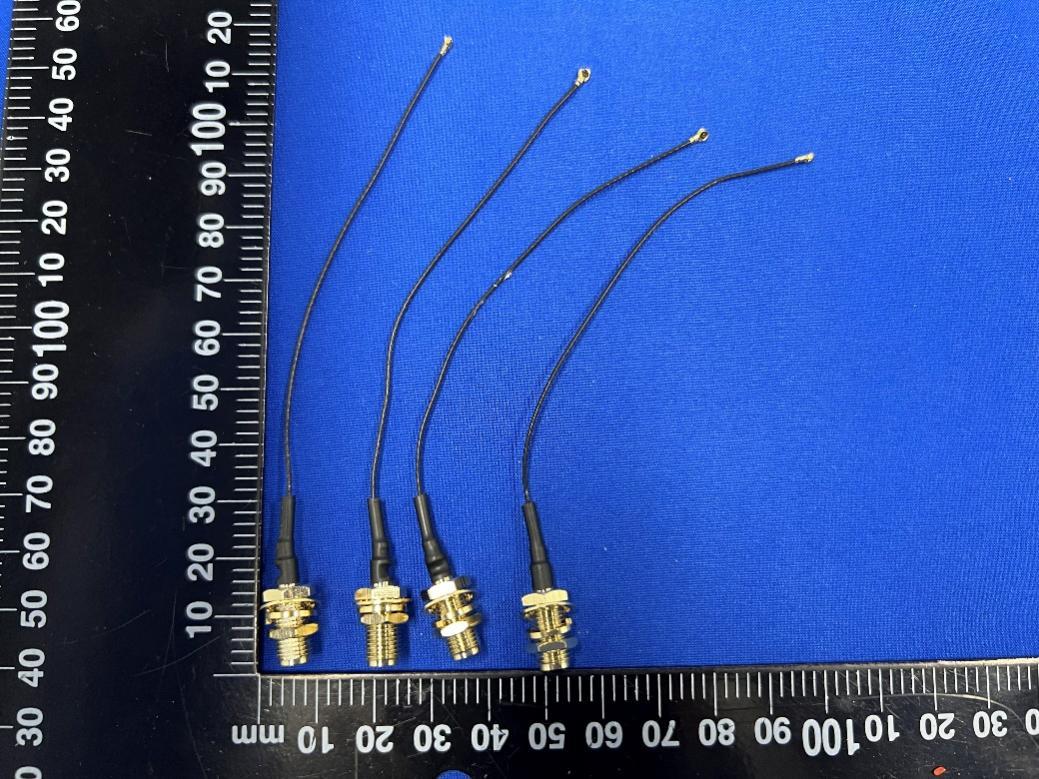

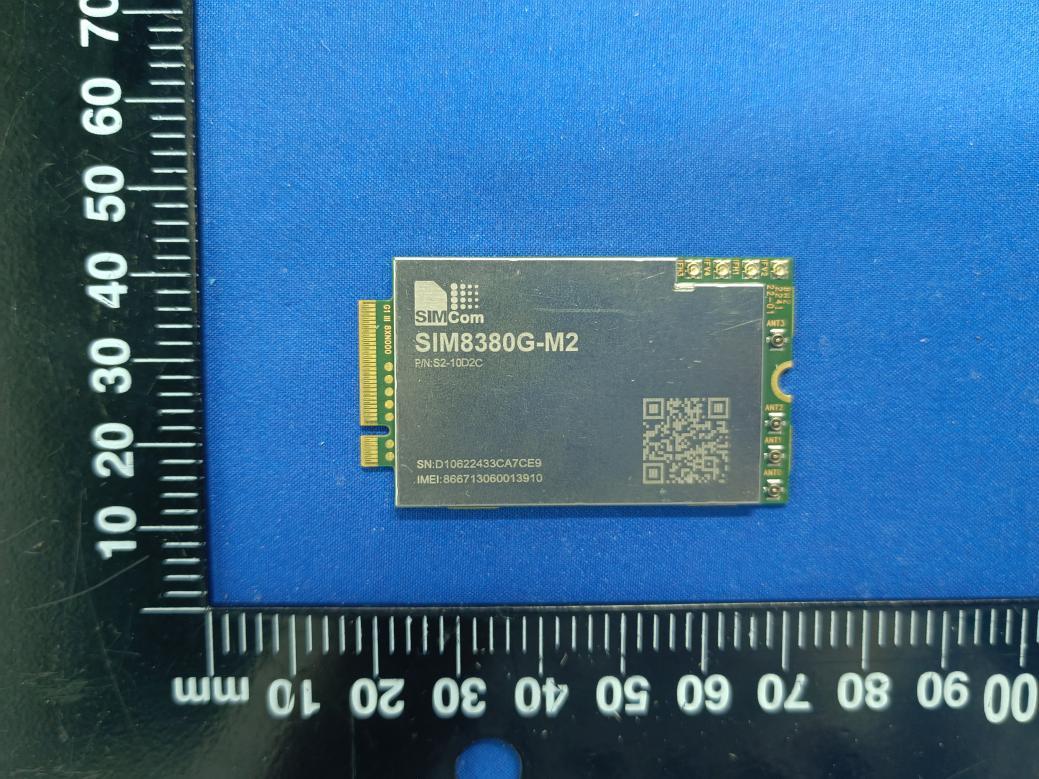

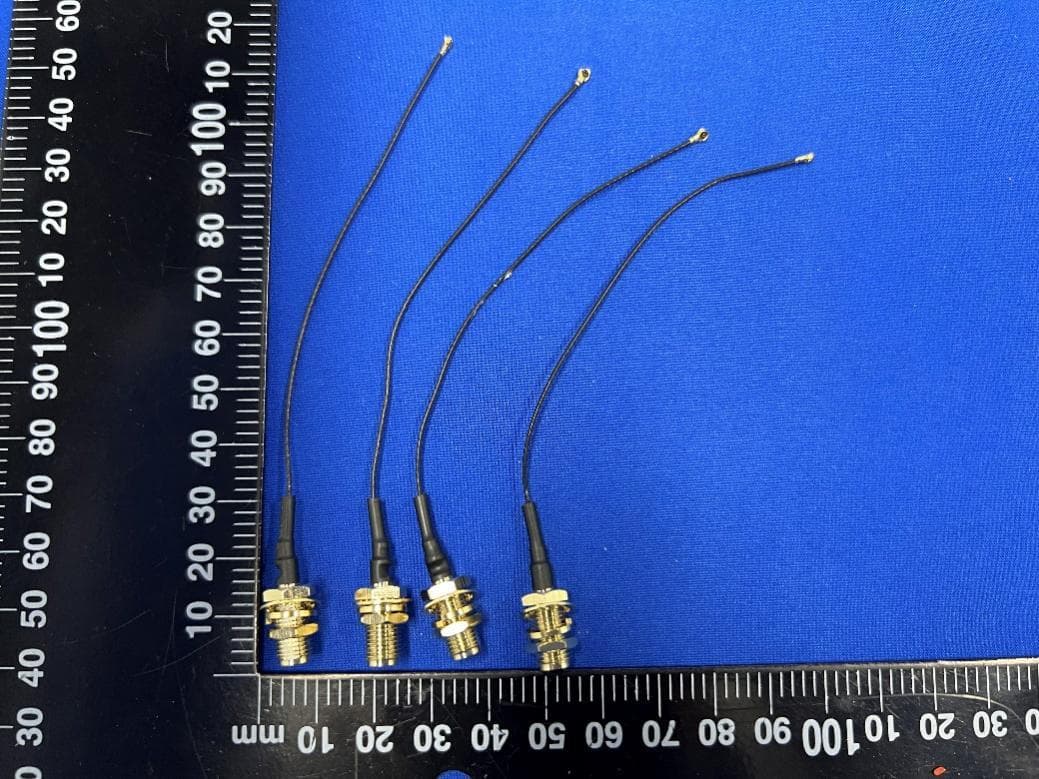

Report No.: BL-SZ2310633-AW 1 / 2 EUT EXTERNAL PHOTOS SIM8380G-M2 FRONT VIEW OF EUT REAR VIEW OF EUT ANT0 3G/4G/5G LB/MHB TRX 4G UHB DL-MIMO2 5G n41/n48/n77/n78 UL/DL-MIMO2 ANT3 3G/4G/5G MHB RX DIV 4G UHB RX DIV 5G n41/n48/n77/n78 RX DIV GNSS L1 ANT2 3G/4G/5G MHB DL-MIMO2 4G UHB TRX 5G n41/n48/n77/n78 TRX ANT1 3G/4G/5G MHB DL-MIMO1 4G UHB DL-MIMO1 5G n41/n48/n77/n78 DL-MIMO1 ReportNo.: BL-SZ2310633-AW 2 / 2 Accessory-DipoleAntenna Accessory-RFCable

Label & Label Location

Report No.: BL-SZ2310633-AI 1 / 2 EUT INTERNAL PHOTOS SIM8380G-M2 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW RF Chip

Report No.: BL-SZ2310633-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 12 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: SIMCom Wireless Solutions Limited Address: SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai, China Equipment Type: SIMCom Module Model Name: SIM8380G-M2 Brand Name: SIMCom FCC ID: 2AJYU-8XN0004 Test Standard: 47 CFR Part 2.1091 KDB 447498 D04 v01 Sample Arrival Date: Feb. 20, 2023 Test Date Feb. 21, 2023 - Apr. 23, 2023 Date of Issue: Jun. 01, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Huang Jinsheng Checked by: Xiong Lining Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2310633-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 12 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Jun. 01, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory ............................................................................................................ 3 1.2 Test Location ................................................................................................................ 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information .................................................................................................... 4 2.2 Manufacturer Information .............................................................................................. 4 2.3 Factory Information ....................................................................................................... 4 2.4 General Description for Equipment under Test (EUT) ................................................... 4 2.5 Ancillary Equipment ...................................................................................................... 4 2.6 Technical Information ................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................. 7 3.1 Test Standards ............................................................................................................. 7 4 DEVICE CATEGORY AND LEVELS LIMITS ............................................................................. 8 5 ASSESSMENT RESULT ......................................................................................................... 10 5.1 Output Power ............................................................................................................. 10 5.2 Tune-up power ........................................................................................................... 10 5.3 RF Exposure Evaluation Result .................................................................................. 10 5.4 Collocated Power Calculation ..................................................................................... 11 5.5 Conclusion .................................................................................................................. 11 Report No.: BL-SZ2310633-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 12 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Report No.: BL-SZ2310633-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 12 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant SIMCom Wireless Solutions Limited Address SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai, China 2.2 Manufacturer Information Manufacturer SIMCom Wireless Solutions Limited Address SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai, China 2.3 Factory Information Factory N/A Address N/A 2.4 General Description for Equipment under Test (EUT) EUT Name SIMCom Module Model Name Under Test SIM8380G-M2 Series Model Name N/A Description of Model name differentiation N/A Hardware Version V1.03 Software Version 2212B03V02X62M44A-M2 Dimensions (Approx.) N/A Weight (Approx.) N/A 2.5 Ancillary Equipment Note: Not applicable. Report No.: BL-SZ2310633-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 5 / 12 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Scienc…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2310633-501 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 650 Web: www.titcgroup.com Template No.: TRP-FCC (2023-01) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: SIMCom Wireless Solutions Limited Address: SIMCom Headquarters Building, Building 3, No.289 Linhong Road, Changning District, Shanghai, China Equipment Type: SIMCom Module Model Name: SIM8380G-M2 Brand Name: SIMCom FCC ID: 2AJYU-8XN0004 Test Standard: 47 CFR Part 2 (Others refer to chapter 3.1) Sample Arrival Date: Feb. 20, 2023 Test Date Feb. 21, 2023 - Jun. 29, 2023 Date of Issue: Jul. 03, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Huang Jiaquan Checked by: Wu Huihui Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2310633-501 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 650 Web: www.titcgroup.com Template No.: TRP-FCC (2023-01) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Jun. 01, 2023 Initial Issue Rev. 02 Jul. 03, 2023 Updated the Field Strength of Spurious Radiation test data of n13 in ANNEX A.7. TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 4 1.1 Test Laboratory ................................................................................................................... 4 1.2 Test Location ....................................................................................................................... 4 2 PRODUCT INFORMATION ....................................................................................................... 5 2.1 Applicant Information ........................................................................................................... 5 2.2 Manufacturer Information .................................................................................................... 5 2.3 Factory Information ............................................................................................................. 5 2.4 General Description for Equipment under Test (EUT) ......................................................... 5 2.5 Technical Information .......................................................................................................... 6 3 SUMMARY OF TEST RESULTS ............................................................................................. 13 3.1 Test Standards .................................................................................................................. 13 3.2 Test Verdict ....................................................................................................................... 14 4 GENERAL TEST CONFIGURATIONS .................................................................................... 16 4.1 Test Environments ............................................................................................................ 16 4.2 Test Equipment List ........................................................................................................... 16 4.3 Test Configurations ........................................................................................................... 18 4.4 Test Setup ......................................................................................................................... 46 5 TEST ITEMS ........................................................................................................................... 48 5.1 Transmitter Radiated Power (EIRP/ERP) .......................................................................... 48 5.2 Peak to Average Ratio....................................................................................................... 52 5.3 Occupied Bandwidth ......................................................................................................... 54 5.4 Frequency Stability ............................................................................................................ 56 5.5 Spurious Emission at Antenna Terminals .......................................................................... 58 Report No.: BL-SZ2310633-501 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 650 Web: www.titcgroup.com Template No.: TRP-FCC (2023-01) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 5.6 Band Edge ........................................................................................................................ 63 5.7 Field Strength of Spurious Radiation ................................................................................. 68 ANNEX A TEST RESULTS ......................................................................................................... 74 A.1 Transmitter Radiated Power (EIRP/ERP) .......................................................................... 74 A.2 Peak to Average Ratio..................................................................................................... 377 A.3 Occupied Bandwidth ....................................................................................................... 398 A.4 Frequency Stability .......................................................................................................... 447 A.5 Spurious Emission at Antenna Terminals ........................................................................ 516 A.6 Band Edge ...................................................................................................................... 565 A.7 Field Strength of Spurious Radiation ............................................................................... 624 ANNEX B TEST SETUP PHOTOS ..…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2310633-501 Tel: +86-755-66850100 E-mail: [email protected] Page No. 441 / 650 Web: www.titcgroup.com Template No.: TRP-FCC (2023-01) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China MCH ANT1 106 0 37.79 Pass ANT2 106 0 37.79 Pass HCH ANT1 106 0 37.79 Pass ANT2 106 0 37.79 Pass 60 MHz LCH ANT1 162 0 57.74 Pass ANT2 162 0 57.74 Pass MCH ANT1 162 0 57.74 Pass ANT2 162 0 57.76 Pass HCH ANT1 162 0 57.74 Pass ANT2 162 0 57.76 Pass 80 MHz LCH ANT1 217 0 77.38 Pass ANT2 217 0 77.41 Pass MCH ANT1 217 0 77.39 Pass ANT2 217 0 77.41 Pass HCH ANT1 217 0 77.39 Pass ANT2 217 0 77.41 Pass 100 MHz MCH ANT1 273 0 97.33 Pass ANT2 273 0 97.36 Pass n77 UL MIMO (3550-3700 MHz) 20 MHz LCH ANT1 51 0 18.19 Pass ANT2 51 0 18.19 Pass MCH ANT1 51 0 18.19 Pass ANT2 51 0 18.19 Pass HCH ANT1 51 0 18.19 Pass ANT2 51 0 18.19 Pass 30 MHz LCH ANT1 78 0 27.82 Pass ANT2 78 0 27.82 Pass MCH ANT1 78 0 27.82 Pass ANT2 78 0 27.82 Pass HCH ANT1 78 0 27.82 Pass ANT2 78 0 27.8 Pass 40 MHz LCH ANT1 106 0 37.79 Pass ANT2 106 0 37.81 Pass MCH ANT1 106 0 37.81 Pass ANT2 106 0 37.79 Pass HCH ANT1 106 0 37.81 Pass ANT2 106 0 37.79 Pass 60 MHz LCH ANT1 162 0 57.76 Pass ANT2 162 0 57.74 Pass MCH ANT1 162 0 57.77 Pass ANT2 162 0 57.74 Pass HCH ANT1 162 0 57.76 Pass ANT2 162 0 57.74 Pass 80 MHz LCH ANT1 217 0 77.42 Pass Report No.: BL-SZ2310633-501 Tel: +86-755-66850100 E-mail: [email protected] Page No. 442 / 650 Web: www.titcgroup.com Template No.: TRP-FCC (2023-01) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China ANT2 217 0 77.41 Pass MCH ANT1 217 0 77.42 Pass ANT2 217 0 77.41 Pass HCH ANT1 217 0 77.41 Pass ANT2 217 0 77.41 Pass 100 MHz LCH ANT1 273 0 97.4 Pass ANT2 273 0 97.34 Pass MCH ANT1 273 0 97.39 Pass ANT2 273 0 97.34 Pass HCH ANT1 273 0 97.4 Pass ANT2 273 0 97.36 Pass n77 UL MIMO (3700-3980 MHz) 20 MHz LCH ANT1 51 0 18.19 Pass ANT2 51 0 18.19 Pass MCH ANT1 51 0 18.19 Pass ANT2 51 0 18.19 Pass HCH ANT1 51 0 18.2 Pass ANT2 51 0 18.19 Pass 30 MHz LCH ANT1 78 0 27.8 Pass ANT2 78 0 27.82 Pass MCH ANT1 78 0 27.82 Pass ANT2 78 0 27.82 Pass HCH ANT1 78 0 27.82 Pass ANT2 78 0 27.82 Pass 40 MHz LCH ANT1 106 0 37.79 Pass ANT2 106 0 37.81 Pass MCH ANT1 106 0 37.79 Pass ANT2 106 0 37.79 Pass HCH ANT1 106 0 37.79 Pass ANT2 106 0 37.79 Pass 60 MHz LCH ANT1 162 0 57.76 Pass ANT2 162 0 57.74 Pass MCH ANT1 162 0 57.76 Pass ANT2 162 0 57.76 Pass HCH ANT1 162 0 57.74 Pass ANT2 162 0 57.76 Pass 80 MHz LCH ANT1 217 0 77.41 Pass ANT2 217 0 77.38 Pass MCH ANT1 217 0 77.39 Pass ANT2 217 0 77.38 Pass HCH ANT1 217 0 77.39 Pass ANT2 217 0 77.39 Pass 100 MHz LCH ANT1 273 0 97.37 Pass ANT2 273 0 97.34 Pass Report No.: BL-SZ2310633-501 Tel: +86-755-66850100 E-mail: [email protected] Page No. 443 / 650 Web: www.titcgroup.com Template No.: TRP-FCC (2023-01) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China MCH ANT1 273 0 97.37 Pass ANT2 273 0 97.33 Pass HCH ANT1 273 0 97.36 Pass ANT2 273 0 97.31 Pass n78 UL MIMO (3450-3550 MH…

Text truncated - open the document above for the full version.
