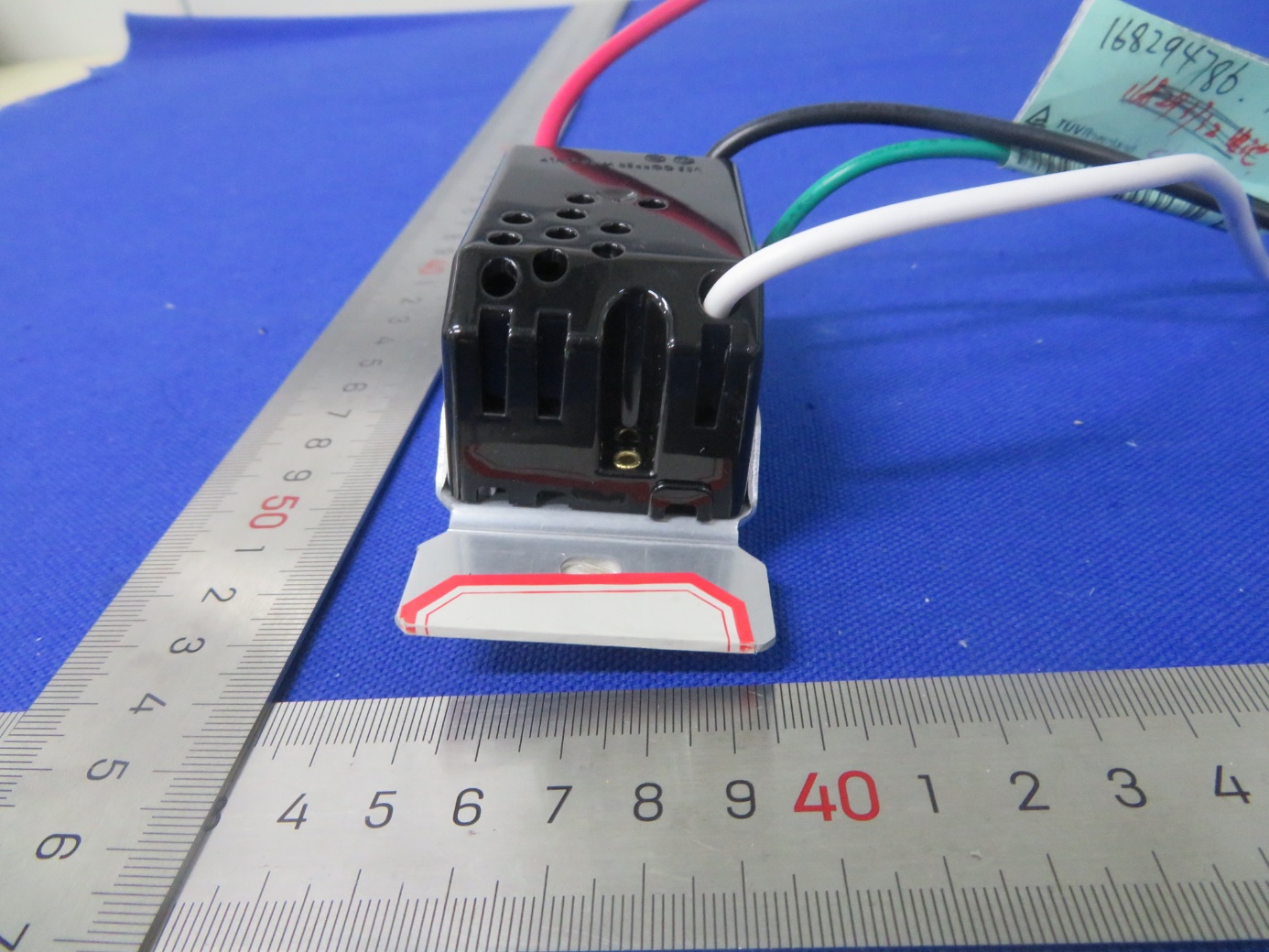

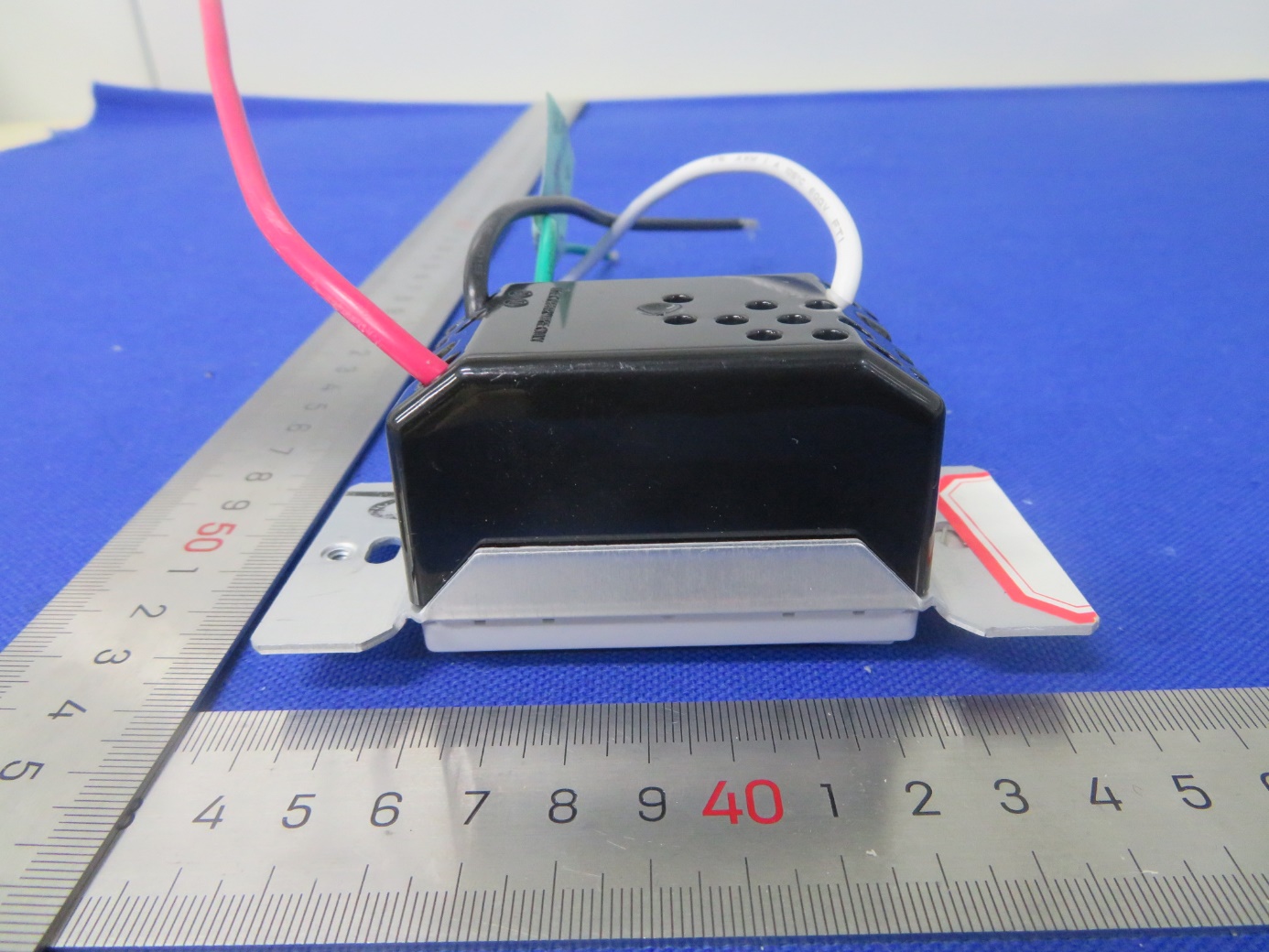

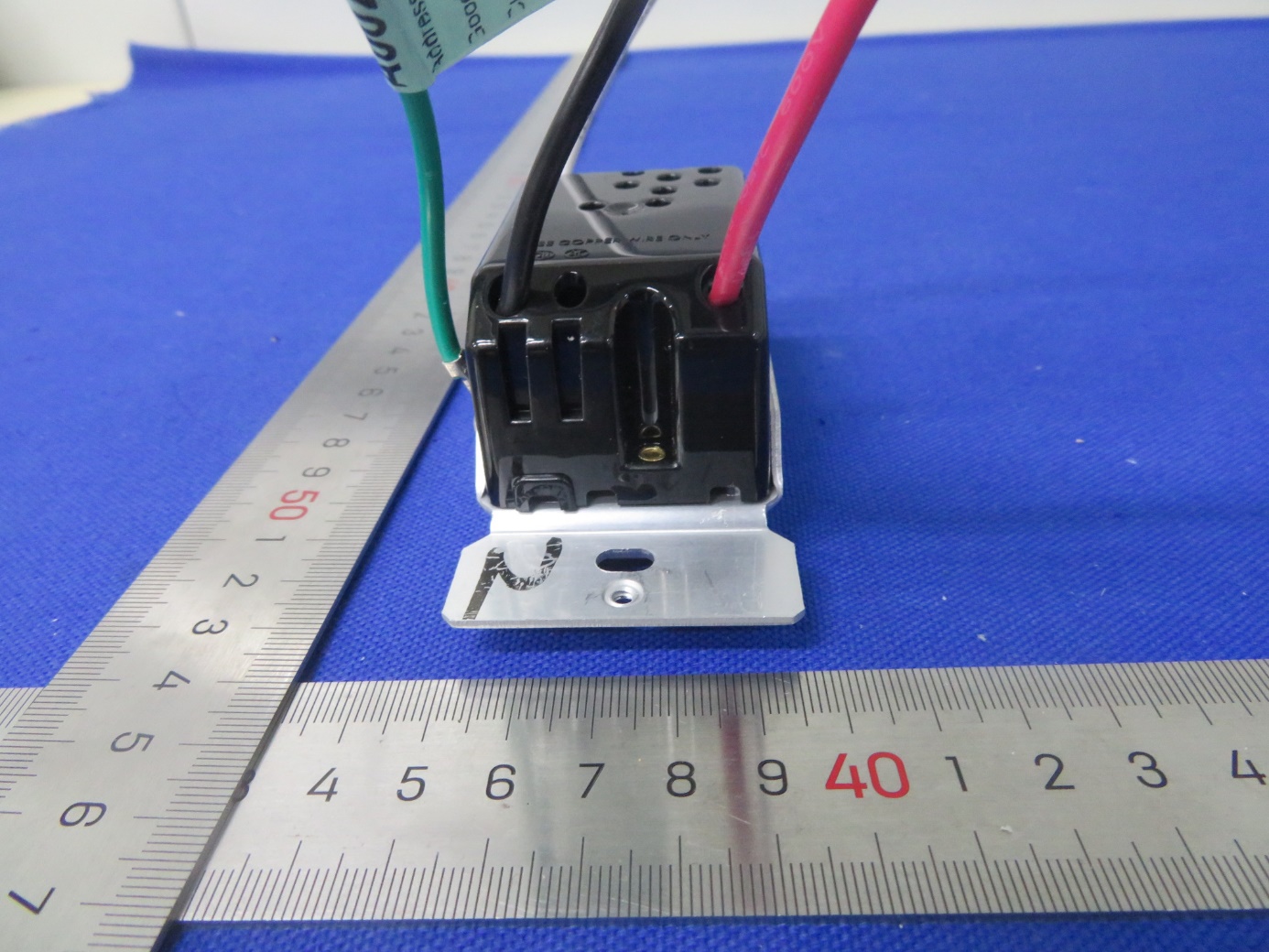

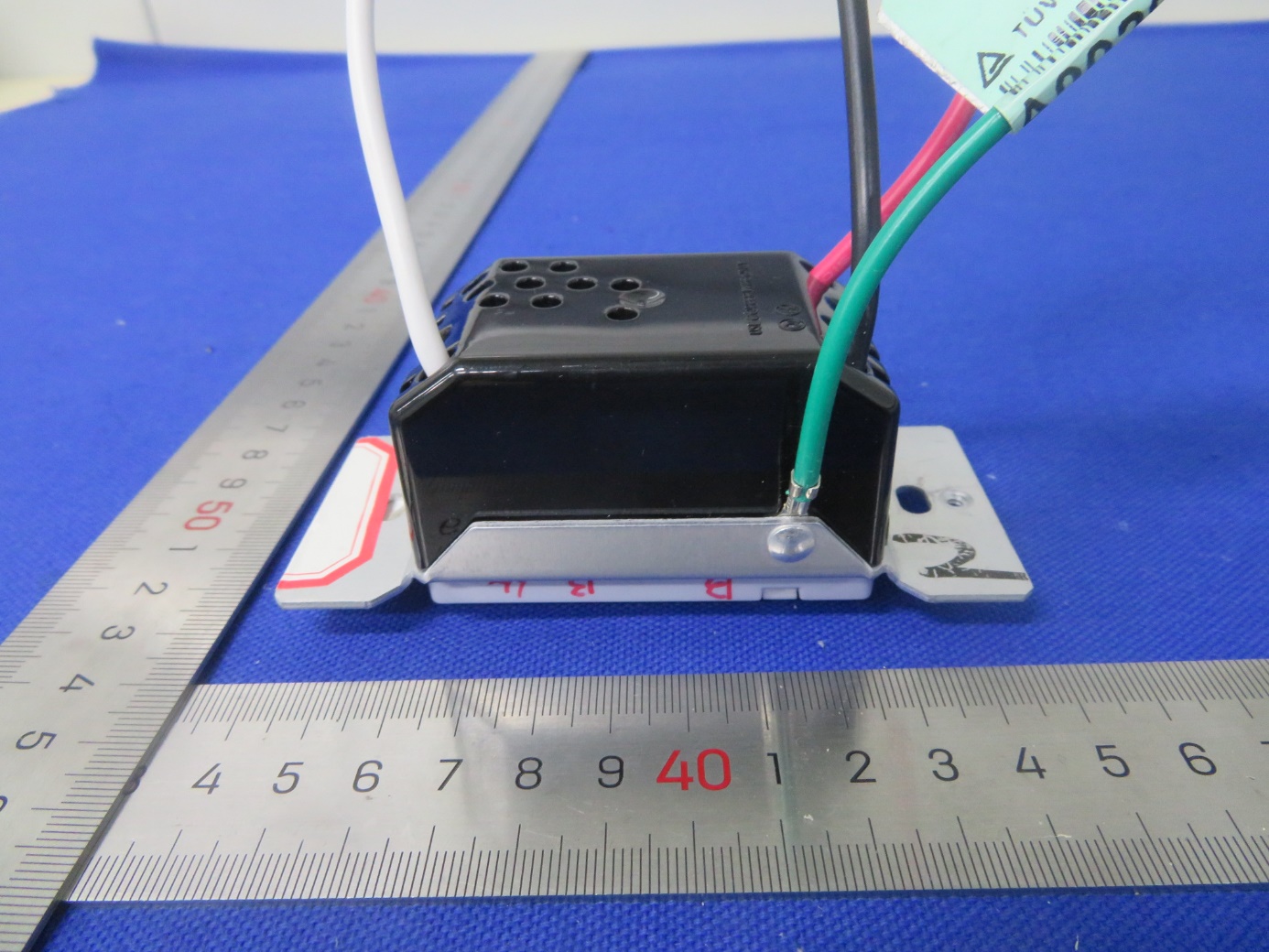

2AKCY-HIWMAS1BLE40AIn-Wall Smart Switch

1.0 630*297mm 1.0 630*297mm

QF094234 Page 1 of 1 Revision 0 Authority to Act as Agent Date: _2021-01-18_______ TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint TUV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with ___( Cooper Lighting LLC. and 1121 Highway 74 South, Peachtree City, Georgia 30269, United States Of America)___. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____ 12 months____ By: _______ _______ Mr Chad A Ruhala ___________ (Signature) (Print name) Title: ____ Compliance Manager _Telephone (770) 486-4168 On behalf of: Cooper Lighting LLC (Company Name)

Produkte Products Prüfbericht - Nr.: Test Report No. CN21F0OV 001 Seite 20 von 22 Page 20 of 22 6 Safety Human Exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2.1091 RSS-102 Issue 5 March 2015 FCC KDB Publication 447498 v06 Limit : CFR47 FCC Part 1.1310 FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to OET Bulletin 65 Power Density: S (mW/cm 2 ) = PG/4πR 2 or EIRP/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) The nominal maximum conducted output power specified: BLE: 7.10 dBm From the peak RF output power, the minimum mobile separation distance, d=20 cm, as well as the antenna gain (1.85 dBi), the RF power density can be calculated as below: Fo BLE: S (mW/cm 2 ) = PG/4πR 2 = 0.002 mW/cm 2 Limits for Maximum Permissible Exposure (MPE) according to FCC Part 1.1310: 1.0 mW/cm2 Produkte Products Prüfbericht - Nr.: Test Report No. CN21F0OV 001 Seite 21 von 22 Page 21 of 22
IC requirements: The EUT shall comply with the requirement of RSS-102 section 2.5.2. Exemption from Routine Evaluation Limits – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • RF exposure evaluation exempted power for 2.4G DTS: 2.676 W The nominal maximum conducted output power specified: BLE: 7.10 dBm Antenna Gain: 1.85 dBi The Max. e.i.r.p. for BLE: 8.95dBm = 0.008 W The e.i.r.p. of BLE is less than the RF exposure evaluation exempted power. So RF exposure evaluation is not required. “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN21F0OV 001 Auftrags-Nr.: Order no.: 168294786 Seite 1 von 22 Page 1 of 22 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2020-12-07 Auftraggeber: Client: Cooper Lighting LLC 1121 Highway 74 South, Peachtree City, Georgia 30269, United States Of America Prüfgegenstand: Test item: In-Wall Smart Switch Bezeichnung / Typ-Nr.: Identification / Type no.: HIWMAS1BLE40AWH, HIWMAS1BLE40AWH-C Auftrags-Inhalt: Order content: FCC and IC approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 2.1091 RSS-247 Issue 2 February 2017 RSS-Gen Issue 5 March 2019 RSS-102 Issue 5 March 2015 Wareneingangsdatum: Date of sample receipt: 2020-12-10 Please refer to photo documents Prüfmuster-Nr.: Test sample no.: A002964799-001 A002964799-002 Prüfzeitraum: Testing period: 2021-01-04 – 2021-01-15 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Alex Lan genehmigt von: authorized by: X Signed by: Winnie Hou Datum: Date: 2021-02-02 Ausstellungsdatum: Issue date: 2021-02-02 Stellung / Position Senior Project Engineer Stellung / Position Department Manager Sonstiges / Other: FCC ID: 2AKCY-HIWMAS1BLE40A IC: 4706A-HIWMASBLE40 HVIN: HIWMAS1BLE40A Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = failed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V05 duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No. CN21F0OV 001 Seite 2 von 22 Page 2 of 22 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 99%DB BANDWIDTH RESULT: Pass 5.1.5 6DB BANDWIDTH RESULT: Pass 5.1.6 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.7 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.8 CONDUCTED EMISSION ON AC MAINS RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. CN21F0OV 001 Seite 3 von 22 Page 3 of 22 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 4 2.1 TEST FACILITIES ................................................................................................................................. 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 6 2.4 CALIBRATION ..................................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY............................................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 6 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 7 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ...................................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................... 8 3.5 SUBMITTED DOCUMENTS..................................................................................................................... 8 4 TEST SET-UP AND OPERATION MODES ................................................................................................ 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ......................................................................................... 9 4.2 TEST OPERATION AND TEST SOFTWARE .............................................................................................. 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................................................ 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIAN…

Text truncated - open the document above for the full version.

Produkte Products Appendix A CN21F0OV 001 Page 1 of 3 Appendix A: Photographs of the Test Set-Up APPENDIX A: PHOTOGRAPHS OF THE TEST SET-UP.......................................................................................................1 PHOTOGRAPH 1: SET-UP FOR RADIATED SPURIOUS EMISSION, BELOW 1GHZ....................................................................................2 PHOTOGRAPH 2: SET-UP FOR RADIATED SPURIOUS EMISSION, ABOVE 1GHZ....................................................................................2 PHOTOGRAPH 2: SET-UP FOR CONDUCTED EMISSIONS ON AC MIANS.............................................................................................3 Produkte Products Appendix A CN21F0OV 001 Page 2 of 3 Photograph 1: Set-up for Radiated Spurious Emission, Below 1GHz Photograph 2: Set-up for Radiated Spurious Emission, Above 1GHz Produkte Products Appendix A CN21F0OV 001 Page 3 of 3 Photograph 3: Set-up for Conducted Emissions ON AC mians
