2AKL2K55IPCNetwork camera

FCC Warning Statement Changes or modif ications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B d igital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located for operating in conjunction with any other antenna or transmitter.

< Shenzhen Kean Digital Co., Ltd. > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: May 27, 2021 Subject; Request for Long Term Confidentiality FCC ID: 2AKL2K55IPC To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Dewei Zhong Title: Manager

Shenzhen Kean Digital Co., Ltd. Letter of Authorization Company: Shenzhen Kean Digital Co., Ltd. Address: Rujun Building, Floor 4, No.105, the Center Road, Bantian Street, Longgang Zone, ShenZhen, China Product Name: Network camera Trade Mark: N/A Model Name: I41GD,I71BD,I71BE,I71BF,I71BG,I71DB,I71DC,I71DD,I71GM,I71GN, I71GP,I71GQ,I71GR,I71GS,I71GT,I71GU,I71GV,I71GW,I41RD,I41BB, I41HR,I91FB,I91FC,I91FD,I91FE,I91FG,I91FH,I41FS,I81BK,I81BL,I81BM, I81BN,I81BP,I81BQ,I81BR,I81BS,I81BT,I81BU,I81BV,I81BW,I81BX,I81BY, I81BZ,I41BD,I41BF,I41BG,I41KB,I41KE,I41DD,I41DJ,I41DK,I41DL,I41FZ, I71GJ,I71GK,I71GL,I71GX,I71GY,I71GZ,I71BH,I71BJ,I71BK,I71BL,I71BM, I71BN,I71BP,I71BQ,I71DE,I71DF,I71DG,I71DH,I71DJ,I71DK,I51CK,I51CL, I51CM,I51CN,I51CP,I51CQ,I51CR,I51CS,I51CT,I51CU,I51CV,I51CW,I51CX, I51CY,I51CZ,I91FB,I91FC,I91FD,I91FE,I91FG,I91FH FCC Identifier: 2AKL2K55IPC We authorize MiCOM LabsInc, 575 Boulder Court, Pleasanton, California94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM LabsInc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Dewei Zhong Date: May 27, 2021 Title: Manager Signature of applicant:

Model Difference Declaration To Whom It May Concern, We, Shenzhen Kean Digital Co., Ltd. Product: Network camera Trademark: N/A Model Number:I41GD,I71BD,I71BE,I71BF,I71BG,I71DB,I71DC,I71DD, I71GM,I71GN,I71GP,I71GQ,I71GR,I71GS,I71GT,I71GU,I71GV,I71GW,I41RD, I41BB,I41HR,I91FB,I91FC,I91FD,I91FE,I91FG,I91FH,I41FS,I81BK,I81BL, I81BM,I81BN,I81BP,I81BQ,I81BR,I81BS,I81BT,I81BU,I81BV,I81BW,I81BX, I81BY,I81BZ,I41BD,I41BF,I41BG,I41KB,I41KE,I41DD,I41DJ,I41DK,I41DL, I41FZ,I71GJ,I71GK,I71GL,I71GX,I71GY,I71GZ,I71BH,I71BJ,I71BK,I71BL, I71BM,I71BN,I71BP,I71BQ,I71DE,I71DF,I71DG,I71DH,I71DJ,I71DK,I51CK, I51CL,I51CM,I51CN,I51CP,I51CQ,I51CR,I51CS,I51CT,I51CU,I51CV,I51CW, I51CX,I51CY,I51CZ,I91FB,I91FC,I91FD,I91FE,I91FG,I91FH All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: I41GD. Please contact me if you have any question. Name: Dewei Zhong Date: May 27, 2021 Title: Manager Signature of applicant:

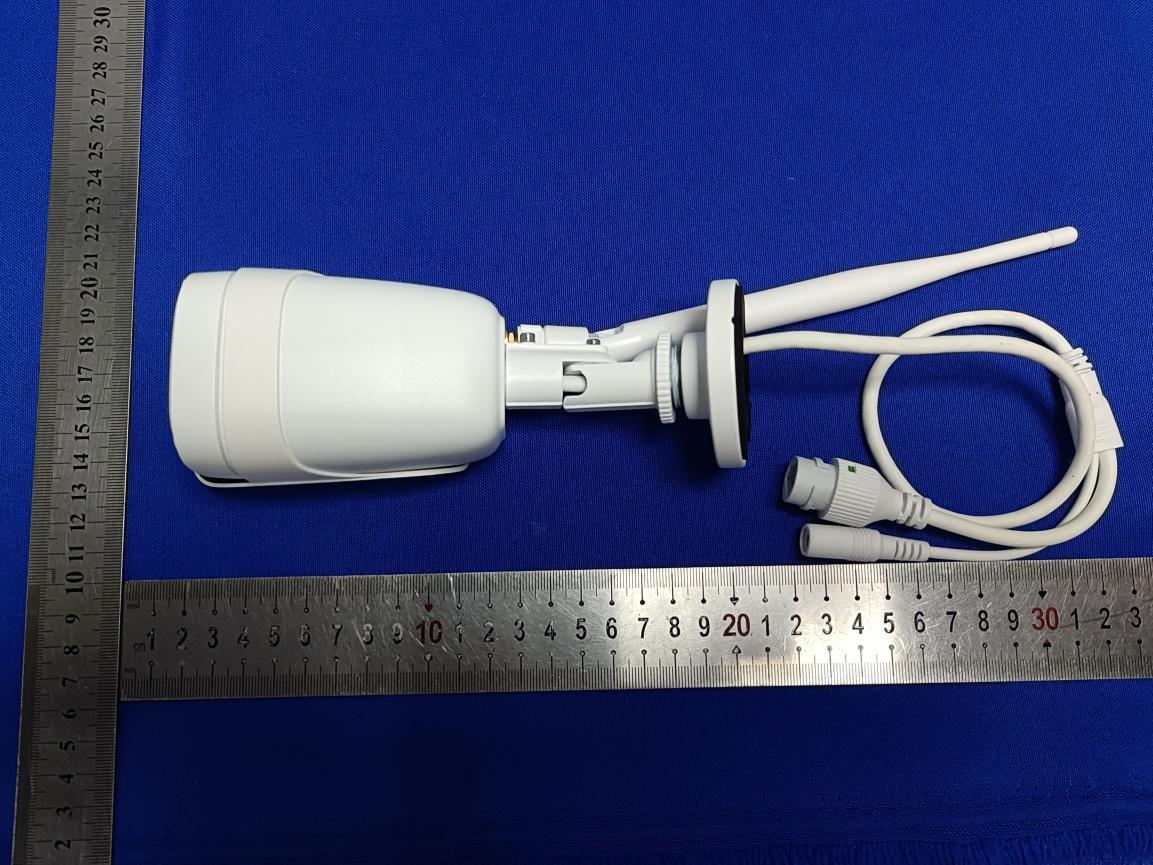

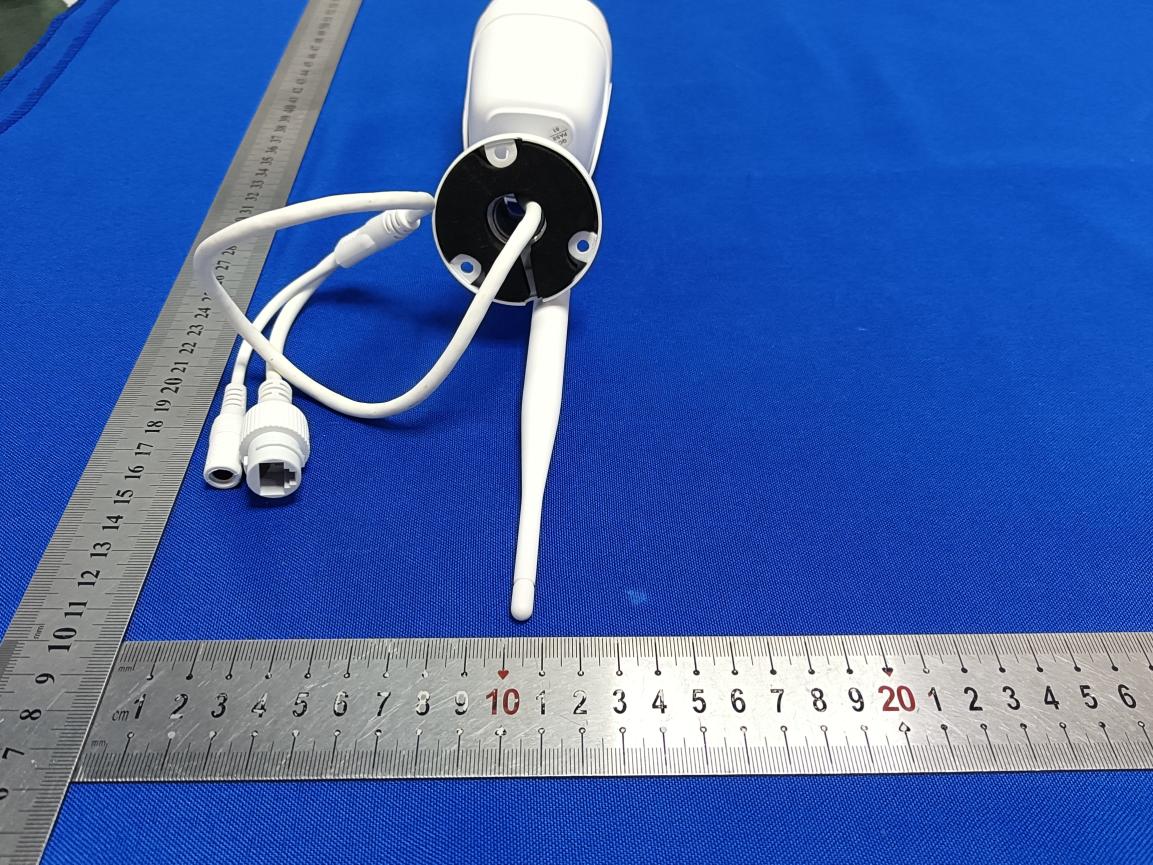

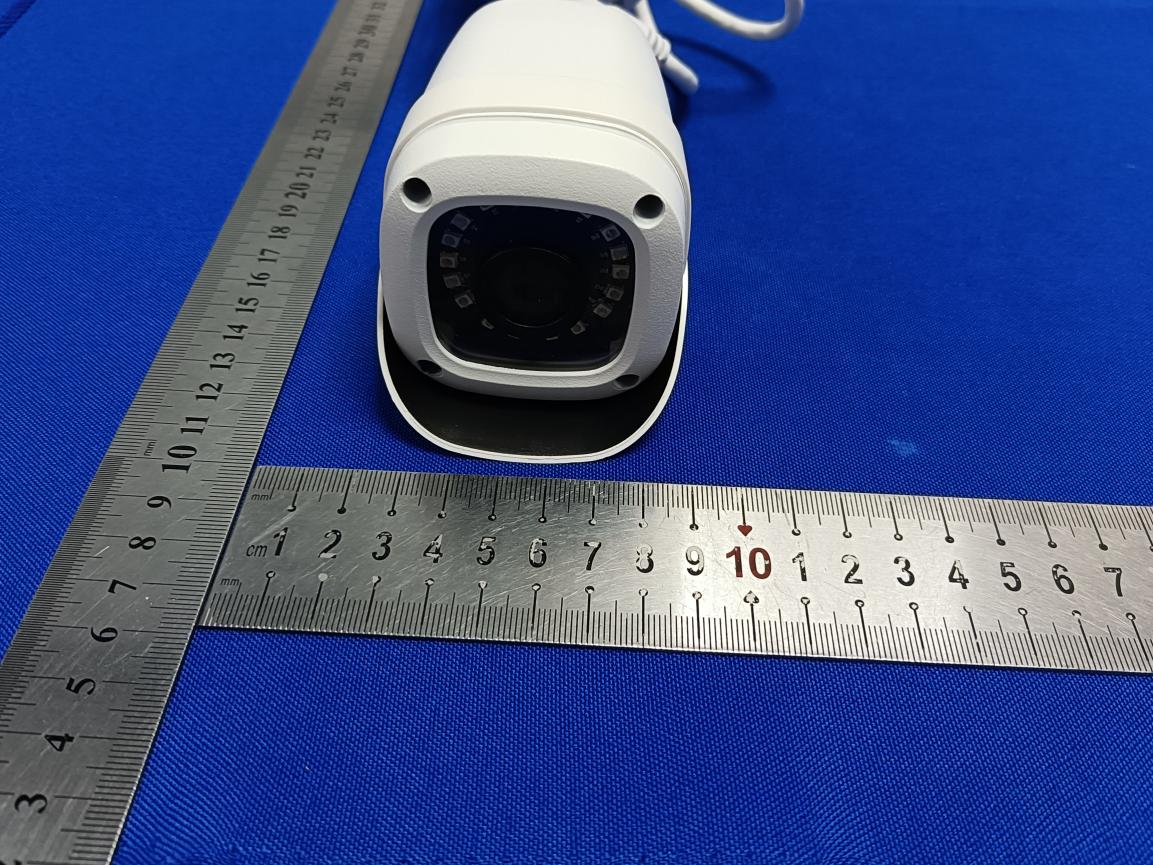

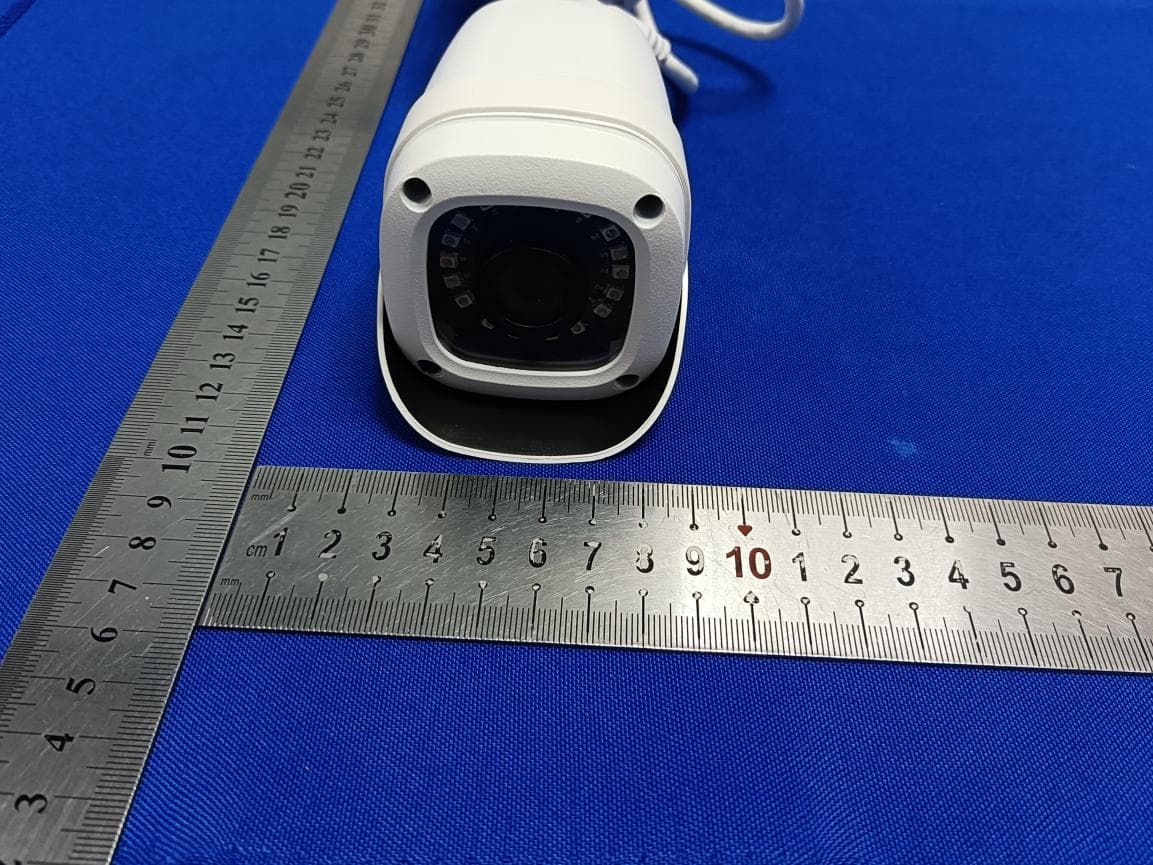

Model: I41GD Model: I41GD Model: I41GD Model: I41GD

FCC ID LABEL: Label Location: FCC ID: 2 AKL2 K55 IPC Product Na me: Network camera Model Na me: I41GD This device complies with Part 15 of the FCC Rules. Operation is subject to the follo wing two conditions: (1)This device may not cause har mful interference, and (2)This device must accept any interference received, including interference that may cau se undesired operation. Long: 3cm Width: 2cm

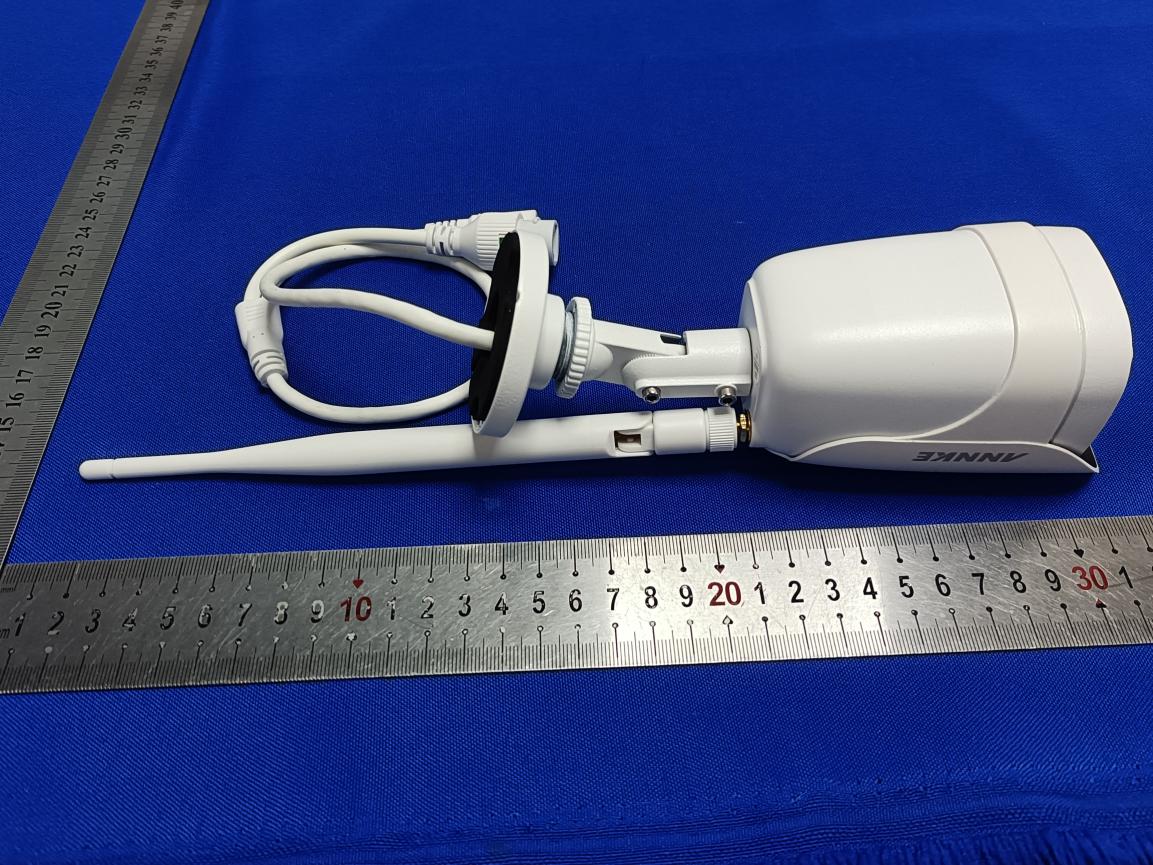

Model: I41GD Model: I41GD Model: I41GD Model: I41GD External Antenna

MPE ESTIMATION FCC ID: 2AKL2K55IPC 1. Limit for General Population/Uncontrolled Exposures Frequency Power Density(mW/cm2) Averaging Time(mi nutes) 300MHz-1.5GHz F/1500 30 1.5GHz-100GHz 1.0 30 Note: F= Frequency i n MHz 2. Estimation Result Mode Max PK Output Power(dBm) Tune Up Power(dBm) Max Tune Up Power(mW) Antenna Gain(dBi) Antenna Gai n (linear) MPE (mW/cm²) 11b 14.24 14±1(15) 31.62 3 1.9953 0.012558 11g 12.89 12±1(13) 19.95 3 1.9953 0.007923 11n/HT20 11.86 11±1(12) 15.85 3 1.9953 0.006295 Note: Note: The estimation distance is 20cm. Note: PK Output power=conducted power. Conducted power see the test report UNIA21041202ER-05, antenna gai n=3dBi. ------The End------

Page 1 of 67 Report No.: UNIA21041202ER-05 FCC RADIO TEST REPORT FCC ID: 2AKL2K55IPC Product： Network camera Trade Name： N/A Model Name： I41GD Serial Model： I71BD,I71BE,I71BF,I71BG,I71DB,I71DC,I71DD,I71GM,I71GN, I71GP,I71GQ,I71GR,I71GS,I71GT,I71GU,I71GV,I71GW,I41RD, I41BB,I41HR,I91FB,I91FC,I91FD,I91FE,I91FG,I91FH,I41FS, I81BK,I81BL,I81BM,I81BN,I81BP,I81BQ,I81BR,I81BS,I81BT, I81BU,I81BV,I81BW,I81BX,I81BY,I81BZ,I41BD,I41BF,I41BG, I41KB,I41KE,I41DD,I41DJ,I41DK,I41DL,I41FZ,I71GJ,I71GK, I71GL,I71GX,I71GY,I71GZ,I71BH,I71BJ,I71BK,I71BL,I71BM, I71BN,I71BP,I71BQ,I71DE,I71DF,I71DG,I71DH,I71DJ,I71DK, I51CK,I51CL,I51CM,I51CN,I51CP,I51CQ,I51CR,I51CS,I51CT, I51CU,I51CV,I51CW,I51CX,I51CY,I51CZ,I91FB,I91FC,I91FD, I91FE,I91FG,I91FH Report No.： UNIA21041202ER-05 Prepared for Shenzhen Kean Digital Co., Ltd. Rujun Building, Floor 4, No.105, the Center Road, Bantian Street, Longgang Zone, ShenZhen, China Prepared by Shenzhen United Testing Technology Co., Ltd. 2F, Annex Bldg, Jiahuangyuan Tech Park, #365 Baotian 1 Rd, Tiegang Community, Xixiang Str, Bao'an District, Shenzhen, China Page 2 of 67 Report No.: UNIA21041202ER-05 TEST RESULT CERTIFICATION Applicant’s name: Shenzhen Kean Digital Co., Ltd. Address: Rujun Building, Floor 4, No.105, the Center Road, Bantian Street, Longgang Zone, ShenZhen, China Manufacture's Name: Shenzhen Kean Digital Co., Ltd. Address: Rujun Building, Floor 4, No.105, the Center Road, Bantian Street, Longgang Zone, ShenZhen, China Product description Product Name: Wireless IP Camera Trade Mark: N/A Model Name : I41GD,I71BD,I71BE,I71BF,I71BG,I71DB,I71DC,I71DD,I71GM,I71GN, I71GP,I71GQ,I71GR,I71GS,I71GT,I71GU,I71GV,I71GW,I41RD,I41BB, I41HR,I91FB,I91FC,I91FD,I91FE,I91FG,I91FH,I41FS,I81BK,I81BL,I81BM, I81BN,I81BP,I81BQ,I81BR,I81BS,I81BT,I81BU,I81BV,I81BW,I81BX,I81BY, I81BZ,I41BD,I41BF,I41BG,I41KB,I41KE,I41DD,I41DJ,I41DK,I41DL,I41FZ, I71GJ,I71GK,I71GL,I71GX,I71GY,I71GZ,I71BH,I71BJ,I71BK,I71BL,I71BM, I71BN,I71BP,I71BQ,I71DE,I71DF,I71DG,I71DH,I71DJ,I71DK,I51CK,I51CL, I51CM,I51CN,I51CP,I51CQ,I51CR,I51CS,I51CT,I51CU,I51CV,I51CW,I51CX, I51CY,I51CZ,I91FB,I91FC,I91FD,I91FE,I91FG,I91FH Standards: FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date (s) of performance of tests ............ : Apr. 12, 2021 ~ May 12, 2021 Date of Issue ........................................ : May 27, 2021 Test Result ............................................ : Pass Prepared by: Bob liao/Editor Reviewer: Kahn yang/Supervisor Approved & Authorized Signer: Liuze/Manager Page 3 of 67 Report No.: UNIA21041202ER-05 Table of Contents Page 1 TEST SUMMARY ............................................................................................................... 5 2 GENERAL INFORMATION ............................................................................................... 7 2.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 2.2 CARRIER FREQUENCY OF CHANNELS .................................................................... 8 2.3 TEST MODE ................................................................................................................ 8 2.4 TEST SETUP ............................................................................................................... 9 2.5 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL .................................... 9 2.6 MEASUREMENT INSTRUMENTS LIST ..................................................................... 10 3 CONDUCTED EMISSION ............................................................................................... 11 3.1 TEST LIMIT ................................................................................................................. 11 3.2 TEST SETUP .............................................................................................................. 11 3.3 TEST PROCEDURE .................................................................................................. 12 3.4 TEST RESULT ........................................................................................................... 12 4 RADIATED EMISSION .................................................................................................... 15 4.1 TEST LIMIT ................................................................................................................ 15 4.2 TEST SETUP ............................................................................................................. 16 4.3 TEST PROCEDURE .................................................................................................. 17 4.4 TEST RESULT ........................................................................................................... 17 5 OCCUPIED BANDWIDTH............................................................................................... 35 5.1 TEST LIMIT ................................................................................................................ 35 5.2 TEST PROCEDURE .................................................................................................. 35 5.3 EQUIPMENT USED ................................................................................................... 35 5.4 TEST RESULT ........................................................................................................... 35 6 POWER SPECTRAL DENSITY ..........................................................................…

Text truncated - open the document above for the full version.

Model: I41GD Radiated Emission test Model: I41GD Conducted Emission test
