User Manual For Android Control Board With Wireless module Product .：Digital Transmission System Model No.：XBP301 This user manual pertains to Android player main board with wireless module, the main board can be assembled in the Android based Advertising Media player, listed as below Model Model Description 66502 65”Monitor 66901 86”Monitor Specifications Item Description Storage Internal：16GB NAND Flash, External：Micro SD Card WIFI 802.11 b/g/n Ethernet RJ45, 10/100Mbps Fast Ethernet Display Output HDMI*2, DP*1 USB Input USB Type A*1 Card Reader Micro SD Card Slot*1 Power Input 12V/3A（6 pin header） LED Indicator Green（Power on） Internet Browser Google Chrome Video Format JPG H.264, H.263, DIVX, ON2VP, Mpeg1, Speak, Mpeg4, VC-1, WMV9, MPEG2, Real video, SVC Image Format BMP, JPG, TIF, PNG, GIF Music Format MP3, WAV, WMA  PCBA Dimension：200 x 150 mm  Assemble method：The module will be screwed on the housing and used as a main board for Android based Advertising Media Player.  Input port： 1pc Power jack – for +5V/2A power input 1pc USB Type A – for USB mouse 1pc Antenna connector for 2.4G WiFi network Hardware interface WIFI pin location and description： PIN SYMBOL DESCRIPTION PIN SYMBOL DESCRIPTION 1 NC Not Connect 17 BT_SYNC_IN 2 NC Not Connect 18 GND GND 3 NC Not Connect 19 NC 4 NC Not Connect 20 GND GND 5 GND GND 21 GND GND 6 WL_USB_DP USB D+ 22 NC 7 WL_USB_DN USB D- 23 GND GND 8 GND GND 24 GND GND 9 NC Not Connect 25 GND GND 10 NC Not Connect 26 WLAN_WAKE_HOST WLAN CHIP WAKES UP HOST 11 GND GND 27 NC 12 NC Not Connect 28 CHIP_EN Shutdown CHIP （Internal 47KΩ pull up to 3.3V, low level active） 13 GND GND 29 GND GND 14 BT_WAKE_HOST BT CHIP WAKES UP HOST 30 VDD33 3.3V 15 NC Not Connect 31 NC Not Connect 16 NC Not Connect 32 GND GND FCC Statement： FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CAUTION： Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning： This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. End Product Labeling： The end product shall bear the following 15.19 statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: ＂Contains FCC ID: 2AKWYXBP301＂ This module is intended under the following conditions： 1. This module is certified pursuant to Part 15 rules section(15.247). 2. This module is limited to host model number: 66502, 66901 / Brand: DynaScan 3. This module has been approved to operate with the antenna types listed below, with the maximum permissible gain indicated. Frequency Band Antenna Type Gain(dBi) 2400-2483.5MHz PIFA 0.87 Information on test modes and additional testing requirements： This module is restricted to integration into hosts for indoor use only. Be limited the operation channels in channel 1-11 for 2.4GHz band. The separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and different antenna configurations. The information on how to configure test modes for host product evaluation for different operational conditions for a stand-alone modular transmitter in a host, versus with multiple, simultaneously transmitting modules or other transmitters in a host can be found at KDB Publication 996369 D04. Additional testing, Part 15 Subpart B disclaimer： Appropriate measurements (e.g. 15B compliance) and if applicable additional equipment authorizations (e.g. SDoC) of the host product to be addressed by the integrator/manufacturer. This module is only FCC authorized for the specific rule part 15.247 listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host product as being Part 15 Subpart B compliant. The user manual of the end product should include： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance c…

Text truncated - open the document above for the full version.

Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 1 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 4 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 5 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 6 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 7 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Host 1 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 8 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 9 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 10 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 11 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 12 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 47 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Host 2 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 48 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 49 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 70 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020 Remote Control Photographs of EUT Report No. : EP9N1207-01 SPORTON International Inc. Page No. : 71 of 72 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Jun. 09, 2020

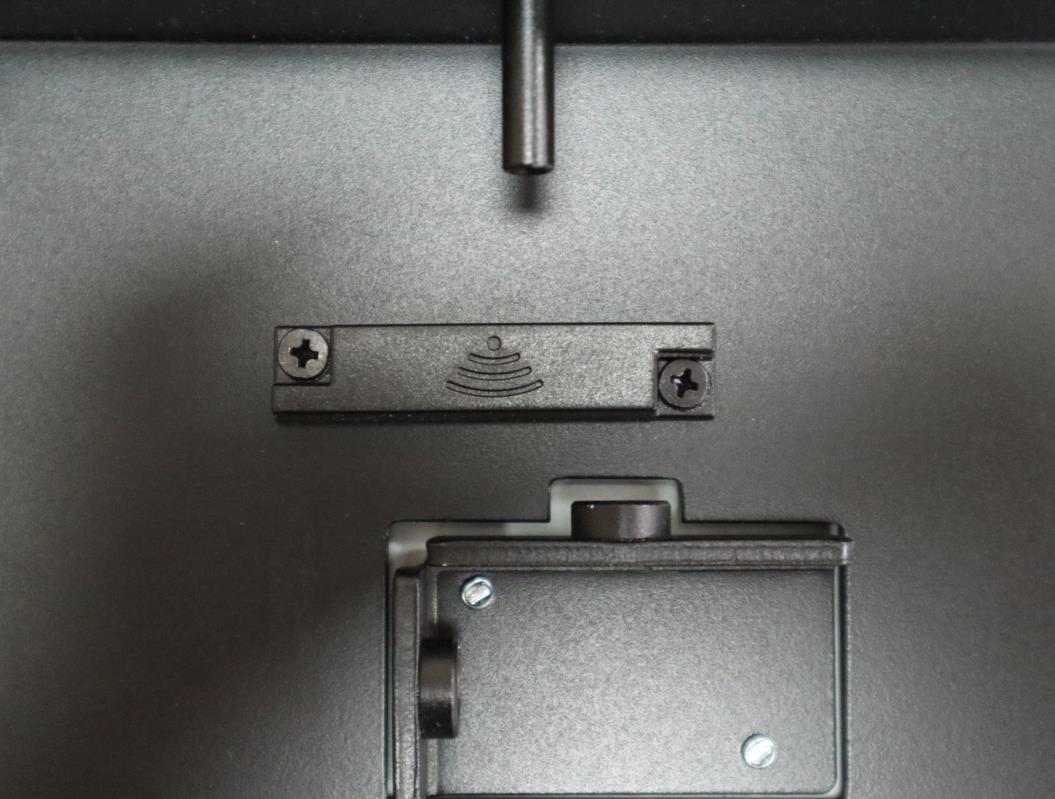

Host Label Location Information (Model: 66502) Host (Back View) Host Label Location Information (Model: 66901) Host (Back View)

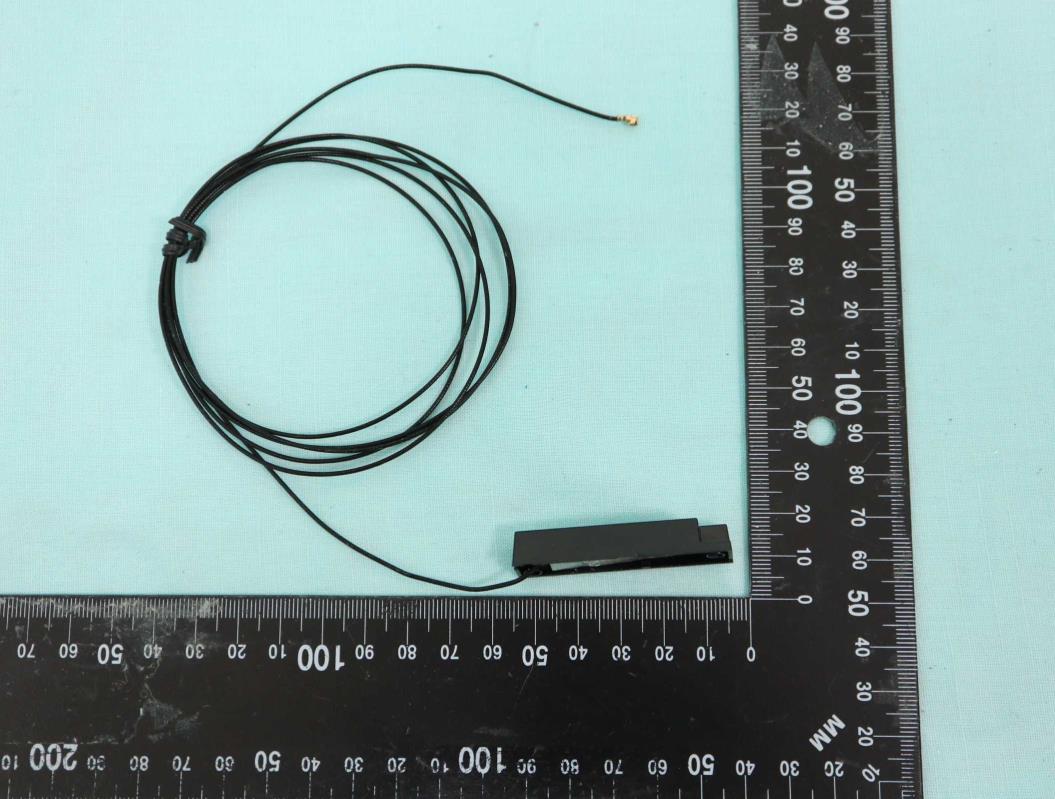

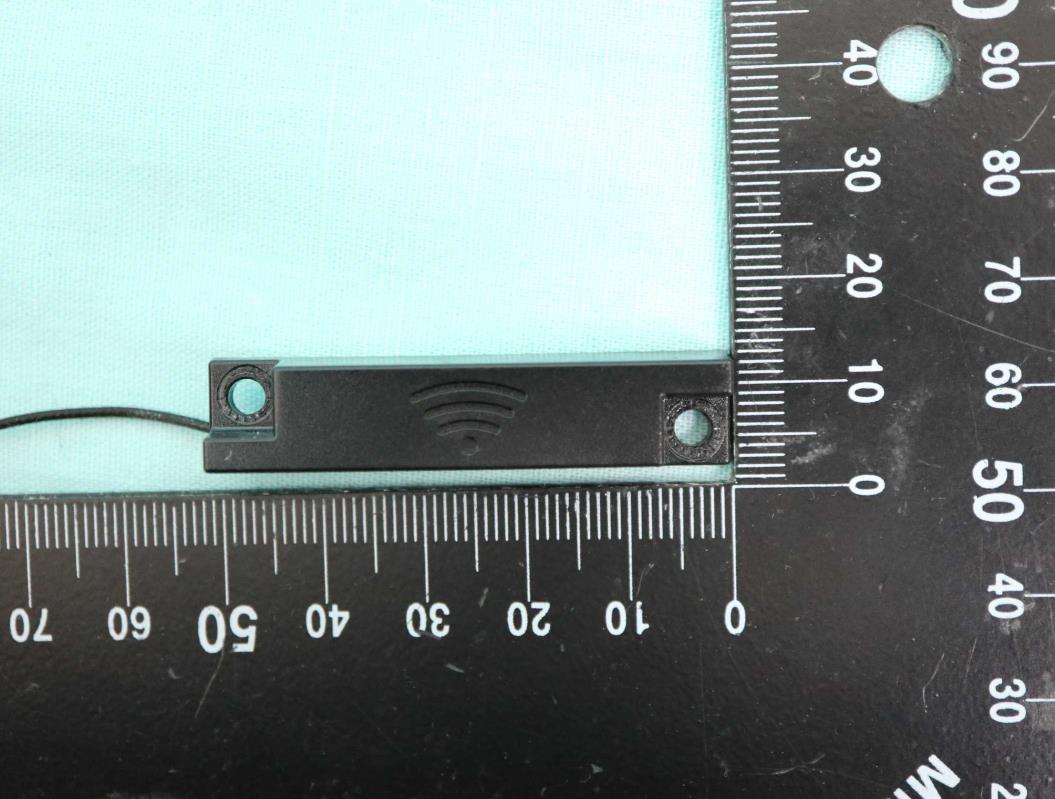

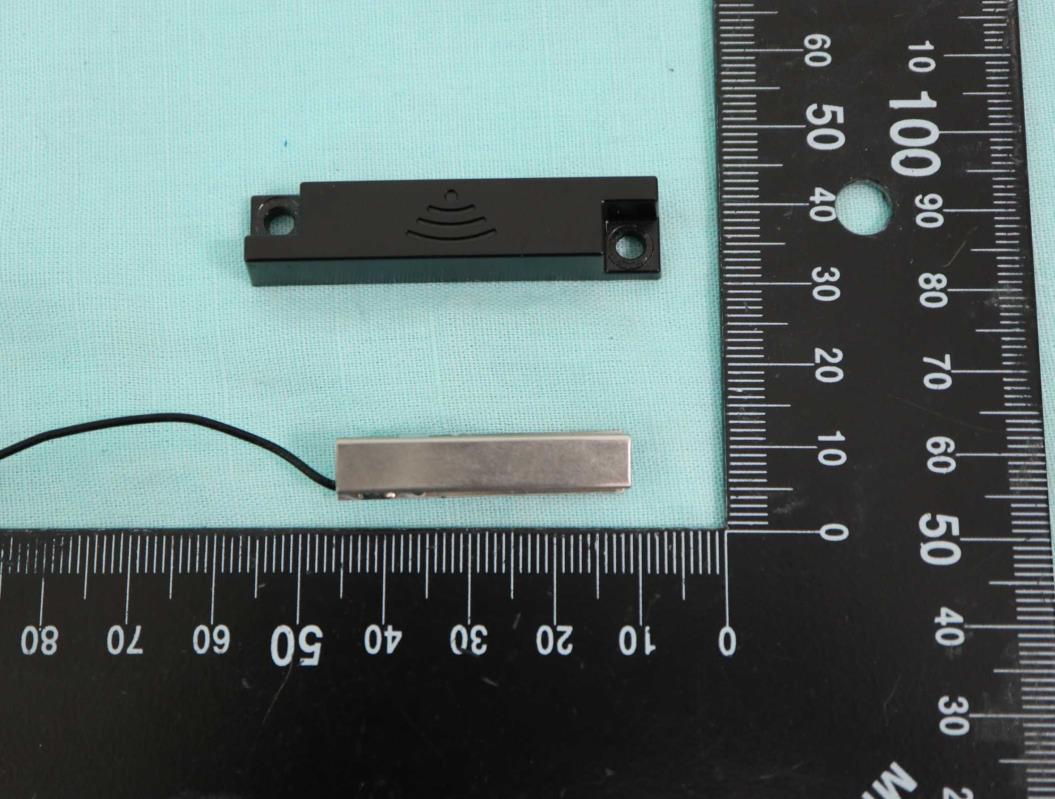

Label Location Information EUT (on the shielding case) Label Location
