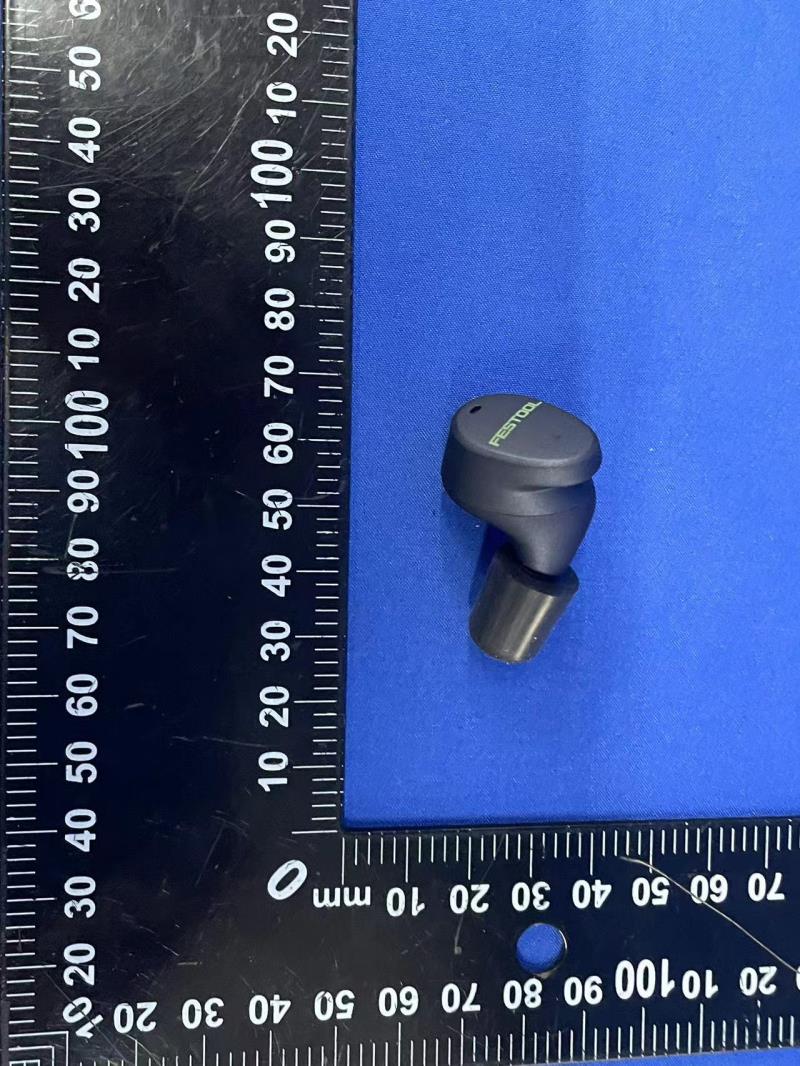

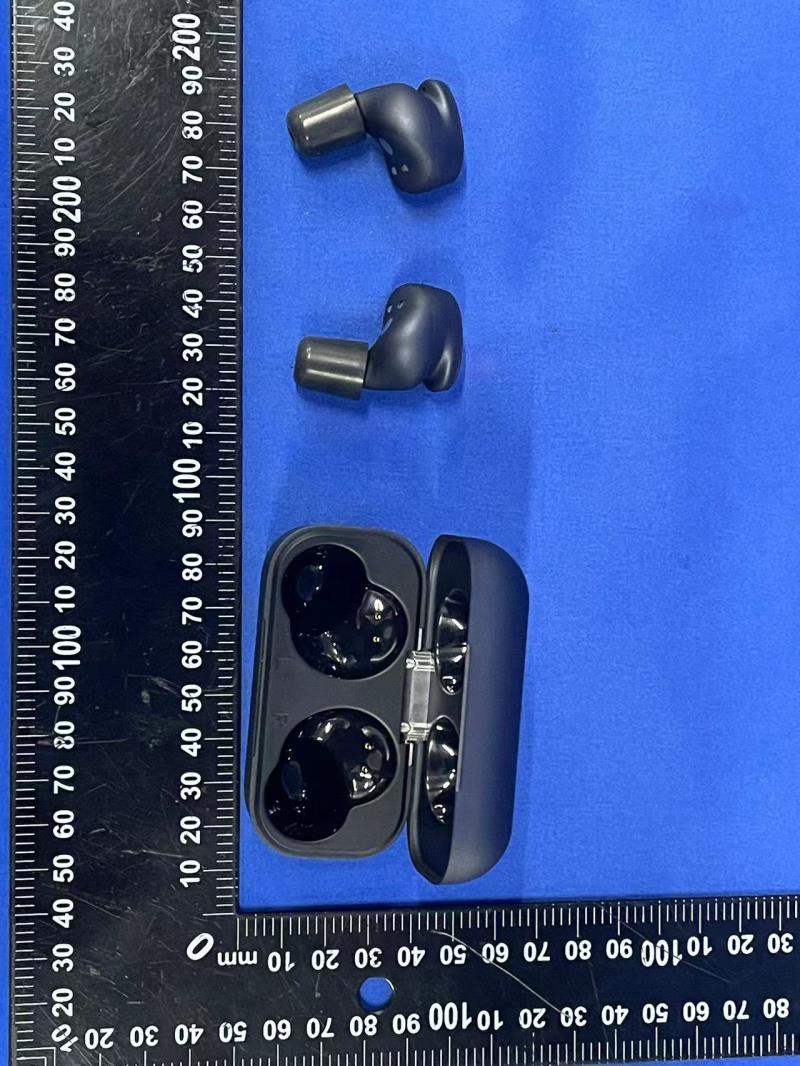

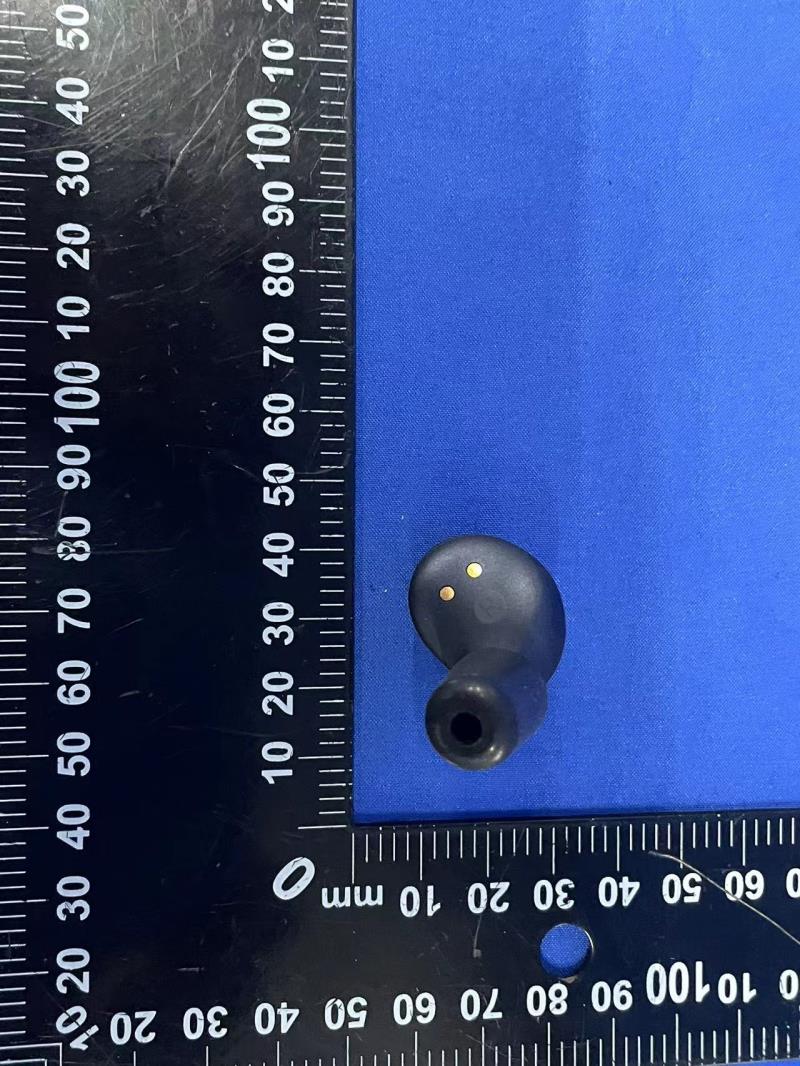

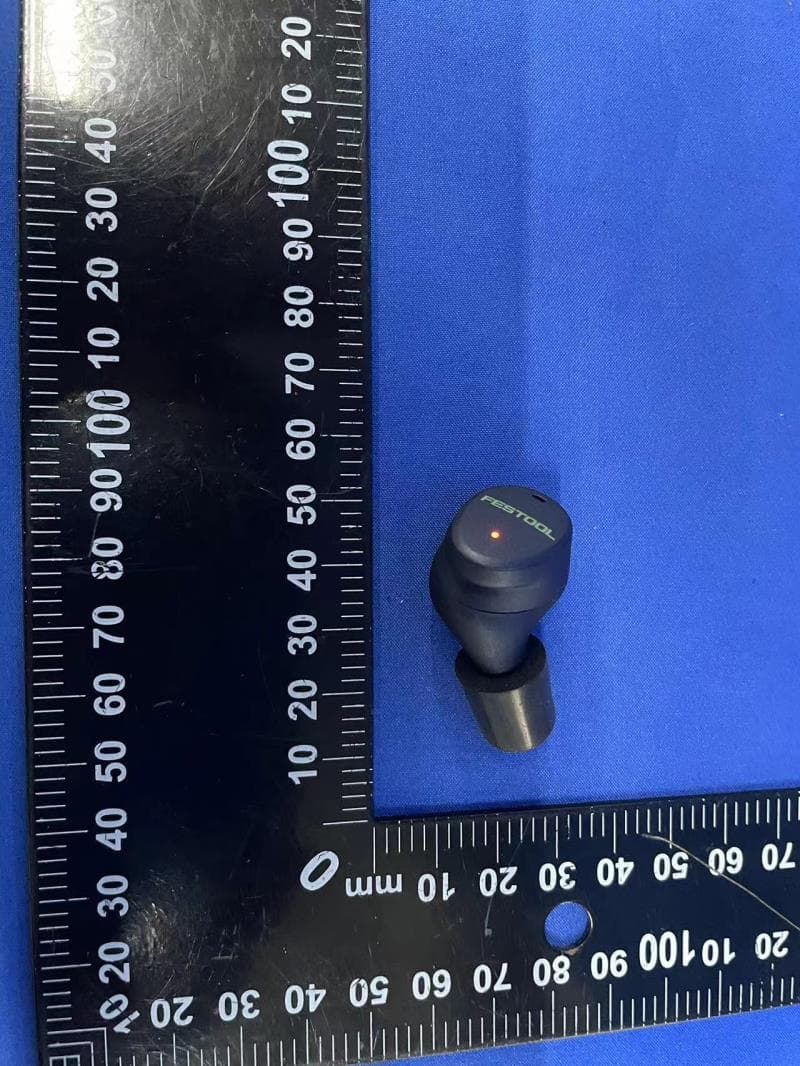

2AL2E-GHS25Wireless earbuds

deOriginalbetriebsanleitung7 enOriginal instructions14 frNotice d'utilisation d'origine23 esManual de instrucciones original33 bg Оригинална инструкция за експлоатация 43 csPůvodní návod k obsluze50 daOriginal brugsanvisning57 etOriginaalkasutusjuhend64 fiAlkuperäiset käyttöohjeet71 huEredeti használati utasítás78 itIstruzioni d'esercizio originali85 ltOriginali naudojimo instrukcija92 lvOriģinālā lietošanas pamācība99 nbOriginal bruksanvisning106 nlOriginele gebruiksaanwijzing112 plOryginalna instrukcja obsługi119 ptManual de instruções original126 roManualul de utilizare original133 skOriginálny návod na obsluhu140 svOriginalbruksanvisning147 GHS 25 I‚ GHS 25 I US 10720447_D / 2023-03-31 1 2 3 4 1 EN352-2:2020 (SNR) Short Eartips 1) Frequency 2) , Hz 125 250 500 1000 2000 4000 8000 SNR Mf (dB) 26.4 30.5 33.5 33.8 32.8 37.1 41.6 32 sf (dB) 3.4 3.3 4.6 4.9 2.7 4.6 4.4 APVf 23.0 27.2 28.9 28.9 30.1 32.5 37.2 SNR H M L Mean 6) 34.5 33.9 32.9 31.0 Sta ndard Deviati on 4) 2.3 3.0 3.0 2.7 Value 7) 32.0 32.0 30.0 28.0 Short Eartips 1) EN352-2:2020 (SNR) Tall Eartips 5) Frequency 2) , Hz 125 250 500 1000 2000 4000 8000 SNR Mf (dB) 28.5 31.8 34.9 34.6 33.4 40.2 45.2 33 sf (dB) 4.2 4.0 5.1 5.1 3.6 4.4 3.5 APVf 24.3 27.9 29.8 29.6 29.8 35.8 41.7 SNR H M L Mean 6) 35.7 35.0 33.9 32.4 Sta ndard Deviati on 4) 2.8 2.8 3.4 3.5 Value 7) 33.0 32.0 31.0 29.0 Tall Eartips 5) EN 352-7:2020 Measurements apply for tall and short ear tips. 13) Included Eartip Sizes 8) Nominal Diamete r 9) Small 10) 8-11 mm (0.315in - 0.433in) Medium 11) 8-12 mm (0.315in - 0.472in) Large 12) 9-14 mm (0.354in - 0.551in) Crite rion Level 14) : H = 113 dB(A) M = 108 dB(A) L = 107 dB(A) Bluetooth ® (HFP) EN 352-9:2020 Crite rion input signal 15) : 33.5 DBFS Sound output level at maximum input signal 16) : 101.5 dB(A) at 18) -14 dBFS Usage ti me for maximum in put signal 17) : 0.1 h at 18) -14 d BFS Relationship between sound output level and input signal 19) SPL [dB(A)] 65 70 75 80 82 85 90 95 Input signal level 20) [dBFS] -5 0.4 -45.4 -40.4 -35.5 -33.5 -30.5 -25.5 -20.5 Bluetooth ® (A2DP) EN 352-10:2020 Maximum sound level 21) : 79.9 dB(A) at 18) -10 dBFS ANSI S3.19-1974 (NRR) Tall Eartips 5) Short Eartips 1) Frequency 2) , Hz 125 250 500 1000 2000 3150 4000 6300 8000 NRR CSA Grand Mean Attenuation 3) , dB 30.7 28.2 33.7 33.5 32.9 33.9 35.9 40.1 42.7 25 BL Standard Deviation 4) 5.0 3.4 5.0 3.3 2.5 2.4 4.3 2.6 2.1 Frequency 2) , Hz 125 250 500 1000 2000 3150 4000 6300 8000 NRR CSA Grand Mean Attenuation 3) , dB 29.4 28.4 33.4 33.0 32.2 35.6 40.0 44.6 45.0 25 BL Standard Deviation 4) 4.7 3.6 4.3 3.9 3.0 3.6 5.2 3.4 2.8 1Symbole Warnung vor allgemeiner Gefahr Betriebsanleitung, Sicherheitshin­ weise lesen! CE-Kennzeichnung: Bestätigt die Konformität des Geräts mit den Richtlinien der Europäischen Ge­ meinschaft. Nicht in den Hausmüll geben. 2Sicherheitshinweise WARNUNG! Lesen Sie alle Sicher­ heitshinweise und Anweisungen. Versäumnisse bei der Einhaltung der Sicherheitshinweise und Anweisungen können elektrischen Schlag, Brand und/oder schwere Verletzungen, wie z. B. Hörschäden, verursa­ chen. Wenn Sie Verzerrungen oder Ausfälle feststellen, wenden Sie sich bitte an den Festool Kundendienst (siehe Kapitel 7). Der Akku darf nicht ausgetauscht werden. Bewahren Sie alle Sicherheitshinweise und Anweisungen für die Zukunft auf. –Ladeetui nicht im Regen oder in feuchter Umgebung verwenden. Feuchtigkeit im Ge­ rät kann zu Kurzschluss und Brand führen. –Keinen Nagel, Draht o.ä. in die USB-Buchse stecken. Dies kann sonst einen Kurzschluss, Rauch oder Feuer verursachen. –Das Gerät nur mit Ladegeräten mit einer Spannung von maximal 5 V laden. Bei höhe­ ren Spannungen besteht Brandgefahr. –Hörbarkeit von Warnsignalen. Sicherstel­ len, dass Warnsignale am Arbeitsplatz und anderen Umgebungen bei Nutzung der Audi­ ofunktionen weiterhin gehört werden kön­ nen. –Das Gerät von Kindern fernhalten. Im Lie­ ferumfang sind verschluckbare Kleinteile enthalten. Deutsch 7 –Silikon-Ohrstücke sind nicht zur Geräusch­ dämmung geeignet. Silikon-Ohrstücke aus­ schließlich zur Nutzung der Audiofunktionen verwenden. –Passende Größe der verwendeten Ohrstü­ cke sicherstellen. Die Verwendung von nicht richtig sitzenden Ohrstücken kann zu Gehör­ schädigung führen. Zu kleine Ohrstücke ver­ fügen über keinen vollständigen Gehör­ schutz. Zu große Ohrstücke können bei Ent­ nahme im Gehörgang steckenbleiben. –Der Gehörschutz muss in lauten Umgebun­ gen ständig getragen werden. –Plötzliches oder schnelles Entfernen des Gehörschutzes kann zu Schäden am Trom­ melfell führen. –Der Gehörschutz ist mit einer pegelabhängi­ gen Dämpfung und einem sicherheitsrele­ vanten Audio-Eingang ausgestattet. Prüfen Sie vor dem Gebrauch die korrekte Funkti­ on. –Die typische Dauer der ununterbrochenen Nutzung bei voller Aufladung beträgt 13 Stunden. Die Akkuleistung kann nach dieser Zeit und bei normaler Nutzung nach­ lassen. –Der Audio-Ausgang des Gehörschützers kann den Expositionsgrenzwert überschrei­ ten. –Der Gehörschutz bietet eine Audio-Unter­ haltungsfunktion. Der Gehörschutz bietet ei­ ne Schalldruckbegrenzung des Audiosig­ nals, die das Audiosignal für Unterhaltungs­ medien auf weniger als 82 dB(A) (GHS 25 I) / 85 dB(A) (GHS 25 I US) effektiv für das Ohr begrenzt. Dieser Grenzwert gilt für Bluetooth ® Signaleingänge, die den Bluetooth ® A2DP-Spezifikationen entspre­ chen. 3Bestimmungsgemäße Verwendung Der Gehörschutz dient zur Reduzierung von Umgebungsgeräuschen bzw. der Abschirmung von Umgebungsgeräuschen >79 dB (GHS 25 I) / >85 dB (GHS 25 I US). Deutsch 8 Das Gerät bietet die Möglichkeit Telefonate zu führen sowie Audiosignale wiederzugeben. Das Gerät darf NICHT in Umgebungen genutzt werden, in denen der Nutzer seine Umgebung vollständig wahrnehmen muss, z. B. beim Au­ tofahren. Das Gerät darf NICHT in explosionsgefährde­ ten Umgebungen genutzt werden. Bei nicht bestimmungsgemäßem Ge­ brauch haftet der Benutzer. Zulassung als Geräuschdämmung. Das Gerät wurde nach den Normen EN 352-…

Text truncated - open the document above for the full version.

2023-03-01 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2AL2E-GHS25 Festool GmbH certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Name: Christian Bader 2023-03-01 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2AL2E-GHS25 Festool GmbH certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Name: Christian Bader

U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification - Section 2.91l(d)(7) Information Designated U.S. Agent Company Name: Festool USA FRN: 0026431700 Contact N ame: Amanda Johnson Street Address: 400 N Enterprise Blvd C ity/Province/Zip: Lebanon, IN 46052 T elephone No: 1-765-577-9329 Email: [email protected] This letter is to confirm that we ('' the Designated U.S. Agent) have accepted the respo nsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.91 l(d)(7) on behalf of the Applicant noted below. U.S. A g ent Sigaature: Date: 3/3 /IPL3 Sig ned by (Printed Name/f i tle): Amofldc- Jo'h\"\Son } COW1 p \;o:r,ce e..\'"' � '(')�er The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Festool GmbH Grantee Code: 2AL2E FCC ID: 2AL2E-GHS25 Contact Name: Christian Bader Street Address: Wertstrasse 20, 73240 Wendlingen, Germany City/Province/Zip: Wendlingen Telephone No: 49(7024)804-25479 Email: [email protected] Applicant Signature: /.�� Date: 3/.J/zo 2> Signed by (Printed Nameffitle): Christian Bader FiC:!stool Gl"'lhH ='?,�, ·.:::: 1 1163 D-73235 Wendlingem 'h.. tsc1 il8e 20 D-73240 Wendlingen \.-\eo.c oY � 1'\c.lr·:.O\'\o. \ 6E.>v� \opmevrt

Declaration on model difference We, _ Festool GmbH _ the undersigned hereby declare that the device's schematics ， PCB layout and all other electrical aspects of the device are identical. The only differences are model no. for trading purpose. The label information as below: Product Name: Wireless earbuds Models: GHS 25 I,GHS 25 I US Name / Title: Christian Bader Company: Festool GmbH

Pantone Black 6 Pantone 368 C Front view Top view Side view Open the Charging Case view 3D view Bottom view 挂绳扣位/金属 Lanyard buckle/metal 充电盒上下内壳/ 耳机槽高光 注塑ABS黑色/素材 Black ABS Plastic/ HA-05F_Festool SYSBuds_NA Colour：Pantone BLack 6C Version: A0 Date: 2023-03-11 Call MIC 中壳 注塑 Pantone Black 6 /喷油 Pantone Black 6 / 金属粉/橡胶涂料 Pantone Black 6 Plastic/ Pantone Black 6 Metalic Painting/ Rubber Coating 底壳 注塑 Pantone Black 6 / 喷油 Pantone Black 6 / 金属粉/橡胶涂料 /丝印R L Pantone Black 6 Plastic/ Pantone Black 6 Metalic Painting/ Rubber Coating Silkcreen R L 2mm 充电盒导光柱 透明/PC Transparent/PC 导光柱 充电盒上盖，下盖 注塑 Pantone Black 6 喷油金属Pantone Black 6/ 橡胶涂料 Pantone Black 6 Plastic/ Metalic Pantone Black 6 Painting/ Rubber Coating 4.5mm 与充电PIN针居中 Silkcreen Size: R：4.5 x 4.5mm L : 4.5 x 4.5mm Color: Pantone Cool Gray 11C Scaled: 1:1 5.17mm 耳机头面盖丝印logo Silkcreen logo Size: 12.5mm x 1.62mm Color: Pantone 368C Finish:Glossy Scaled: 1:1 耳机头面盖丝印位置 12.5mm 40mm 1.62mm 金属转轴 粉末冶金/银色/哑 powder metallurgy/ Silver /Matte Type-C 复位键 Reset button 面壳 注塑 Pantone Black 6 /喷油Pantone Black 6 金属粉/橡胶涂料/丝印LOGO Pantone Black 6 Plastic/ Pantone Black 6 Metalic Painting/ Rubber Coating Silkcreen LOGO 导光柱 透明/PC Transparent/PC 12.47mm 8.79mm 充电盒上盖丝印logo十字居中 Silkcreen logo Size: 40x5.17mm Color: Pantone 368C Finish:Gloss Scaled: 1:1 Noise reduction MIC Y Y D D D Day of the Year Jan 1st = 001 Feb 29th = 060 (This is leap day) Dec 31st = 366 Year 2019=19 2020=20 2021=21 Font: 3.83 pt DINPRO BOLD <Haven Technologies Date Code 20190715> Color：Pantone Black Silicone Earplug Color：Refer to golden sample Festool approved Memory sponge ear cap 充电盒底盖丝印居中 Silkcreen Size: 42.9 x 10.8mm Color: Pantone Cool White Scaled: 1:1 GHS 25 I US Capacity/Capacité: 3.7V/500mAh/1.85Wh Input/Entrée: 5V 400mA Output/Sortie: 5V 100mA Festool GmbH 73240 Wendlingen∙Germany Made in China 21120 IC:22501-GHS25

HA-05F_Festool SYSBuds_NA Colour：Pantone BLack 6C Date: 2023-03-13 Version: A0 Bottom view 导光柱 Y Y D D D Day of the Year Jan 1st = 001 Feb 29th = 060 (This is leap day) Dec 31st = 366 Year 2019=19 2020=20 2021=21 Font: 3.83 pt DINPRO BOLD <Haven Technologies Date Code 20190715> 充电盒底盖丝印居中 Silkcreen Size: 42.9 x 10.8mm Color: Pantone Cool White Scaled: 1:1 GHS 25 I Capacity/Capacité: 3.7V/500mAh/1.85Wh Input/Entrée: 5V 400mA Output/Sortie: 5V 100mA Festool GmbH 73240 Wendlingen∙Germany Made in China 21120 IC:22501-GHS25

Antenna

Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test item : Wireless earbuds Identification / Type No. : GHS 25 I,GHS 25 I US FCC ID IC : : 2AL2E-GHS25 22501-GHS25 Test standard : CFR47 FCC Part 2: Section 2.1093 FCC KDB Publication 447498 v06 RSS-102 Issue 5 Measurement Record: 3*d Since maximum peak output power of the transmitter is 5.97dBm ≈ 3.9mW < = 9.7 mW. Since maximum peak output power of the transmitter is 5.97dBm ≈ 3.9mW < 4 mW. Hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 and RSS-102 Issue 5. f

Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test item : Wireless earbuds Identification / Type No. : GHS 25 I,GHS 25 I US FCC ID IC : : 2AL2E-GHS25 22501-GHS25 Test standard : CFR47 FCC Part 2: Section 2.1093 FCC KDB Publication 447498 v06 RSS-102 Issue 5 Measurement Record: 3*d Since maximum peak output power of the transmitter is 5.97dBm ≈ 3.95mW < = 9.7 mW. Since maximum peak output power of the transmitter is 5.97dBm ≈ 3.95mW < 4 mW. Hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 and RSS-102 Issue 5. f

Bluetooth Antenna Specification Manufacturer: Aska Electronics Co., Ltd No 5,Puxin Road,Kuyuancheng Industrial,Tangxia Twon,Dongguan,Guangdong China Model: FPC_HA5_V1

Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.963 2401.526 2402.489 --- --- 2441 0.948 2440.535 2441.483 --- --- 2480 0.960 2479.526 2480.486 --- --- 2DH5 Ant1 2402 1.305 2401.349 2402.654 --- --- 2441 1.293 2440.355 2441.648 --- --- 2480 1.269 2479.370 2480.639 --- --- 3DH5 Ant1 2402 1.314 2401.337 2402.651 --- --- 2441 1.314 2440.340 2441.654 --- --- 2480 1.287 2479.349 2480.636 --- --- Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.89144 2401.5516 2402.4430 --- --- 2441 0.88228 2440.5554 2441.4377 --- --- 2480 0.88580 2479.5531 2480.4389 --- --- 2DH5 Ant1 2402 1.2740 2401.3638 2402.6378 --- --- 2441 1.2305 2440.3805 2441.6110 --- --- 2480 1.2281 2479.3815 2480.6096 --- --- 3DH5 Ant1 2402 1.2558 2401.3687 2402.6245 --- --- 2441 1.2486 2440.3624 2441.6110 --- --- 2480 1.2290 2479.3729 2480.6019 --- --- Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 5.27 ≤30 PASS 2441 5.80 ≤30 PASS 2480 5.90 ≤30 PASS 2DH5 Ant1 2402 5.26 ≤30 PASS 2441 5.97 ≤30 PASS 2480 5.87 ≤30 PASS 3DH5 Ant1 2402 5.24 ≤30 PASS 2441 5.70 ≤30 PASS 2480 5.94 ≤30 PASS Test Mode Antenna Frequency[MHz] E.I.R.P[dBm] E.I.R.P Limit[dBm] Verdict DH5 Ant1 2402 3.82 ≤36 PASS 2441 4.35 ≤36 PASS 2480 4.45 ≤36 PASS 2DH5 Ant1 2402 3.81 ≤36 PASS 2441 4.52 ≤36 PASS 2480 4.42 ≤36 PASS 3DH5 Ant1 2402 3.79 ≤36 PASS 2441 4.25 ≤36 PASS 2480 4.49 ≤36 PASS Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.996 ≥0.963 PASS 2DH5 Ant1 Hop 1.316 ≥1.305 PASS 3DH5 Ant1 Hop 1.06 ≥0.876 PASS Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.374 320 0.12 ≤0.4 PASS DH3 Ant1 Hop 1.630 160 0.261 ≤0.4 PASS DH5 Ant1 Hop 2.878 106.67 0.307 ≤0.4 PASS 2DH1 Ant1 Hop 0.380 320 0.122 ≤0.4 PASS 2DH3 Ant1 Hop 1.631 160 0.261 ≤0.4 PASS 2DH5 Ant1 Hop 2.879 106.67 0.307 ≤0.4 PASS 3DH1 Ant1 Hop 0.380 320 0.122 ≤0.4 PASS 3DH3 Ant1 Hop 1.631 160 0.261 ≤0.4 PASS 3DH5 Ant1 Hop 2.883 106.67 0.308 ≤0.4 PASS Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop 2DH1_Ant1_Hop 2DH3_Ant1_Hop 2DH5_Ant1_Hop 3DH1_Ant1_Hop 3DH3_Ant1_Hop 3DH5_Ant1_Hop Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop

Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 5.96 -45.72 ≤-14.04 PASS High 2480 6.42 -45.75 ≤-13.58 PASS Low Hop_2402 5.13 -46.65 ≤-14.87 PASS High Hop_2480 6.35 -46.42 ≤-13.65 PASS 2DH5 Ant1 Low 2402 5.22 -34.27 ≤-14.78 PASS High 2480 6.61 -46.13 ≤-13.4 PASS Low Hop_2402 2.66 -46.25 ≤-17.34 PASS High Hop_2480 6.69 -45.13 ≤-13.31 PASS 3DH5 Ant1 Low 2402 5.94 -34.41 ≤-14.06 PASS High 2480 6.60 -46.33 ≤-13.4 PASS Low Hop_2402 1.85 -46.1 ≤-18.15 PASS High Hop_2480 6.49 -46.31 ≤-13.51 PASS Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference 5.98 5.98 --- PASS 30~1000 5.98 -58.05 ≤-14.02 PASS 1000~26500 5.98 -49.74 ≤-14.02 PASS 2441 Reference 6.81 6.81 --- PASS 30~1000 6.81 -41.86 ≤-13.19 PASS 1000~26500 6.81 -49.8 ≤-13.19 PASS 2480 Reference 6.61 6.61 --- PASS 30~1000 6.61 -58.1 ≤-13.39 PASS 1000~26500 6.61 -49.26 ≤-13.39 PASS 2DH5 Ant1 2402 Reference 5.96 5.96 --- PASS 30~1000 5.96 -58.08 ≤-14.04 PASS 1000~26500 5.96 -49.44 ≤-14.04 PASS 2441 Reference 6.81 6.81 --- PASS 30~1000 6.81 -57.15 ≤-13.19 PASS 1000~26500 6.81 -49.54 ≤-13.19 PASS 2480 Reference 6.55 6.55 --- PASS 30~1000 6.55 -57.68 ≤-13.45 PASS 1000~26500 6.55 -49.67 ≤-13.45 PASS 3DH5 Ant1 2402 Reference 5.95 5.95 --- PASS 30~1000 5.95 -56.76 ≤-14.05 PASS 1000~26500 5.95 -49.3 ≤-14.05 PASS 2441 Reference 6.78 6.78 --- PASS 30~1000 6.78 -57.64 ≤-13.22 PASS 1000~26500 6.78 -49.46 ≤-13.22 PASS 2480 Reference 6.55 6.55 --- PASS 30~1000 6.55 -57.94 ≤-13.45 PASS 1000~26500 6.55 -49.7 ≤-13.45 PASS Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500

3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 Appendix I: Duty Cycle Test Result TestMode Antenna Frequency[ MHz] ON Time [ms] Period [ms] Duty Cycle [%] DH5 Ant1 2402 2.88 3.75 76.80 2441 2.88 3.75 76.80 2480 2.89 3.75 77.07 2DH5 Ant1 2402 2.88 3.74 77.01 2441 2.88 3.75 76.80 2480 2.88 3.75 76.80 3DH5 Ant1 2402 2.88 3.75 76.80 2441 2.88 3.75 76.80 2480 2.89 3.75 77.07 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Appendix J: Emissions in Restricted Bands Test Result Mode: DH5-2402 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 46.80 6.48 74.00 27.20 150 360 Horizontal 2 2343.28 47.65 6.54 74.00 26.35 150 26 Horizontal 3 2344.4 47.66 6.54 74.00 26.34 150 317 Horizontal 4 2354.88 47.60 6.56 74.00 26.40 150 150 Horizontal 5 2374.88 48.65 6.60 74.00 25.35 150 242 Horizontal 6 2390 47.62 6.64 74.00 26.38 150 320 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 46.51 6.48 74.00 27.49 150 3 Vertical 2 2324.88 47.77 6.50 74.00 26.23 150 140 Vertical 3 2343.12 47.53 6.54 74.00 26.47 150 261 Vertical 4 2355.6 48.48 6.58 74.00 25.52 150 22 Vertical 5 2368.96 47.74 6.60 74.00 26.26 150 13 Vertical 6 2390 46.64 6.64 74.00 27.36 150 339 Vertical Mode: DH5-2480 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 47.81 7.20 74.00 26.19 150 113 Horizontal 2 2486.7648.62 7.23 74.00 25.38 150 113 Horizontal 3 2489.5350.56 7.24 74.00 23.44 150 330 Horizontal 4 2493.0549.22 7.26 74.00 24.78 150 349 Horizontal 5 2495.0048.86 7.28 74.00 25.14 150 304 Horizontal 6 2500 50.86 7.31 74.00 23.14 150 7 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 48.41 7.20 74.00 25.59 150 47 Vertical 2 2488.8148.75 7.24 74.00 25.25 150 179 Vertical 3 2490.1448.01 7.25 74.00 25.99 150 32 Vertical 4 2492.7248.61 7.26 74.00 25.39 150 281 Vertical 5 2495.2348.10 7.28 74.00 25.90 150 219 Vertical 6 2500 49.35 7.31 74.00 24.65 150 74 Vertical Mode: 2DH5-2402 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 47.38 6.48 74.00 26.62 150 305 Horizontal 2 2333.68 47.77 6.52 74.00 26.23 150 7 Horizontal 3 2339.12 47.92 6.54 74.00 26.08 150 336 Horizontal 4 2364.4 47.62 6.58 74.00 26.38 150 331 Horizontal 5 2375.12 48.03 6.62 74.00 25.97 150 360 Horizontal 6 2390 47.39 6.64 74.00 26.61 150 9 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 46.81 6.48 74.00 27.19 150 113 Vertical 2 2334.24 48.26 6.52 74.00 25.74 150 200 Vertical 3 2344.64 48.26 6.54 74.00 25.74 150 121 Vertical 4 2354 47.85 6.56 74.00 26.15 150 172 Vertical 5 2371.76 48.80 6.60 74.00 25.20 150 330 Vertical 6 2390 49.12 6.64 74.00 24.88 150 113 Vertical Mode: 2DH5-2480 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 48.77 7.20 74.00 25.23 150 225 Horizontal 2 2488.8649.07 7.24 74.00 24.93 150 12 Horizontal 3 2490.43 48.30 7.25 74.00 25.70 150 86 Horizontal 4 2492.3748.22 7.26 74.00 25.78 150 86 Horizontal 5 2497.9848.64 7.30 74.00 25.36 150 225 Horizontal 6 2500 50.30 7.31 74.00 23.70 150 360 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 52.00 7.20 74.00 22.00 150 317 Vertical 2 2488.6348.61 7.24 74.00 25.39 150 19 Vertical 3 2490.9048.83 7.25 74.00 25.17 150 117 Vertical 4 2491.9448.22 7.26 74.00 25.78 150 322 Vertical 5 2496.1048.52 7.29 74.00 25.48 150 81 Vertical 6 2500 50.08 7.31 74.00 23.92 150 31 Vertical Mode: 3DH5-2402 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 46.82 6.48 74.00 27.18 150 310 Horizontal 2 2334.8 48.15 6.52 74.00 25.85 150 262 Horizontal 3 2343.84 47.77 6.54 74.00 26.23 150 204 Horizontal 4 2352.8 47.98 6.56 74.00 26.02 150 233 Horizontal 5 2366.16 48.48 6.60 74.00 25.52 150 69 Horizontal 6 2390 47.49 6.64 74.00 26.51 150 360 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 46.70 6.48 74.00 27.30 150 222 Vertical 2 2331.52 48.07 6.52 74.00 25.93 150 356 Vertical 3 2342.56 47.53 6.54 74.00 26.47 150 126 Vertical 4 2359.04 48.68 6.58 74.00 25.32 150 324 Vertical 5 2363.52 48.09 6.58 74.00 25.91 150 142 Vertical 6 2390 46.61 6.64 74.00 27.39 150 137 Vertical Mode: 3DH5-2480 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 49.42 7.20 74.00 24.58 150 164 Horizontal 2 2490.1148.20 7.25 74.00 25.80 150 268 Horizontal 3 2493.0348.65 7.26 74.00 25.35 150 131 Horizontal 4 2494.9549.09 7.27 74.00 24.91 150 278 Horizontal 5 2499.4750.78 7.31 74.00 23.22 150 24 Horizontal 6 2500 51.37 7.31 74.00 22.63 150 53 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 49.96 7.20 74.00 24.04 150 101 Vertical 2 2487.2448.62 7.23 74.00 25.38 150 277 Vertical 3 2490.8748.71 7.25 74.00 25.29 150 170 Vertical 4 2493.6148.66 7.26 74.00 25.34 150 289 Vertical 5 2498.6649.26 7.30 74.00 24.74 150 210 Vertical 6 2500 49.80 7.31 74.00 24.20 150 59 Vertical Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Appendix L: Radiated emissions for transmitter Mode: DH5-2402 Test Graph NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit […

Text truncated - open the document above for the full version.
