2AL5Y-250RCPROCLINICAL 250RC ELECTRIC TOOTHBRUSH

COLGATE® PROCLINICAL® 250RC ELECTRIC TOOTHBRUSH 1 - replaceable brush head 2 - on/o button 3 - brush handle 4 - charging base 高露洁PROCLINICAL® 250RC 电动牙刷 1 - 替 换刷头 2 - 开/关按钮 3 - 刷 柄 4 - 充 电底座 CONTENT / 内含 23 4 1 3 4 ENGLISH IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING · Toothbrushes can be used by children and persons with reduced physical, sensory or mental capabili ties or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Not suitable for children under 3. Keep out of reach of small children · Cleaning and user maintenance shall not be made by children without supervision. · Children shall not play with the appliance. · The supply cannot be replaced. If the cord is damaged, the appliance must be scrapped. · Stop using this toothbrush if it is damaged in any way (cord, plug, brush head, toothbrush handle, charger and/or AC adaptor). · Use this product only for it s inte nded use as described in this manual. Do not use brush heads, charger, or attachme nts not re commended by Colgate ®. · Use the charger only wit hin rate d capacit y of outlets or volt ages · No user servi cable parts. Do not disassemble the handle except for batte ry disposal, as it may cause personal injury or device failure . · If afte r using this toothbrush you experience excessiv e bleeding or if bleeding continues to occur afte r a week of use, please contact your dentist as it may be an indication of a more serious oral care issue. · If you are undergoing treatment for any oral care condit ion, consult your dental professional p rior to use. · Do not place or store product where it can fall or be pulled into a tub or sink. · Do not reach for a charger that has fallen into wate r. Unplug immediate ly . · AC adaptors and chargers should always be complete ly dry when connecting to power. SAVE THESE INSTRUCTIONS GET STARTED 1 Charge your toothbrush (charge at least 10 hours the time) · charge light pulses green while charging · charge light turns solid green when fu lly charged · leave charger unplugged between charges · when brush is on, charge light ashes red when battery is low and needs to be recharged 2 Turn your toothbrush ON a nd brush · timer alerts every 30 seconds to brush dierent area of your mouth · brush stops after 2 minutes 4 Replace your brush head every three months 3 Clean brush and charger · dry handle and charger completely before putting handle back in charger · never put charger in water CLEANING INSTRUCTIONS Clean your toothbrush head thoroughly after each use by removing the brush head from the handle and rinsing under running water. Regularly cl ean the handle and charging base of the Colgate® toothbrush using a damp cloth. This is especially important if your toothpaste contains baking soda or other bicarbonates or per oxide. Otherwise, plasti c cr acking could occur. STORAGE INSTRUCTIONS AND DEVICE MAINTENANCE The following maintenance instructi ons are important to ensure that your brush conti nues to work as it was designed. Failure to follow these instructi ons may cause your device to stop functi oning altogether. Denti sts and hygienists recommend replaci ng your toothbrush every 3 months. If you plan to stop using the toothbrush for an extendd period, we recommend that you unplug the charging base, clean the toothbrush handle and heads, and store them in a cool dark place. If you start using your toothbrush again after a long period of non- use, place it on the charger for at least 10 hours. TO REMOVE BATTERY FROM HANDLE: NOTICE For energy savings purposes, charge only when the bat tery level is too low. When not in use, keep the charger unplugged from the socket. CHARGING BASE: INPUT 100-240VAC,50/60HZ ELECTROMAGNETIC COMPATIBILITY The Colgate® ProClinical® 250R electric toothbrush complies with all standards regarding electromagnetic It is safe to use if handled properly according to the instructions provided in this manual. 56789 1 Snap brush at seam 3 Pinch base of clear cover by switch area to release snaps, slide battery and circuit board out 2 Holding stem, slide brush internals out 4 Using head sc rew driver, caref ully pry battery away fro m housing and printed circuit board. Apply tape to terminals at ends of battery to avoid shorti ng. 2 BATTERY REMOVAL FOR RECYCLING CORRECT DISPOSAL Do not throw away this product with normal household waste at the end of its life. Always remove battery before discarding. Please use a return collecti on system to ensure responsible and environmentally safe recycling of the device and battery. REMOVE BATTERY BEFORE DISPOSAL Remove recyclable rechargeable battery in the compliance with environmental regulati ons before disposing of the toothbrush. Do not open handle unless permanentl y disposing (will void warranty). CLICK INSTRUCTION MANUAL 产品使用说明书 CONTENT..... ... ................. 内含...... ... .... ................... ENGLISH ........ ................. 中文 . ..... ... ... .................. EUROPE .......................... AUSTRALIA ..................... CONSUMER AFFAIRS....... 消费者事务..... ..... ... ... ... 2-3 2-3 5-9 10-15 16 17 18 18 PROCLINICAL® 250RC ELECTRIC TOOTHBRUSH 电动牙刷 INSTRUCTION MANUAL 产品使用说明书 高露洁 下载高露洁连接应用程序 启动应用程序并检查蓝牙是否已打开 创建个人资料 打开你的牙刷 FCC Statement: Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, …

Text truncated - open the document above for the full version.

COLGATE-PALMOLIVE COMPANY 909 River Road Daniel Roman, N.C.E. Piscataway, NJ 08855-1343 Product Compliance Manager Telephone: +1 732-878-7609 Global Product Safety Email: [email protected] Authority to Act as Agent Date: 18-Mar-2019 Colgate-Palmolive Company 909 River Road Piscataway, NJ 08855-1343 To Whom It May Concern: I appoint TUV Rheinland to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Colgate-Palmolive Company. For TCB applications, we certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: April 1, 2020 By: __________________________ Daniel Roman (Signature) (Print name) Title: Product Compliance Manager Telephone: 732-878-7609 On behalf of: Colgate- Palmolive-Company (Company Name)

COLGATE-PALMOLIVE COMPANY 909 River Road Daniel Roman, N.C.E. Piscataway, NJ 08855-1343 Product Compliance Manager Telephone: +1 732-878-7609 Global Product Safety Email: [email protected] Request of Confidentiality 22-Mar-2019 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AL5Y-250RC To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual Colgate-Palmolive Company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely,

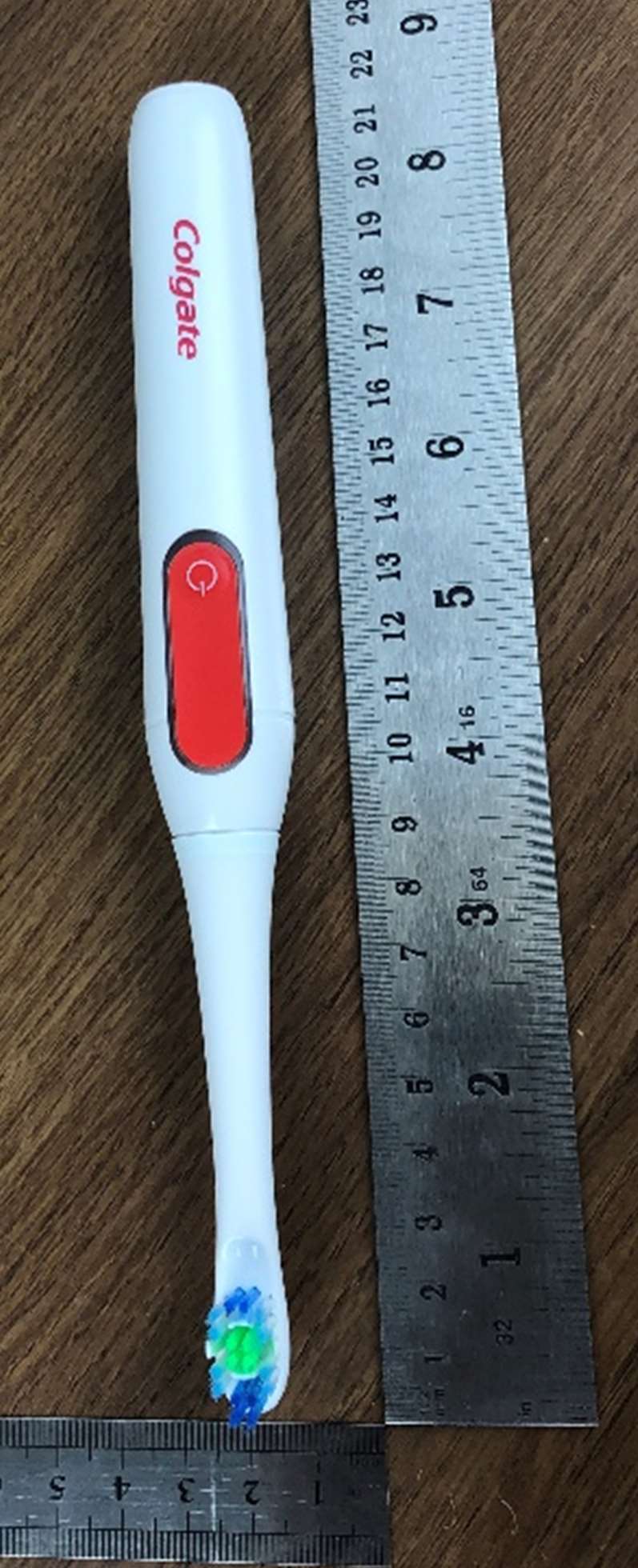

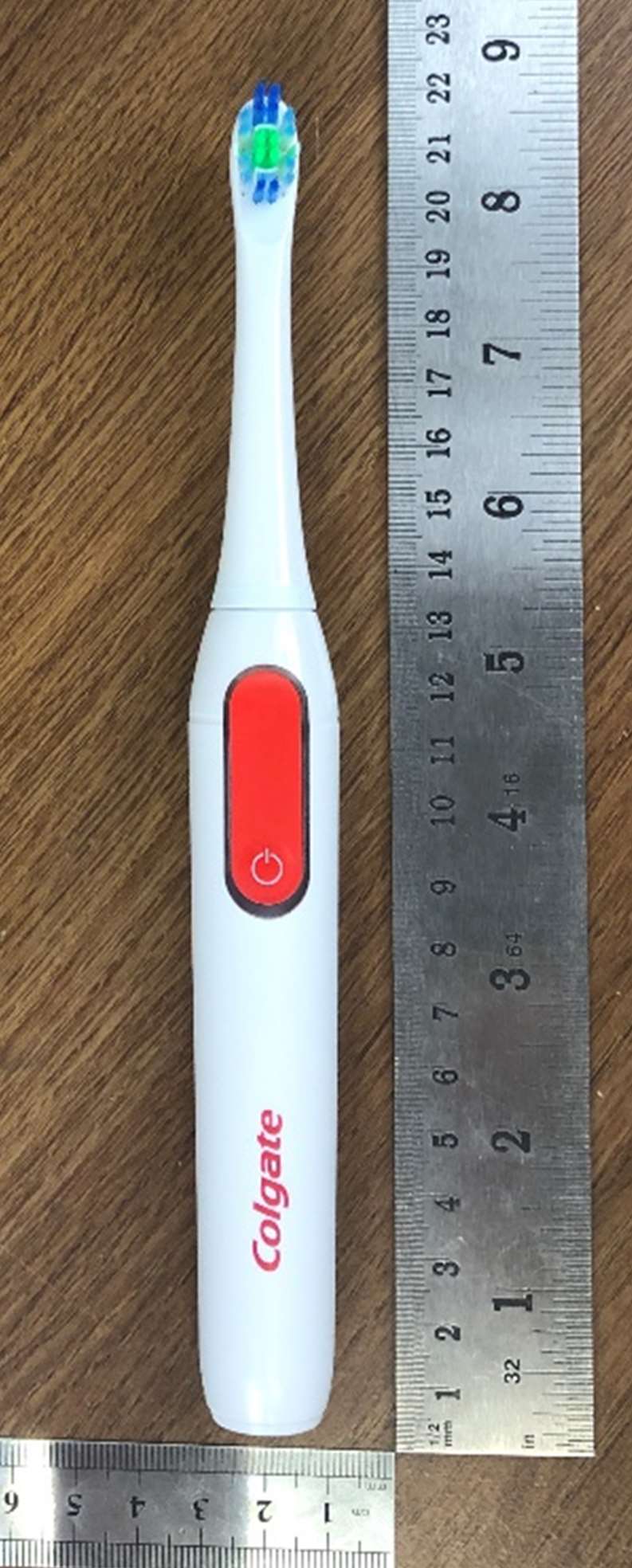

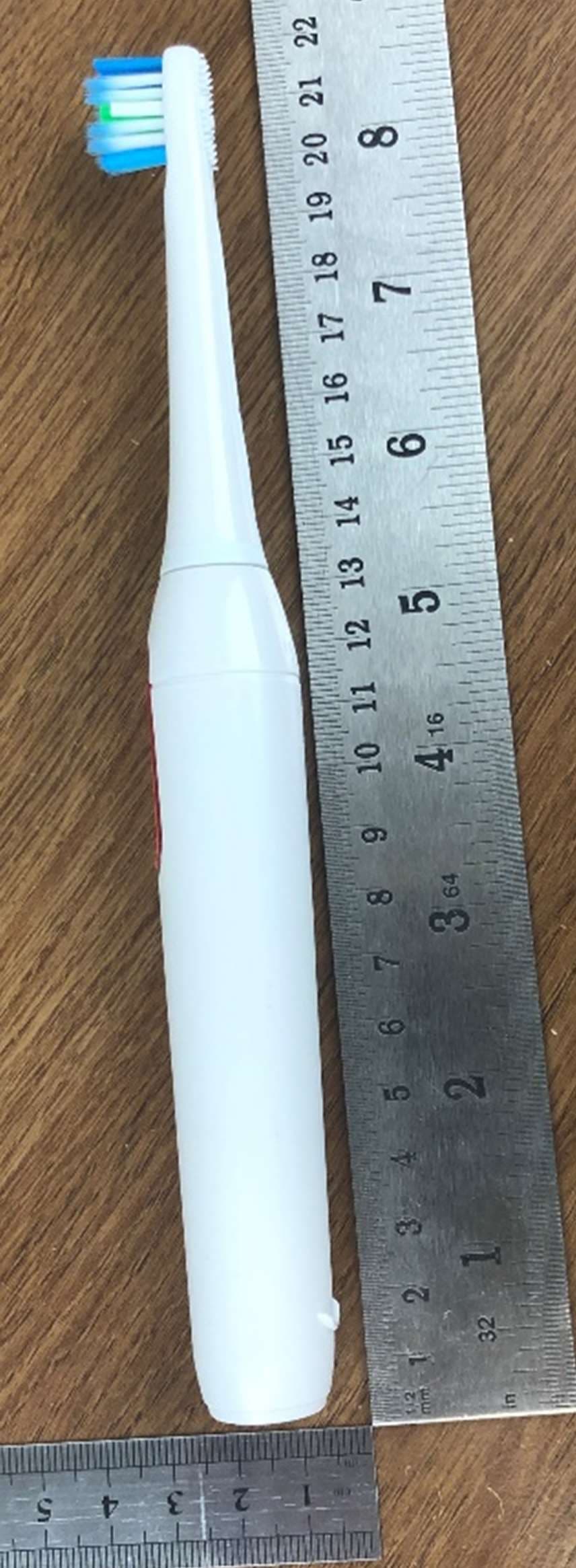

External Photos of the Device Under Test Overall Physical Size: 207 mm (L) x 24 mm (W) x 24 mm (H) 8.15 in (L) x 0.94 in (W) x 94 in (H) Front Back Right Left Top Bottom

10.89 Colgate Palmolive On Product Labeling Product Name: 250RC Date: 3/19/2019 Revision: 1.0 Scale 1:1 Part to be marked: 250RC Handle Marking Method: Laser etched Date Code 250RC FCC ID:2AL5Y-250RC IC:22847-250RC CAN ICES-3(B)/NMB-3(B)

Internal Photos of the Device Under Test Internal Front Internal Back Antenna RF Antenna

XX Y Y A 1 B C D 234 A B C D 1234 DRAWING NO. HI-P CORPORATION PART NAME SAP NO. MATERIAL 3D VER. 2D VER. SCALE UNIT SHEET CONFIDENTIAL PROJECT NAME 62.95±0.15 29.87 1.6 56.9±0.1 19.20.1 1.3 4(2x) (2x) 2.5 0.1 1.23 3(2x) 23.89 20.530.1 20.790.1 12 14.20.1 14.420.1 11.9 41.83±0.1 90° 0.91(2x) (7.5) 14.77 11.07±0.1 35.37±0.1 0.3 2.05 0 -0.1 0.8 13.14±0.05 0.69 10.37±0.1 10° 2D VER.ECN NO.DESCRIPTIONDATEDESIGNEDAPPROVED 1 Initial Release18-05-28 WangZhongding Victor.Ge 1.1 for handle,button assembly 18-05-31 WangZhongding Victor.Ge 1.2 for button assembly, TPE bonding,add rib,thicken wall18-07-22 WangZhongding Victor.Ge 1.3 add round on catch hole, update dimension 18-09-21WangZhongdingVictor.Ge Radiant ETB 1.3 T36C_BODY_ASSYT36C-00031.3 SIGNATUREDATE DESIGNED WangZhongding 18-04-15 see notes 1:1MM1 OF 1CHECKEDTC. Tan 18-05-28 APPROVEDVictor.Ge 18-05-28 COPYRIGHT 2015 HI-P R D CENTERCREATED BY CREOSIZE:A3 CUSTOMER P/N: TOLERANCE UNLESS SPECIAL SPECIFIED SELECT CLASSM LINE DIMENSIONS CLASSFMC 0.00-3.000.050.100.20 (3.00)-6.000.050.100.30 (6.00)-30.000.100.200.50 (30.00)-120.000.150.300.80 (120.00)-INFINITY0.200.501.20 RADII AND CHAMFER HEIGHTS 0.00-3.000.200.40 (3.00)-6.000.501.00 (6.00)-INFINITY1.002.00 ANGULAR DIMENSIONS 0.0-10.00.20.3 (10.0)-50.00.30.5 (50.0)-120.00.51.0 (120.0)-INFINITY1.01.5 For MP tool For prototype tool ItemPart NameMaterialProcessFinishingRemark 1T36C_BODYABS PA758Injection A3 VDI 21 in designated area 2T36C_BODY_TPE TPE TPE DE30600, Shore A30° Double shotVDI-24 3T36C_BODY_CAPABS PA757Overmolding Outter surface:A2 Inner surface:B1 NOTES: 1. Material: refer to table Finish: refer to table PART MUST BE MOLDED USING 100% VIRGIN MATERIA. 2. DIMENSIONS: 2.1 Inspection dimensions marked with " " are critical dimensions and their CPK>=1.33. 2.2 SPC control dimensions are marked with " SPC " and their CPK>=1.33. 2.3 All dimensions without tolerance should comply with the general tolerance table in drawing. 2.4 All features unspecified can be referred to the 3D data. 3. APPEARANCE: 3.1 Finished parts are to be clean and free from all foreign matter. 3.2 Part to be free from flash, sink marks, scratches, inclusions, flow and weld lines. 3.3 Flash and parting line mismatch shall not exceed 0.05mm. 4. TOOLING REQUIREMENTS 4.1 Ejector pads shall not exceed 0.1mm above flush,nor 0.1mm below flush to part surface. 4.2 Gate vestigital shall not exceed 0.1mm beyond the part surface. 4.3 Tooling marking as follows: A. text: standard font, height: 2.5mm, depth: 0.2mm. B. core to be marked with the following details: *material; part number(P/N); *revision letter (1,2,3...) *cavity number (C1/n,C2/n...Cn/n); *recycle symbol; *date code 5.The part should be comply with below regulation and/or directive 5.1.RoHS EU Directive 2011/65/EU and its amendments including EU 2015/863 5.2.China ROHS 2.0 5.3.REACH SVHCs 5.4.1935/2004/EC or FDA 5.5.GB 4806 5.6.ASTM F963 for heavy metals 5.7.EN 71-3 Category III for heavy metals 5.8.BPA Free 5.9.Phthalates (7) for CPSC-CH-C1001-09.3 5.10.PAHs (18) for German AfPS GS 2014 PAK Category 1 6.X with triangle mark means the changes in drawing version X. Finished VDI 21 VDI 21 add 12 ribs SCALE 1:2 0.1 SECTION X-X SEE DETAIL A R1(4x) SCALE 2:1 DETAIL A SECTION Y-Y 1 2 SCALE 1:2 3 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3

X1 X1 Y Y XX Y1 Y1 A 1 B C D 234 A B C D 1234 DRAWING NO. HI-P CORPORATION PART NAME SAP NO. MATERIAL 3D VER. 2D VER. SCALE UNIT SHEET CONFIDENTIAL PROJECT NAME 108.75±0.2 (2x)42.950.1 12 (2x)4.060.05 1.25±0.05 2 11 2.95(2x) 19.3±0.1 (2x)2.440.05 (2x)2.250.05 90.1 (2X)3.720.05 8.95 10.53±0.05 42.82 3(2x) 1.2 1 17.4 19.2 9.02±0.1 10.2±0.1 8 10.66 10.8±0.1 100° 5.84 1.75 16.01 40.85±0.1 85.57±0.15 11.1±0.05 1.5 5.55(2x) (2x)9.020.05 8.53±0.1 5.47 11.2±0.05 23.49±0.1 0.69(2x) 10.33±0.1 8.290.1 17.8±0.1 (15.8) 3.25±0.05 0.6 0.6 7.07±0.1 2D VER.ECN NO.DESCRIPTIONDATEDESIGNEDAPPROVED 1 Initial Release18-05-28 WangZhongding Victor.Ge 1.1 for light guide/ battery/PCBA assembly 18-05-31 WangZhongding Victor.Ge 1.2 hithten btn,positioning carrier,bobbin,remove material18-07-22 WangZhongding Victor.Ge 1.3 hithen button 0.1mm18-08-22 WangZhongding Victor.Ge 1.4 modify button rib,add round on catch,add cable routing featurer,update dimension.18-09-21 WangZhongding Victor.Ge Radiant ETB1.4 T36C_CARRIERT36C-0004 1.4 SIGNATUREDATE DESIGNED WangZhongding 18-04-14 See notes 1:1MM1 OF 1CHECKEDTC. Tan 18-05-28 APPROVEDVictor.Ge 18-05-28 COPYRIGHT 2015 HI-P R D CENTERCREATED BY CREOSIZE:A3 CUSTOMER P/N: TOLERANCE UNLESS SPECIAL SPECIFIED SELECT CLASSM LINE DIMENSIONS CLASSFMC 0.00-3.000.050.100.20 (3.00)-6.000.050.100.30 (6.00)-30.000.100.200.50 (30.00)-120.000.150.300.80 (120.00)-INFINITY0.200.501.20 RADII AND CHAMFER HEIGHTS 0.00-3.000.200.40 (3.00)-6.000.501.00 (6.00)-INFINITY1.002.00 ANGULAR DIMENSIONS 0.0-10.00.20.3 (10.0)-50.00.30.5 (50.0)-120.00.51.0 (120.0)-INFINITY1.01.5 For MP tool For prototype tool NOTES: 1. Material: ABS PA757 Finish: B1 PART MUST BE MOLDED USING 100% VIRGIN MATERIA. 2. DIMENSIONS: 2.1 Inspection dimensions marked with " " are critical dimensions and their CPK>=1.33. 2.2 SPC control dimensions are marked with " SPC " and their CPK>=1.33. 2.3 All dimensions without tolerance should comply with the general tolerance table in drawing. 2.4 All features unspecified can be referred to the 3D data. 3. APPEARANCE: 3.1 Finished parts are to be clean and free from all foreign matter. 3.2 Part to be free from flash, sink marks, scratches, inclusions, flow and weld lines. 3.3 Flash and parting line mismatch shall not exceed 0.05mm. 4. TOOLING REQUIREMENTS 4.1 Ejector pads shall not exceed 0.1mm above flush,nor 0.1mm below flush to part surface. 4.2 Gate vestigital shall not exceed 0.1mm beyond the part surface. 4.3 Tooling marking as follows: A. text: standard font, height: 2.5mm, depth: 0.2mm. B. core to be marked with the following details: *material; part number(P/N); *revision letter (1,2,3...) *cavity number (C1/n,C2/n...Cn/n); *recycle symbol; *date code 5.The part should be comply with below regulation and/or directive 5.1.RoHS EU Directive 2011/65/EU and its amendments including EU 2015/863 5.2.China ROHS 2.0 5.3.REACH SVHCs 6.X with triangle mark means the changes in drawing version X. SECTION X1-X1 0.1 SECTION Y-Y SECTION X-X SECTION Y1-Y1 SECTION Y1-Y1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.4 1.4 1.4 1.4 1.4 1.4

X X X1 X1 Y Y A 1 B C D 234 A B C D 1234 DRAWING NO. HI-P CORPORATION PART NAME SAP NO. MATERIAL 3D VER. 2D VER. SCALE UNIT SHEET CONFIDENTIAL PROJECT NAME 105.69±0.15 30.24 13.08±0.05 9.60.1 107.34 23.95 10° 6.32±0.1 8.4 (2x)2.550.05 (2x)2.220.05 20.990.1 20.730.1 (38.34) 0.1 1 10.89 0.61 13.19±0.05 2D VER.ECN NO.DESCRIPTIONDATEDESIGNEDAPPROVED 1 Initial Release18-05-28 WangZhongding Victor.Ge 1.1 highten USW line 0.15mm, add a stopper 18-05-31 WangZhongding Victor.Ge 1.2 round stopper; add draft angle,increase rib diameter,thicken wall18-07-22 WangZhongding Victor.Ge 1.3 extend and widen USW line, change finishing to VDI 2118-09-21 WangZhongding Victor.Ge Radiant ETB1.3 T36C_HANDLET36C-0005 1.3 SIGNATUREDATE DESIGNED WangZhongding 18-04-13 see notes 1:1MM1 OF 1CHECKEDTC. Tan 18-05-28 APPROVEDVictor.Ge 18-05-28 COPYRIGHT 2015 HI-P R D CENTERCREATED BY CREOSIZE:A3 CUSTOMER P/N: TOLERANCE UNLESS SPECIAL SPECIFIED SELECT CLASSM LINE DIMENSIONS CLASSFMC 0.00-3.000.050.100.20 (3.00)-6.000.050.100.30 (6.00)-30.000.100.200.50 (30.00)-120.000.150.300.80 (120.00)-INFINITY0.200.501.20 RADII AND CHAMFER HEIGHTS 0.00-3.000.200.40 (3.00)-6.000.501.00 (6.00)-INFINITY1.002.00 ANGULAR DIMENSIONS 0.0-10.00.20.3 (10.0)-50.00.30.5 (50.0)-120.00.51.0 (120.0)-INFINITY1.01.5 For MP tool For prototype tool NOTES: 1. Material: ABS PA757 Finish: Outter surface VDI21 ; inner surface B1 PART MUST BE MOLDED USING 100% VIRGIN MATERIA. 2. DIMENSIONS: 2.1 Inspection dimensions marked with " " are critical dimensions and their CPK>=1.33. 2.2 SPC control dimensions are marked with " SPC " and their CPK>=1.33. 2.3 All dimensions without tolerance should comply with the general tolerance table in drawing. 2.4 All features unspecified can be referred to the 3D data. 3. APPEARANCE: 3.1 Finished parts are to be clean and free from all foreign matter. 3.2 Part to be free from flash, sink marks, scratches, inclusions, flow and weld lines. 3.3 Flash and parting line mismatch shall not exceed 0.05mm. 4. TOOLING REQUIREMENTS 4.1 Ejector pads shall not exceed 0.1mm above flush,nor 0.1mm below flush to part surface. 4.2 Gate vestigital shall not exceed 0.1mm beyond the part surface. 4.3 Tooling marking as follows: A. text: standard font, height: 2.5mm, depth: 0.2mm. B. core to be marked with the following details: *material; part number(P/N); *revision letter (1,2,3...) *cavity number (C1/n,C2/n...Cn/n); *recycle symbol; *date code 5.The part should be comply with below regulation and/or directive 5.1.RoHS EU Directive 2011/65/EU and its amendments including EU 2015/863 5.2.China ROHS 2.0 5.3.REACH SVHCs 5.4.1935/2004/EC or FDA 5.5.GB 4806 5.6.ASTM F963 for heavy metals 5.7.EN 71-3 Category III for heavy metals 5.8.BPA Free 5.9.Phthalates (7) for CPSC-CH-C1001-09.3 5.10.PAHs (18) for German AfPS GS 2014 PAK Category 1 6.X with triangle mark means the changes in drawing version X. SECTION X-X SEE DETAIL A SCALE 2:1 DETAIL A sharp USW line SECTION X1-X1 SECTION Y-Y 0.1 1.1 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.1

Report Number: 31965475.001 Page 1 of 51 EUT: 250RC Model: 250RC EMC / Rev 0 FCC ID: 2AL5Y-250RC IC ID: 22847-250RC Emissions Test Report EUT Name: 250RC Model No.: 250RC CFR 47 Part 15.247: 2019 and RSS 247: 2017 Prepared for: Colgate-Palmolive Company 909 River Road Piscataway, NJ 08855-1343 Prepared by: TUV Rheinland of North America, Inc. 5015 Brandin Ct. Fremont, CA 94538 Tel: (925) 249-9123 Fax: (925) 249-9124 http://www.tuv.com/ Report/Issue Date: Job # January 7, 2020 234103832 Report Number: 31965475.001 Report Number: 31965475.001 Page 2 of 51 EUT: 250RC Model: 250RC EMC / Rev 0 FCC ID: 2AL5Y-250RC IC ID: 22847-250RC Revisions Revision No. Date MM/DD/YYYY Reason for Change Author 0 1/7/2020 Original Document JB Note: Latest revision report will replace all previous reports. Statement of Compliance Report Number: 31965475.001 Page 3 of 51 EUT: 250RC Model: 250RC EMC / Rev 0 FCC ID: 2AL5Y-250RC IC ID: 22847-250RC Manufacturer: Colgate-Palmolive Company 909 River Road Piscataway, NJ 08855-1343 Requester / Applicant: Colgate-Palmolive Company Name of Equipment: 250RC Model No. 250RC Type of Equipment: Intentional Radiator Application of Regulations: CFR 47 Part 15.247: 2019 and RSS 247: 2017 Test Dates: December 3rd, 2019 to December 6th, 2019 Guidance Documents: Emissions: ANSI C63.10-2013, KDB 558074 D01 DTS Measurement Guidance v05r02, KDB 662911 D01 Multiple Transmitter Output v02r01 Test Methods: Emissions: ANSI C63.10-2013, KDB 558074 D01 DTS Measurement Guidance v05r02, KDB 662911 D01 Multiple Transmitter Output v02r01 The electromagnetic compatibility test and documented data described in this report has been performed and recorded by TUV Rheinland, in accordance with the standards and procedures listed herein. As the responsible authorized agent of the EMC laboratory, I hereby declare that the equipment described above has been shown to be compliant with the EMC requirements of the stated regulations and standards based on these results. If any special accessories and/or modifications were required for compliance, they are listed in the Executive Summary of this report. This report must not be used to claim product endorsement by A2LA or any agency of the U.S. Government. This report shall not be reproduced except in full, without the written authorization of TUV Rheinland of North America. Test Engineer Date January 7, 2020 A2LA Signatory Date January 7, 2020 ISED Testing Cert #3331.02 US1131 US0185 Table of Contents Report Number: 31965475.001 Page 4 of 51 EUT: 250RC Model: 250RC EMC / Rev 0 FCC ID: 2AL5Y-250RC IC ID: 22847-250RC 1 Executive Summary _______________________________________________________ 7 1.1 Scope______________________________________________________________________ 7 1.2 Purpose____________________________________________________________________ 7 1.3 Summary of Test Results _____________________________________________________ 8 1.4 Special Accessories __________________________________________________________ 8 1.5 Equipment Modifications _____________________________________________________ 8 2 Laboratory Information ____________________________________________________ 9 2.1 Accreditations & Endorsements _______________________________________________ 9 2.1.1 US Federal Communications Commission _______________________________________________ 9 2.1.2 NIST / A2LA _____________________________________________________________________ 9 2.1.3 ISED ____________________________________________________________________________ 9 2.1.4 Japan – VCCI _____________________________________________________________________ 9 2.1.5 Acceptance by Mutual Recognition Arrangement ________________________________________ 10 2.2 Test Facilities ______________________________________________________________ 10 2.2.1 Emission Test Facility _____________________________________________________________ 10 2.3 Measurement Uncertainty ___________________________________________________ 10 2.3.1 Sample Calculation – radiated & conducted emissions ____________________________________ 11 2.3.2 Measurement Uncertainty ___________________________________________________________ 11 2.3.3 Measurement Uncertainty Immunity __________________________________________________ 12 2.4 Calibration Traceability _____________________________________________________ 12 3 Product Information ______________________________________________________ 13 3.1 Product Description ________________________________________________________ 13 3.2 Equipment Configuration ___________________________________________________ 13 3.3 Operating Mode ___________________________________________________________ 13 3.4 Unique Antenna Connector __________________________________________________ 14 3.4.1 Results _________________________________________________________________________ 14 4 Emissions ______________________________________________________________ 15 4.1 Output Power Requirements _________________________________________________ 15 4.1.1 Test Method _____________________________________________________________________ 15 4.1.2 Results _________________________________________________________________________ 16 4.2 DTS Bandwidth (6dB) and Occupied Bandwidth ________________________________ 18 4.2.1 Test Method _____________________________________________________________________ 18 4.2.2 Results _________________________________________________________________________ 18 4.3 Peak Power Spectral Density _________________________________________________ 23 4.3.1 Test Method _____________________________________________________________________ 23 4.3.2 Results _________________________________________________________________________ 24 4.4 Out of Band Emissions: Non-Restricted Bands __________________________________ 26 4.4.1 Test Method _____________________________________________________________________ 26 4.4.2 Results _________________________________________________________________________ 27 Table of C…

Text truncated - open the document above for the full version.

Report Number: 31965478.001 EUT: 250RC Model: 250RC Report Date: January 3, 2020 FCC ID: 2AL5Y-250RC IC ID: 22847-250RC : 5015 Brandin Ct, Fremont CA 94538 Tel: (925) 249-9123 Fax: (925) 249-9124 Figure 1: Test Setup for Conducted Emission – Front (AC Mains) Project # 234103832 Report Date: 1/3/2020 Report # 31965478.001 Test Setup Photos Report Number: 31965478.001 EUT: 250RC Model: 250RC Report Date: January 3, 2020 FCC ID: 2AL5Y-250RC IC ID: 22847-250RC : 5015 Brandin Ct, Fremont CA 94538 Tel: (925) 249-9123 Fax: (925) 249-9124 Figure 2: Test Setup for Conducted Emissions – Back (AC Mains) Report Number: 31965478.001 EUT: 250RC Model: 250RC Report Date: January 3, 2020 FCC ID: 2AL5Y-250RC IC ID: 22847-250RC : 5015 Brandin Ct, Fremont CA 94538 Tel: (925) 249-9123 Fax: (925) 249-9124 Figure 3: Test Setup for Radiated Emissions 30MHz to 1000MHz Report Number: 31965478.001 EUT: 250RC Model: 250RC Report Date: January 3, 2020 FCC ID: 2AL5Y-250RC IC ID: 22847-250RC : 5015 Brandin Ct, Fremont CA 94538 Tel: (925) 249-9123 Fax: (925) 249-9124 Figure 4: Test Setup for Radiated Emissions 1GHz to 18GHz Report Number: 31965478.001 EUT: 250RC Model: 250RC Report Date: January 3, 2020 FCC ID: 2AL5Y-250RC IC ID: 22847-250RC : 5015 Brandin Ct, Fremont CA 94538 Tel: (925) 249-9123 Fax: (925) 249-9124 Figure 5: Test Setup for Radiated Emissions 1GHz to 18GHz Report Number: 31965478.001 EUT: 250RC Model: 250RC Report Date: January 3, 2020 FCC ID: 2AL5Y-250RC IC ID: 22847-250RC : 5015 Brandin Ct, Fremont CA 94538 Tel: (925) 249-9123 Fax: (925) 249-9124 Figure 8: EUT (Z-Axis)
