62X151 151.0 mm 151.0 mm 62.0 mm62.0 mm62.0 mm62.0 mm 62.0 mm62.0 mm62.0 mm62.0 mm PLAQLESS SMART BAT TERY OPERATED TOOTHBRUSH 2134 GET STARTED PLAQLESS SMART BAT TERY OPERATED TOOTHBRUSH INSTRUCTION MANUAL INSTRUCTIONS To clean: Af ter use, rinse toothbrush head thoroughly, shake of f excess water, and store upright. To replace battery: Firmly hold the bottom of the handle while rotating the top counter-clockwise. Insert 2 new A A A batteries as indicated inside the brush handle and firmly rotate clockwise back into position to close. 675 2 5 replaceable brush head on/of f and mode change button brush handle instruction manual travel case 2. Insert batteries and turn your toothbrush ON and a) brush following the instructions from the app on your phone, OR b) brush offline: timer alerts every 30 seconds to brush different areas of your mouth. Distinctive timer alert after 2 minutes. Turn the brush off when you are finished Set up your toothbrush 1. · download Colgate Connect App · launch the app and check if Bluetooth® is turned on · create your profile 4 WARNING For adults and children 8 years and older. Adult supervision required for persons with disabilities. Replace refill if brush head becomes loose due to damage. Batter choke hazard. Do not install battery backwards, charge, put in fire, or mix with other battery types. May explode or leak causing injury. Replace all batteries at the same time. ELECTROMAGNETIC COMPATIBILITY The Colgate Connect electric toothbrush complies with all standards regarding electromagnetic fields. It is safe to use if handled properly according to the instructions provided in this manual. HANDLE: Bluetooth® BT 5.0 3. Switch between modes brush opens in the last cleaning mode used. To change mode, press button: · Blue LED – daily clean mode · Pink LED – gentle clean mode FCC STATEMENT Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter ference to radio communications. However, there is no guarantee that inter ference will occur in a particular installation. If this equipment does cause harmful inter ference to radio or television reception, which can be determined by turning the equipment of f and on, the user is encouraged to try and correct the inter ference by one or more of the following measures: · Reorient or relocate the receiving antenna · Increase the separation between the equipment and the receiver · Connect the equipment into an outlet on a circuit dif ferent from that to which the receiver is connected · Consult the dealer or an experienced radio/ T V technician for help This device must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter ference, and (2) this device must accept any inter ference received, including interference that may cause undesired operation. DOWNLOAD COLGATE CONNECT APP 3 1 WARRANTY You can view the warranty of your purchased product by visiting our website at: https://shop.colgate.com/pages/return-policy-and-warranty INSTRUCTION MANUAL CONTENT......................... INSTRUCTIONS............... WARRANT Y..................... 2 3-6 7 USA 1-800-468-6502 USA NEW YORK, NY 10022 U.S.A. www.colgate.com Made in China from imported and local components Version 01, April 2019 COLGATE - PLAQLESS - BTB - MANUAL

COLGATE-PALMOLIVE COMPANY 909 River Road Daniel Roman, N.C.E. Piscataway, NJ 08855-1343 Product Compliance Manager Telephone: +1 732-878-7609 Global Product Safety Email: [email protected] Authority to Act as Agent Date: 24-Jan-2020 Colgate-Palmolive Company 909 River Road Piscataway, NJ 08855-1343 To Whom It May Concern: I appoint TUV Rheinland to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Colgate-Palmolive Company. For TCB applications, we certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: June 1, 2020 By: __________________________ Daniel Roman (Signature) (Print name) Title: Product Compliance Manager Telephone: 732-878-7609 On behalf of: Colgate- Palmolive-Company (Company Name)

COLGATE-PALMOLIVE COMPANY 909 River Road Daniel Roman, N.C.E. Piscataway, NJ 08855-1343 Product Compliance Manager Telephone: +1 732-878-7609 Global Product Safety Email: [email protected] Request of Confidentiality 24-Jan-2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AL5Y-ADVBTB-C To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual Colgate-Palmolive Company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely,

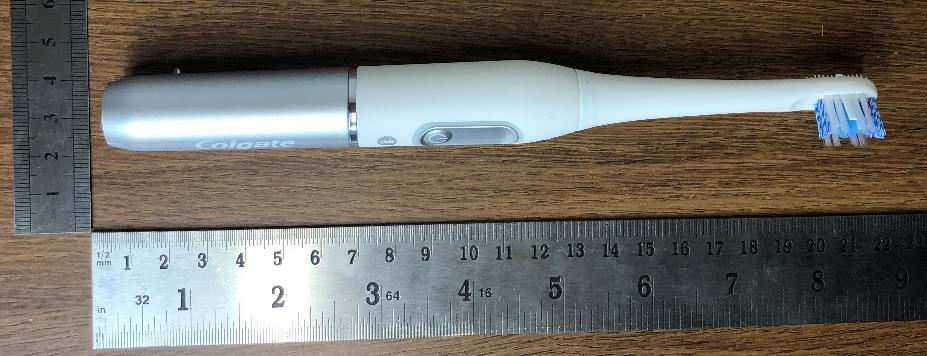

Colgate ADVBTB-C External Photos of the Device Under Test Overall Physical Size: 207 mm (L) x 24 mm (W) x 24 mm (H) 8.15 in (L) x 0.94 in (W) x 94 in (H) Front Back Right Left Top Bottom

Copy of marking plate Manufacturer’s Name: Colgate (Located on front of the battery cap) Model Name: ADVBTB-C (Located on the battery cap) IC: 22847-ADVBTBC Date Code: Located on the toothbrush spindle

Colgate ADVBTB-C Internal Photos of the Device Under Test Internal Front Internal Back Antenna RF Antenna

Report Number: 32051111.002 Page 1 of 53 EUT: Plaqless Model: ADVBTB-C EMC / Rev 1 FCC ID: 2AL5Y-ADVBTB-C IC ID: 22847-ADVBTBC Emissions Test Report EUT Name: Plaqless Model No.: ADVBTB-C CFR 47 Part 15.247: 2019 and RSS 247: 2017 Prepared for: Colgate-Palmolive Company 909 River Road Piscataway, NJ 08855-1343 Prepared by: TUV Rheinland of North America, Inc. 5015 Brandin Ct. Fremont, CA 94538 Tel: (925) 249-9123 Fax: (925) 249-9124 http://www.tuv.com/ Report/Issue Date: Job # April 20, 2020 234122046 Report Number: 32051111.002 Report Number: 32051111.002 Page 2 of 53 EUT: Plaqless Model: ADVBTB-C EMC / Rev 1 FCC ID: 2AL5Y-ADVBTB-C IC ID: 22847-ADVBTBC Revisions Revision No. Date MM/DD/YYYY Reason for Change Author 0 4/9/2020 Original Document AS 1 4/20/2020 Updated FCC/IC IDs AS Note: Latest revision report will replace all previous reports. Statement of Compliance Report Number: 32051111.002 Page 3 of 53 EUT: Plaqless Model: ADVBTB-C EMC / Rev 1 FCC ID: 2AL5Y-ADVBTB-C IC ID: 22847-ADVBTBC Manufacturer: Colgate-Palmolive Company 909 River Road Piscataway, NJ 08855-1343 Requester / Applicant: Colgate-Palmolive Company Name of Equipment: Plaqless Model No. ADVBTB-C Type of Equipment: Intentional Radiator Application of Regulations: CFR 47 Part 15.247: 2019 and RSS 247: 2017 Test Dates: March 9th, 2020 to March 13th, 2020 Guidance Documents: Emissions: ANSI C63.10-2013, KDB 558074 D01 DTS Measurement Guidance v05r02, KDB 662911 D01 Multiple Transmitter Output v02r01 Test Methods: Emissions: ANSI C63.10-2013, KDB 558074 D01 DTS Measurement Guidance v05r02, KDB 662911 D01 Multiple Transmitter Output v02r01 The electromagnetic compatibility test and documented data described in this report has been performed and recorded by TUV Rheinland, in accordance with the standards and procedures listed herein. As the responsible authorized agent of the EMC laboratory, I hereby declare that the equipment described above has been shown to be compliant with the EMC requirements of the stated regulations and standards based on these results. If any special accessories and/or modifications were required for compliance, they are listed in the Executive Summary of this report. This report must not be used to claim product endorsement by A2LA or any agency of the U.S. Government. This report shall not be reproduced except in full, without the written authorization of TUV Rheinland of North America. Alexander J Sowinski Date April 20, 2020 Rachana Khanduri Date April 20, 2020 ISED Testing Cert #3331.02 US1131 US0185 Table of Contents Report Number: 32051111.002 Page 4 of 53 EUT: Plaqless Model: ADVBTB-C EMC / Rev 1 FCC ID: 2AL5Y-ADVBTB-C IC ID: 22847-ADVBTBC 1 Executive Summary _______________________________________________________ 7 1.1 Scope______________________________________________________________________ 7 1.2 Purpose____________________________________________________________________ 7 1.3 Summary of Test Results _____________________________________________________ 8 1.4 Special Accessories __________________________________________________________ 8 1.5 Equipment Modifications _____________________________________________________ 8 2 Laboratory Information ____________________________________________________ 9 2.1 Accreditations & Endorsements _______________________________________________ 9 2.1.1 US Federal Communications Commission _______________________________________________ 9 2.1.2 NIST / A2LA _____________________________________________________________________ 9 2.1.3 ISED ____________________________________________________________________________ 9 2.1.4 Japan – VCCI _____________________________________________________________________ 9 2.1.5 Acceptance by Mutual Recognition Arrangement ________________________________________ 10 2.2 Test Facilities ______________________________________________________________ 10 2.2.1 Emission Test Facility _____________________________________________________________ 10 2.3 Measurement Uncertainty ___________________________________________________ 10 2.3.1 Sample Calculation – radiated & conducted emissions ____________________________________ 11 2.3.2 Measurement Uncertainty ___________________________________________________________ 11 2.3.3 Measurement Uncertainty Immunity __________________________________________________ 12 2.4 Calibration Traceability _____________________________________________________ 12 3 Product Information ______________________________________________________ 13 3.1 Product Description ________________________________________________________ 13 3.2 Equipment Configuration ___________________________________________________ 13 3.3 Operating Mode ___________________________________________________________ 13 3.4 Unique Antenna Connector __________________________________________________ 14 3.4.1 Results _________________________________________________________________________ 14 3.5 Duty Cycle ________________________________________________________________ 14 3.5.1 Results _________________________________________________________________________ 14 4 Emissions ______________________________________________________________ 15 4.1 Output Power Requirements _________________________________________________ 15 4.1.1 Test Method _____________________________________________________________________ 15 4.1.2 Results _________________________________________________________________________ 16 4.2 DTS Bandwidth (6dB) and Occupied Bandwidth ________________________________ 19 4.2.1 Test Method _____________________________________________________________________ 19 4.2.2 Results _________________________________________________________________________ 19 4.3 Peak Power Spectral Density _________________________________________________ 26 4.3.1 Test Method _____________________________________________________________________ 26 4.3.2 Results _________________________________________________________________________ 27 Table of Cont…
