BL-R8189RM2 802.11n 150Mbps SDIO WLAN Module Specification SHENZHEN BILIAN ELECTRONIC CO., LTD Add: 10~11/F, Building 1A, Huaqiang idea park, Guangming district, Shenzhen. Guangdong, China Web: www.b-link.net.cn 1http://www.b-link.net.cn Top viewBottom view Revision History RevisionSummaryRelease Date V1.0Initial release2020-09-20 Module Name: BL-R8189RM2 Module Type: 802.11b/g/n 150Mbps SDIO WLAN Revision: V1.0 Customer App roval: Company: Title: Signature:Date: BL-link Approval: Title: Signature:Date: 2http://www.b-link.net.cn 1. Introduction BL-R8189RM2 product Accord with FCC CEandis 150 wireless SDIO adapter which has lower power consumption, high linearity output power, accords with IEEE802.11B/G/N, and supports IEEE802.11i safety protocol, along with IEEE 802.11e standard service quality. It connects with other wireless device which accorded with these standards together, supports the new data encryption on 64/128 bit WEP and safety mechanism on WPA-PSK/WPA2-PSK, WPA/WPA2.Its wireless transmitting rate rises 150M, equivalent to 10 times of common 11b product. The inner AI high gain ceramics antenna adapts different kinds of work environment. It’s easy and convenient to link to wireless network for the users using desktop, laptop and other device that needs connect to wireless network. 1.1 Features WLAN Operating Frequencies: 2.4~2.4835GHz IEEE Standards: IEEE 802.11b/g/n Wireless data rate can reach up to 150Mbps Connect to the external antenna through the half hole Power Supply: VDD 3.3V±0.2V 1.2 Block Diagram 3http://www.b-link.net.cn 1.3 General Specifications Module NameBL-R8189RM2 WiFi Module ChipsetRTL8189ES WiFi StandardsIEEE 802.11b, IEEE 802.11g,IEEE 802.11n Host InterfaceSDIO 1.1/ 2.0/ 3.0 AntennaConnect to the external antenna through the half hole Dimension14*12.5*1.52mm (LxWxH), Tolerance: +-0.15mm Power Supply3.3V+/-0.2V@360mA Operation Temperature-20°C to +70°C Operation Humidity10% to 95% RH (Non-Condensing) 2. Pin Assignments (Top View) 2.1 Pin Definition NoPin NameTypeDescriptionSupply 1SDIO_CMDI/OSDIO command/GSPI data input 2SDIO_D3I/OSDIO data 3 /GSPI chip select 3SDIO_D2I/OSDIO data 2 4SDIO_D1I/OSDIO data 1 /GSPI data out 5SDIO_D0I/OSDIO data 0 /GSPI data output 6SDIO_CLKI/OSDIO clock /GSPI clock 7GNDP Ground 4http://www.b-link.net.cn 8GNDPGround 9ANTRFWLAN radio antenna pad 10WAKEI/OWLAN wake 11VIOI/OPower supply for I/O 12VCCI/O VDD3.3V for digital IO 13CSI/OPower down select P: Power, I: Input, O: Output, I/O: In/Output, RF: Analog RF Port 3. Electrical and Thermal Specifications 3.1 Recommended Operating Conditions ParametersMinTypMaxUnits Ambient Operating Temperature-202570°C External Antenna VSWR (Voltage Standing Wave Ratio)------ Supply VoltageVDD3.13.33.5V 3.2 Digital I/O DC Specifications SymbolParameterMinTypMaxUnits VIHInput High Voltage2.03.33.6V VILInput Low Voltage--00.9V VOHOutput High Voltage2.97--3.3V VOL Output Low Voltage 0--0.33V 4. WiFi RF Specifications 4.1 2.4G WiFi RF Specification Conditions : VDD=3.3V ; Ta:25°C FeaturesDescription WLAN StandardIEEE 802.11b, IEEE 802.11g,IEEE 802.11n Frequency Range2.4~2.4835GHz (2.4GHz ISM Band) 5http://www.b-link.net.cn ChannelsCh1~Ch11 Modulation 802.11b (DSSS): DBPSK, DQPSK, CCK; 802.11g (OFDM): BPSK, QPSK, 16QAM, 64QAM; 802.11n (OFDM): BPSK, QPSK, 16QAM, 64QAM; Date Rate 802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps; 802.11n (HT20): MCS0~MCS7(1T1R_SISO) 6.5~72.2Mbps; 802.11n (HT40): MCS0~MCS7(1T1R_SISO) 13.5~150Mbps; Frequency Tolerance≦ ±25ppm 2.4G Transmitter Specifications (Ant0) TX RateTX PowerTX Power ToleranceEVM 802.11b@1~11Mbps17dBm±1.5dBm≦-10dB 802.11g@6Mbps16dBm±1.5dBm≦-10dB 802.11g@54Mbps14dBm±1.5dBm≦-25dB 802.11n@HT20_MCS016dBm±1.5dBm≦-10dB 802.11n@HT20_MCS714dBm±1.5dBm≦-28dB 802.11n@HT40_MCS015dBm±1.5dBm≦-10dB 802.11n@HT40_MCS713dBm±1.5dBm≦-28dB 2.4G Receiver Specifications (Ant0) RX RateMin Input Level (Typ)Max Input Level (Typ)PER 802.11b@1Mbps-92dBm-5dBm< 8% 802.11b@11Mbps-86dBm-5dBm< 8% 802.11g@6Mbps-88dBm-10dBm< 10% 802.11g@54Mbps-72dBm-10dBm< 10% 802.11n@HT20_MCS0-87dBm-10dBm< 10% 802.11n@HT20_MCS7-68dBm-10dBm< 10% 802.11n@HT40_MCS0-85dBm-10dBm< 10% 802.11n@HT40_MCS7-65dBm-10dBm< 10% 6http://www.b-link.net.cn 5. Mechanical Specifications 5.1 Module Outline Drawing Top viewSide view Module dimension: 14.0mm*12.5mm*1.52mm （L*W*H , Tolerance: ±0.15mm） Module Bow and Twist：≤0.1mm 7http://www.b-link.net.cn 5.2 Mechanical Dimensions Top viewSide viewBottom view Top view Reference PCB layout package design 8http://www.b-link.net.cn 6. Application Information 6.1 Typical Application Circuit 6.2 Reflow Soldering Standard Conditions Please use the reflow within 2 times. Set up the highest temperature within 250°C. 9http://www.b-link.net.cn 7. Key Components Of Module No.PartsSpecificationManufacturerNote 1ChipsetRTL8189ESRealtek 2PCBBL-M8189RM2 Shen Zhen Tie Fa Technology limited Guangdong KINGSHINE ELECTRONICS CO., LTD Quzhou Sunlord Electronics Co., Ltd 3Crystal40MHz-15pF-15ppm HUBEI TKD ELECTRONICS TECHNOLOGY CO., LTD. LUCKI CM ELECTRONICS CO., LTD 8. Package and Storage Information 8.1 Package Dimensions 10http://www.b-link.net.cn Package specification: 1. 2000 modules per roll and 10,000 modules per box. 2. Outer box size: 37.5*36*29cm. 3. The diameter of the blue environment-friendly rubber plate is 13 inches, with a total thickness of 28mm (with a width of 24mm carrying belt). 4. Put 1 package of dry agent (20g) and humidity card in each anti-static vacuum bag. 5. Each carton is packed with 5 boxes. 8.2 Storage Conditions Absolute Maximum Ratings: Storage temperature: -45°C to +85°C Storage humidity: 10% to 95% RH（Non-Condensing） Recommended Storage Conditions: Storage temperature: 5°C to +40°C Storage humidity: 20% to 90% RH Please use this Module within 12month after vacuum-packaged. The Module shall be stored without opening the packing. After the packing opened, the Module shall be used within 72hours. When the color of the humidity indicator in …

Text truncated - open the document above for the full version.

Octo Fede Auth 7345 Colu On o C, 1s Villa to ac that certi f defin labe For i beha for c Room Long <Sig n Name Title： Applic ober 25, 202 eral Commu horization & 5 Oakland M umbia, Mary our behalf, I st Floor, Blo ge, Nansha ct as our age submitted d fication is so ned in the Fe l identical to instances w alf, I acknow certification, m 501, Build ghua District nature>： e：Hanbing Manager cant Compa 22 unications C Evaluation D Mills Road land 21046 appoint She ock B, Jun X n District, S ent in the pr documents p ought. I also ederal Comm o that submit where our au wledge that still resides ding 3, No. 3 t, Shenzhen Deng any：Shenz ommission Division Author i enzhen Time Xiang Da Bui henzhen, C reparation of properly desc o certify that munications tted for appr uthorized ag all responsi with She 32, Dafu Ro n City, China zhen Bilian ity to Act as eway Testin ilding, Zhon hina (Name f this applica cribe the de each unit m s Commissio roval with th ent signs th ibility for com nzhen Bi ad, Zhangge a Electronic C s Agent ng Laborator gshan Park of Agent co ation for equ evice or syst manufactured on’s regulatio his applicatio he applicatio mplying with lian Elec e Communit Co.,Ltd. ries/ Zone C Road West ompany nam uipment cert em for which d, imported ons will hav on. on for certific h the terms tronic C o ty, Fucheng C, 1st Floor, t, Tong Le me and addr tification. I c h equipme n or marketed ve affixed to cation on ou and conditio o.,Ltd. / Street, Zone ress) ertify t d, as it a ur ons

October 25, 2022 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AL6K-BL-R8189RM2 Product Name: 802.11b/g/n 150Mbps SDIO WLAN Module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>： Name：Hanbing Deng Title：Manager Applicant Company：Shenzhen Bilian Electronic Co.,Ltd.

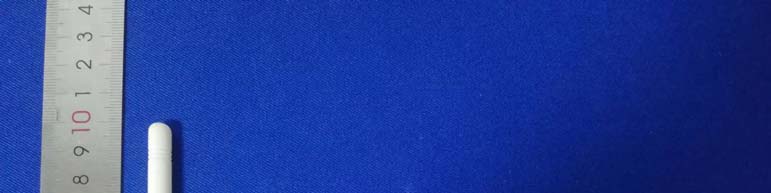

Outside View

FCCID:2AL6K-BL-R8189RM2

Label Location

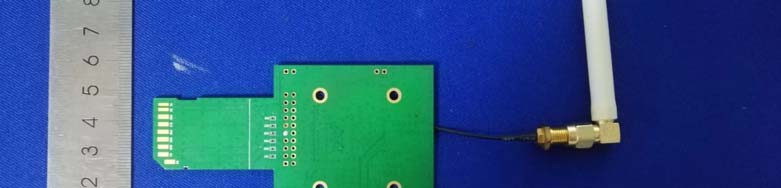

Inside view

SAR evaluation FCC ID: 2AL6K-BL-R8189RM2 MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated WIFI Result and Limit (WORSE CASE IS AS BELOW) Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 1.585 46.34 （16.66dBm） 0.01461 1 Compiles Note: Antenna Gain: 2.0dBi (2.4G Band) Antenna Gain (Numeric): 1.585dBi

Report No.: TW2210072E Applicant: Shenzhen Bilian Electronic Co.,Ltd. Product: 2.4GHz wifi mainboard Model No.: BL-R8189RM2 Trademark: N/A Test Standards: FCC Part 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10, FCC Part 15.247 for the evaluation of electromagnetic compatibility Approved By Terry Tang Manager Dated: October 24, 2022 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No.: TW2210072E Page 2 of 60 Date: 2022-10-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with “Quality Law of People’s Republic of China” Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAL. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAL-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2017 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 744189 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 744189. Industry Canada (IC) —Registration No.:5205A The EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 5205A. A2LA (Certification Number:5013.01) The EMC Laboratory has been accredited by the American Association for Laboratory Accreditation (A2LA). Certification Number:5013.01 Report No.: TW2210072E Page 3 of 60 Date: 2022-10-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details............................................................................................... 4 1.3 Description of EUT ........................................................................................... 4 1.4 Submitted Sample.............................................................................................. 5 1.5 Test Duration................................................................................................... 5 1.6 Test Uncertainty............................................................................................... 5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 8 3.1 Summary of Test Results..................................................................................... 8 3.2 Test Standards.................................................................................................. 8 4.0 EUT Modification............................................................................................. 8 5.0 Power Line Conducted Emission Test...................................................................... 9 5.1 Schematics of the Test........................................................................................ 9 5.2 Test Method and Test Procedure............................................................................ 9 5.3 Configuration of the EUT.................................................................................... 9 5.4 EUT Operating Condition.....................................…

Text truncated - open the document above for the full version.

AntennaSPECIFICATIONFORAPPROVAL CUSTOMER:ShenzhenBilianElectronicCo.,Ltd. PARTNAME:2.4GAntenna SUPPLIERNO:YJI01.005.006.302E ElectricalProperties FrequencyFrequency2.4-2.5GHz900-930MHz Impedance50OhmNominal V.S.W.R2.0Max ReturnReturnLossLoss10dBMax RadiationOmni-directional Gain(Peak)2.0dBi PolarizationLinear PhysicalProperties AntennaTYPEExternalantenna CableTypeO.D.1.37mm低损耗 //L=395mm OperatingTemp.-40~+85 ̊C StorageTemp.-40~+85 ̊C CableColorBlack

Conducted Emission Test Setup: Radiated Emission Test Setup:
